DS-B

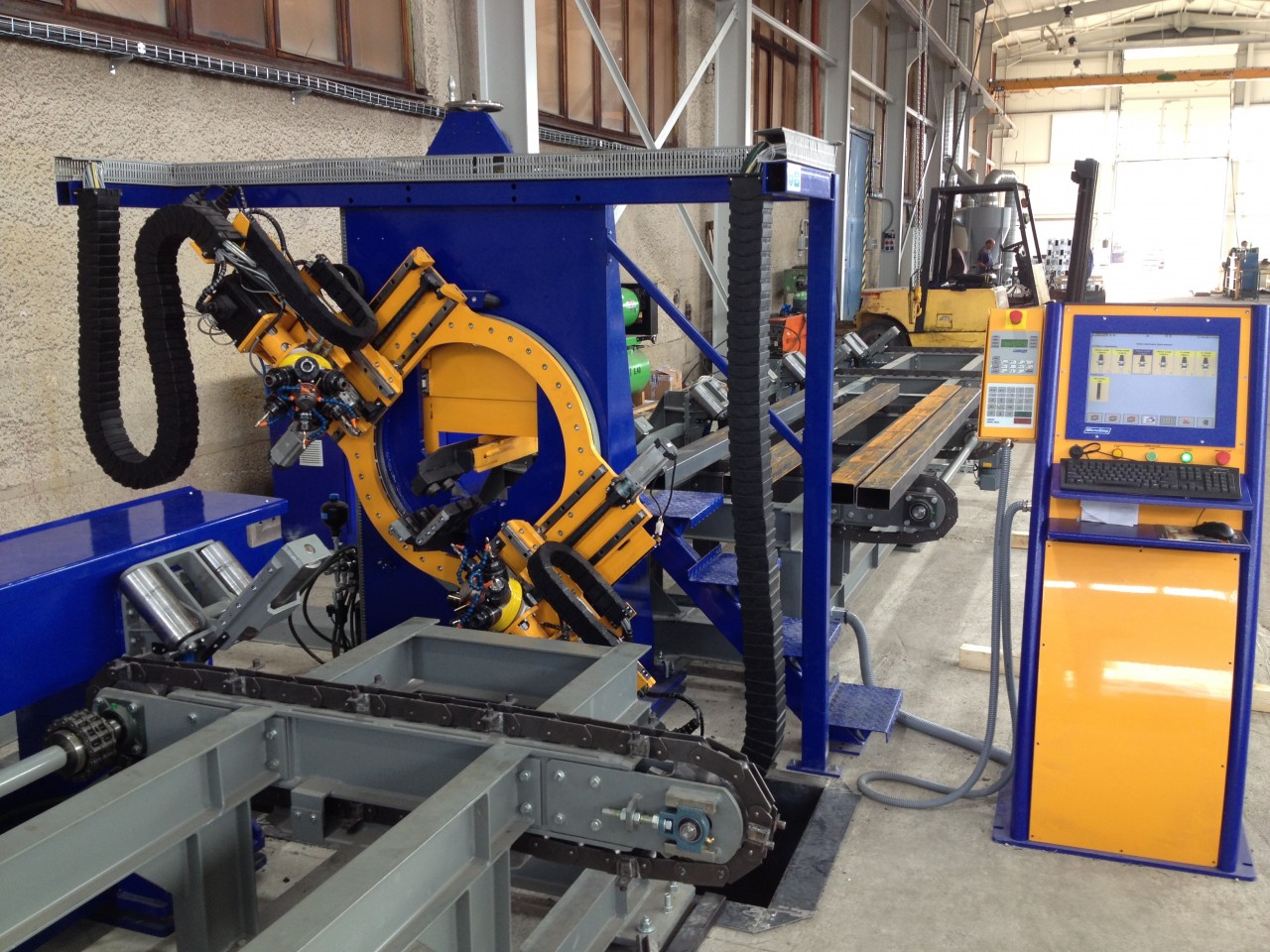

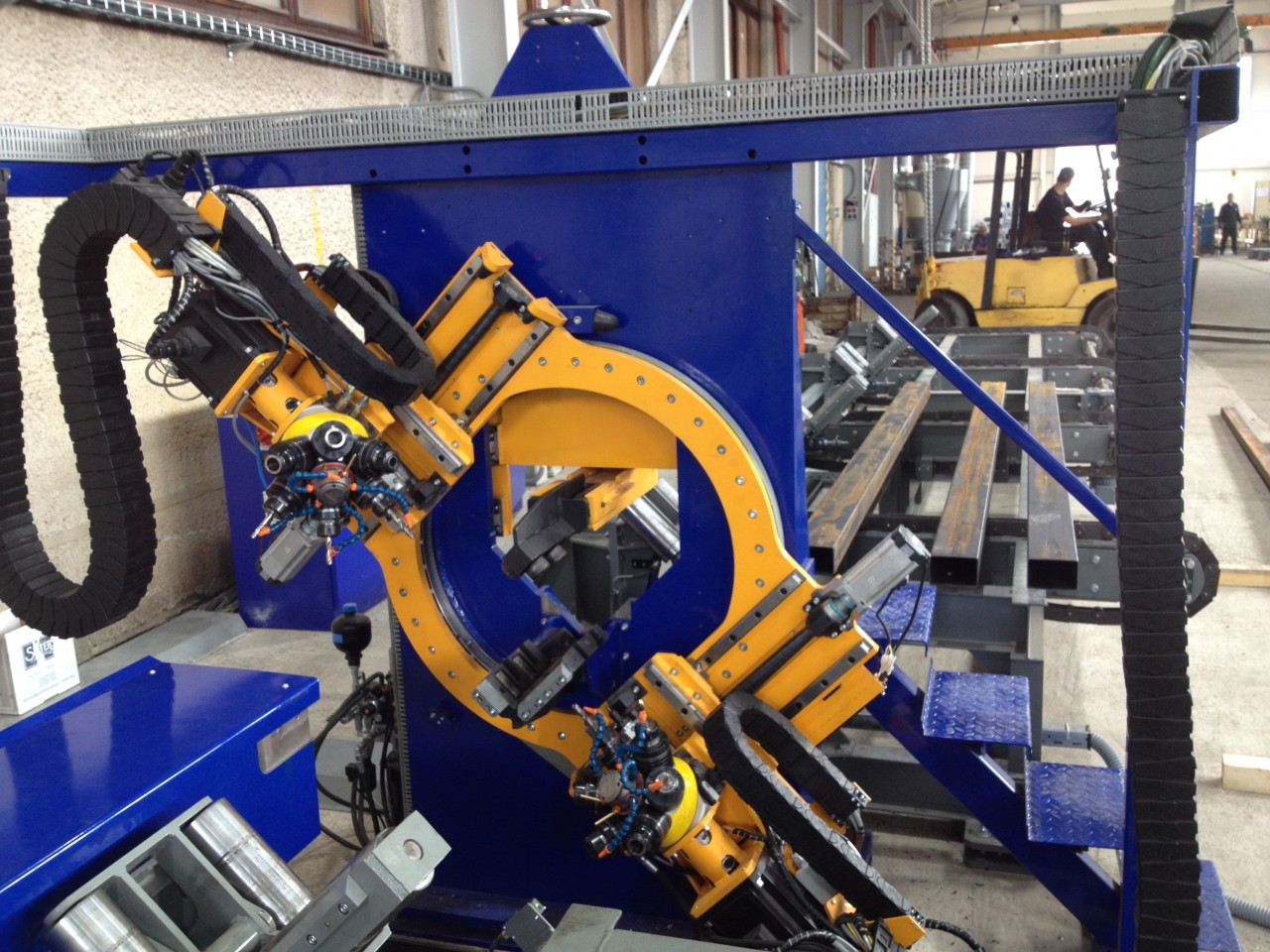

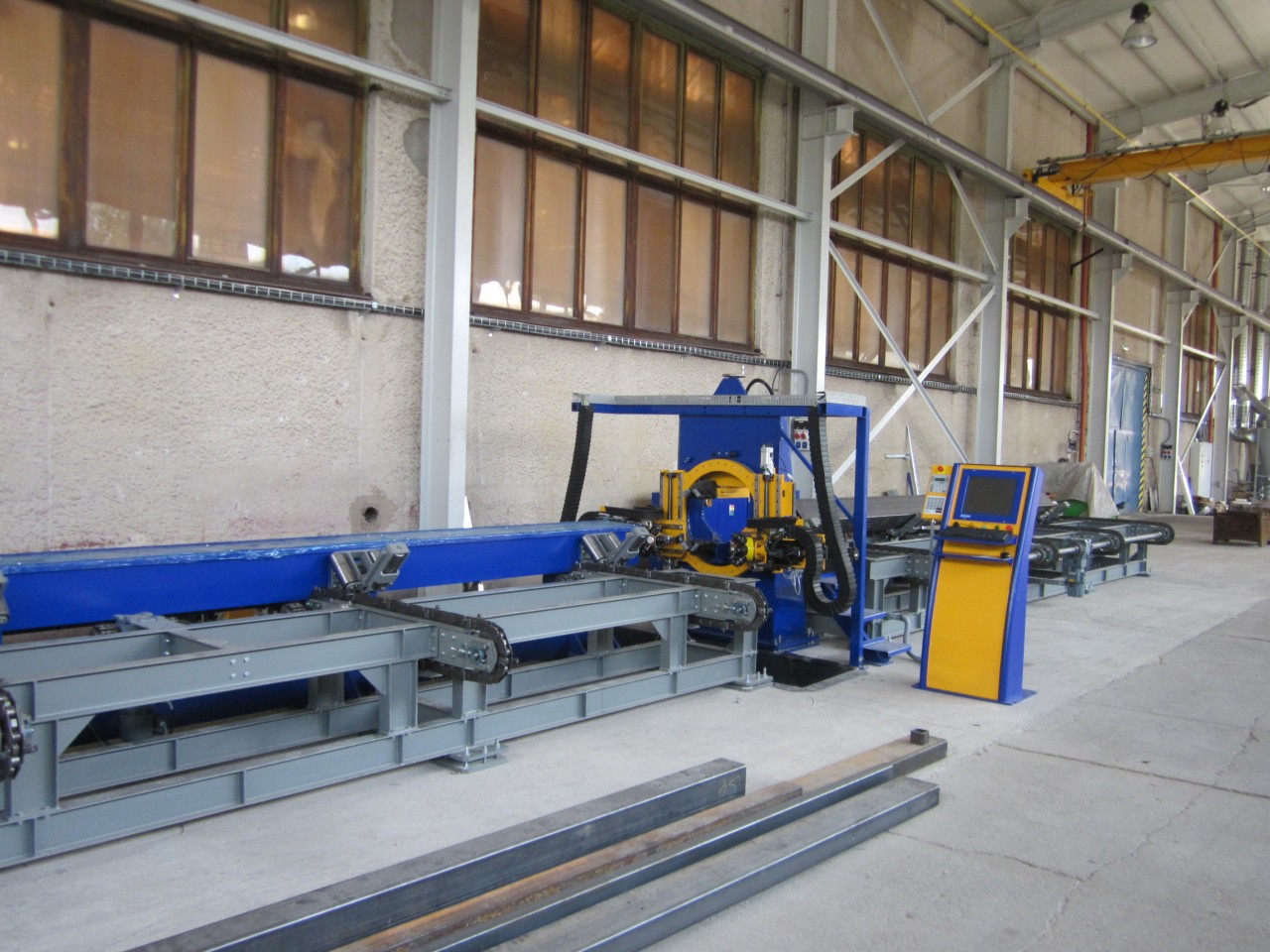

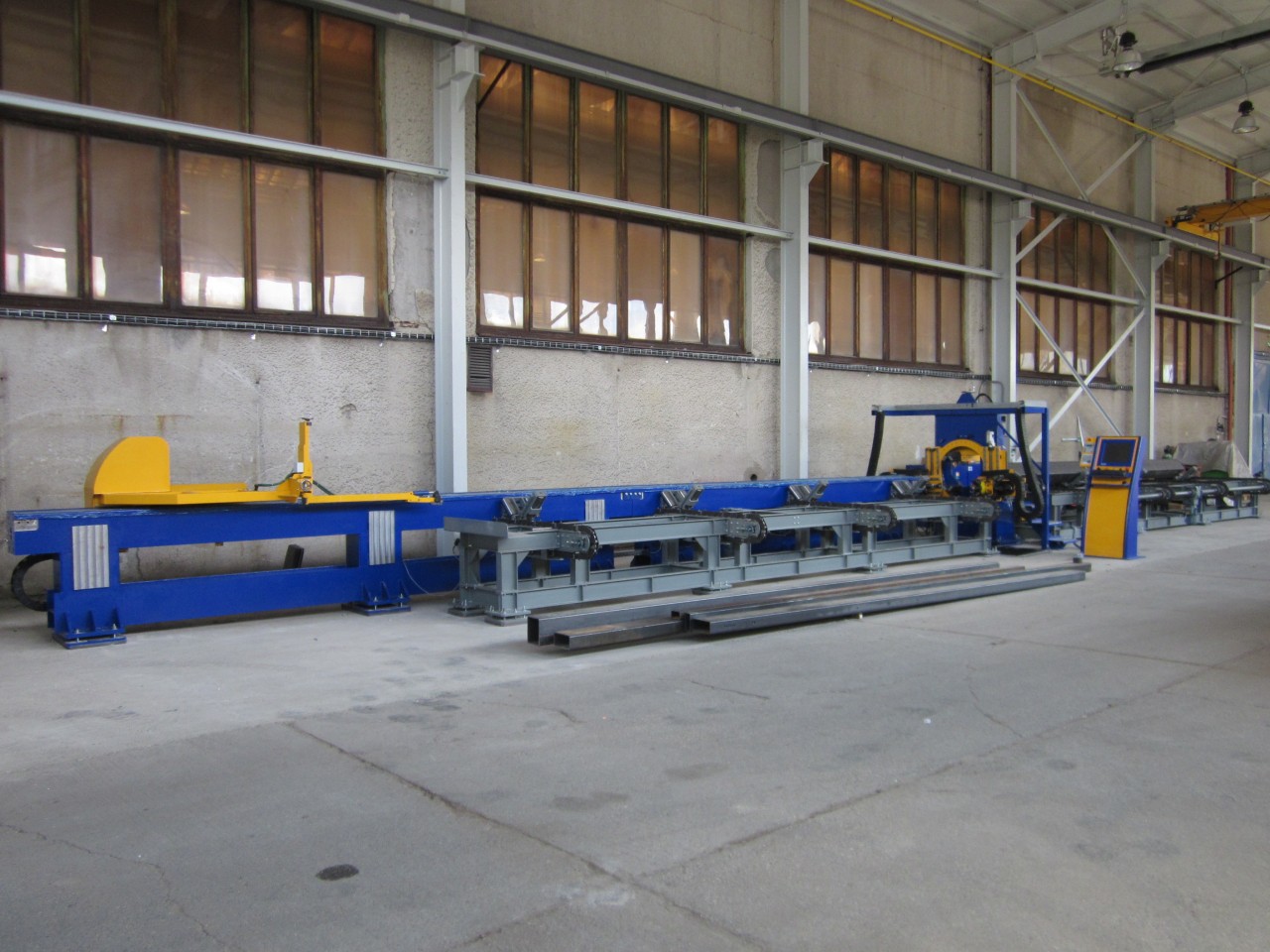

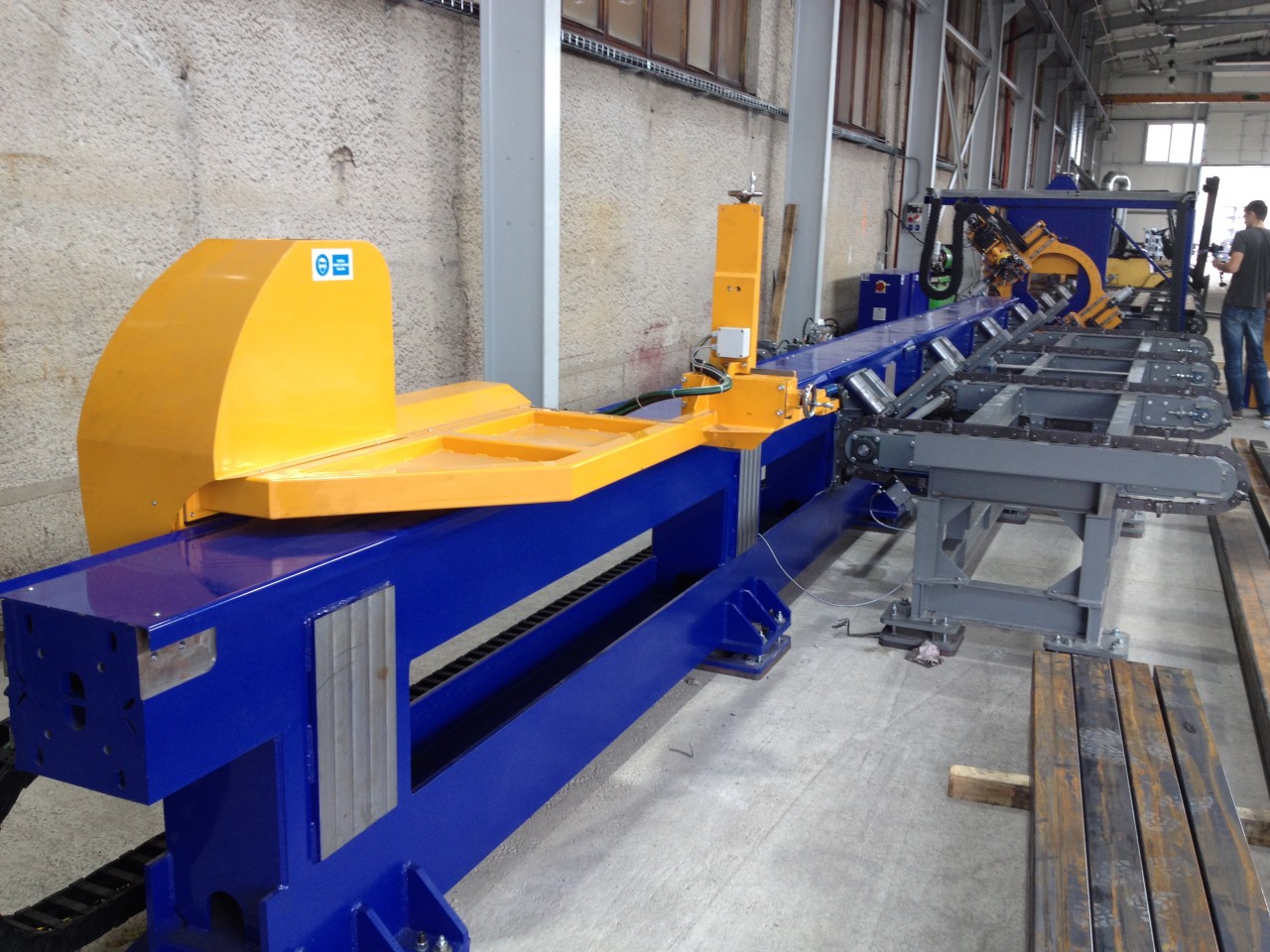

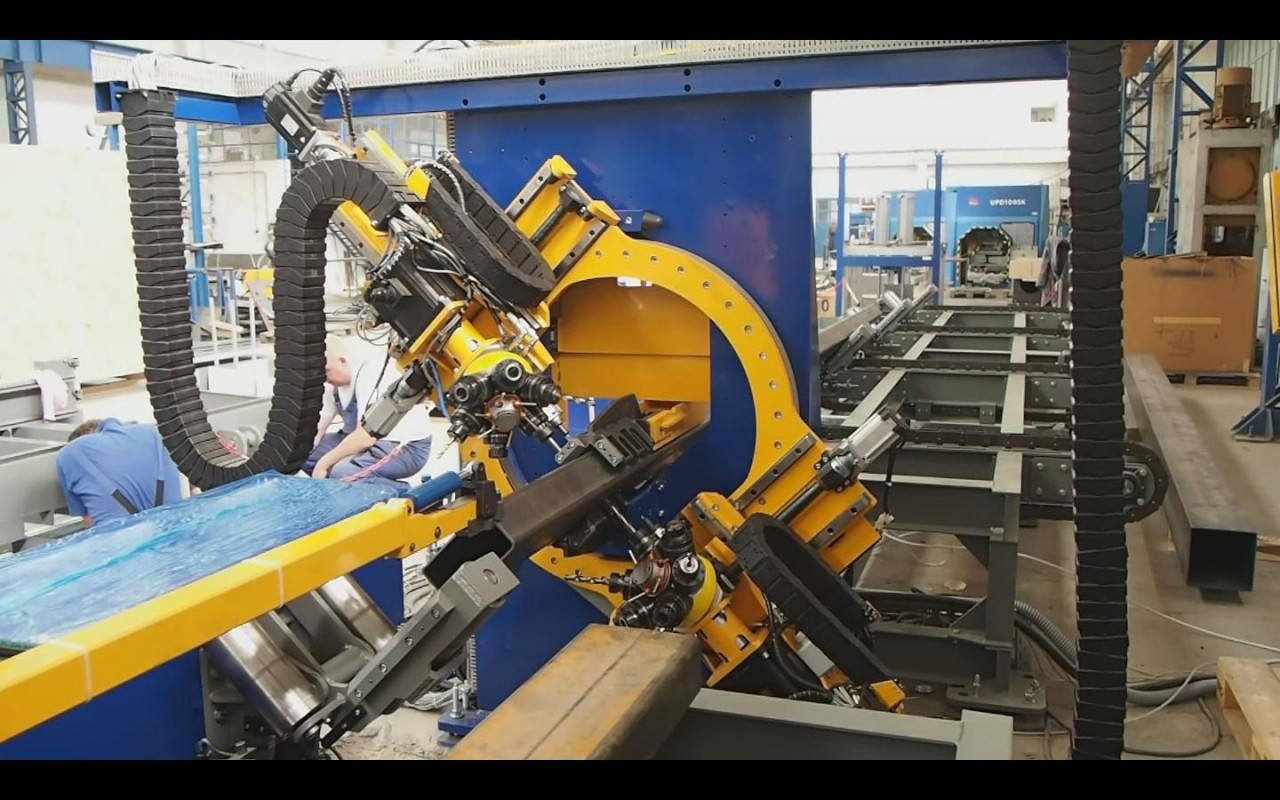

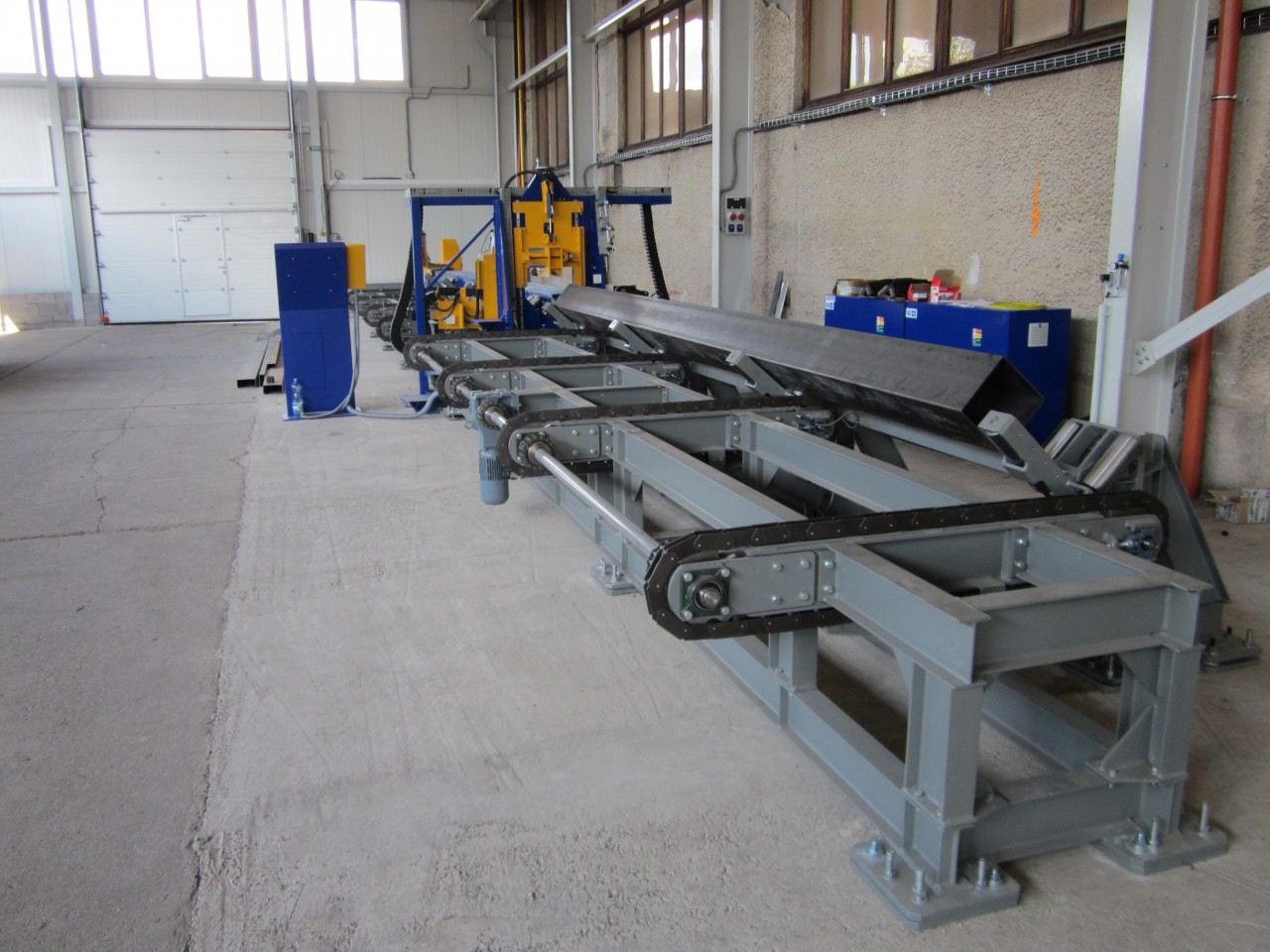

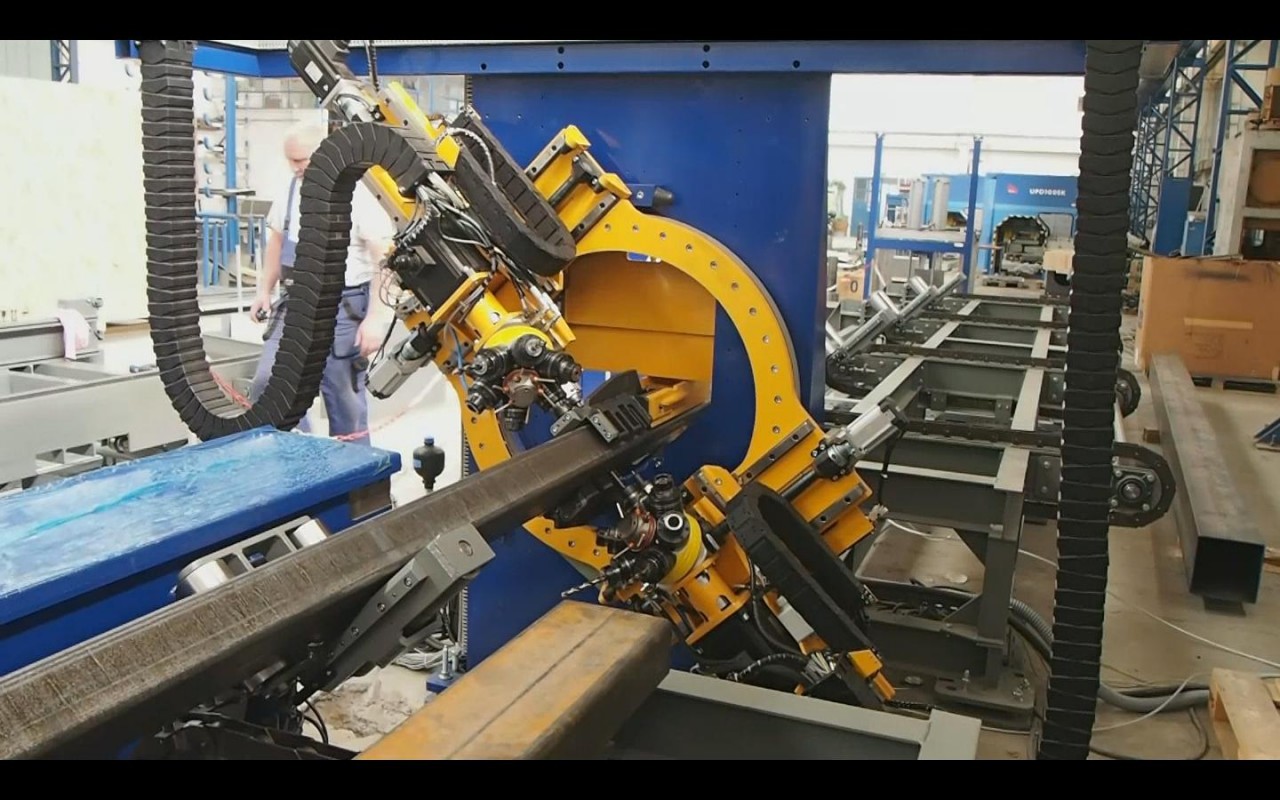

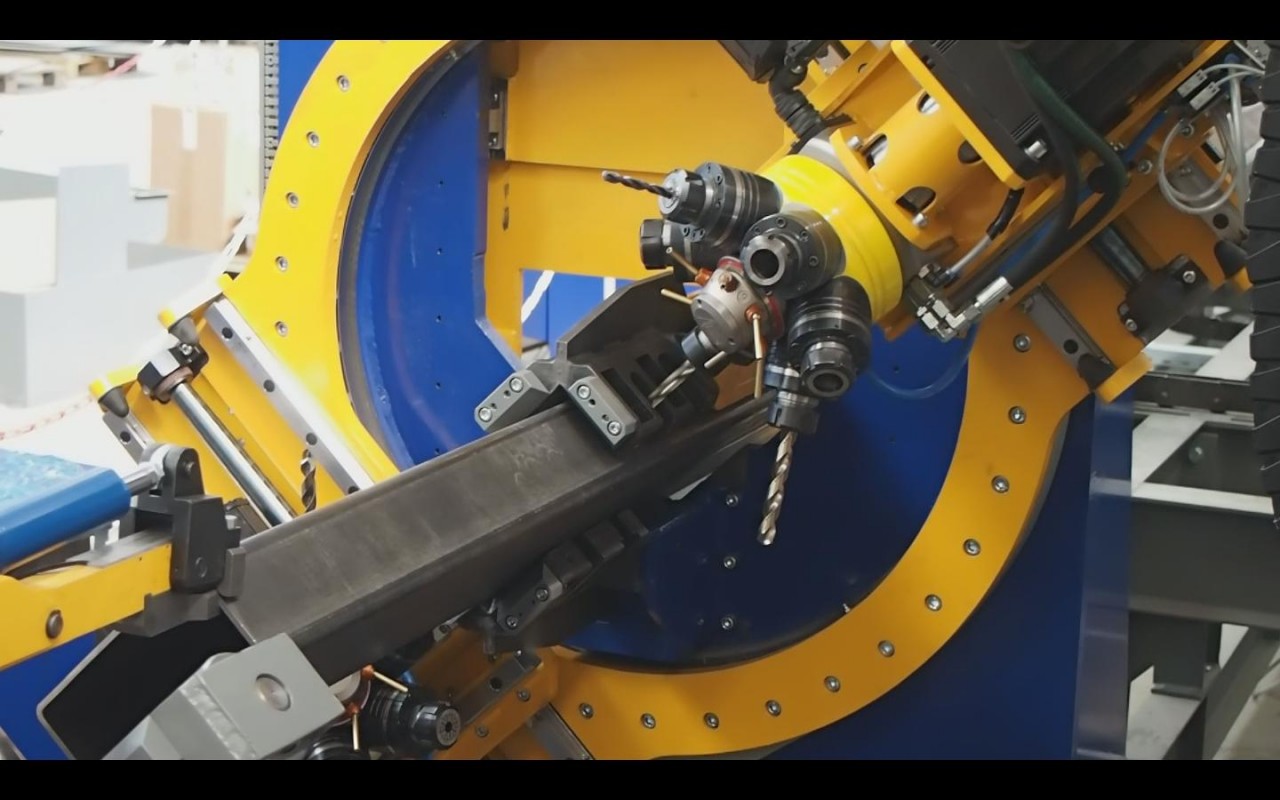

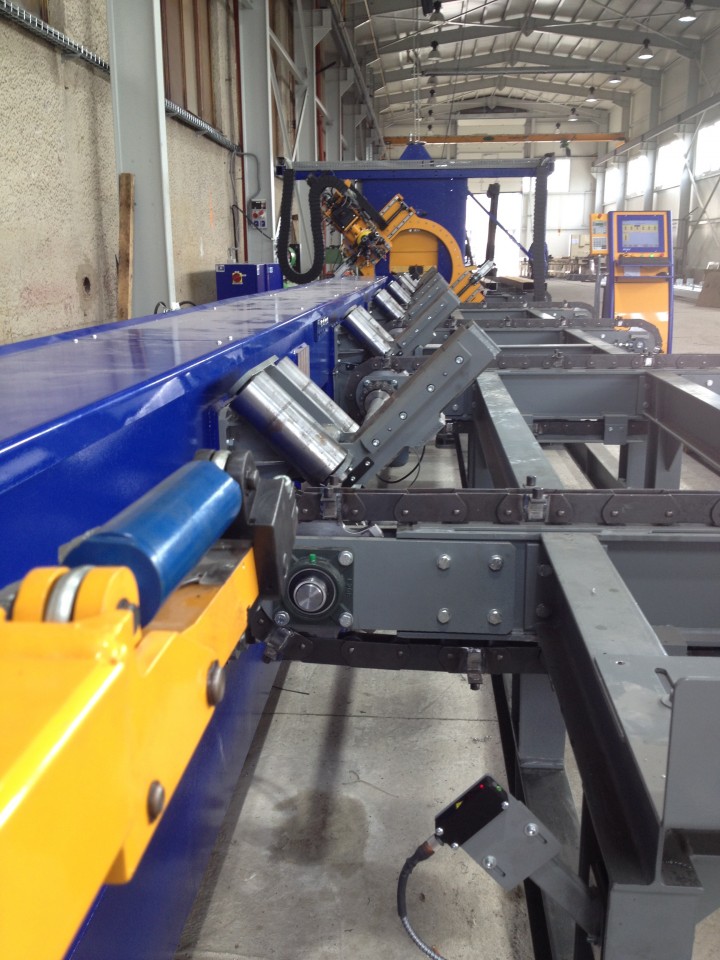

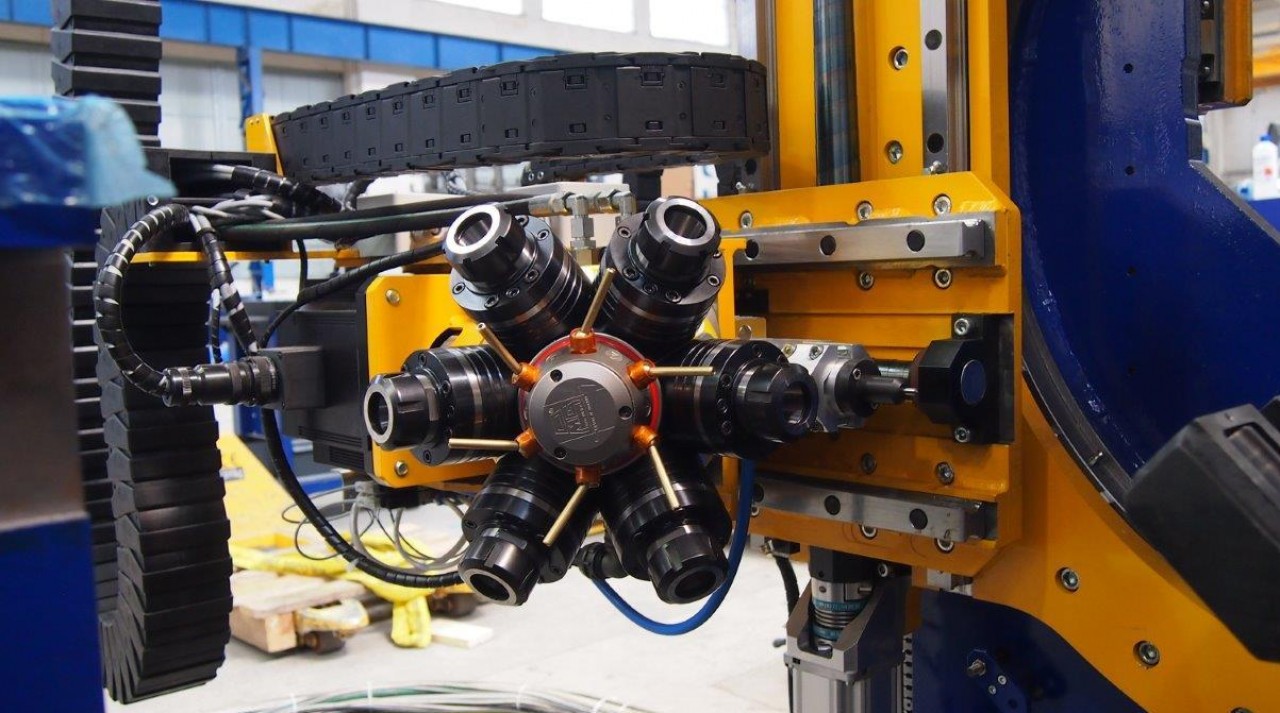

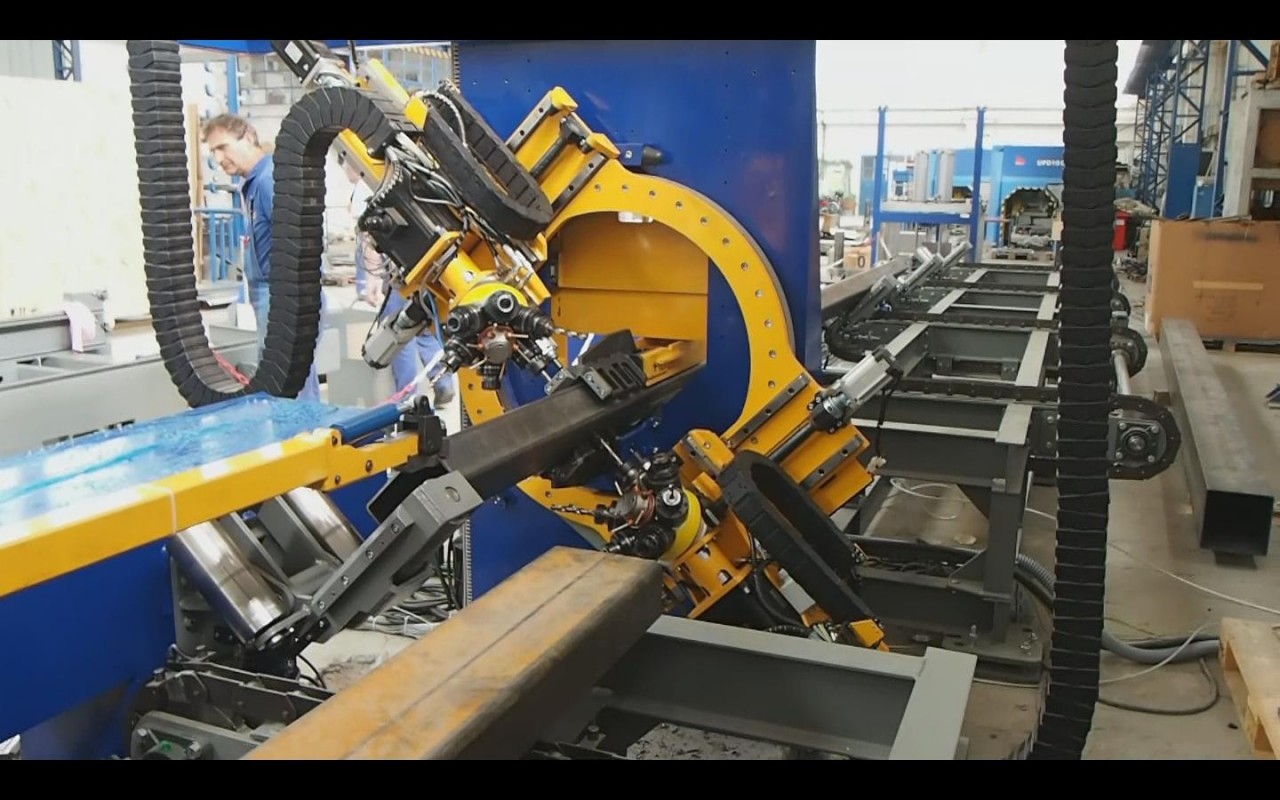

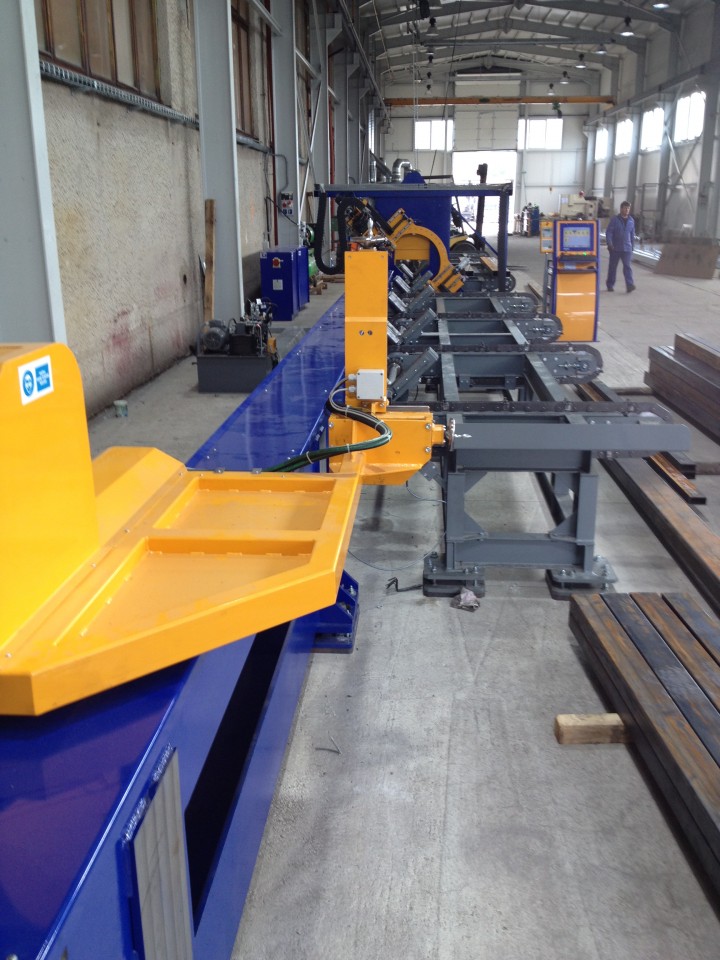

DS-B is designed for dual-side high-efficiency drilling and tapping of hollow profiles with square or rectangular cross-sections. The working area of the machine consists of a rotary drilling support with two turret drilling heads (each head has 6 tool positions). The machine is designed for a high level of automation within the factory workflow with automatic loading and unloading of profiles via transversal chain conveyors. After the profile is clamped by a gripper and moves into the working area of the machine, a laser scanner is used to measure the profile edge. Profile is drilled simultaneously from two opposite sides.

Technical parameters

Profile length 3000 - 12000 mm

Profile criss-section dimensions 50 x 50 mm - 300 x 300 mm

Drilling and tapping Ø 6 - 24 mm, M6 - M12, automatic tool exchange
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
