DS

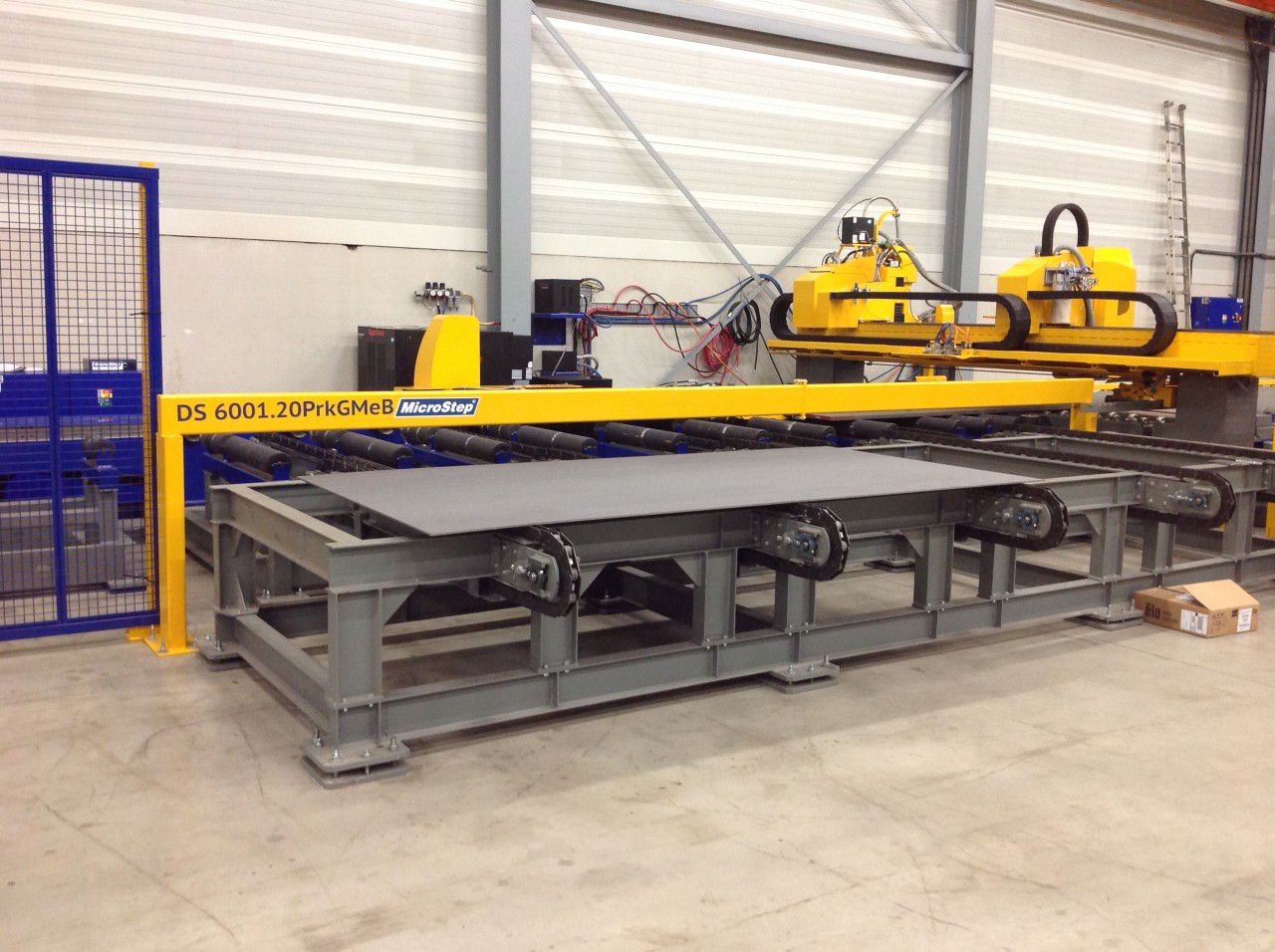

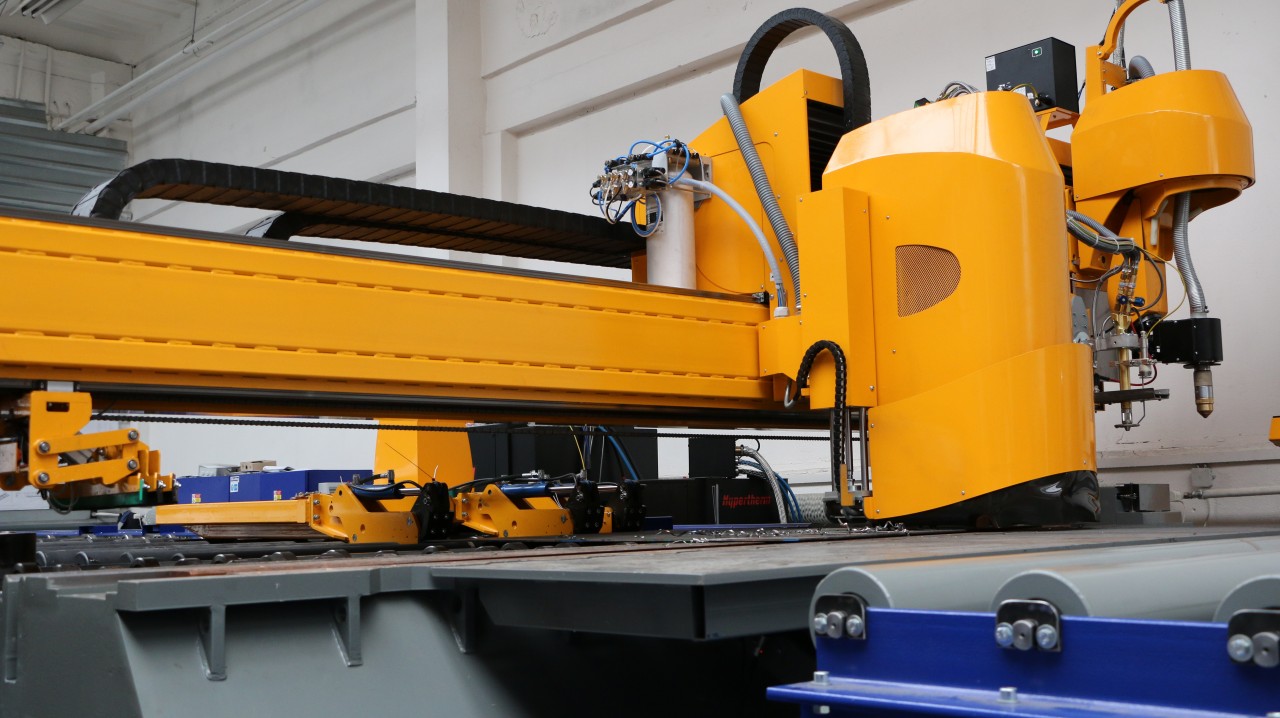

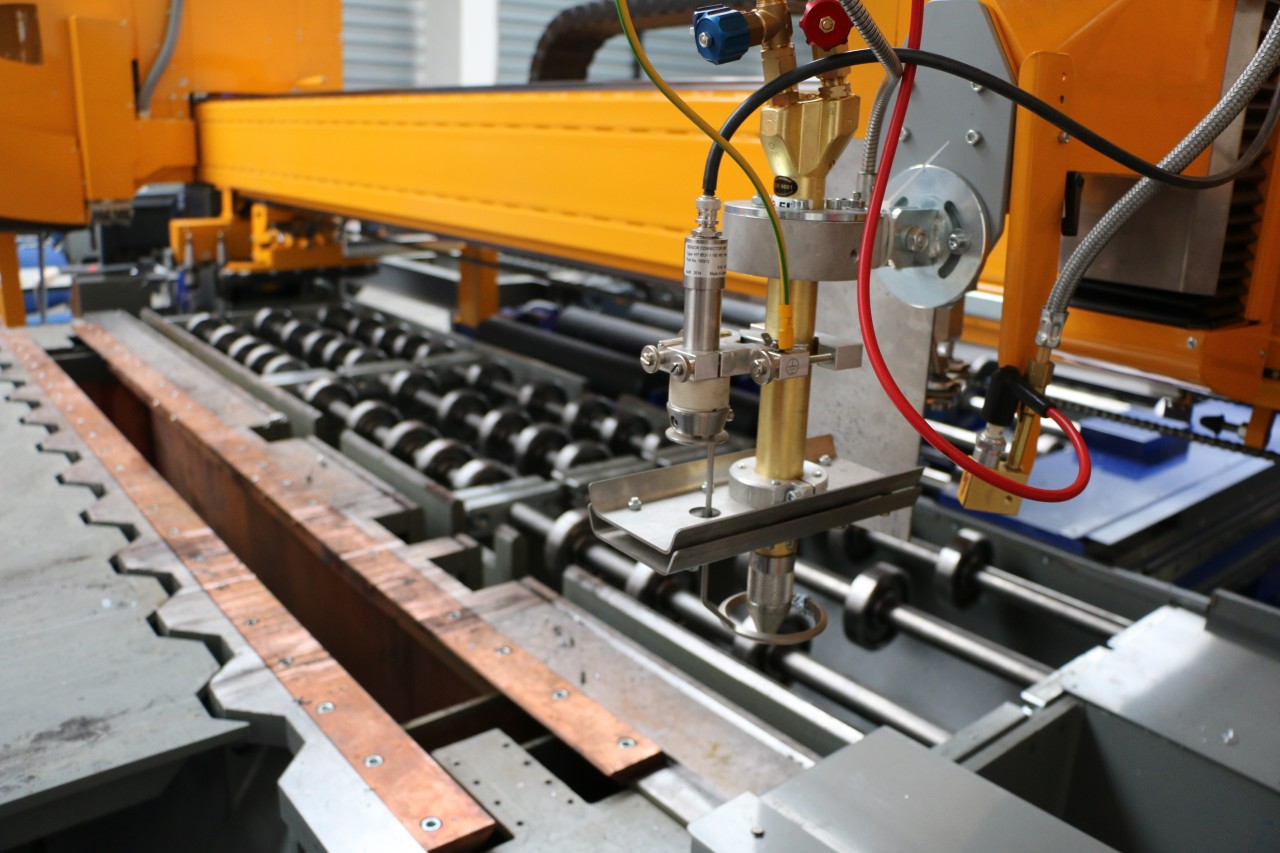

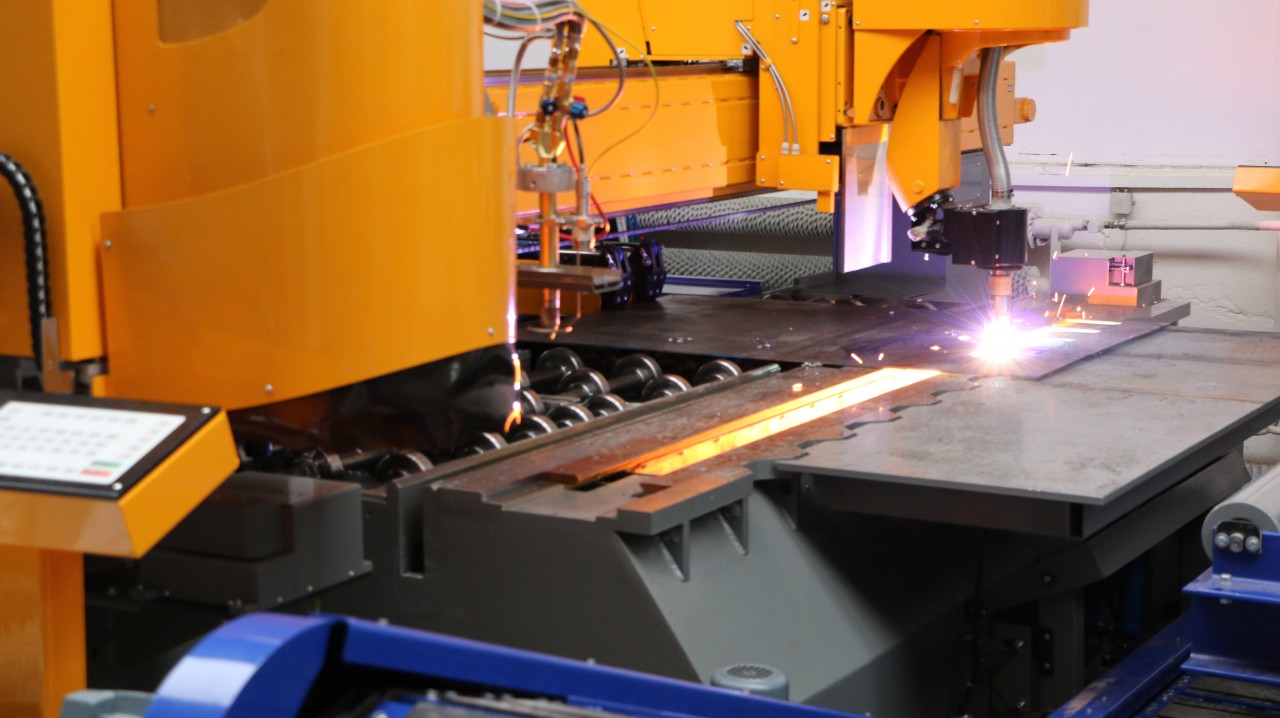

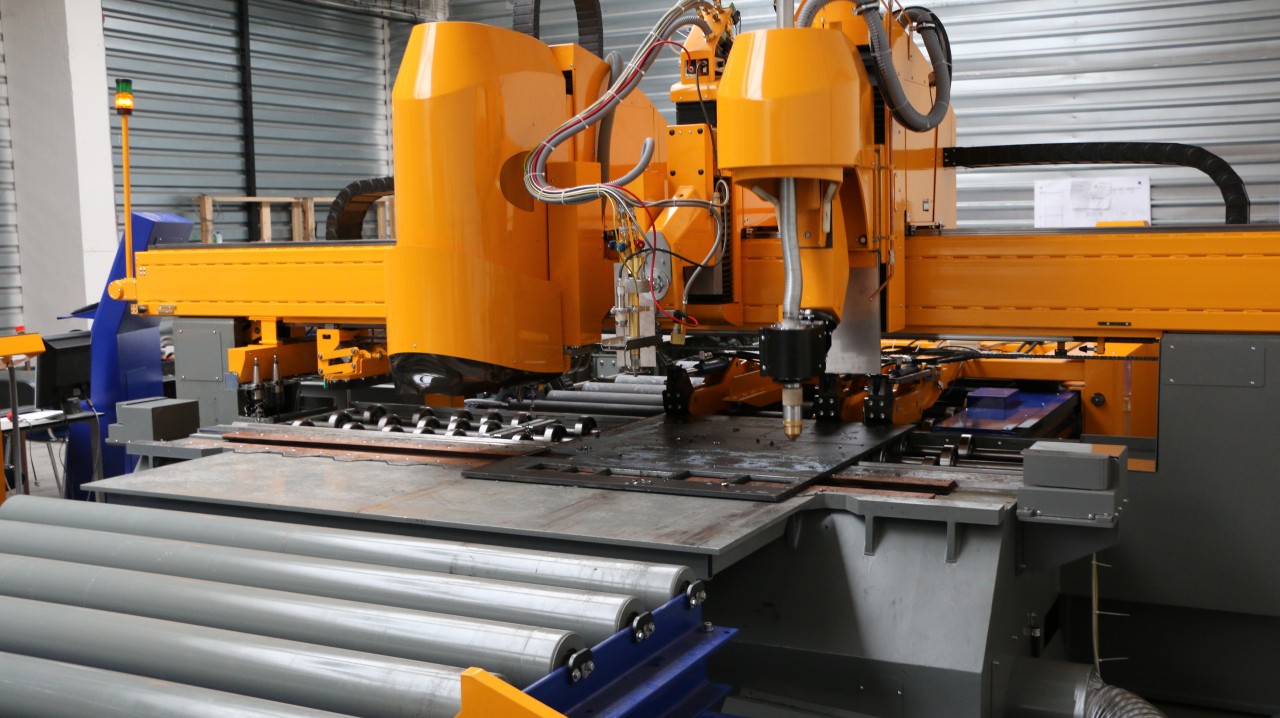

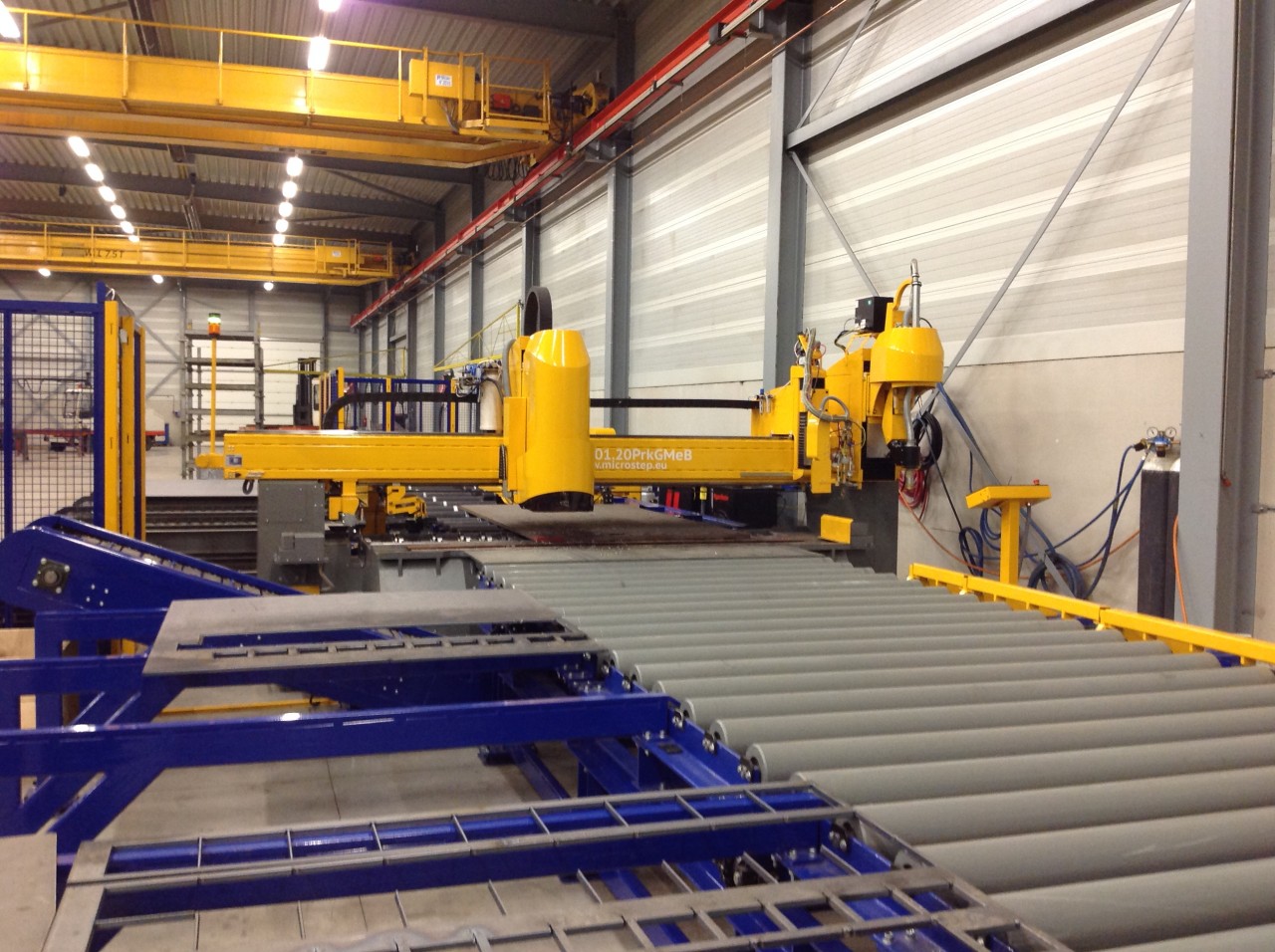

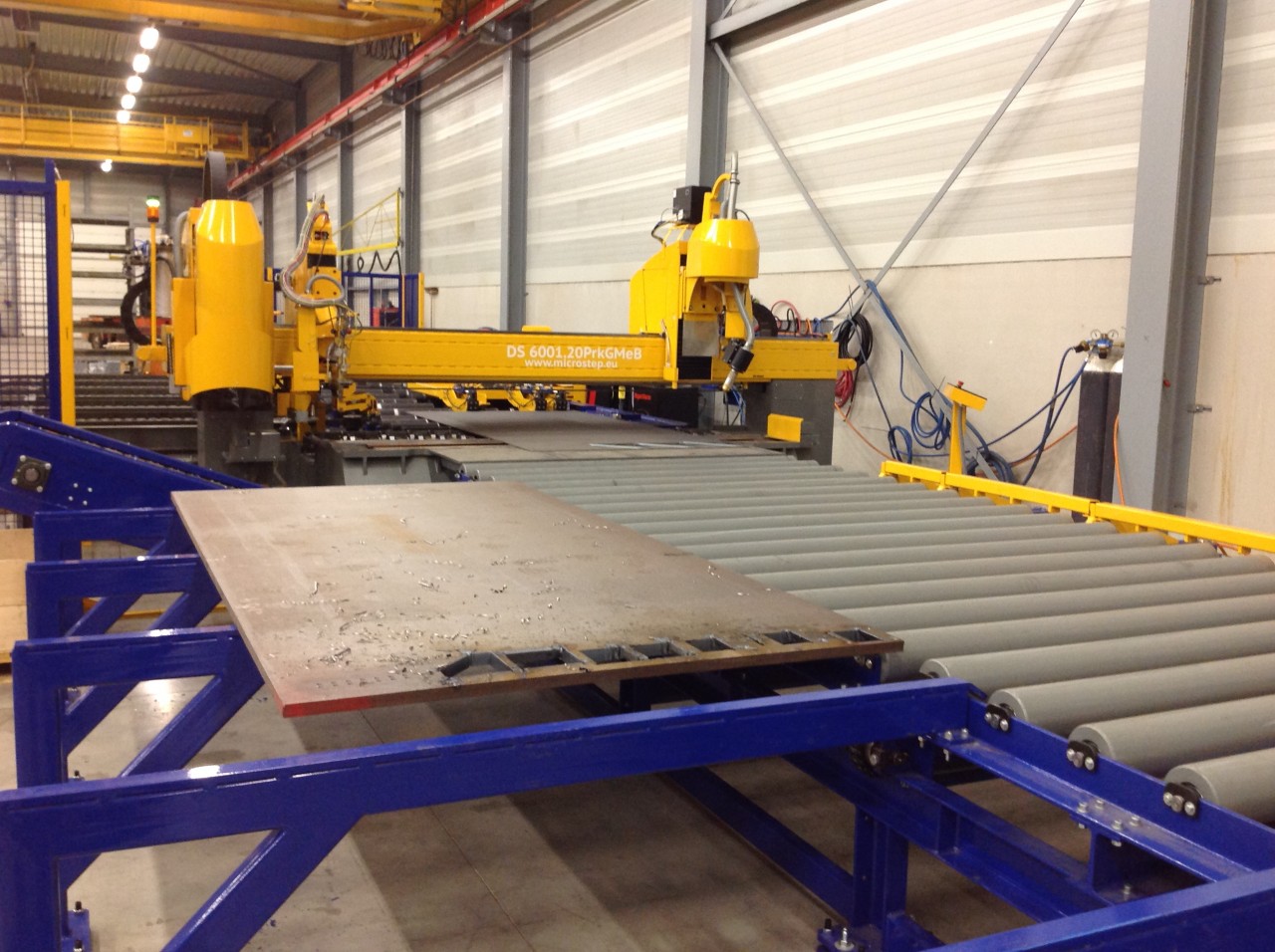

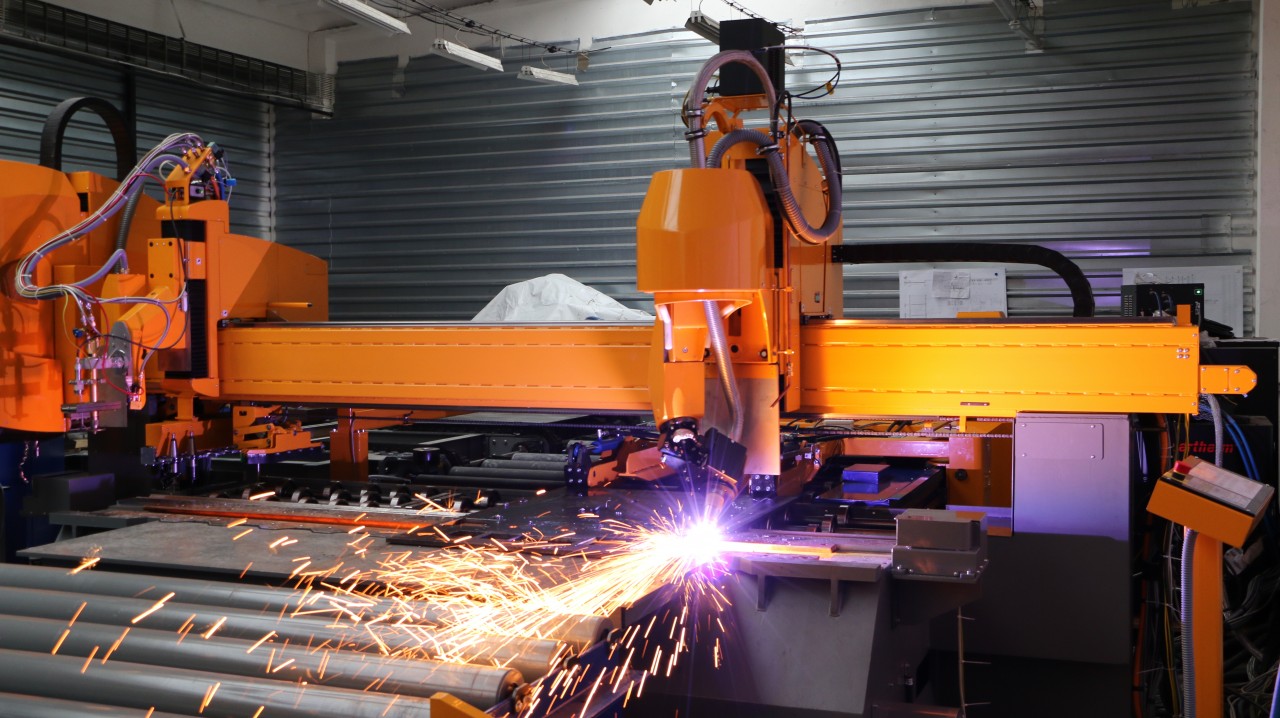

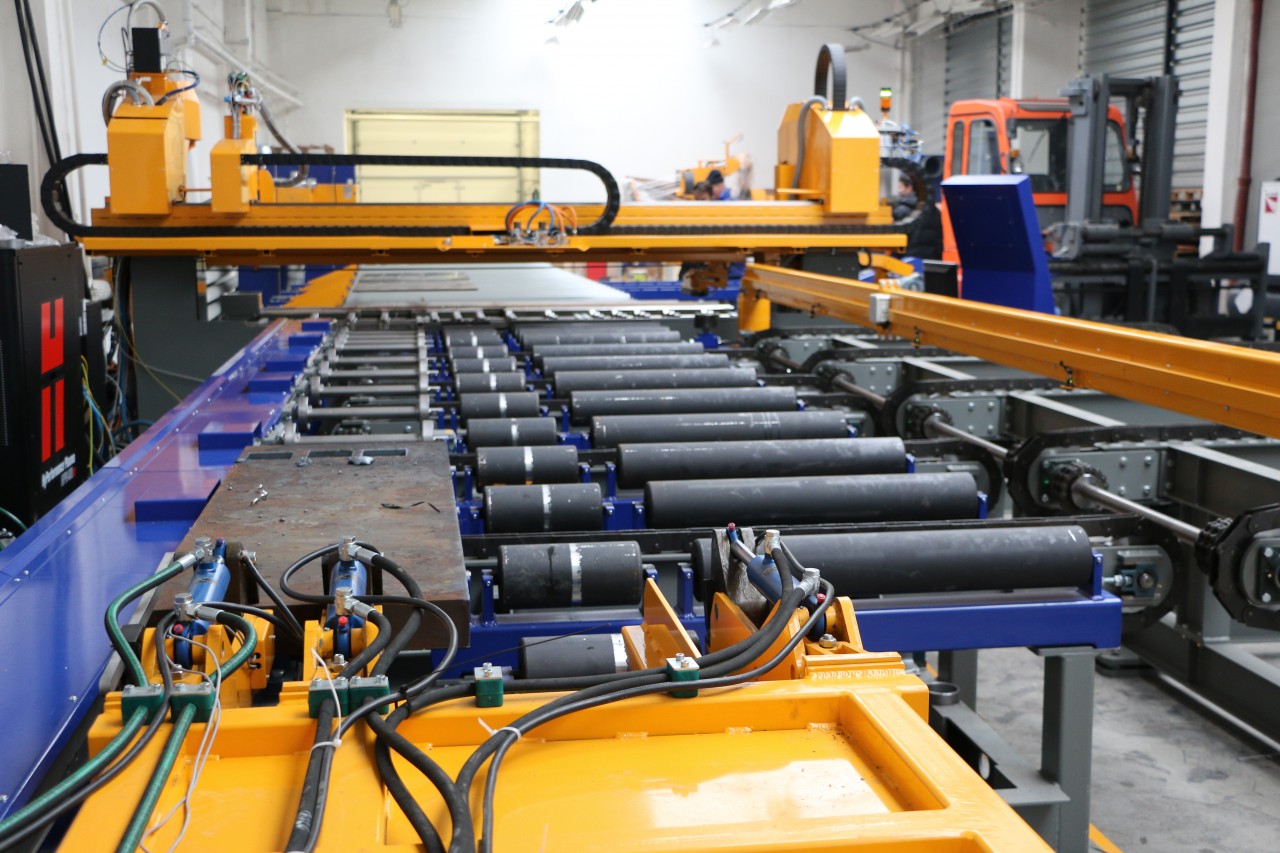

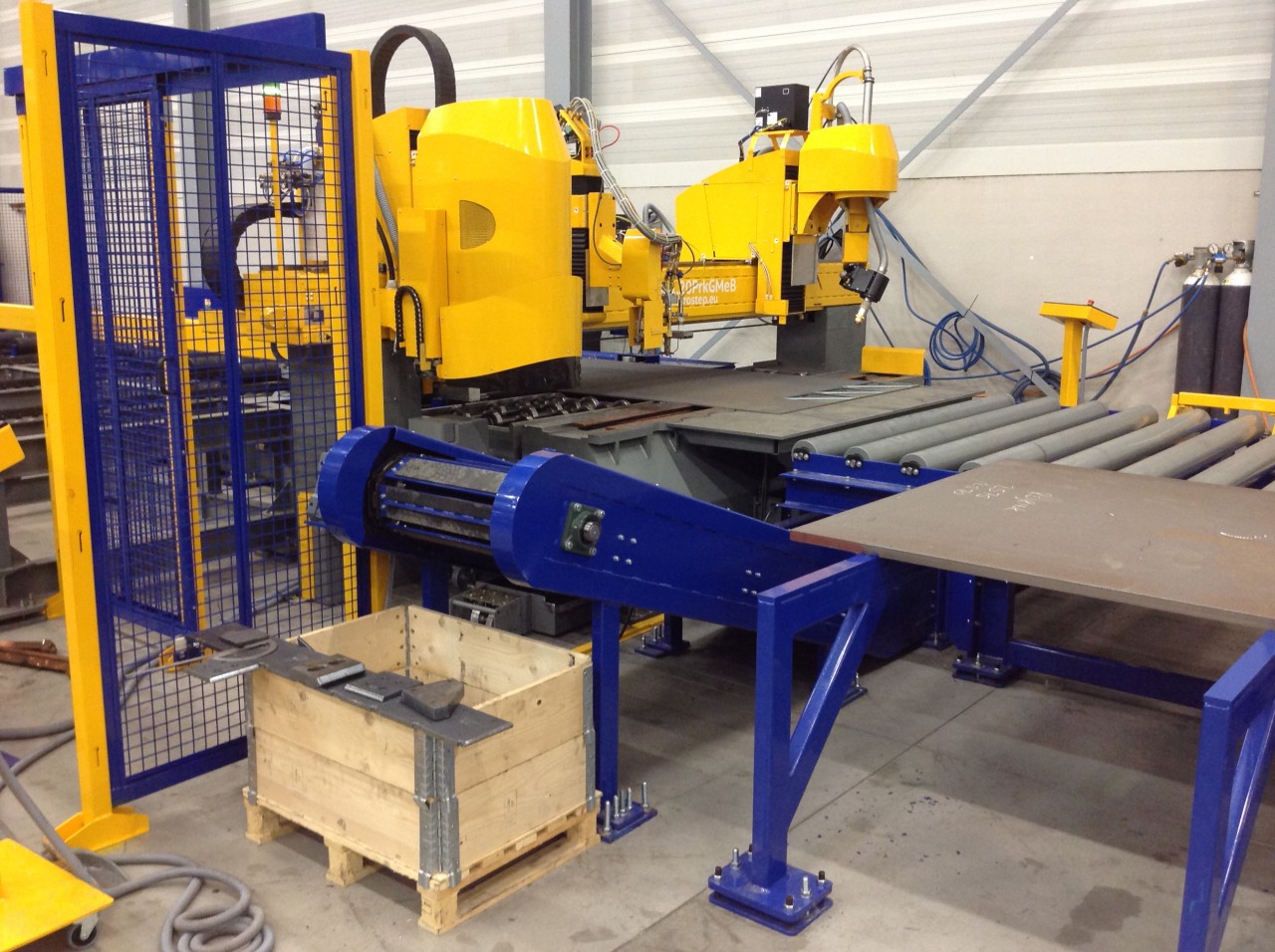

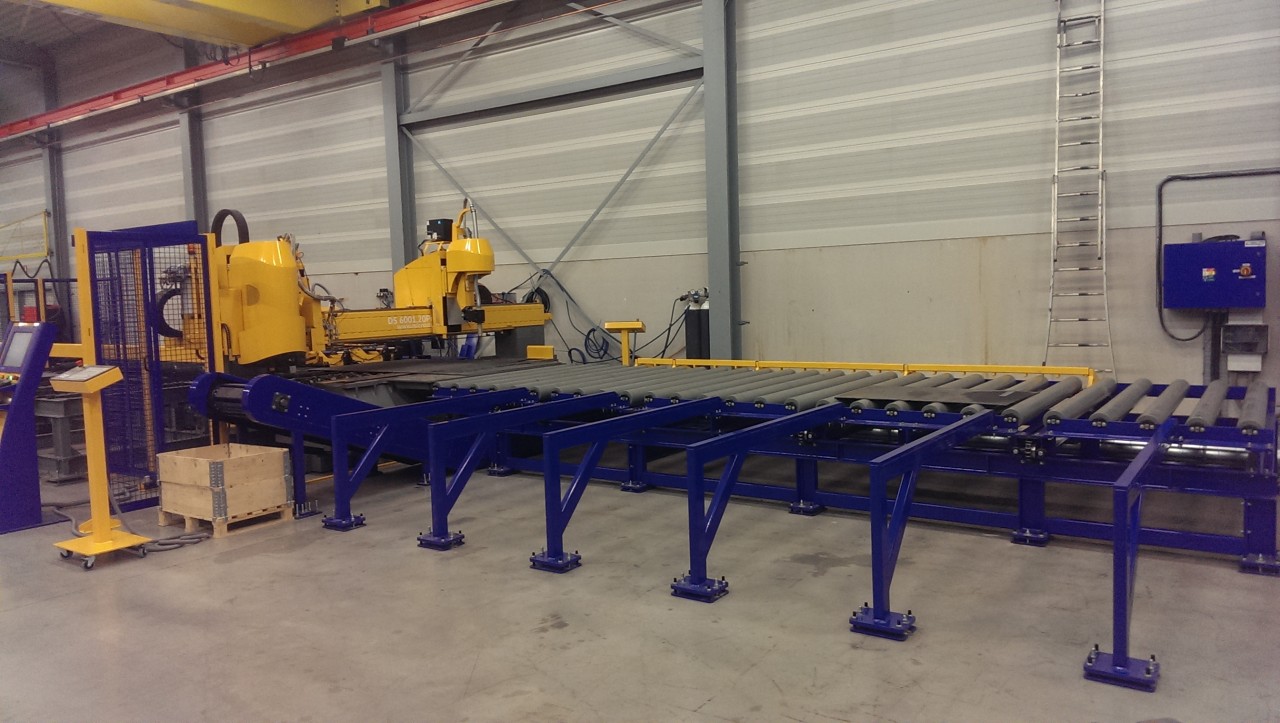

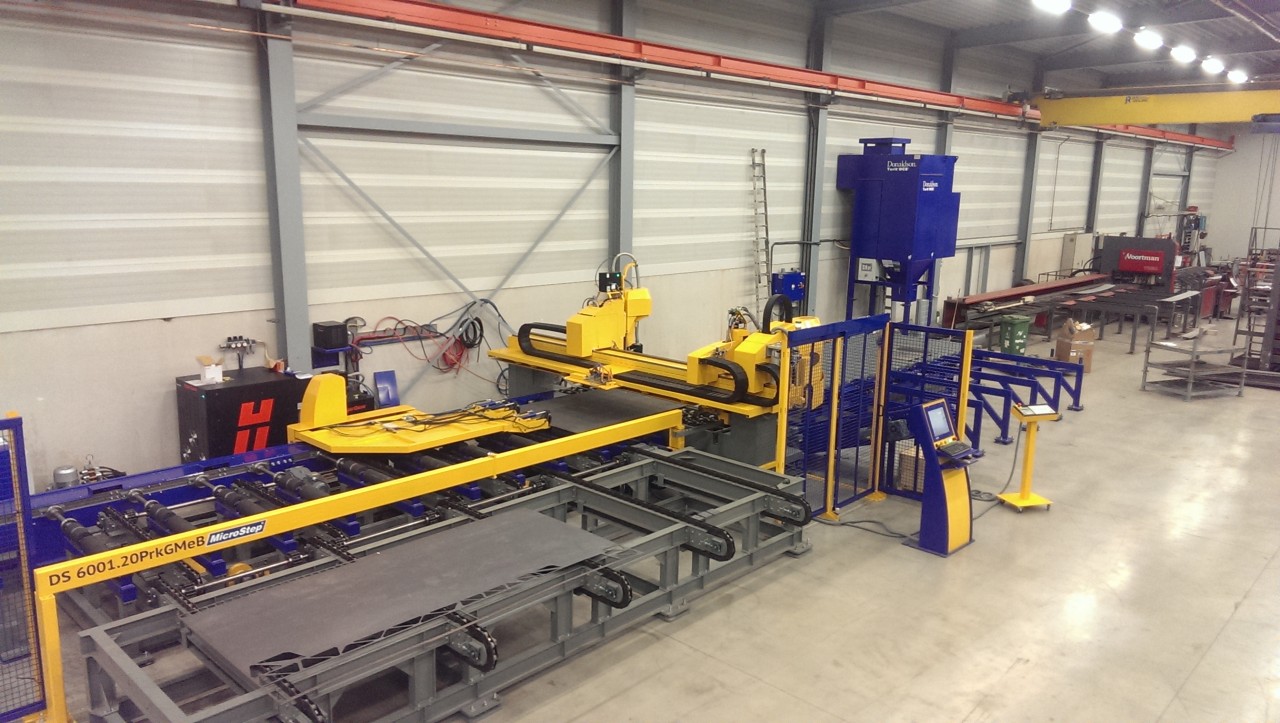

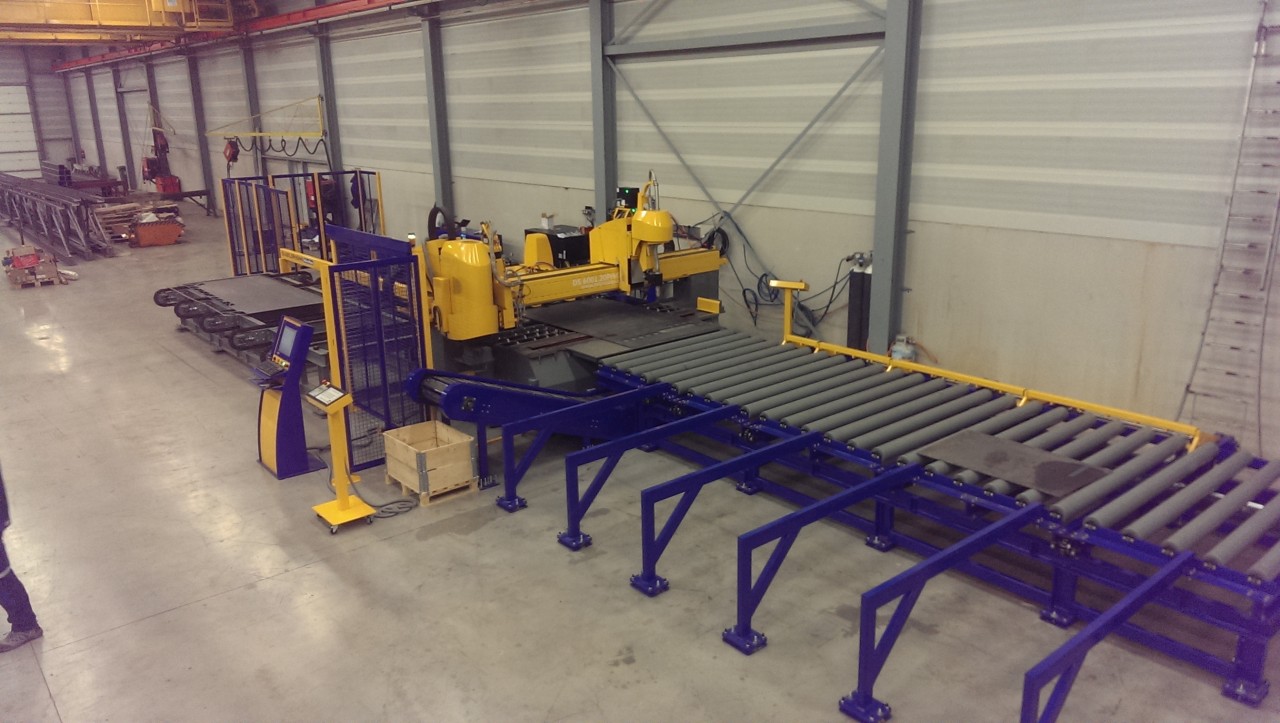

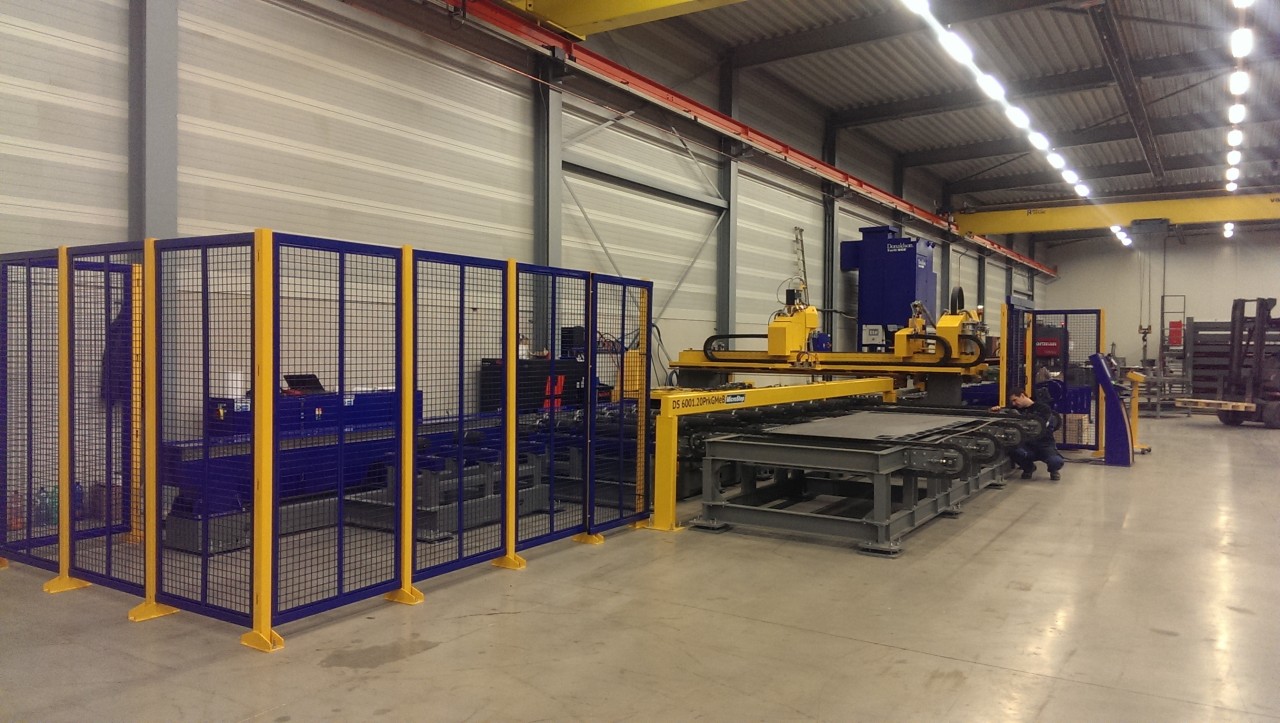

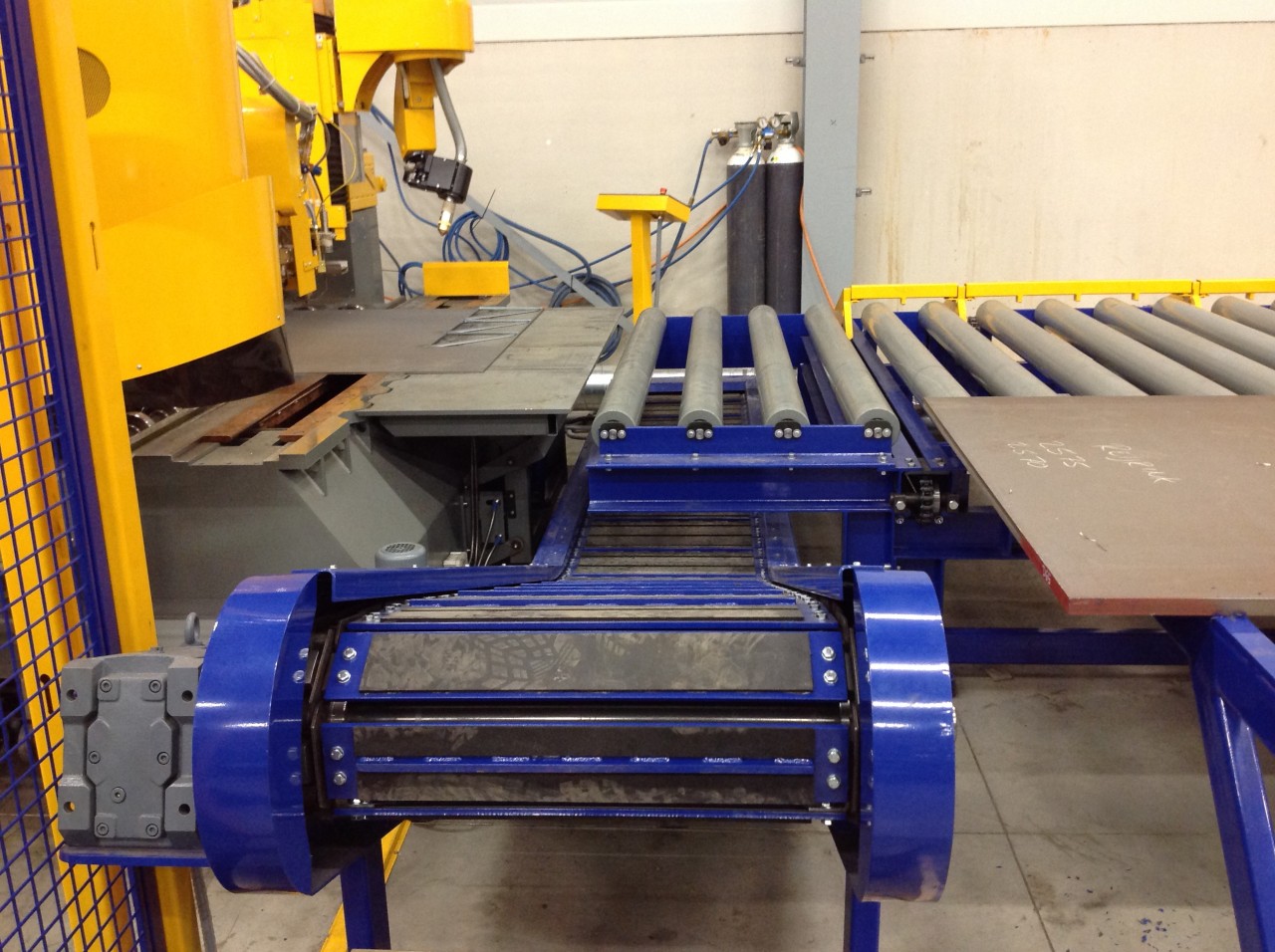

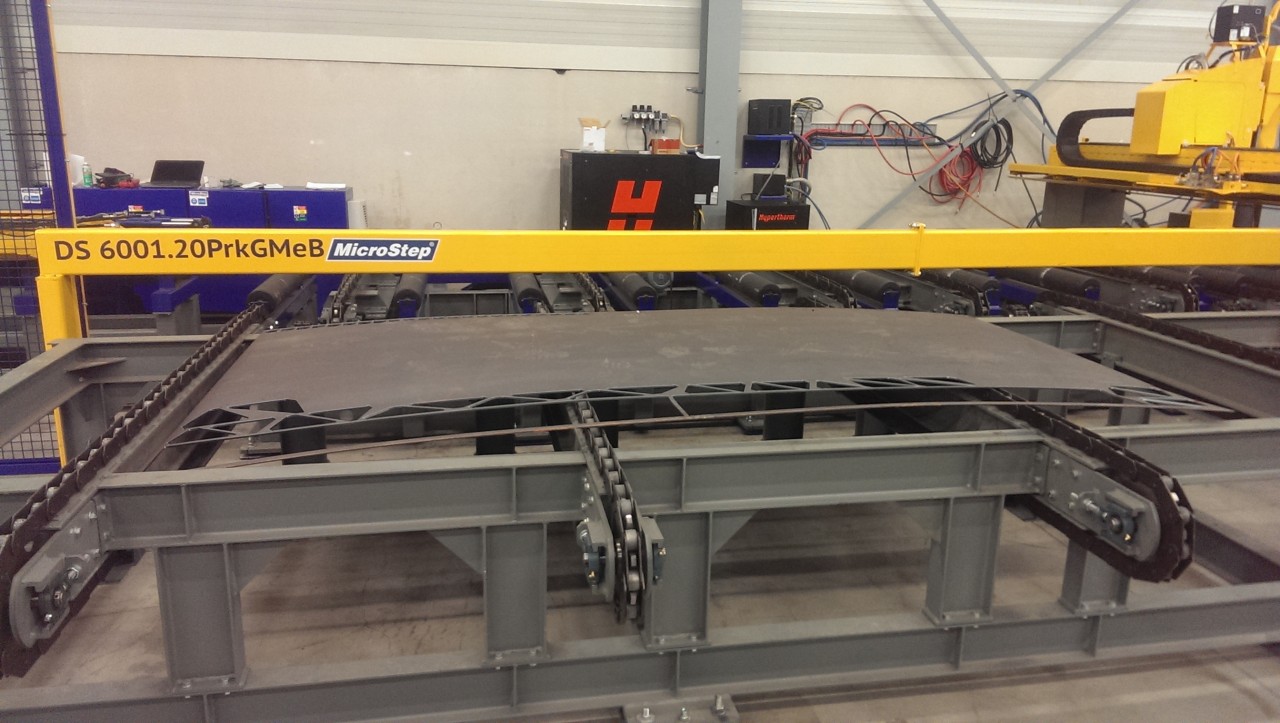

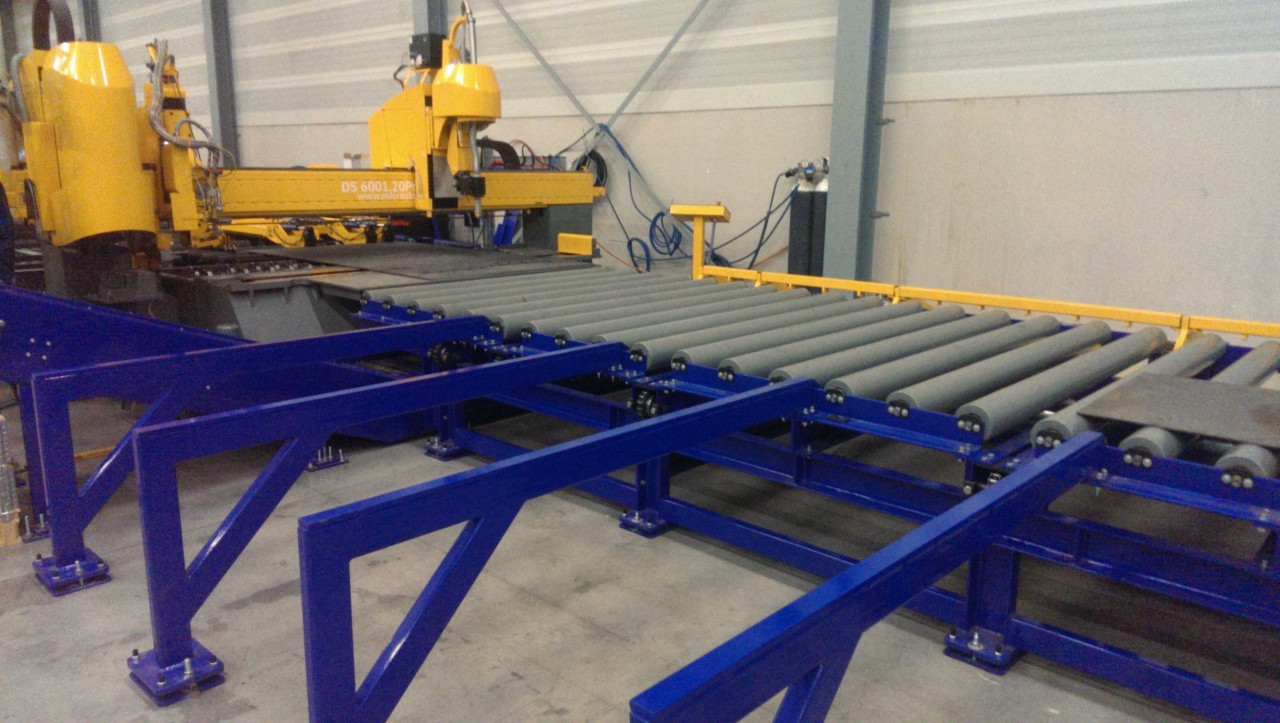

DS is designed for high-efficiency drilling and cutting with the possibility of automatic plate feeding and automatic part sorting on output. The sheet processing line is dedicated to heavy-duty structural steel applications such as high-precision fittings, gussets and endplates. The machine is designed for a high level of automation within the factory workflow as a time- and cost-effective production solution for certain types of flanged parts.

Technical parameters

Working length	6000 mm
Working width	2000 mm
Max. number of tool stations	4
Max. thickness of material cut by plasma	according to a plasma source (max 100 mm)
Max. thickness of material cut by oxyfuel	100 mm
Bevel cutting	yes (see accessories)
Pipe cutting	no
Drilling and tapping	Ø 4 - 50 mm
Positioning speed	max 47 m/min
Bidirectional repeatability	0.05 mm/m

Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
