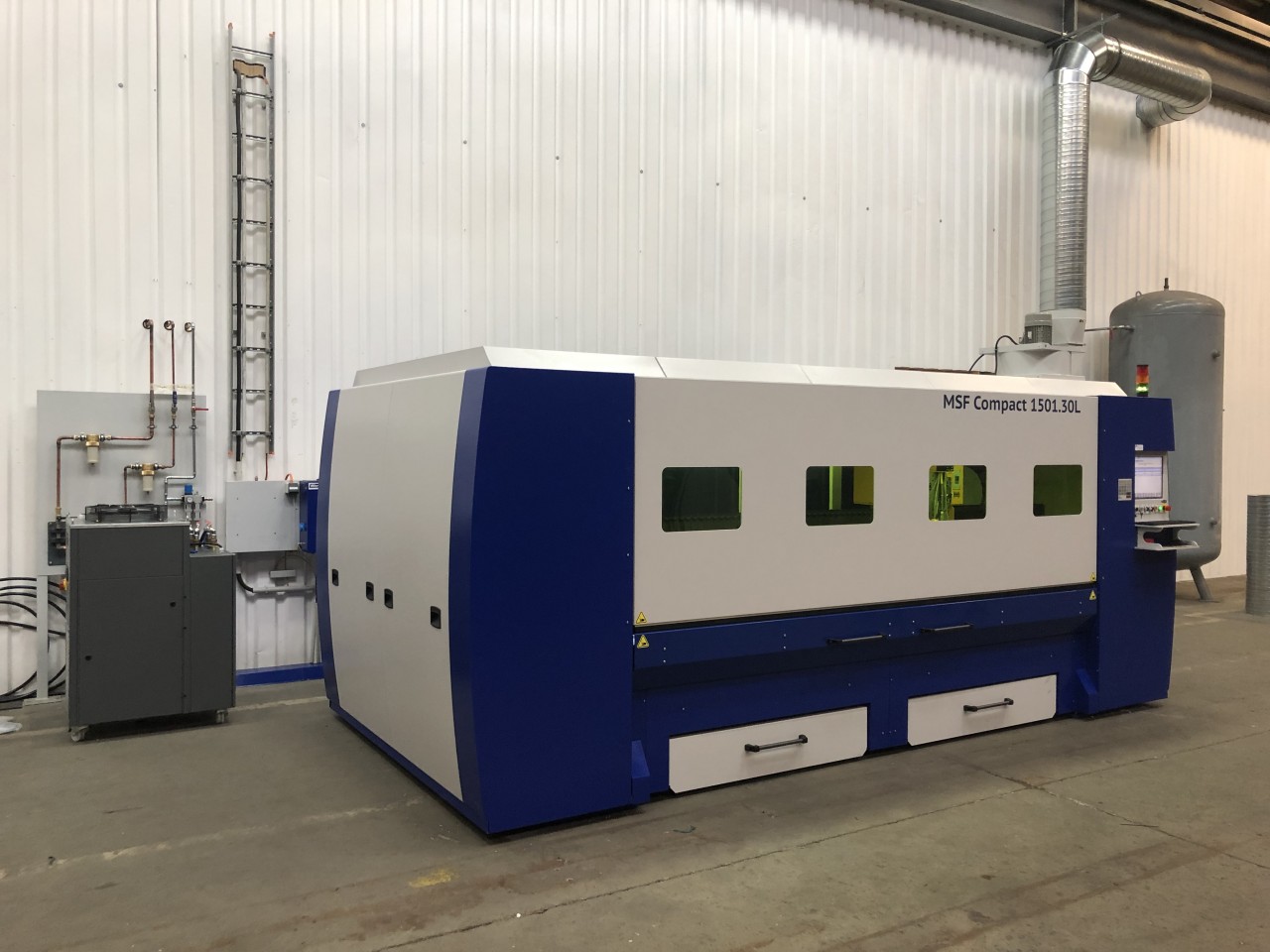

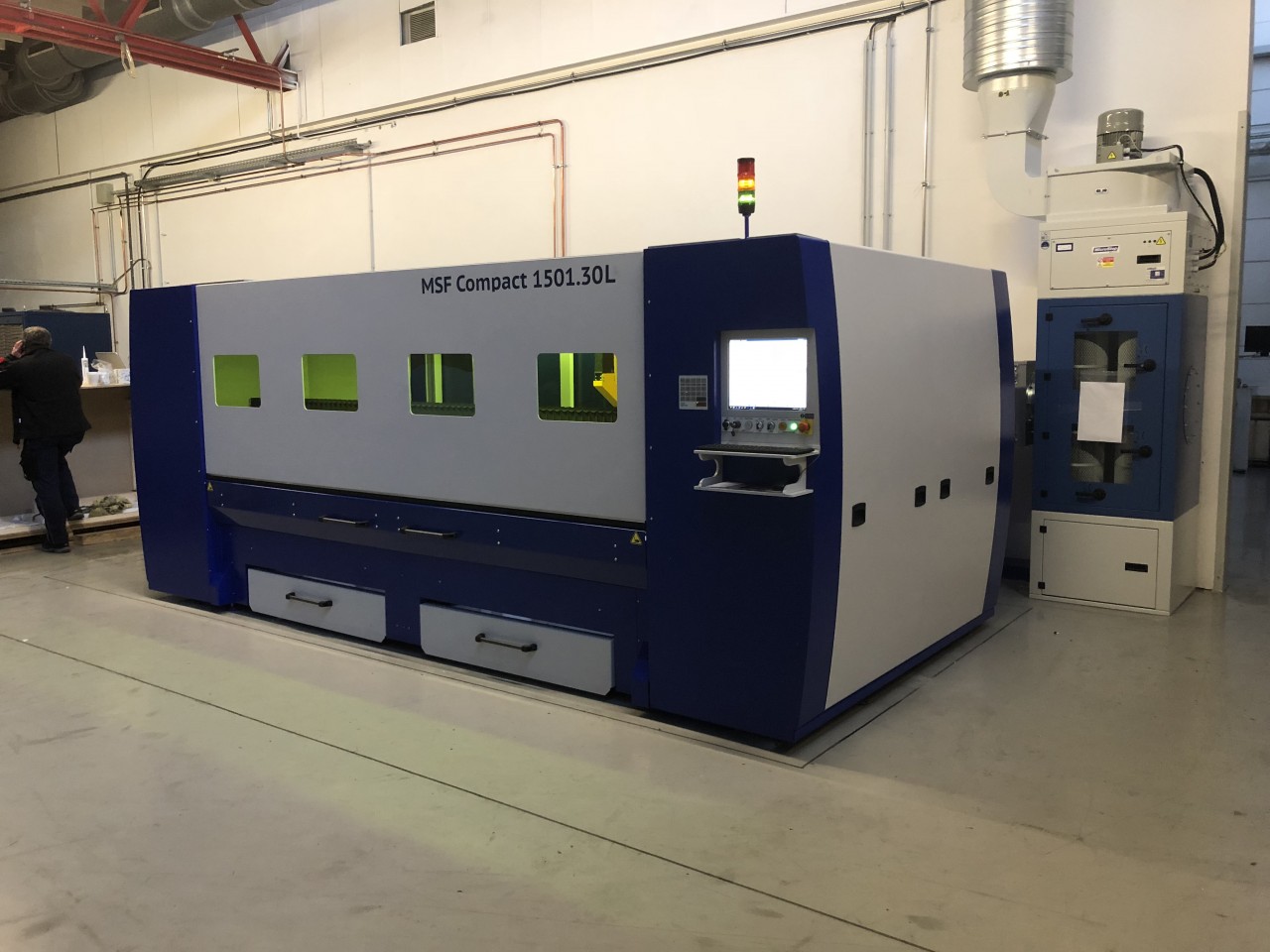

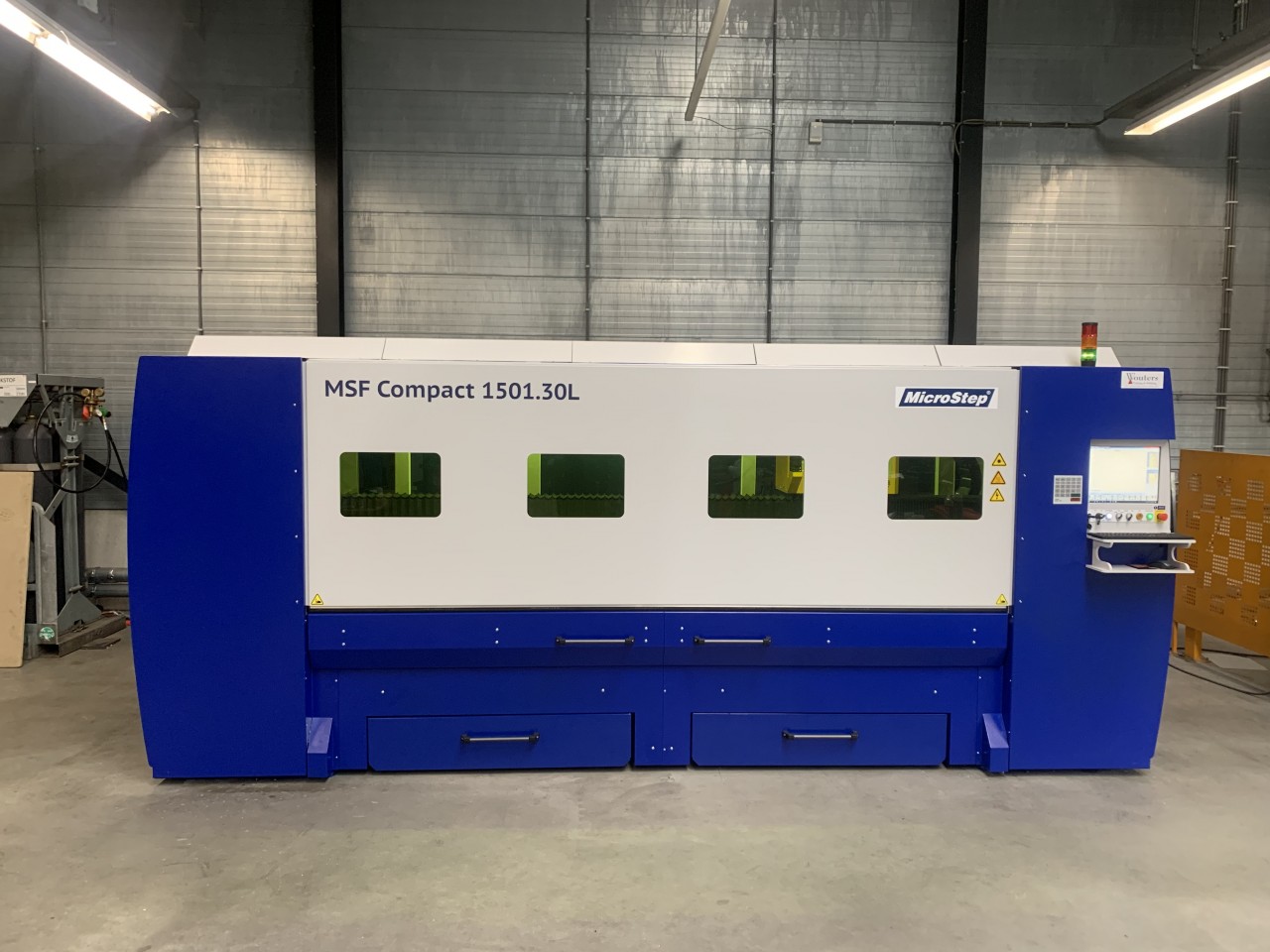

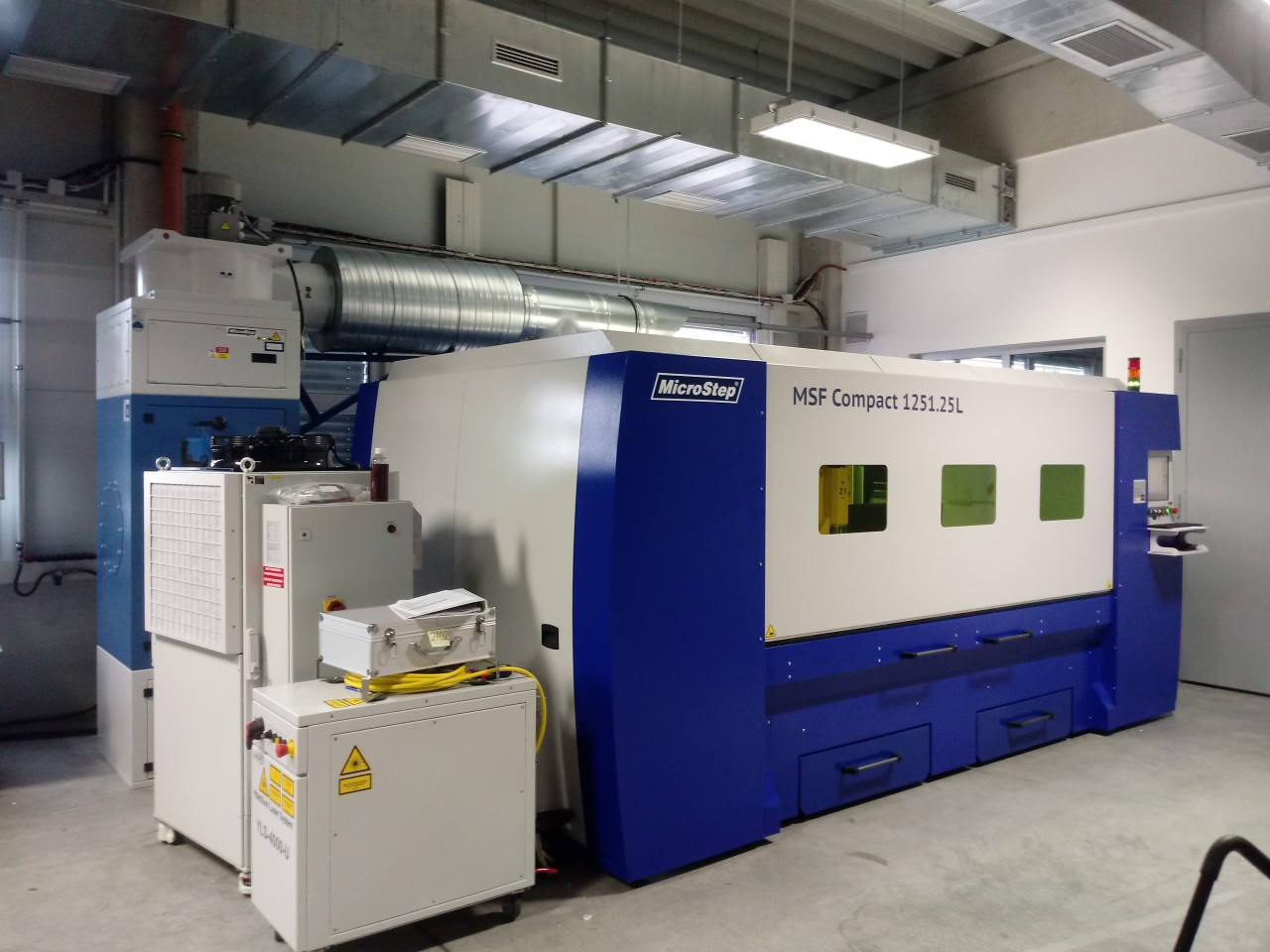

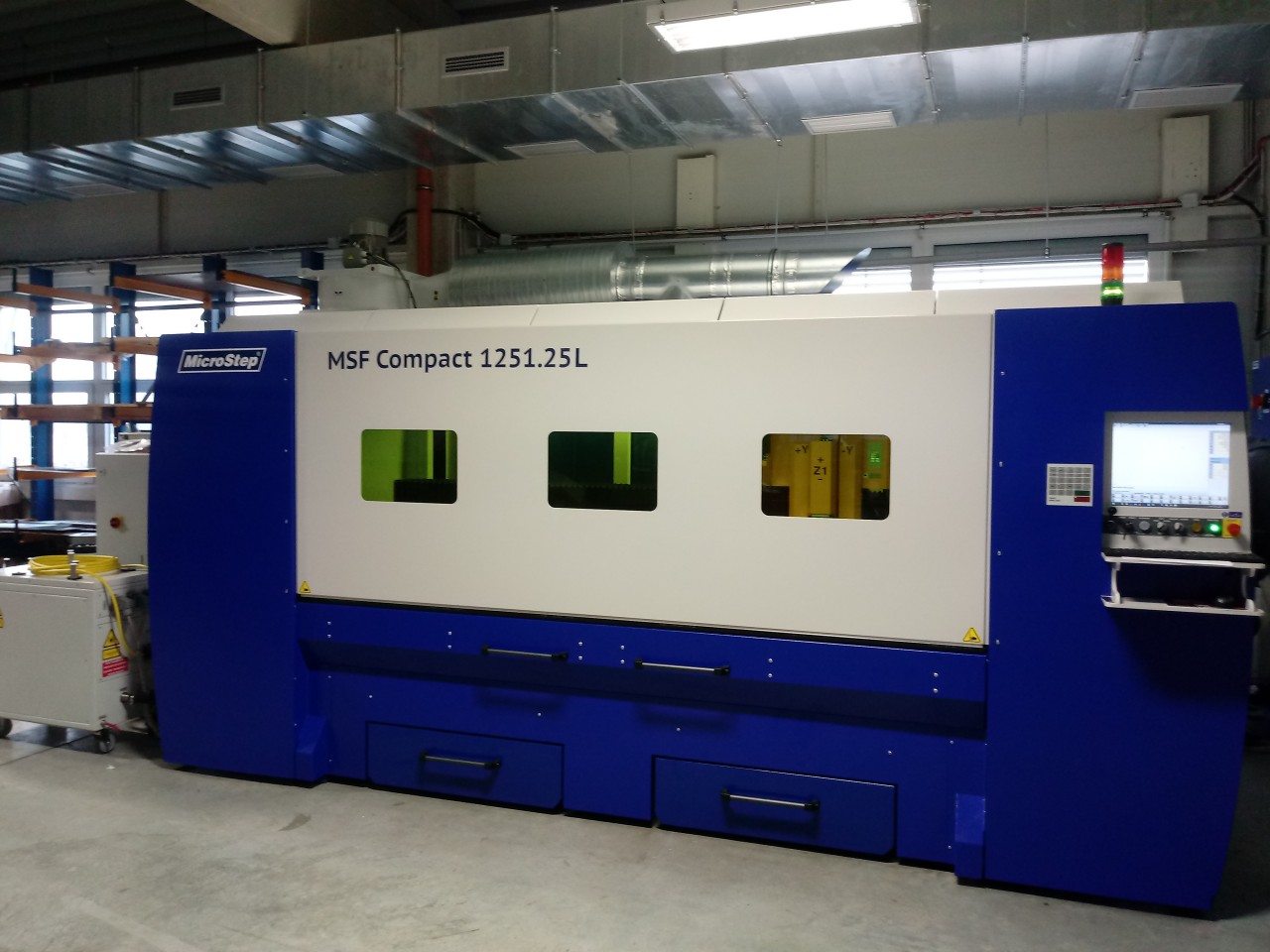

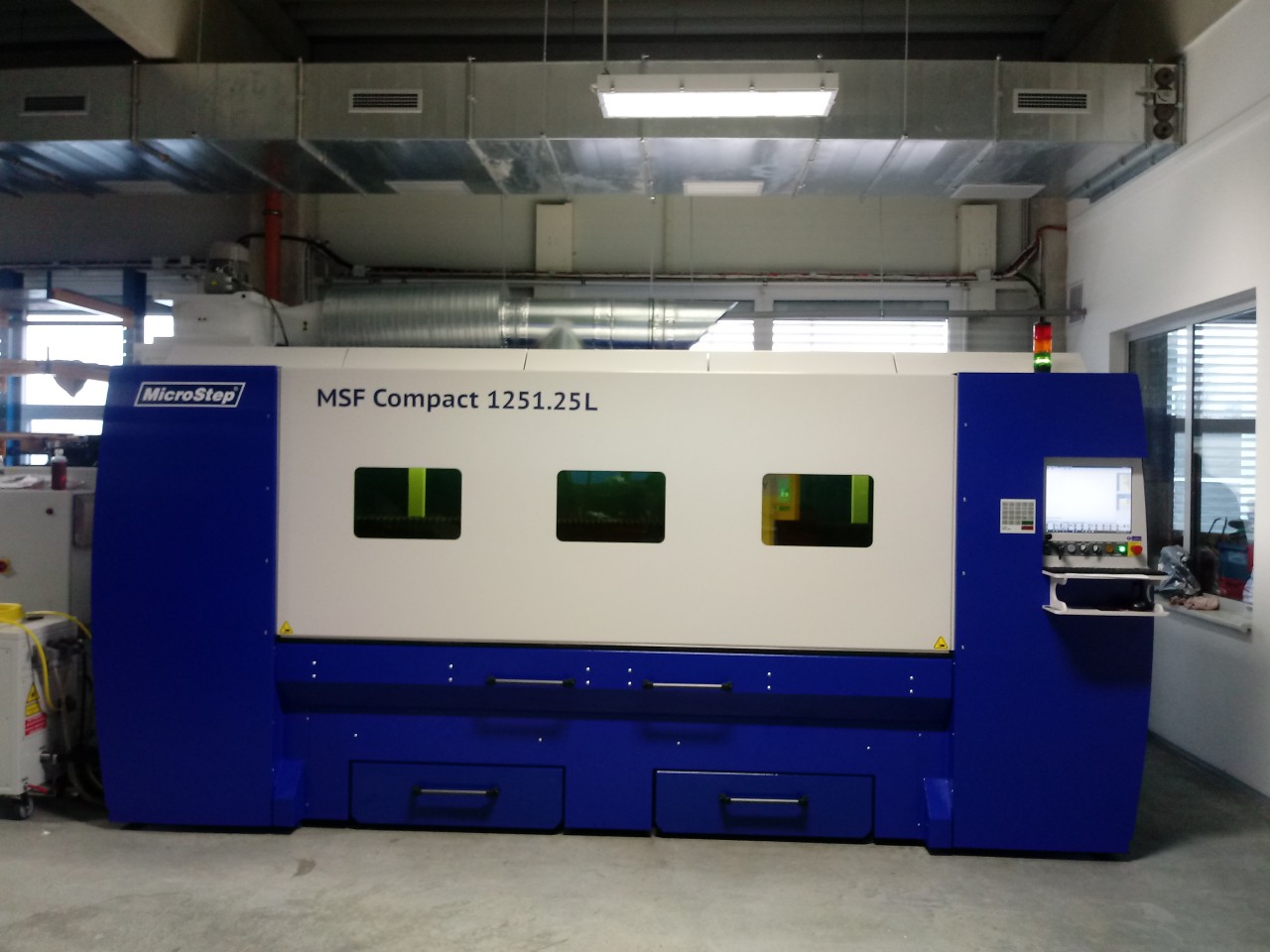

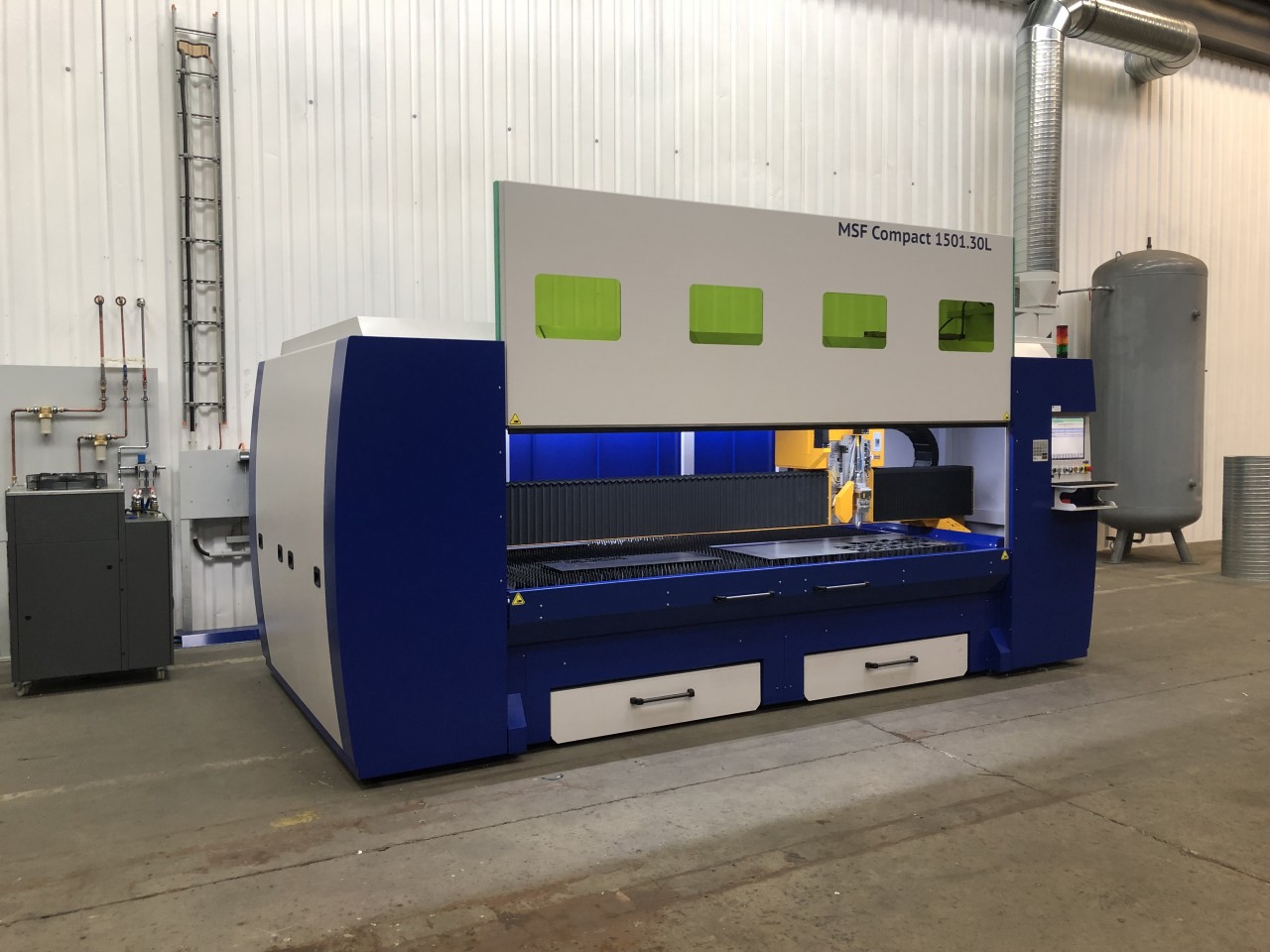

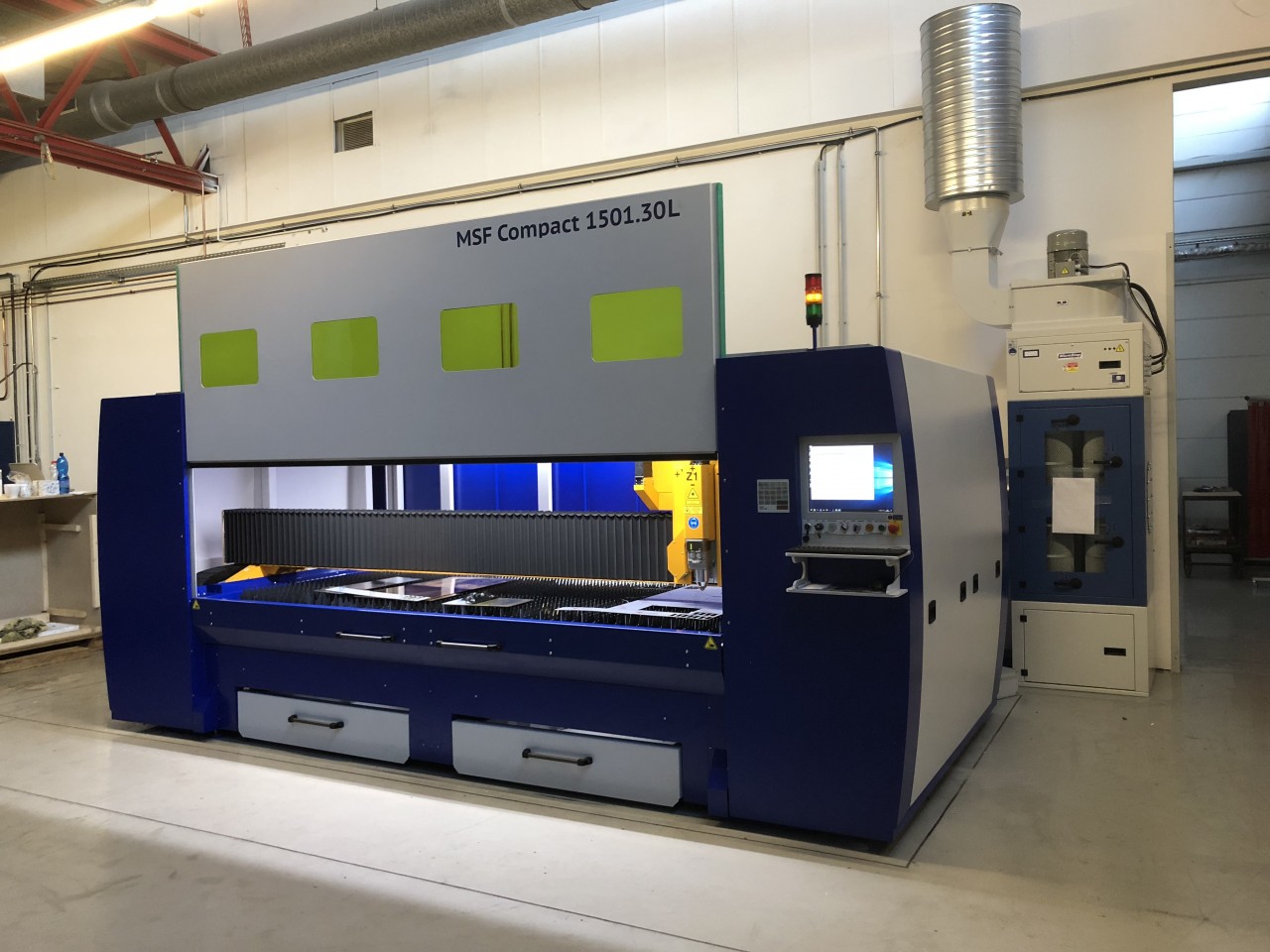

MSF Compact

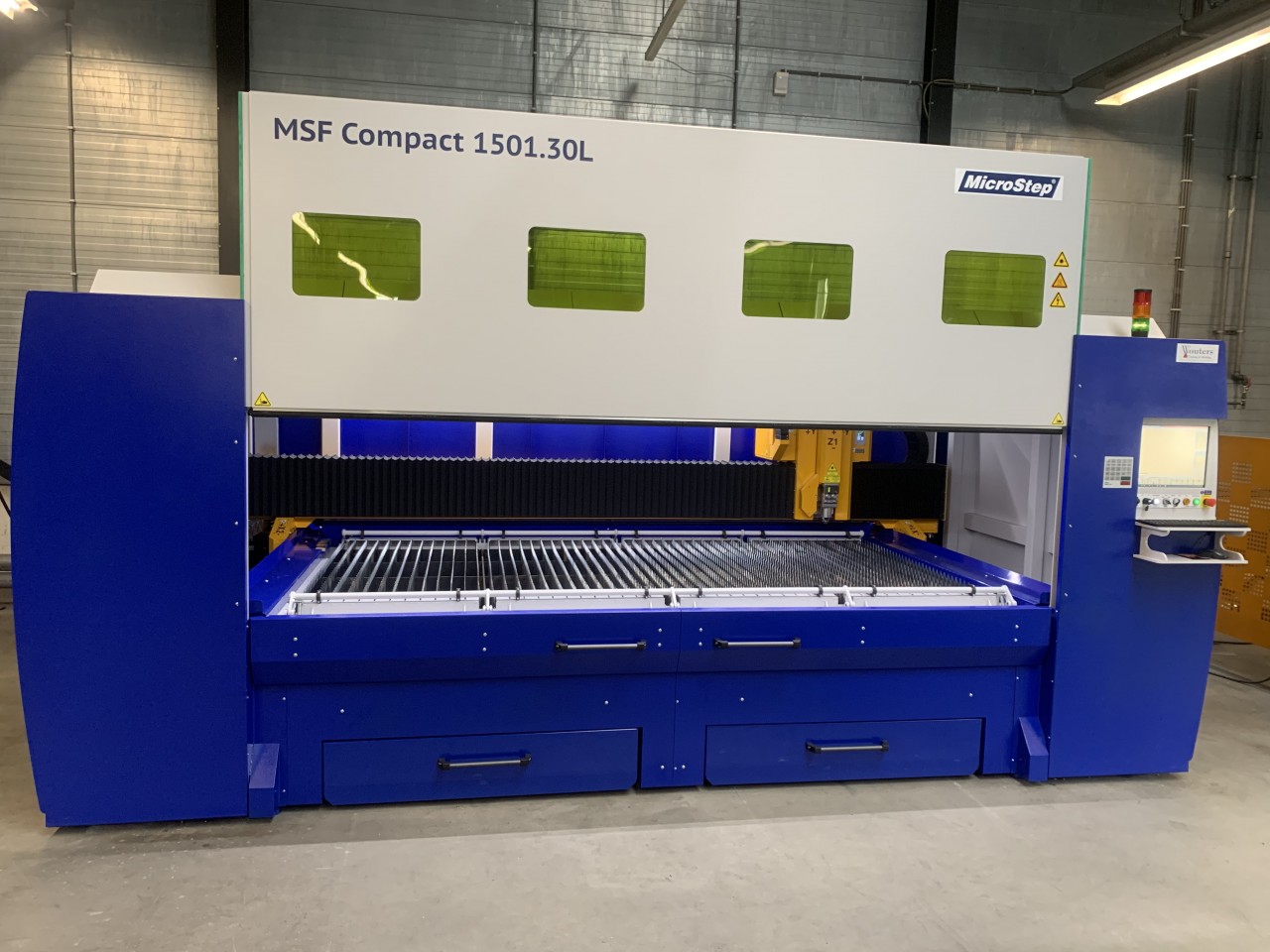

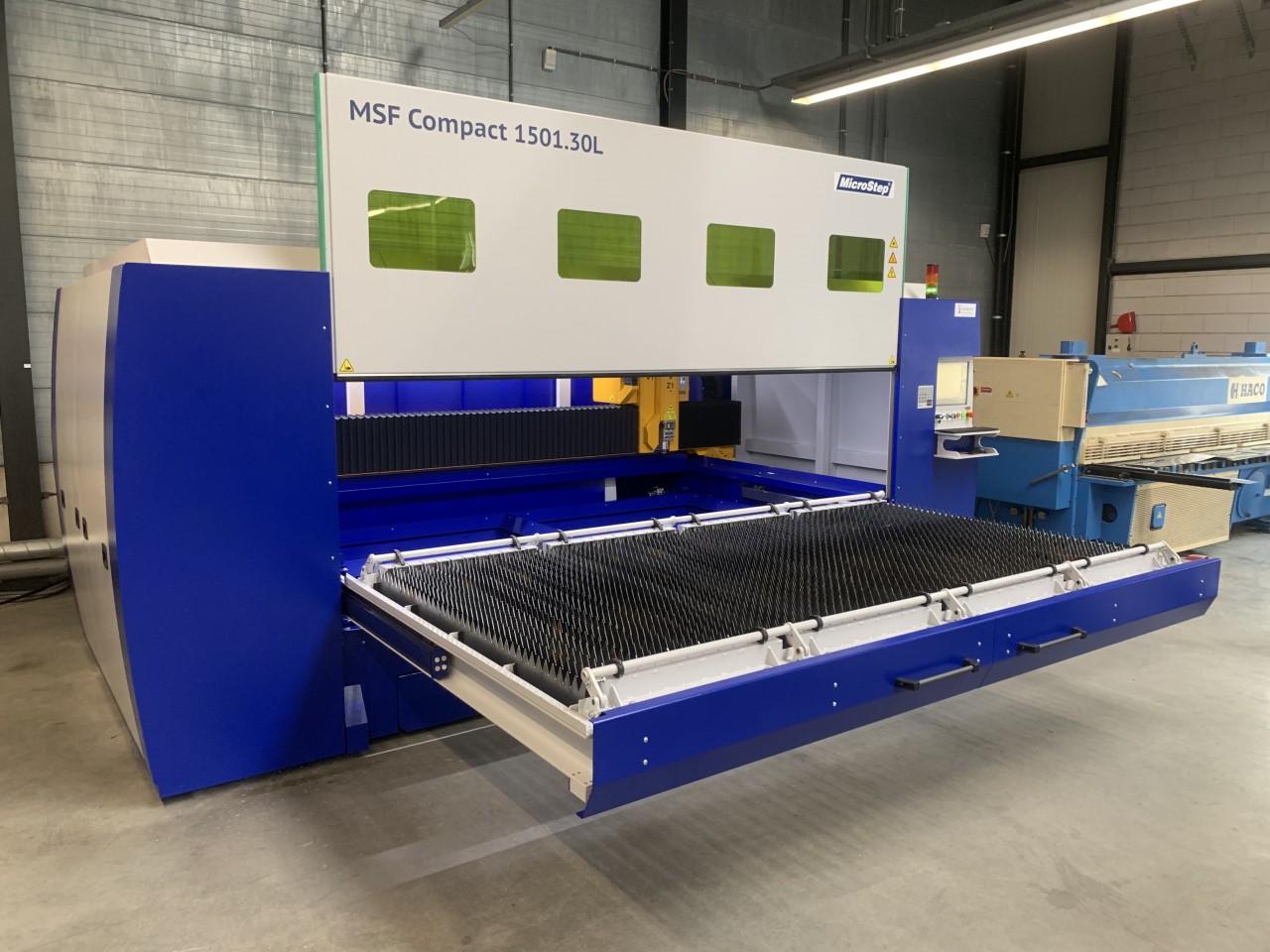

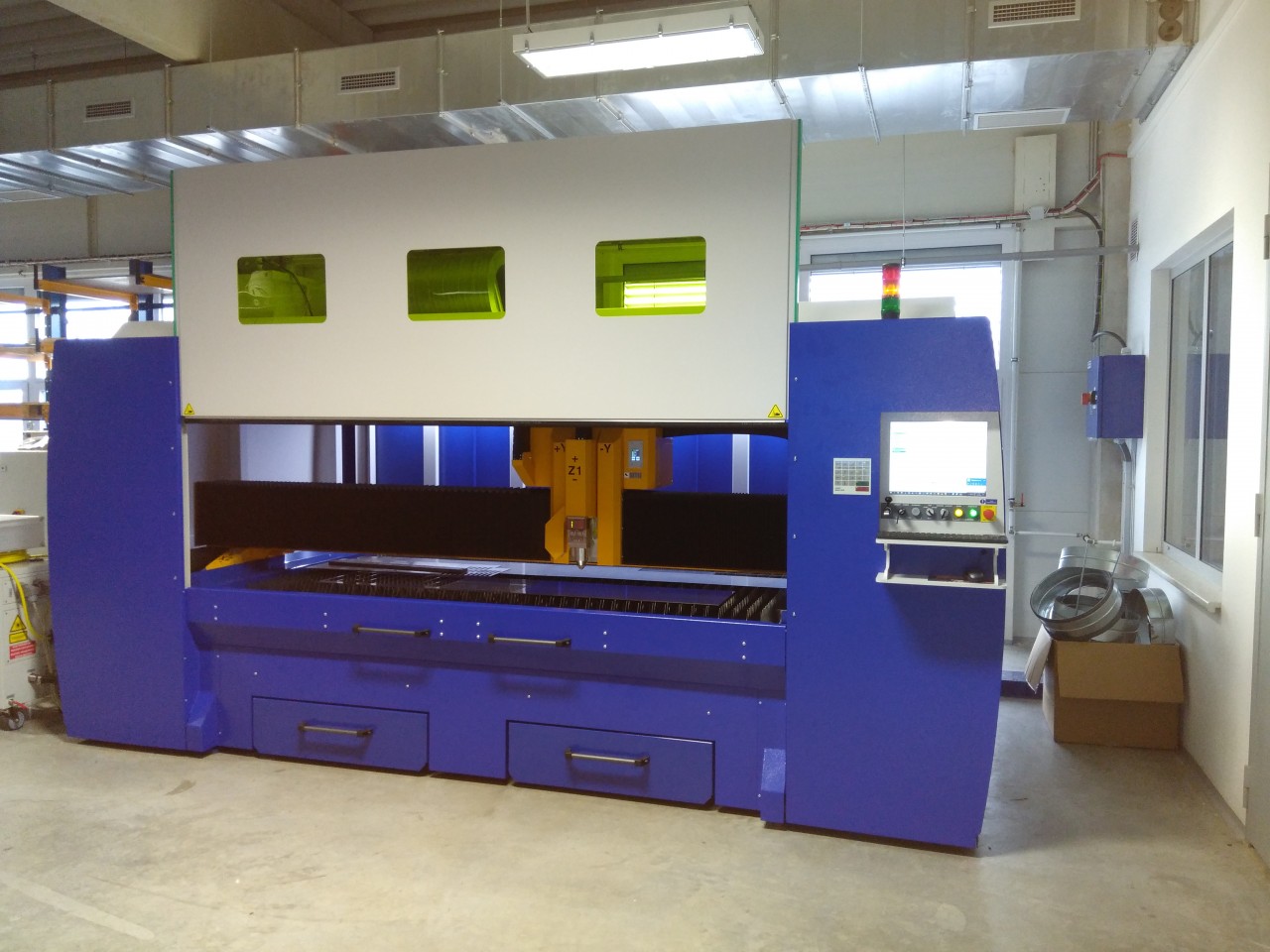

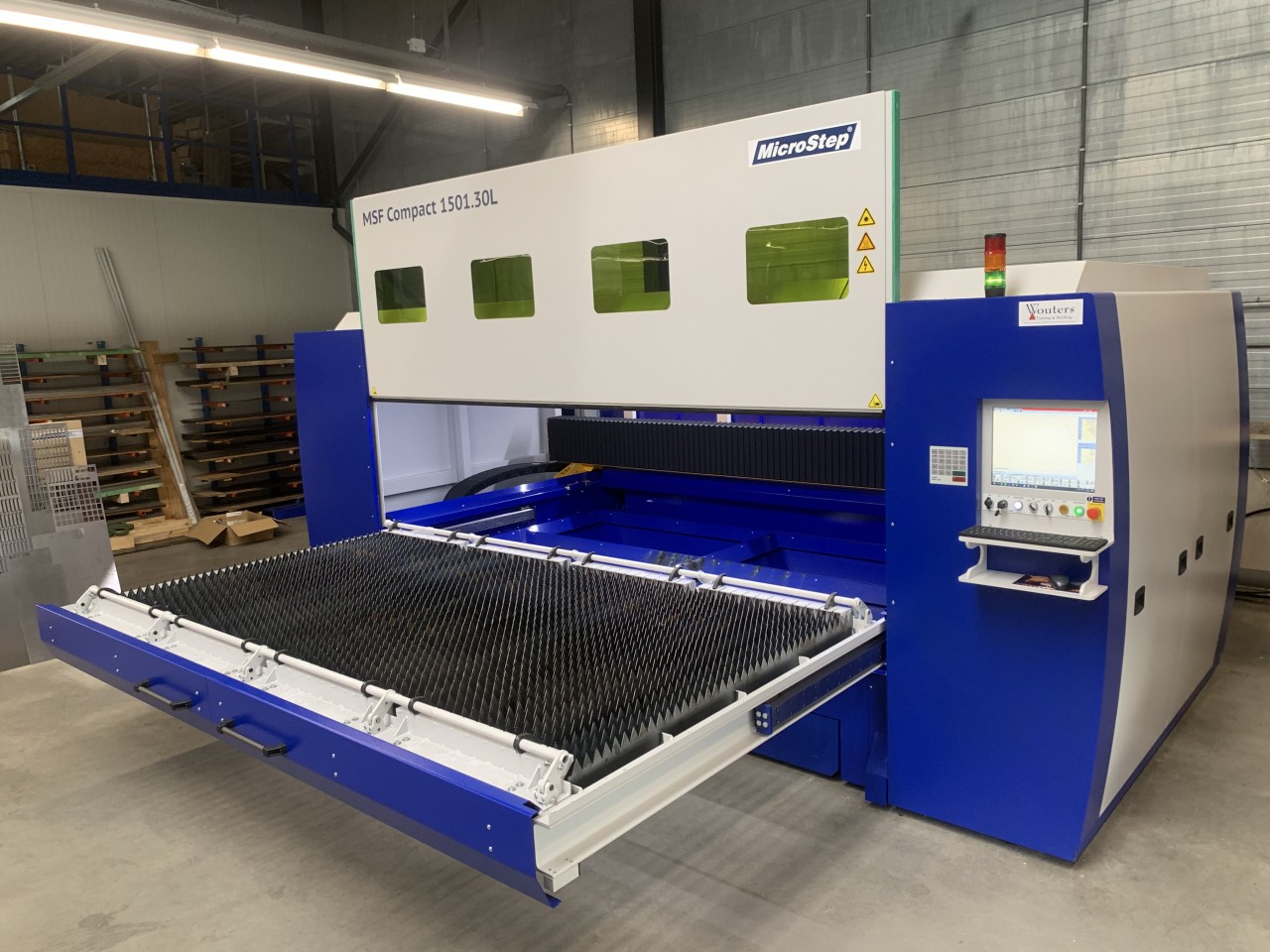

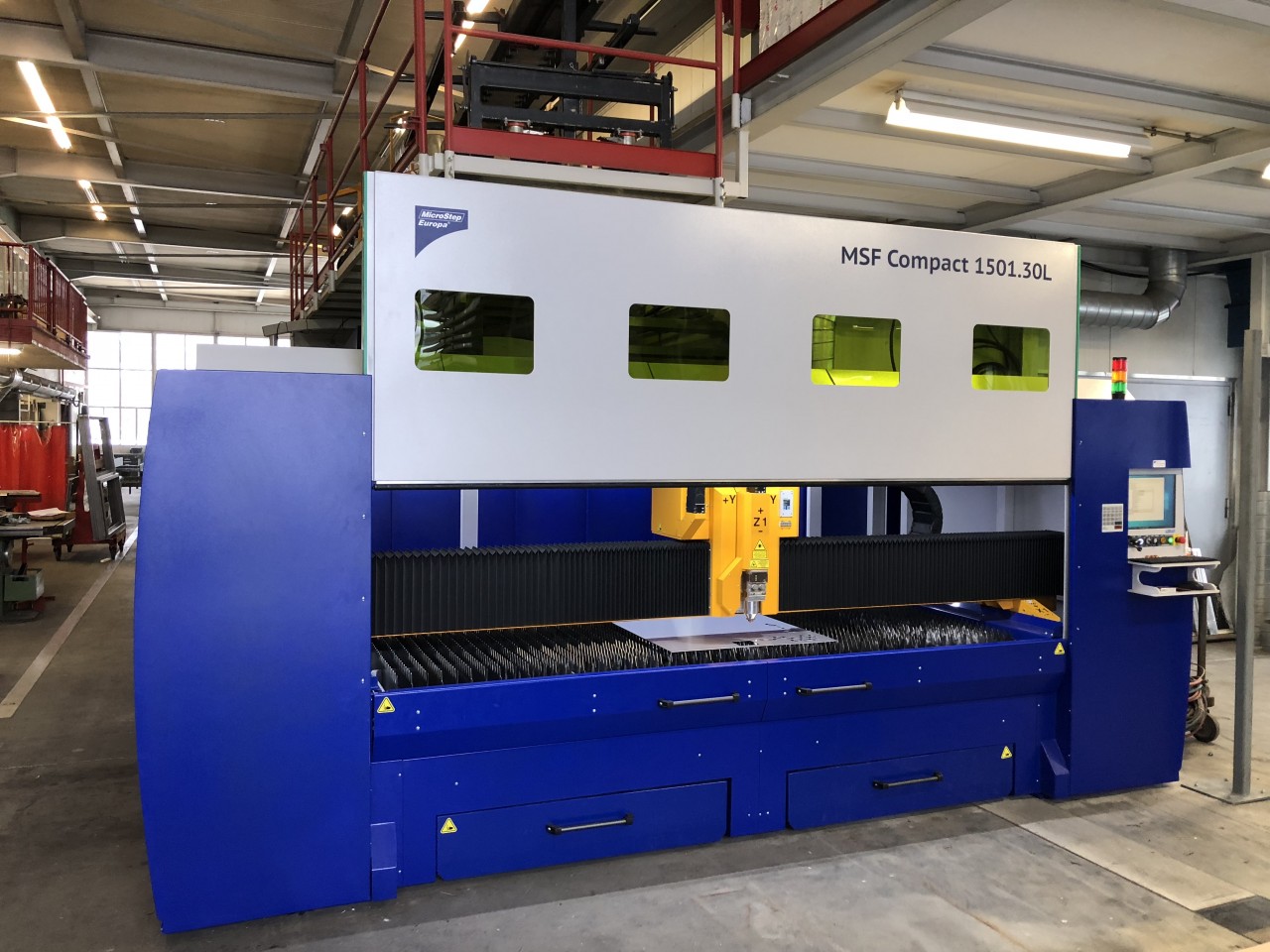

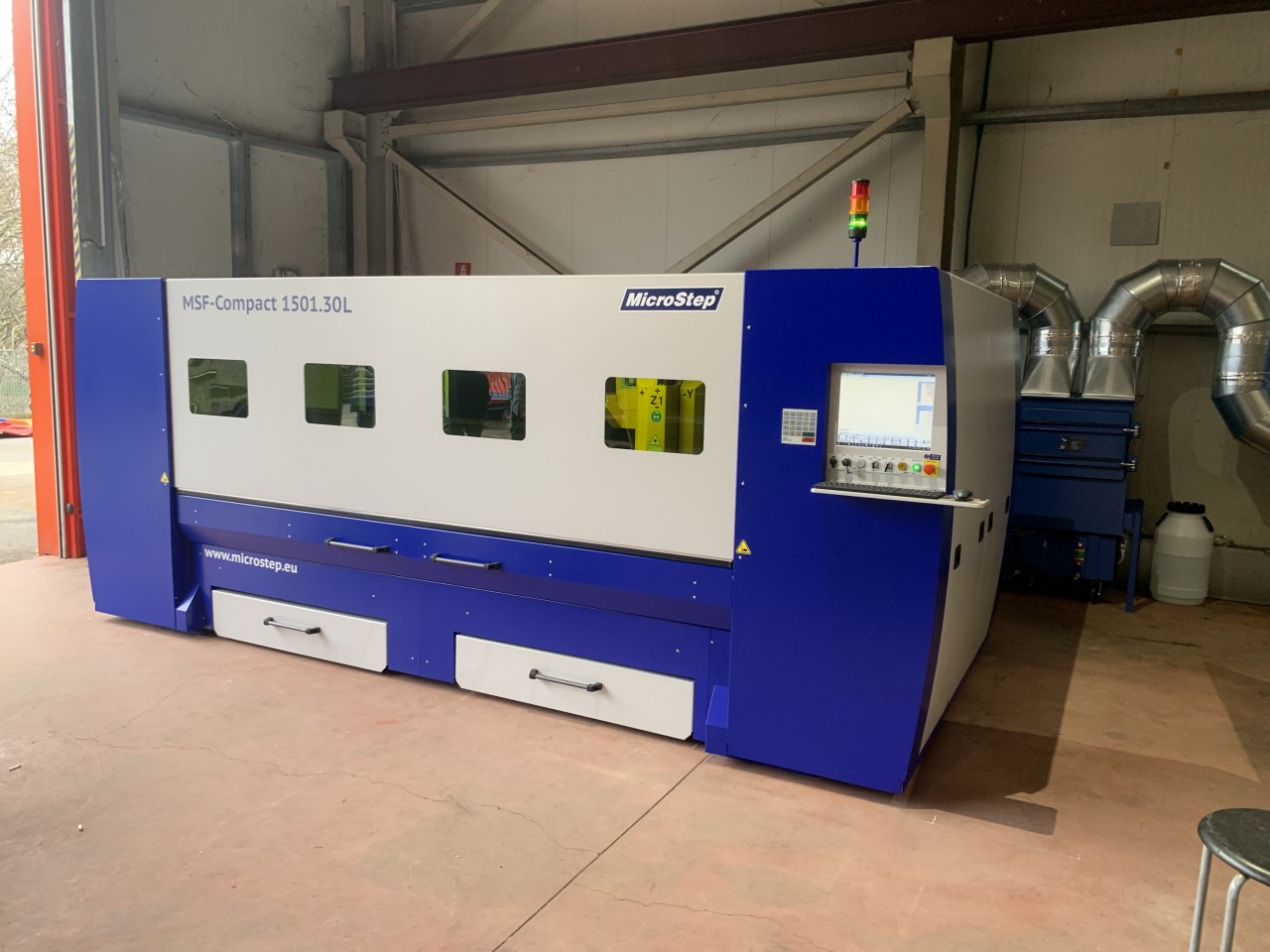

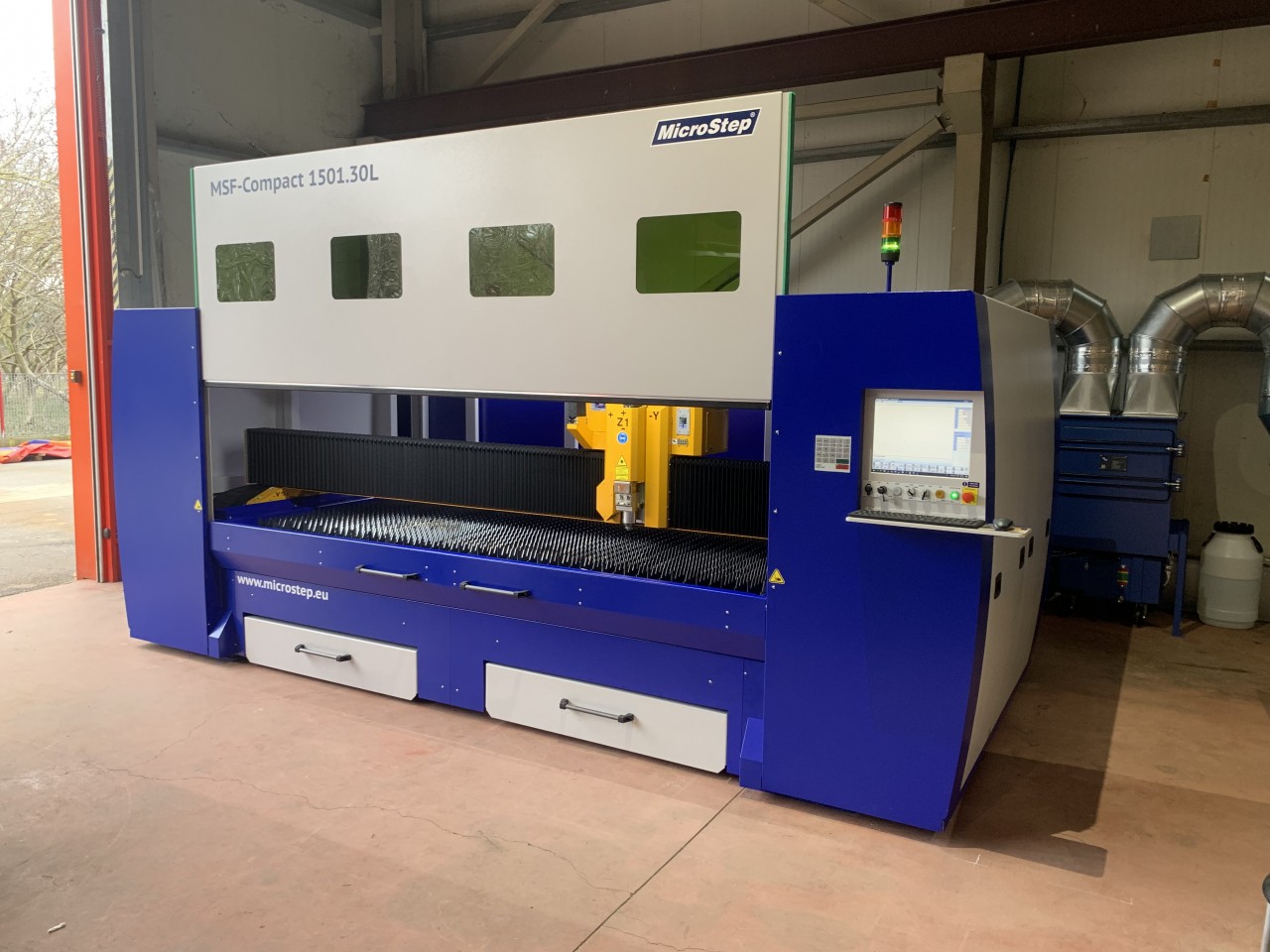

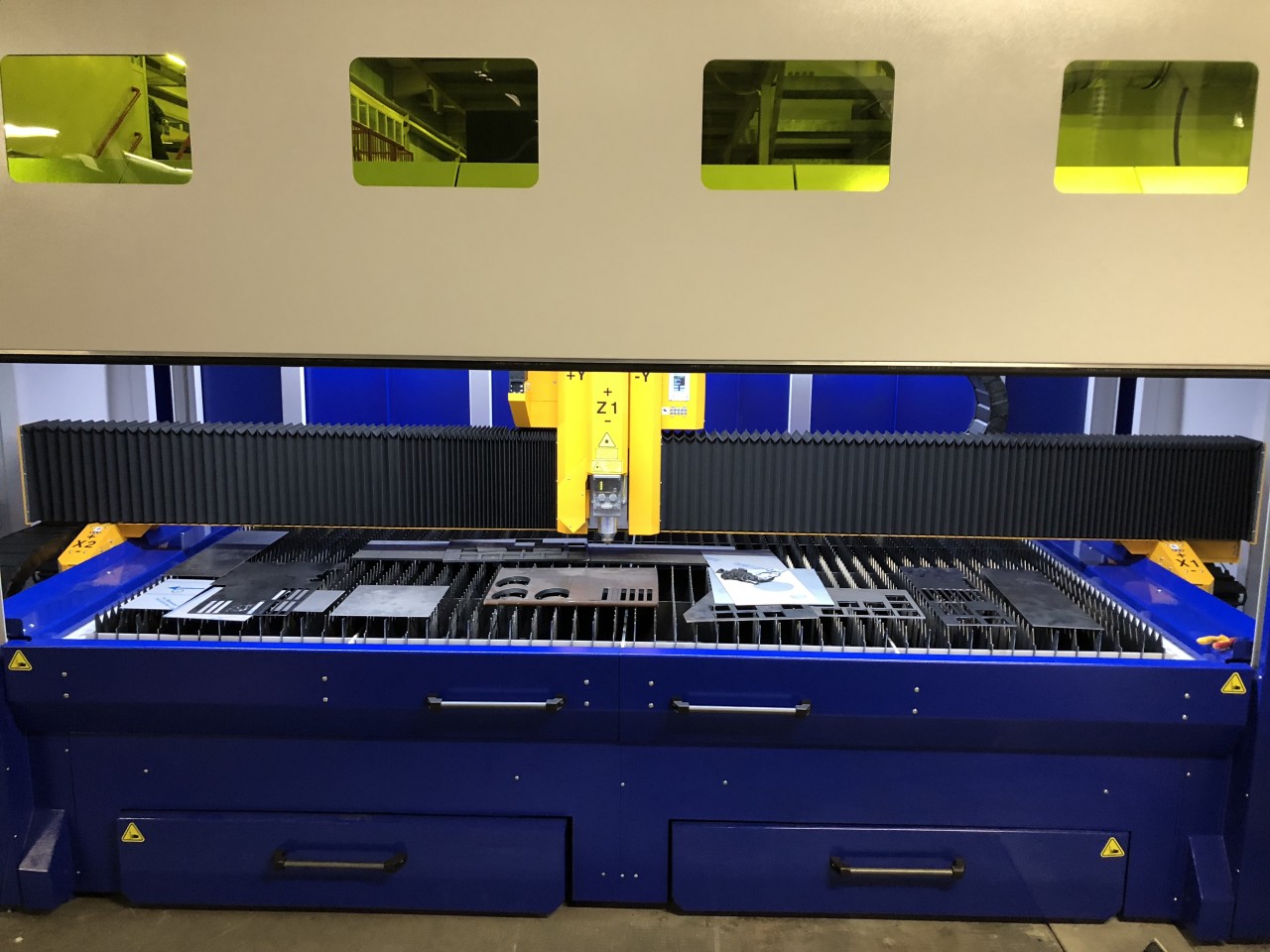

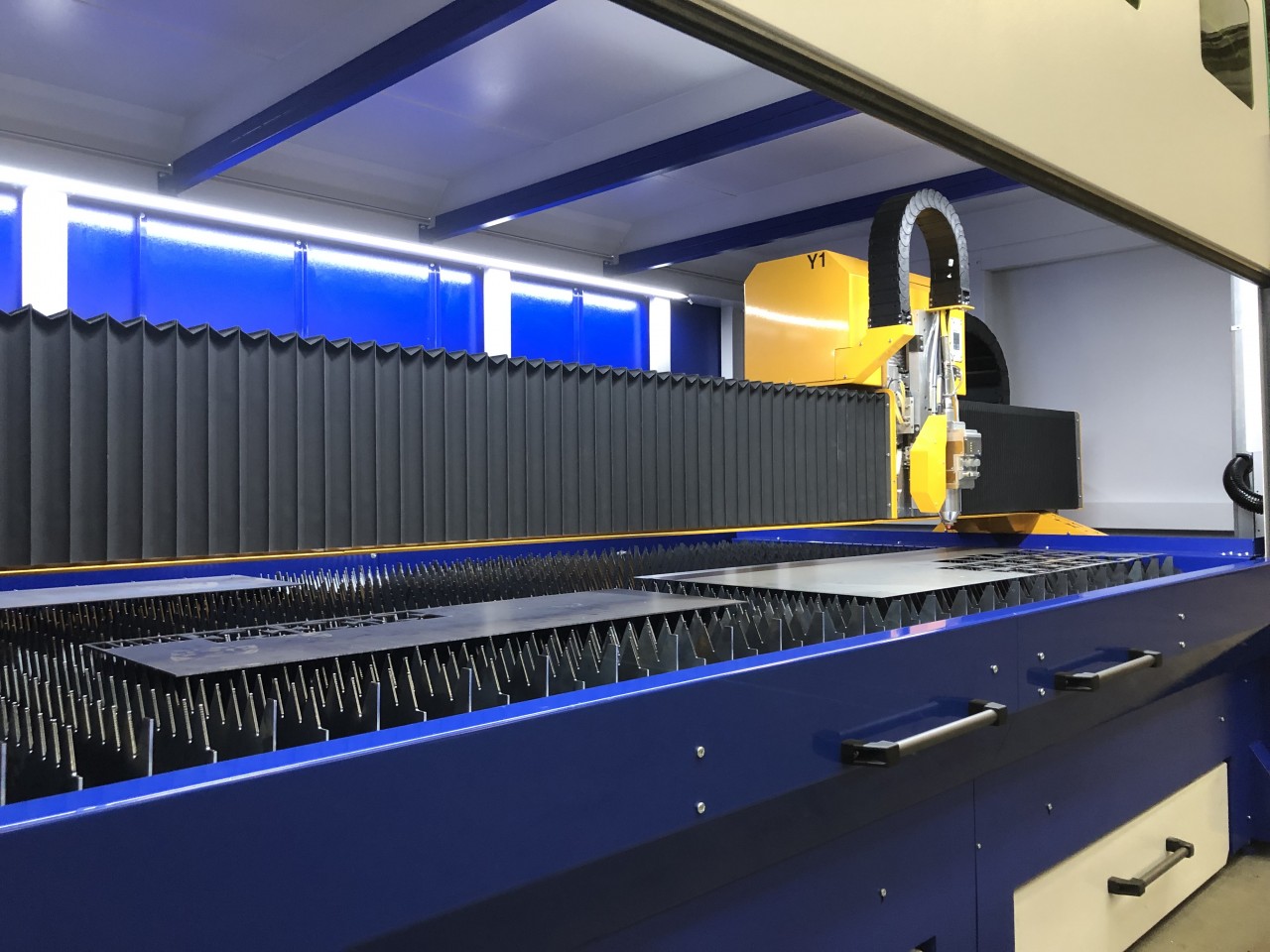

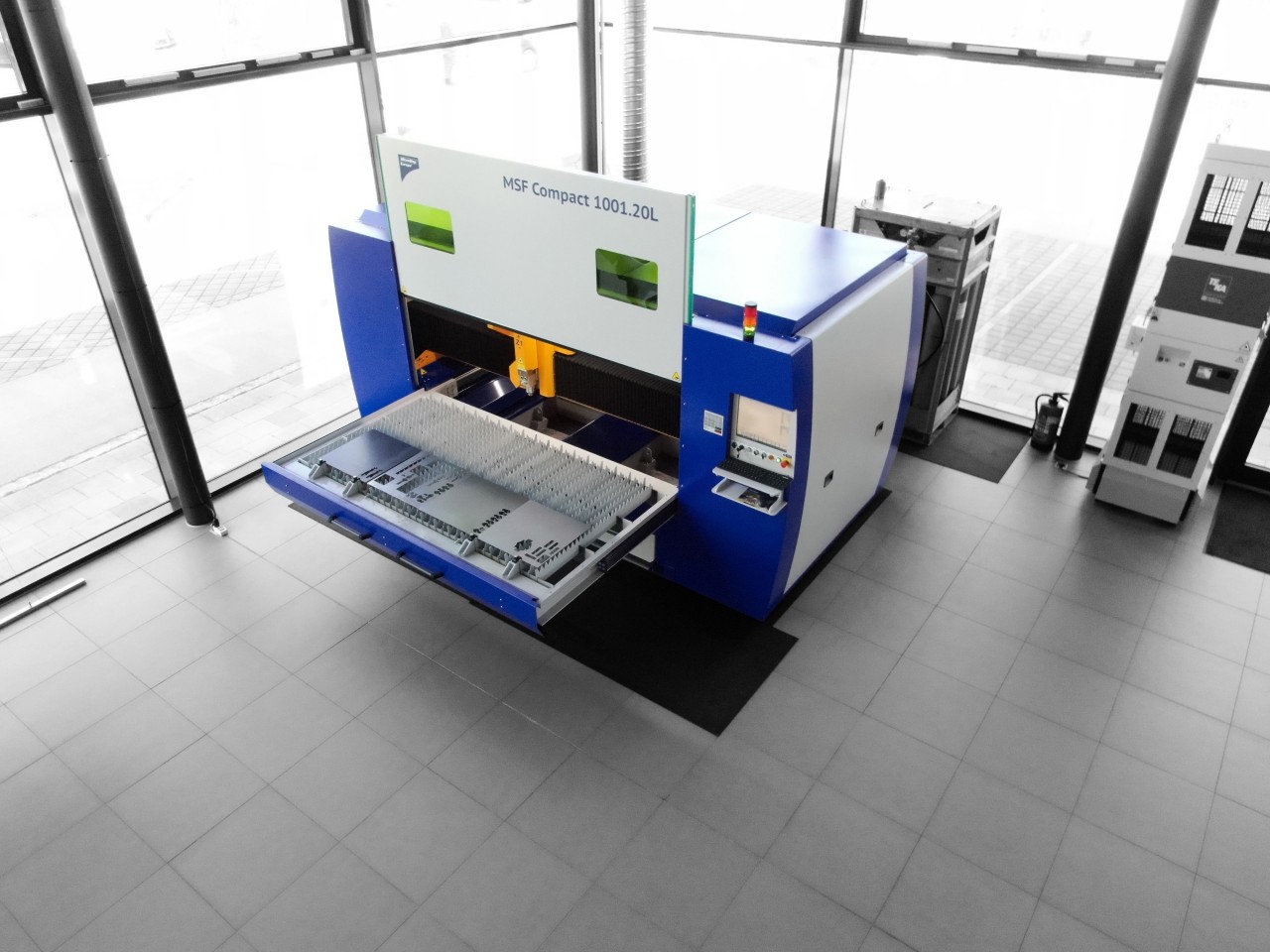

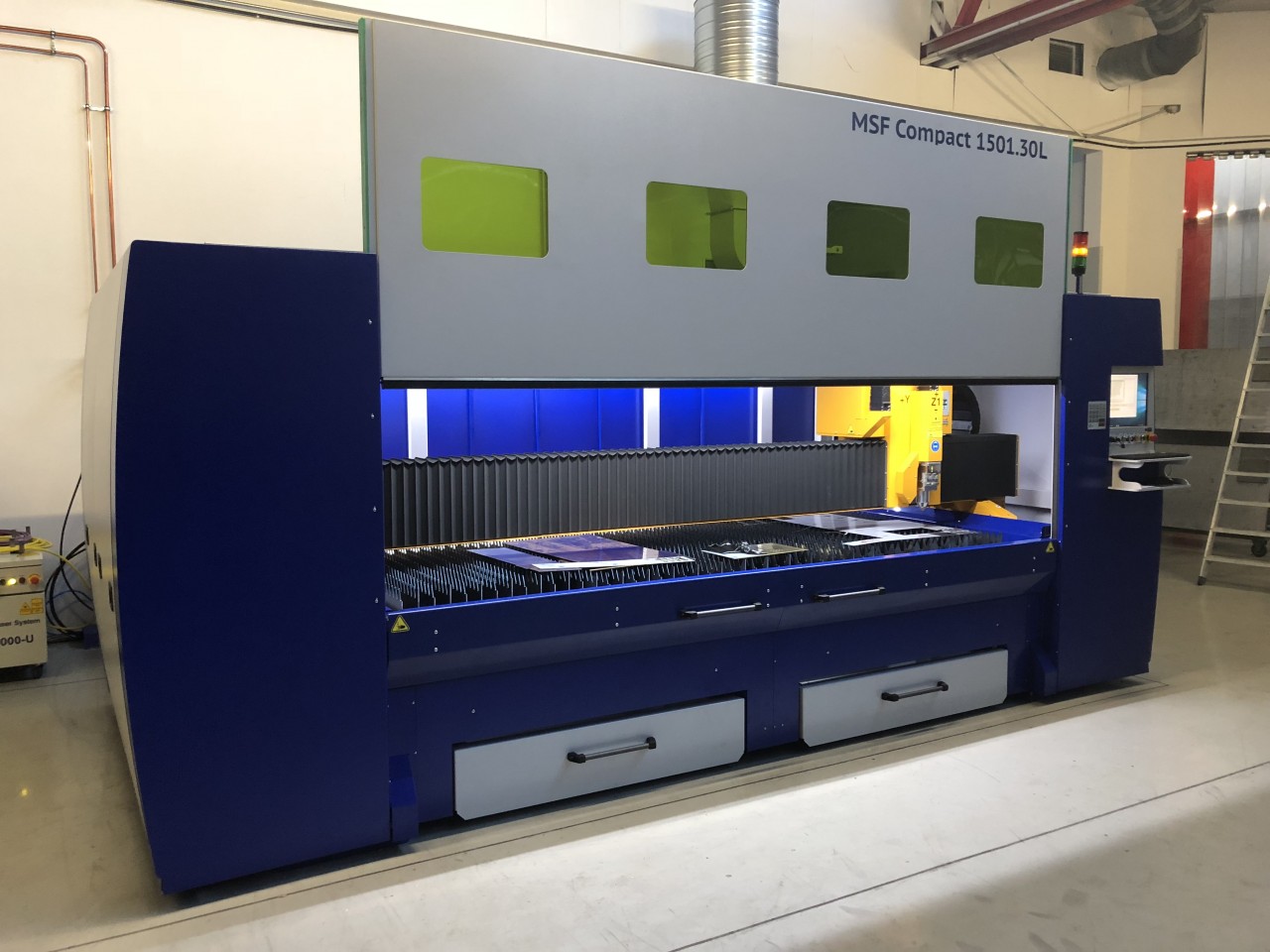

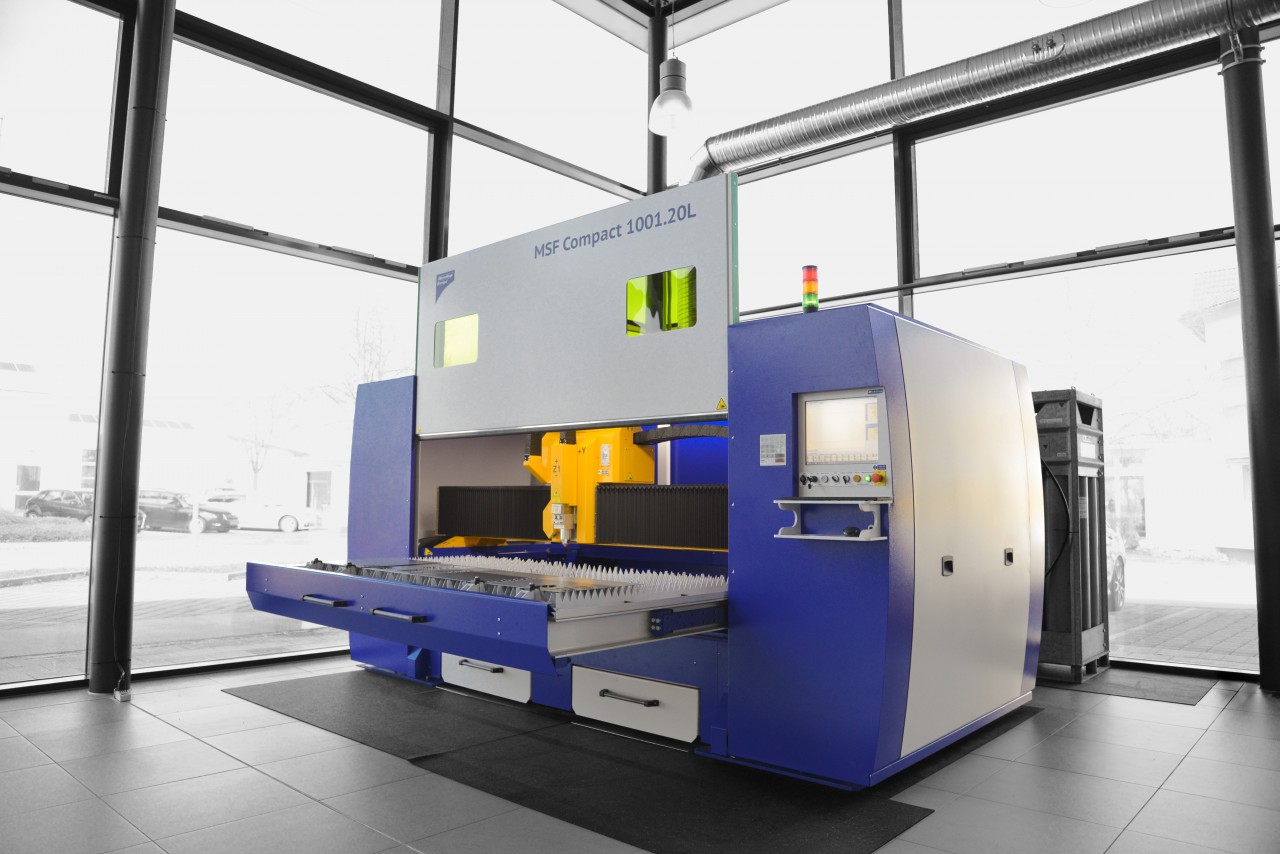

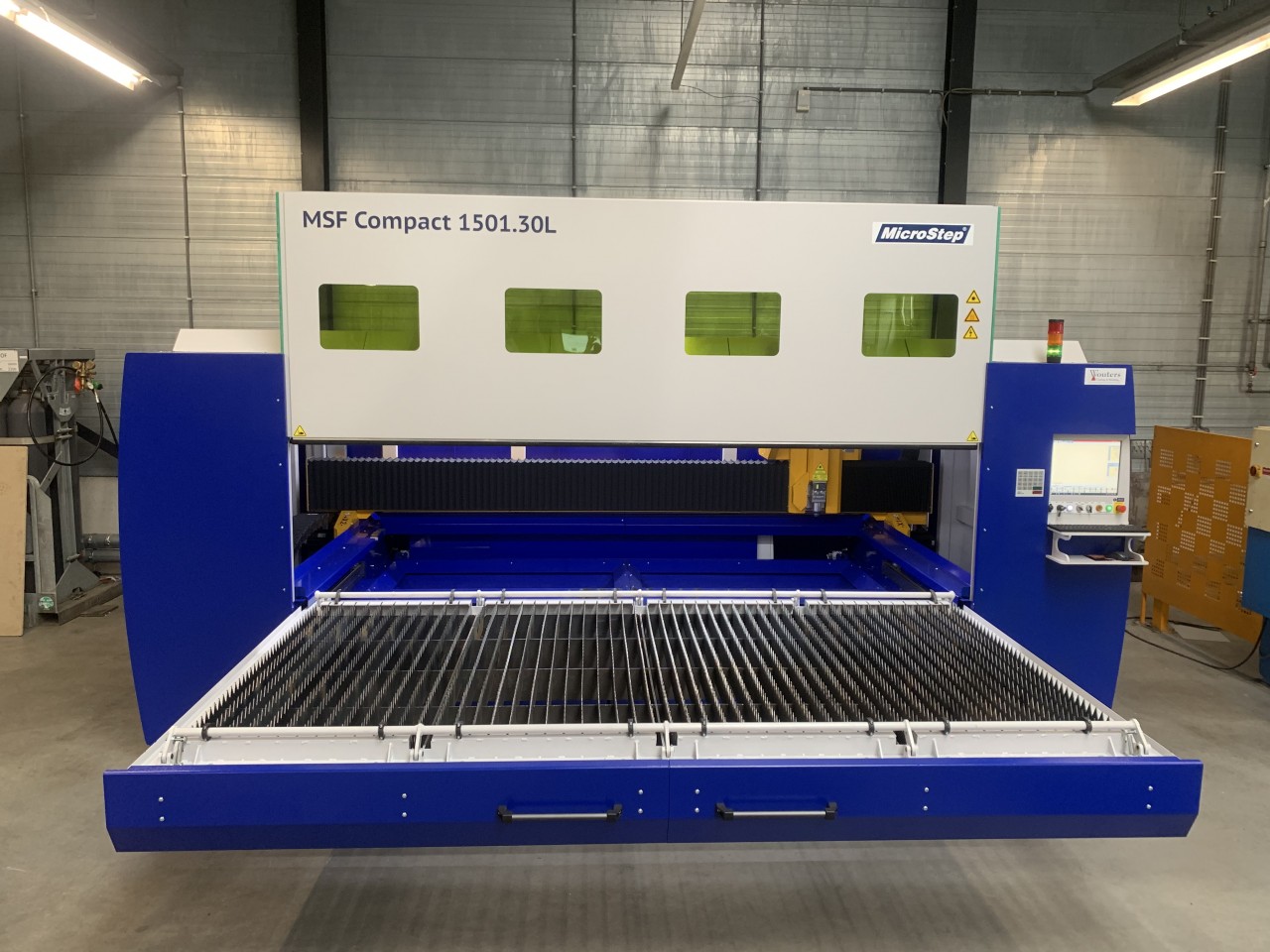

MSF Compact is a powerful yet cost-effective version of MSF - without compromising any of the dynamic properties of the MSF line. The machine is designed for production of highly accurate parts at high cutting speeds with a single cutting head and with suprisingly low maintenance and operational costs. It is equipped with fully telescopic single grate system mounted on linear guidelines which is pulled from the cabin to the front of the machine in order to ensure convenient loading/unloading.
Technical parameters
| Machine sizes |
1x2m, 1.25x2.5m, 1.5x3m |
| Max. number of tool stations |
1 (only 2D cutting) |
| Max. thickness of material |
according to the laser source |
| Max. laser source power |
4 kW |
| Bevel cutting |
no (possible only on MSF and MSF-Max) |
| Pipe cutting |
no |
| Drilling and tapping |
no |
| Positioning speed |
max 183 m/min |
| Bidirectional repeatability |
0.03 mm/m |
Please note: MSF Compact is supplied only in limited number of configurations and sizes.
