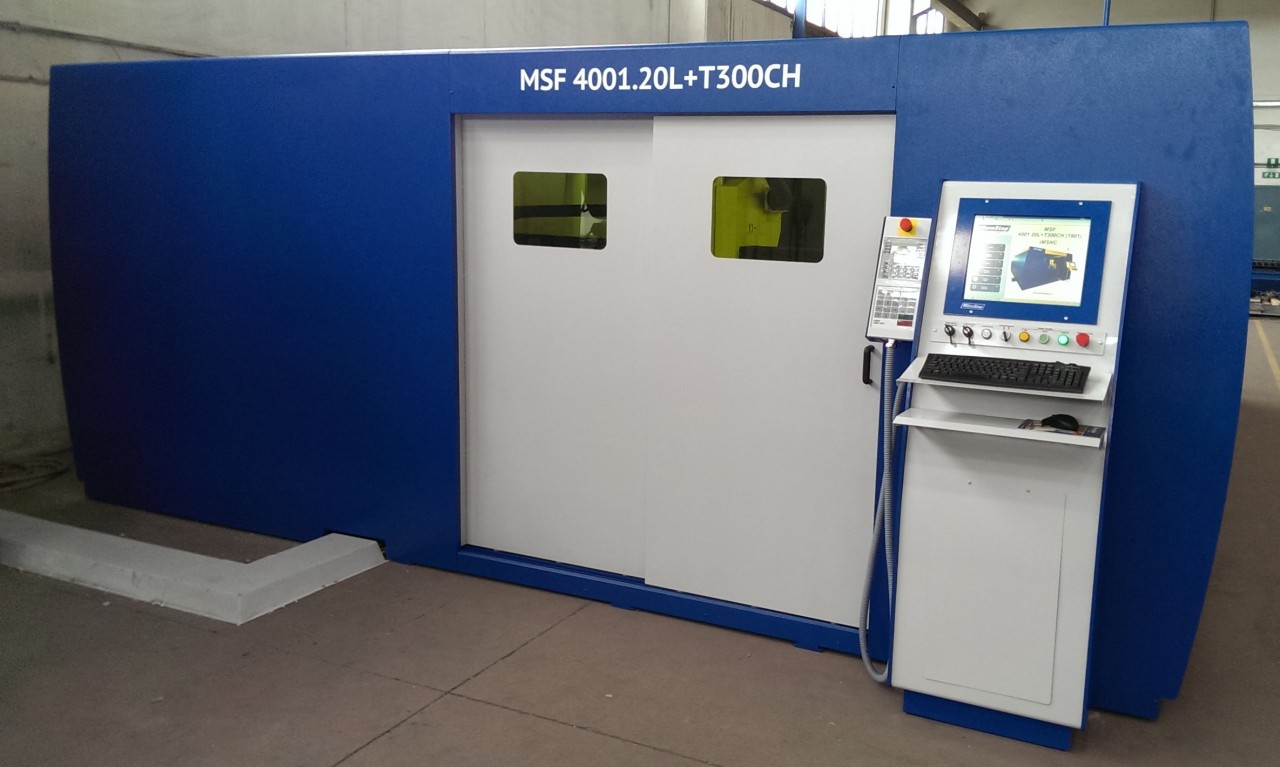

MSF

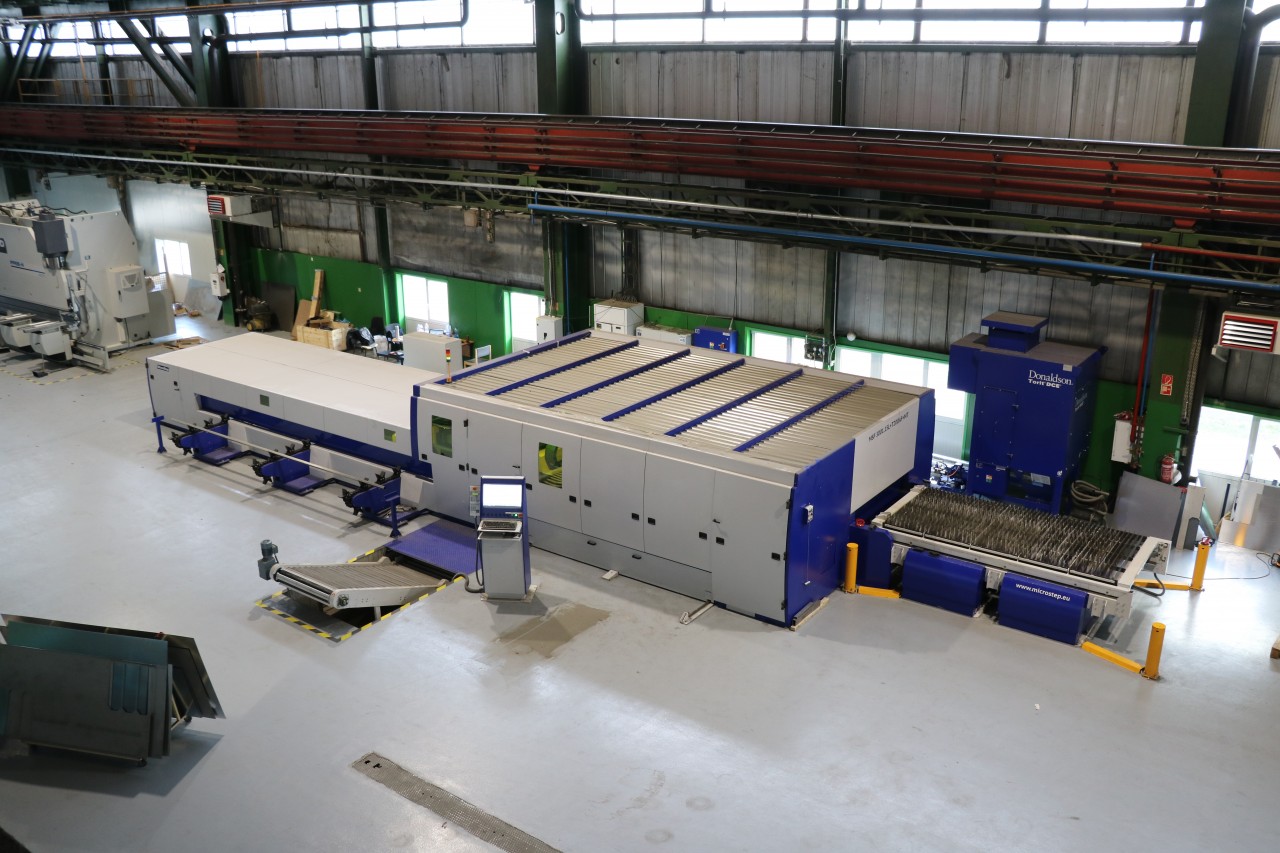

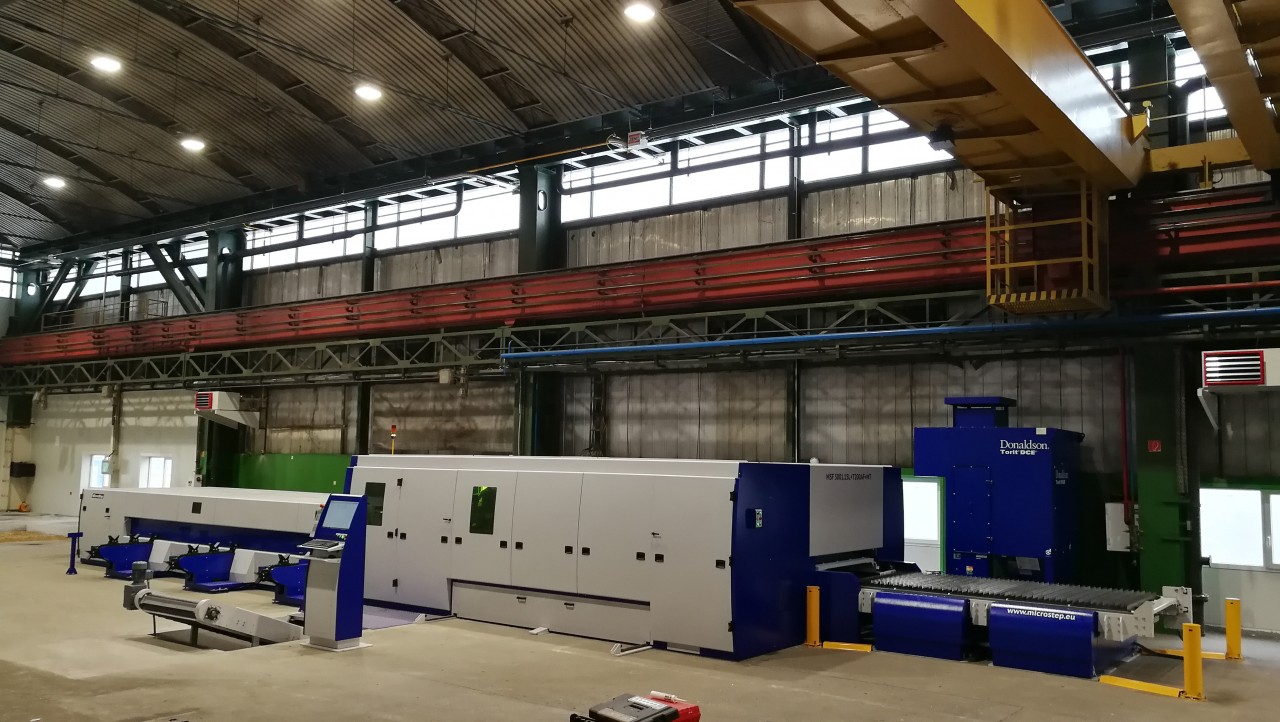

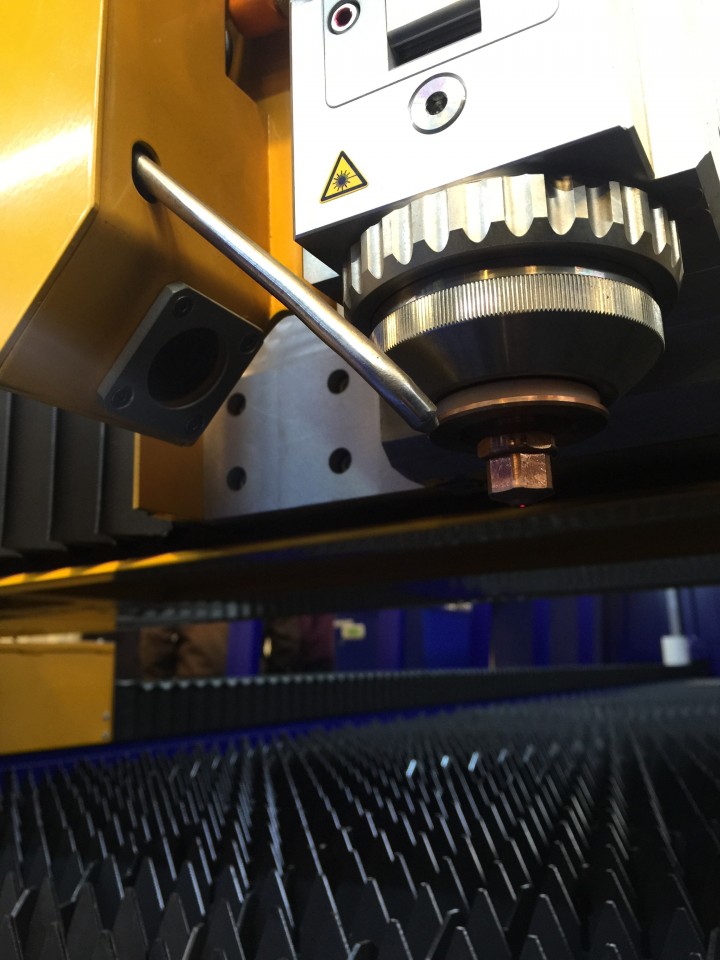

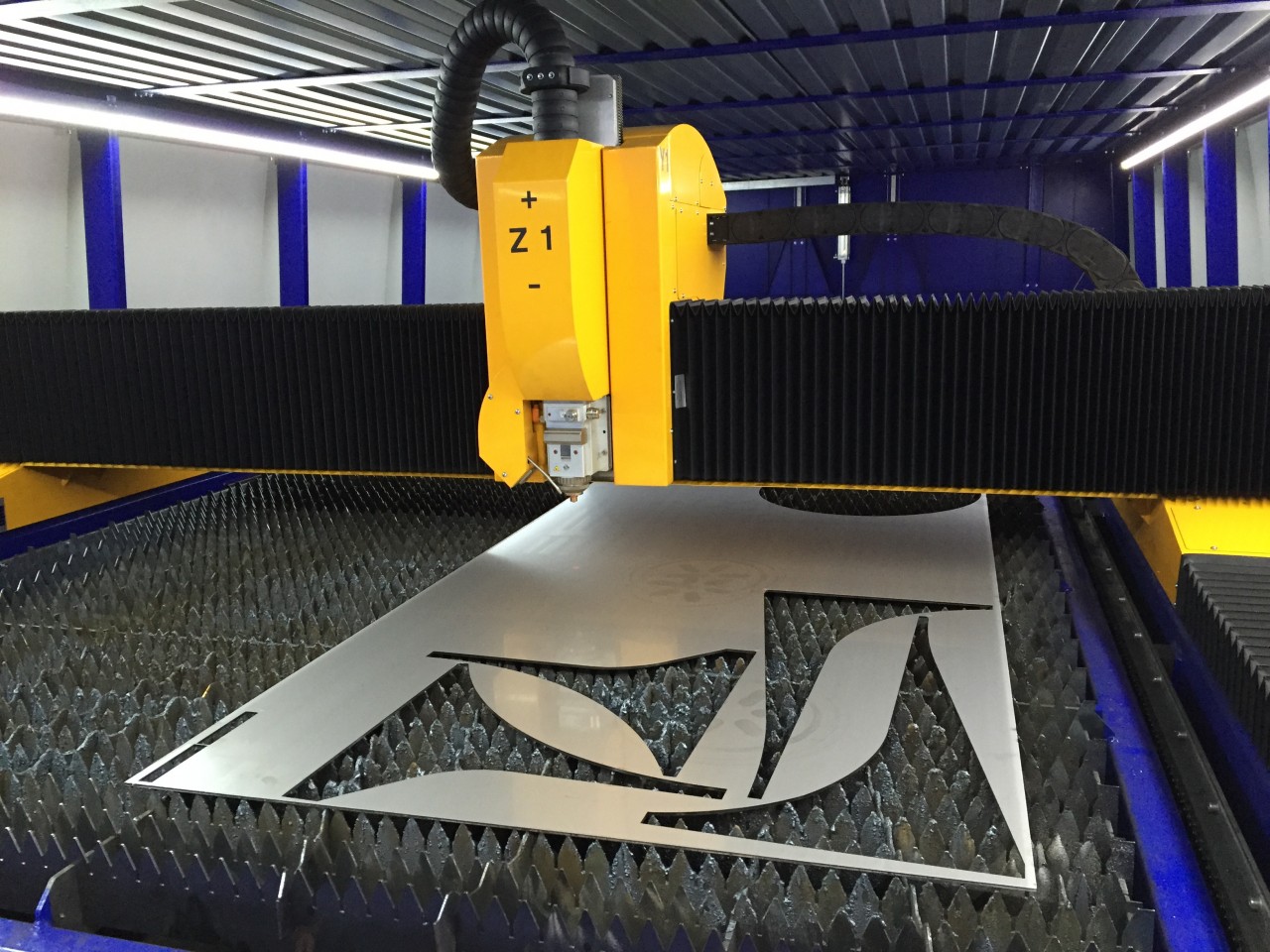

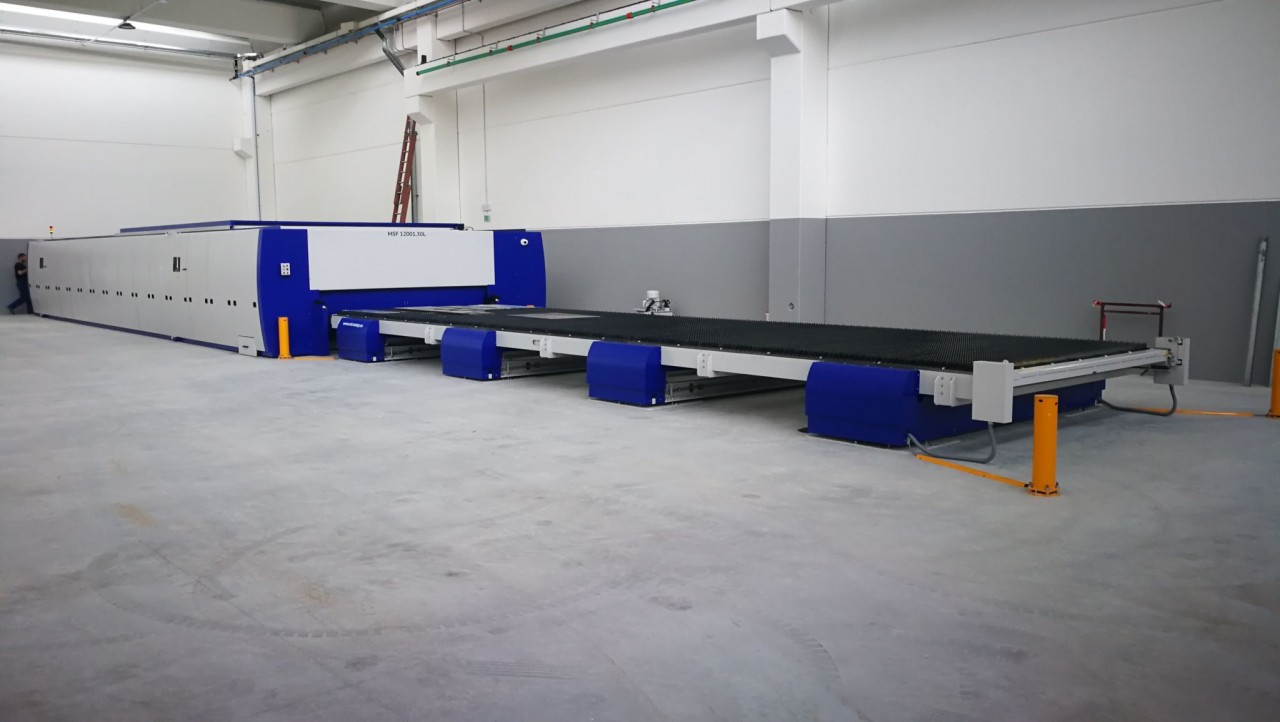

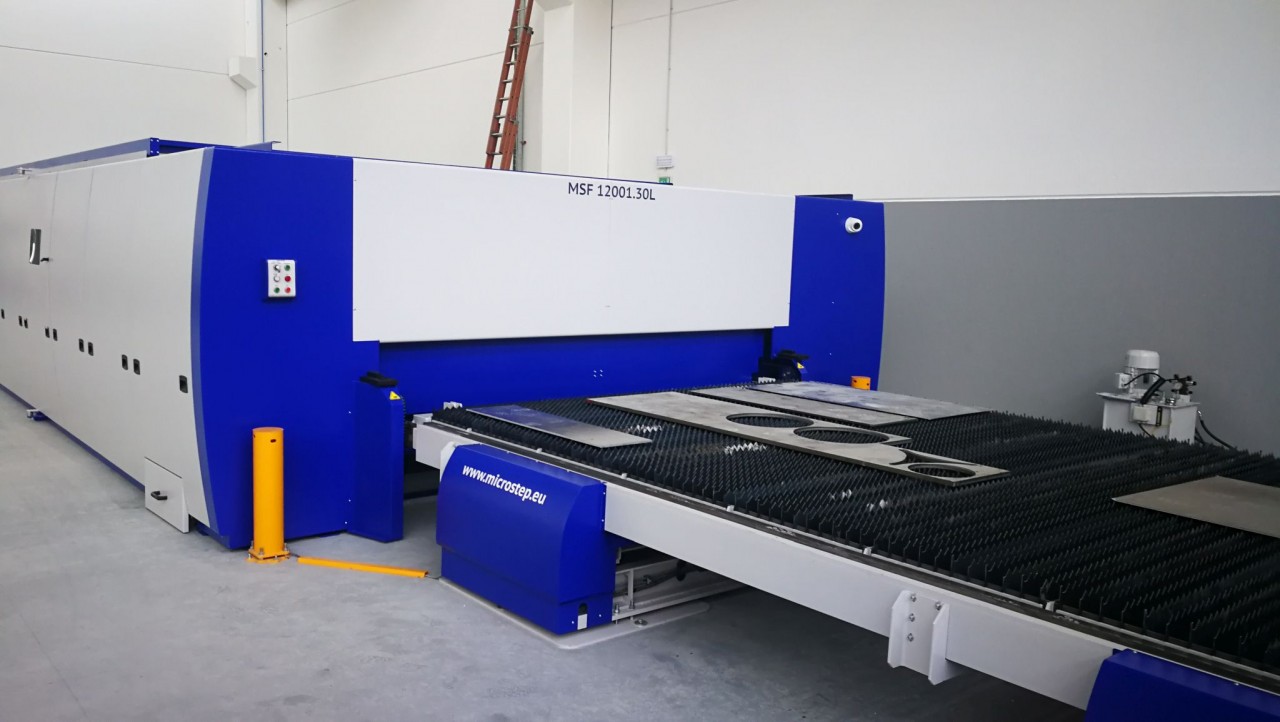

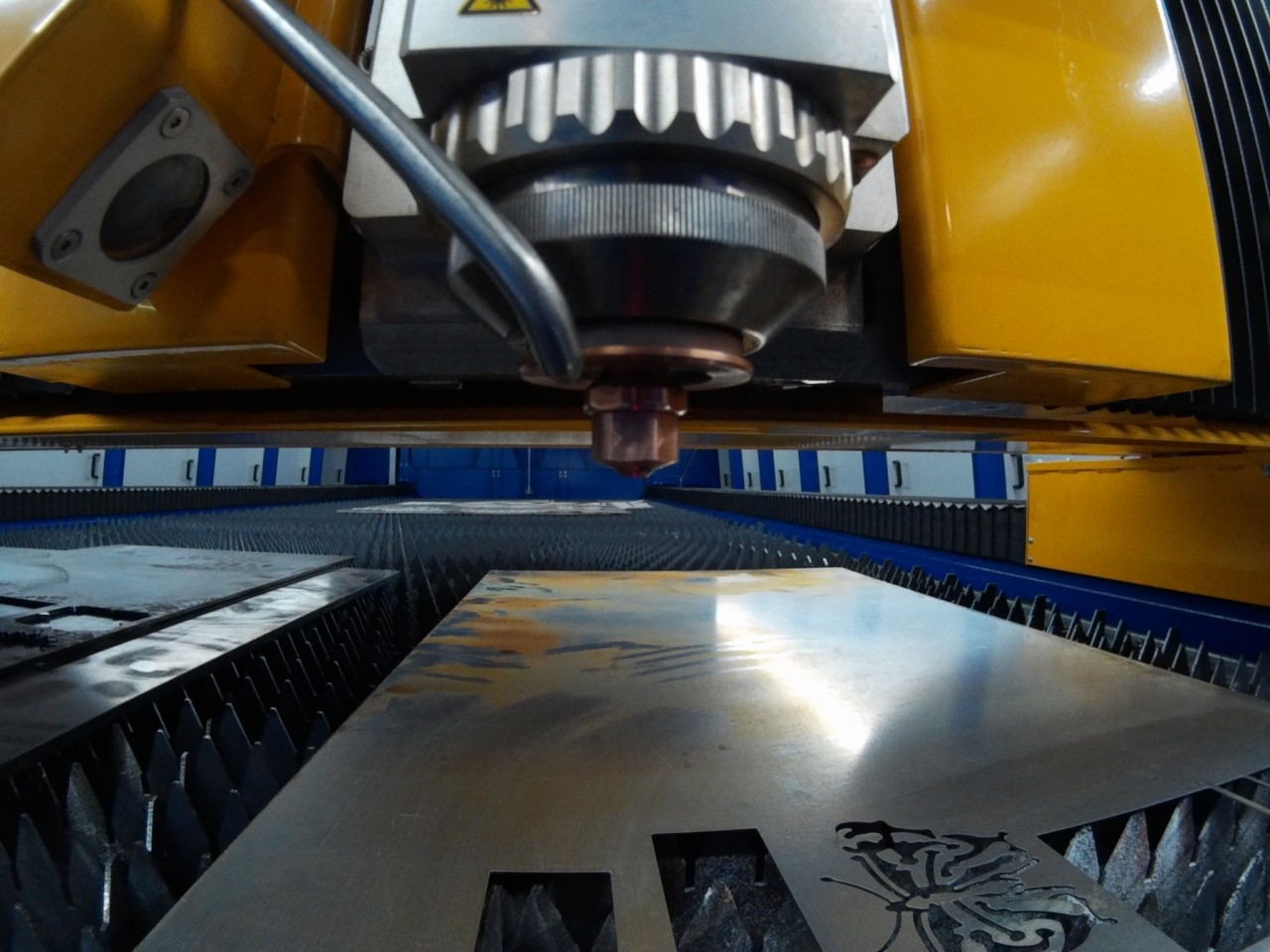

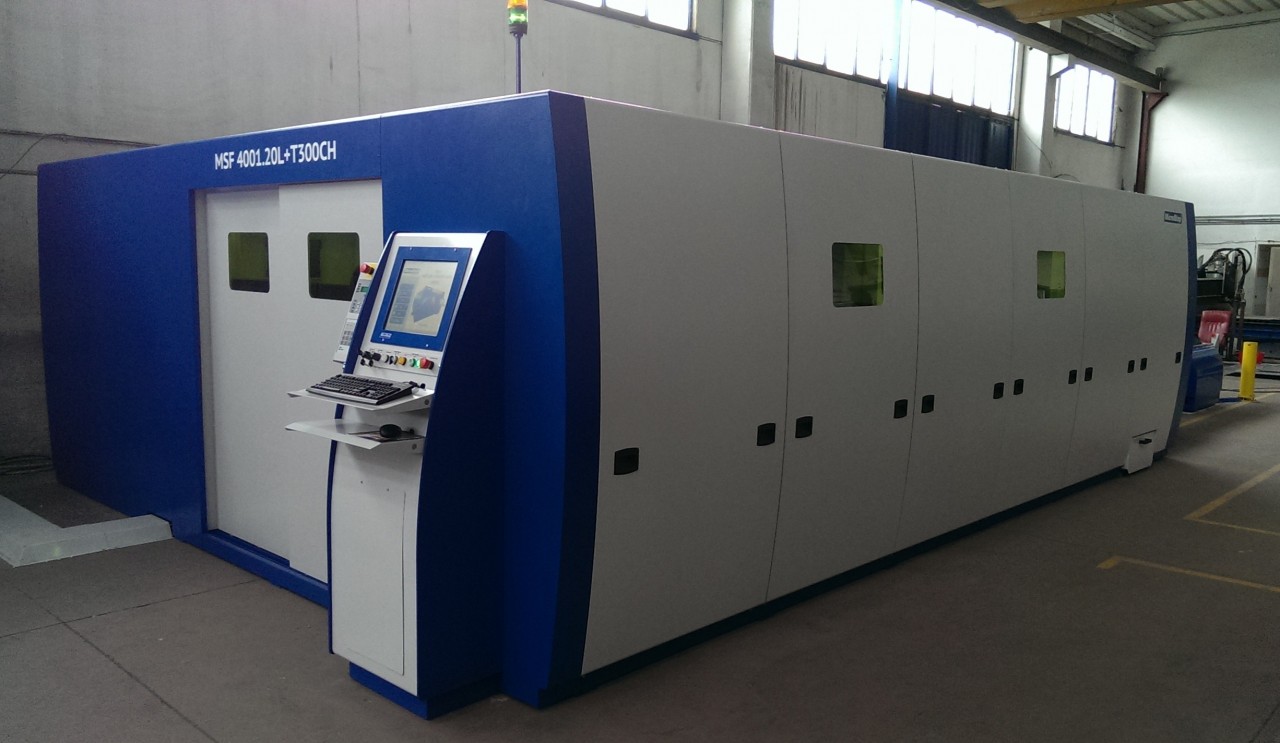

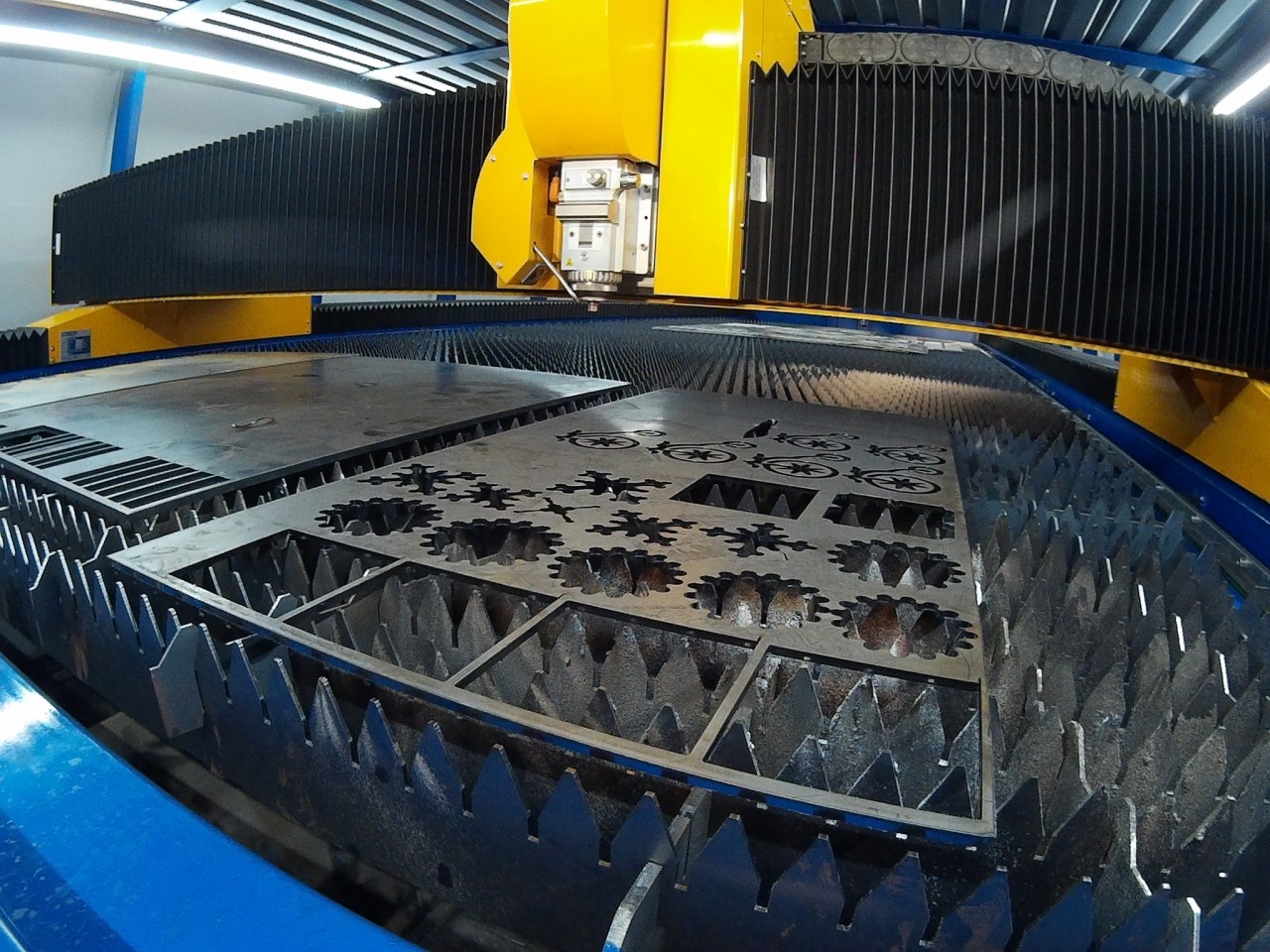

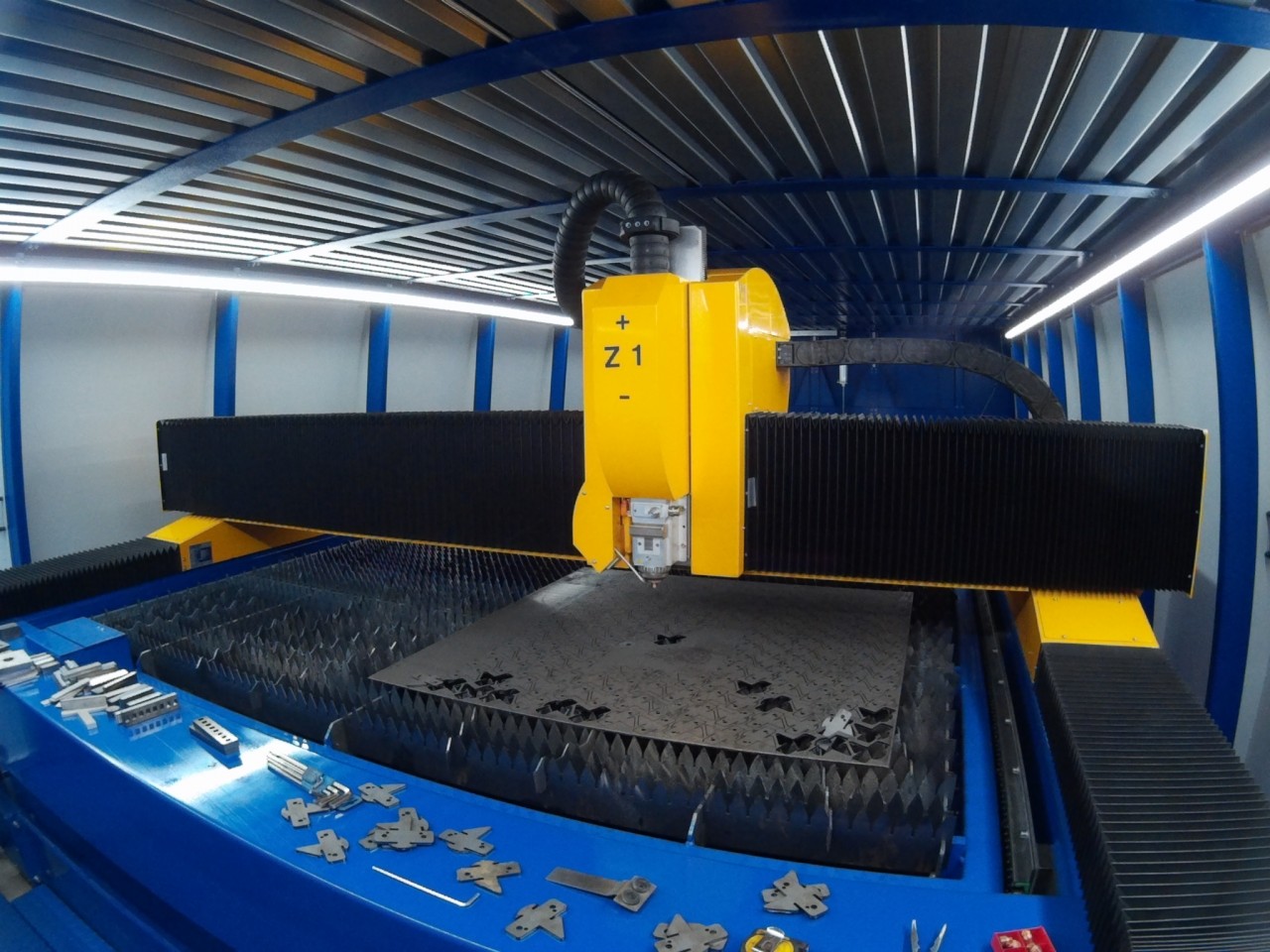

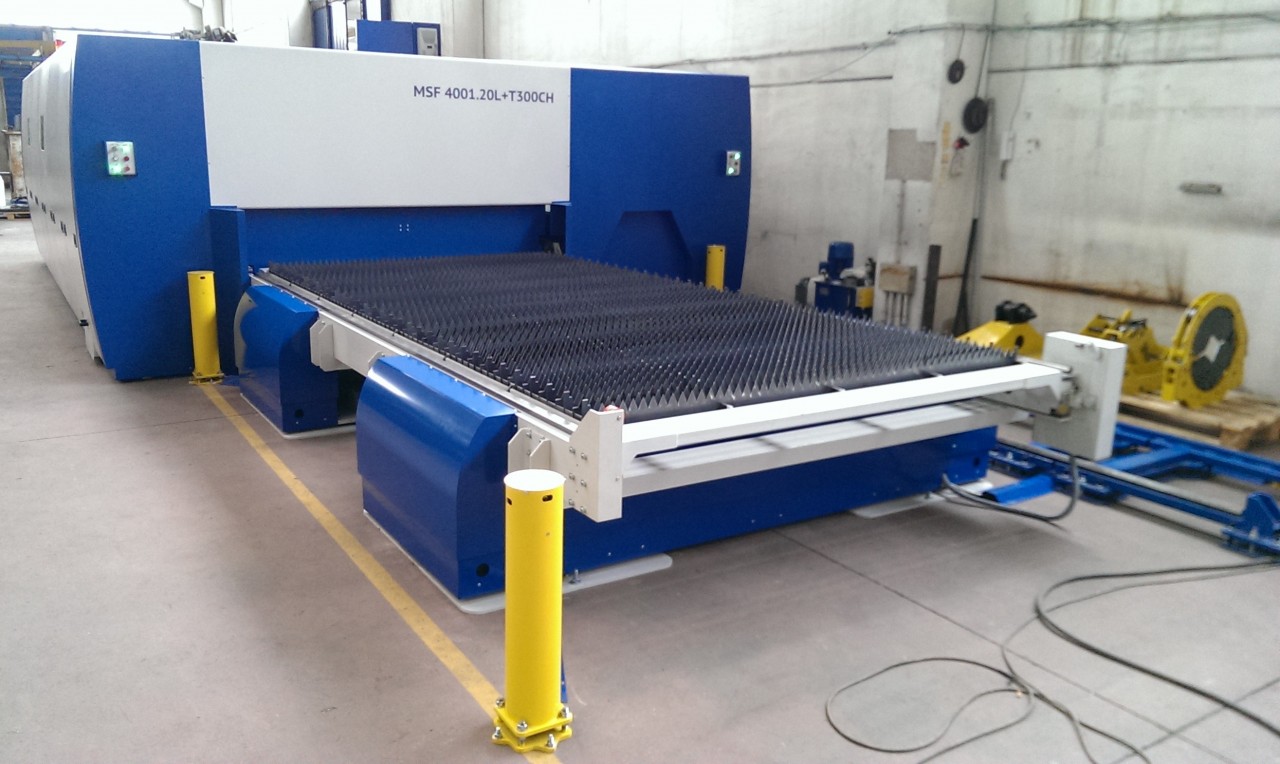

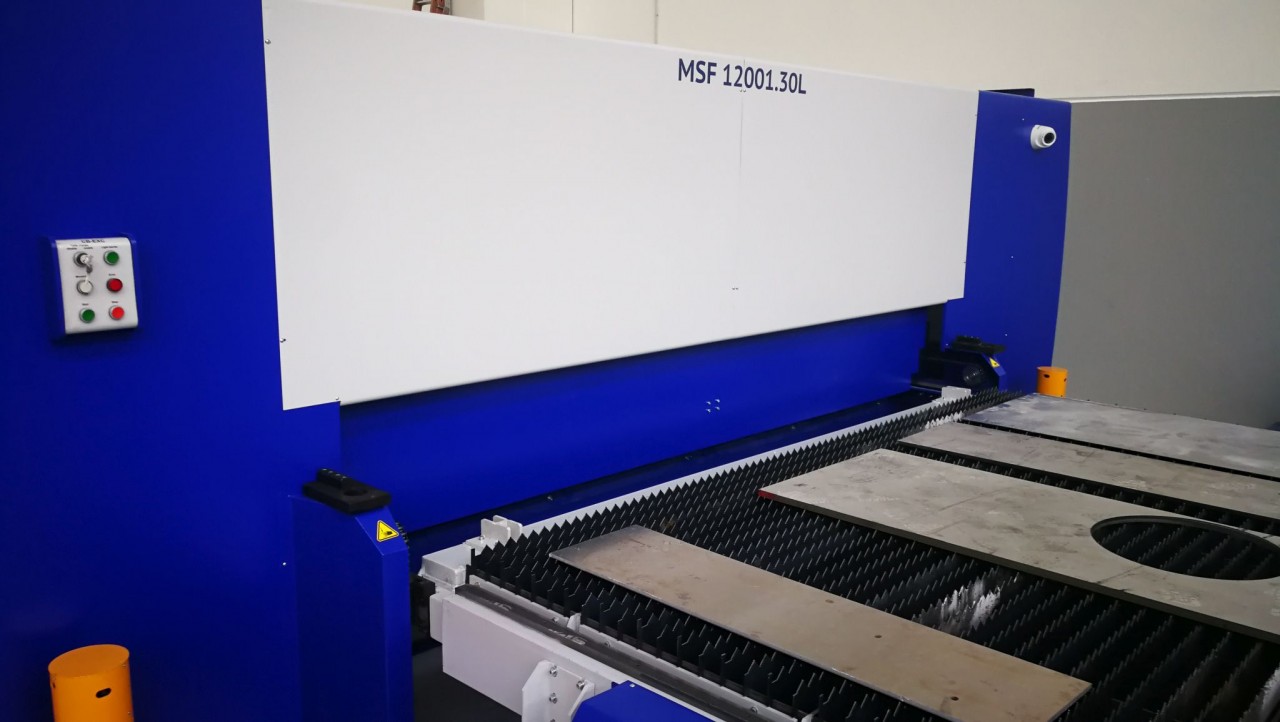

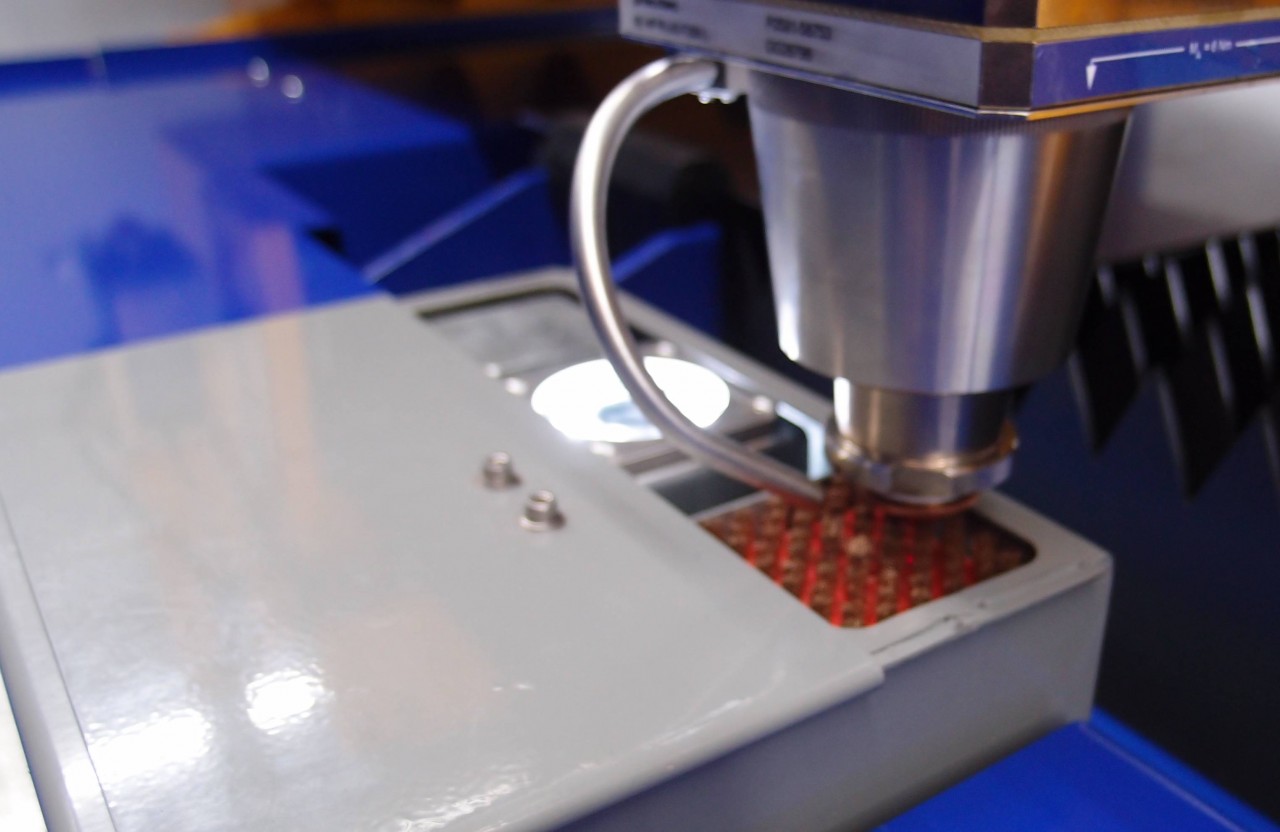

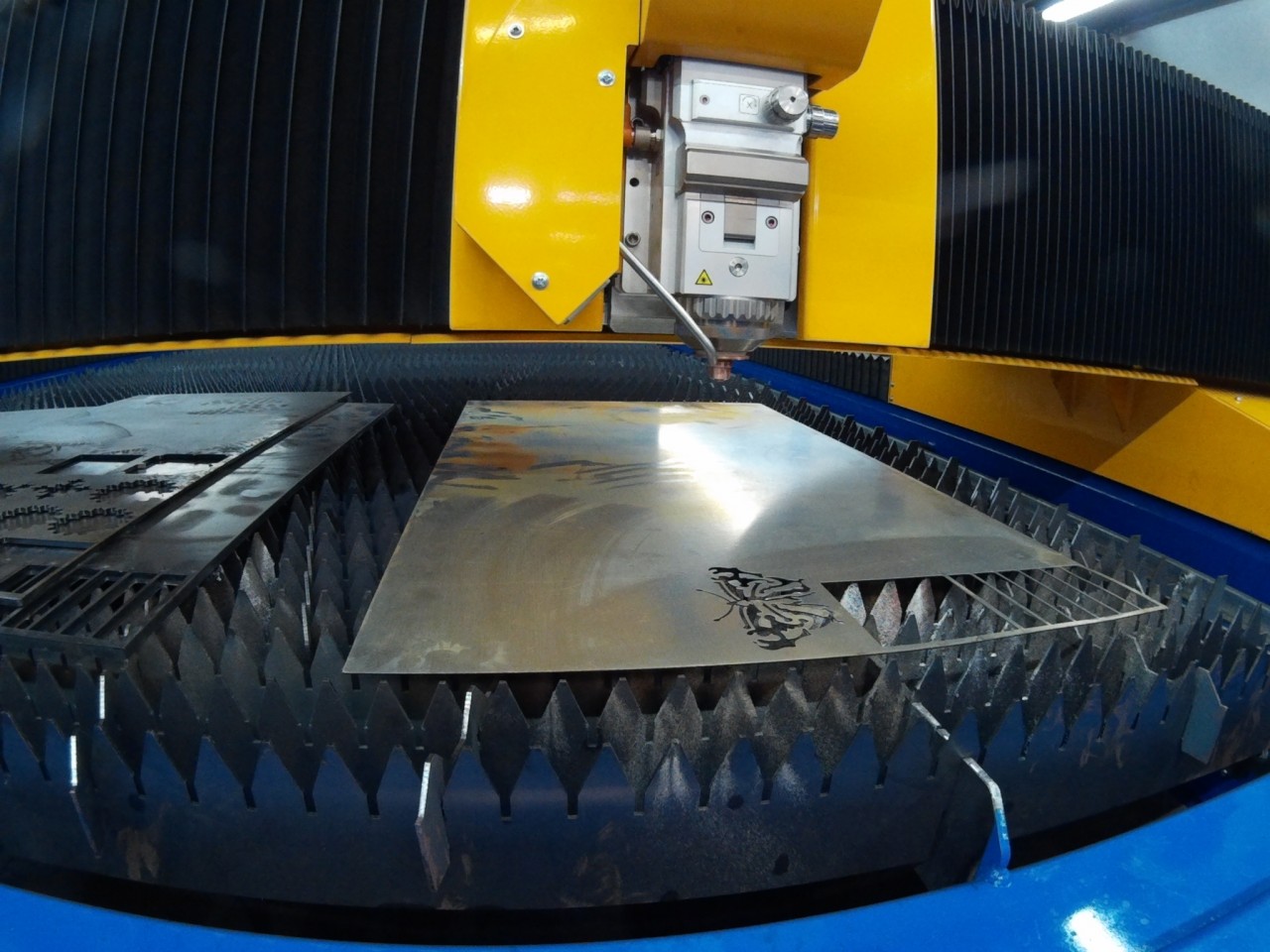

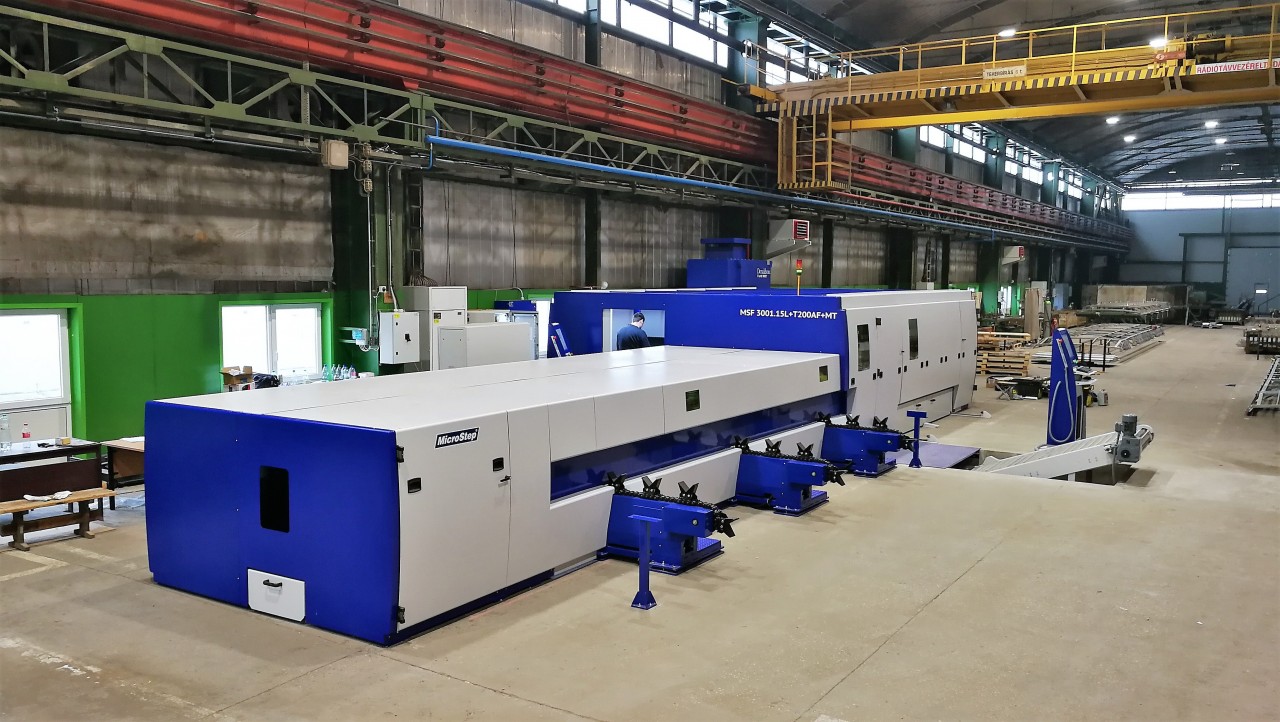

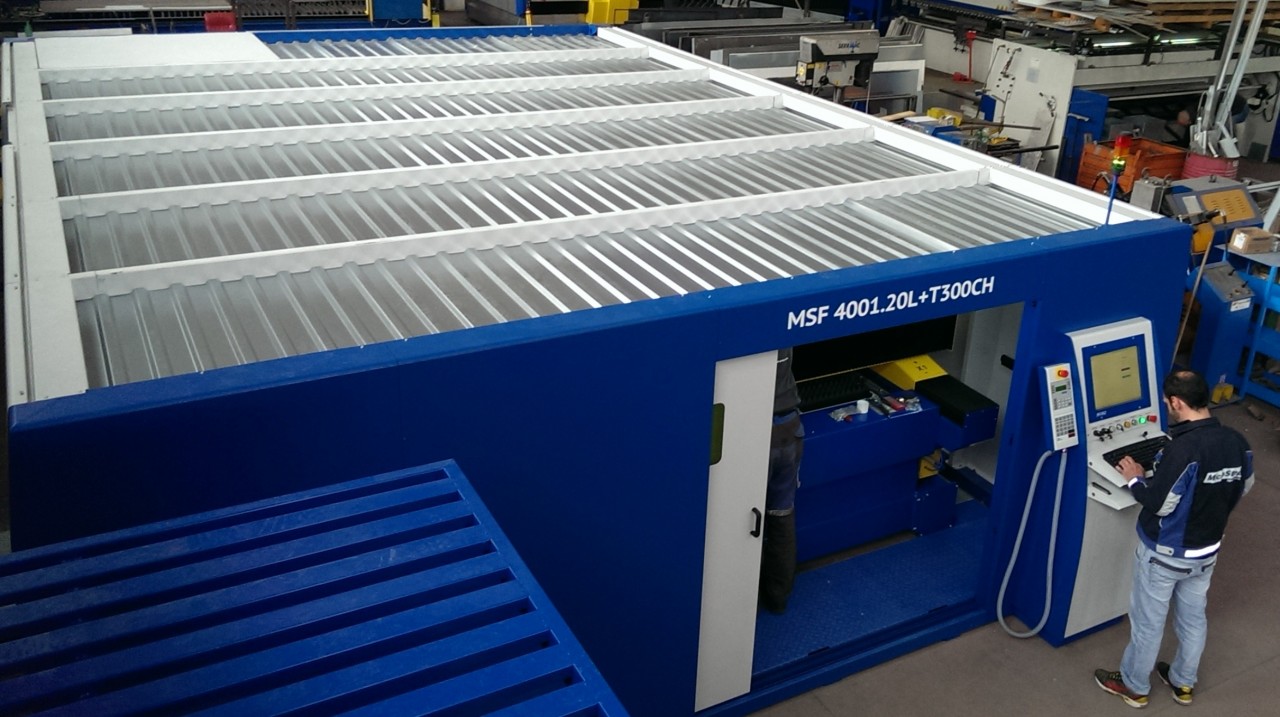

MSF machine is a powerful laser cutting system for cutting of materials with a fiber laser, or a combination of fiber laser and plasma. The machine is designed for production of highly accurate parts at high cutting speeds, with surprisingly low maintenance and operational costs. The outstanding dynamics of MSF is achieved by a low-seated gantry, digital AC drives and precise planetary gears. The machine is by default equipped with an automatic shuttle table.

Technical parameters

Working length	1000 - 12000 mm
Working width	1500 - 3000 mm

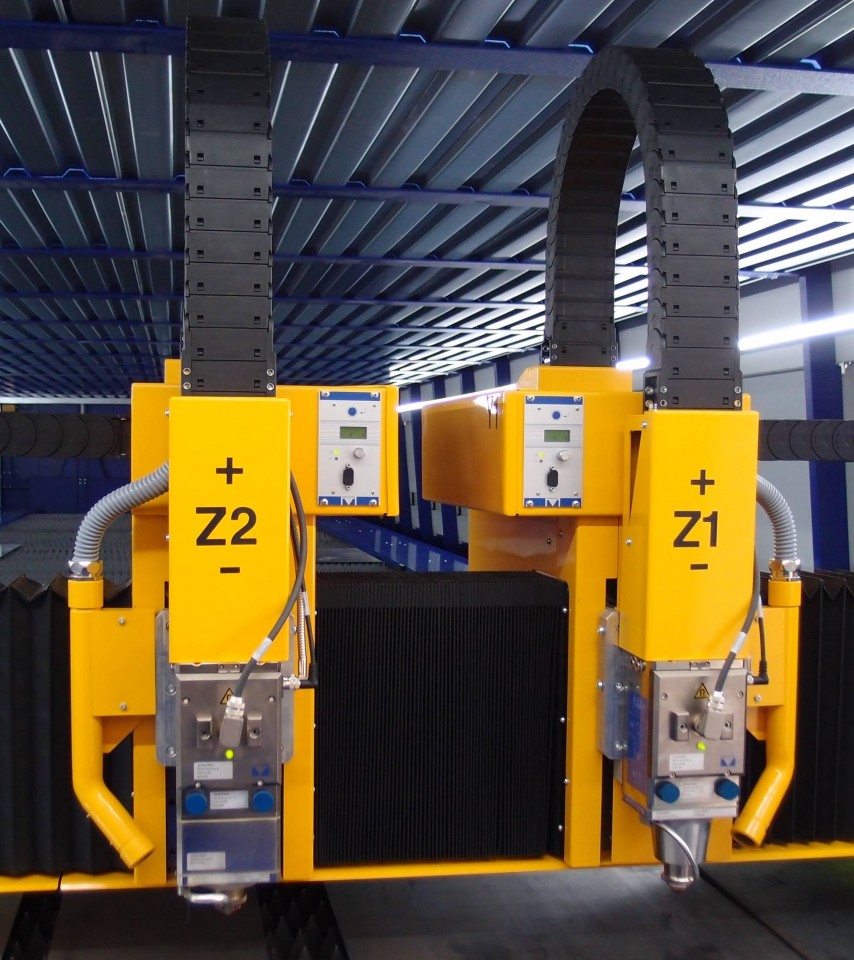

Max. number of tool stations	2
Max. thickness of material cut by laser	according to laser source
Max. thickness of material cut by plasma	according to plasma source
Bevel cutting	yes (see accessories)

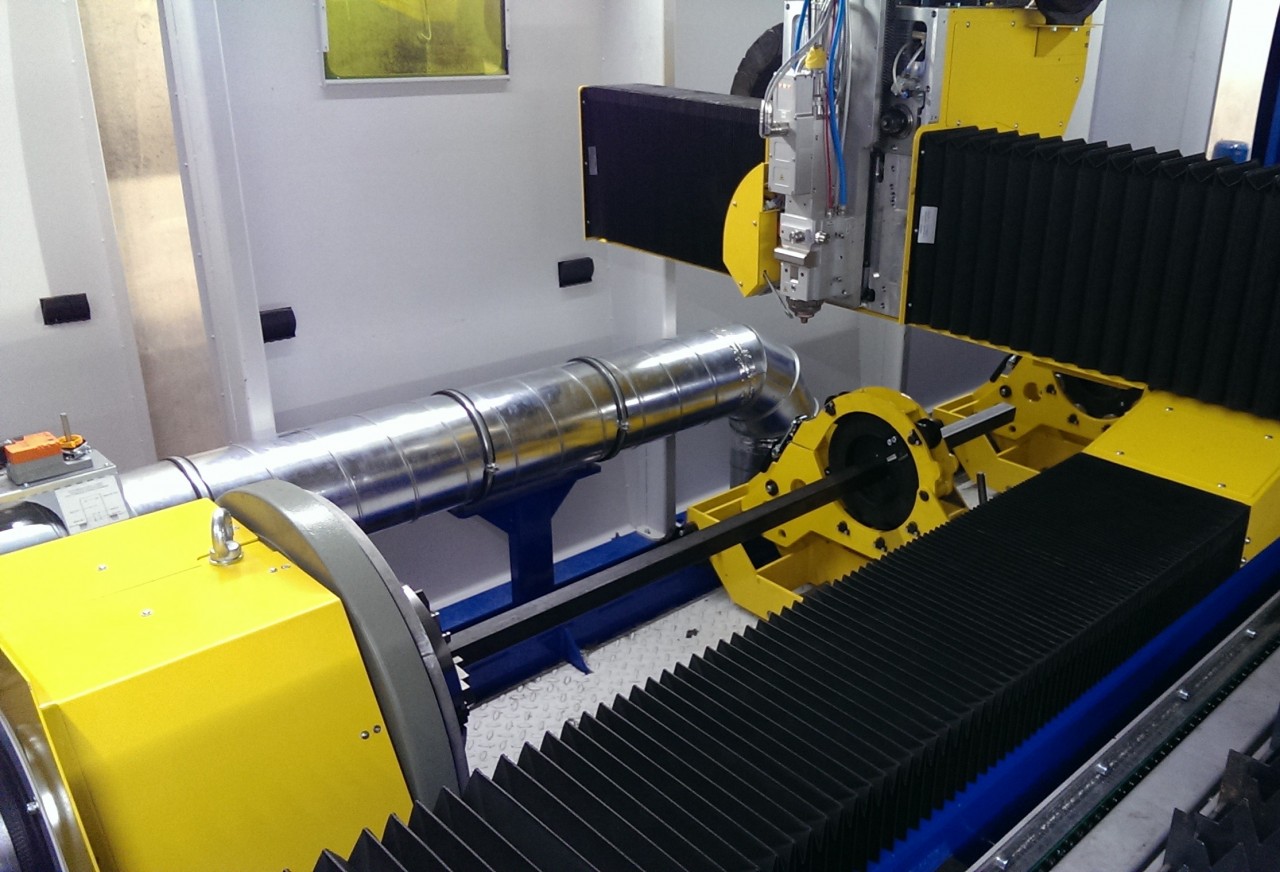

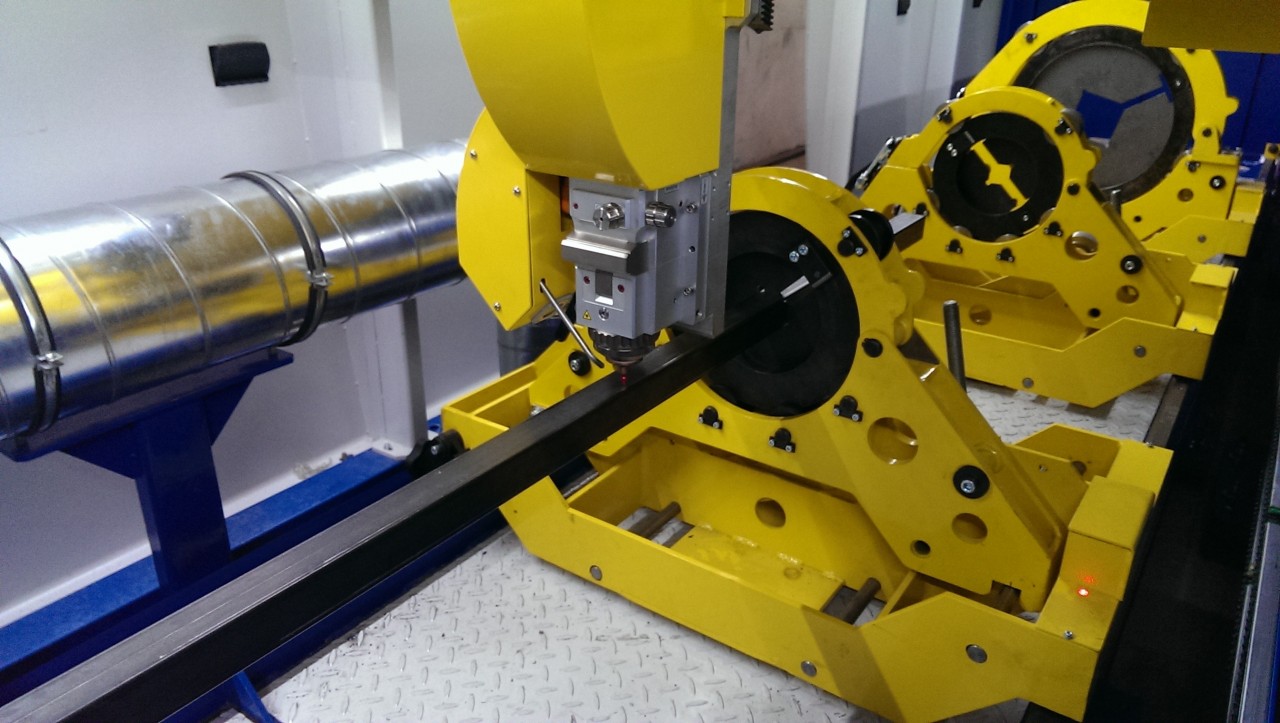

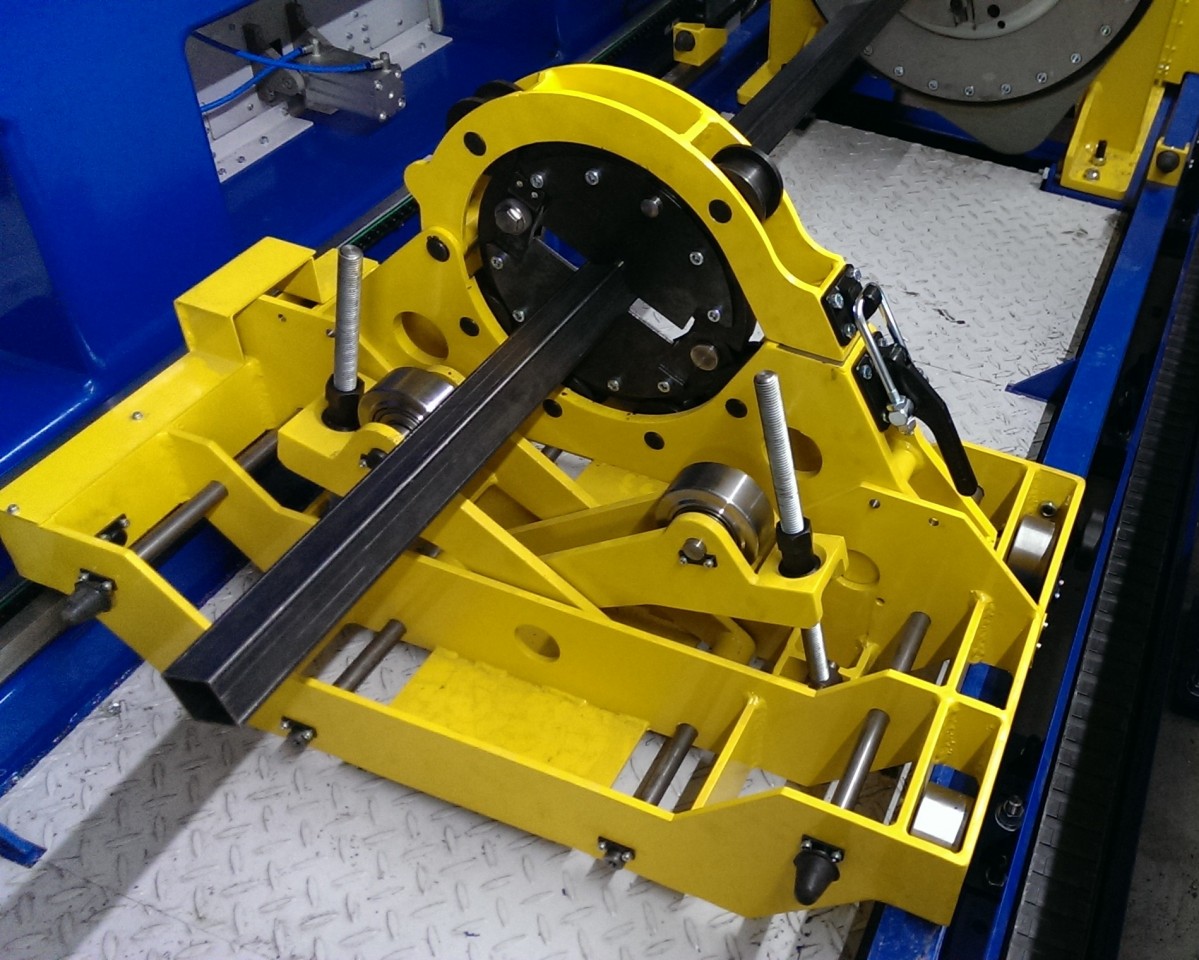

Pipe cutting	Ø 30 - 500 mm
Drilling and tapping	inquire individually
Positioning speed	max 183 m/min
Bidirectional repeatability	0.03 mm/m

Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
