WaterCut

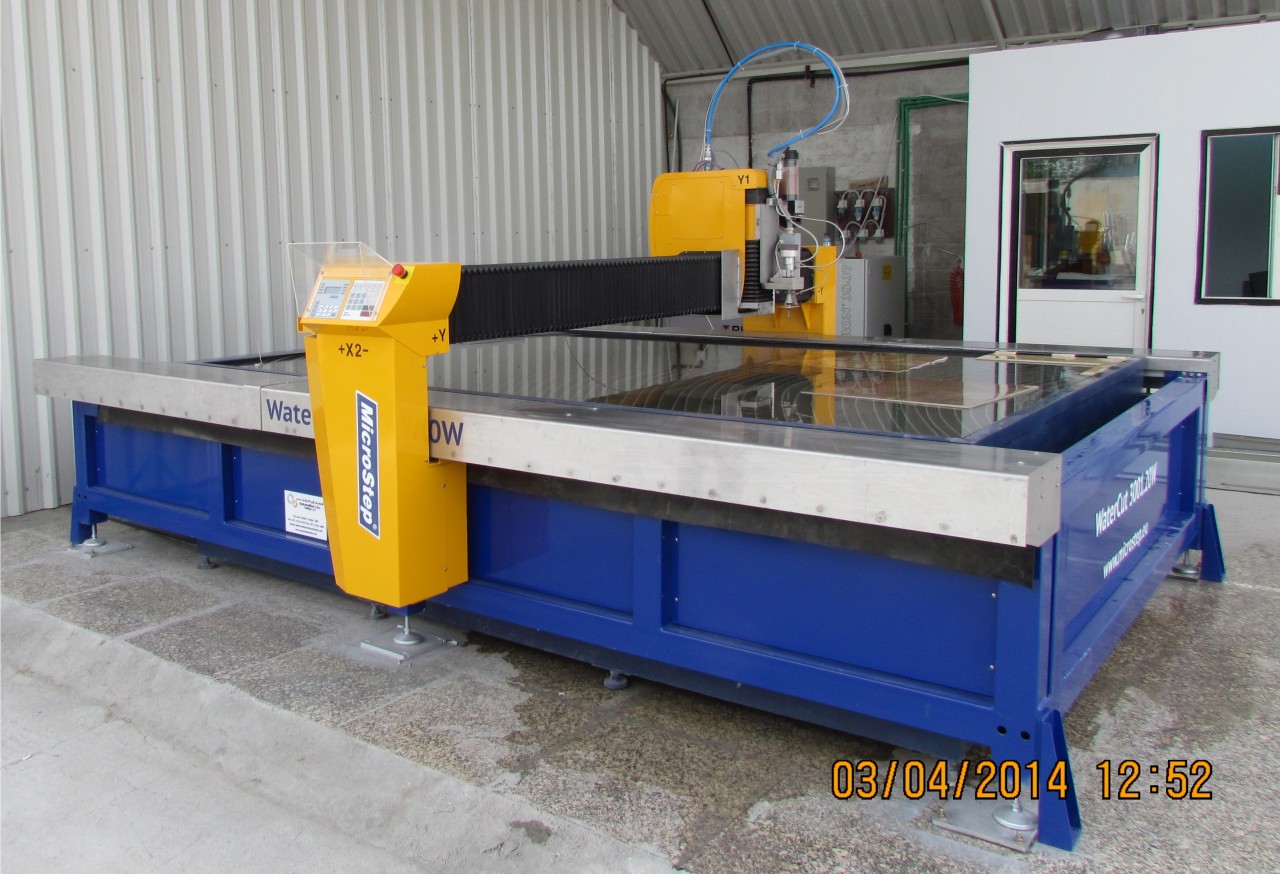

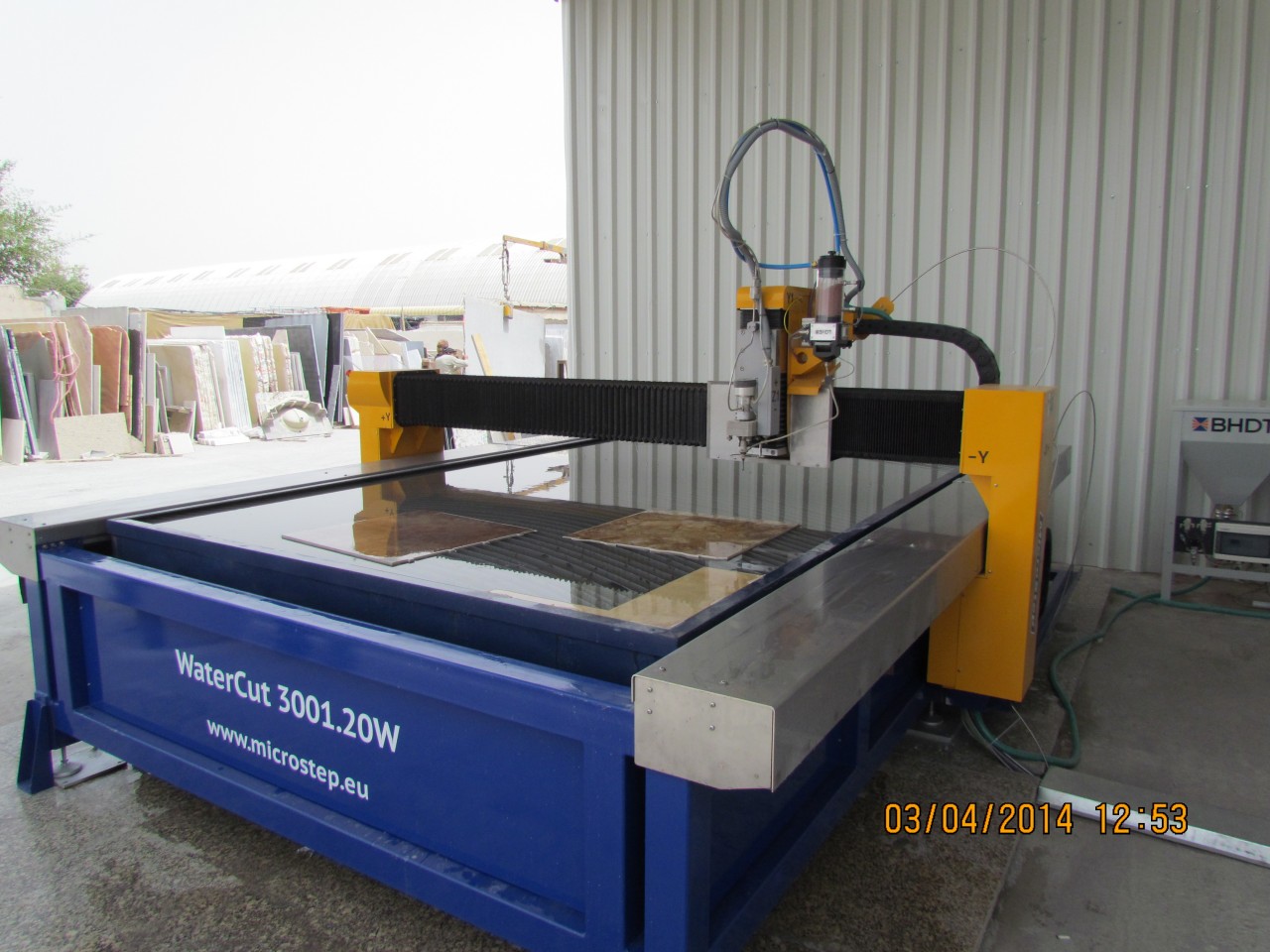

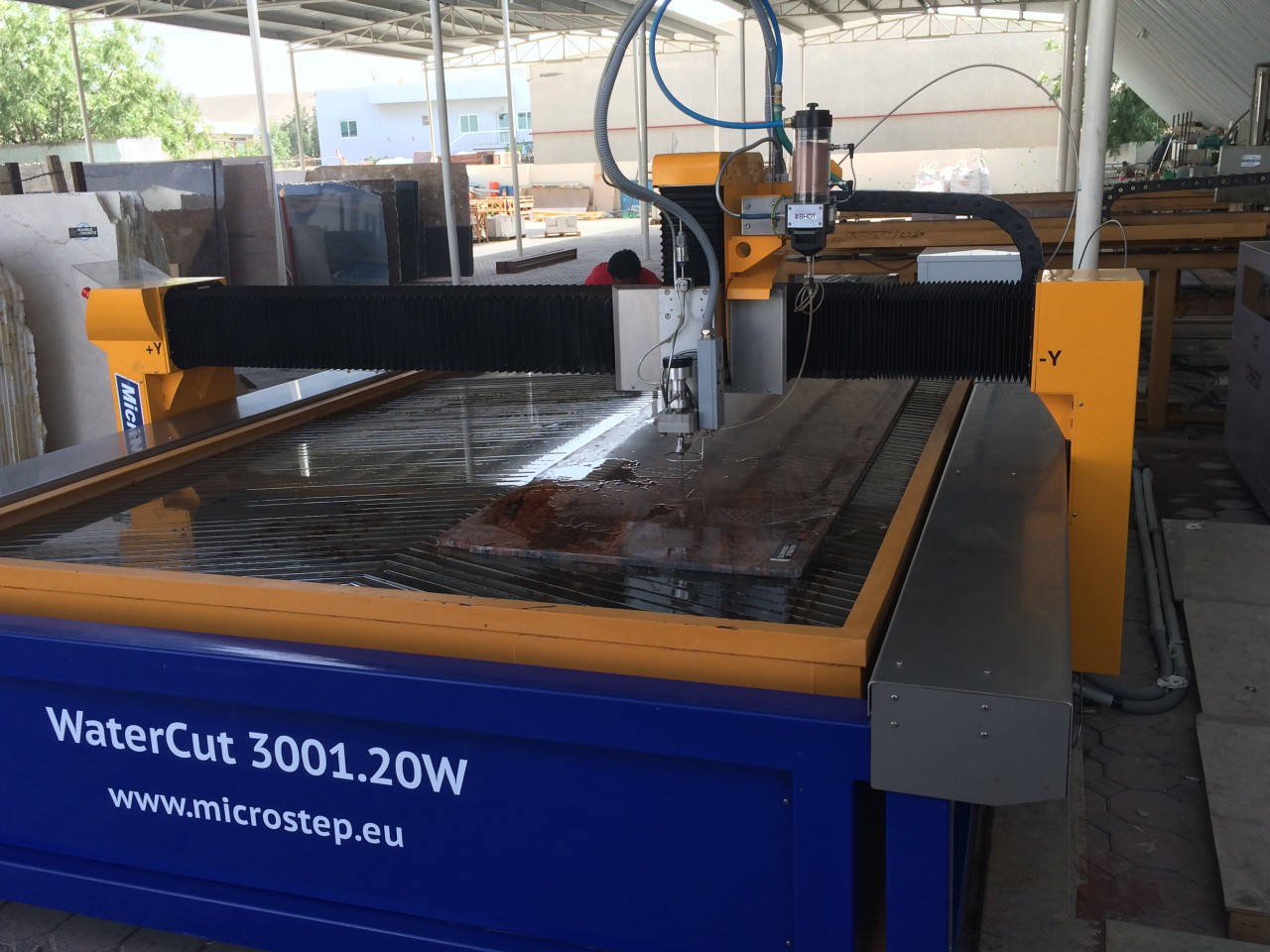

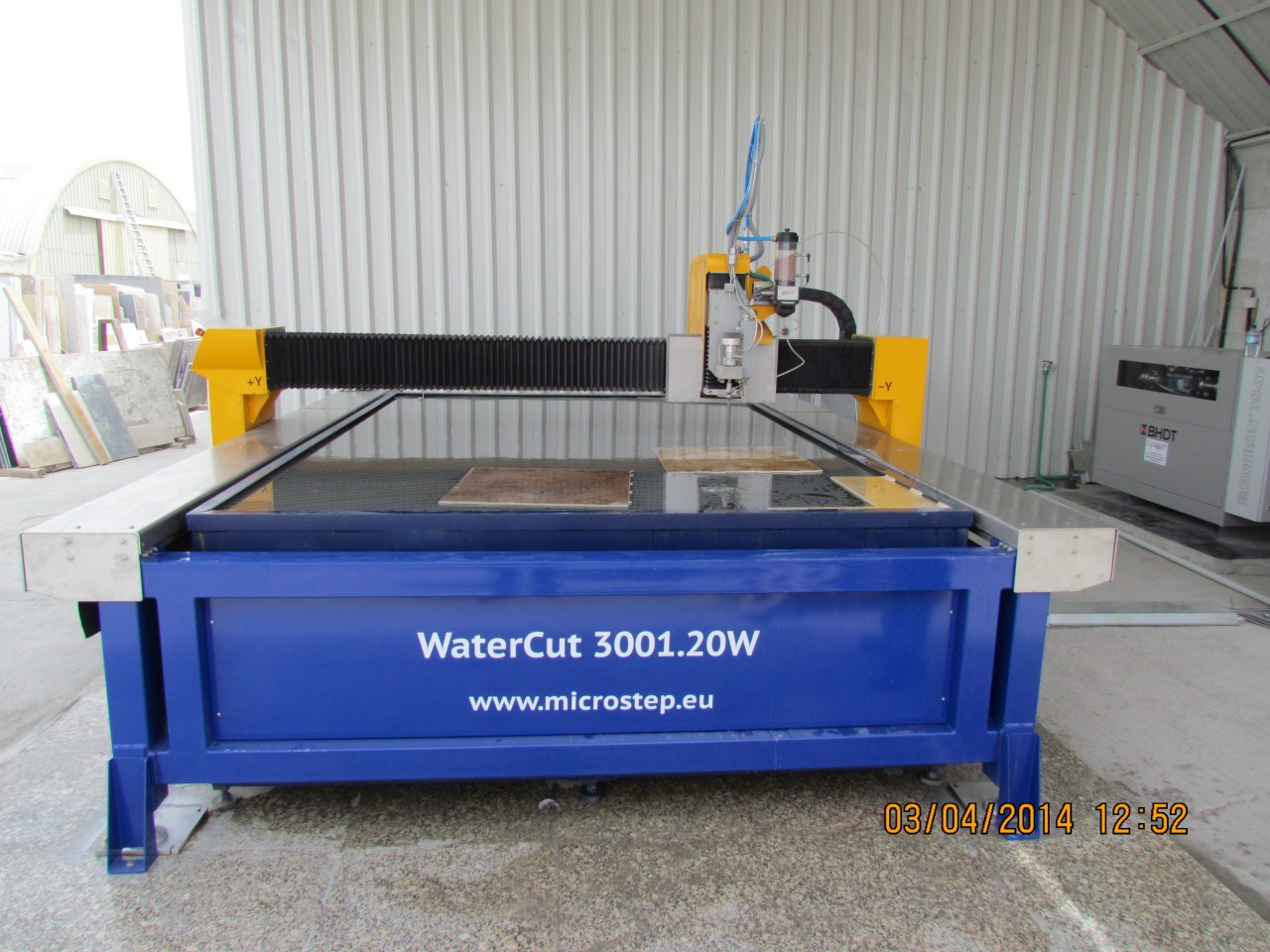

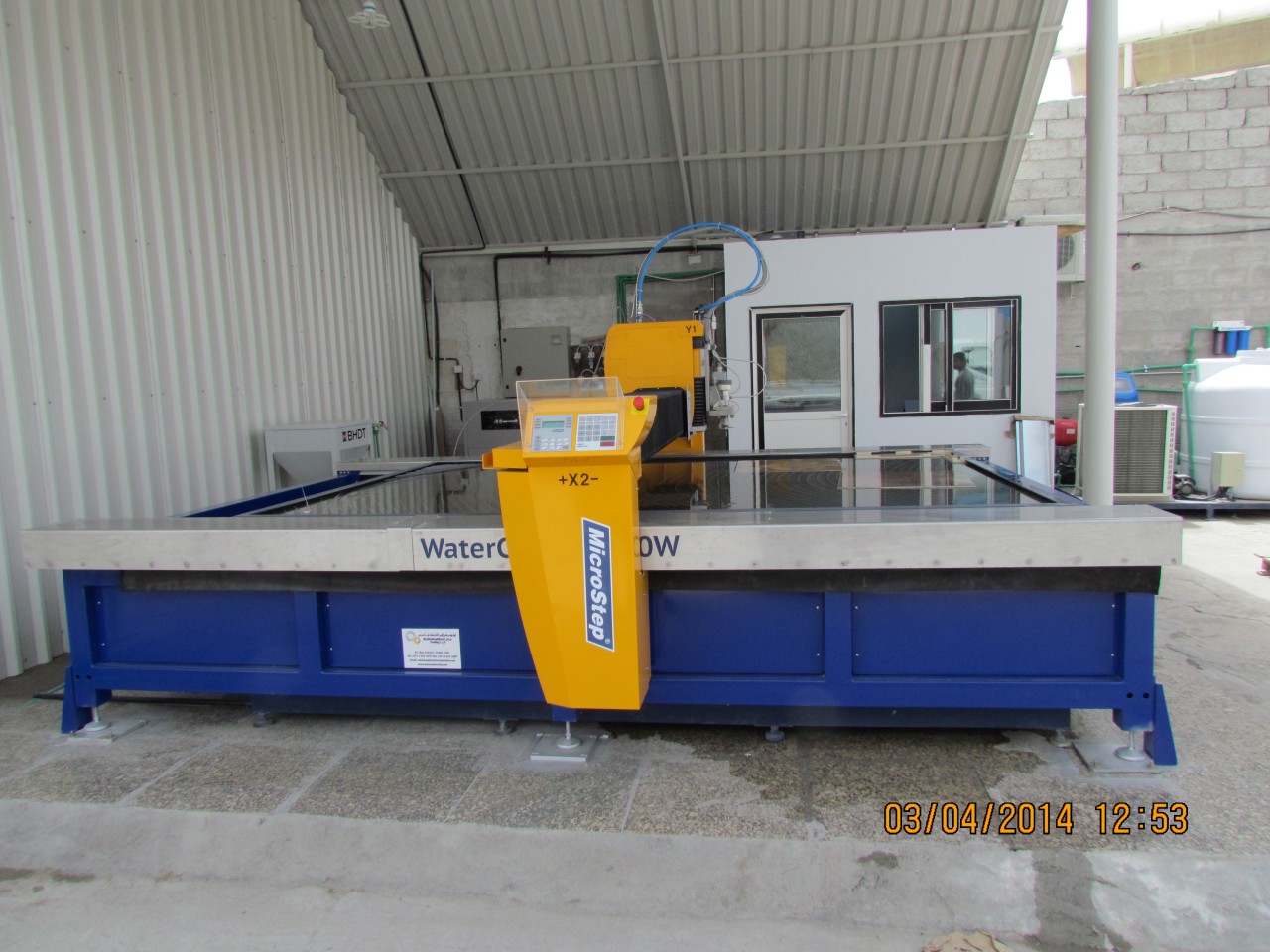

Watercut type machine is designed for cutting of metallic and non-metallic materials by the water beam of high pressure. It is a precise technology with the possibility to reach the cutting surface of high quality.
Technical parameters
| Working length |
3000 - 6000 mm |
| Working width |
1000 - 2000 mm |
| Max. number of tool stations |
2 |
| Max. thickness of material cut by waterjet |
150 |
| Bevel cutting |
no |
| Pipe cutting |
no |
| Positioning speed |
max 56 m/min |
| Bidirectional repeatability |
0.05 mm/m |
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
