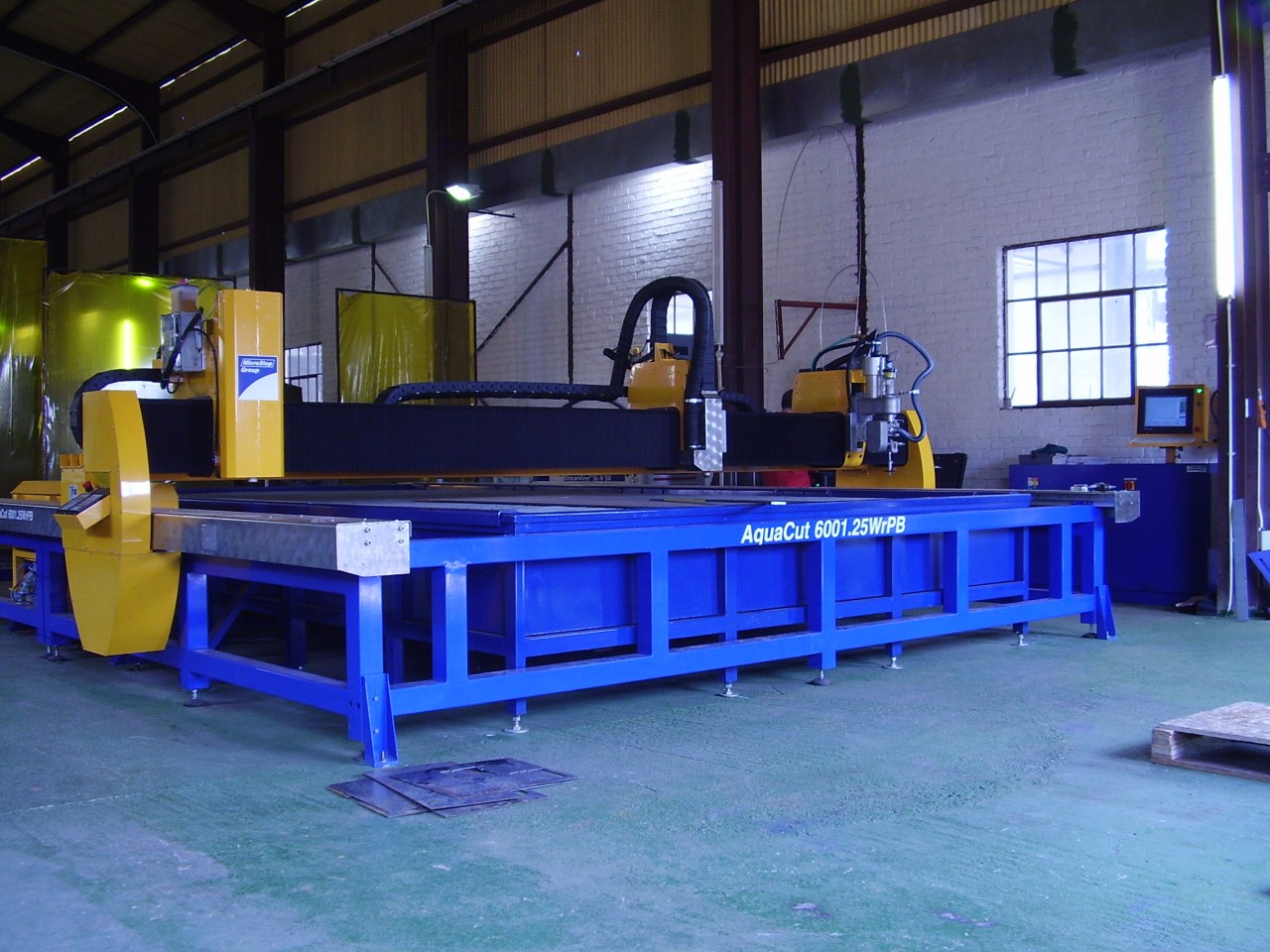

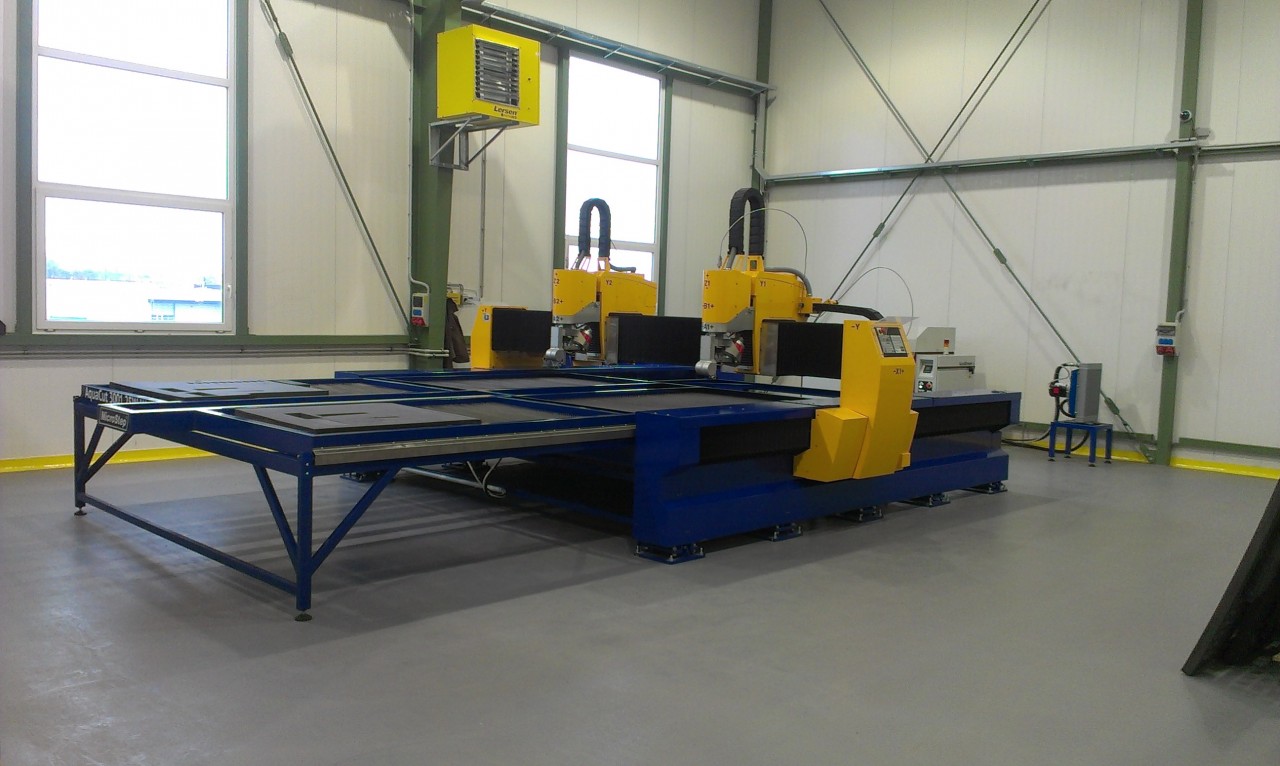

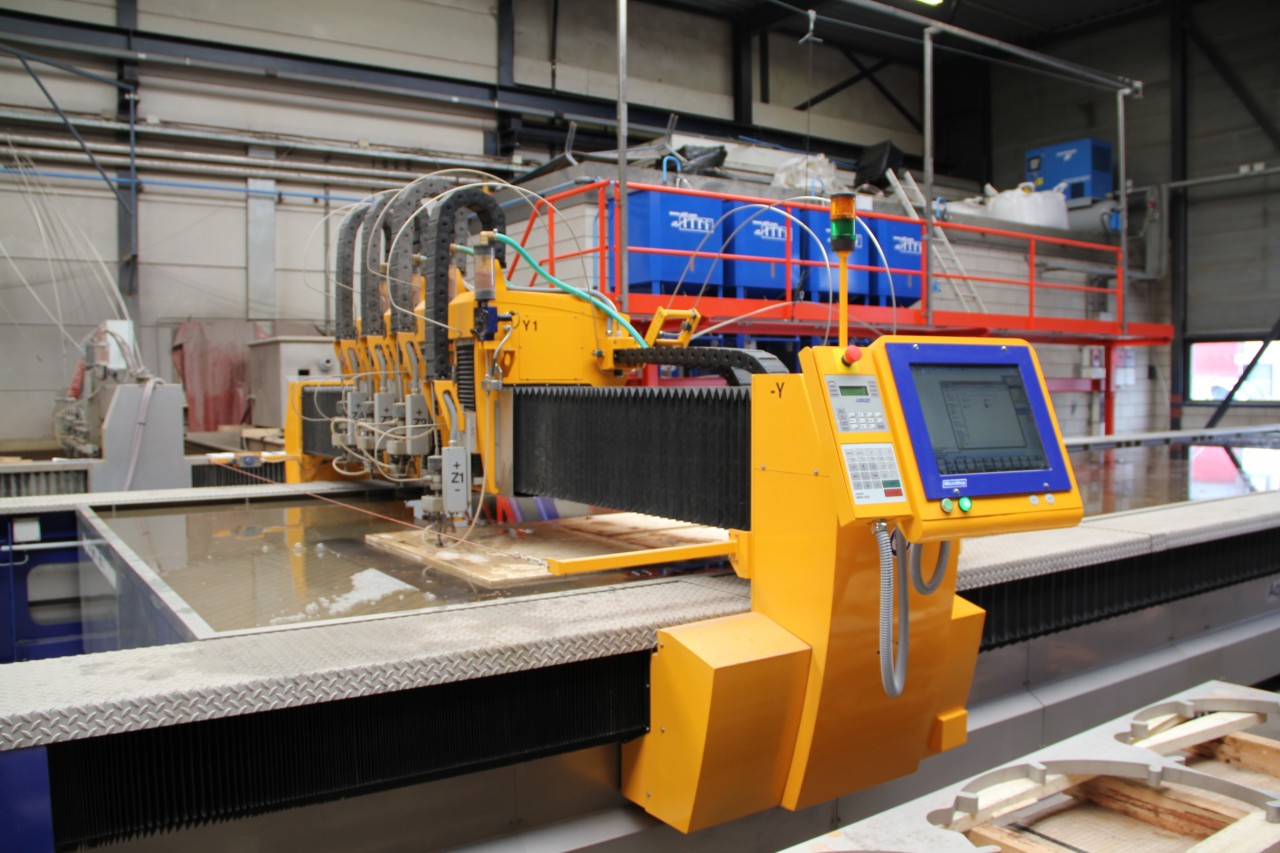

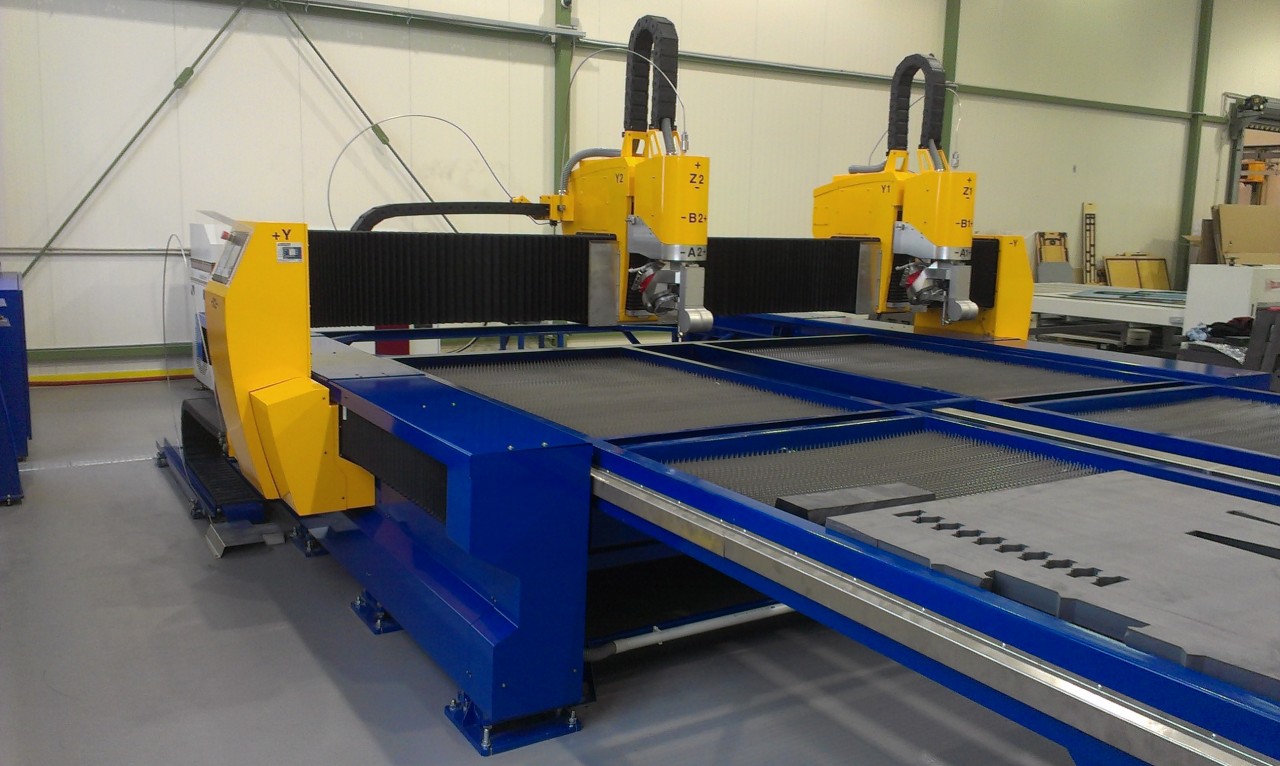

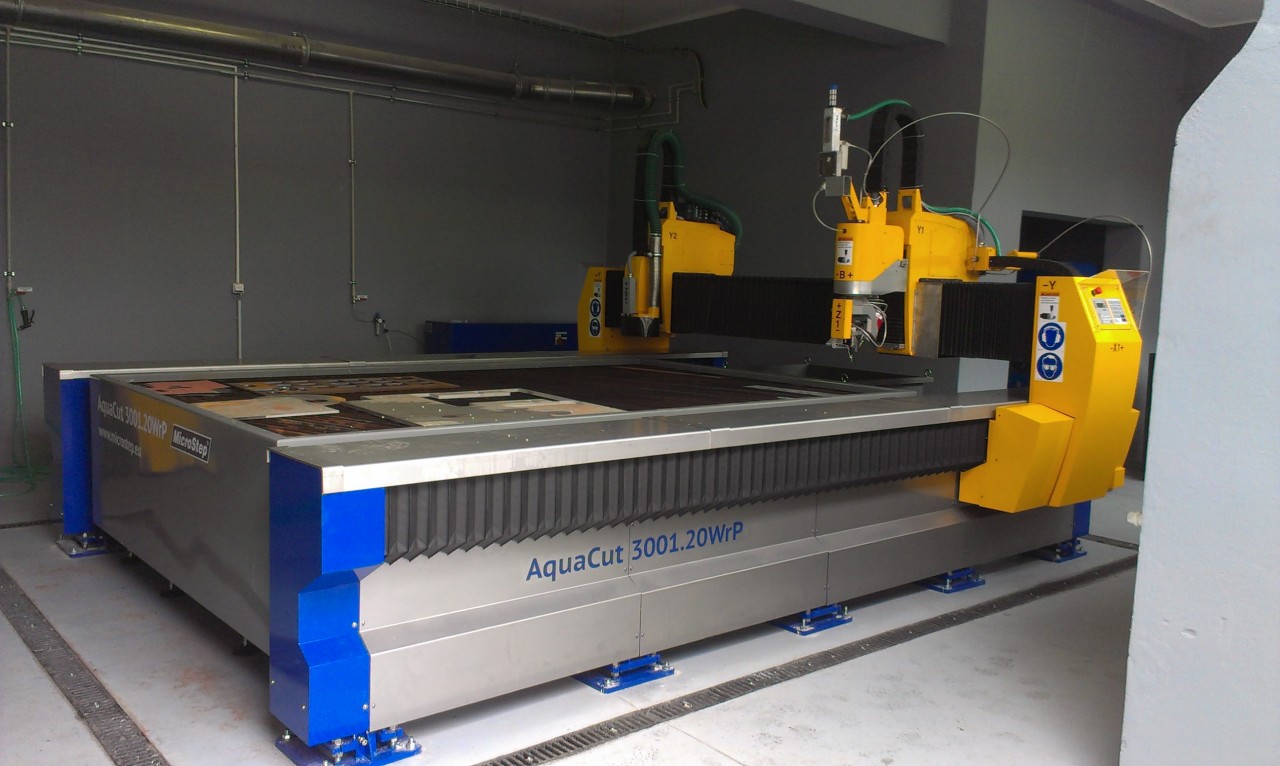

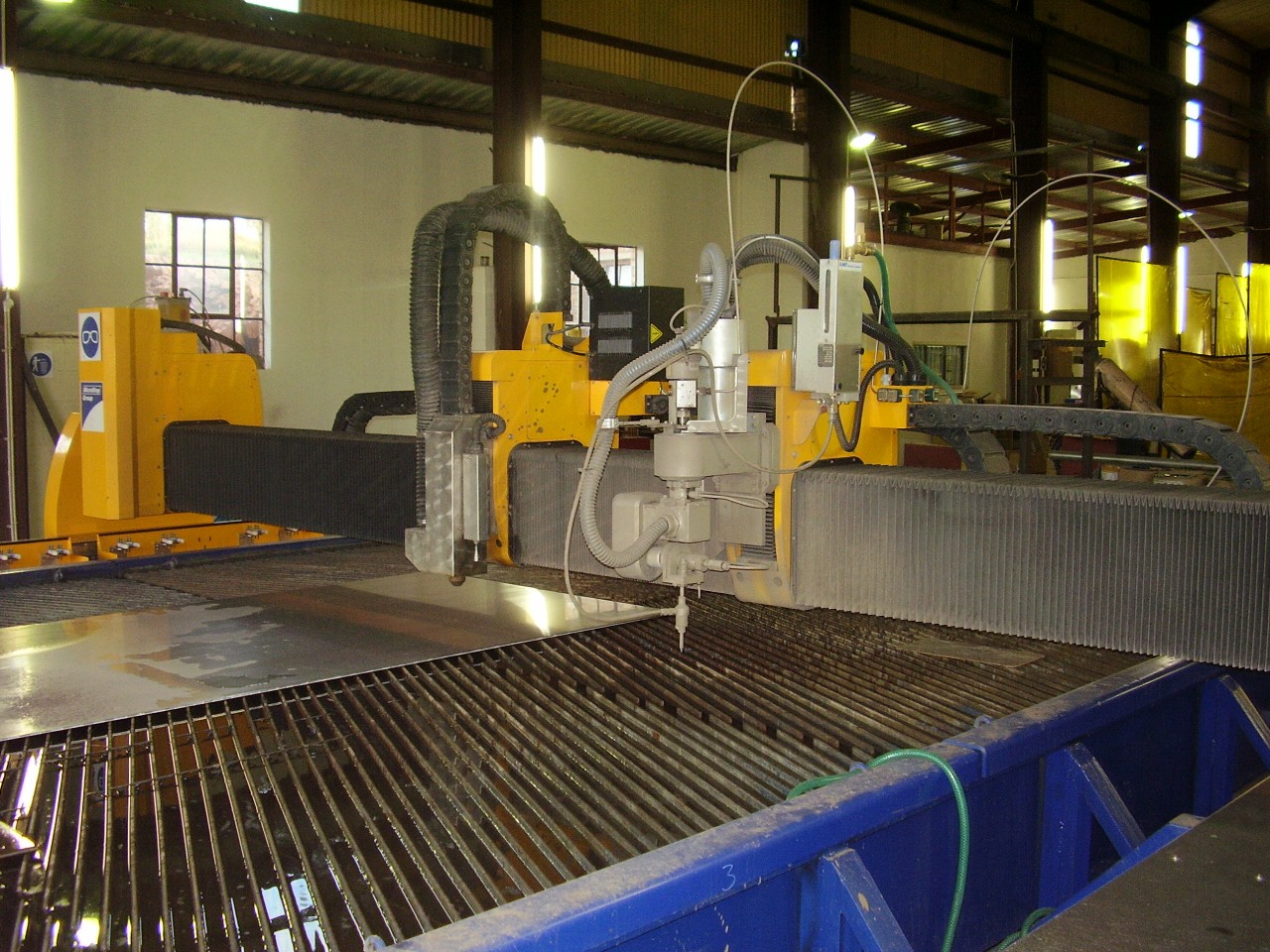

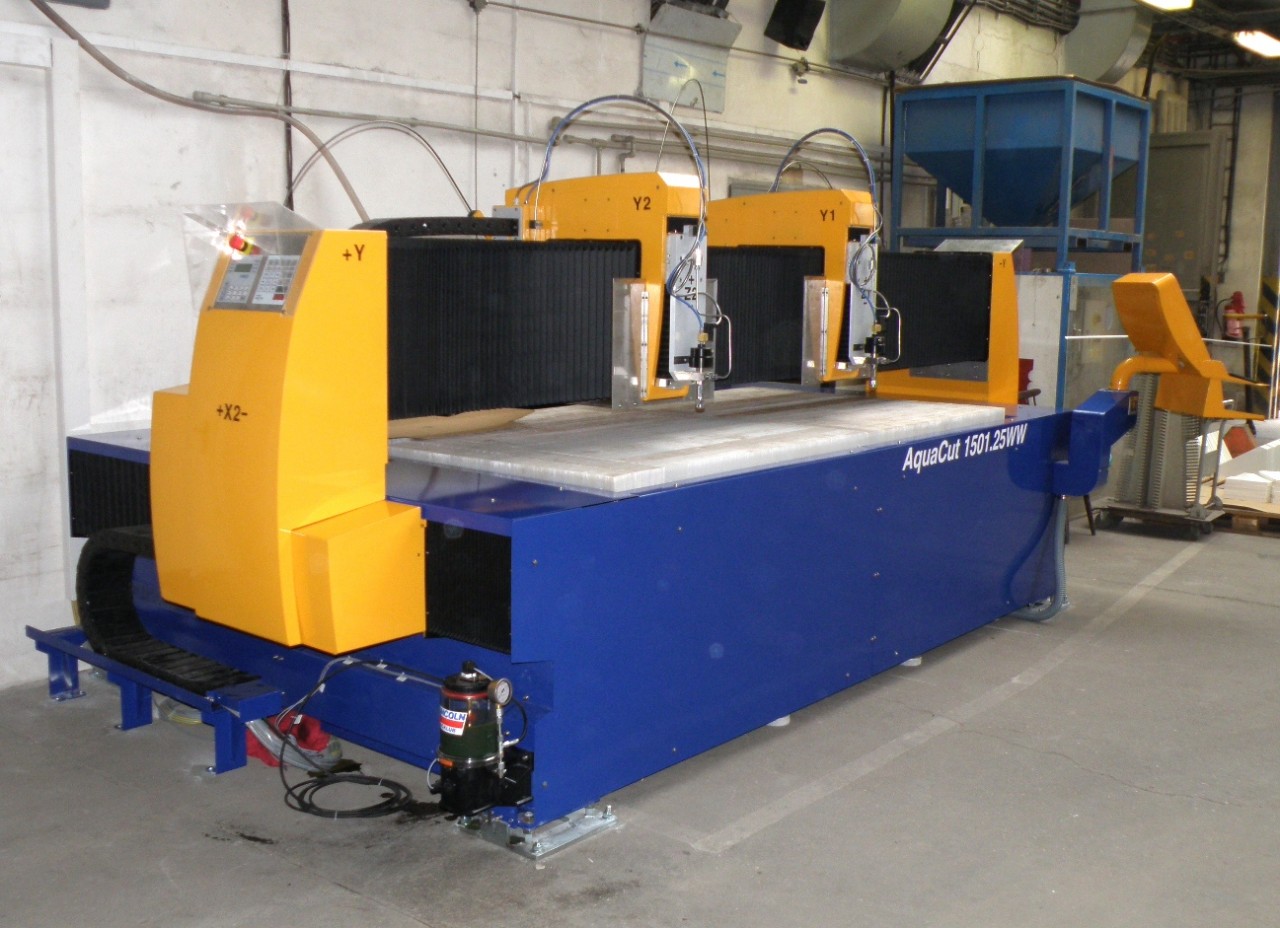

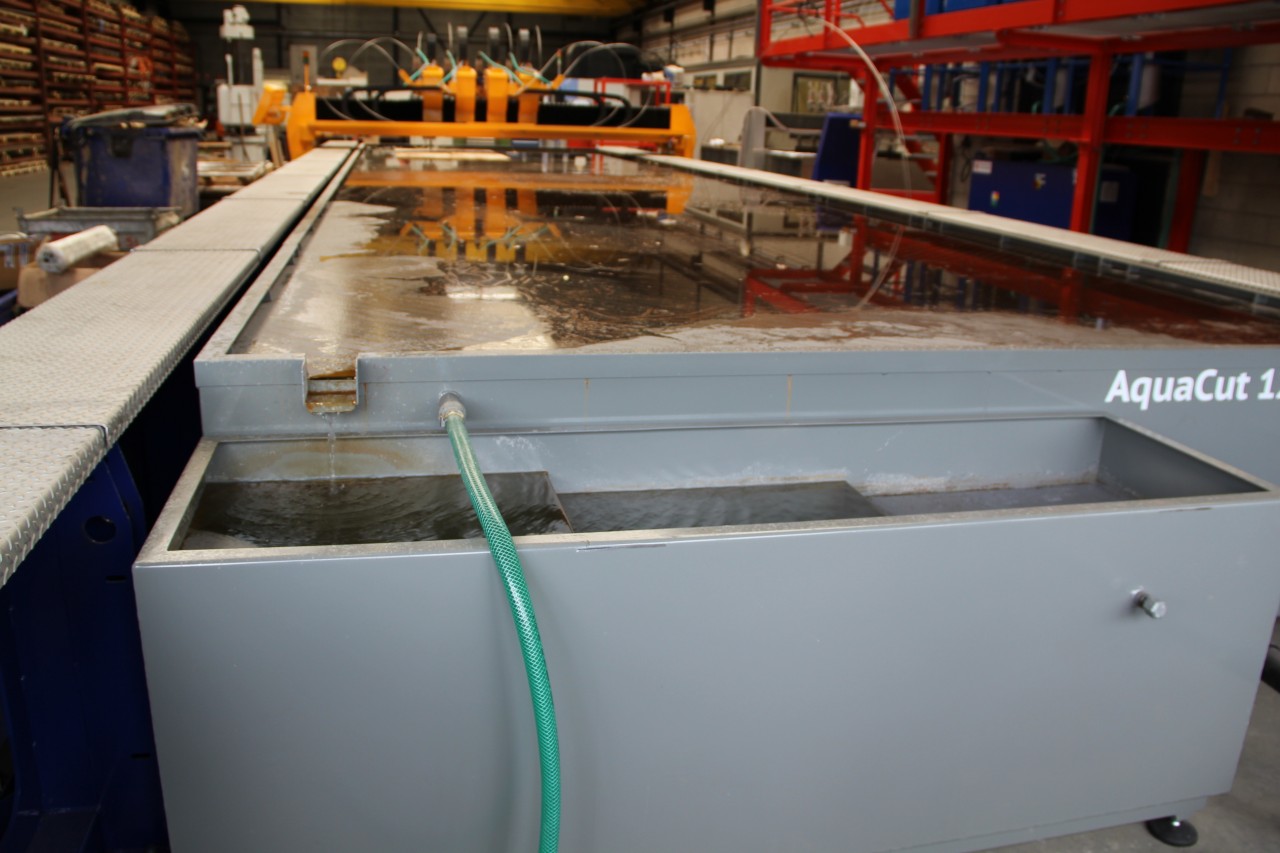

AquaCut

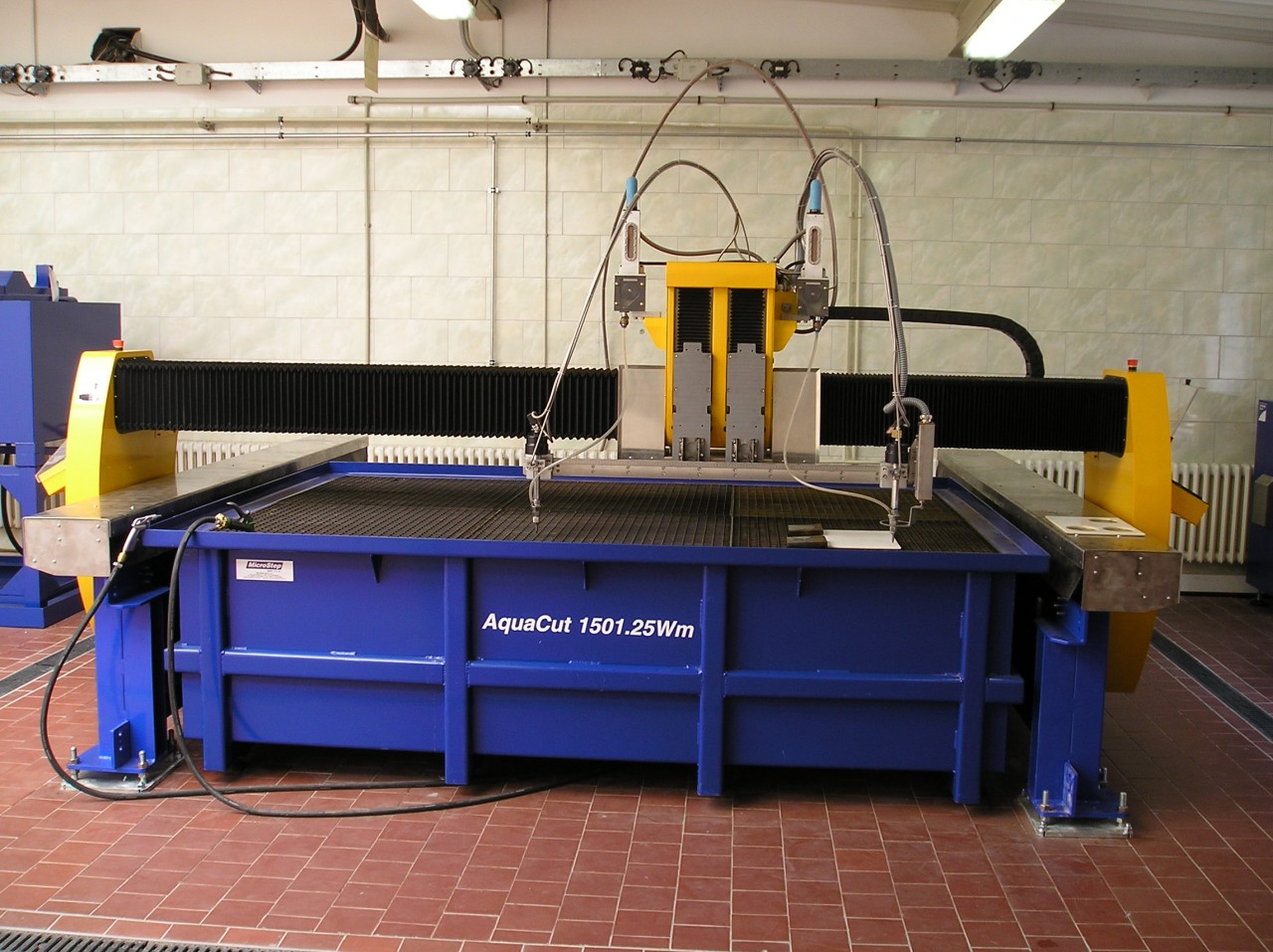

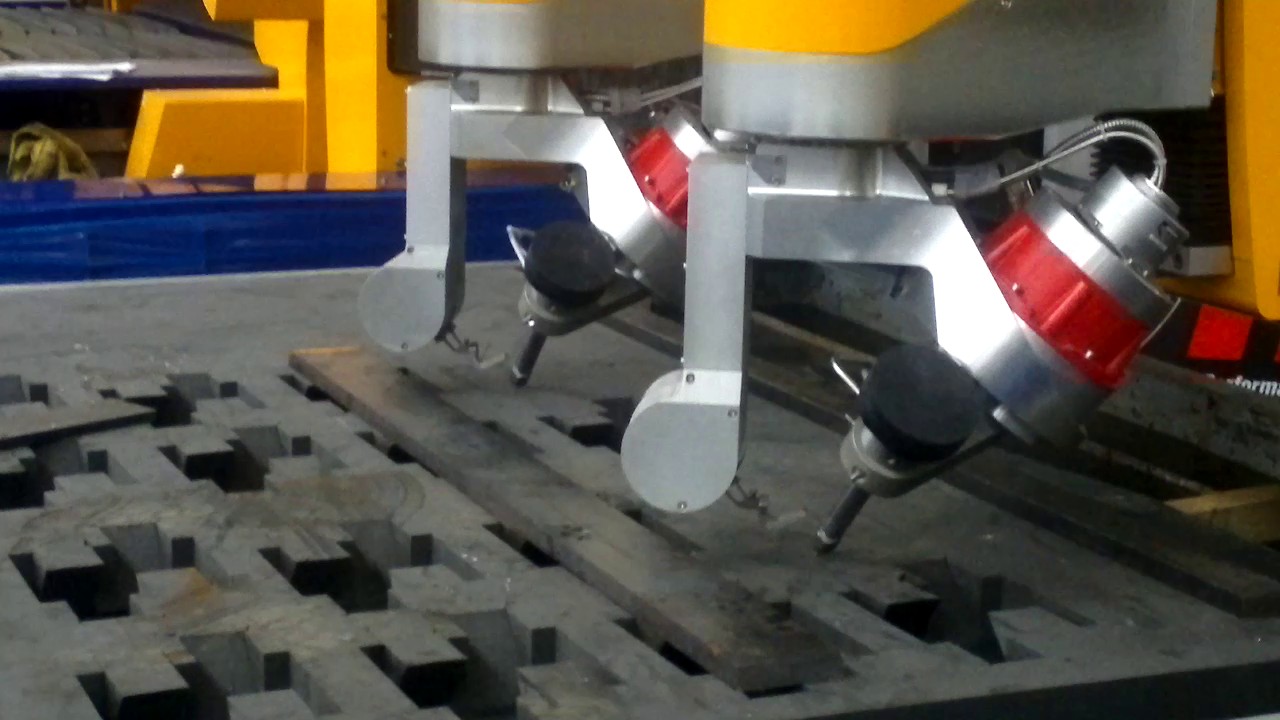

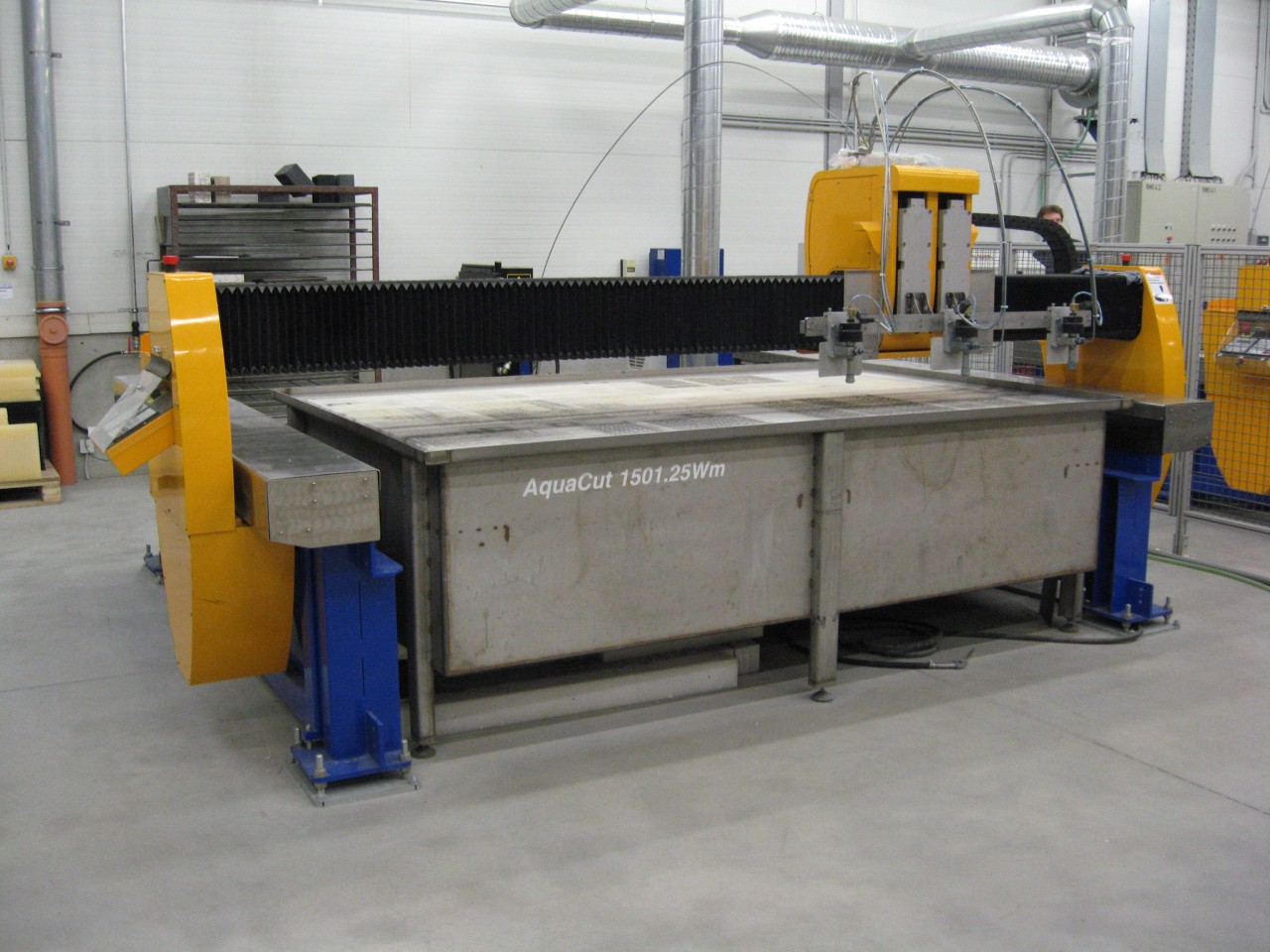

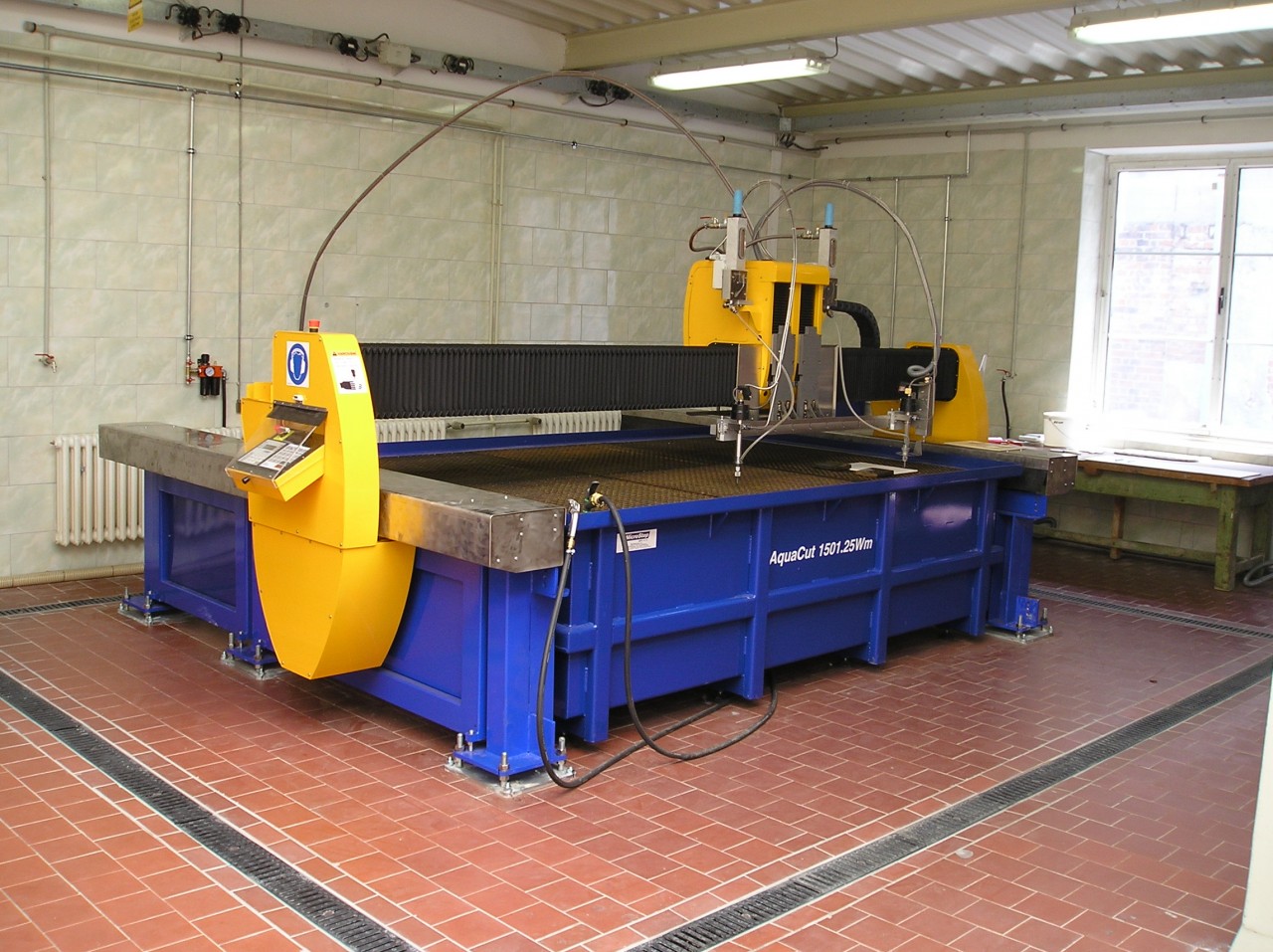

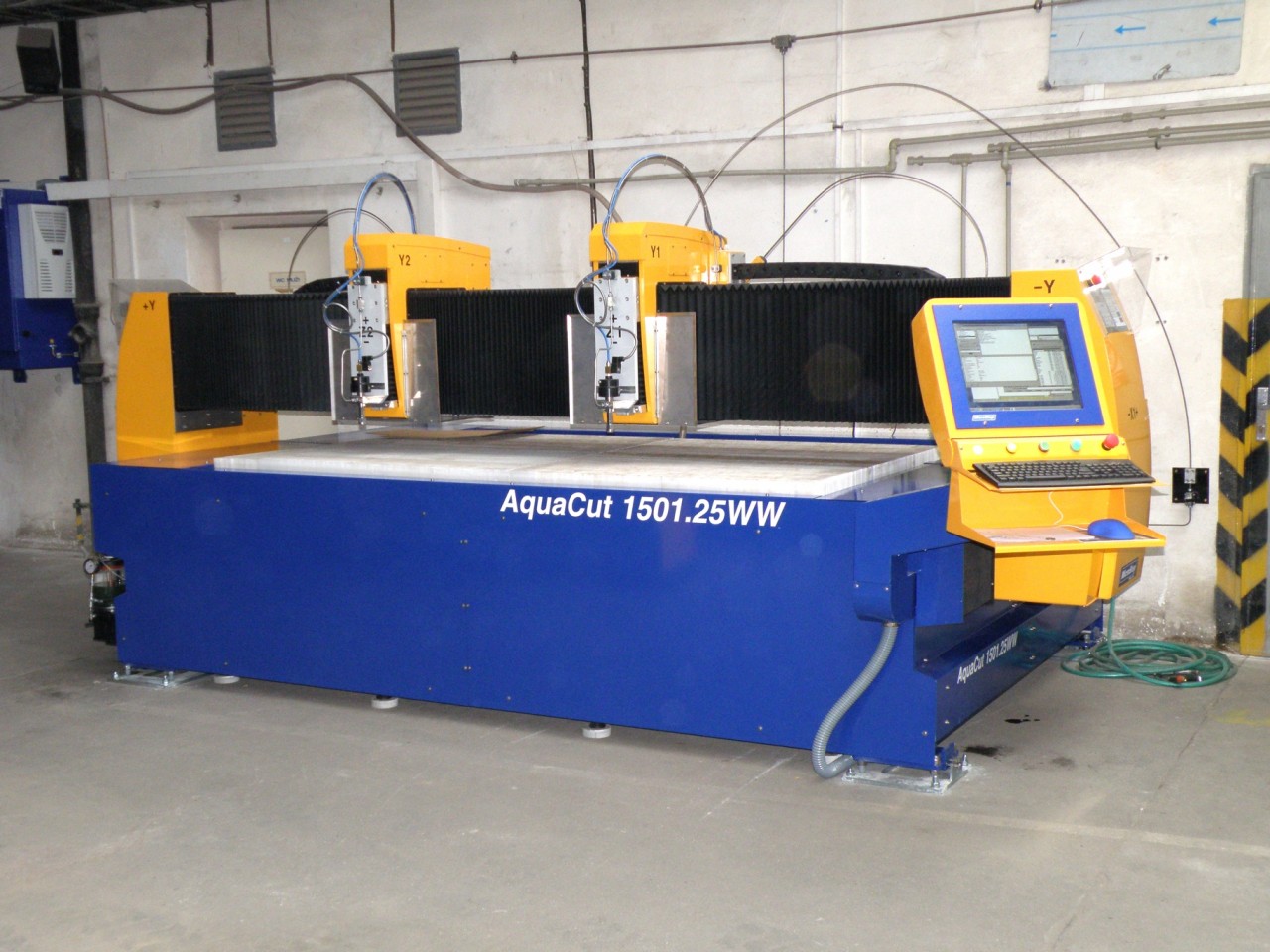

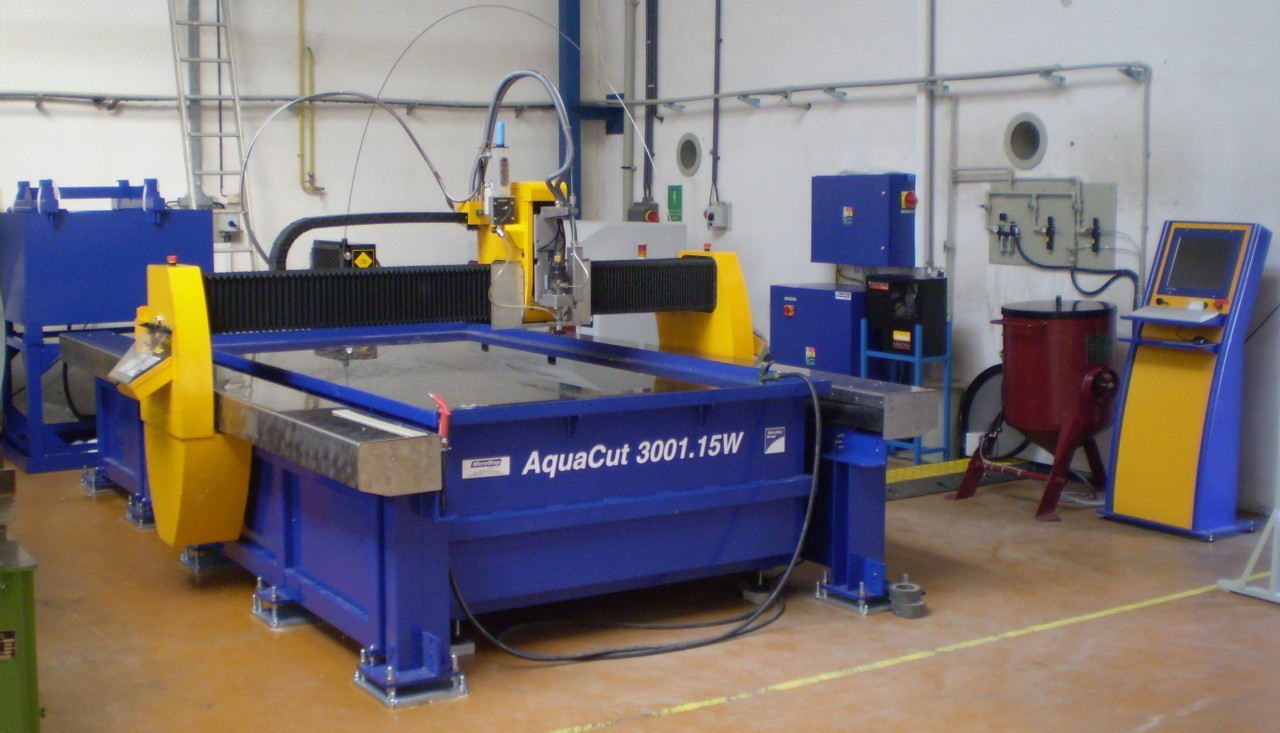

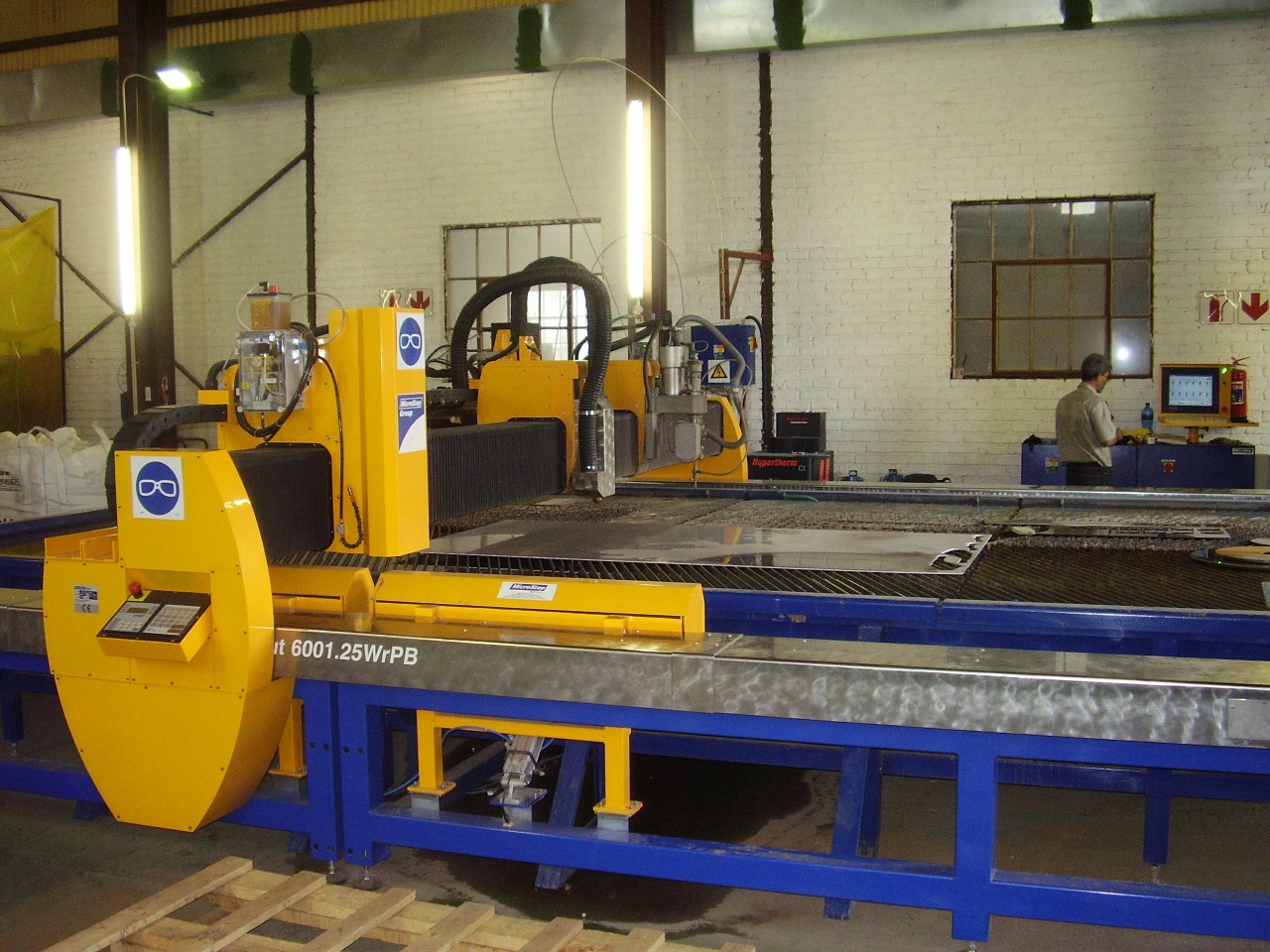

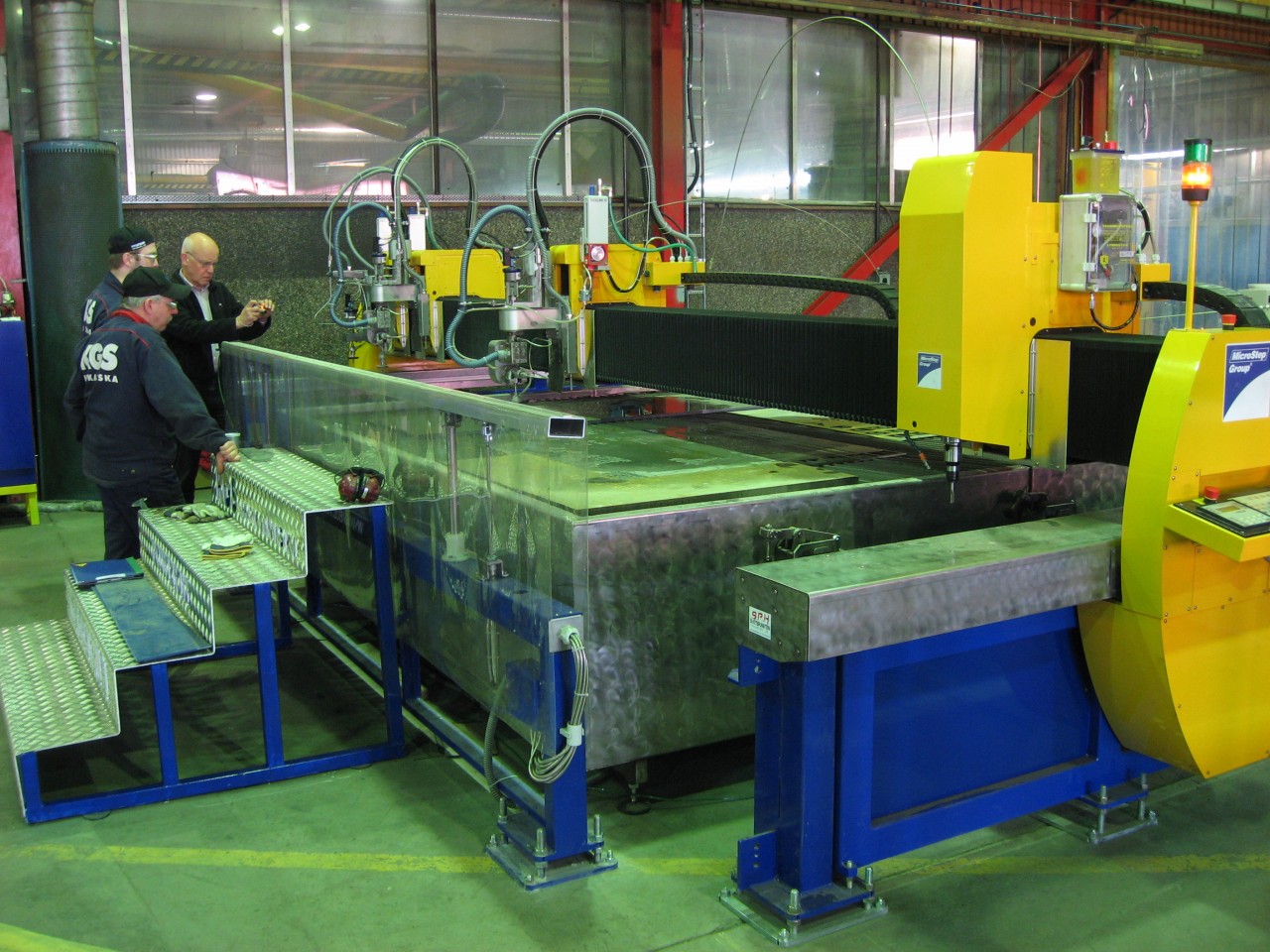

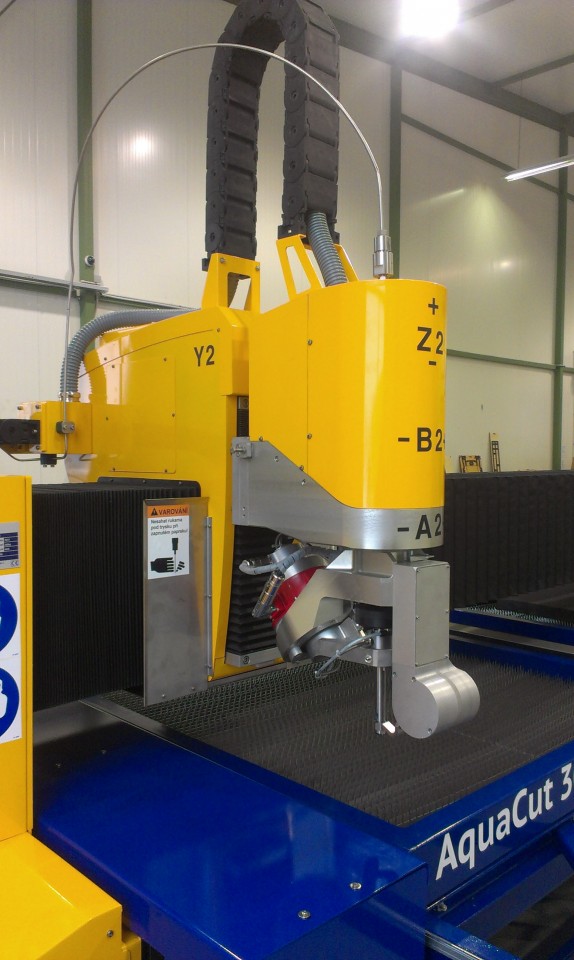

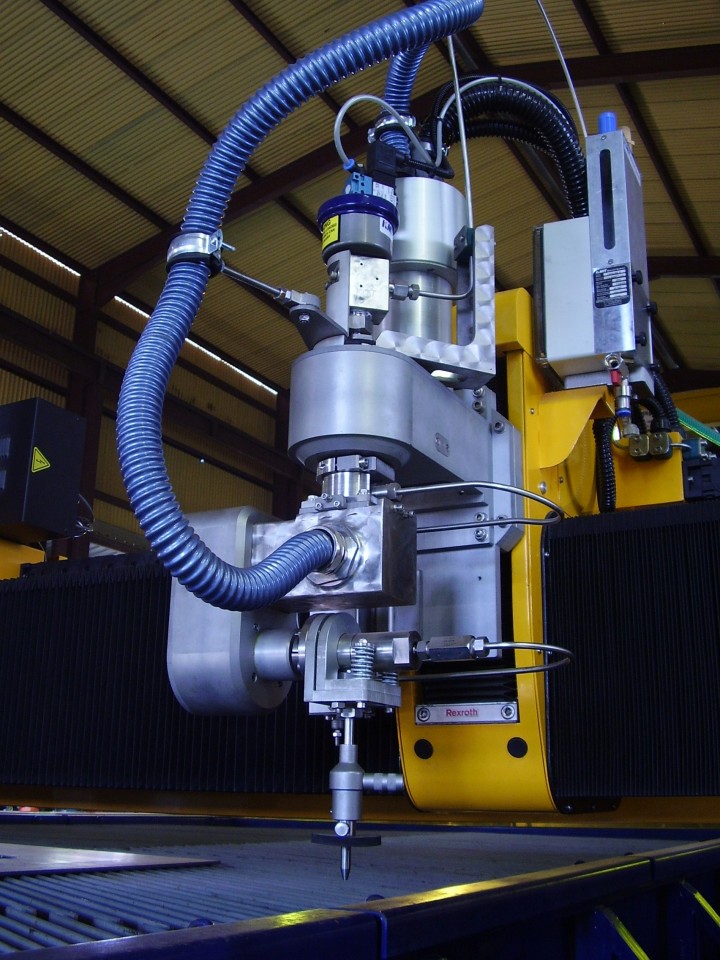

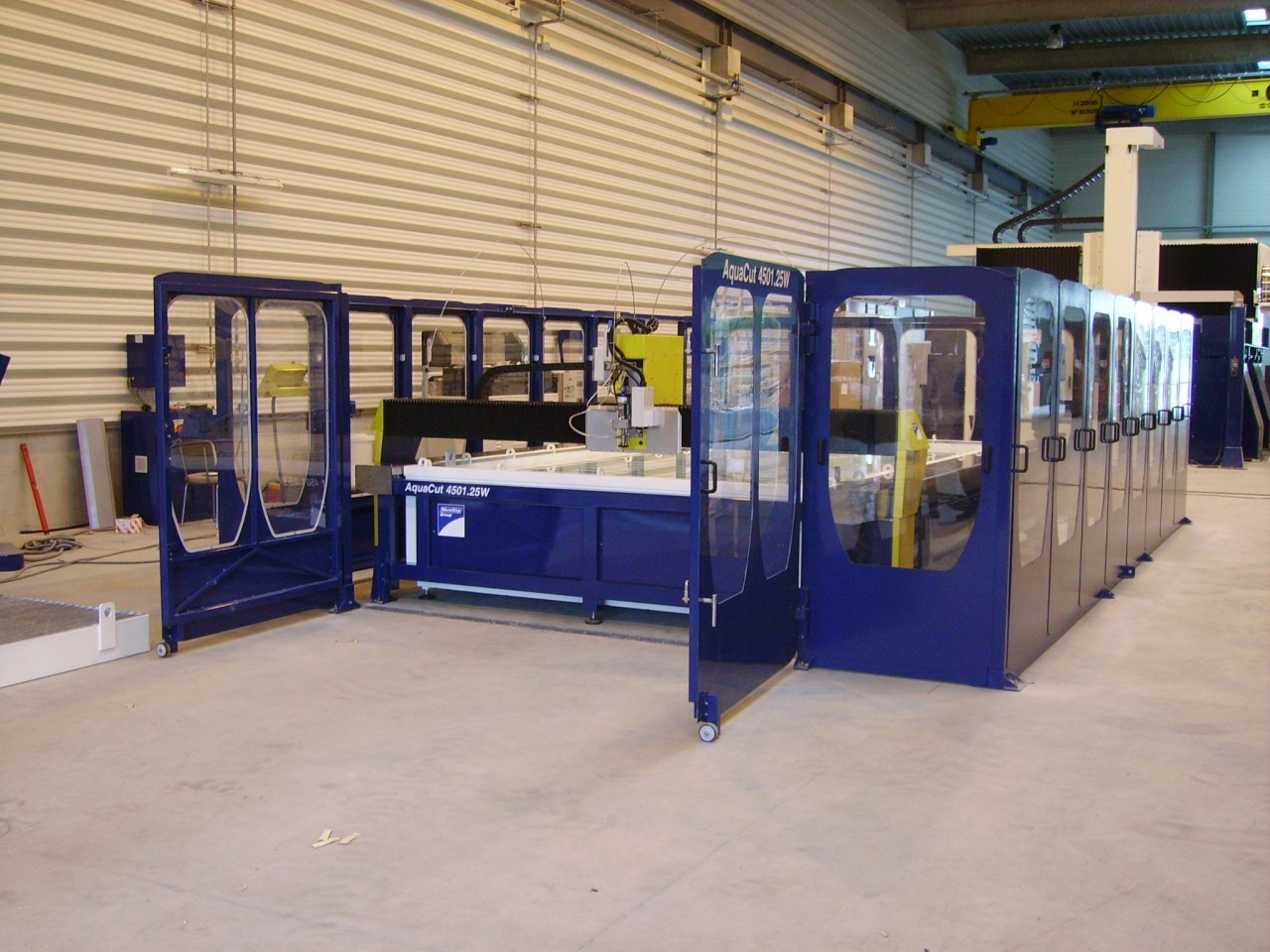

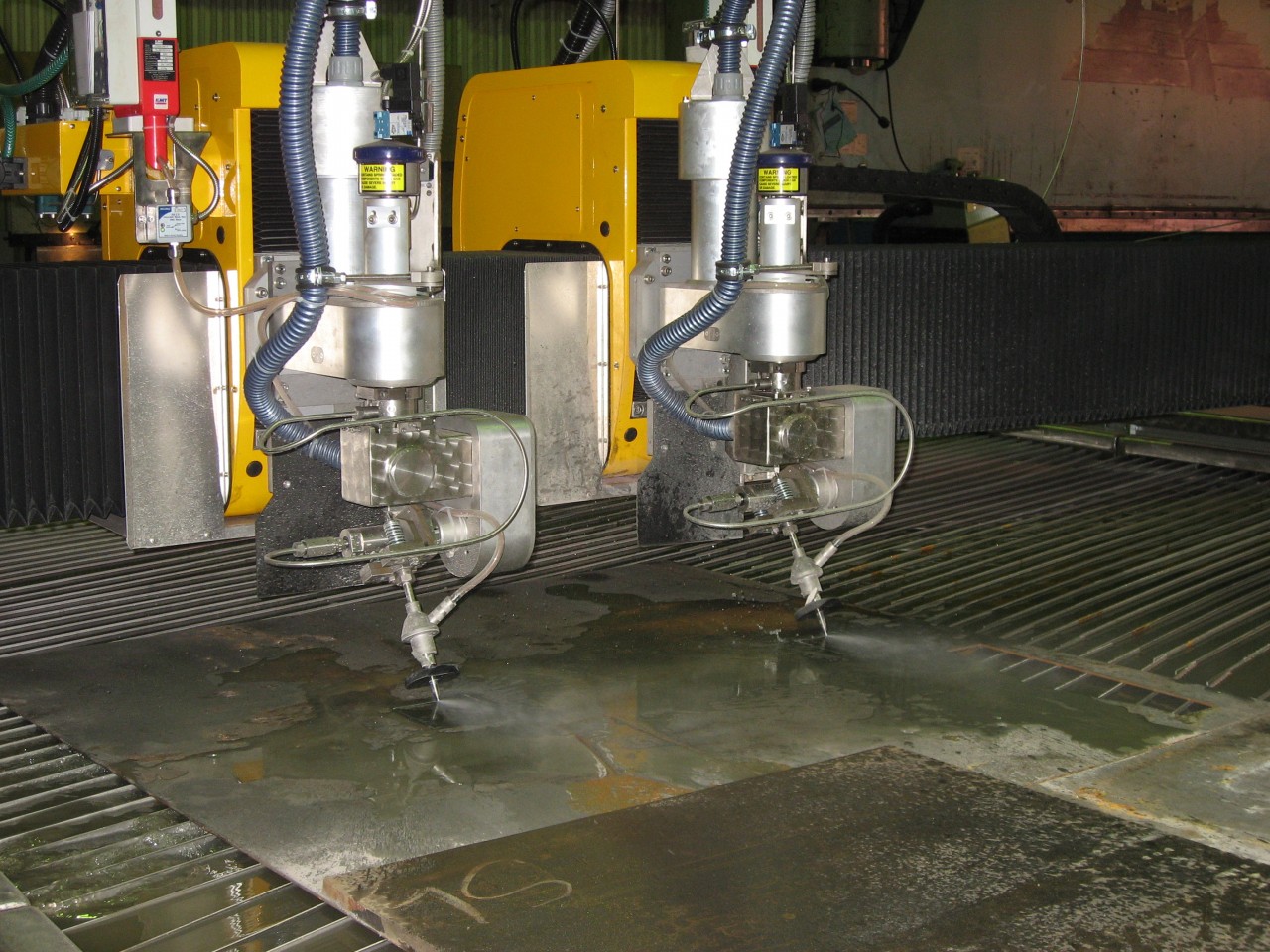

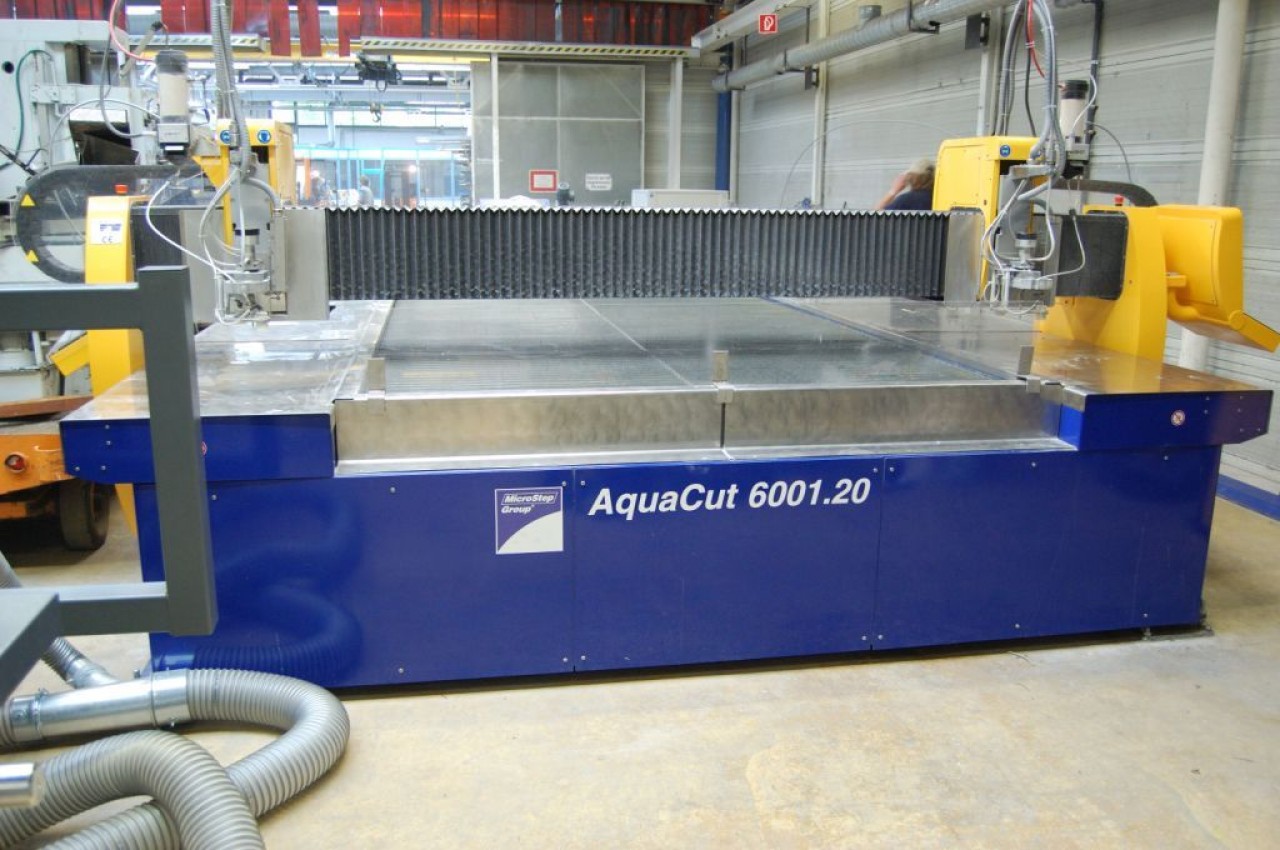

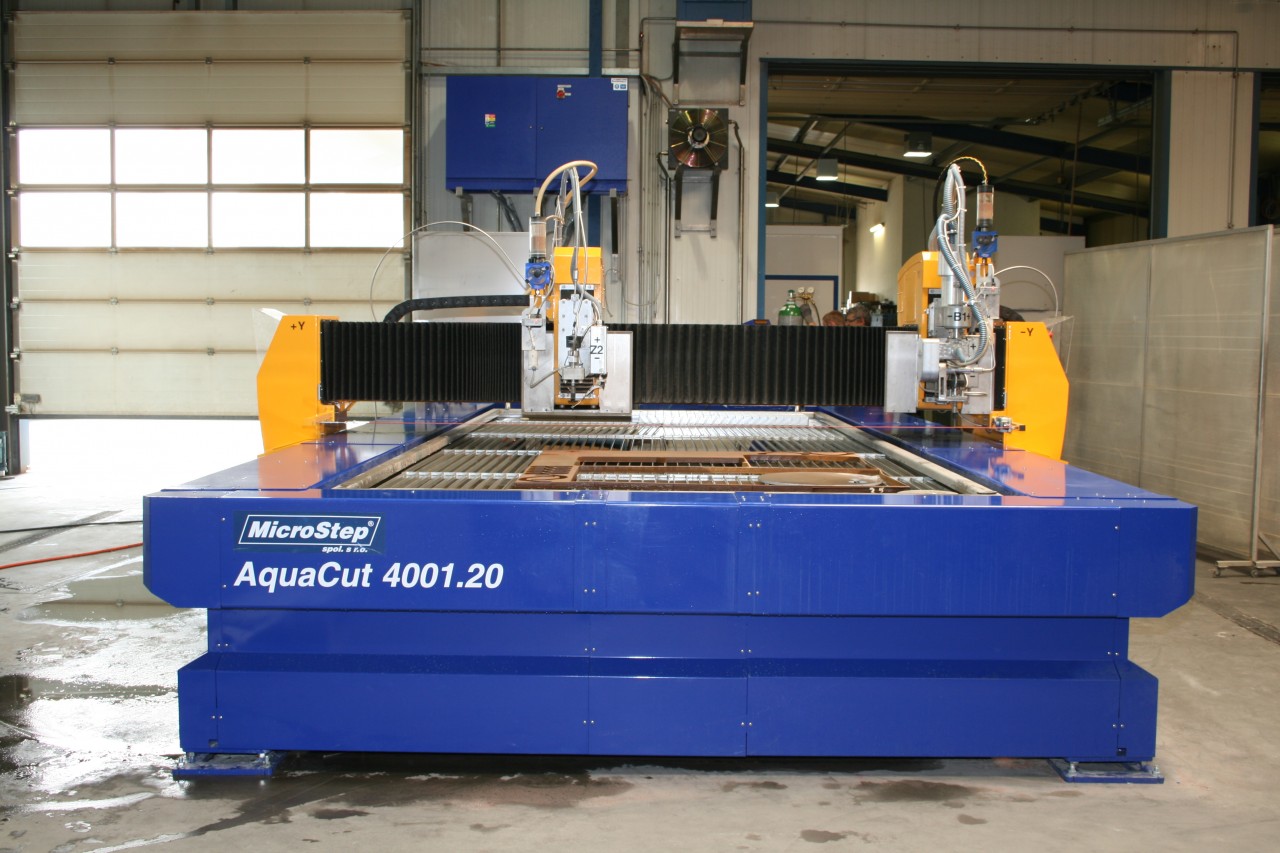

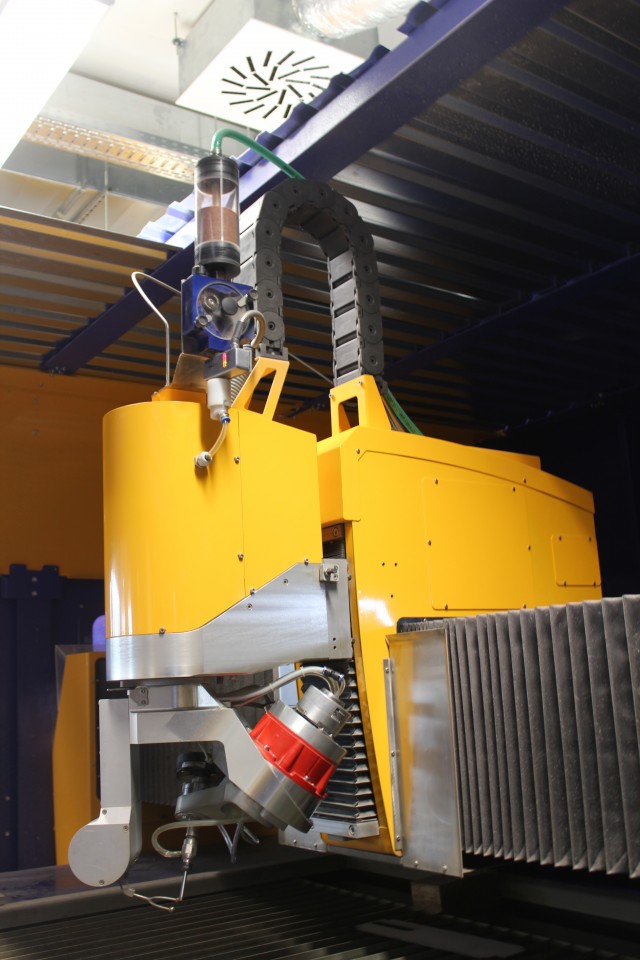

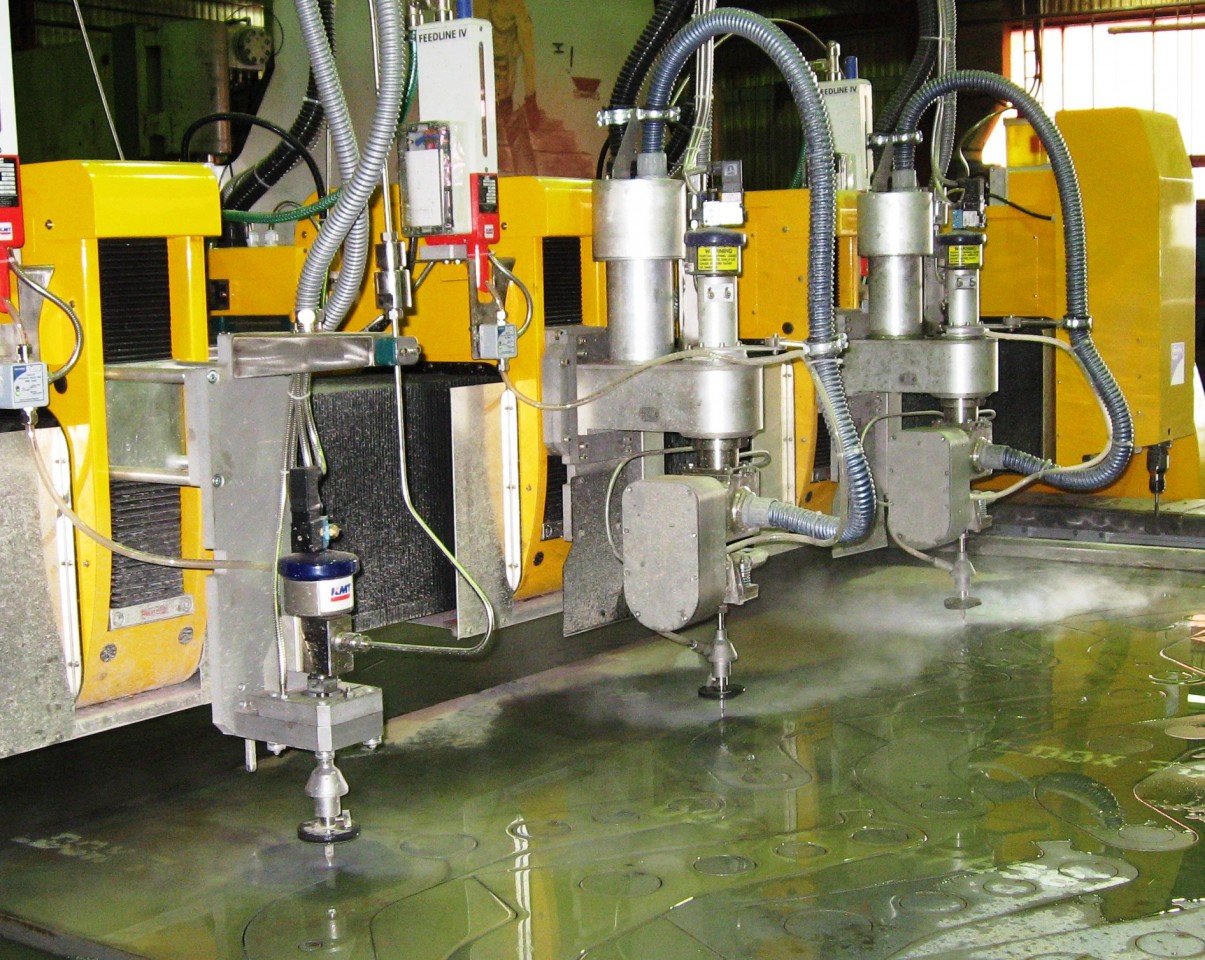

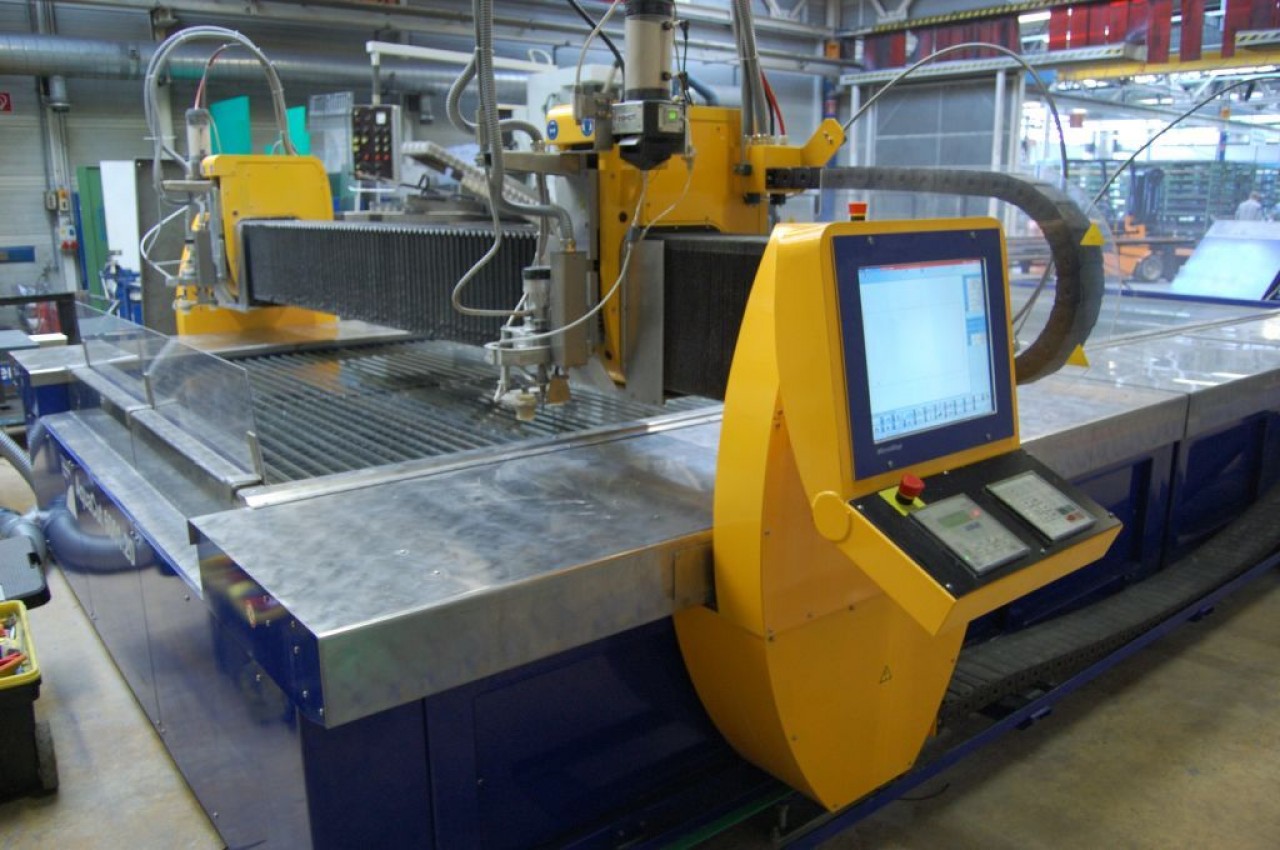

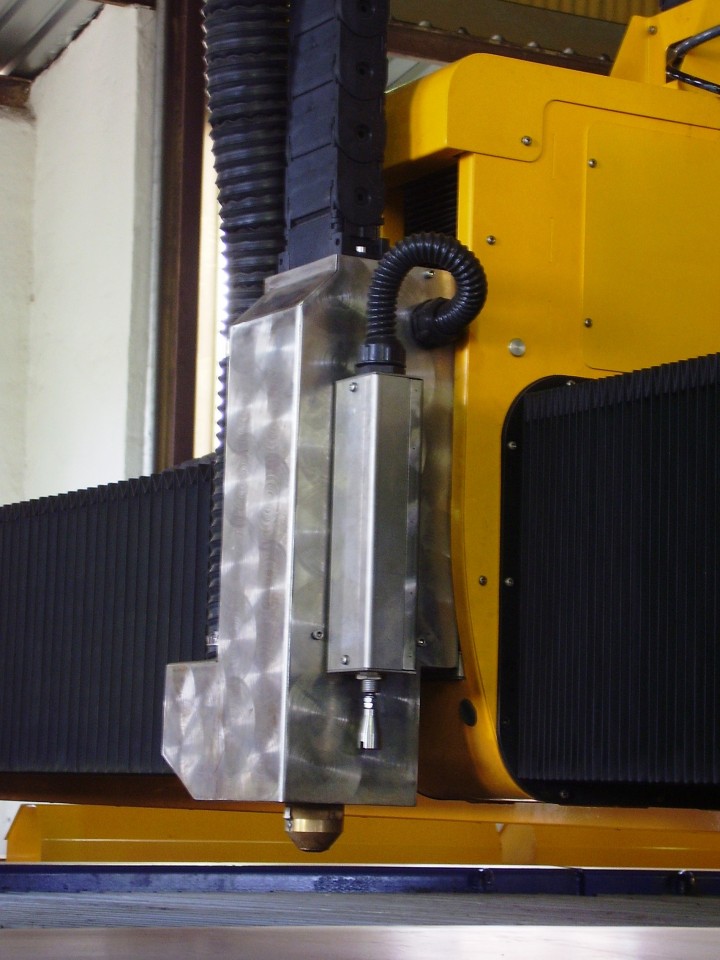

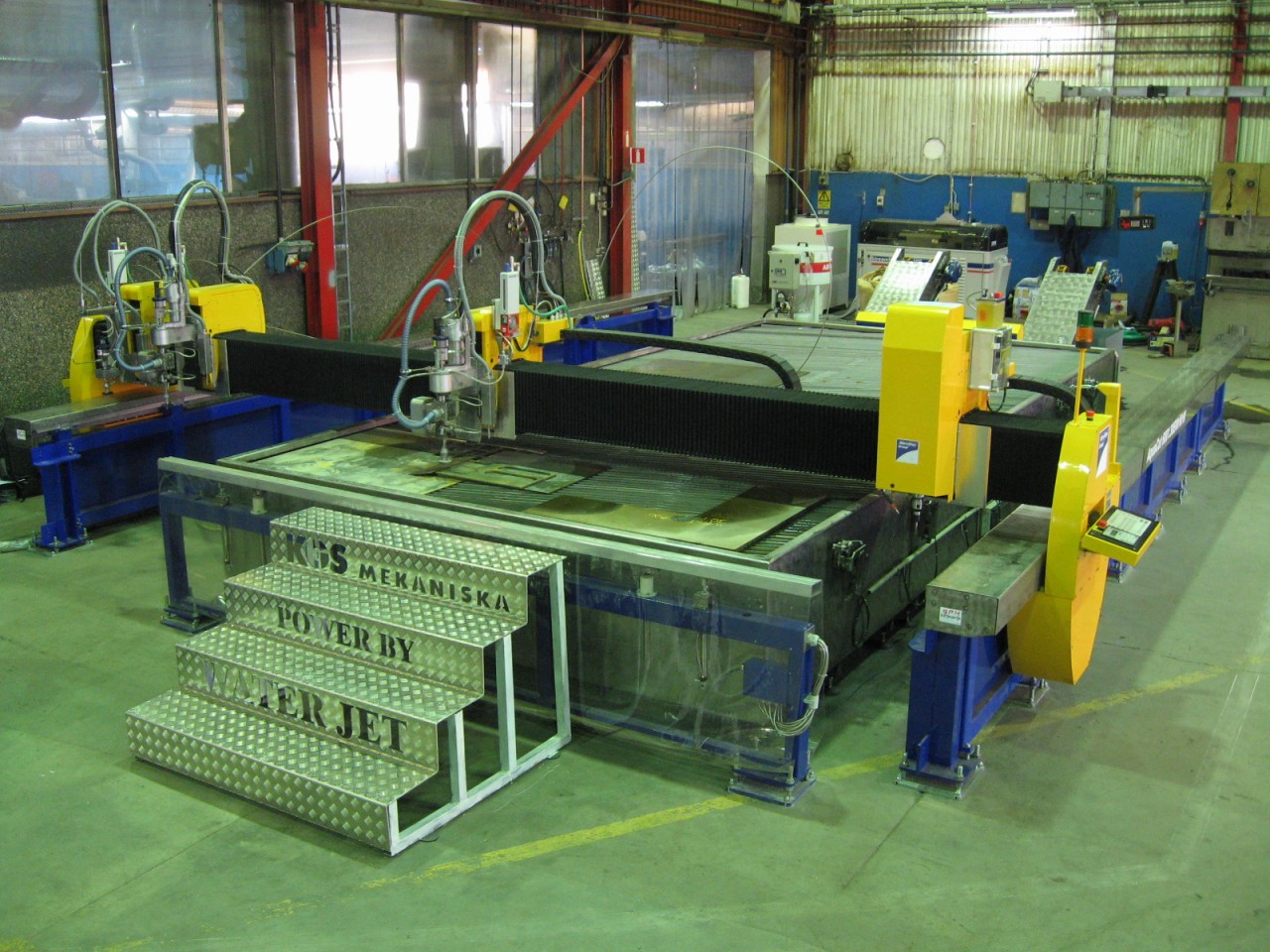

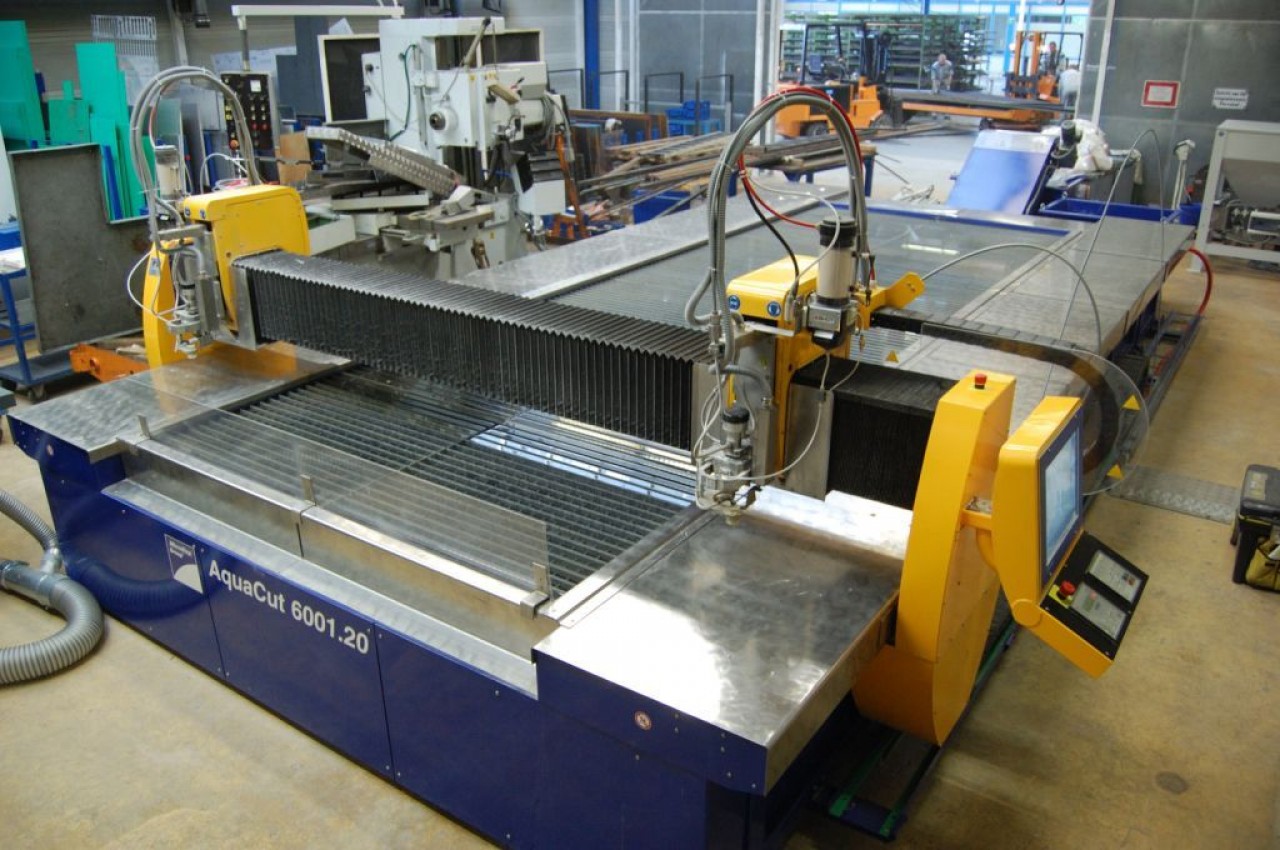

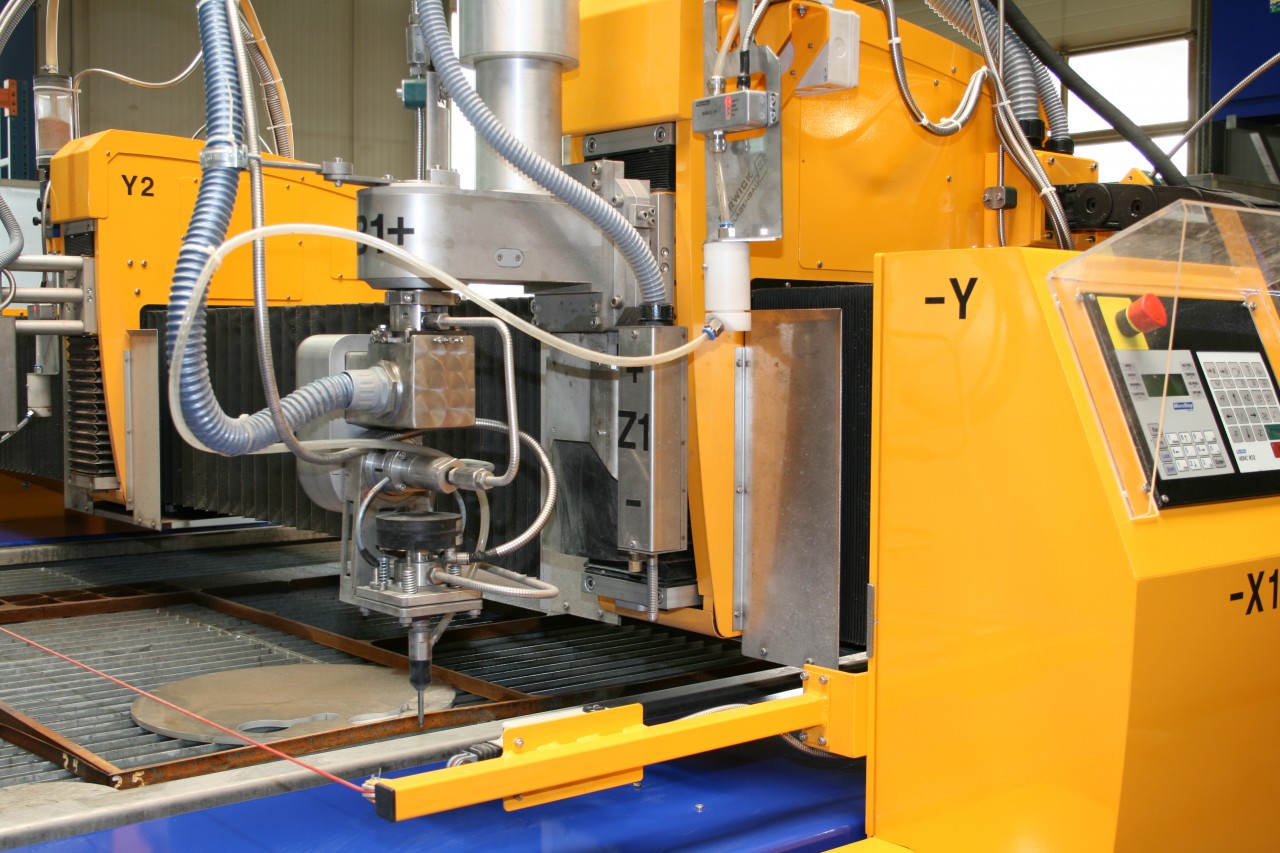

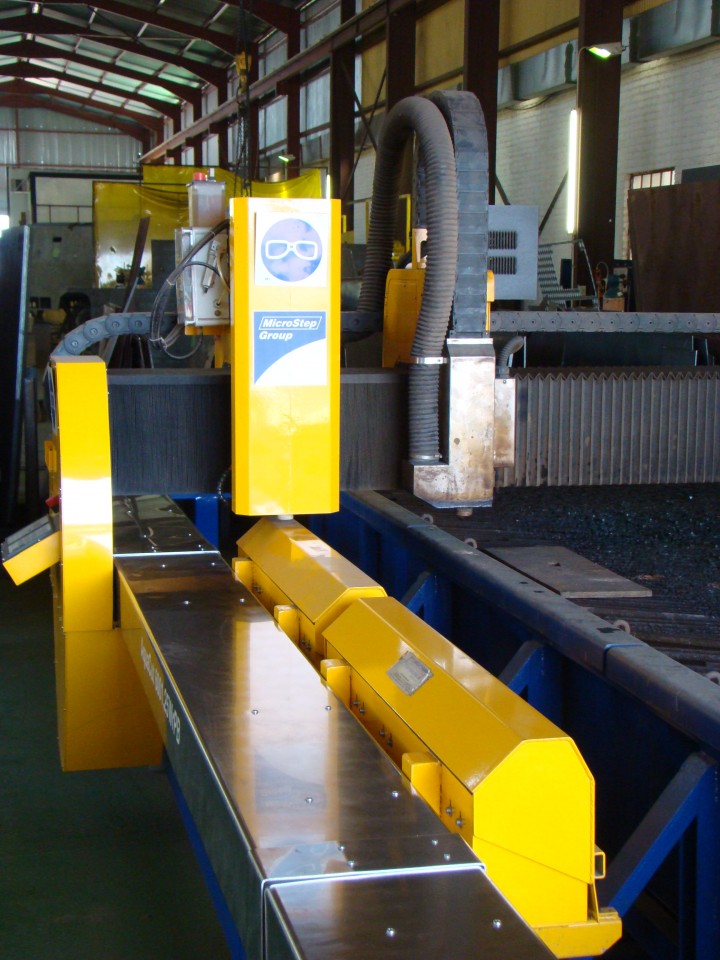

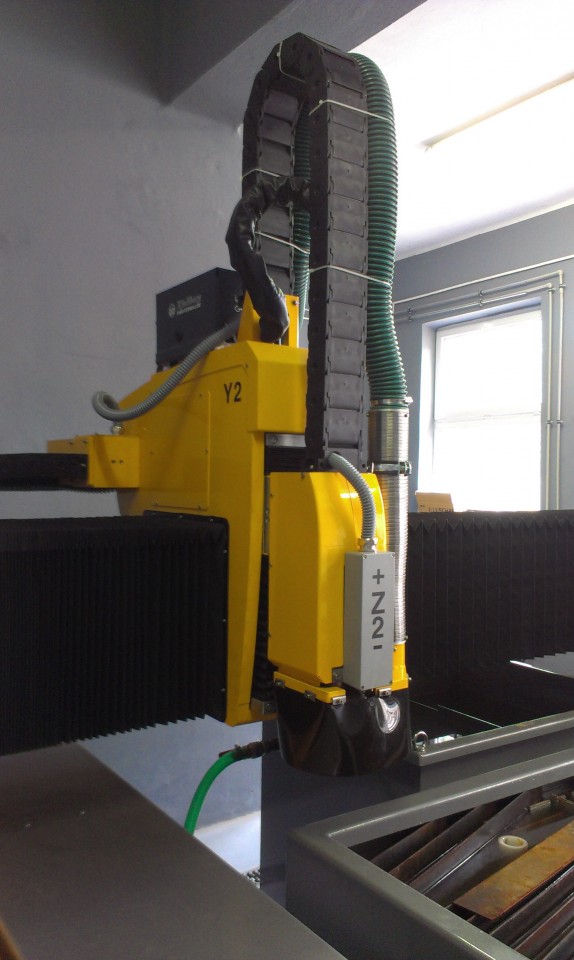

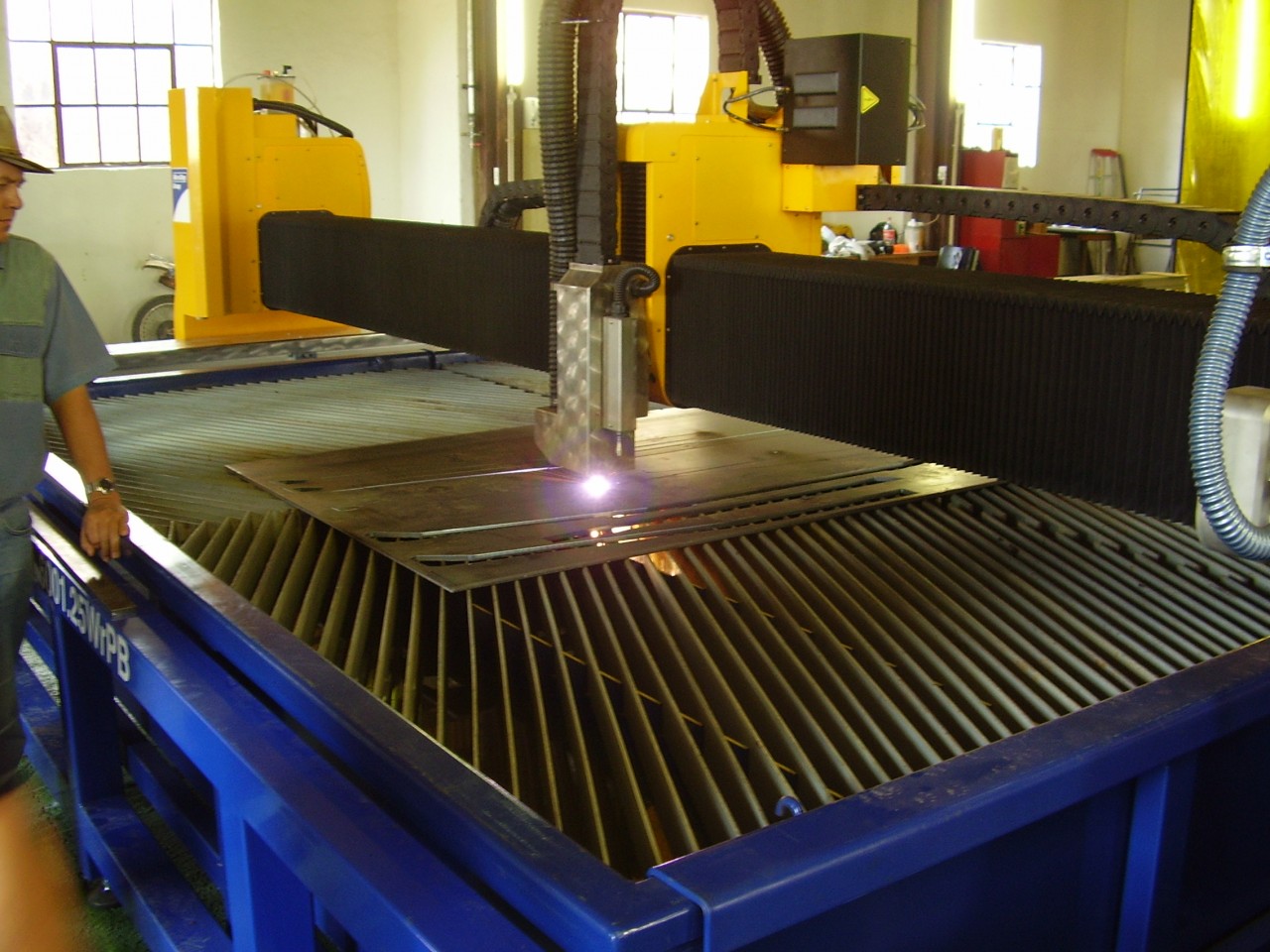

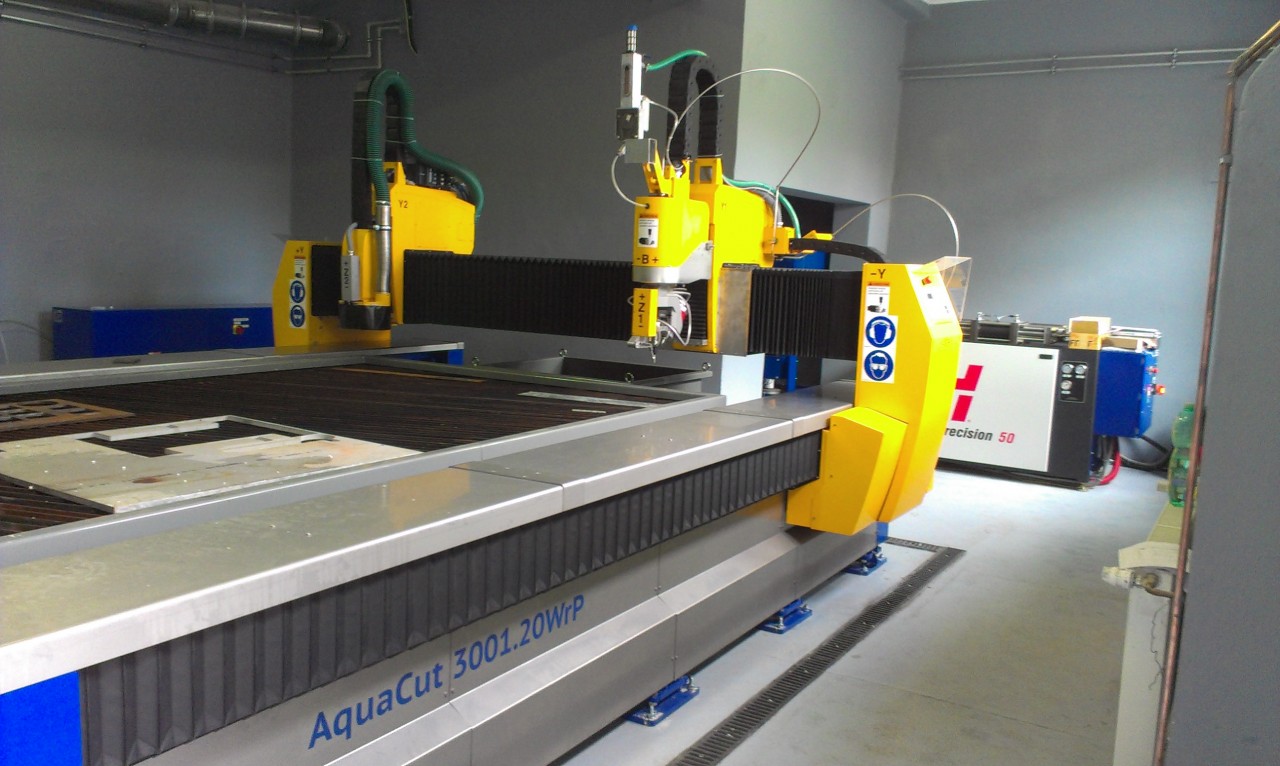

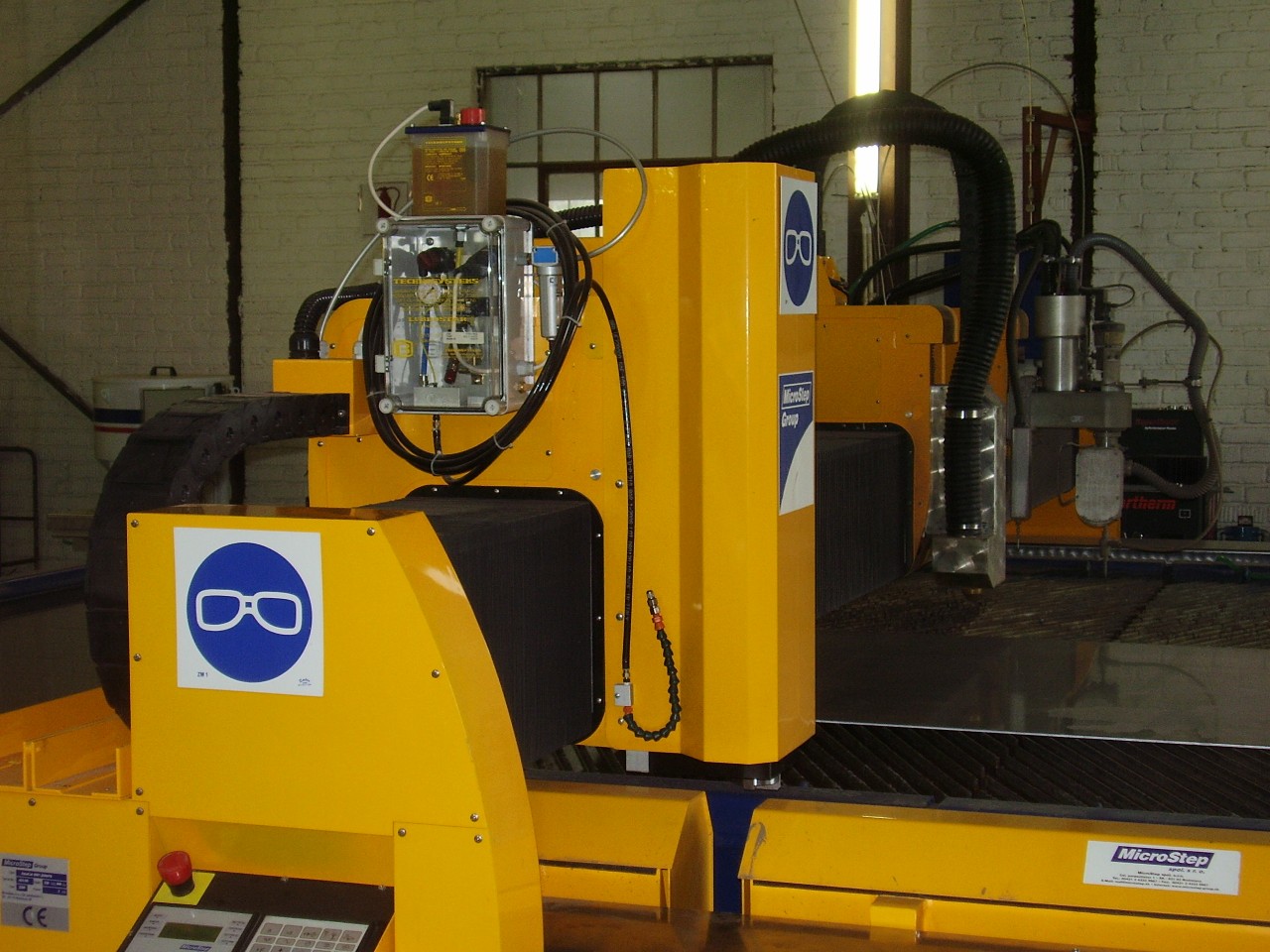

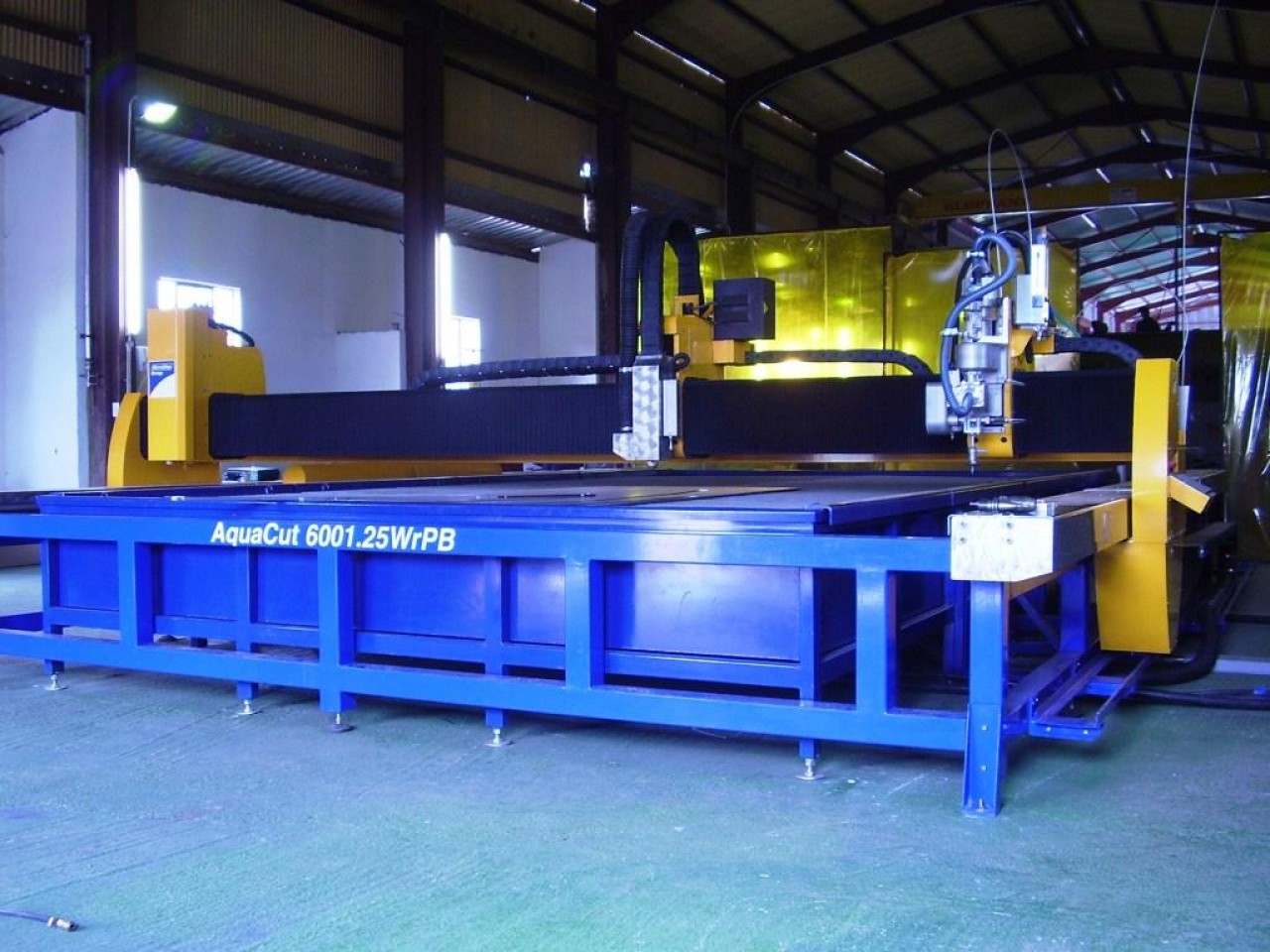

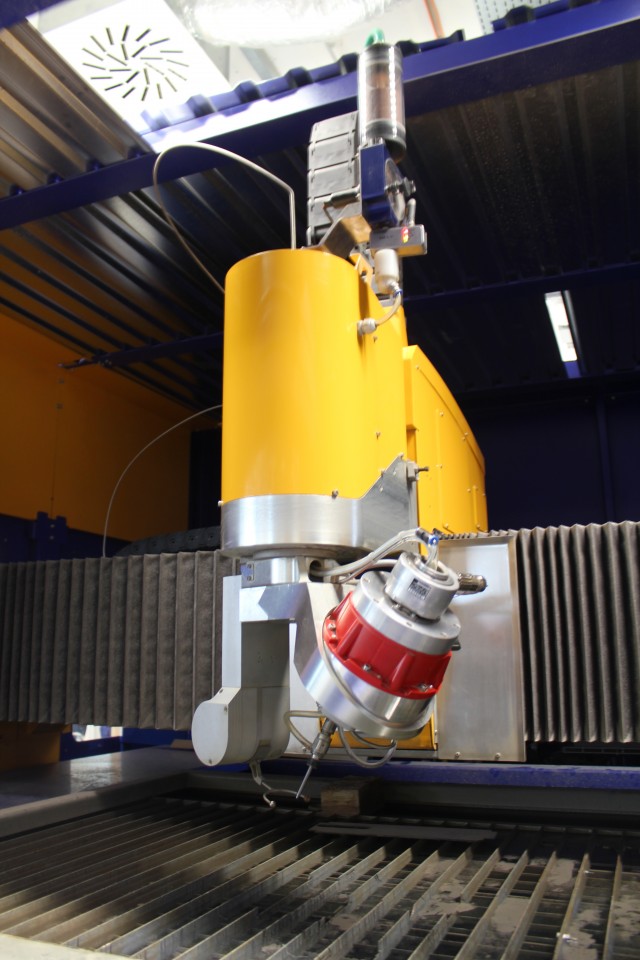

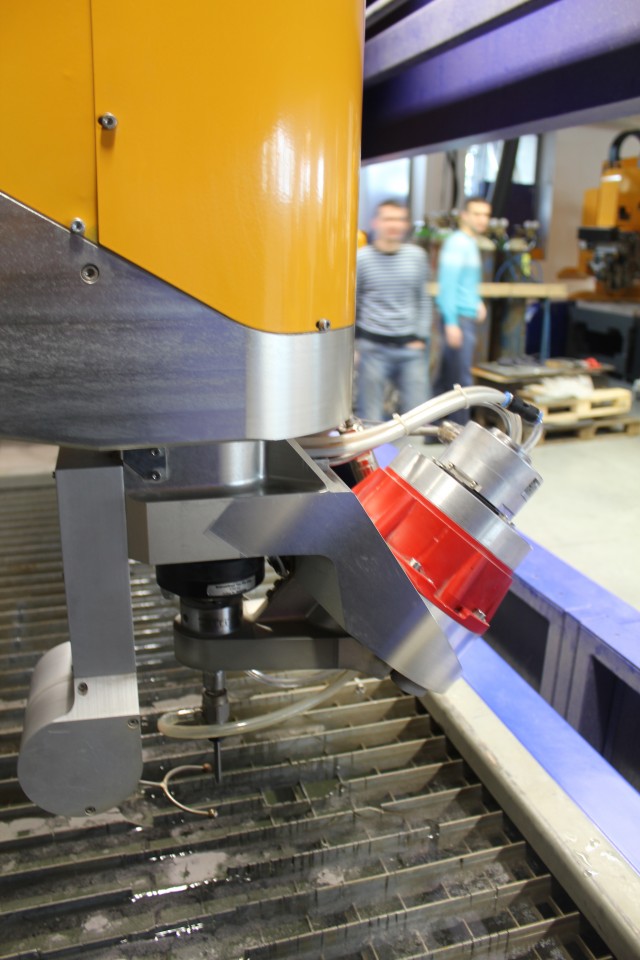

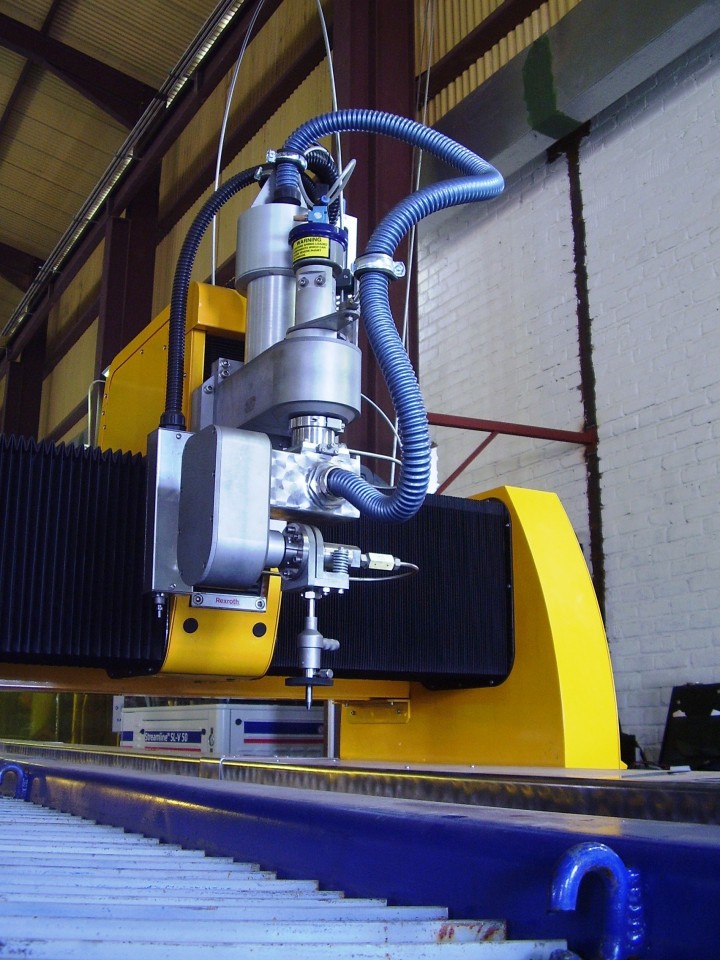

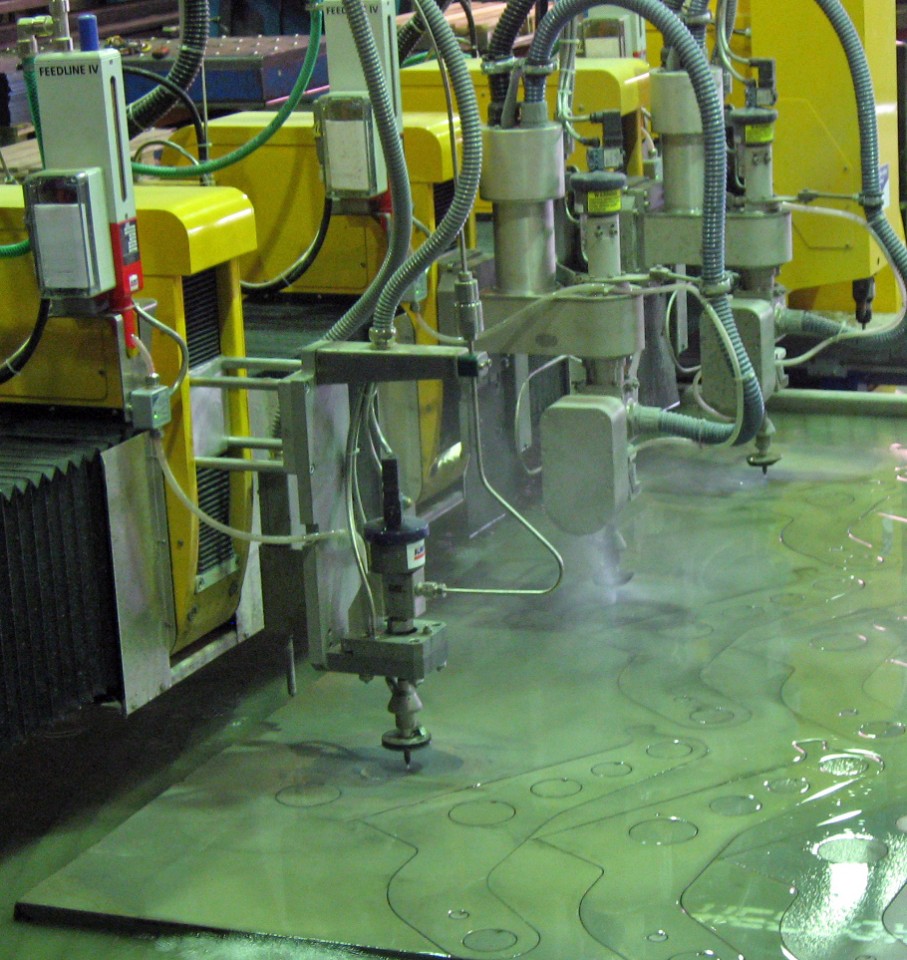

quaCut is a high-precision CNC cutting machine designed for processing of a wide variety of materials including those that cannot be subject to thermal or mechanical stresses. Pure water or abrasive cutting can be applied to metal, stone, marble, armoured glass, ceramics, plastics, wood, corrugated cardboard, foamed material as well as sandwich materials. The machine can be equipped with a 5-axis waterjet rotator and also combined with plasma or drilling and tapping units.

Technical parameters

Working length	3000 - 18000 mm
Working width	1500 - 4000 mm

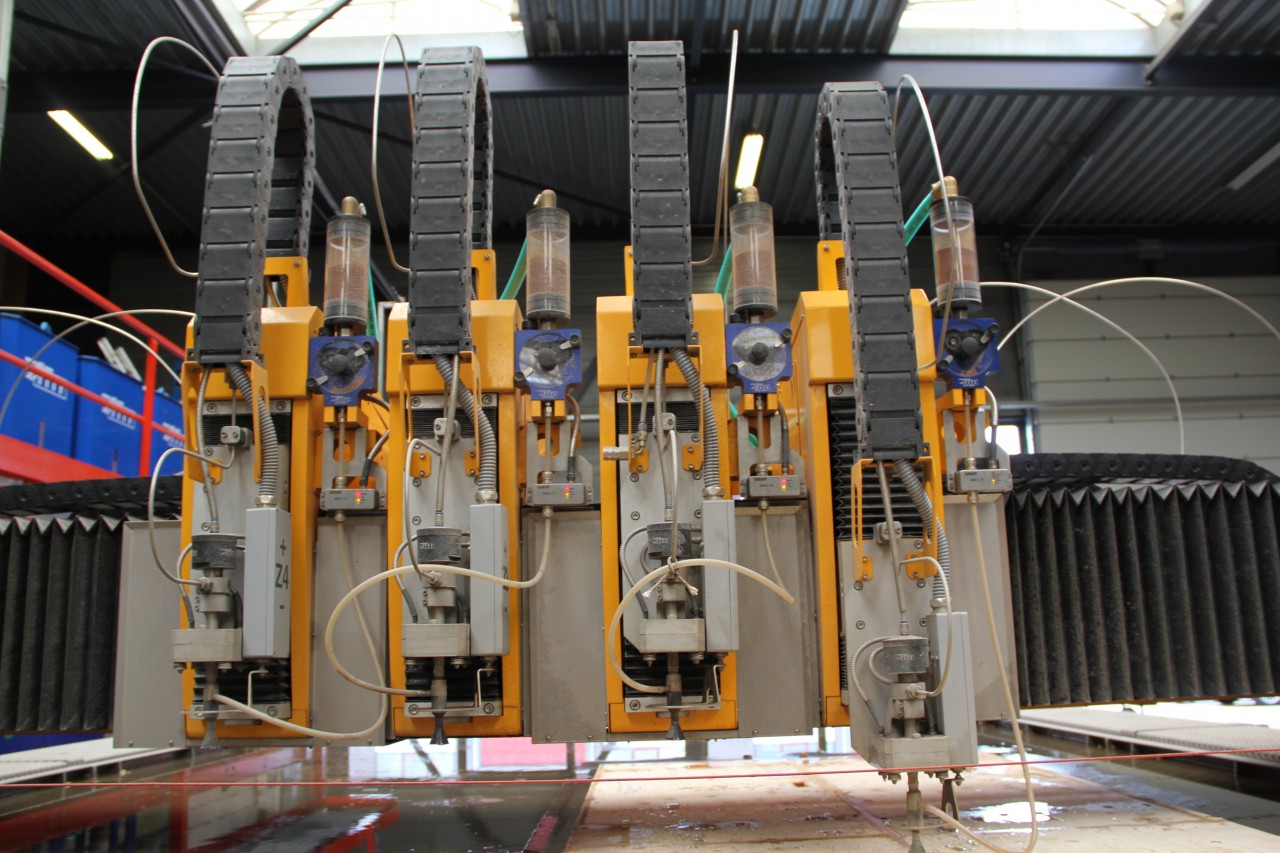

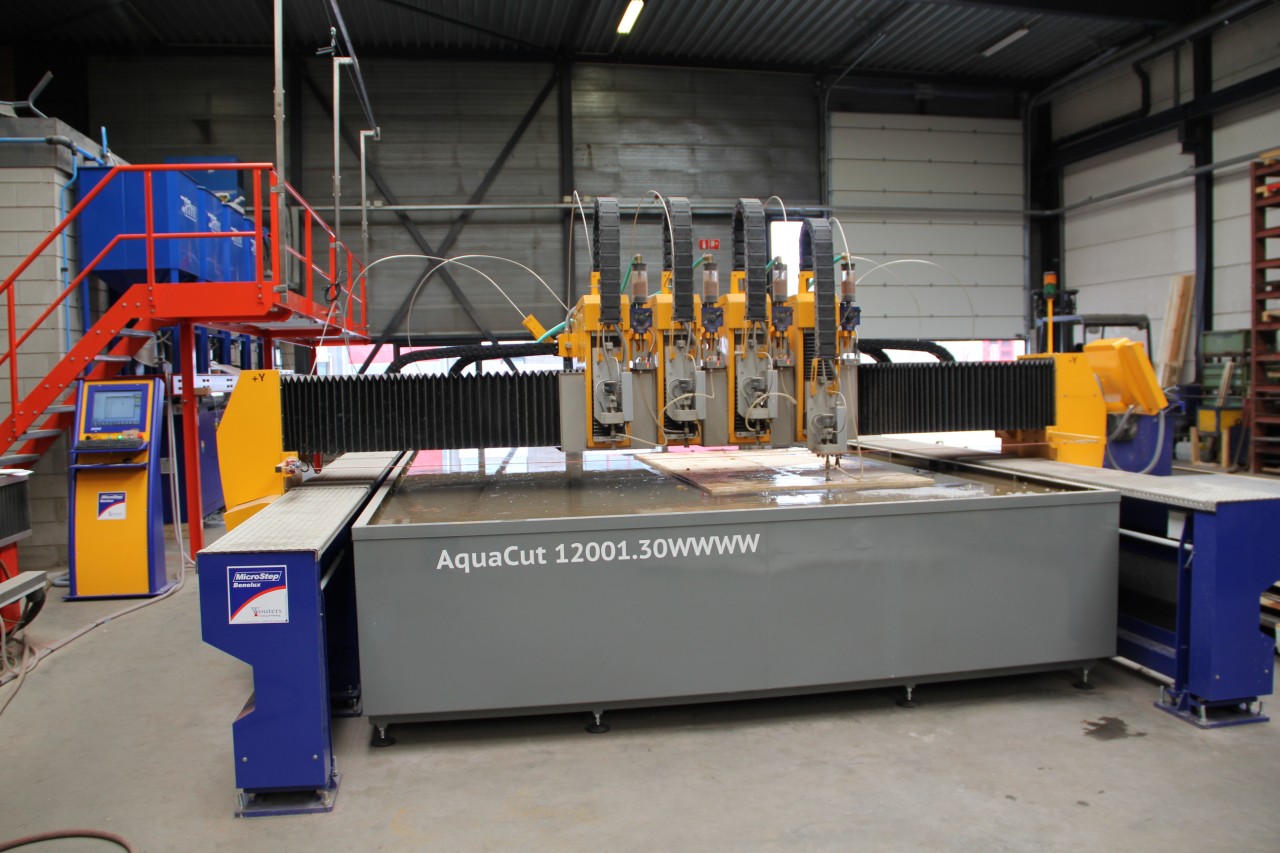

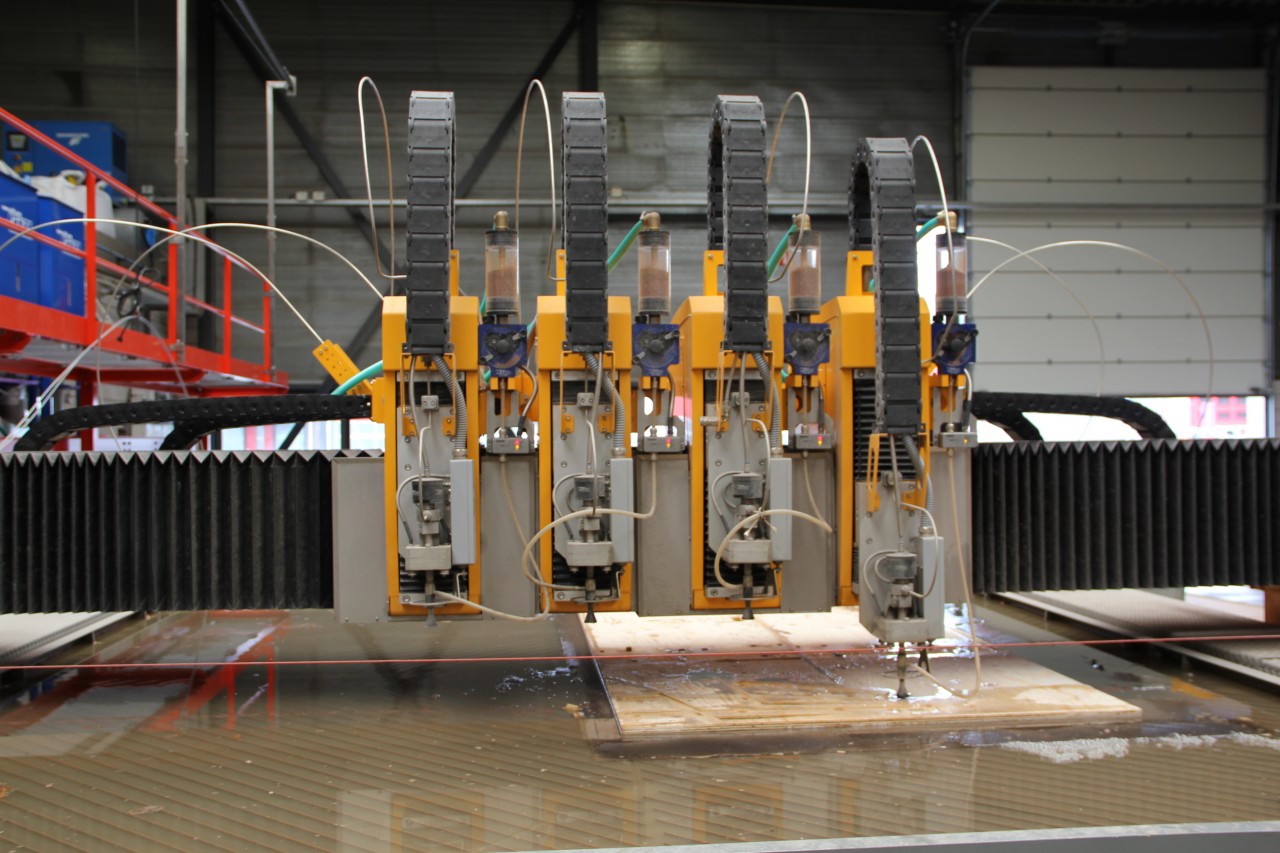

Max. number of tool stations	4
Max. thickness of material cut by plasma	according to a plasma source
Max. thickness of material cut by waterjet	200
Bevel cutting	yes (see accessories)

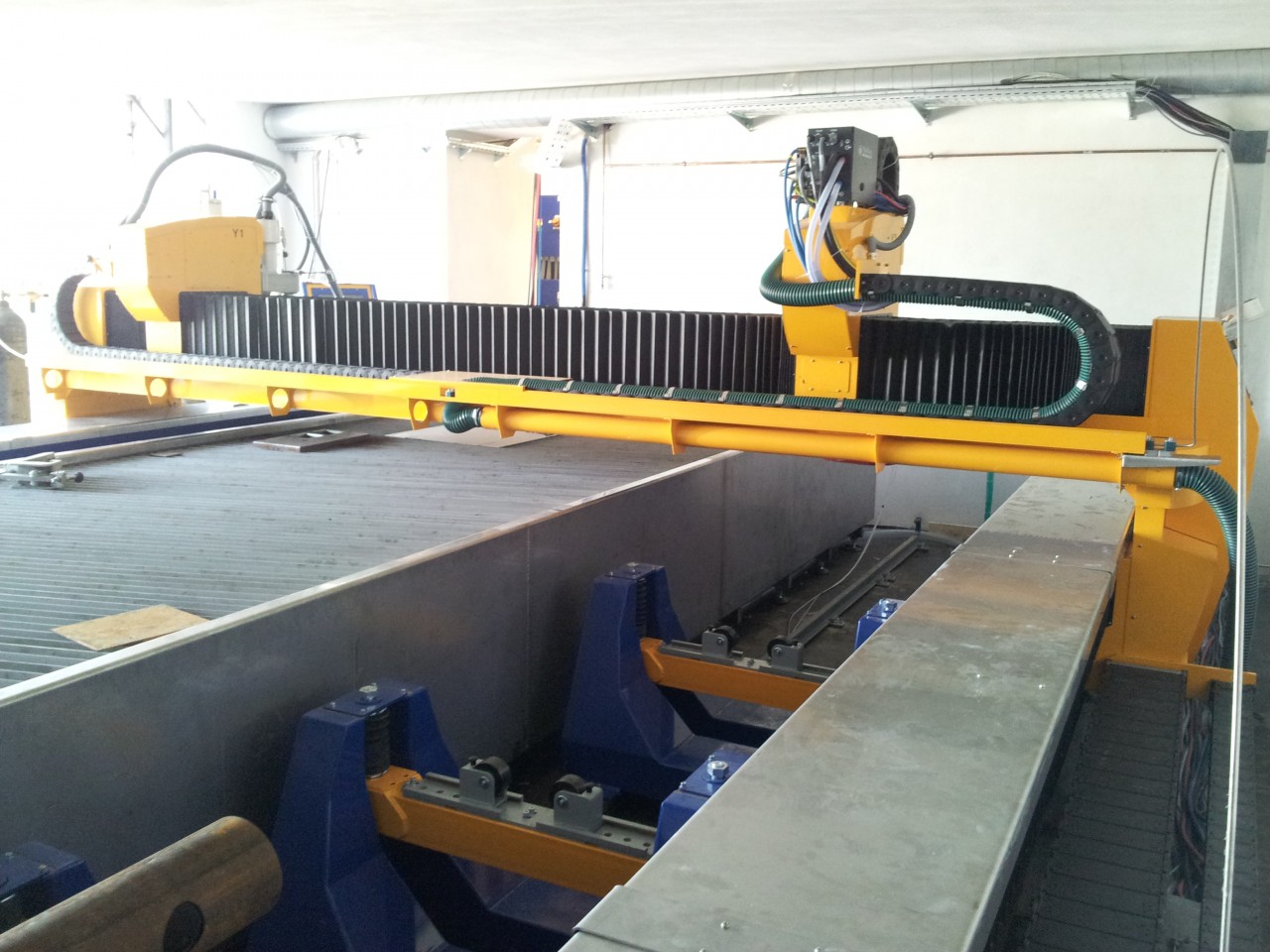

Pipe cutting	inquire individually
Tapping	M3 - M12
Positioning speed	max 56 m/min
Bidirectional repeatability	0.05 mm/m

Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
