PipeCut

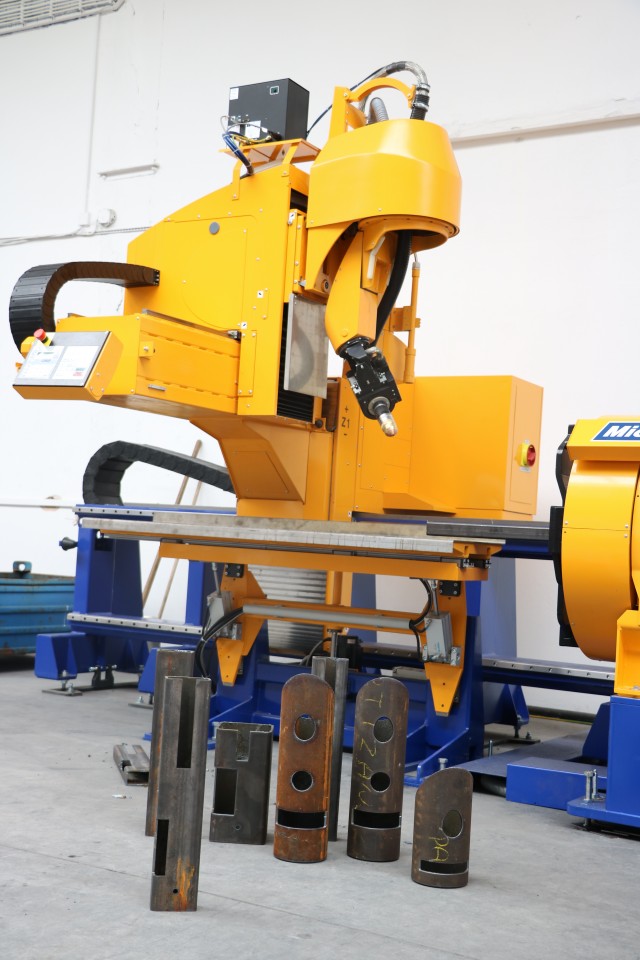

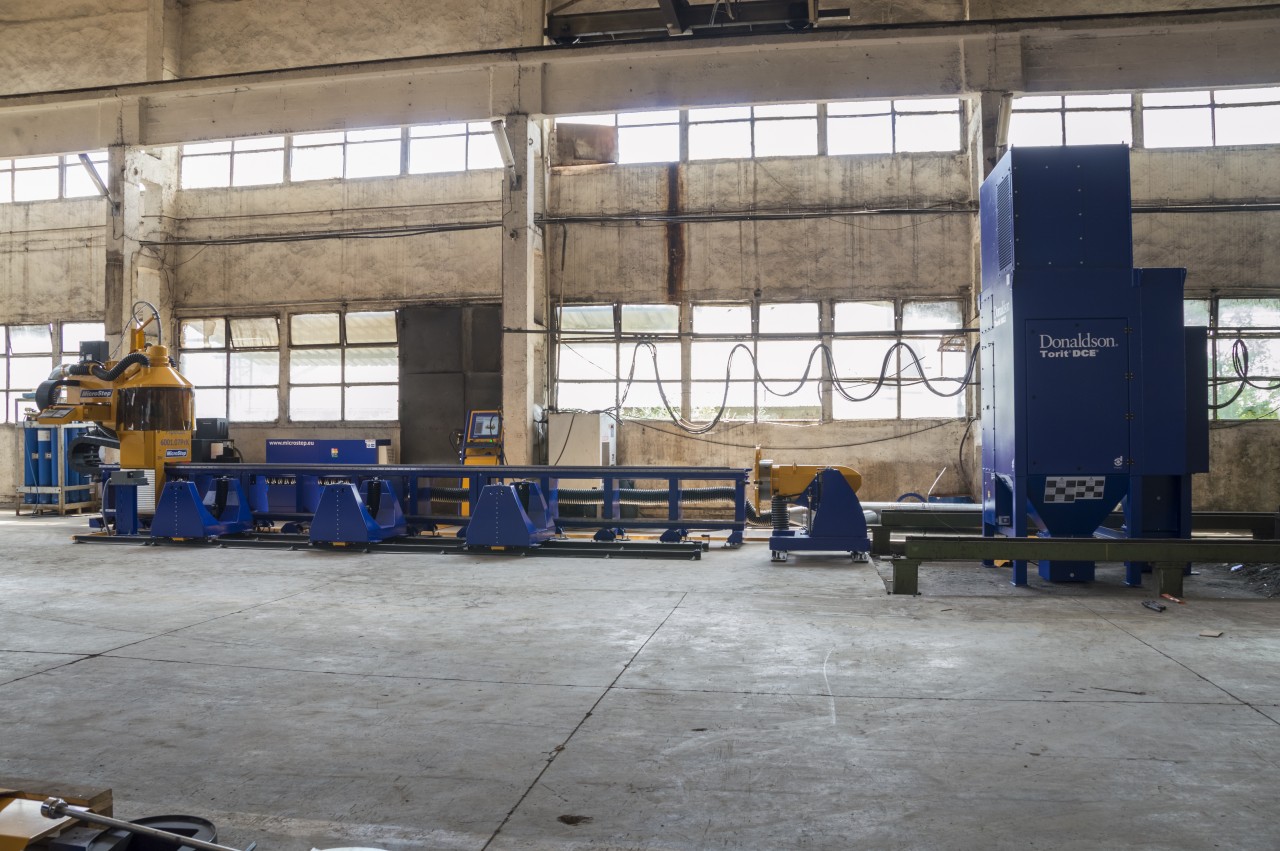

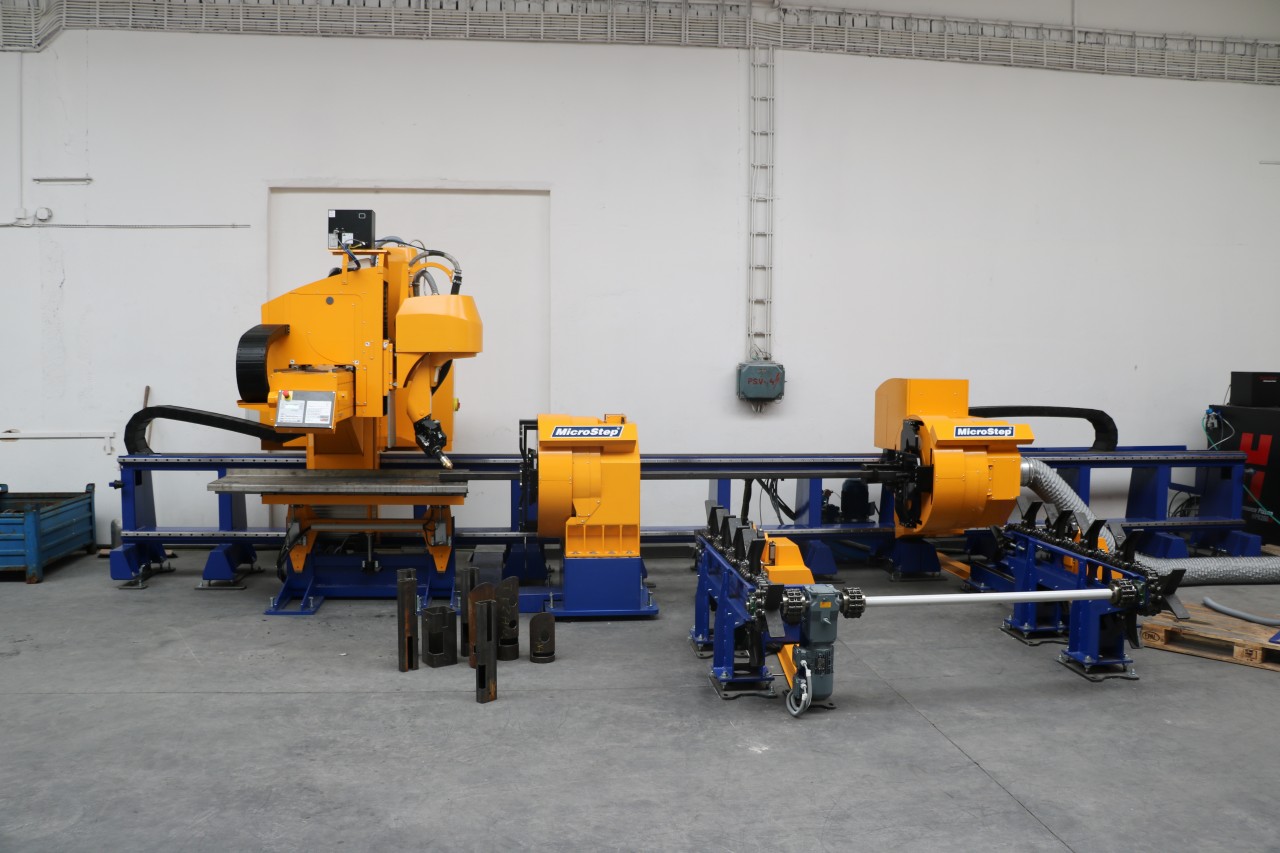

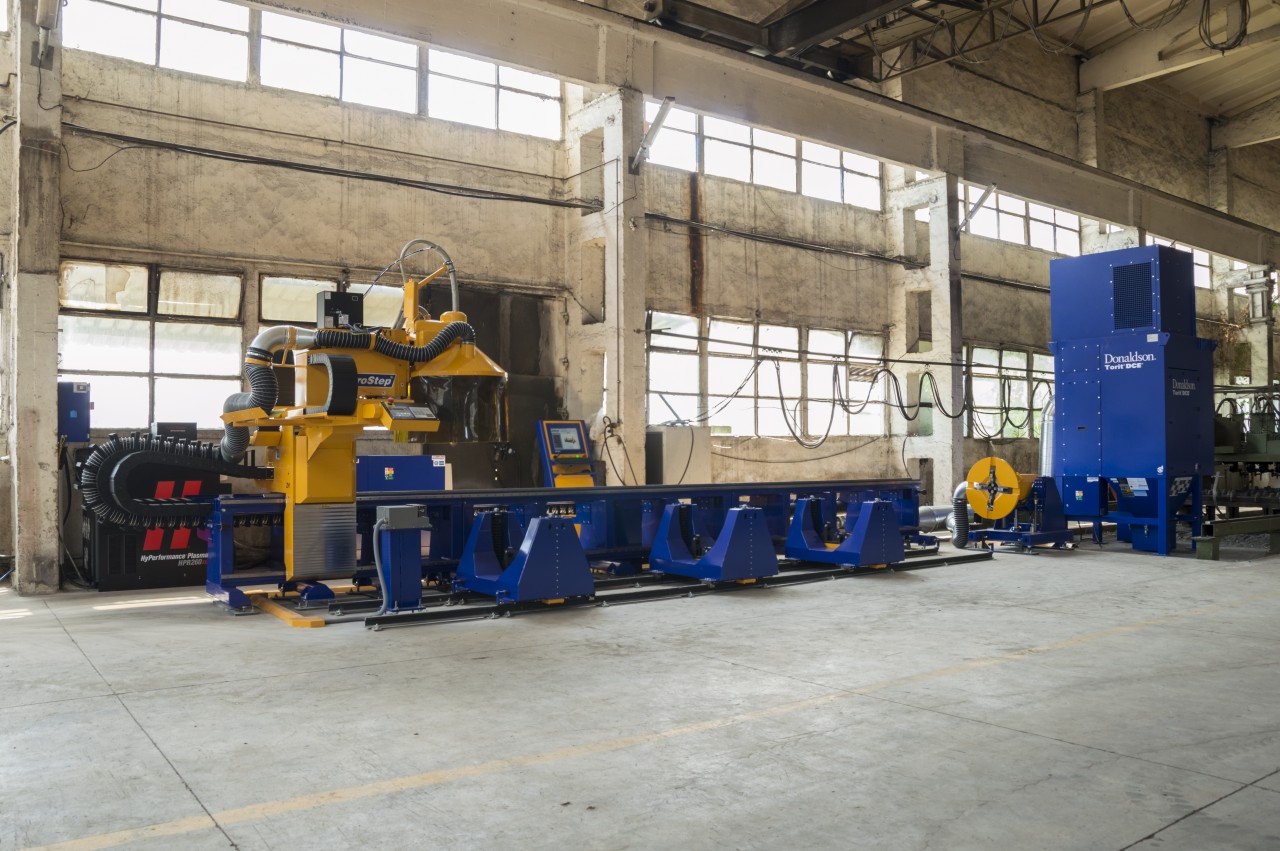

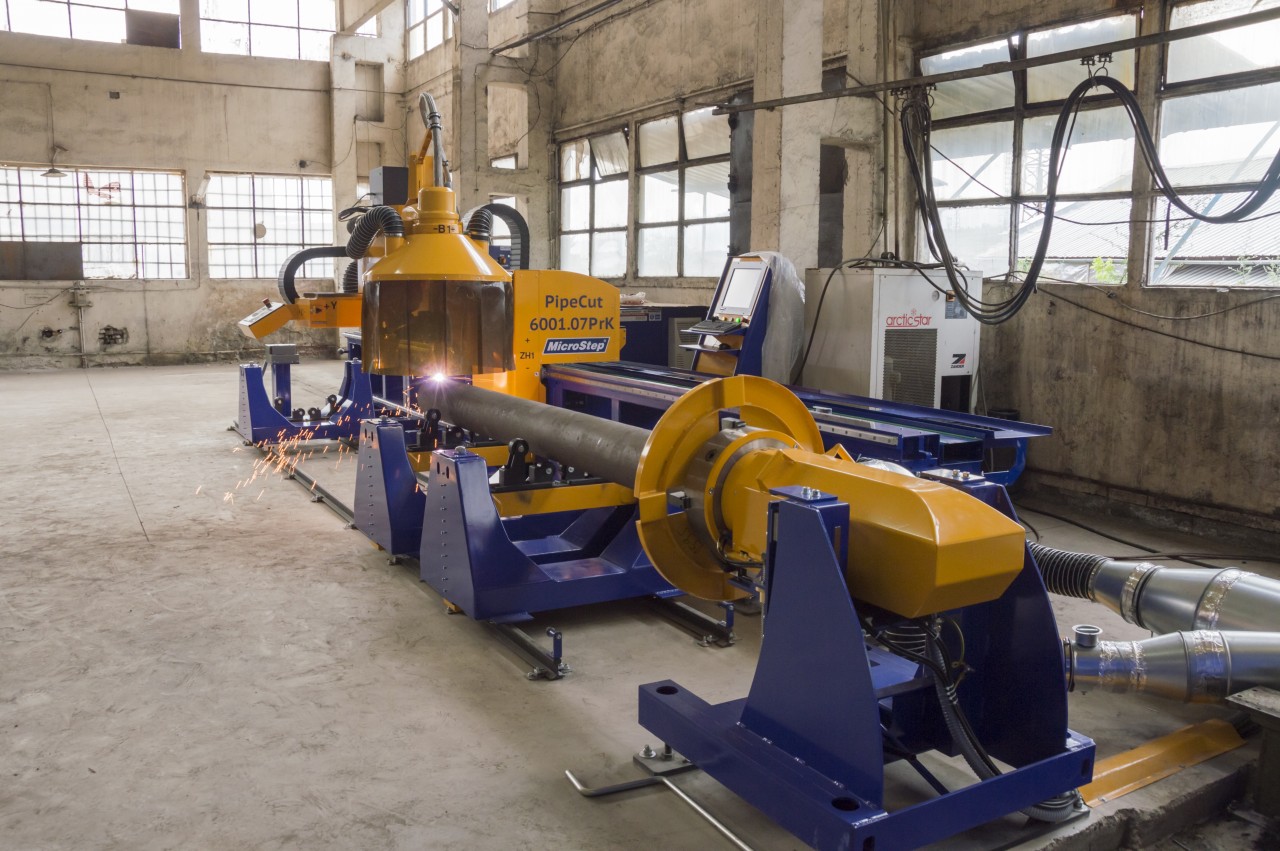

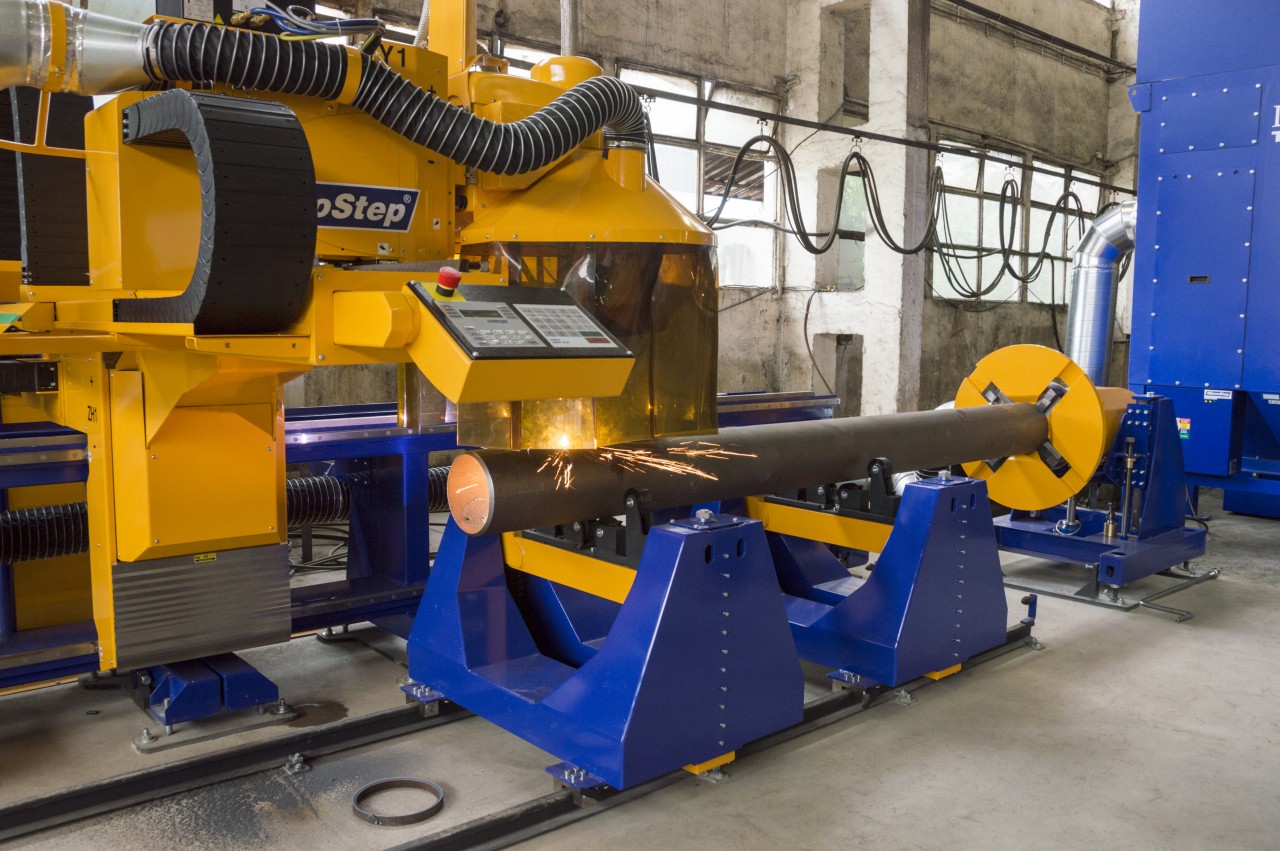

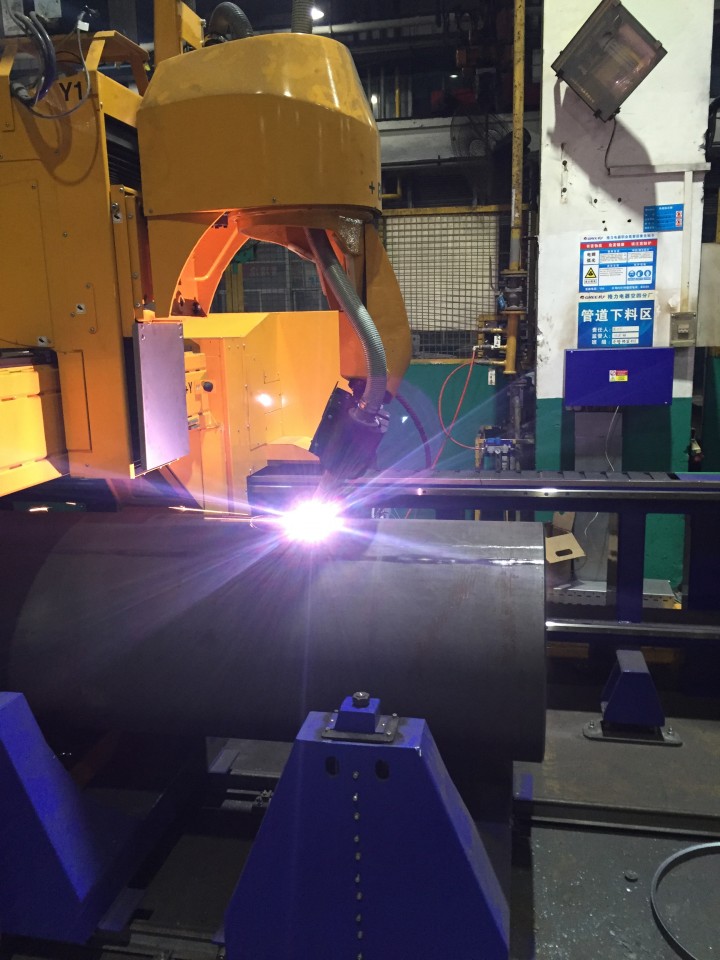

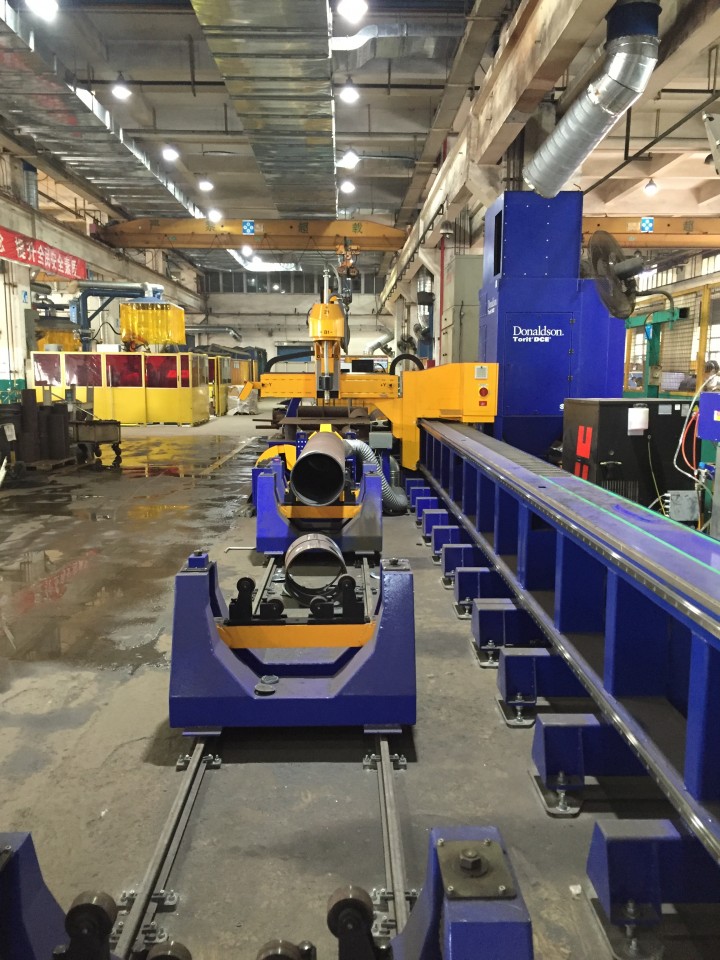

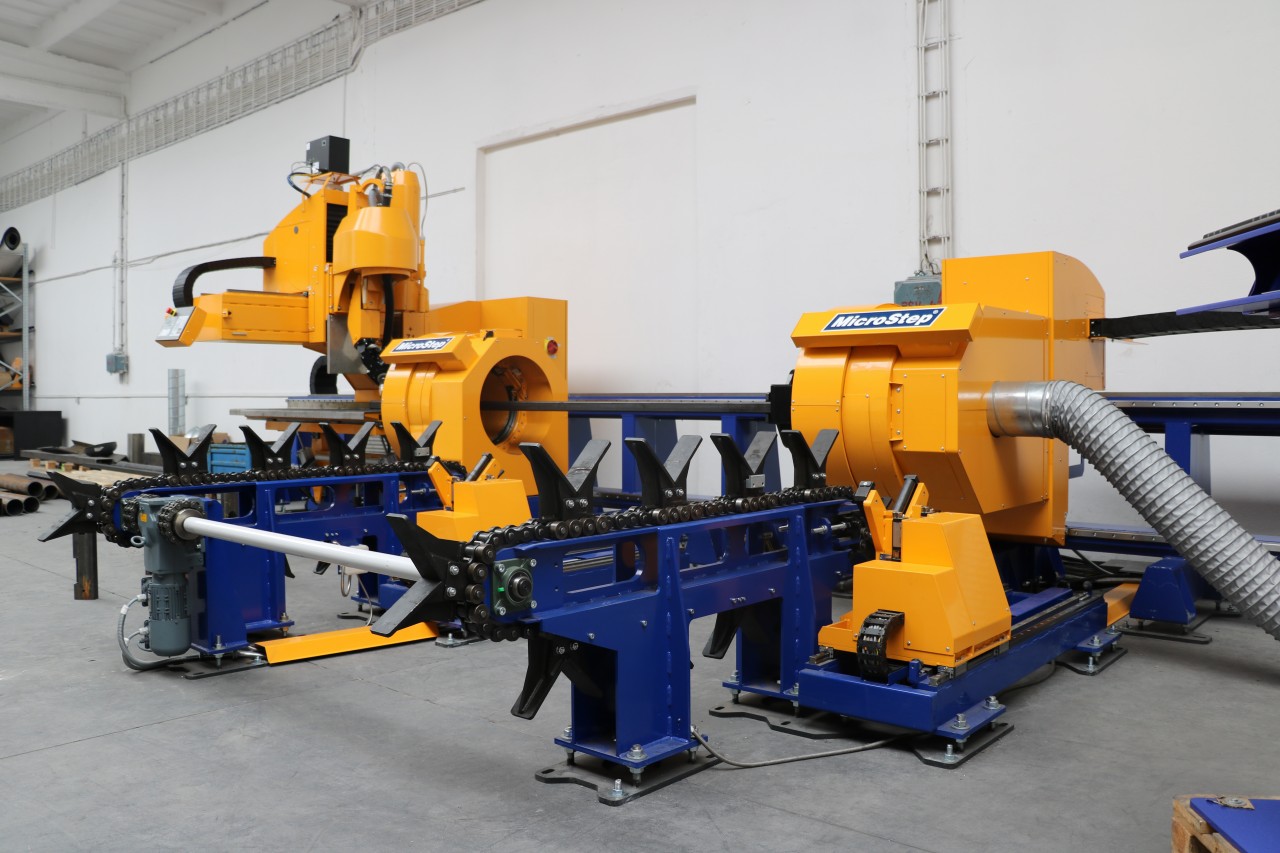

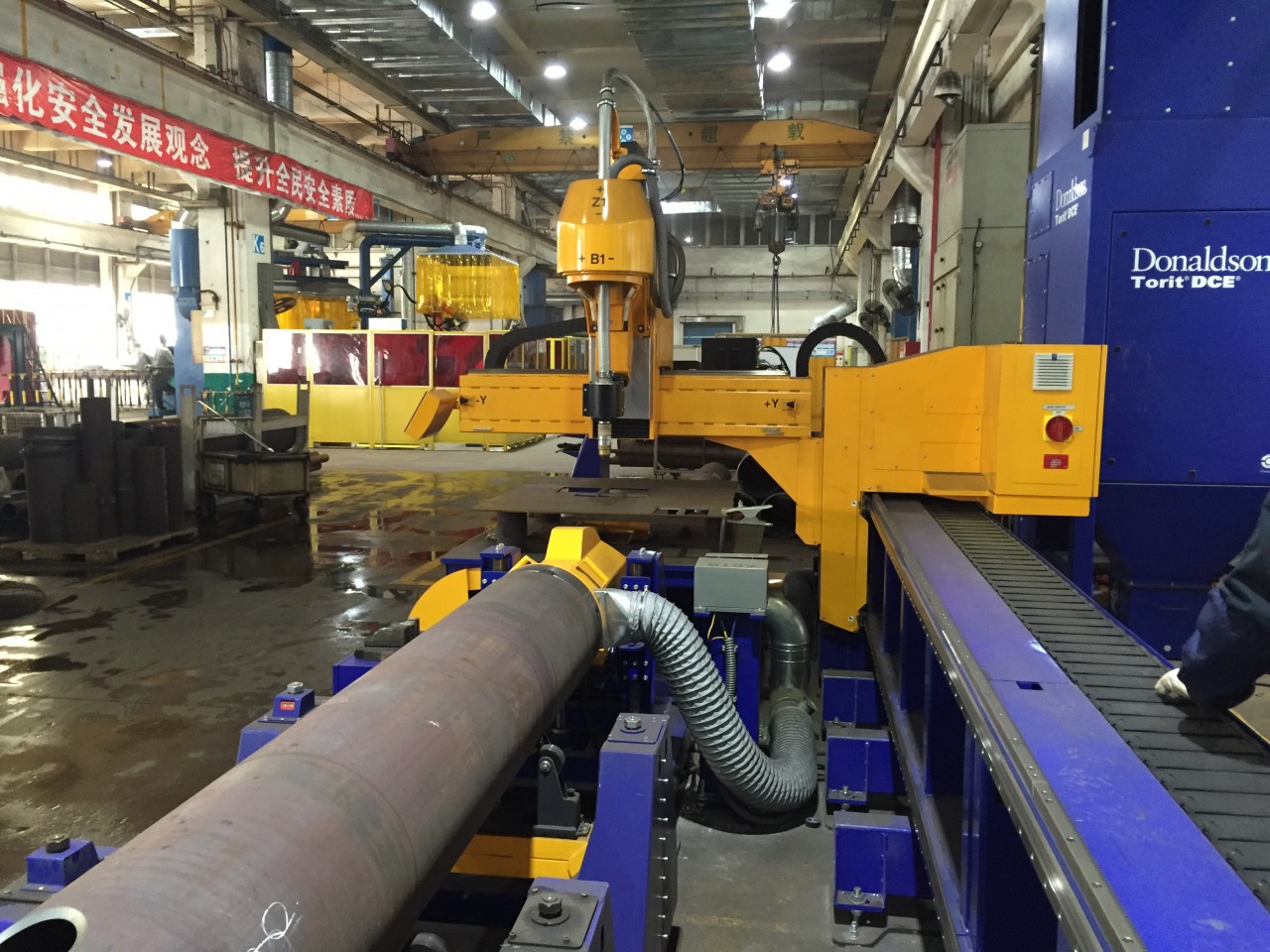

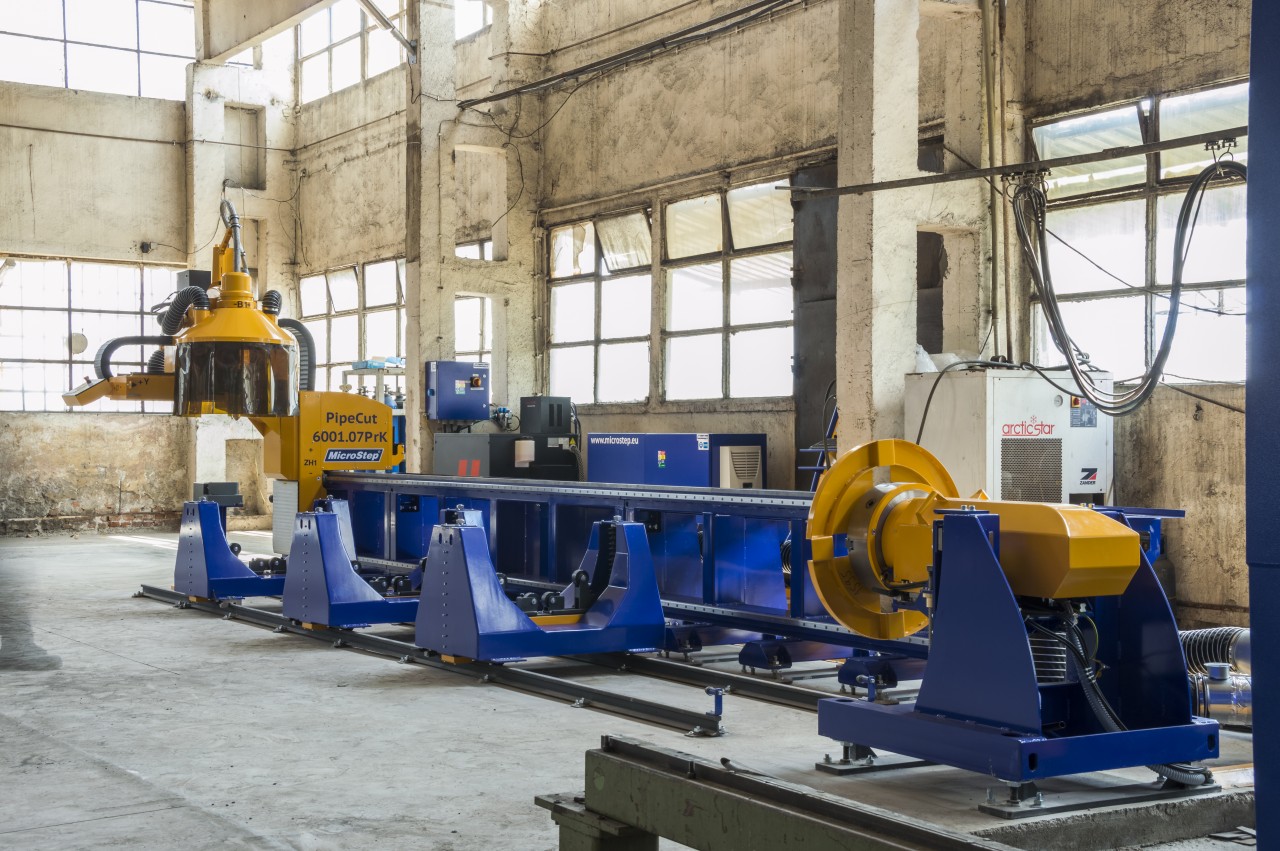

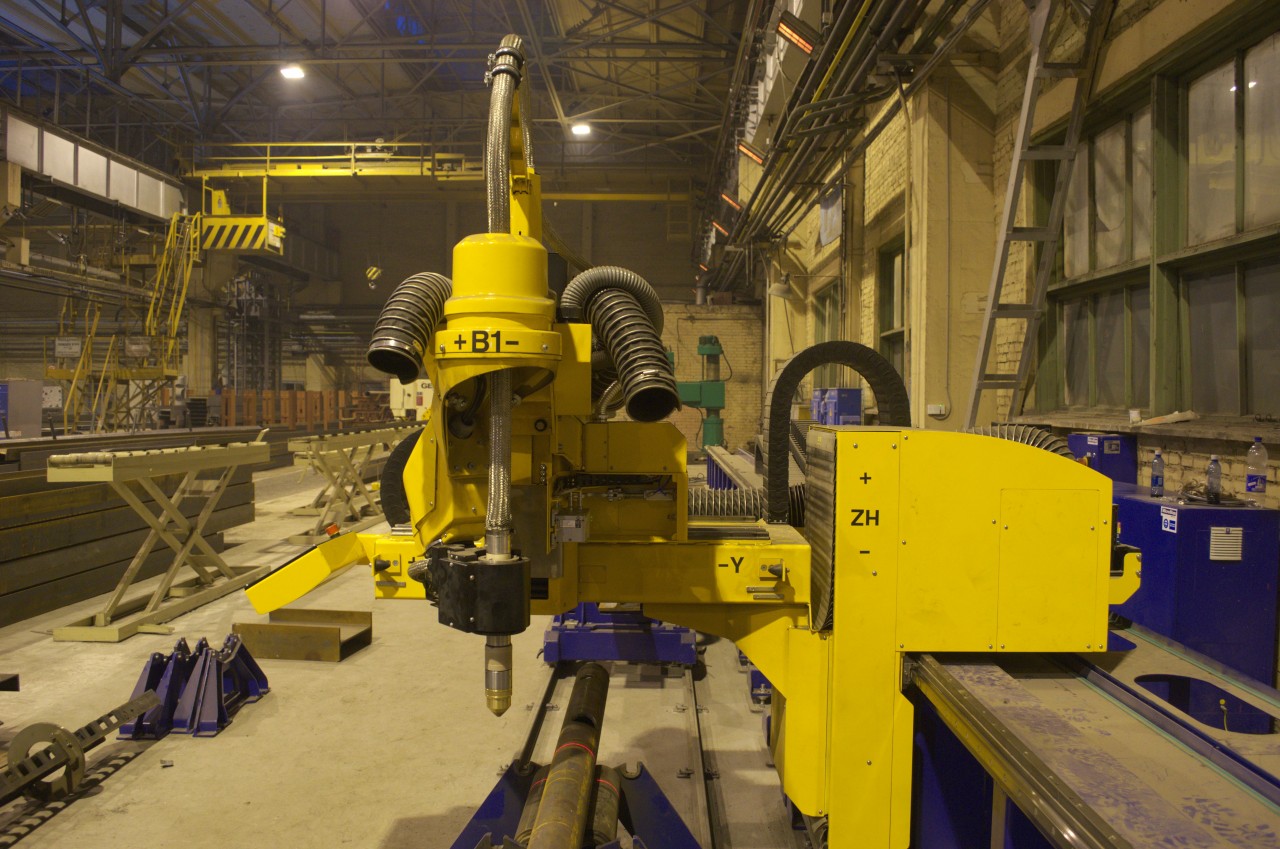

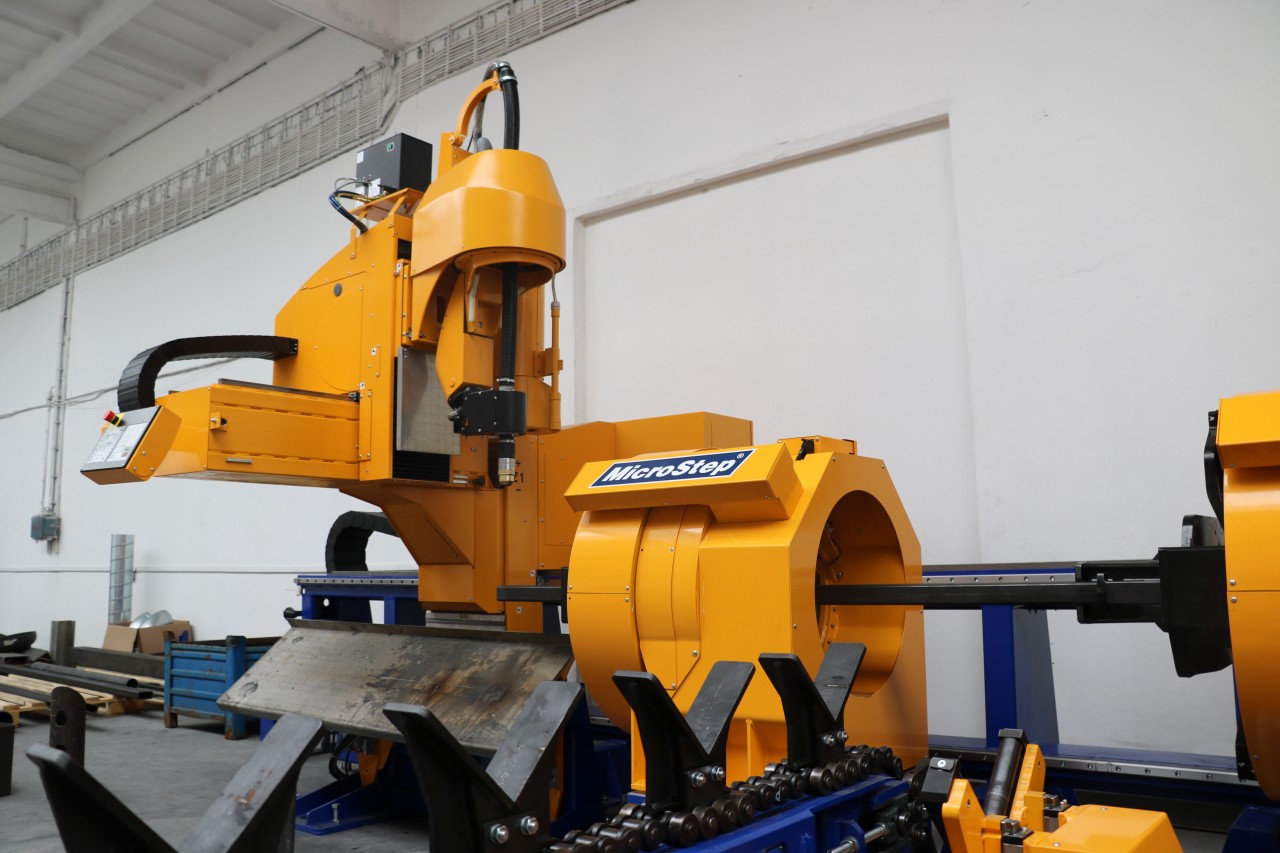

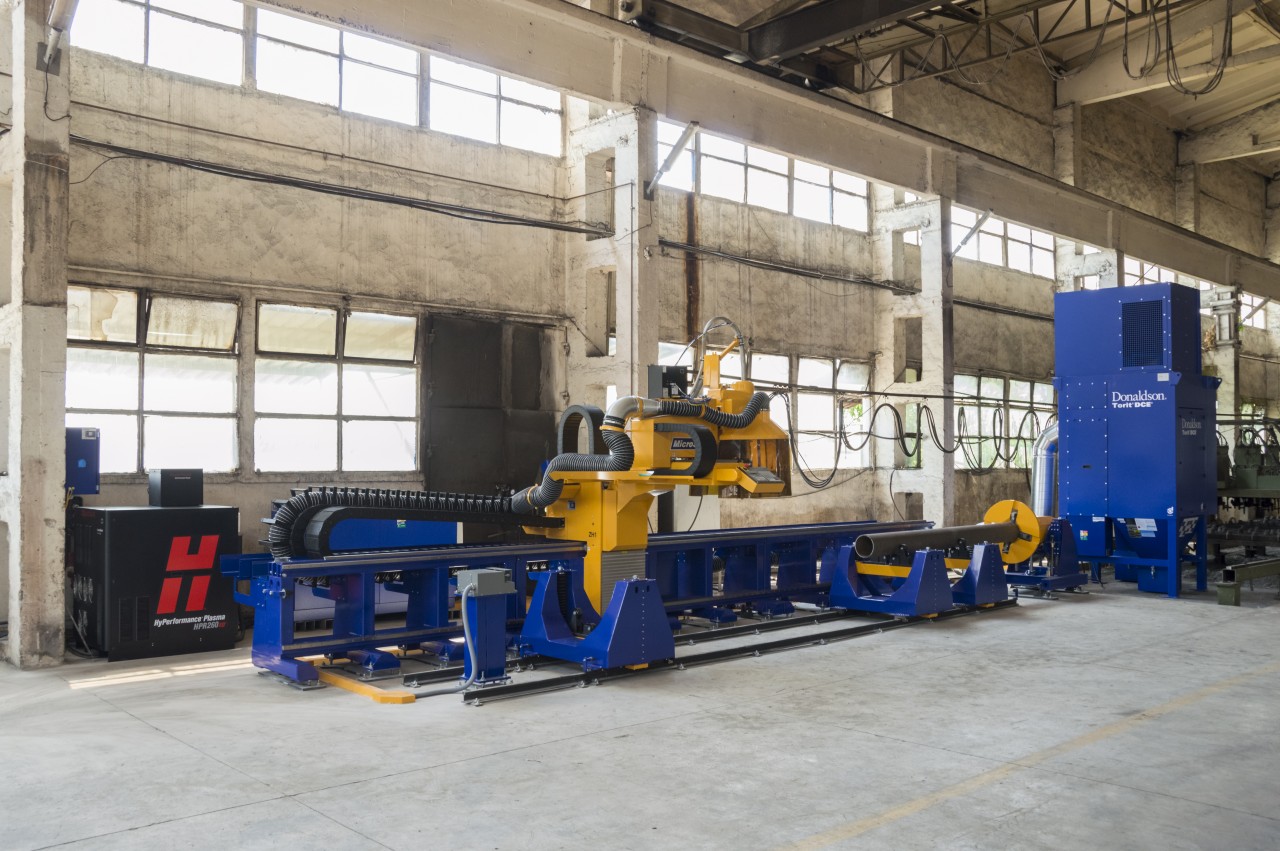

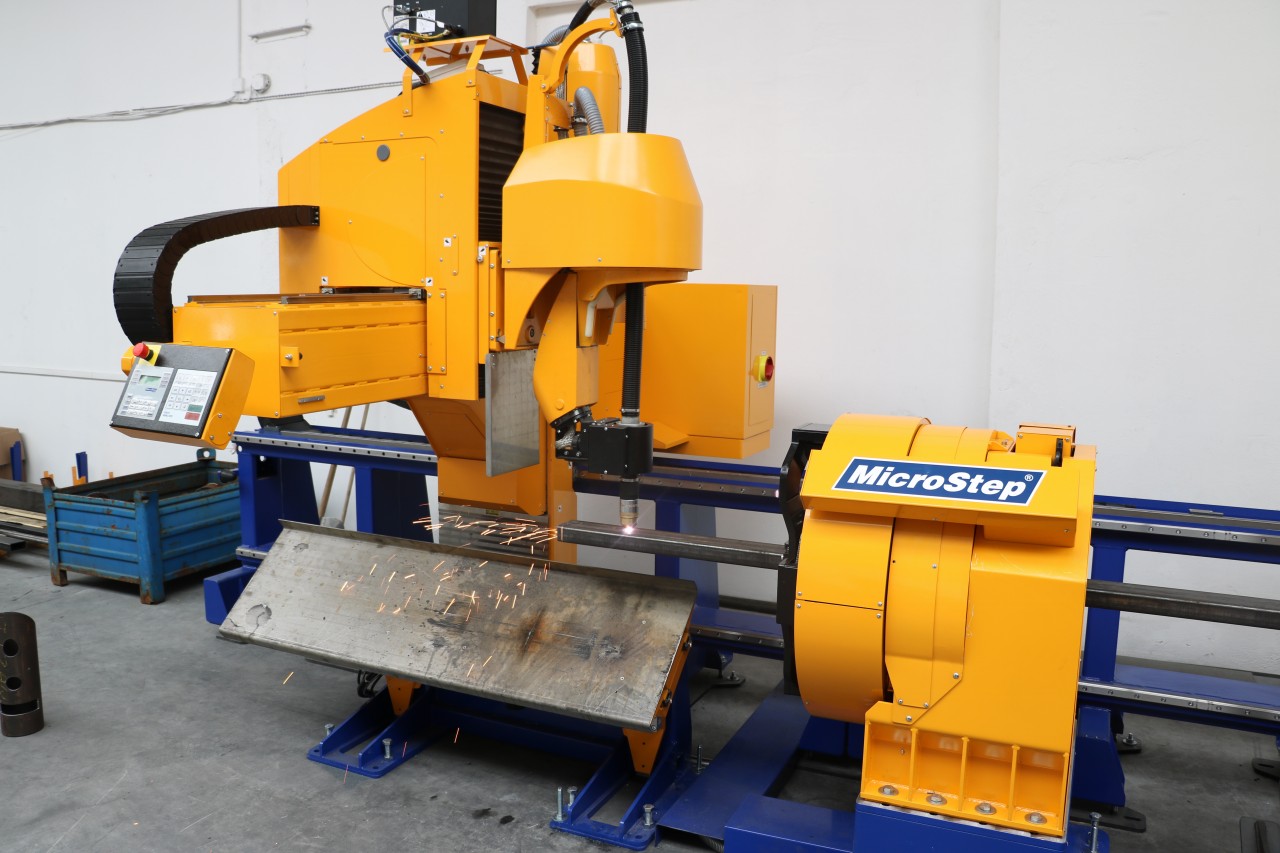

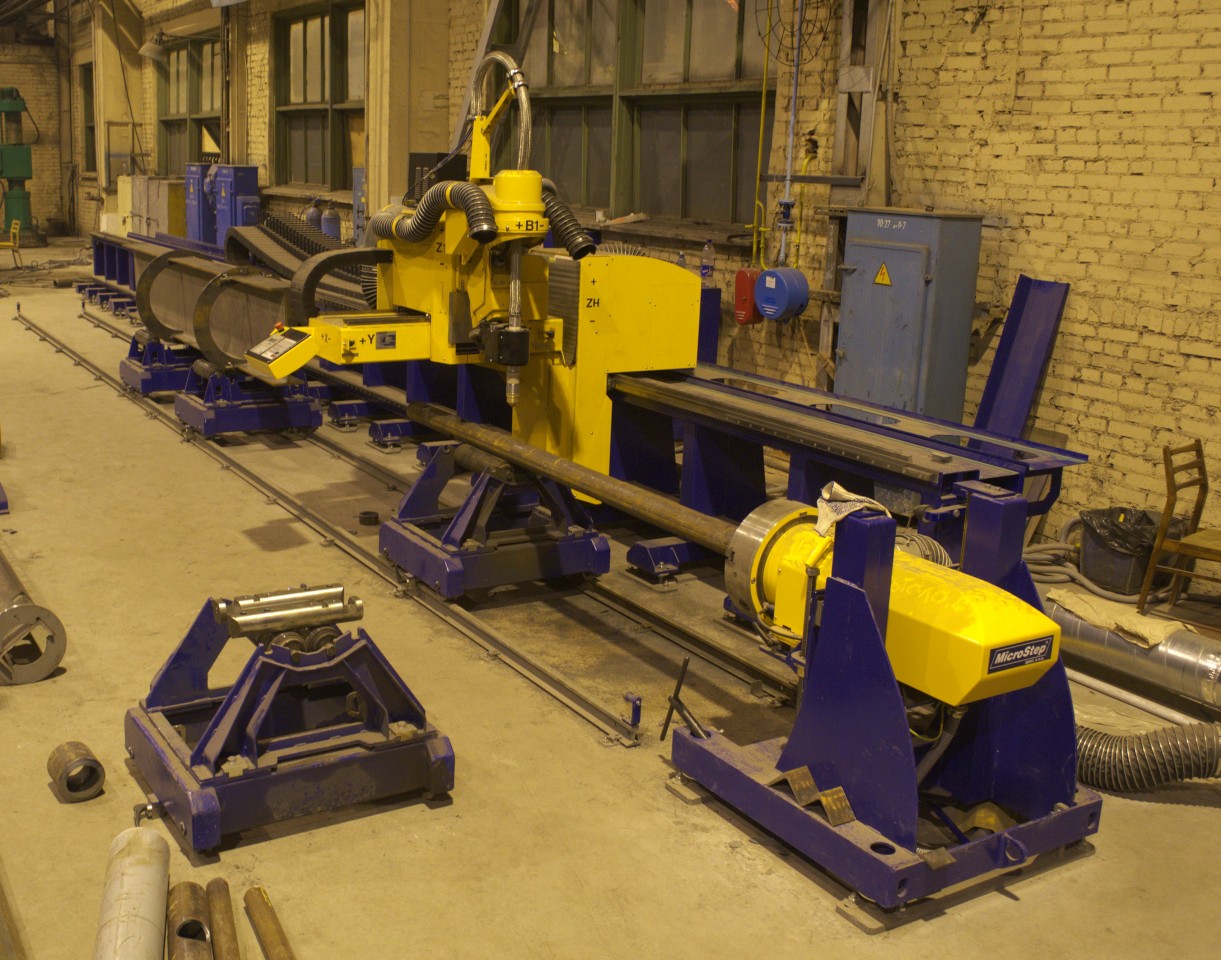

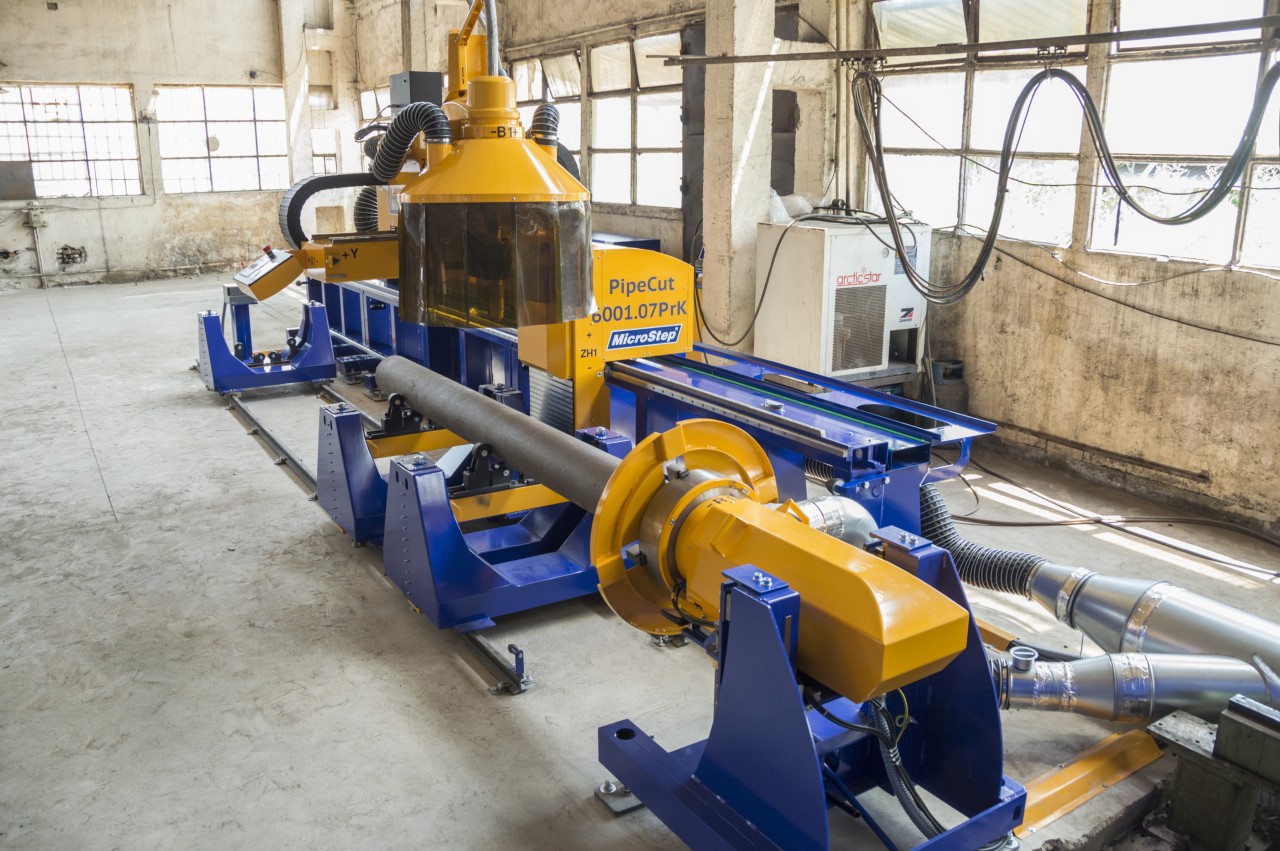

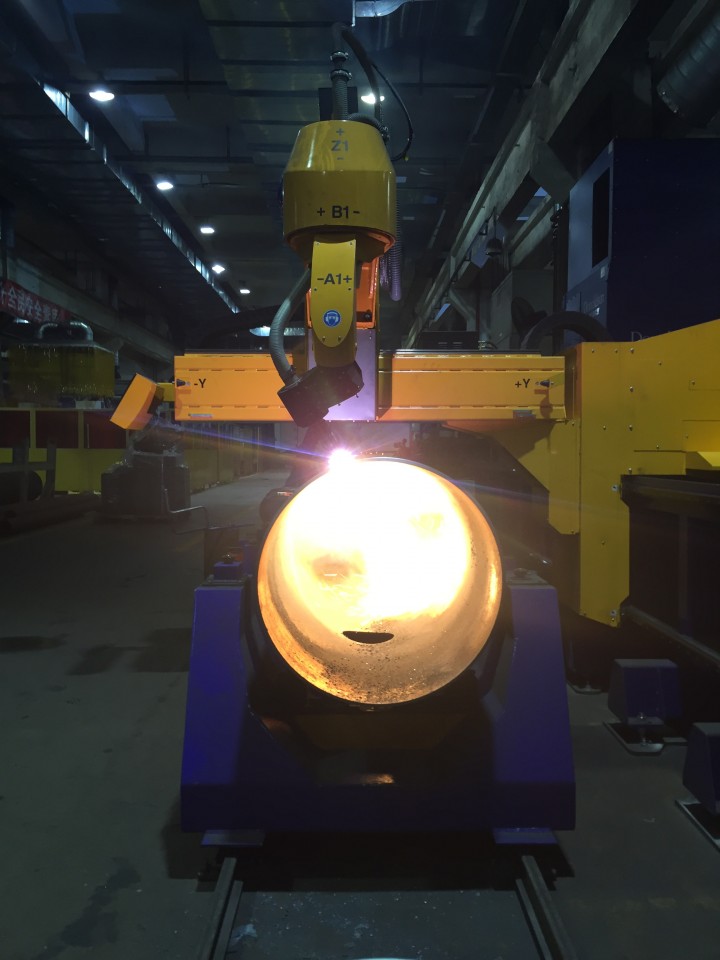

PipeCut is a modular pipe and profile cutting machine designed for a wide range of pipe based applications incl. trimming, cutting of holes for multiple pipe and profile intersections, welding seam preparation and pipe marking. The modular design provides the possibilities of various machine variants as well as further expansion of the system according to customers requirements. PipeCut can be used in tank, pipeline and power plant constructions. Optional possibilities of automatic loading and unloading assure higher productivity.

Technical parameters

Working lenght	max 12000 mm
Working diameter	Ø 30 - 800 mm*
Max. number of tool stations	1
Max. thickness of material cut by plasma	according to a plasma source
Max. thickness of material cut by oxyfuel	40 mm
Bevel cutting	yes (see accessories)
Plate cutting	no
Drilling and tapping	no
Max. speed in X direction	35 m/min

*Given working diamaters are valid for manual loading. All automatic loading solutions have to be consulted with MicroStep.

Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
