ProfileCut

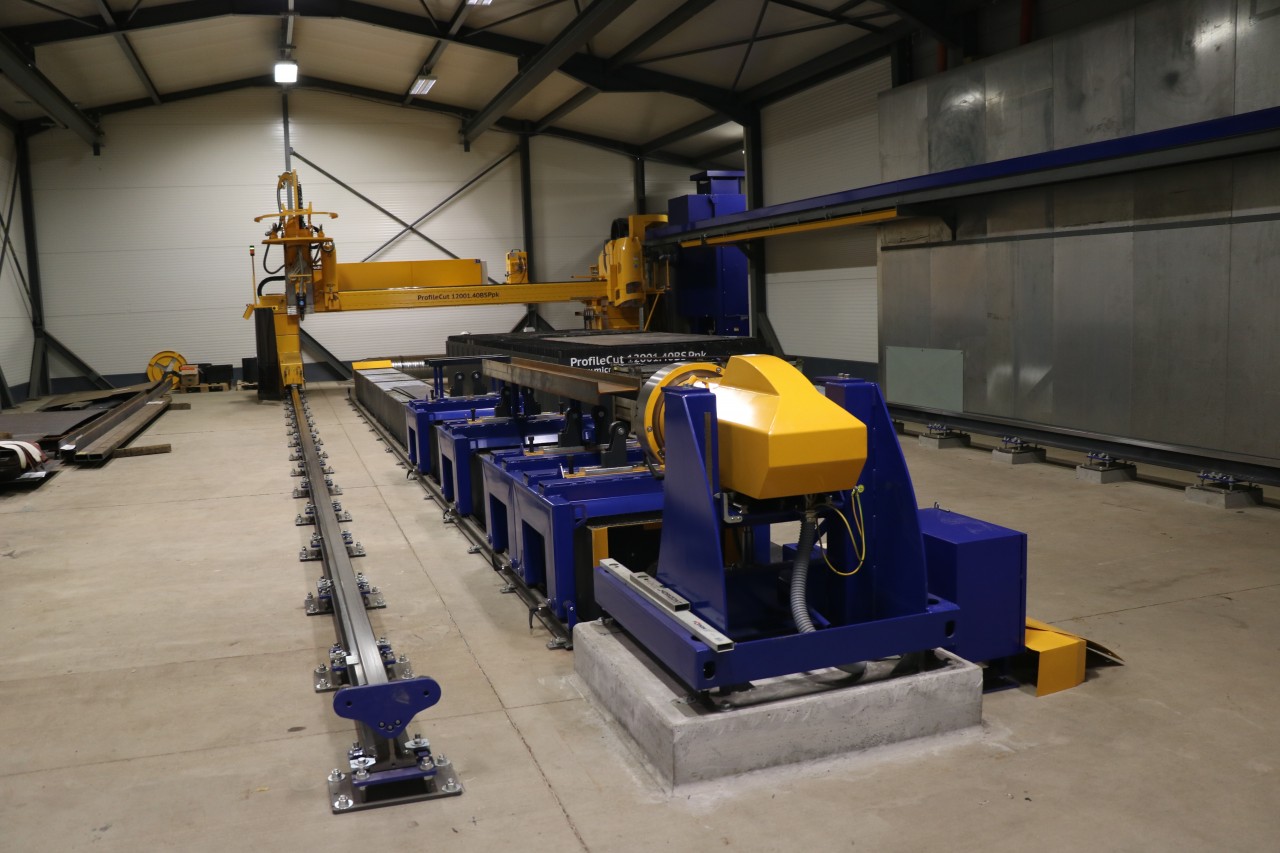

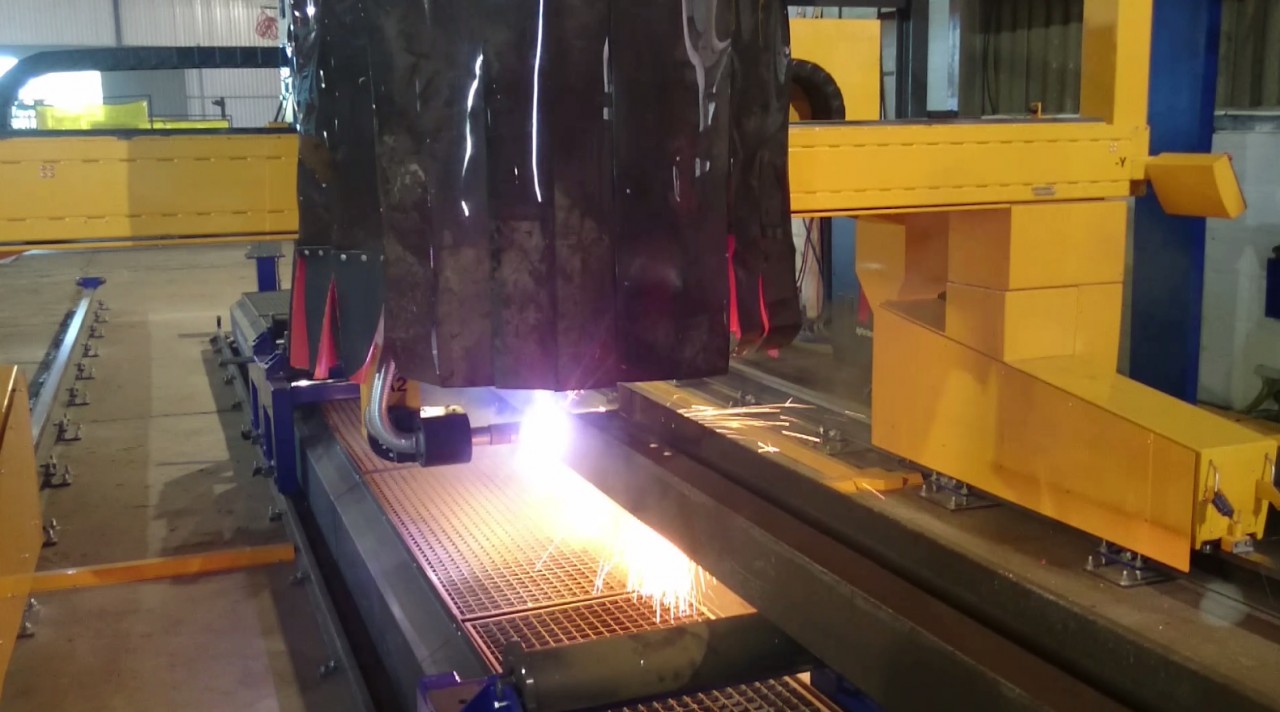

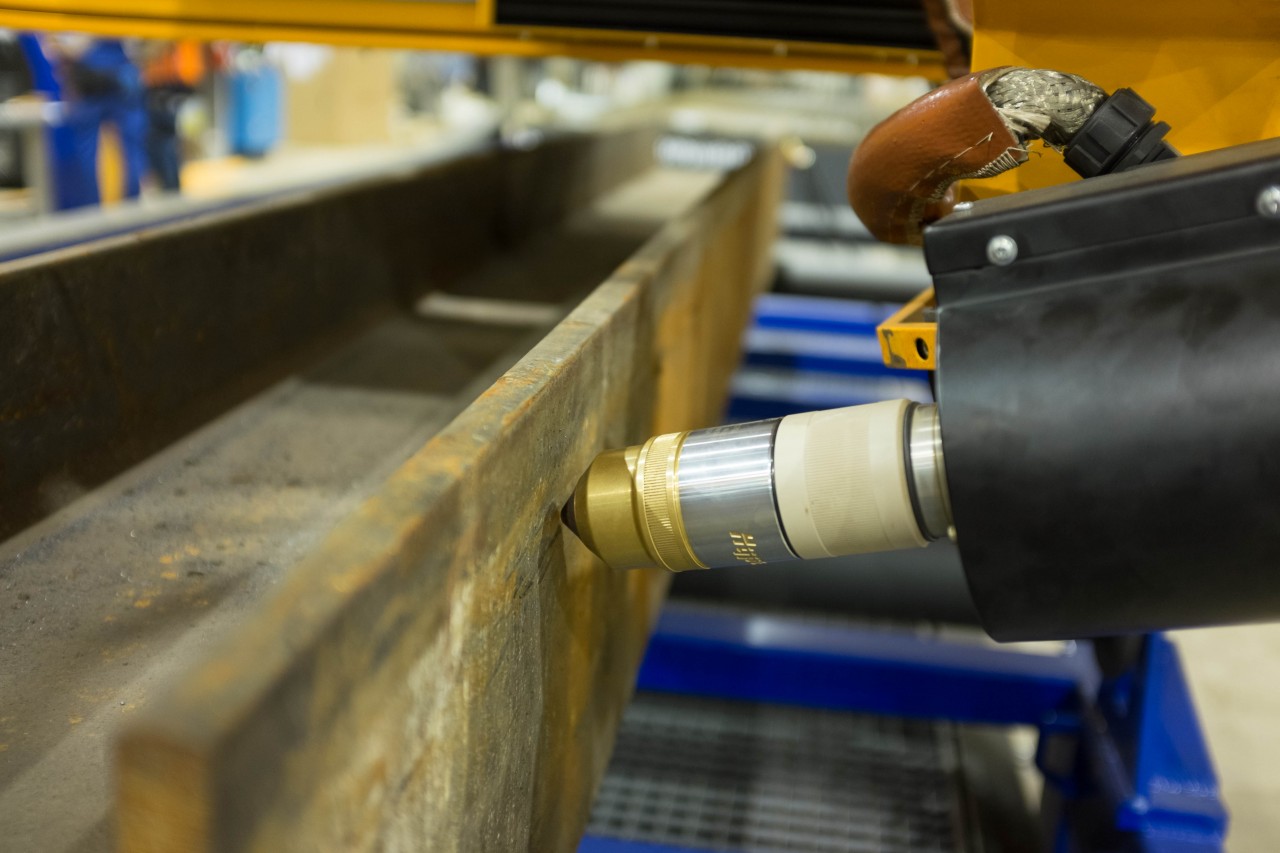

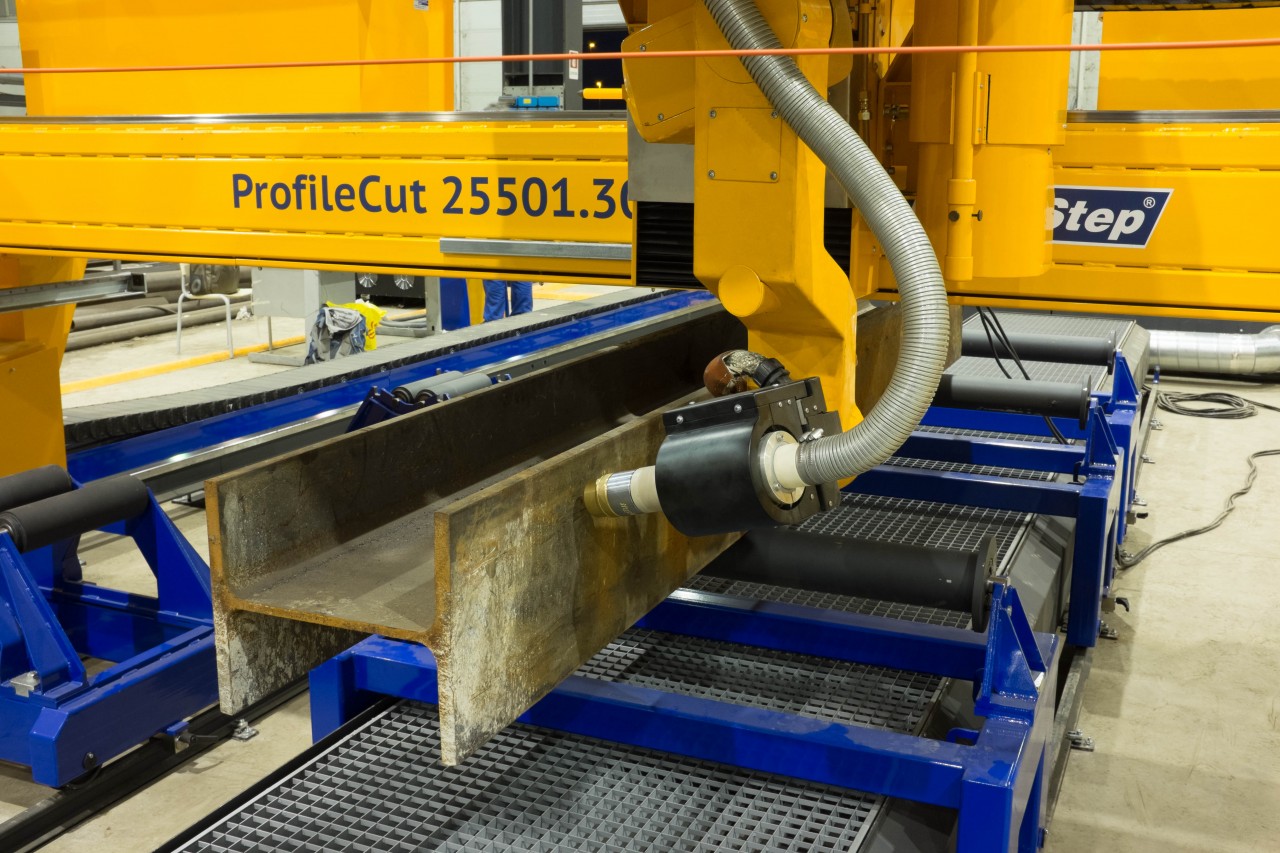

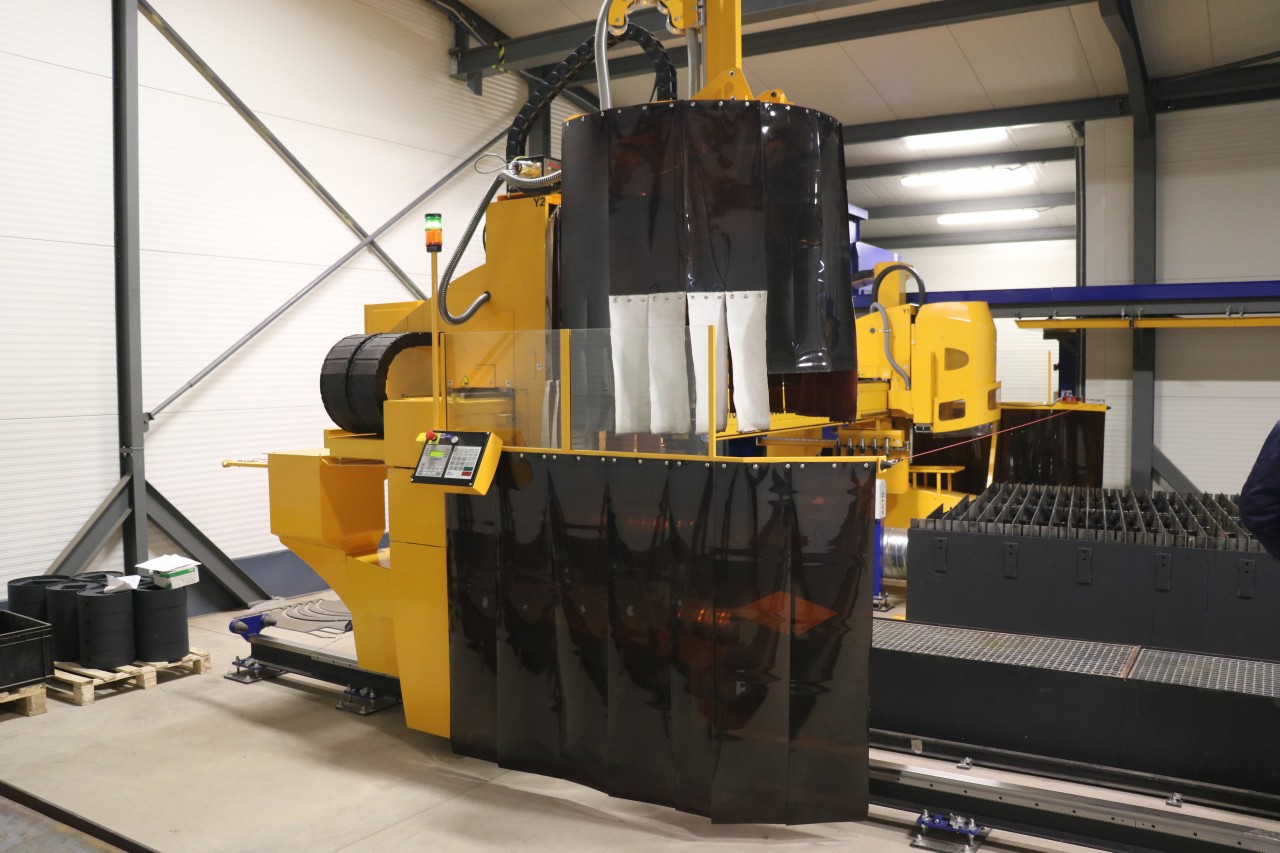

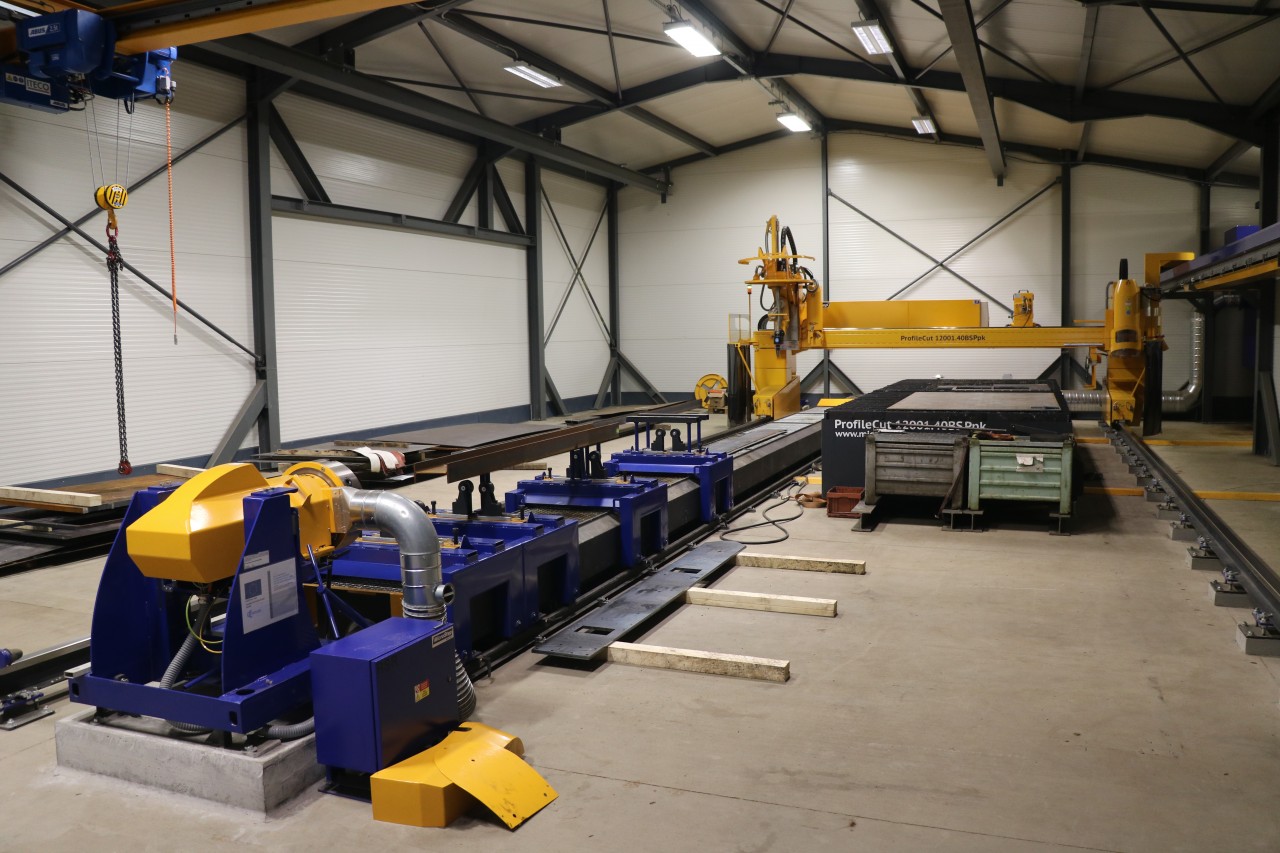

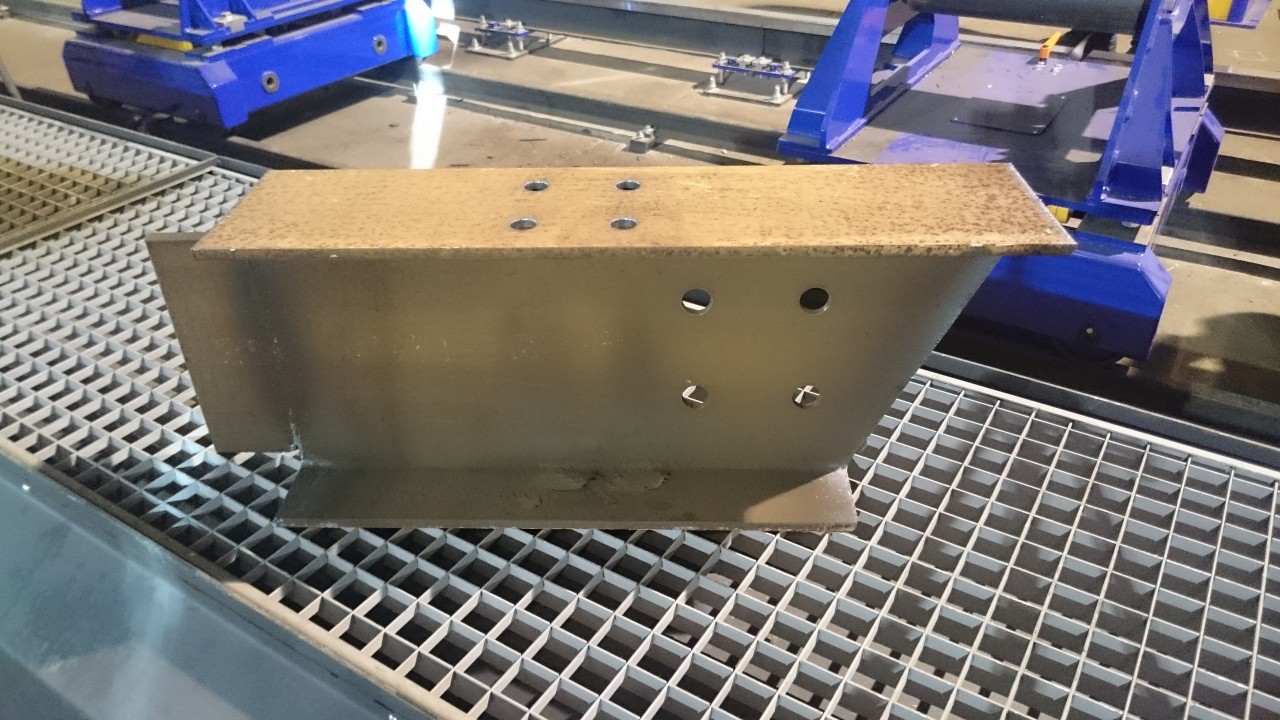

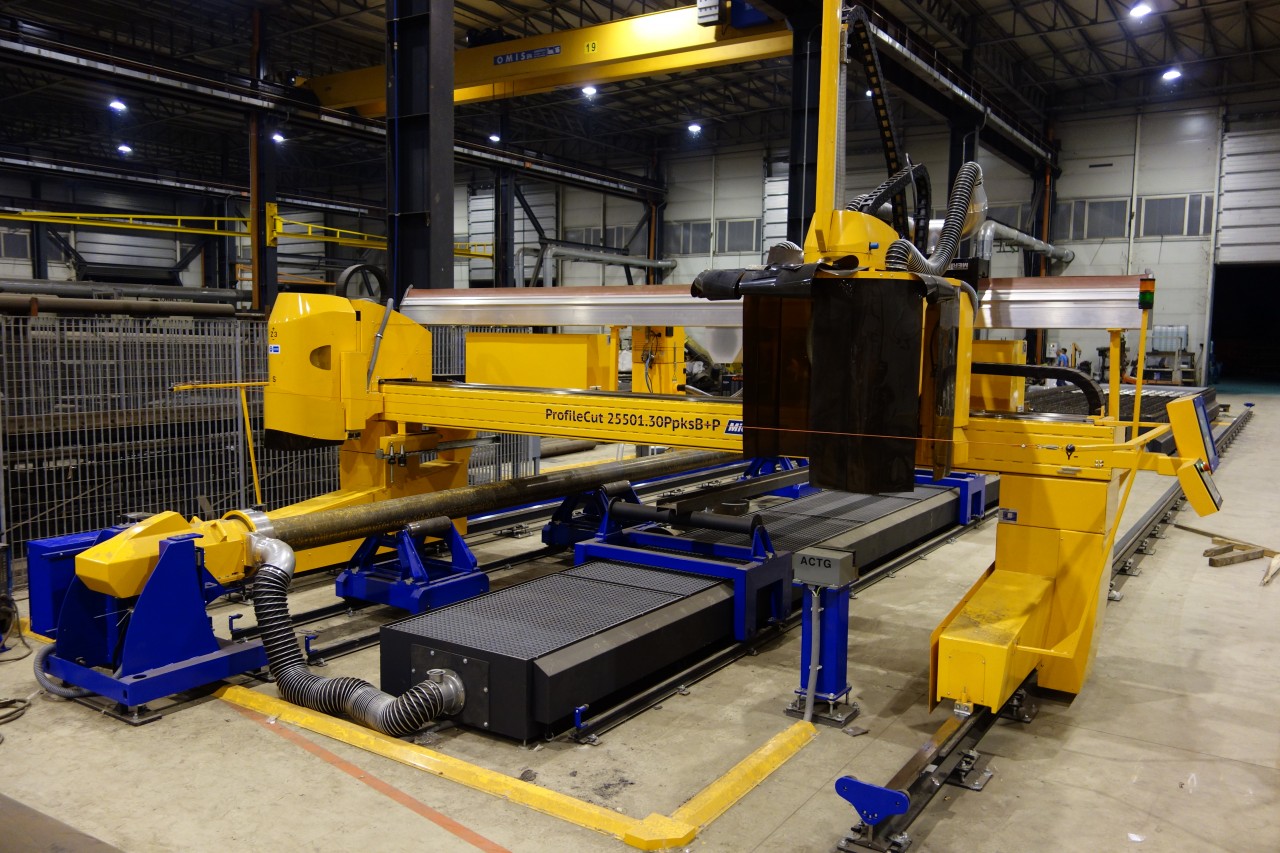

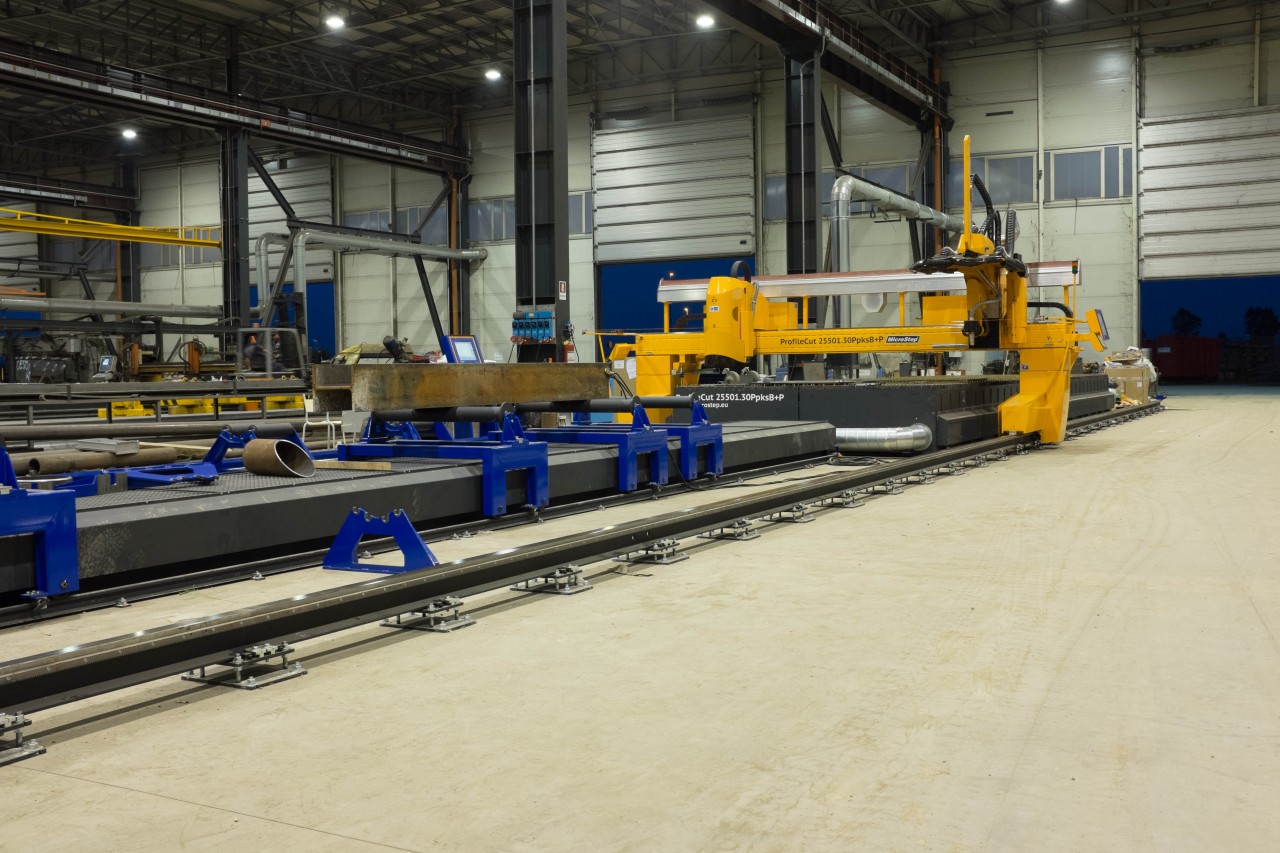

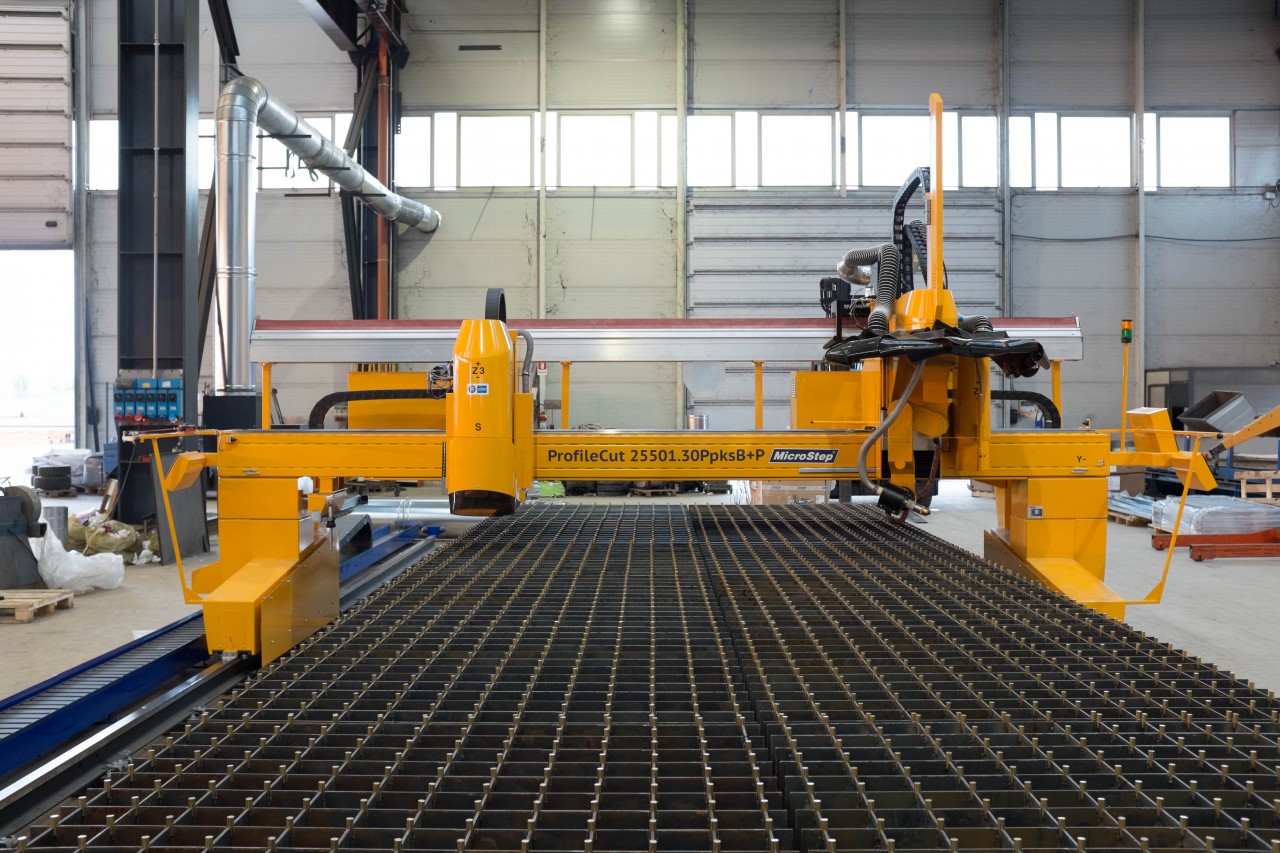

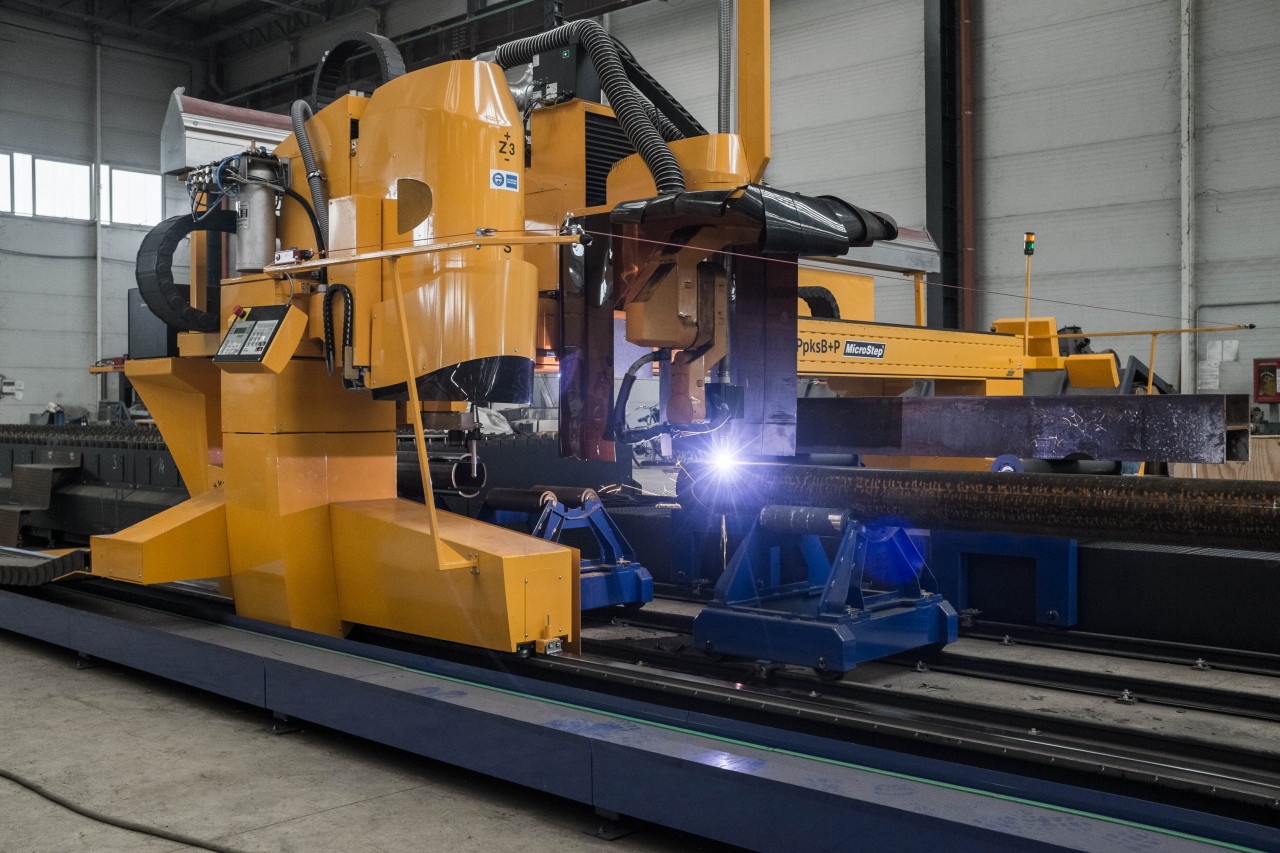

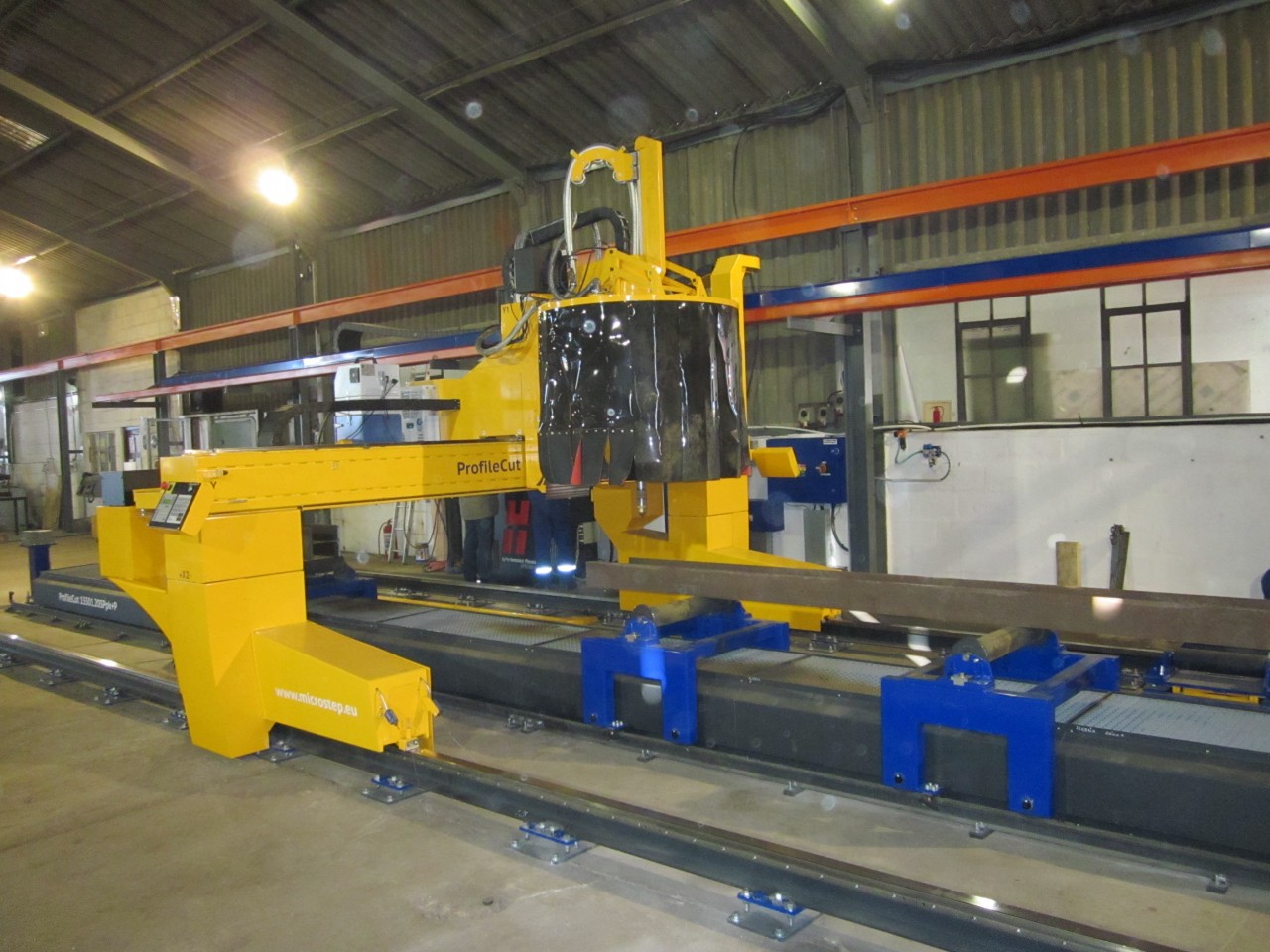

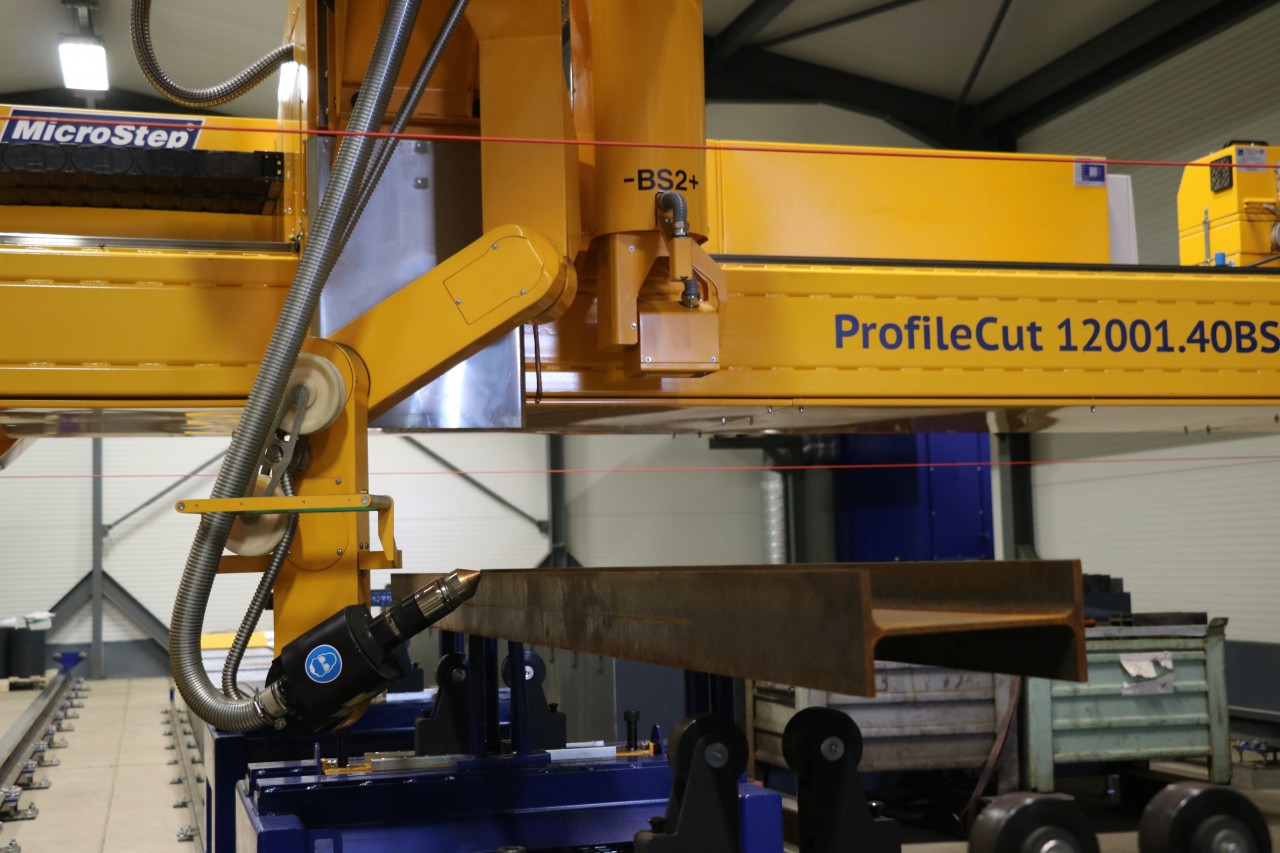

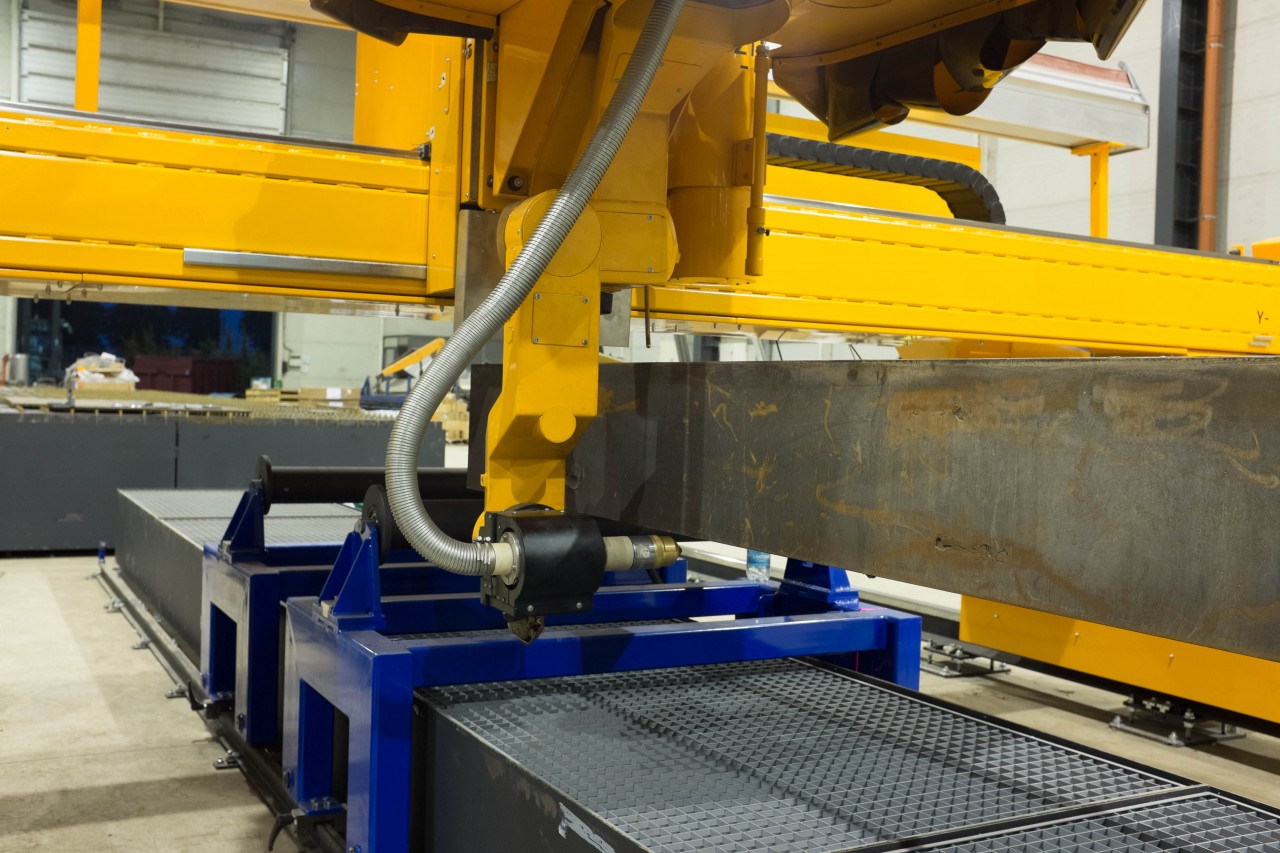

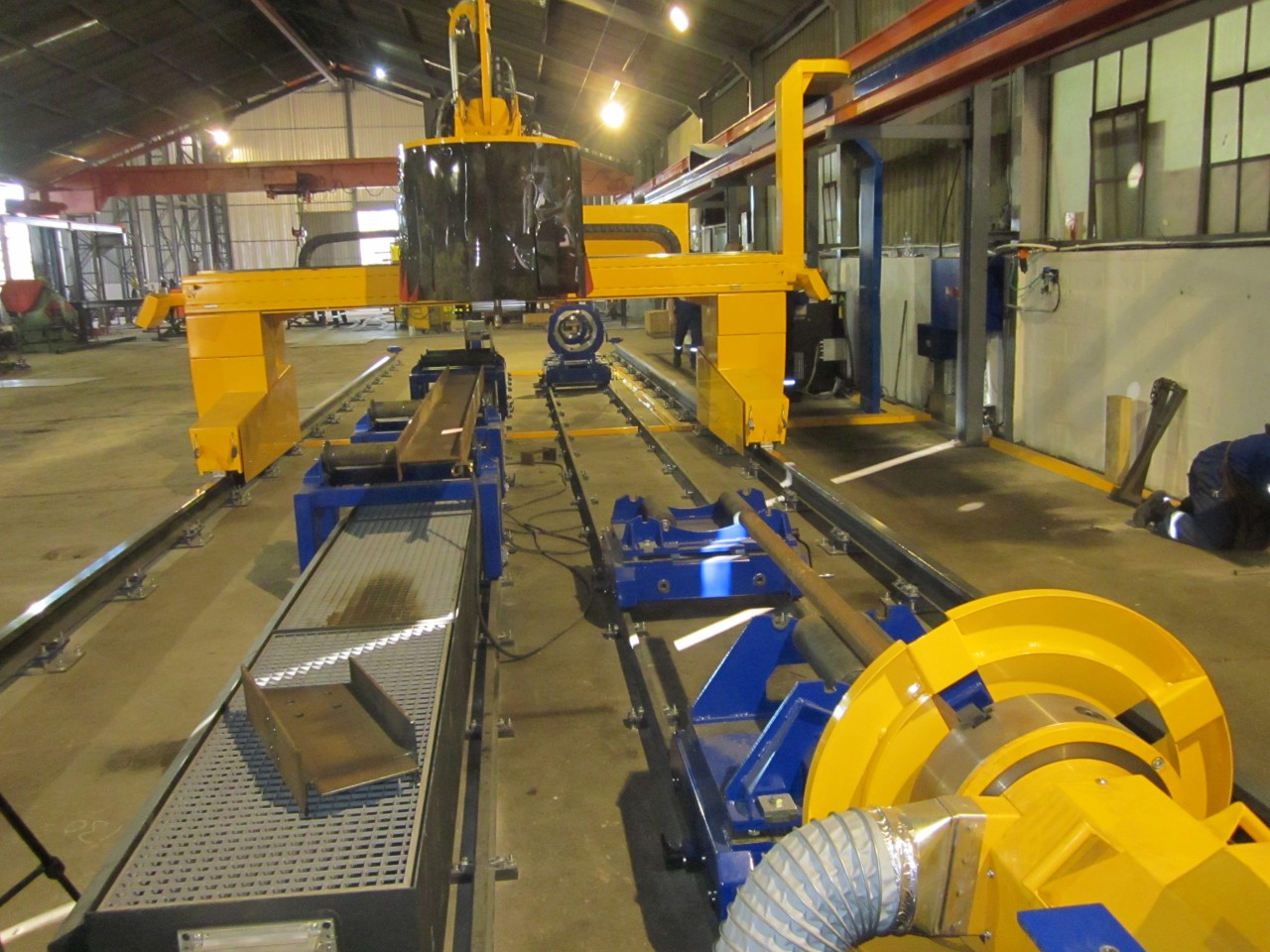

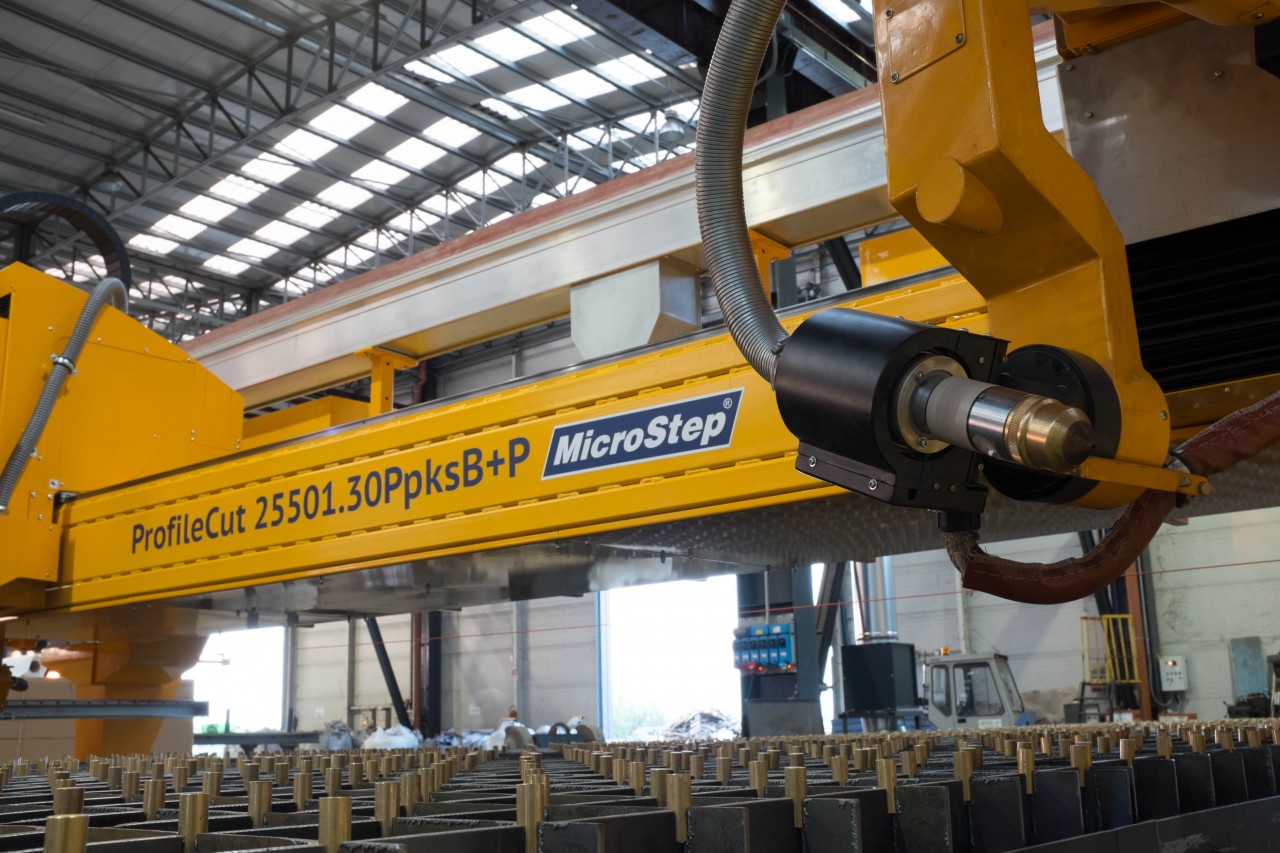

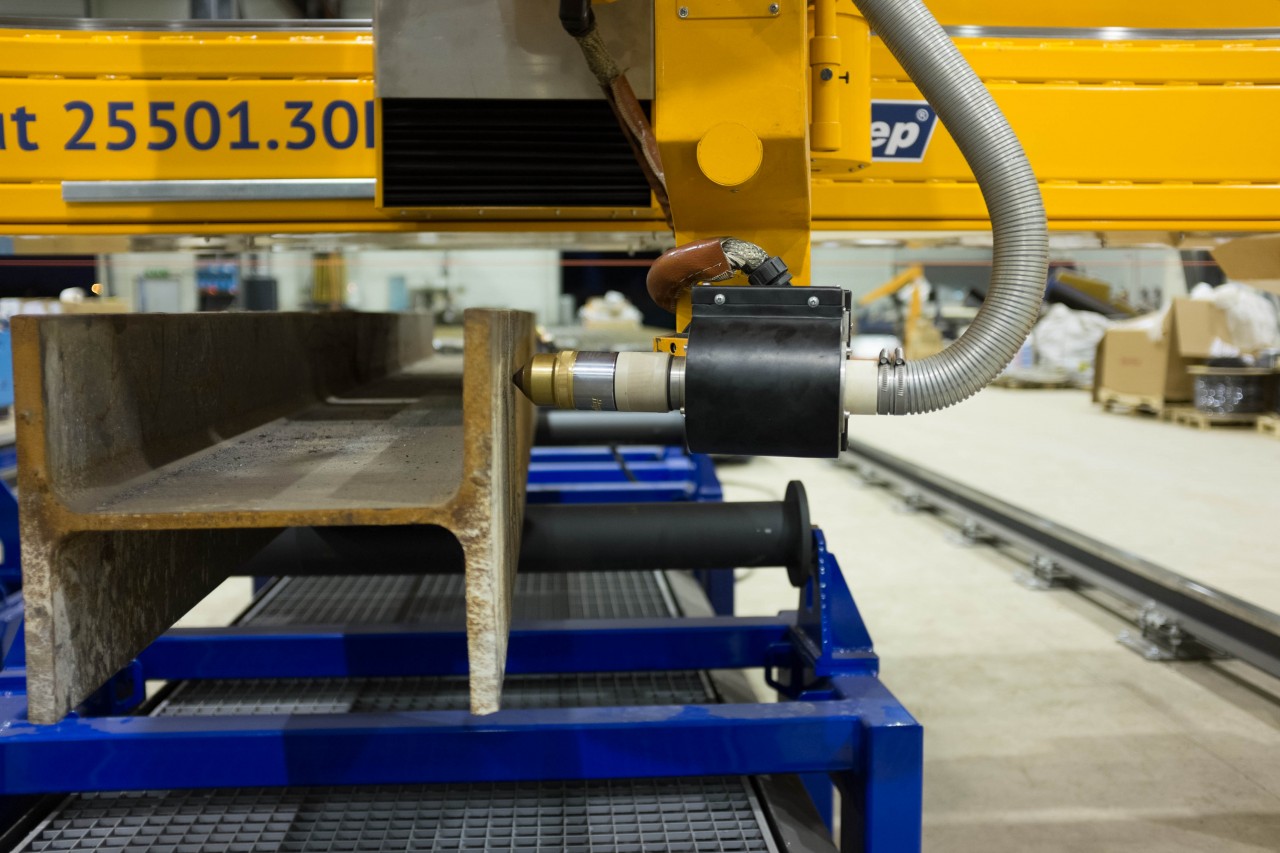

ProfileCut is a variable machine dedicated for production of steel structures. Besides optional pipe-, rectangular profile- and sheet cutting zones it has a dedicated zone for cutting of structural profiles such as I, U or L. To enable precise division as well as cut-outs in required spots on the beam, the machine is equipped with a laser scanner for measuring of the exact shape of profile in the place of cutting which allows the control system to adjust the movement of tool according to the true shape of profile. In addition, the machine offers drilling and marking operations on beams.

Technical parameters

Working lenght	1500 - 50000 mm
Working width	1500 - 8000 mm
Max. number of tool stations	6 (8 oxyfuel)
Max. thickness of material cut by plasma	according to a plasma source
Max. thickness of material cut by oxyfuel	300 mm
Bevel cutting	yes (see accessories)

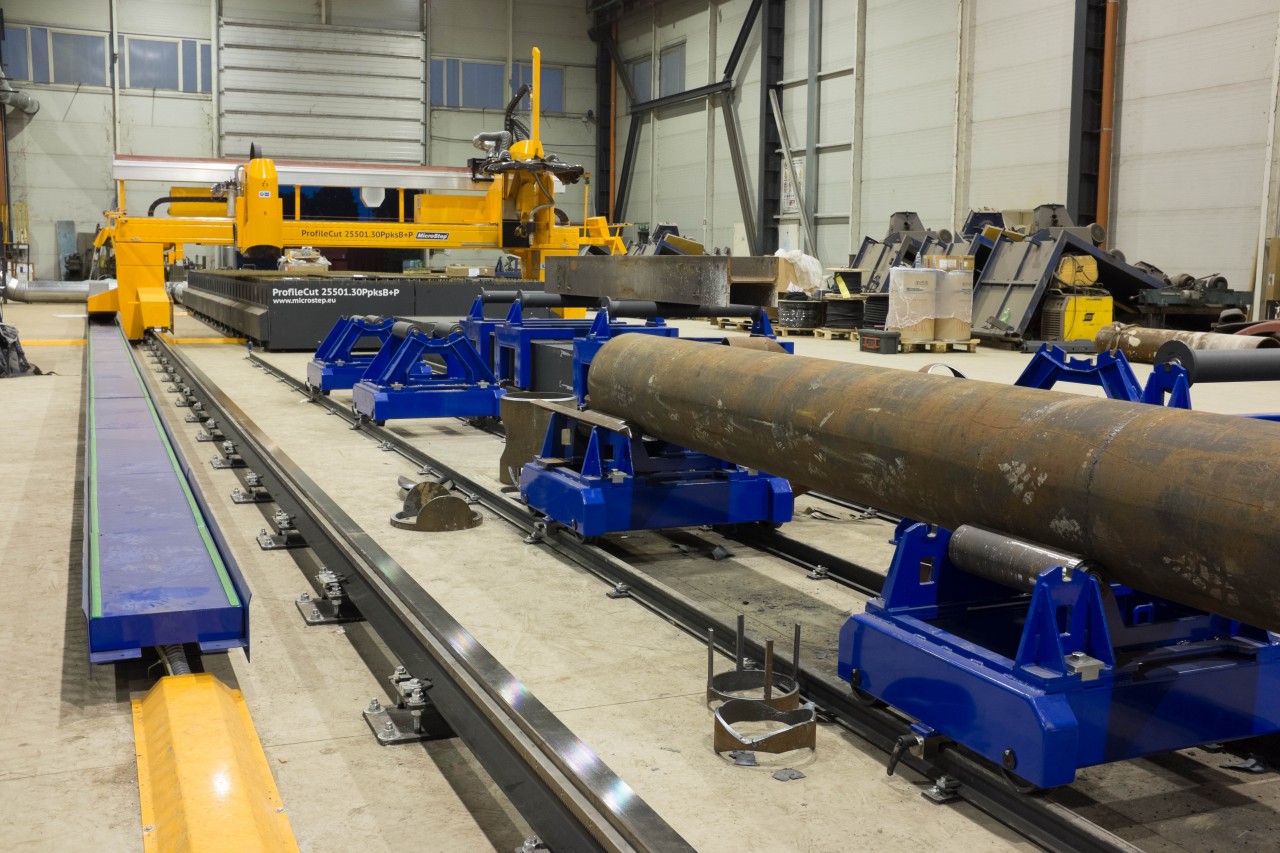

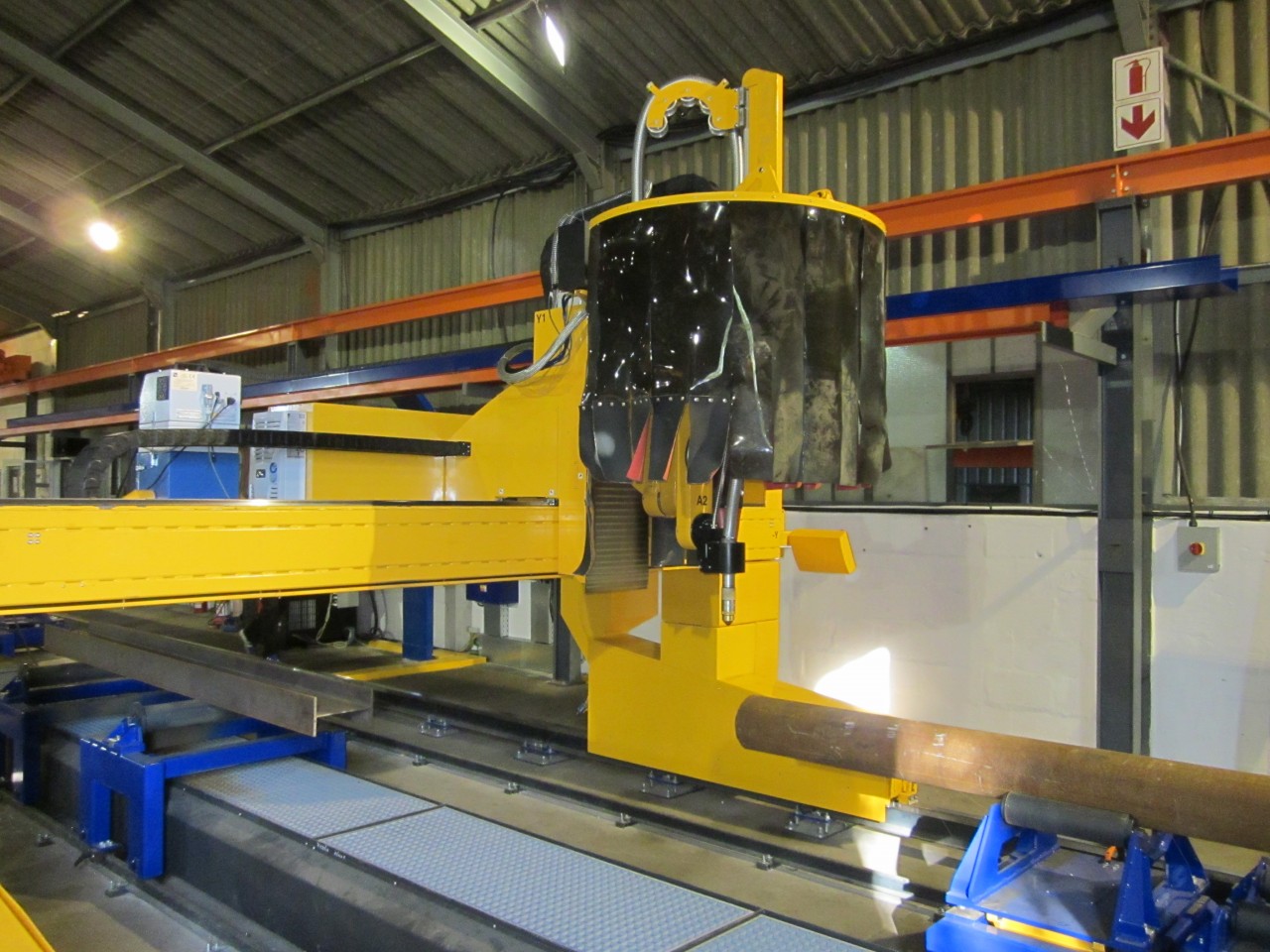

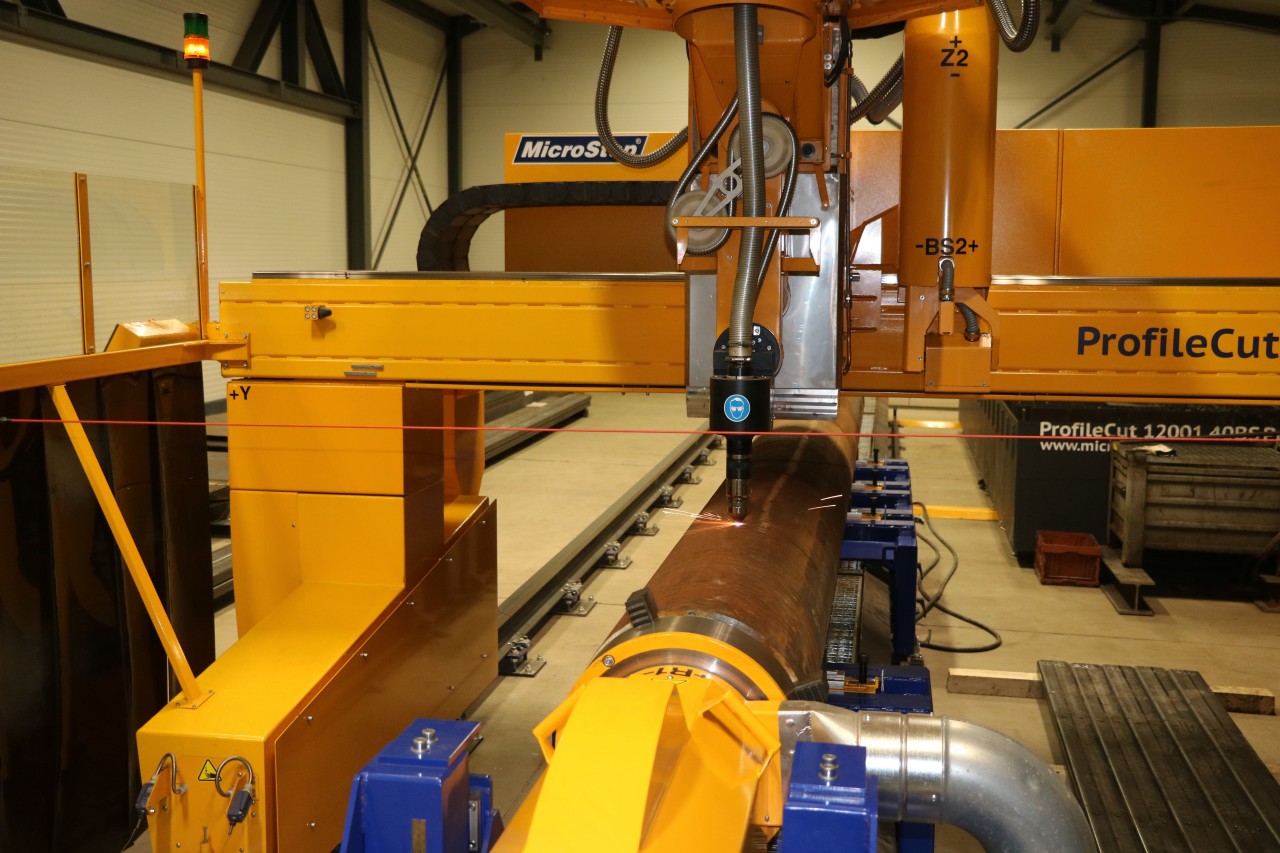

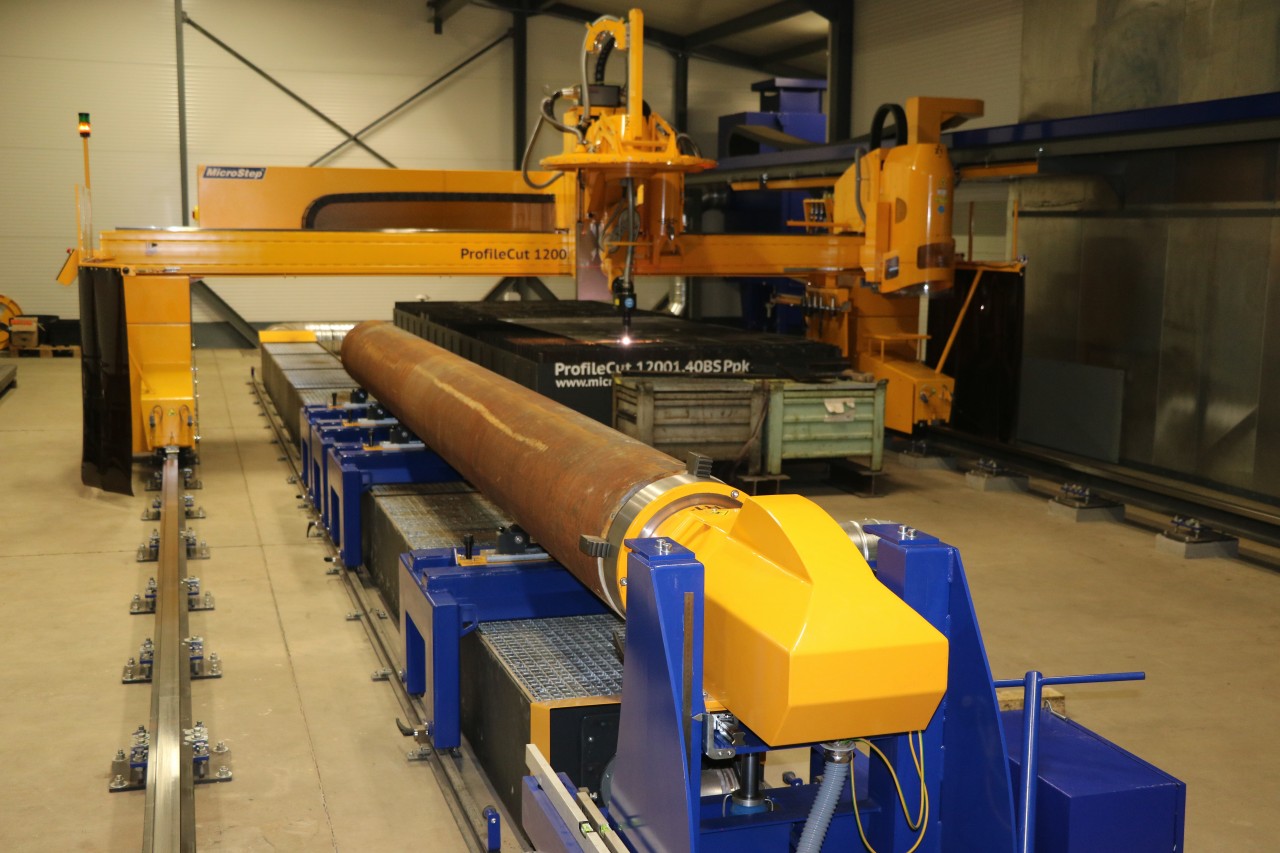

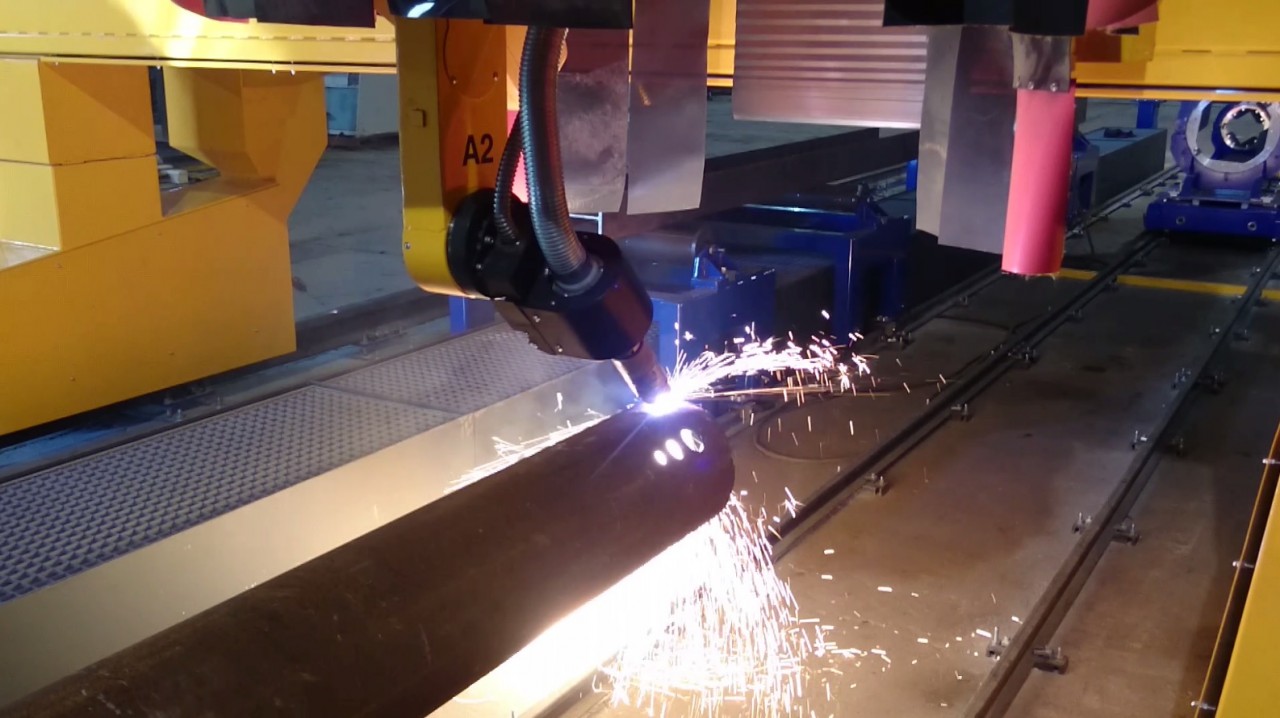

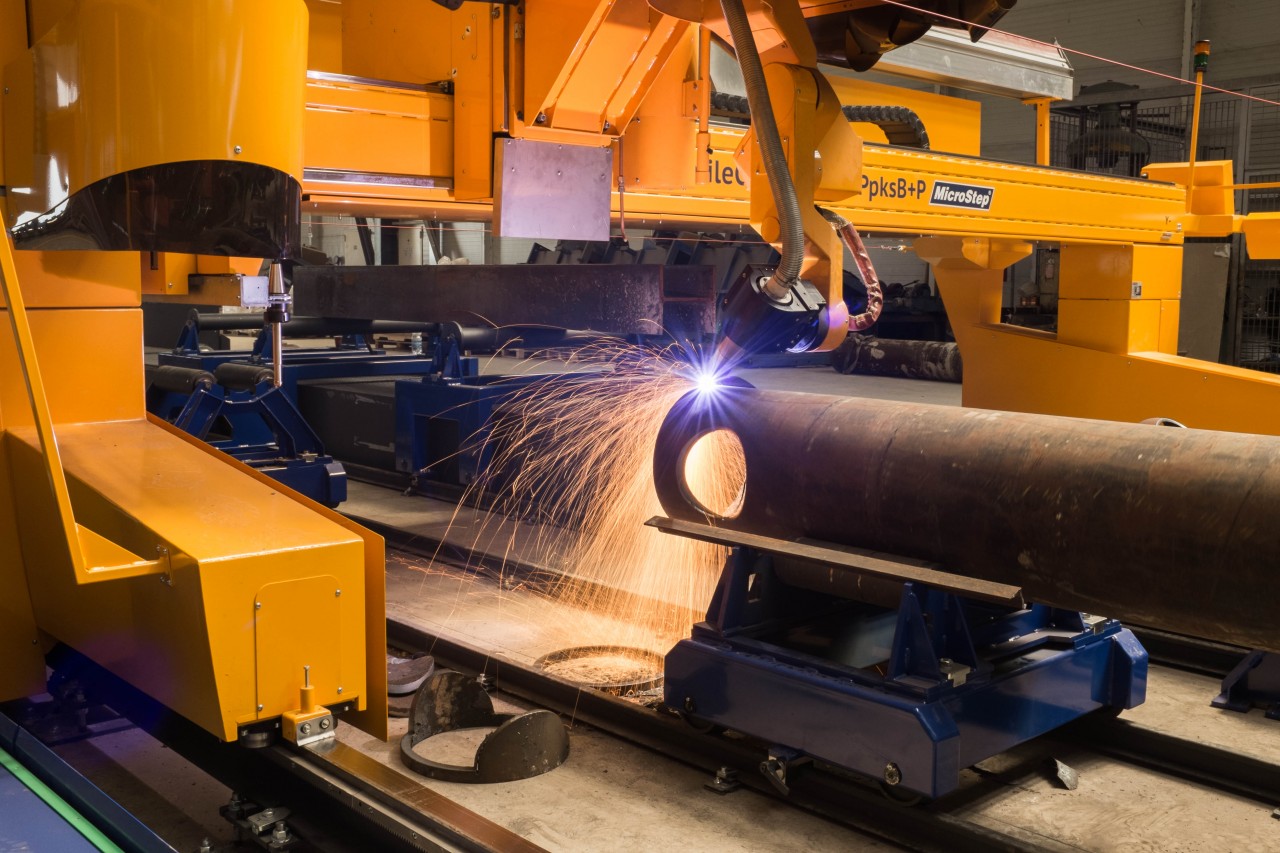

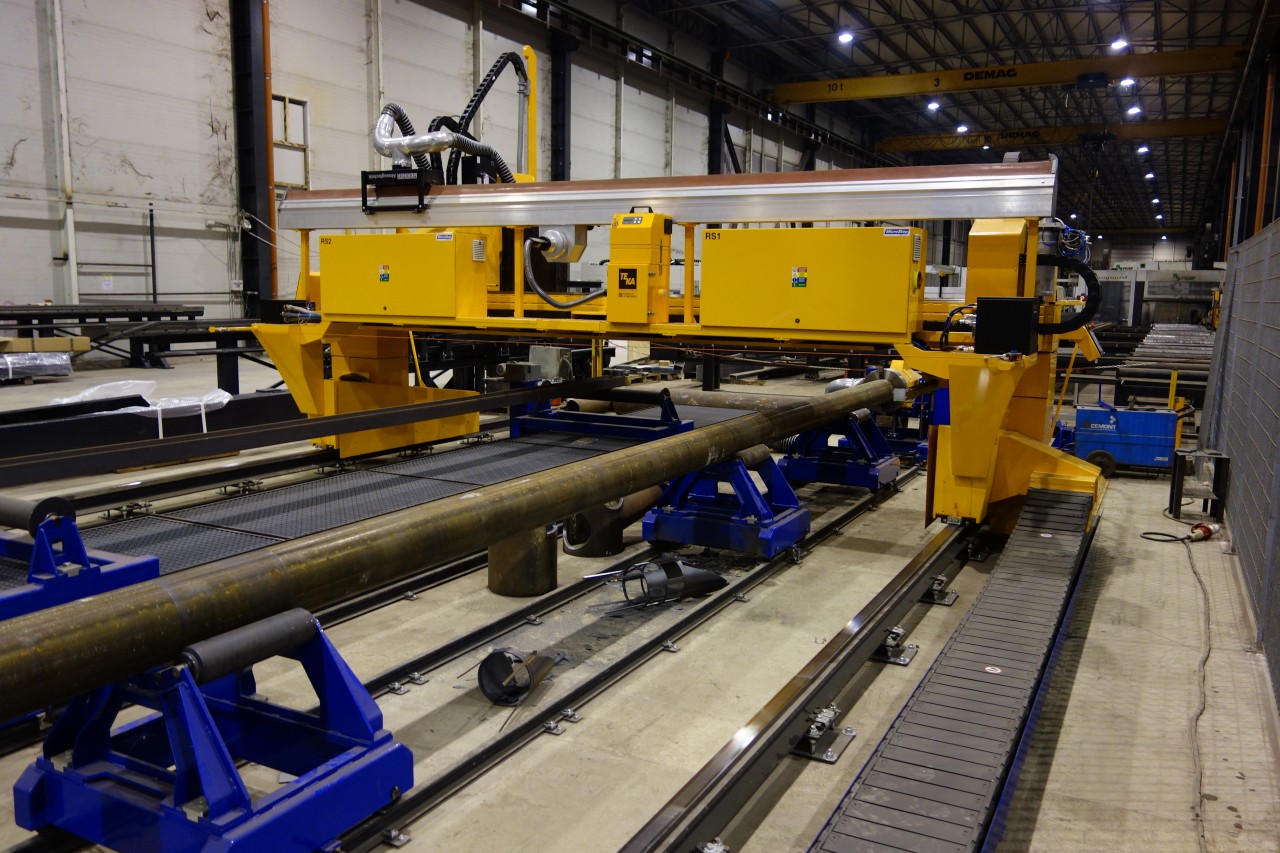

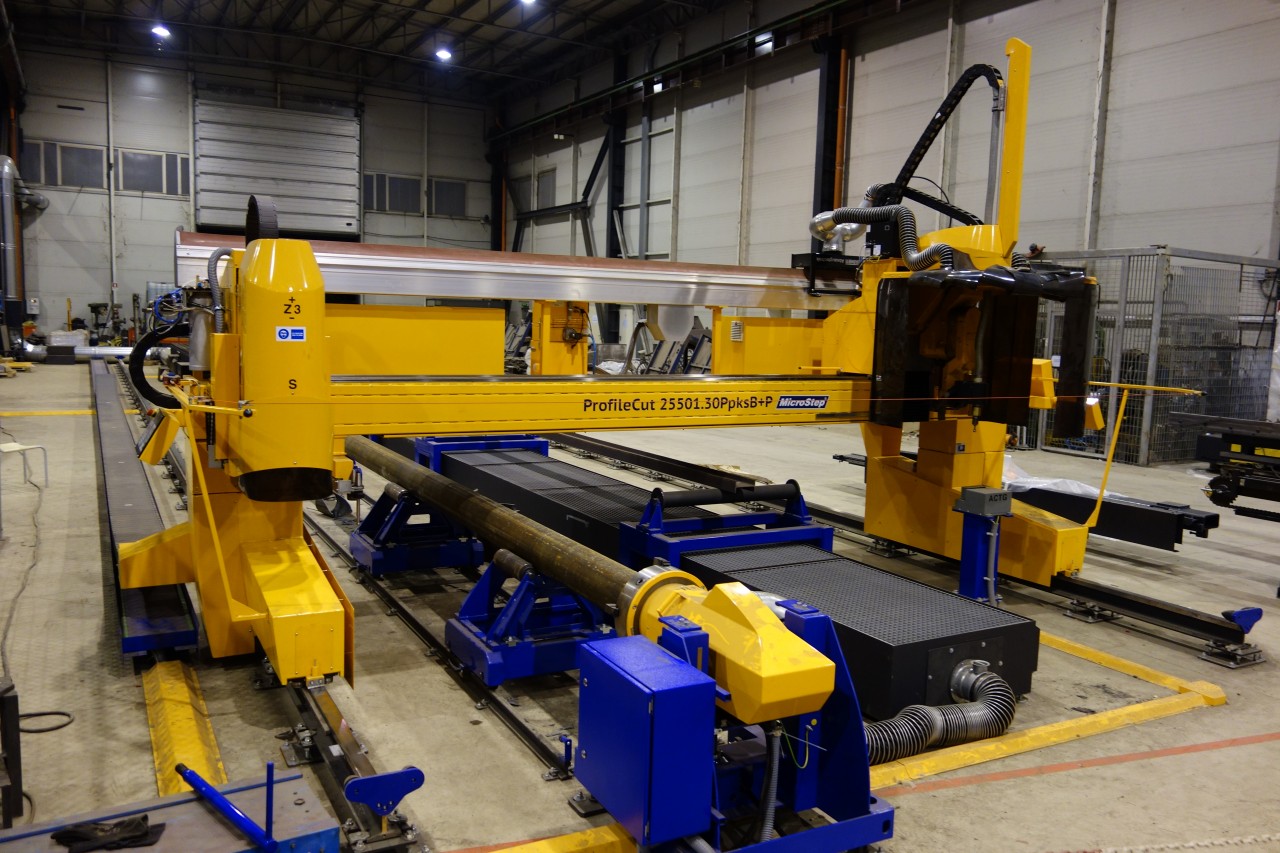

Pipe cutting	Ø 100 - 1500 mm, max 12 t
Hollow profile cutting	100 x 100 - 600 x 600 mm
H-profile cutting	max HEB 1000
Drilling and tapping	Ø 4 - 40 mm, M4 - M33, automatic tool exchange
Positioning speed	max 23 m/min
