CPCut

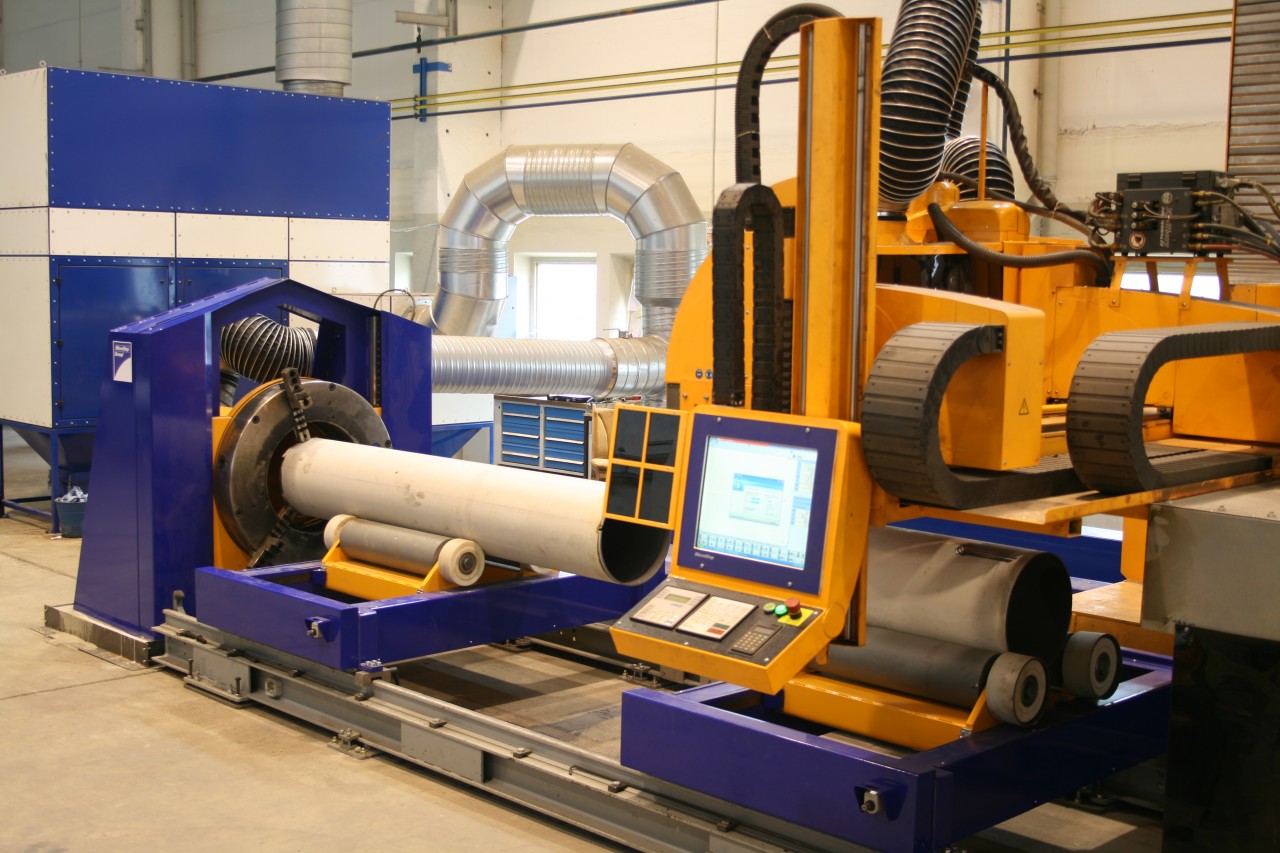

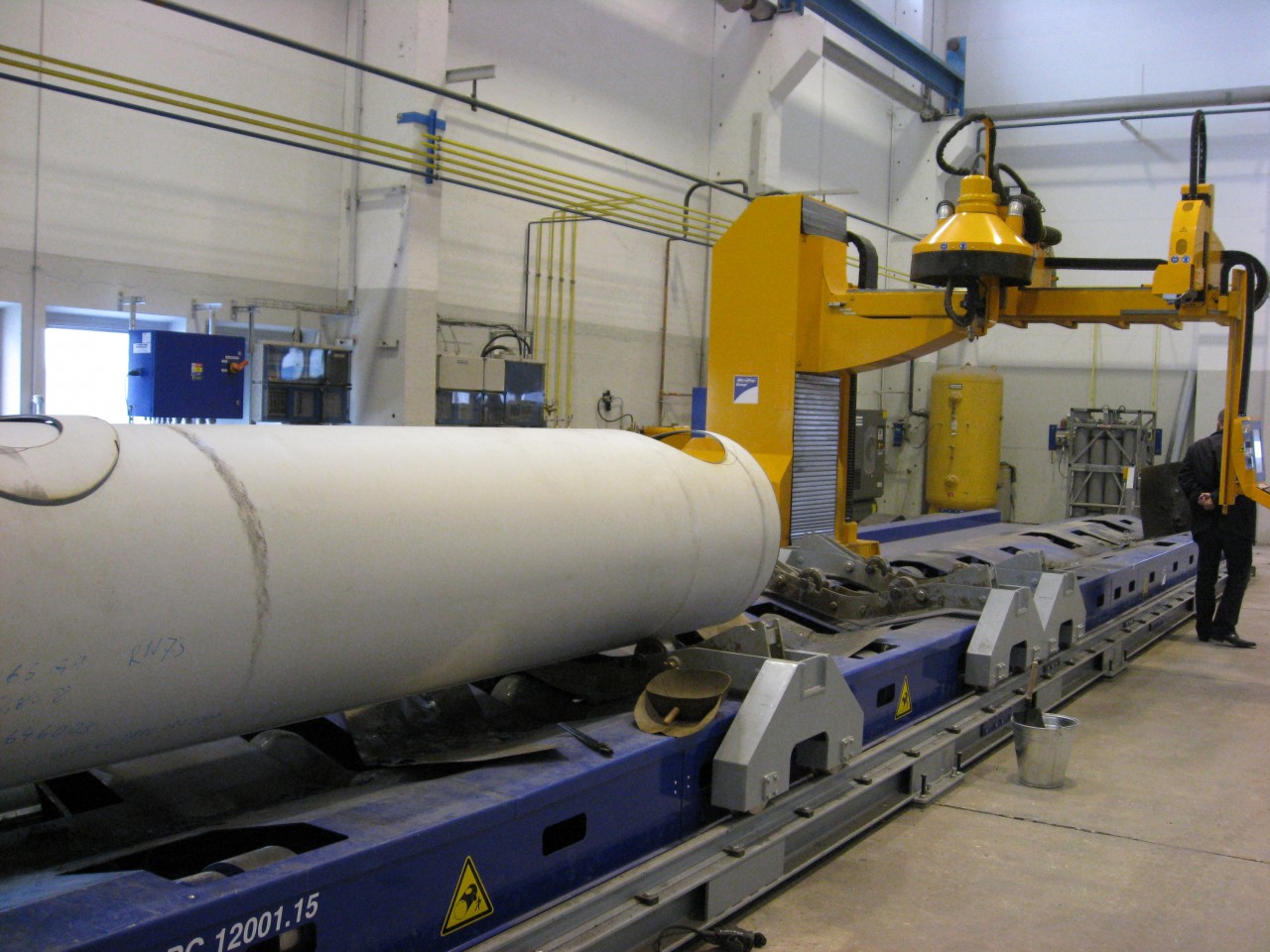

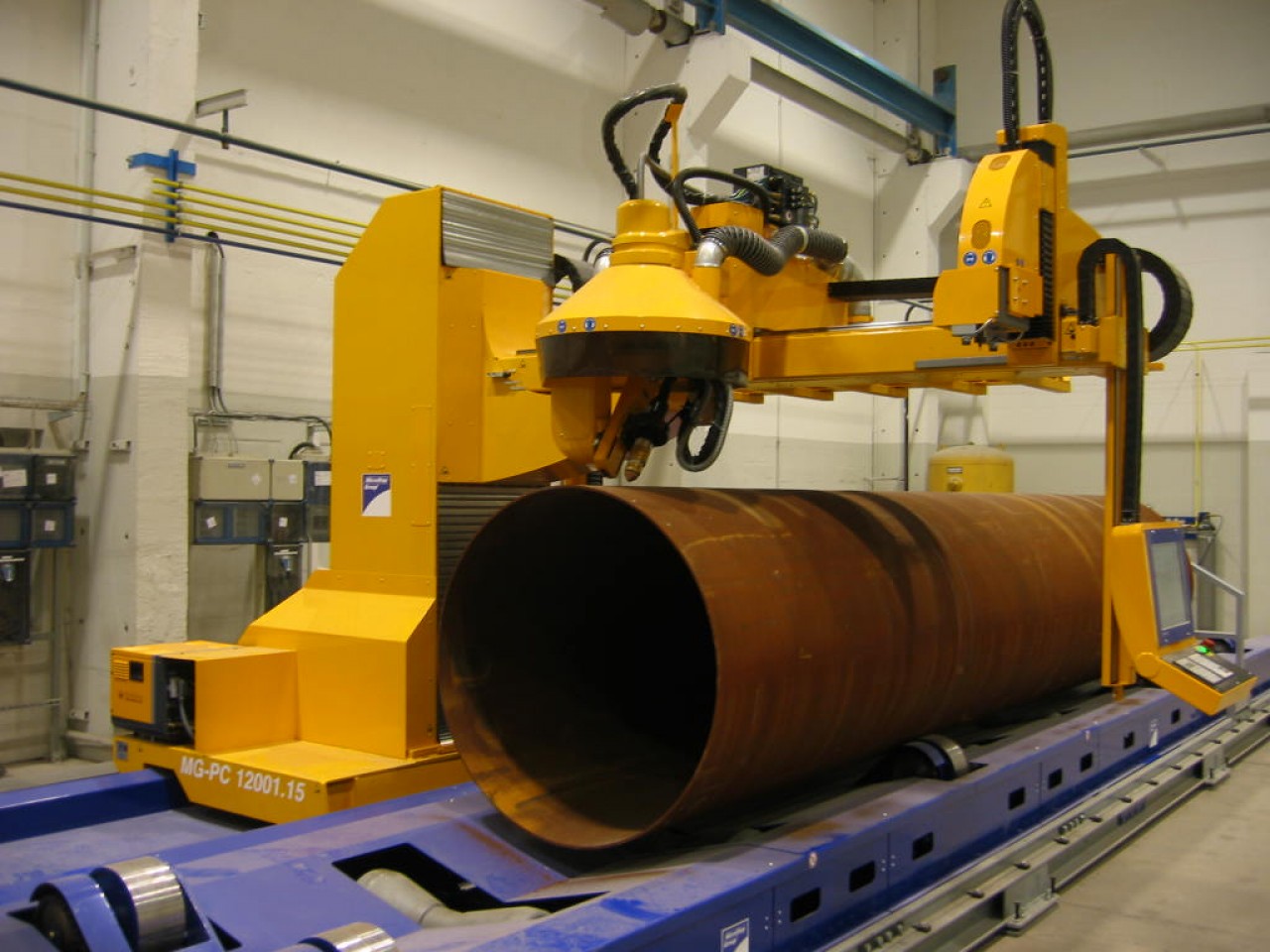

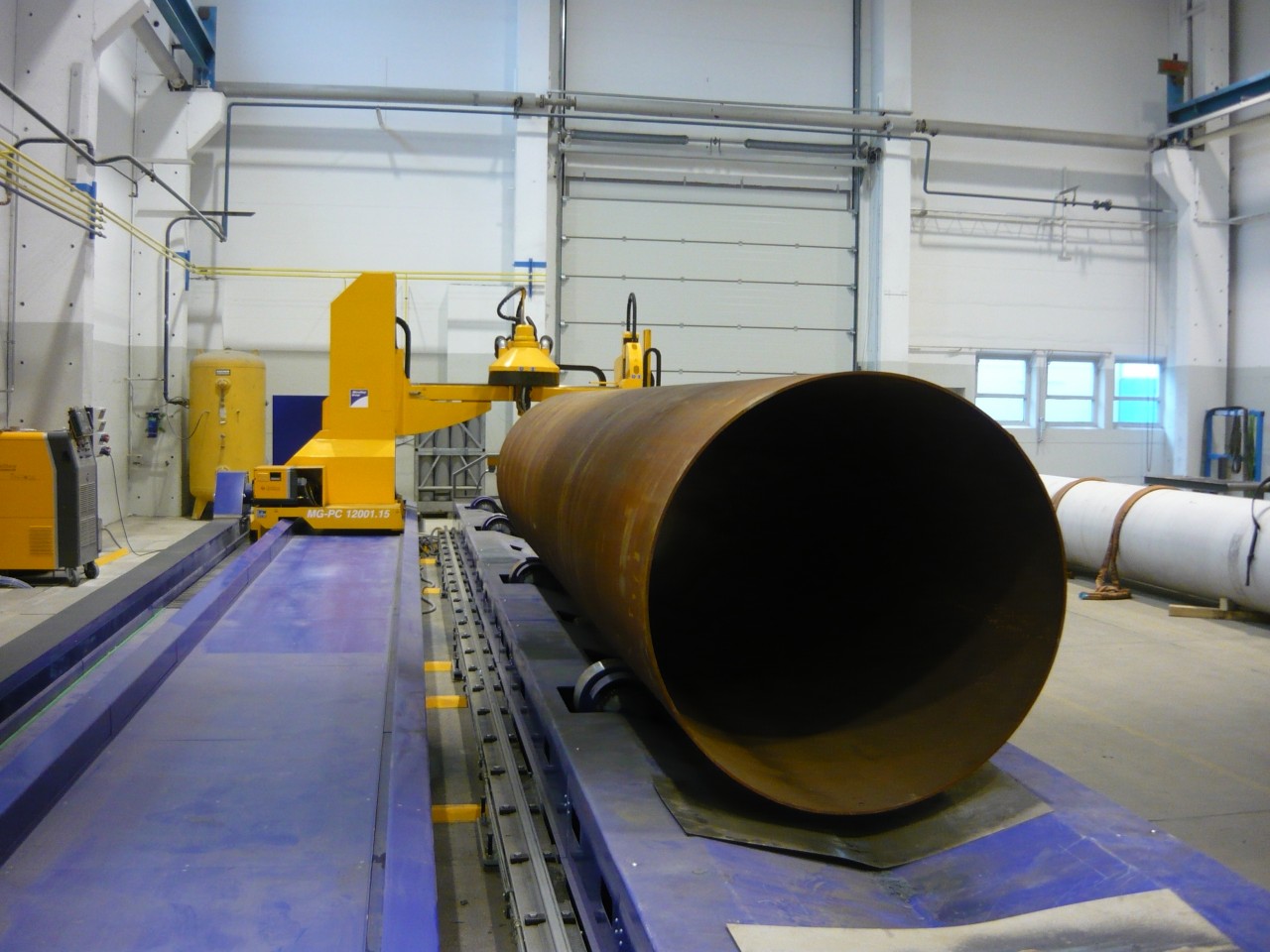

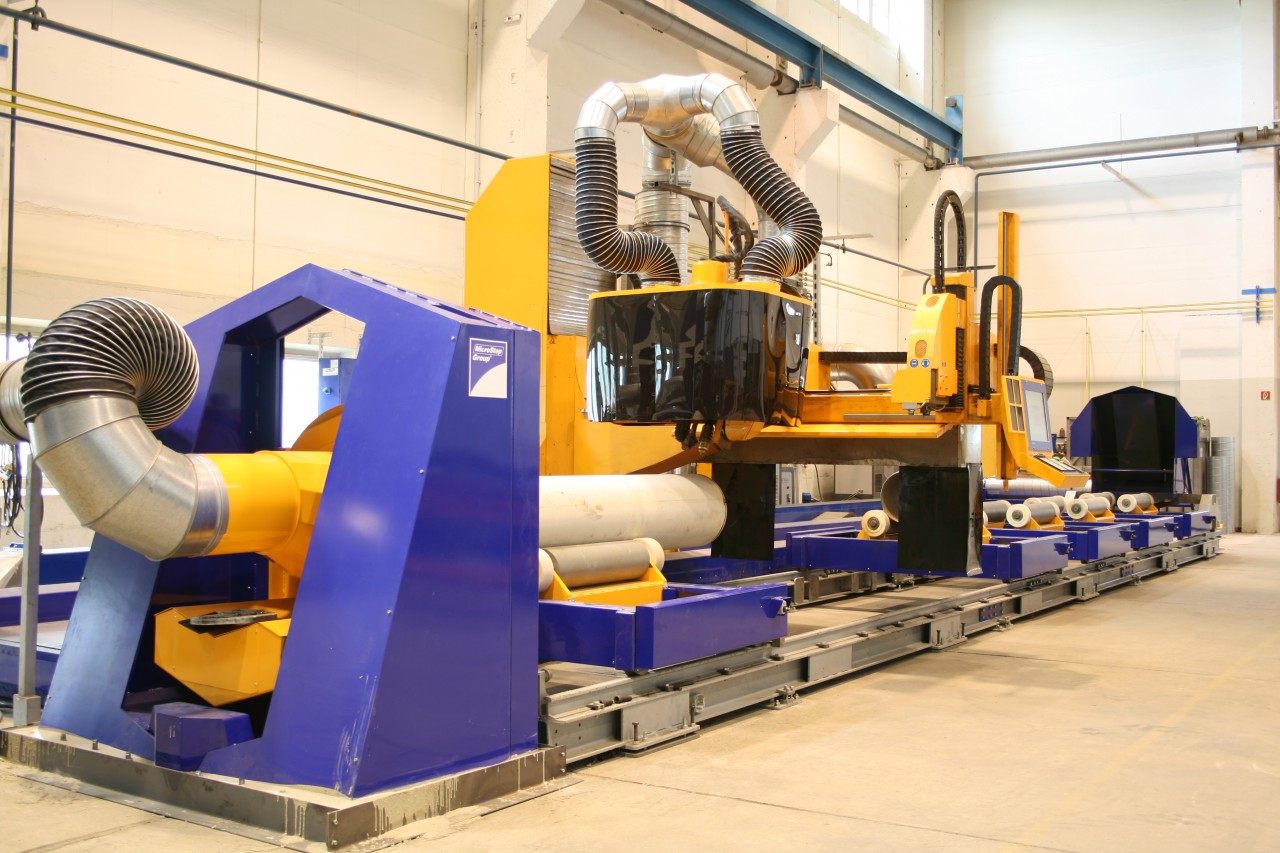

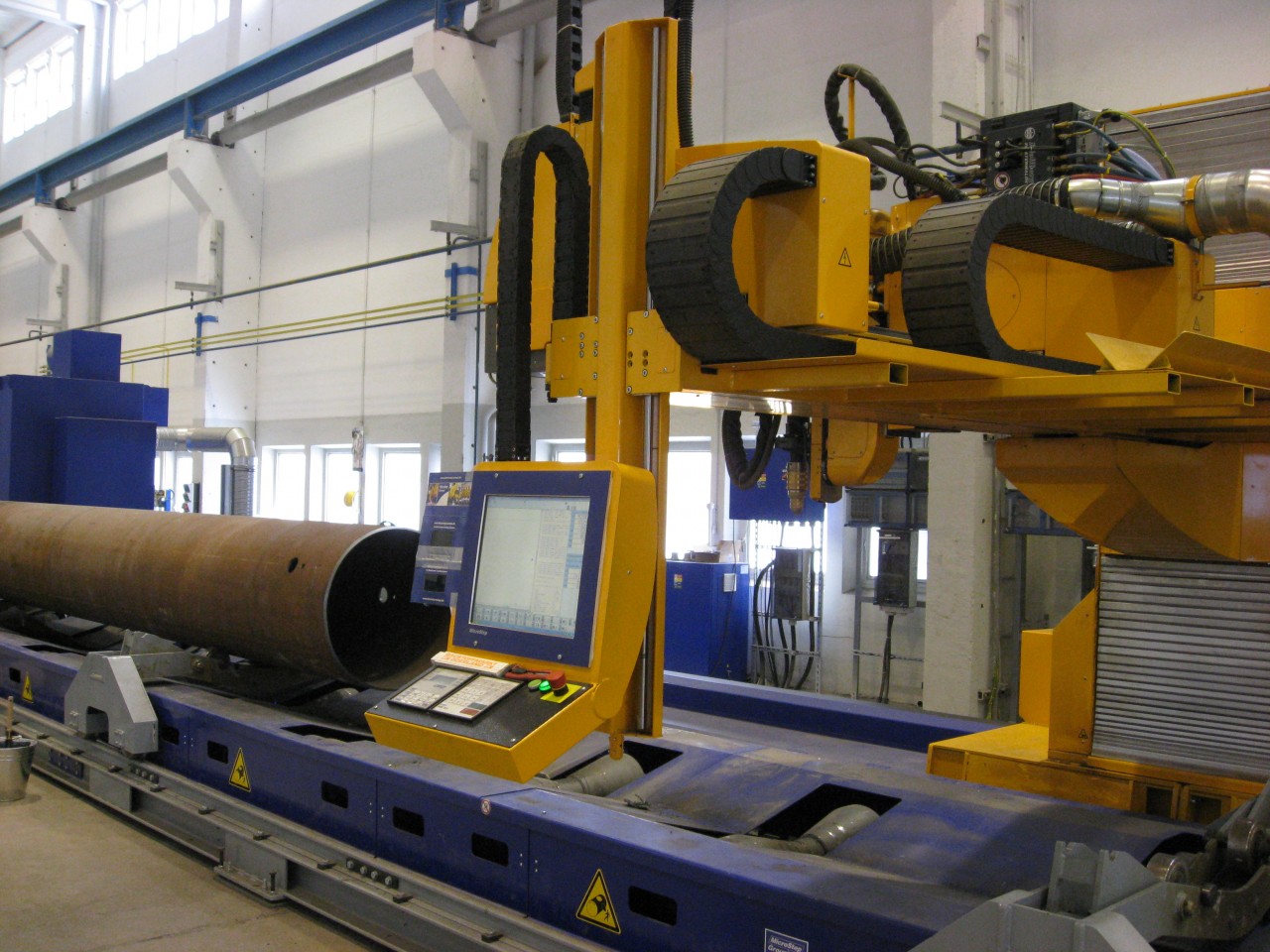

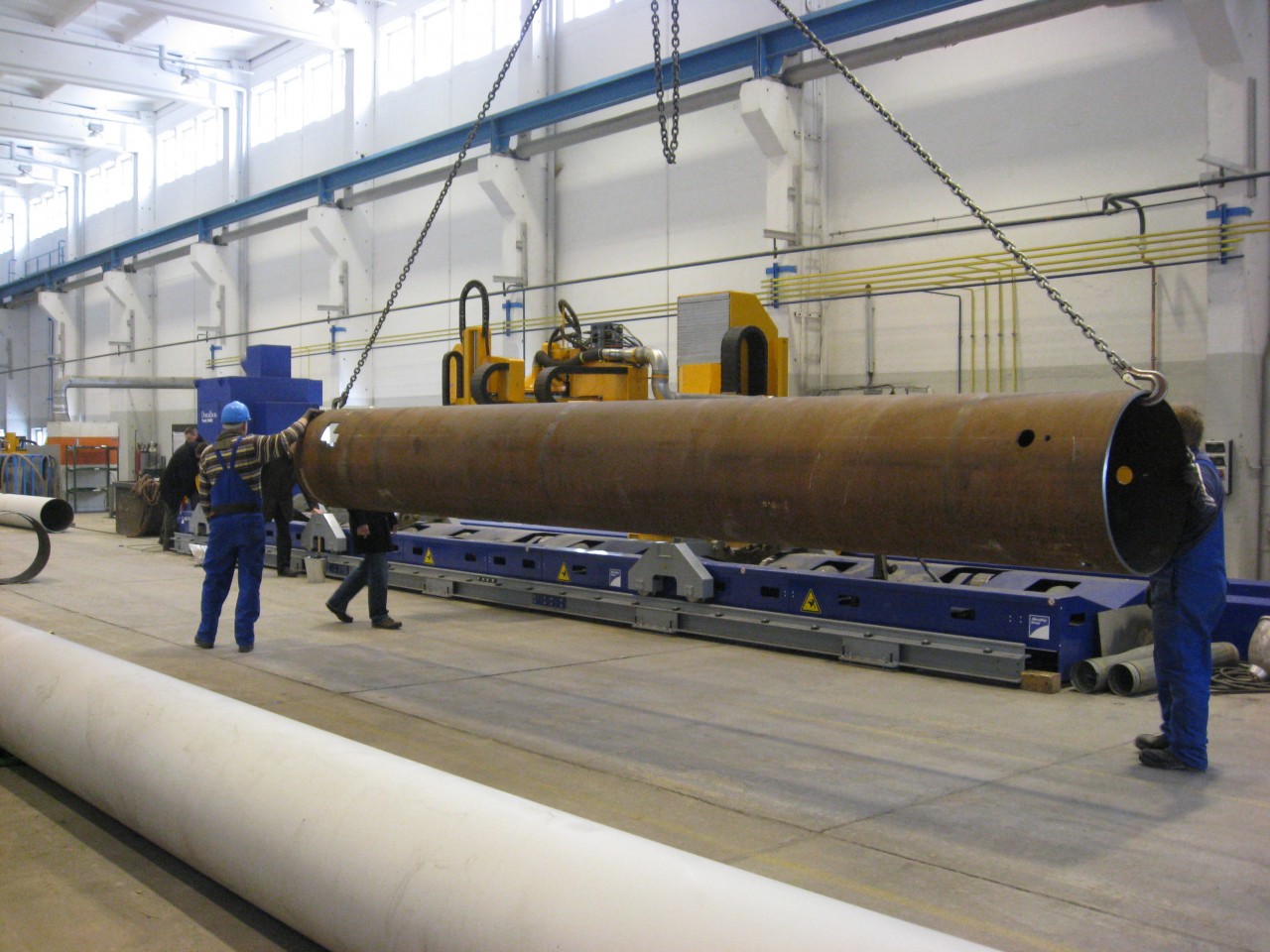

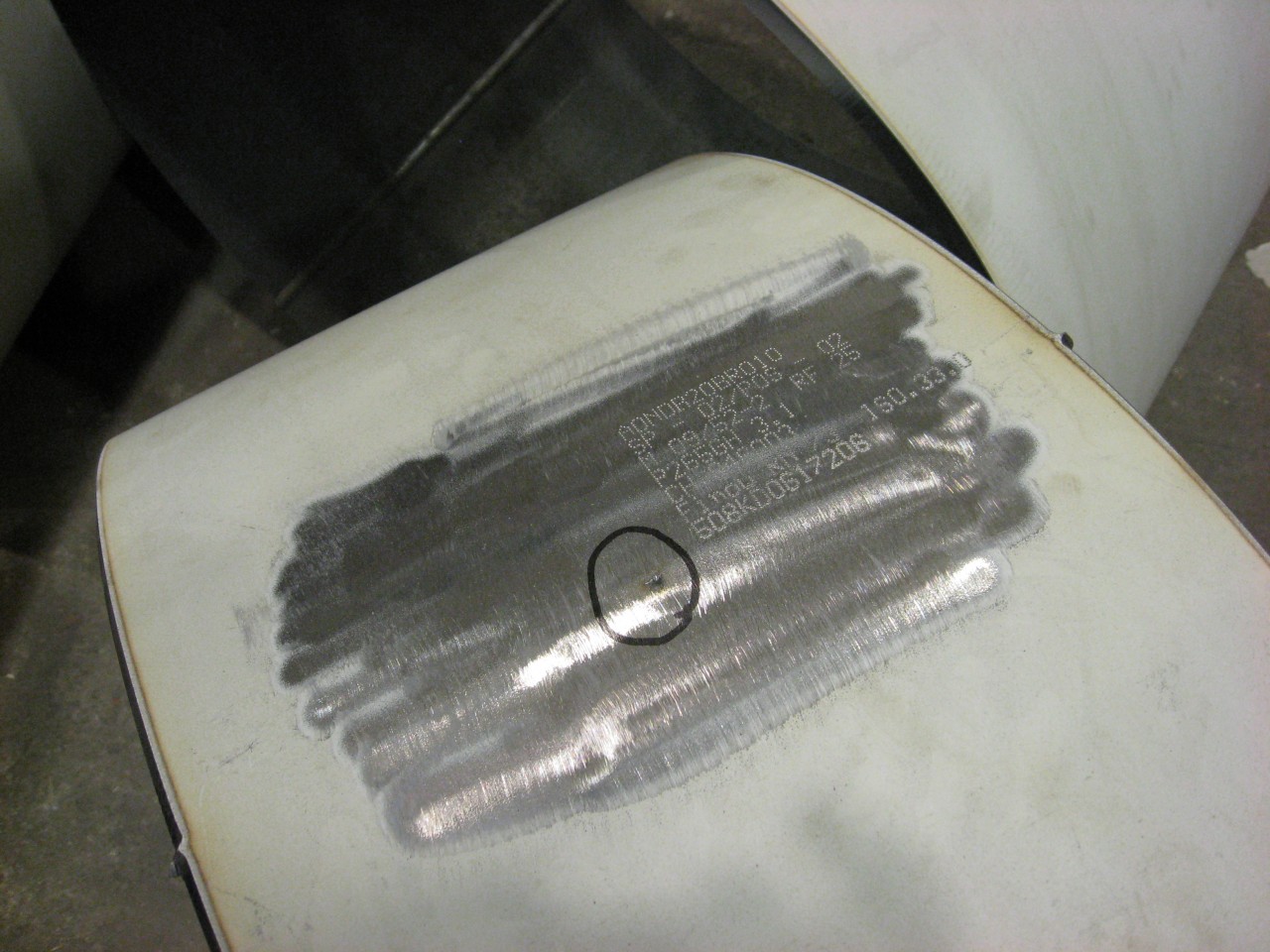

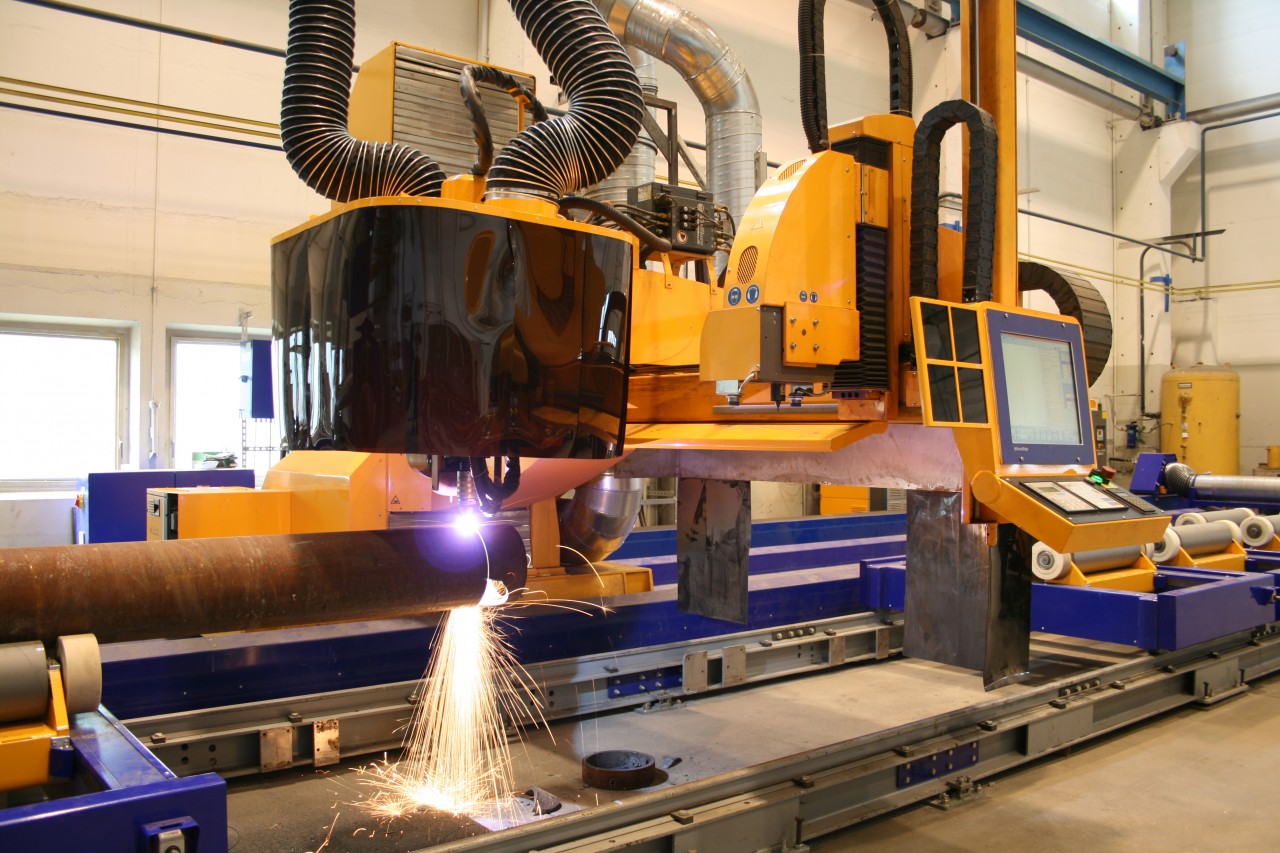

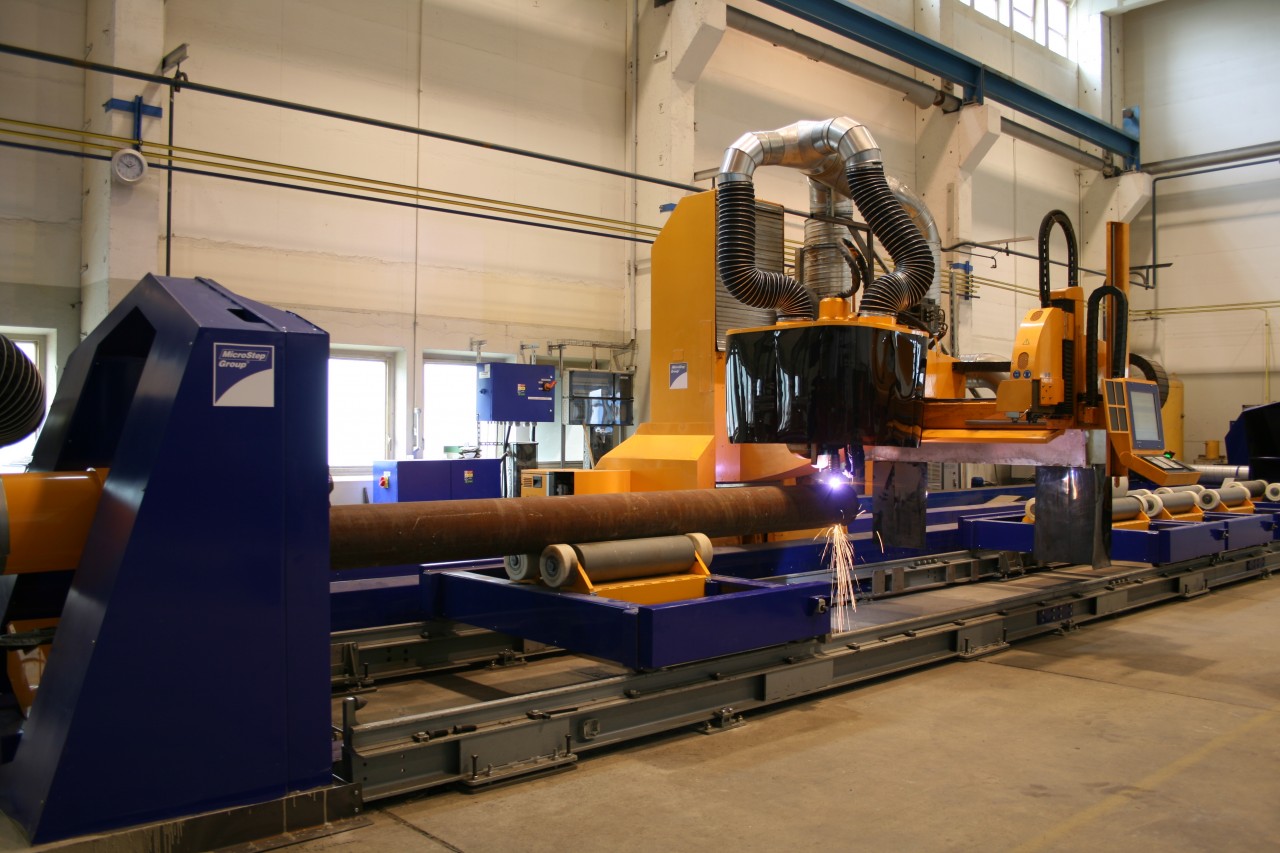

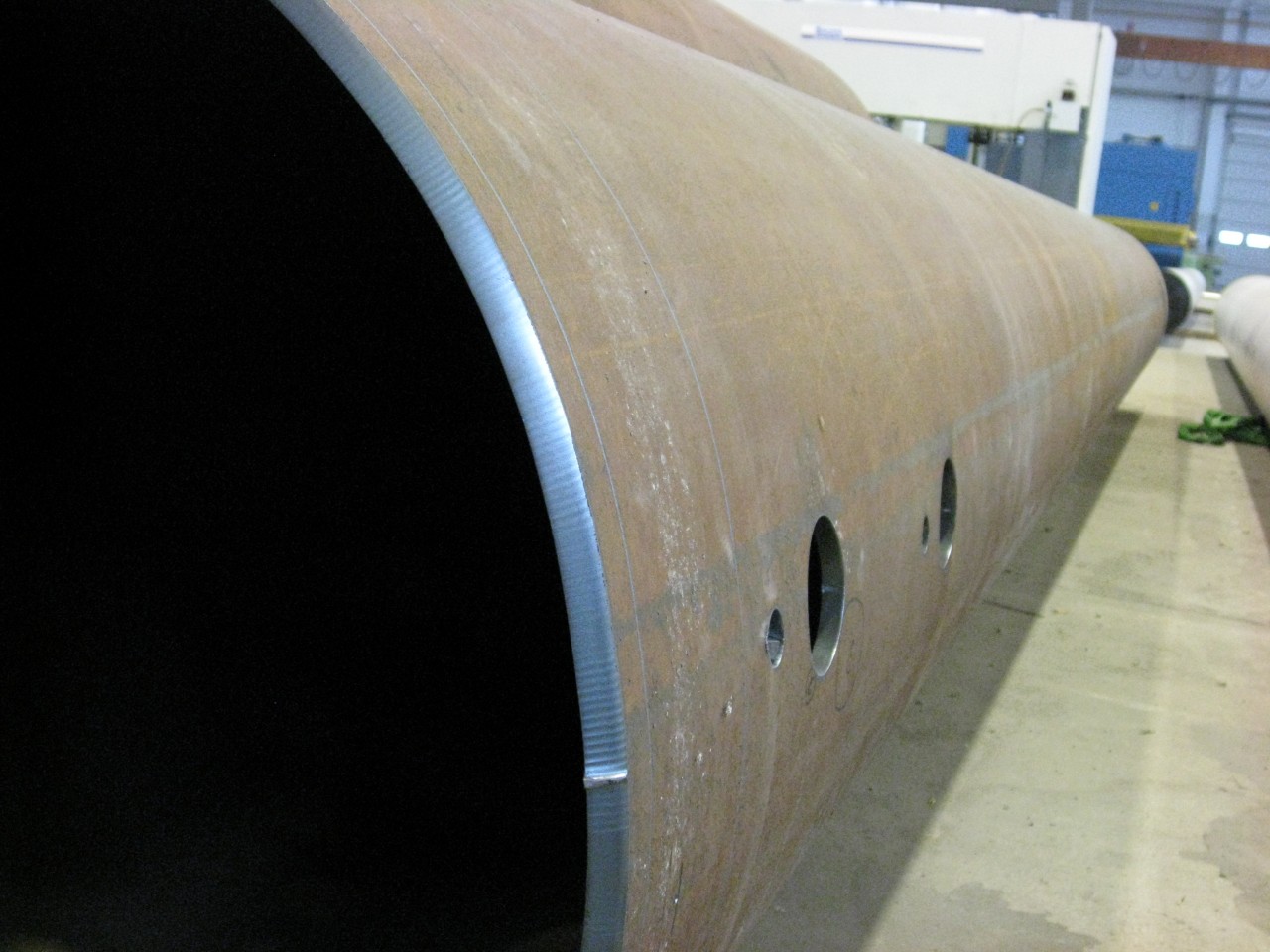

CPCut is a pipe and profile cutting line designed for processing of a great range of pipe diameters and lengths. The machine´s modular design and variable execution enables a wide range of pipe based applications including trimming, cutting of various openings for multiple pipe and profile intersections or connections, welding seam preparation as well as pipe marking. The application field is in tank, pipeline and power plant constructions.

Technical parameters

Working lenght max 12000 mm

Working diameter Ø 100 - 1 500

Max. number of tool stations 2

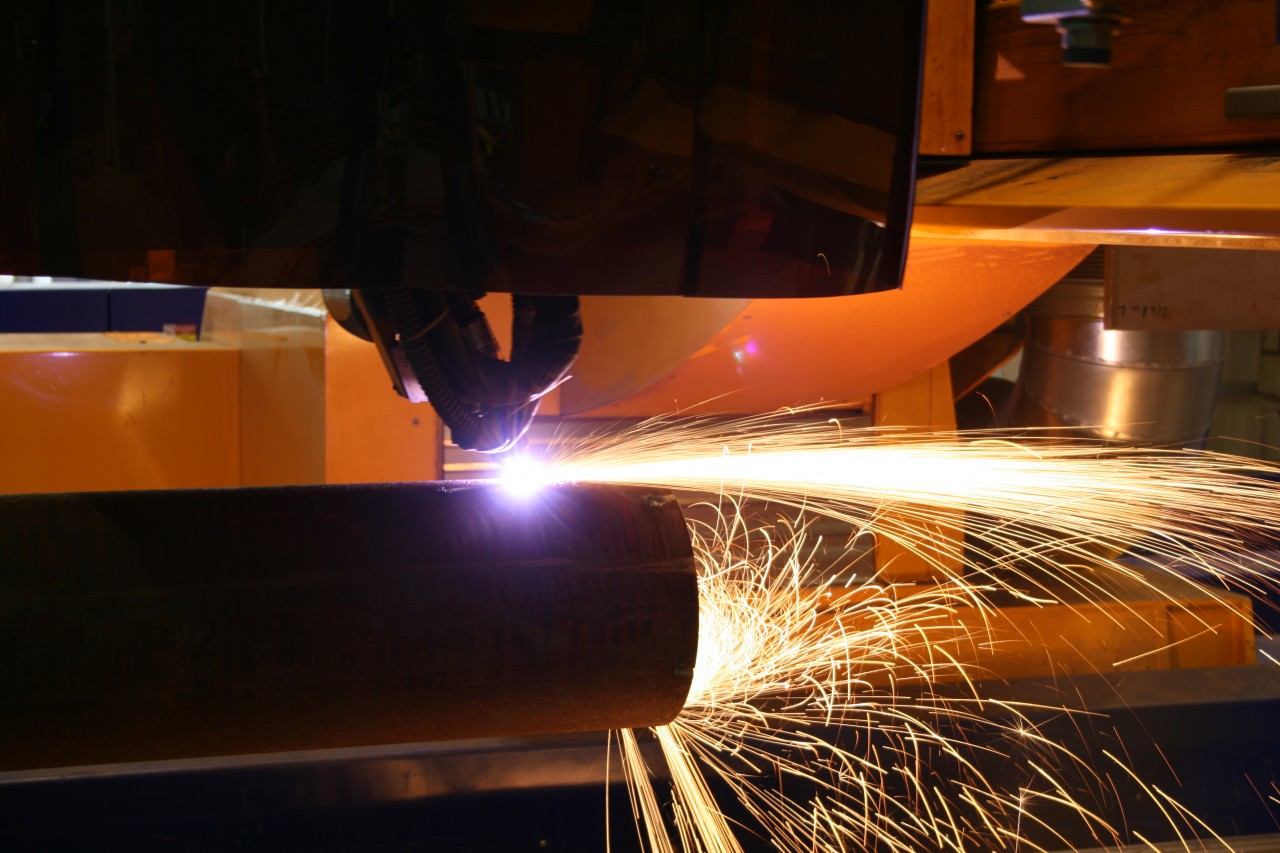

Max. thickness of material cut by plasma according to a plasma source

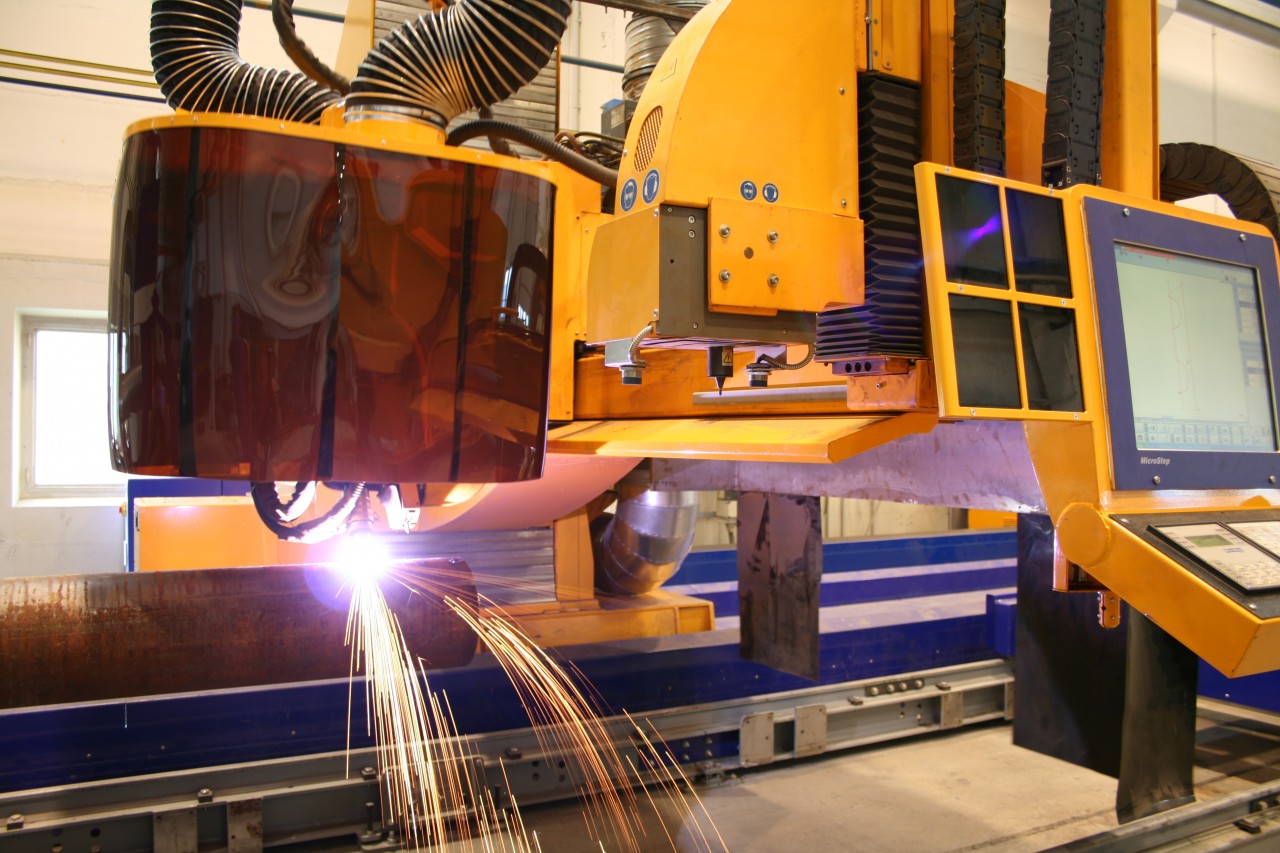

Max. thickness of material cut by oxyfuel 60 mm

Bevel cutting yes (see accessories)

Plate cutting no

Drilling and tapping no

Max. speed in X direction 30 m/min
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
