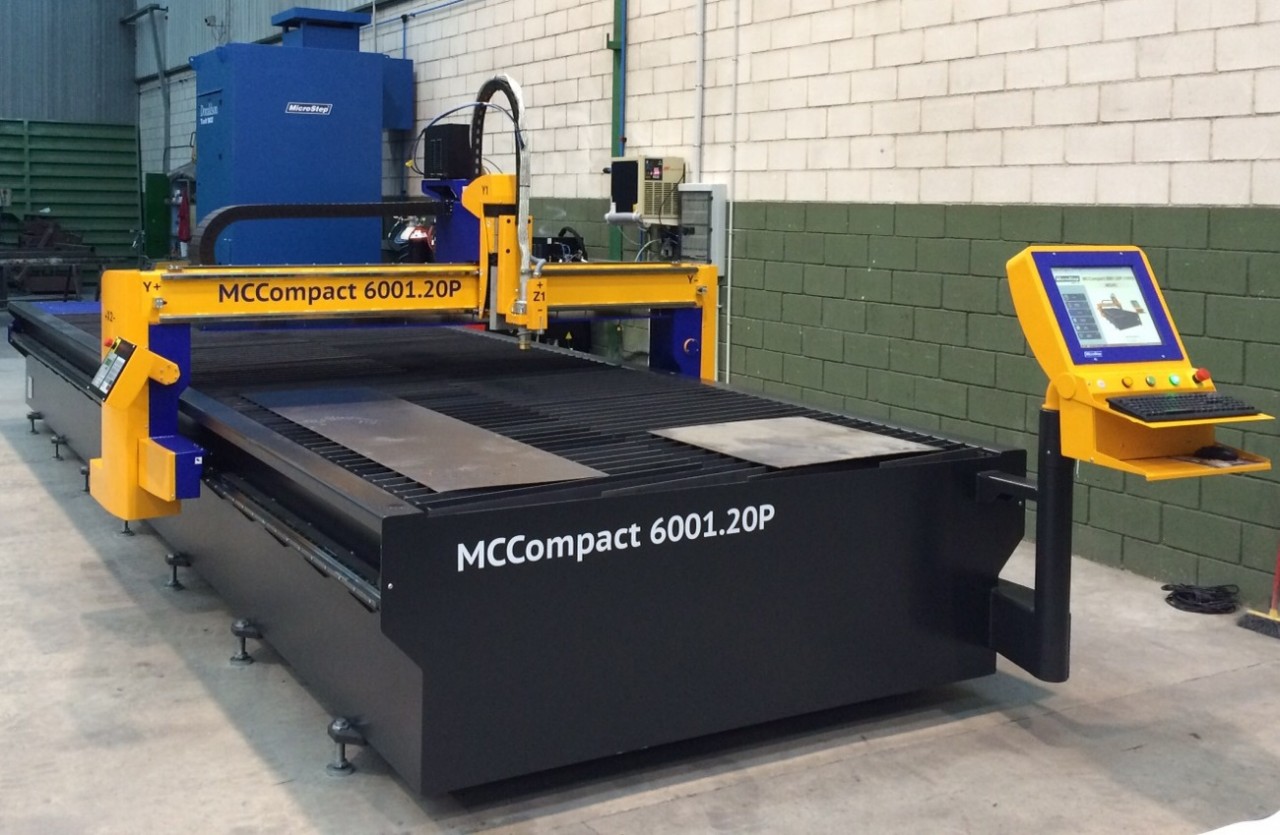

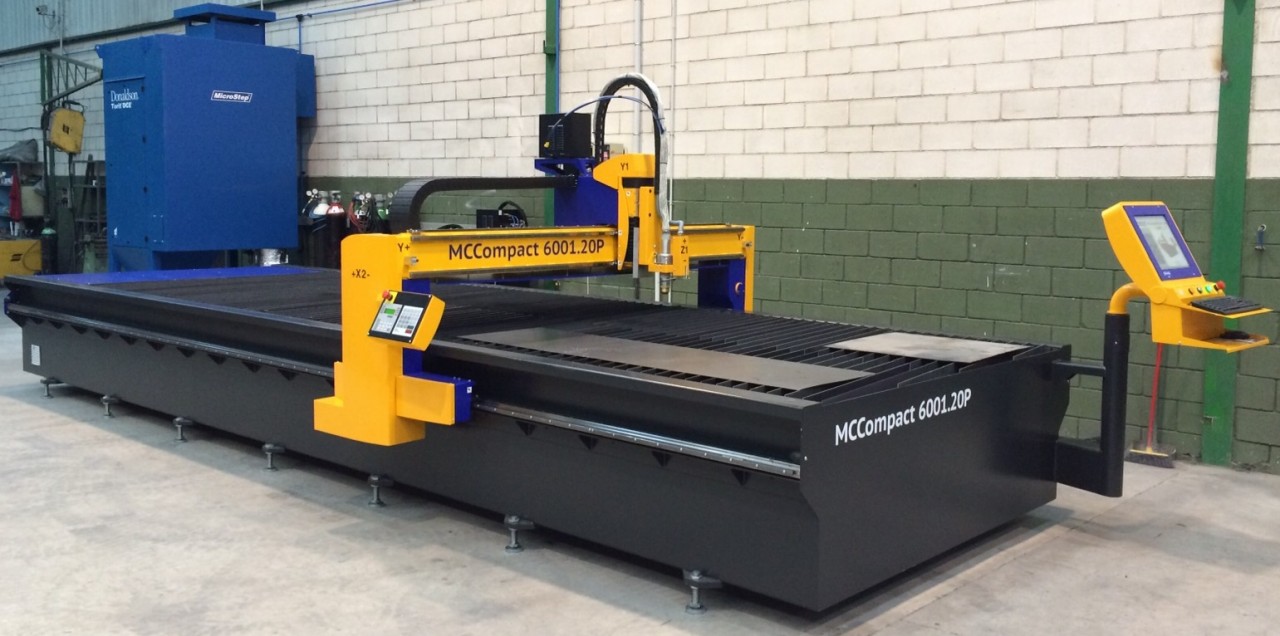

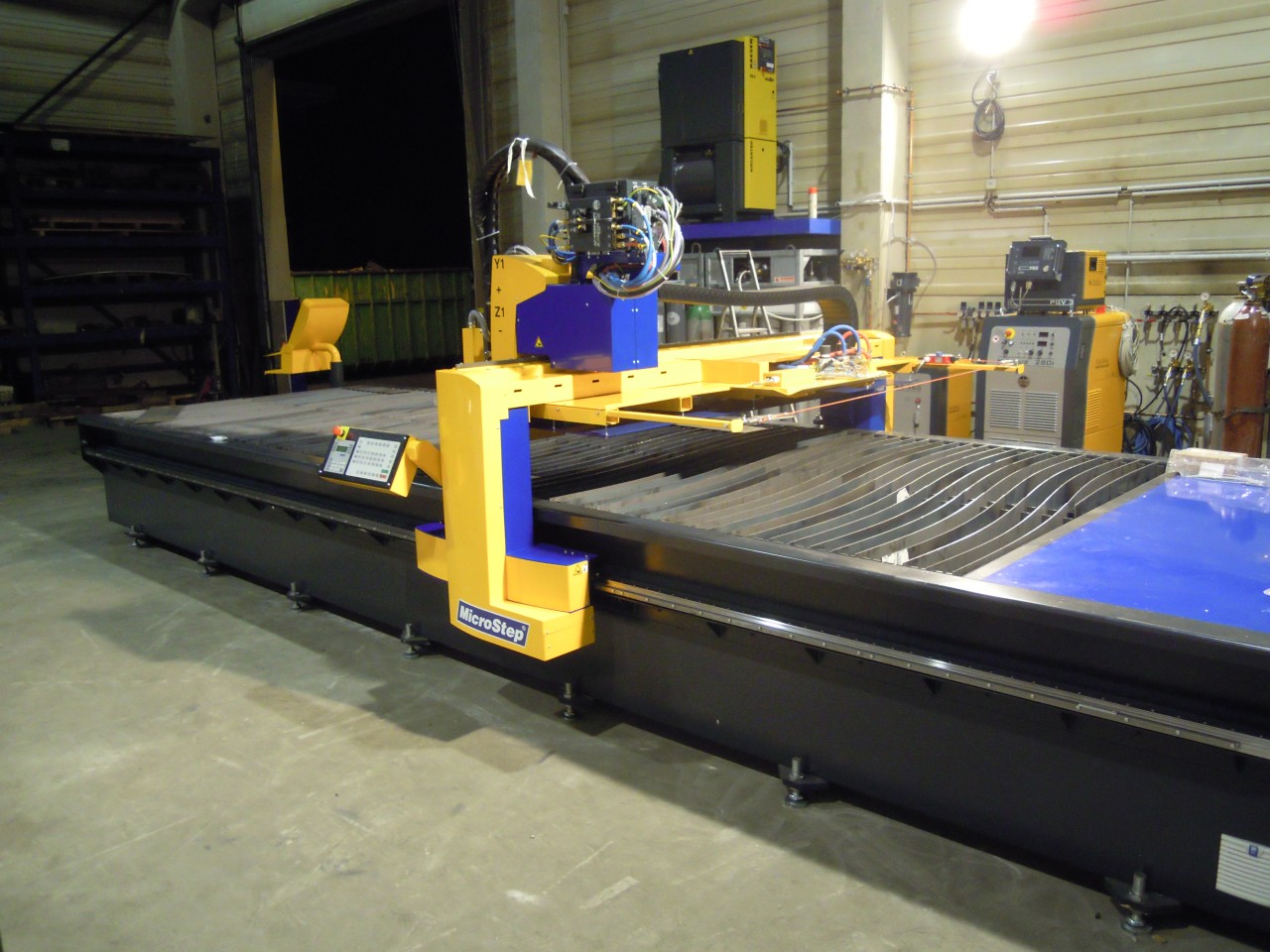

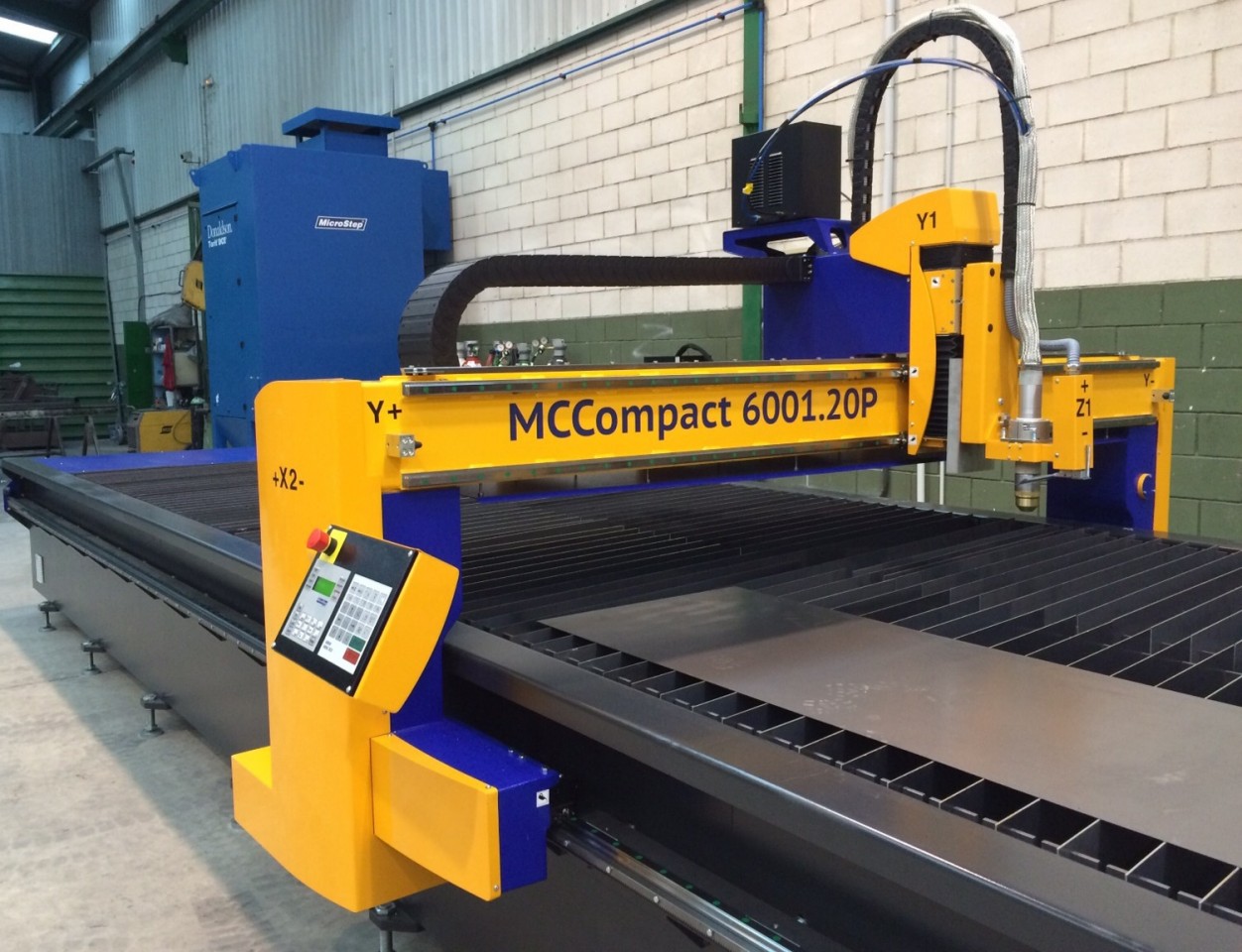

MasterCut Compact

MasterCut Compact is a dynamic, high precision CNC cutting machine suitable for a variety of plasma and oxyfuel cutting jobs. Thanks to its sophisticated design and high quality of components it smoothly provides latest features of plasma technology for a decent price – true contours, small holes, sharp corners and efficient operation. As a fully compact machine it is moveable within workshop while the pre-assembled delivery significantly shortens the start-up time.

Technical parameters
Working length  1500 - 6000 mm
Working width 1500 - 2000 mm
Max. number of tool stations 1 (2 with 2000 mm width)
Max. thickness of material cut by plasma according to a plasma source
Max. thickness of material cut by oxyfuel 100 mm
Bevel cutting yes (see accessories)
Pipe cutting no
Drilling and tapping no
Positioning speed max 51 m/min
Bidirectional repeatability 0.05 mm/m
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
