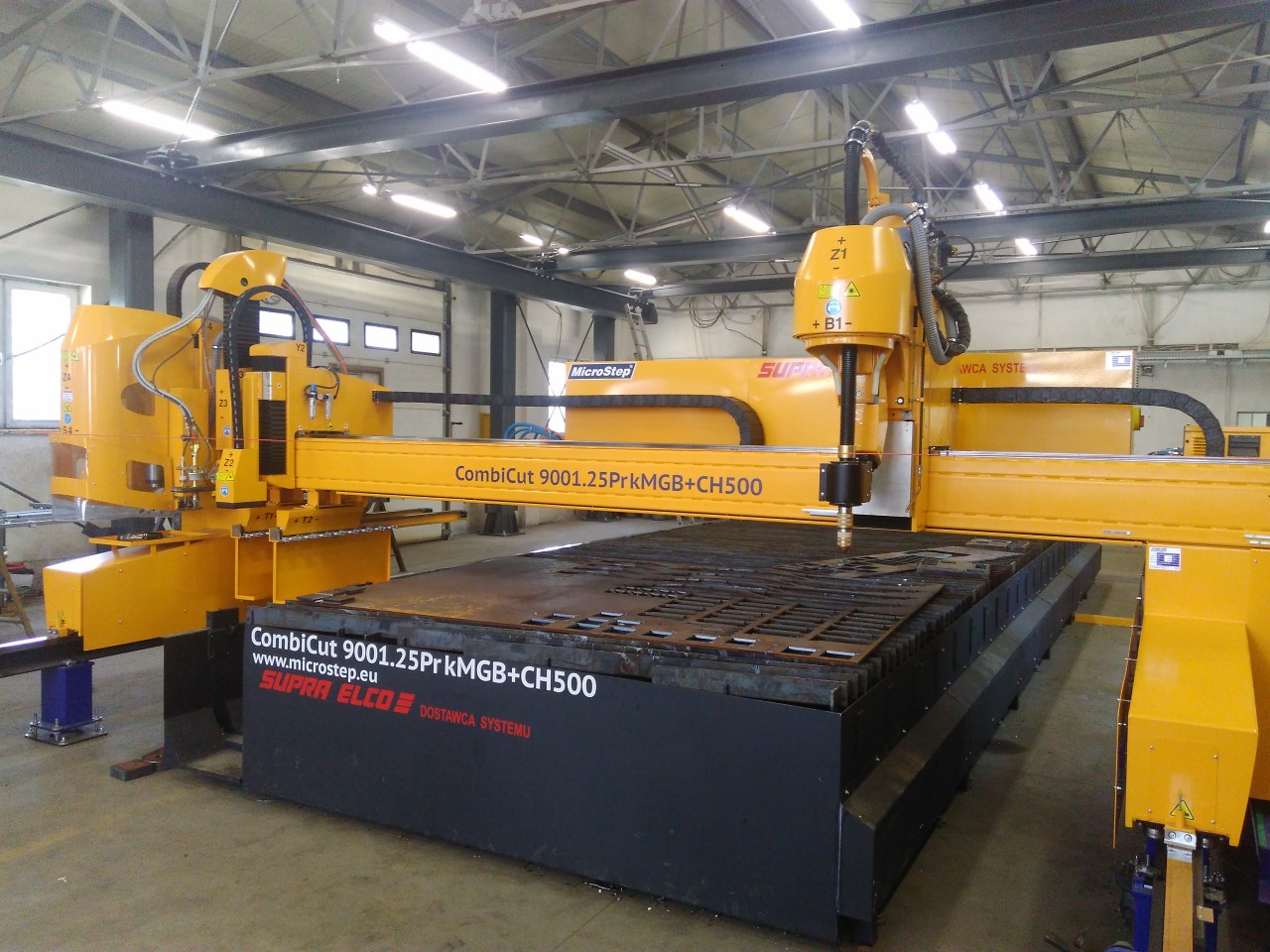

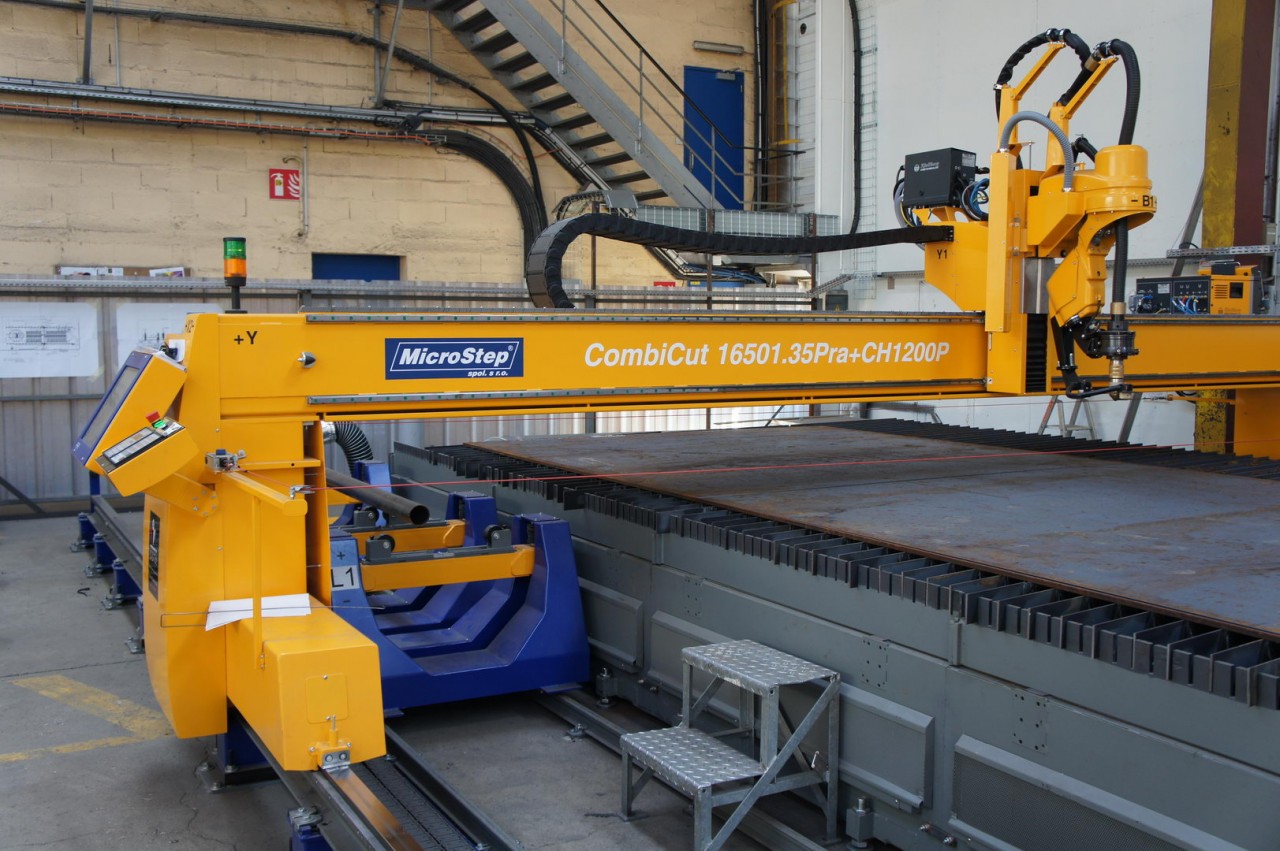

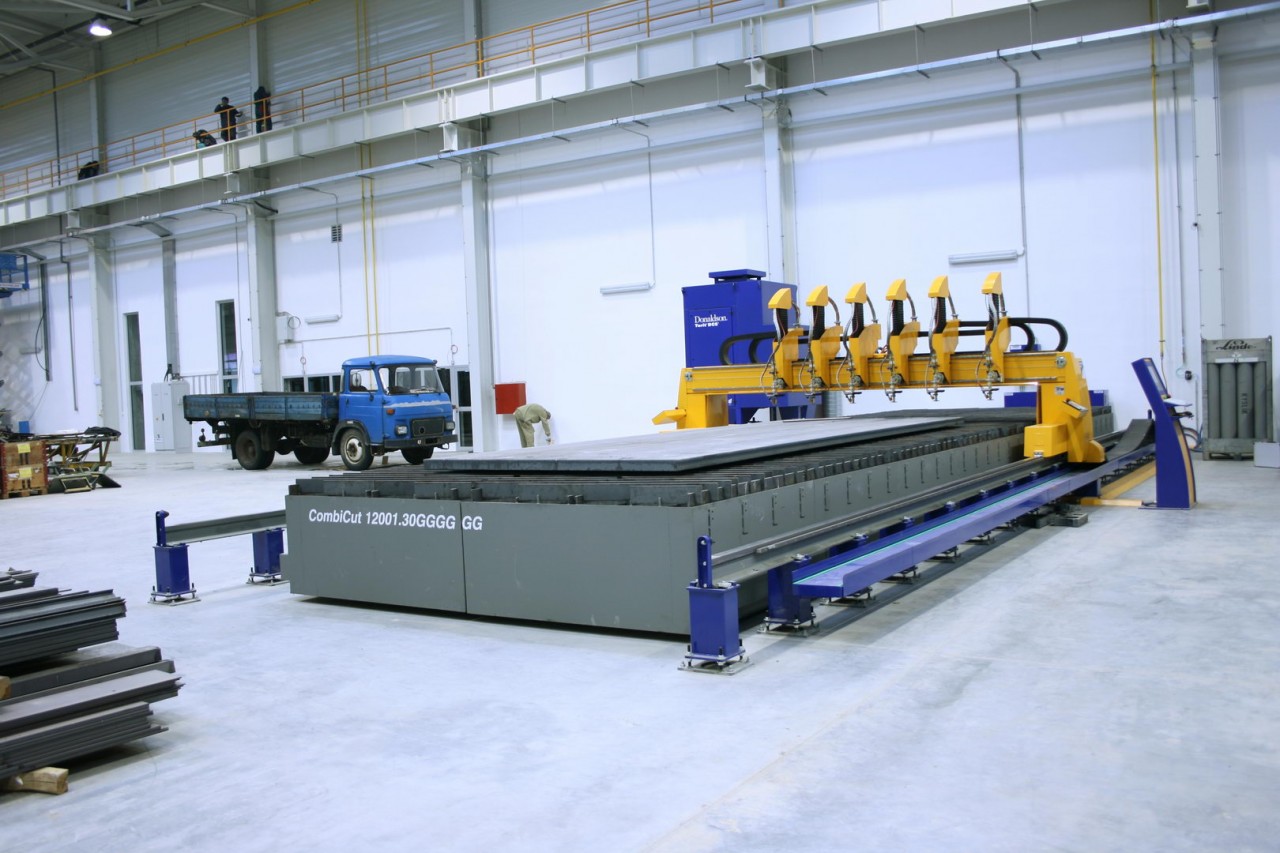

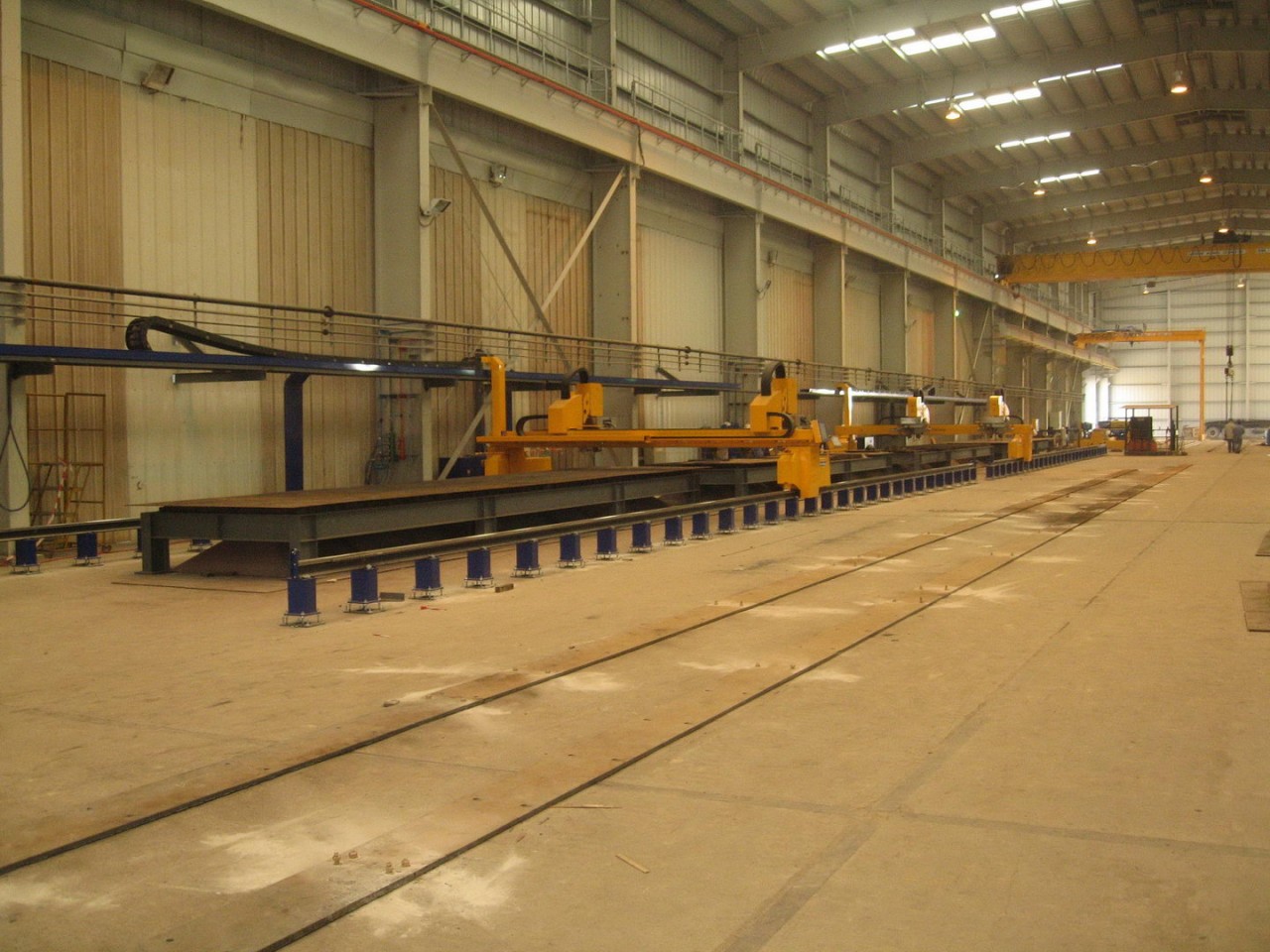

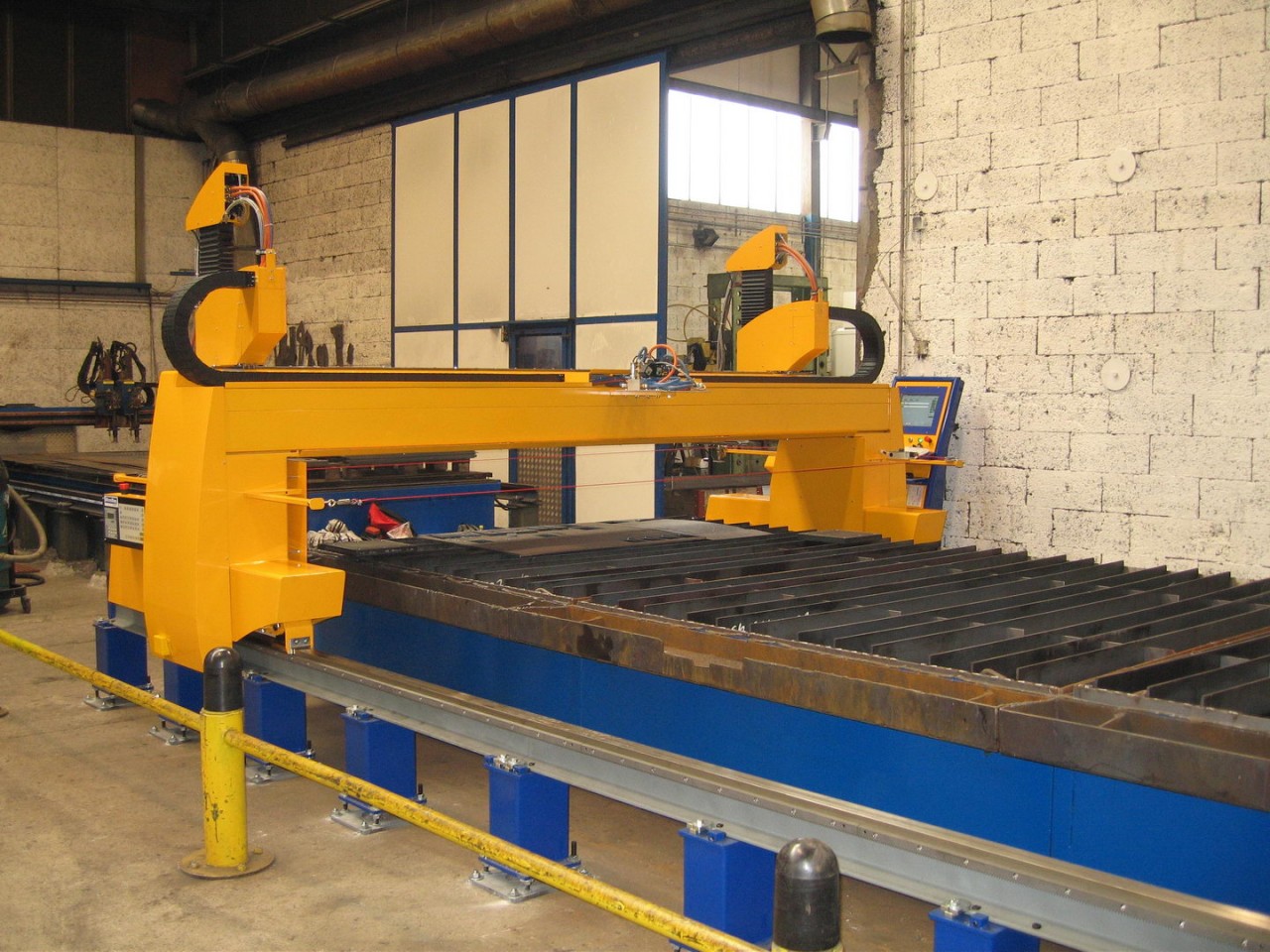

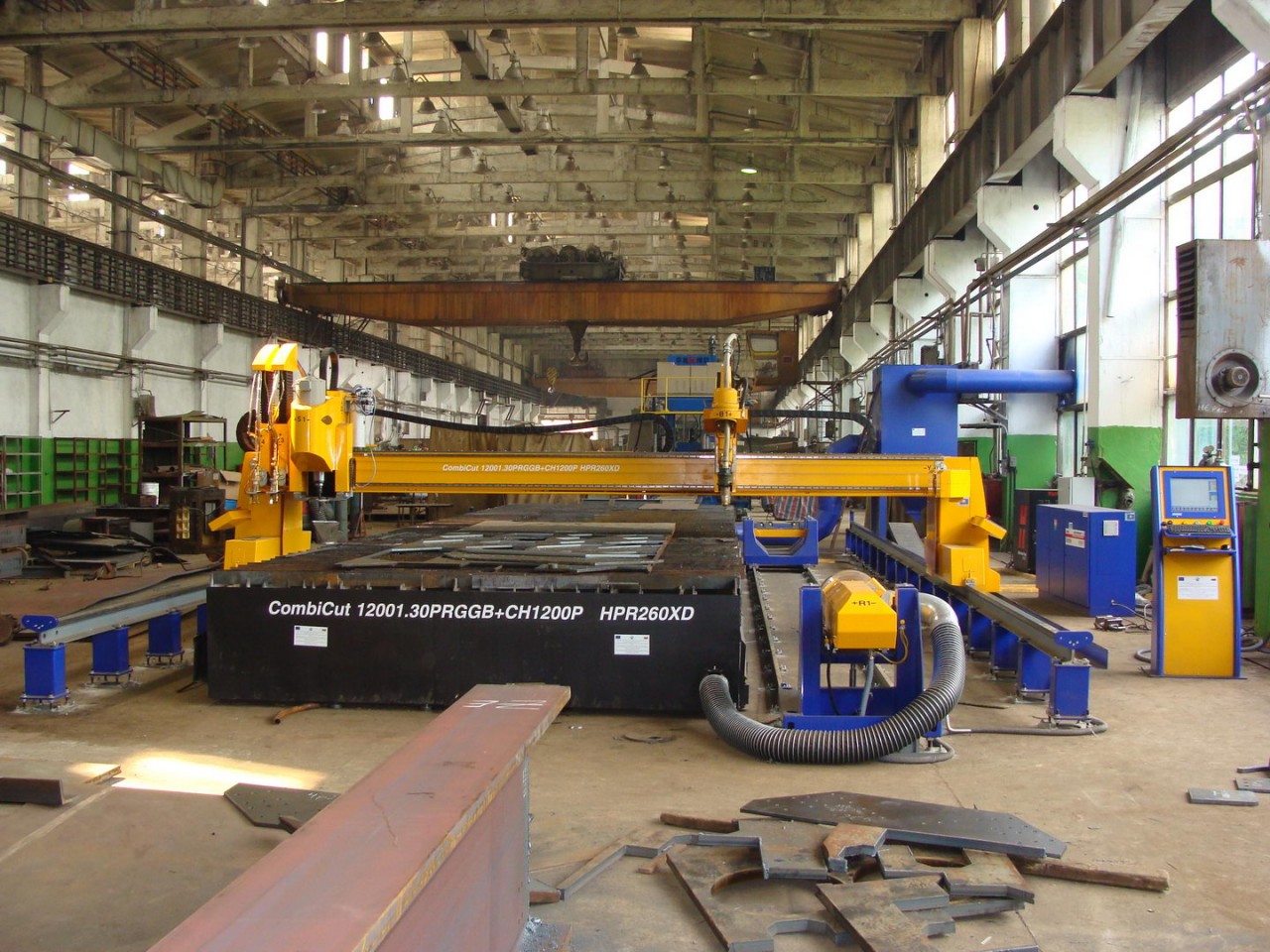

CombiCut

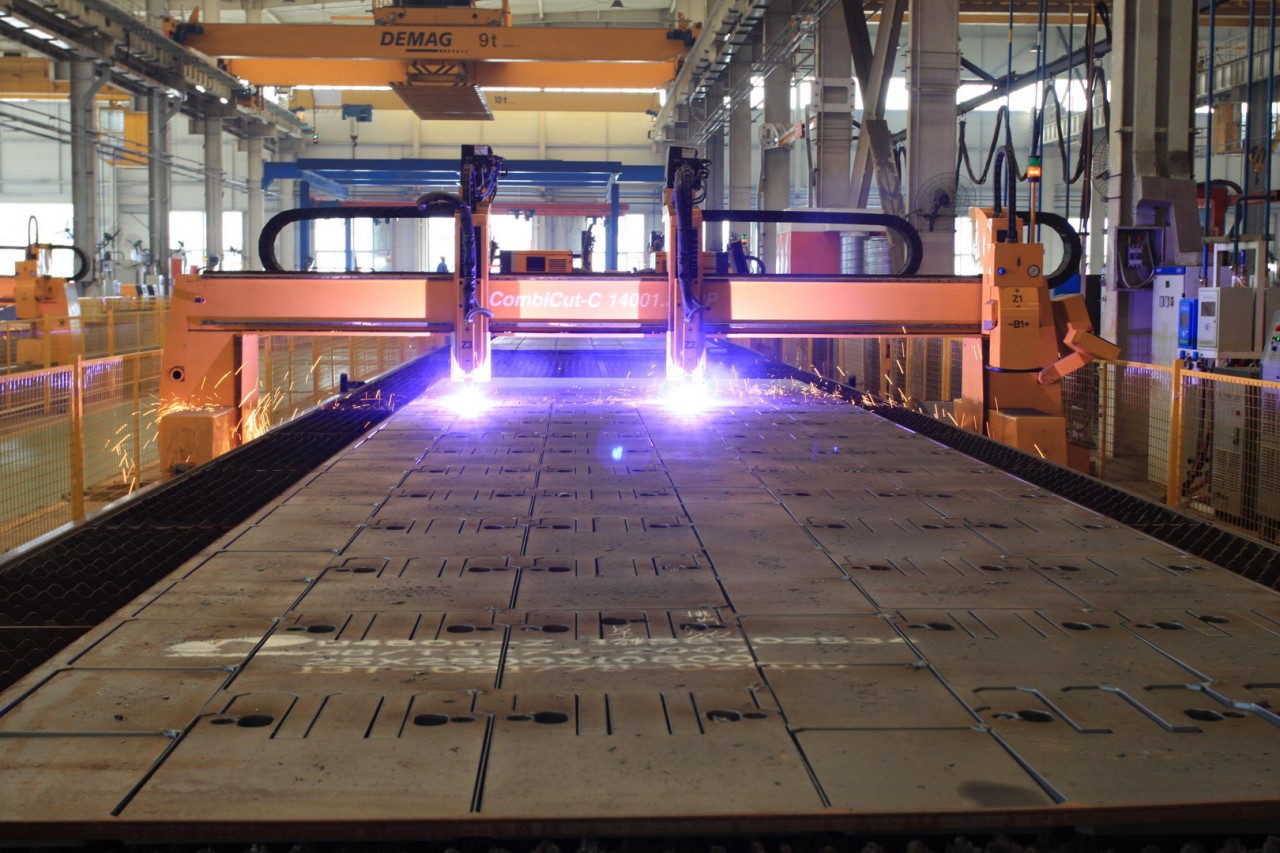

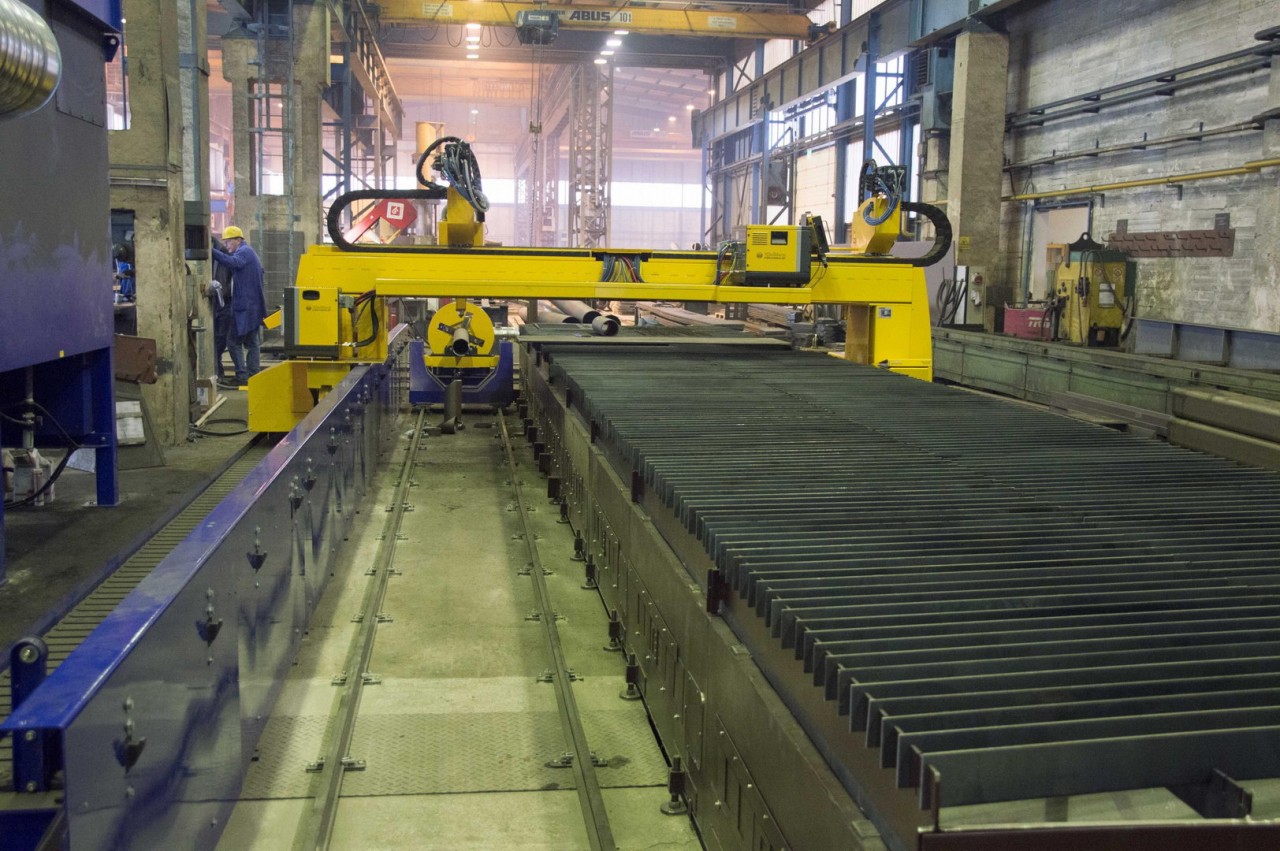

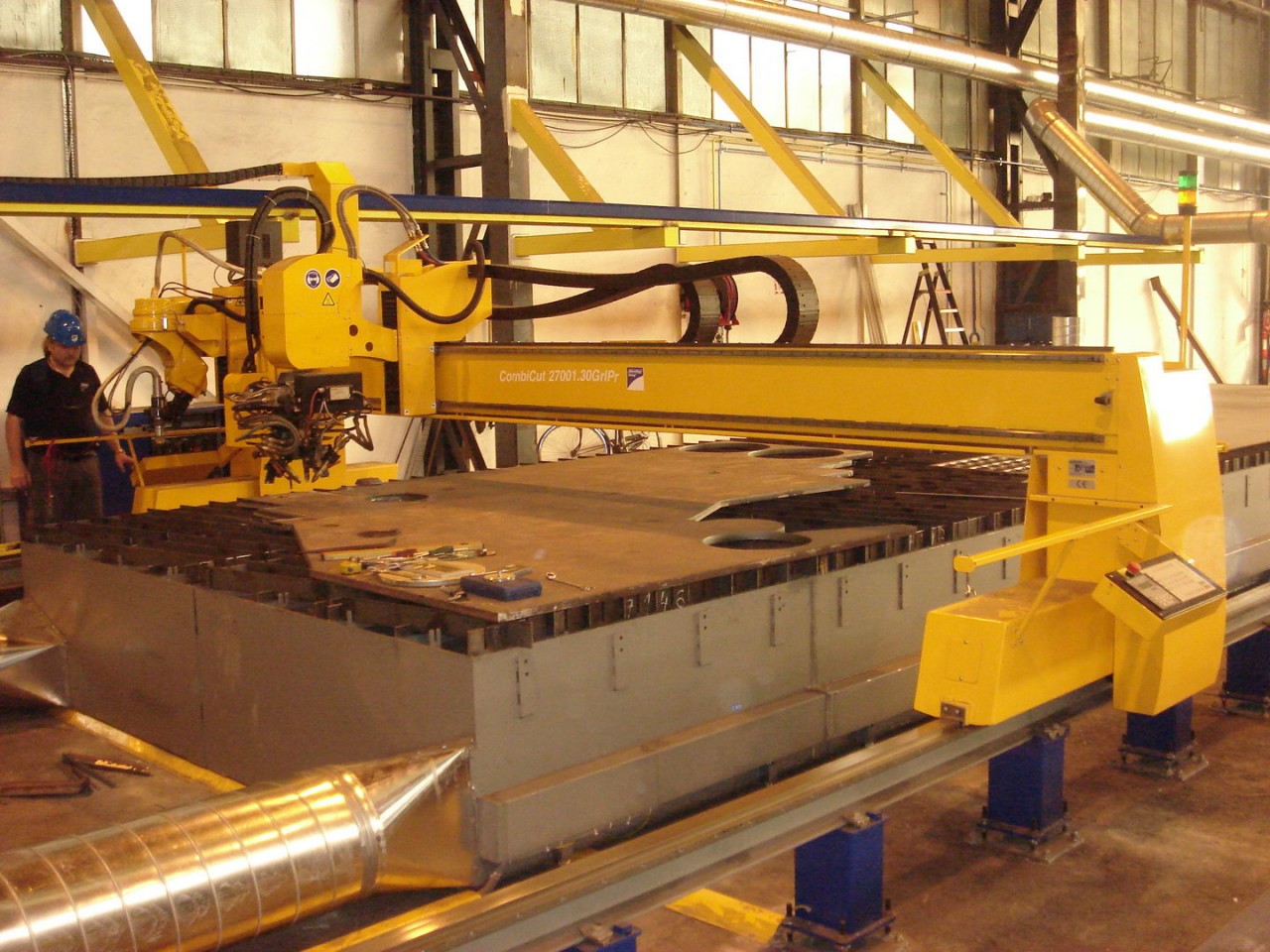

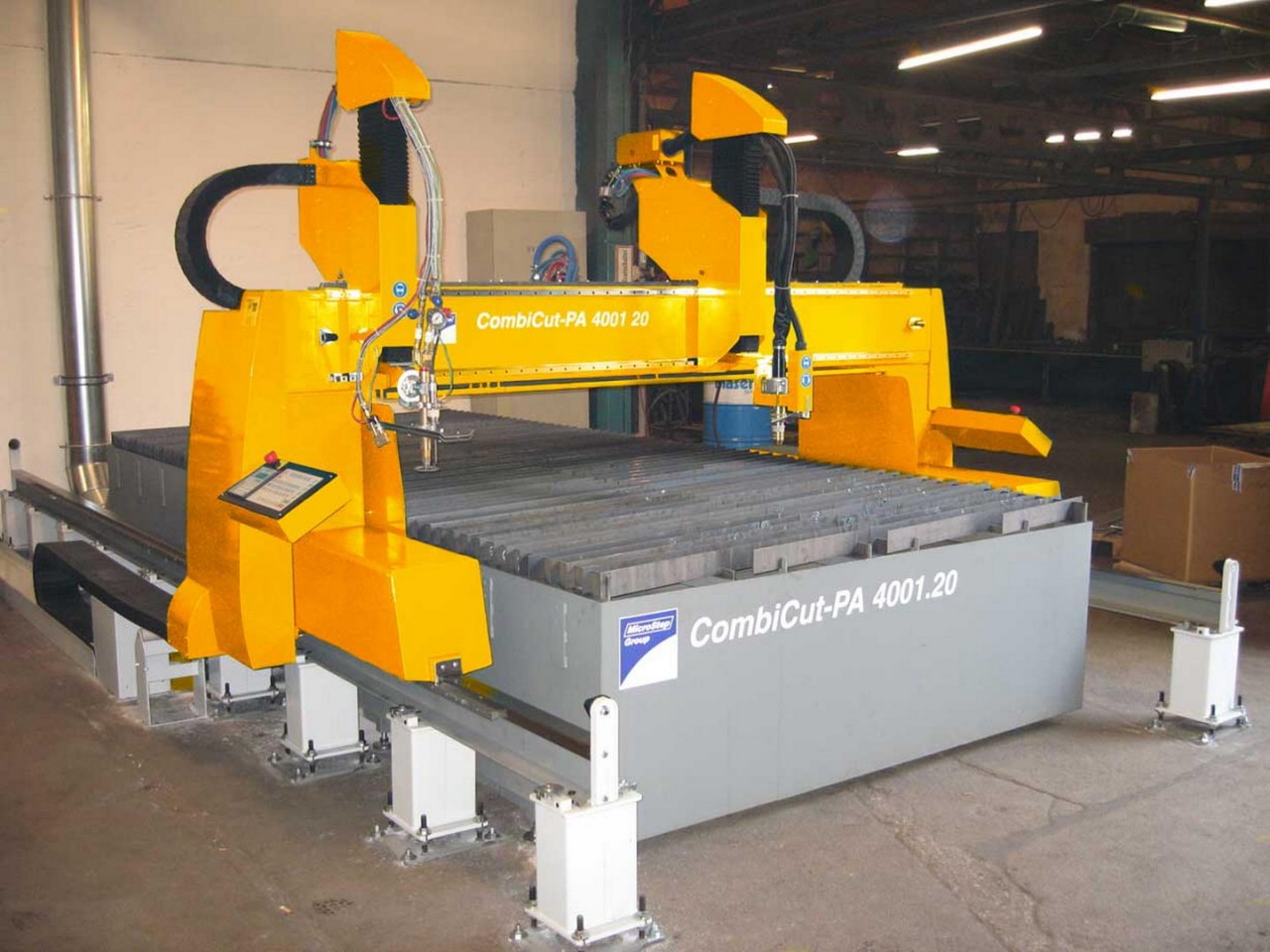

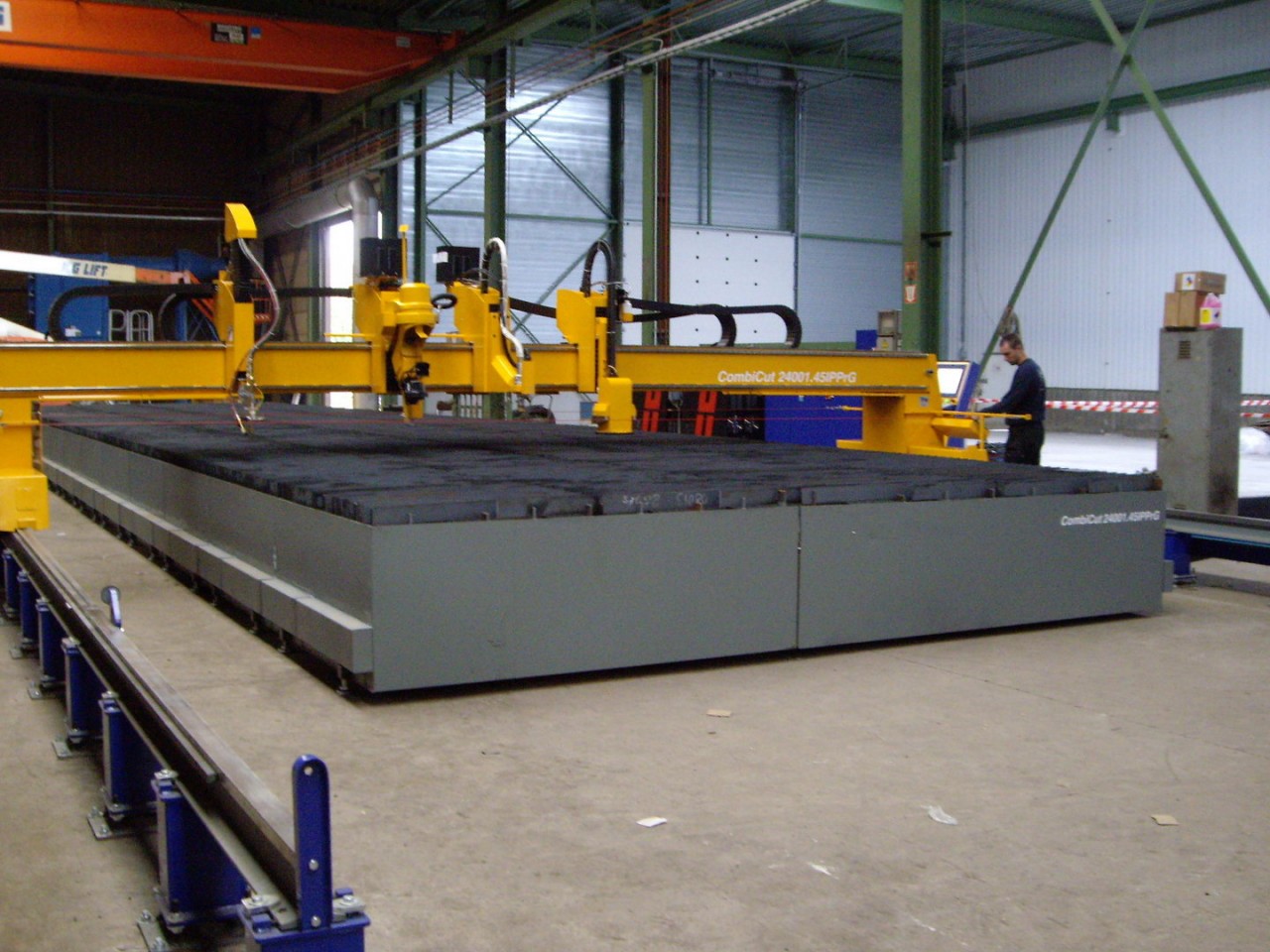

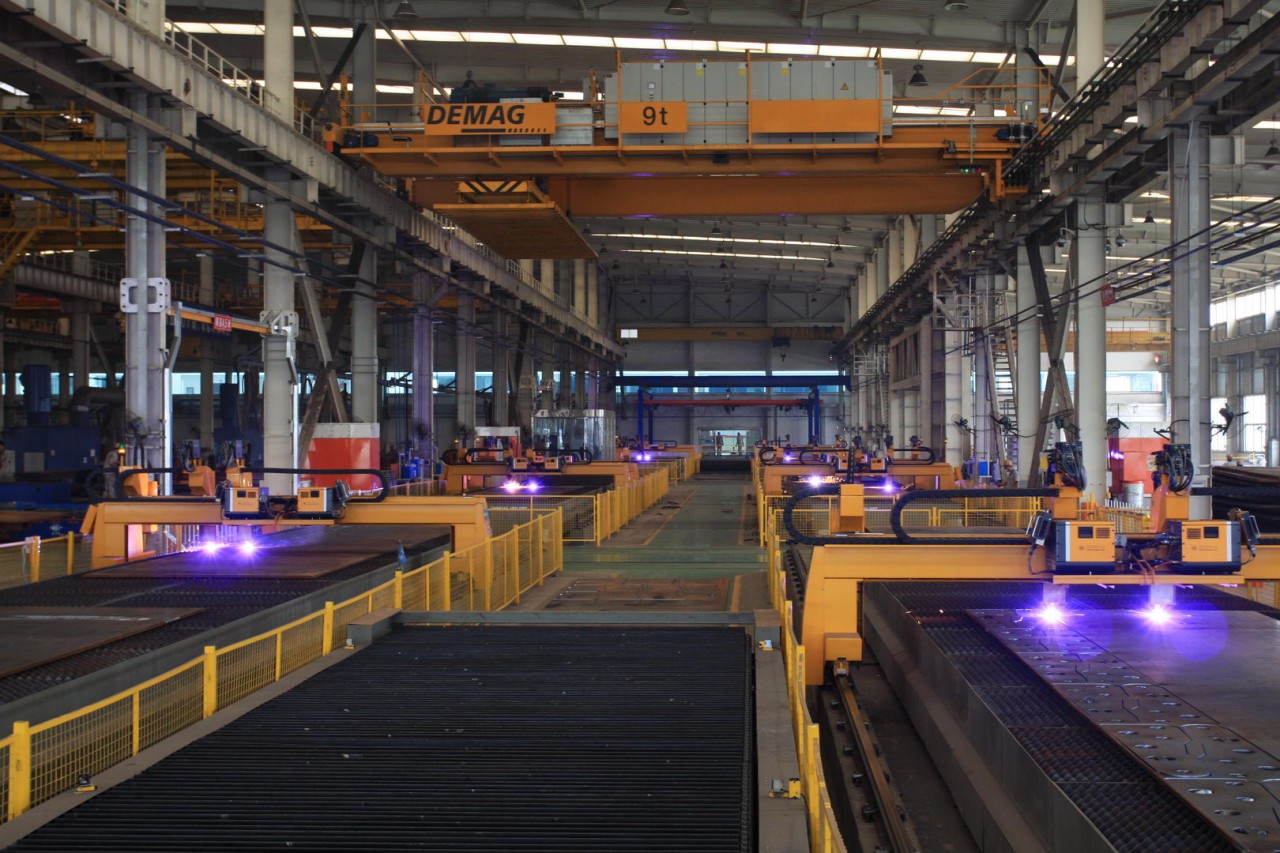

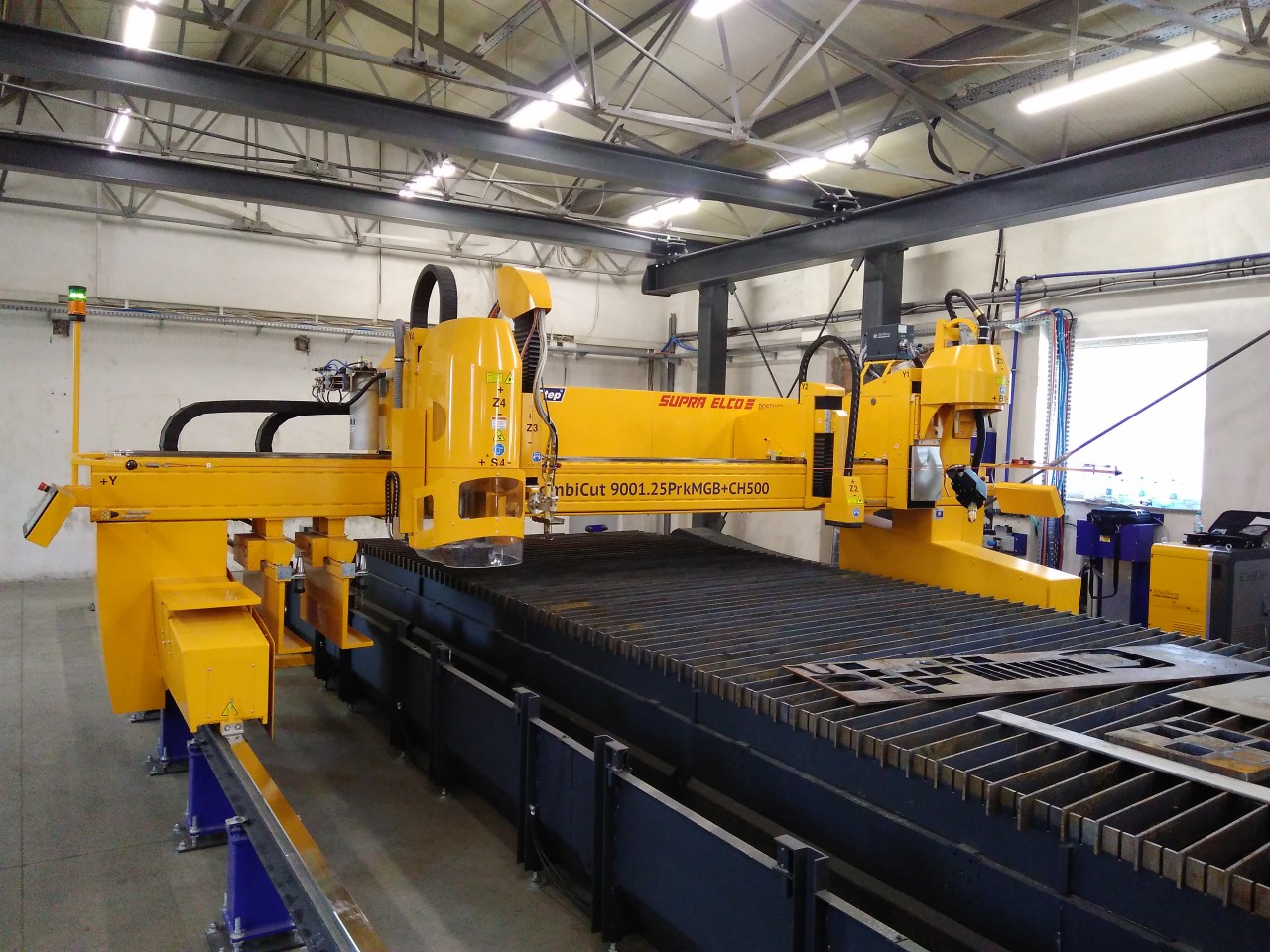

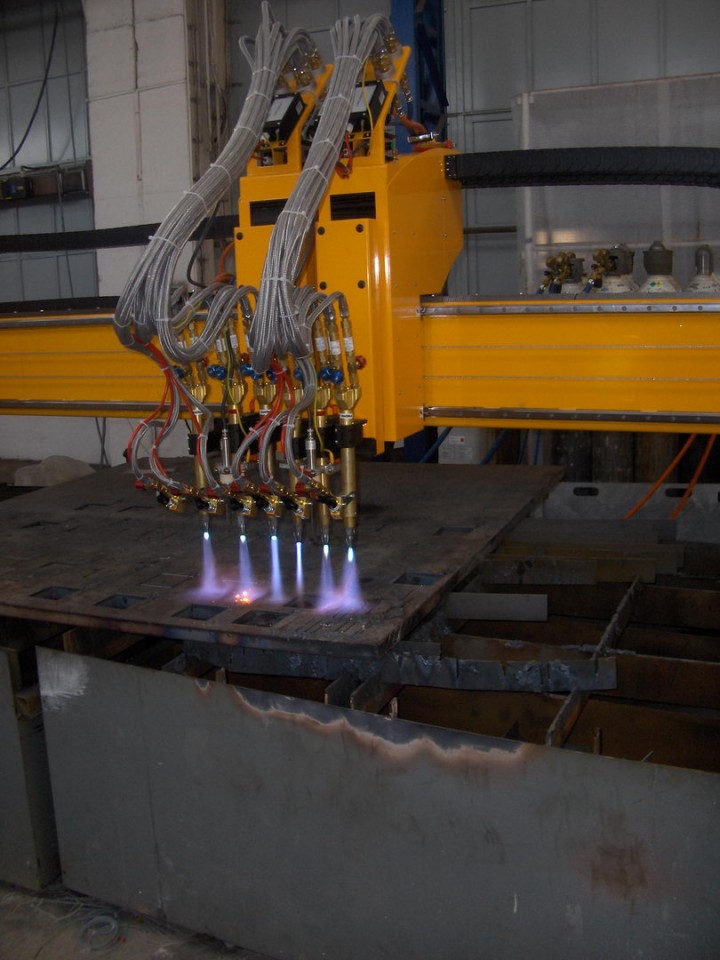

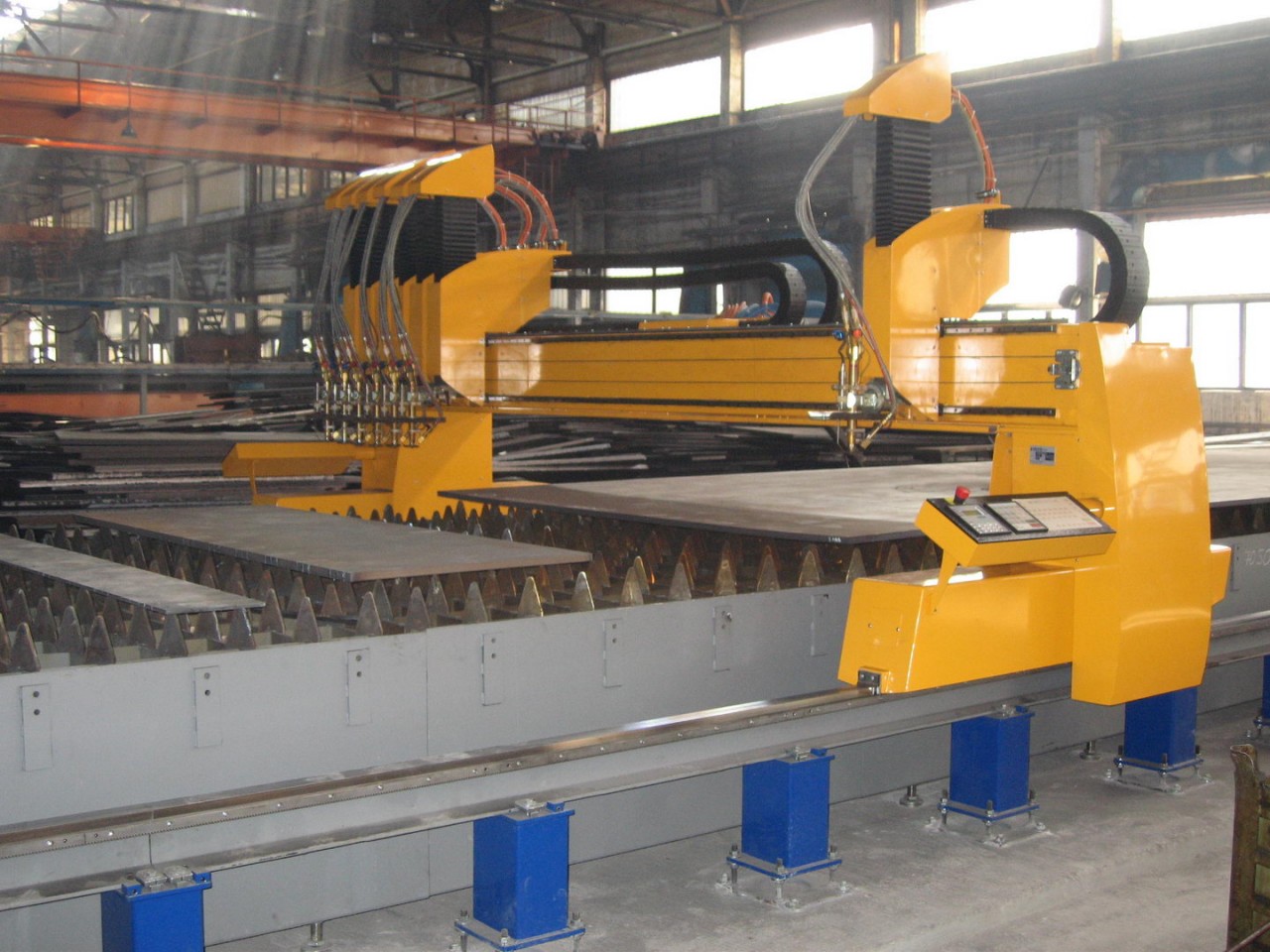

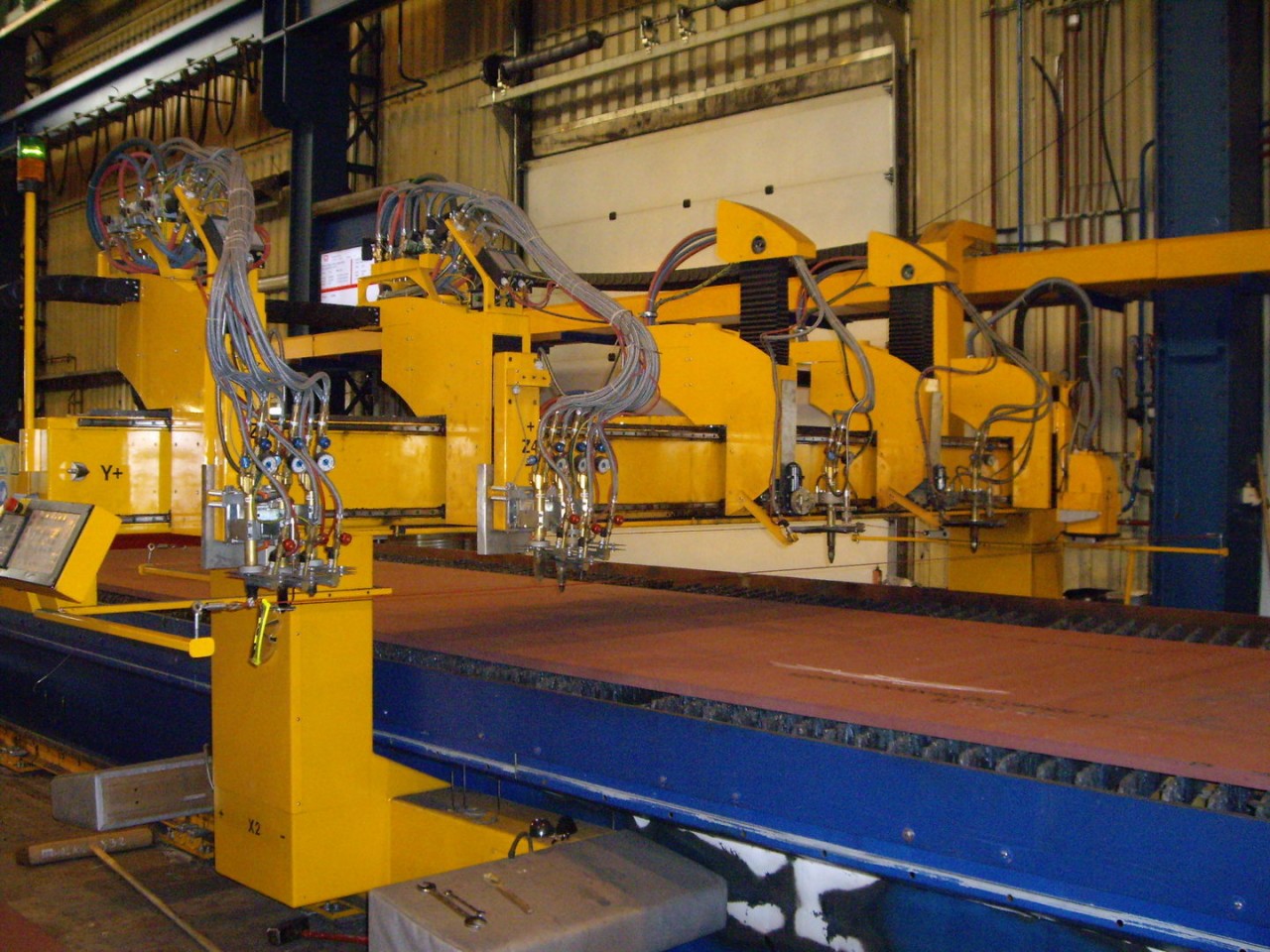

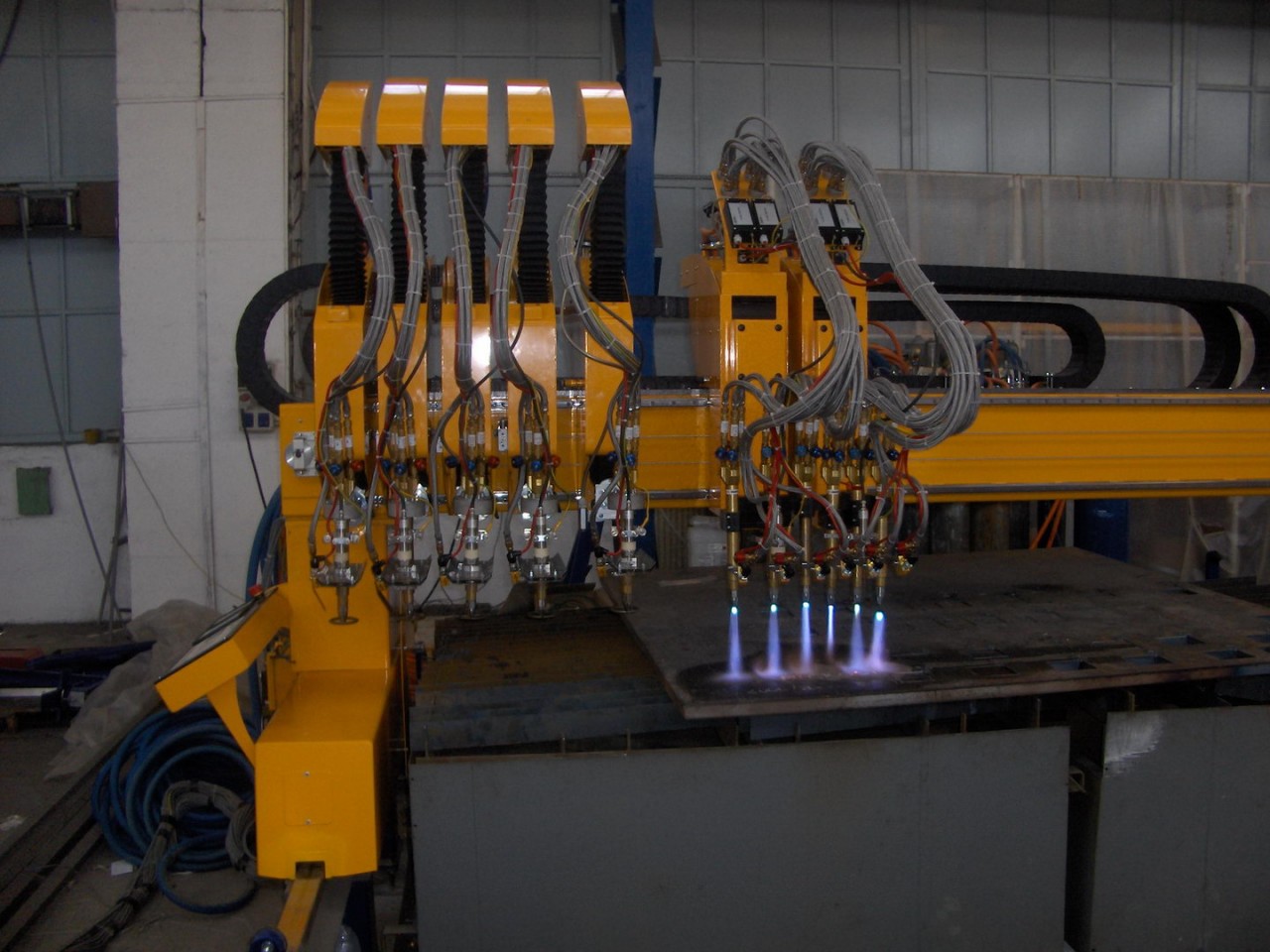

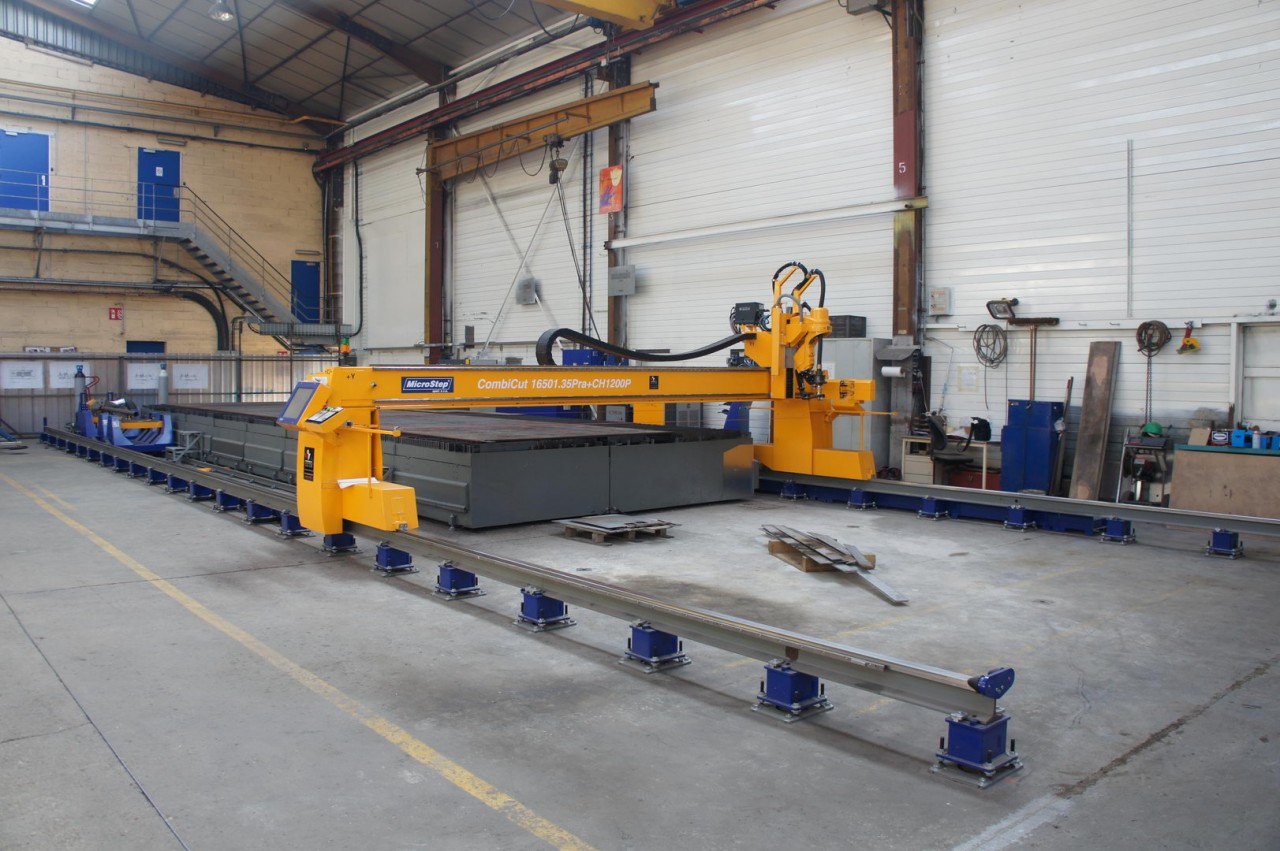

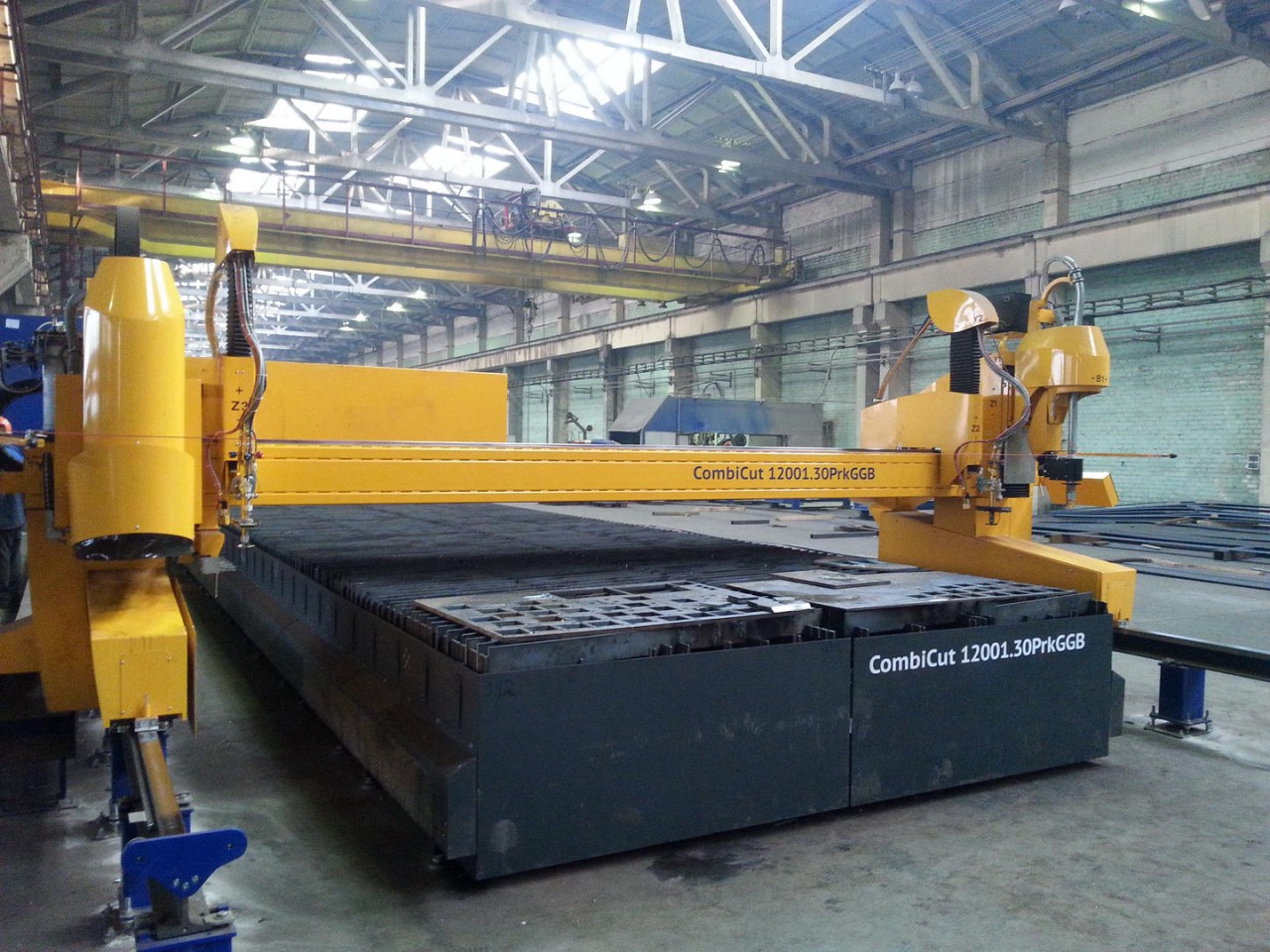

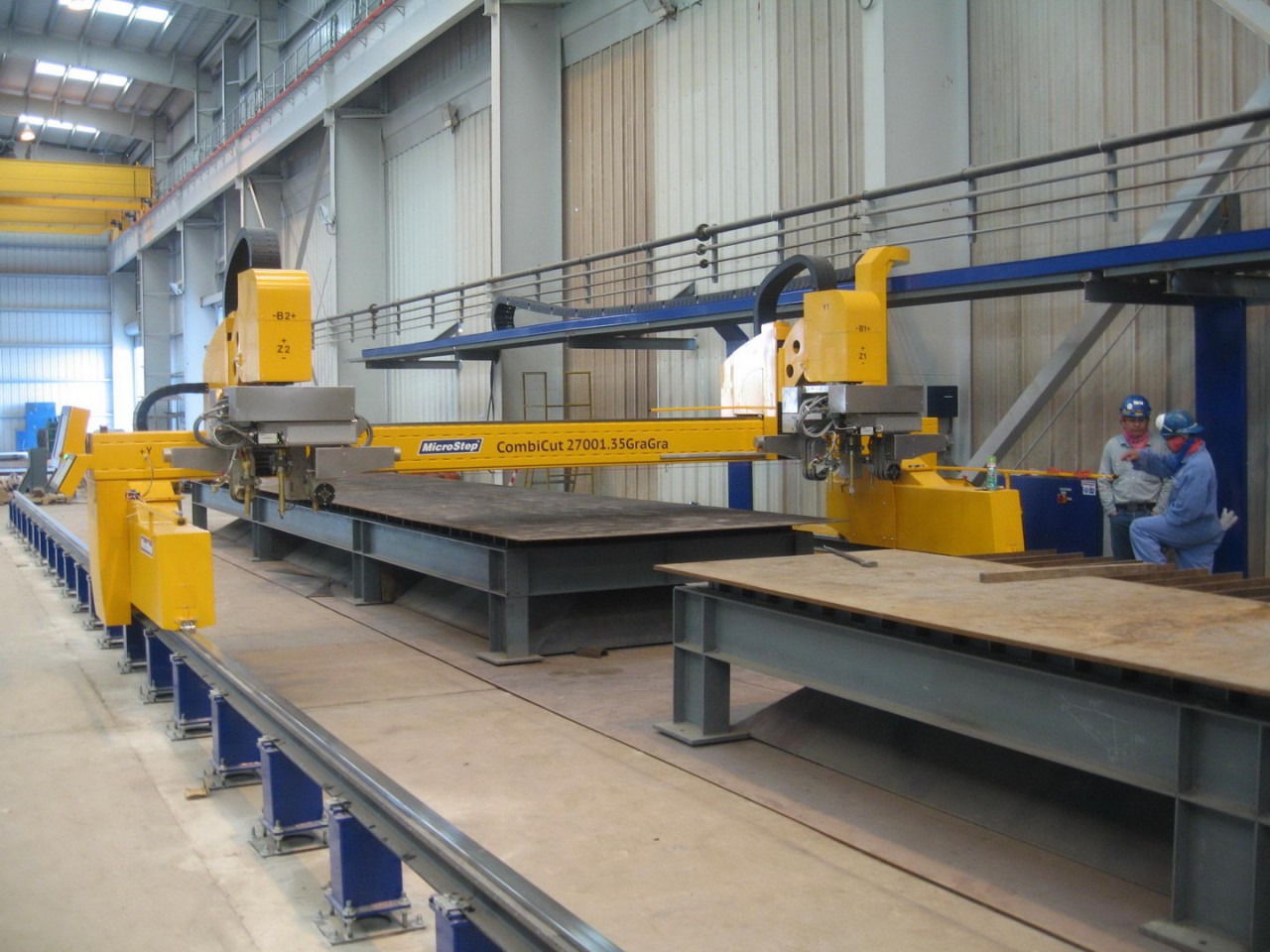

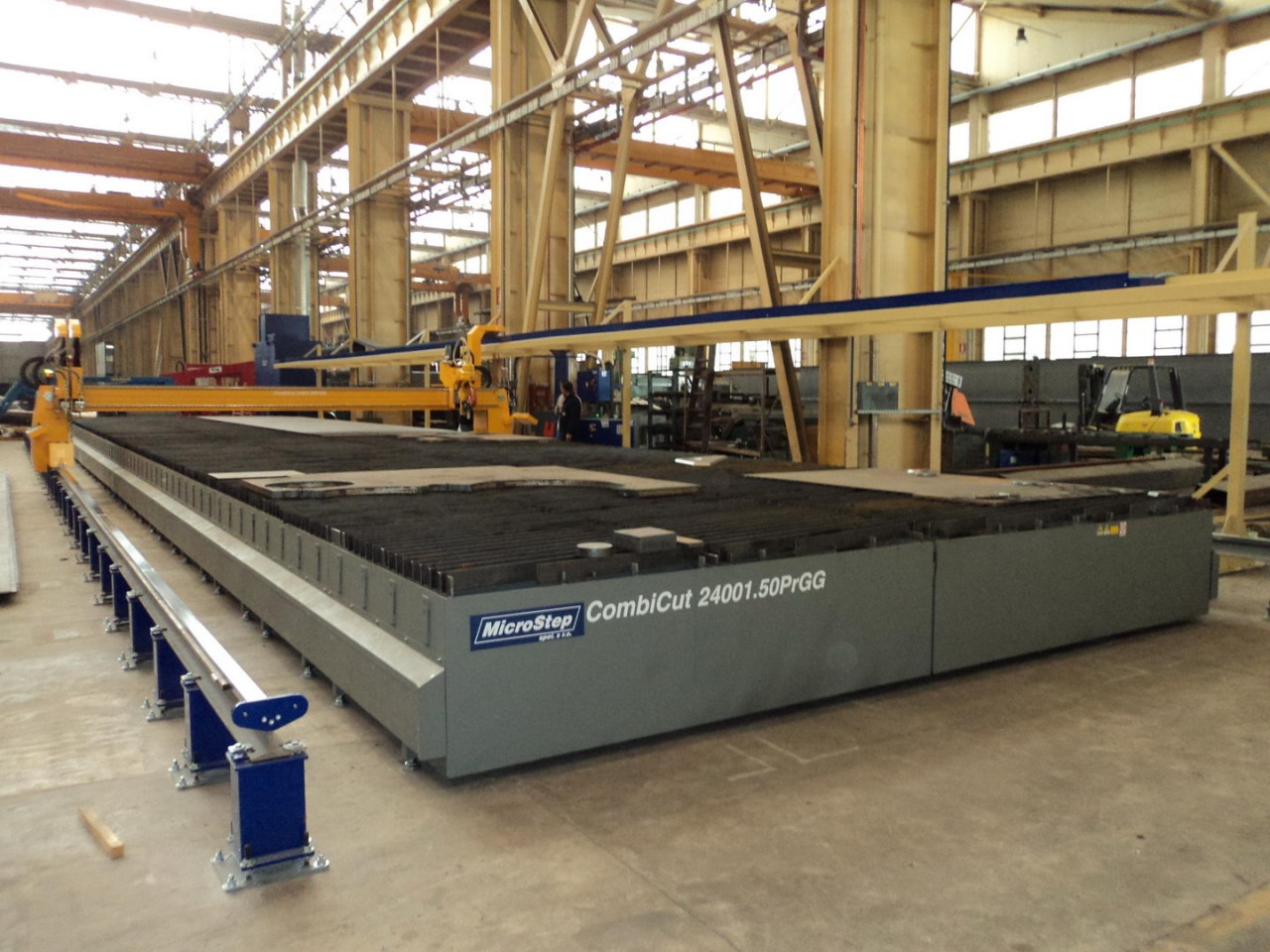

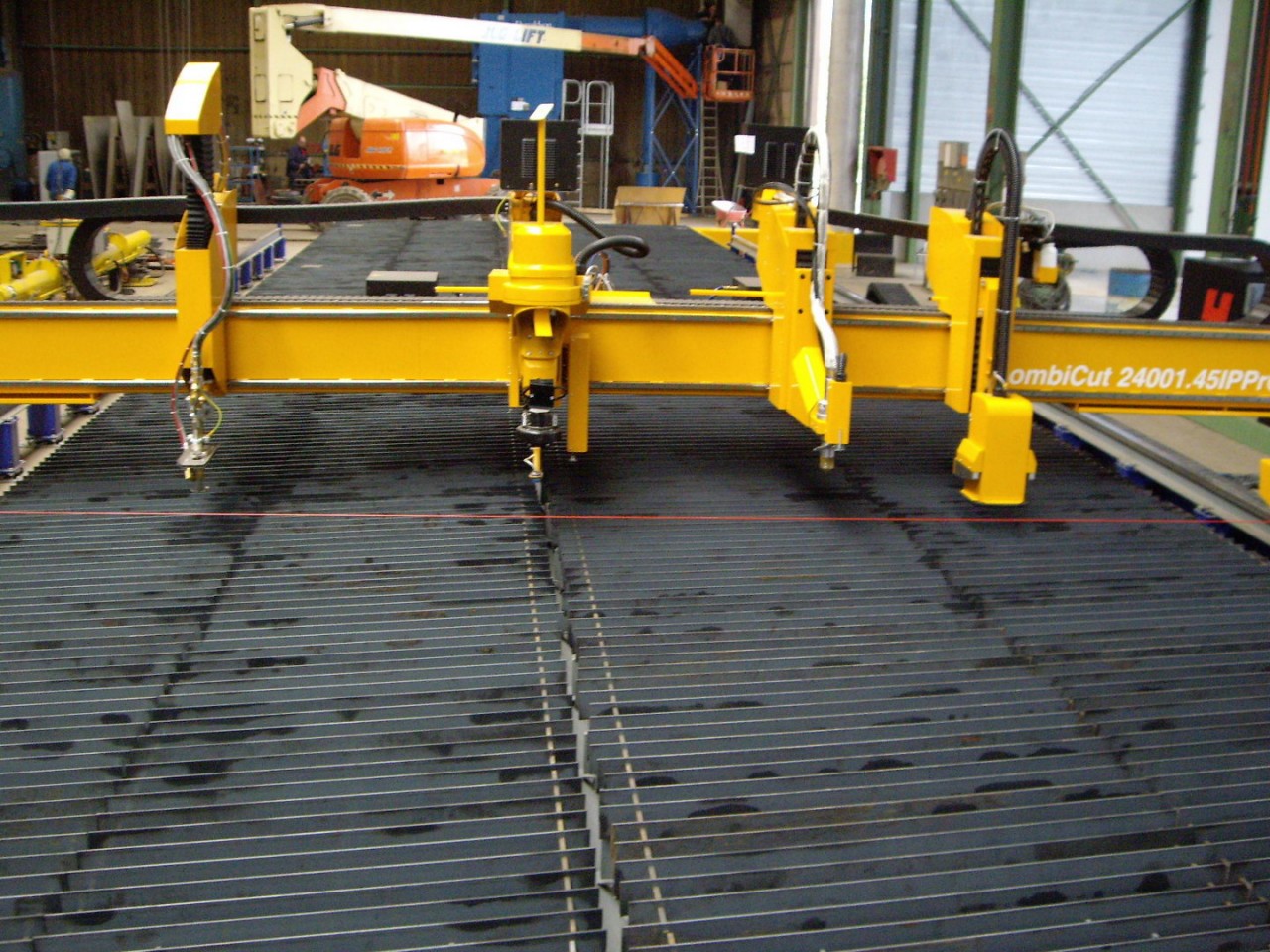

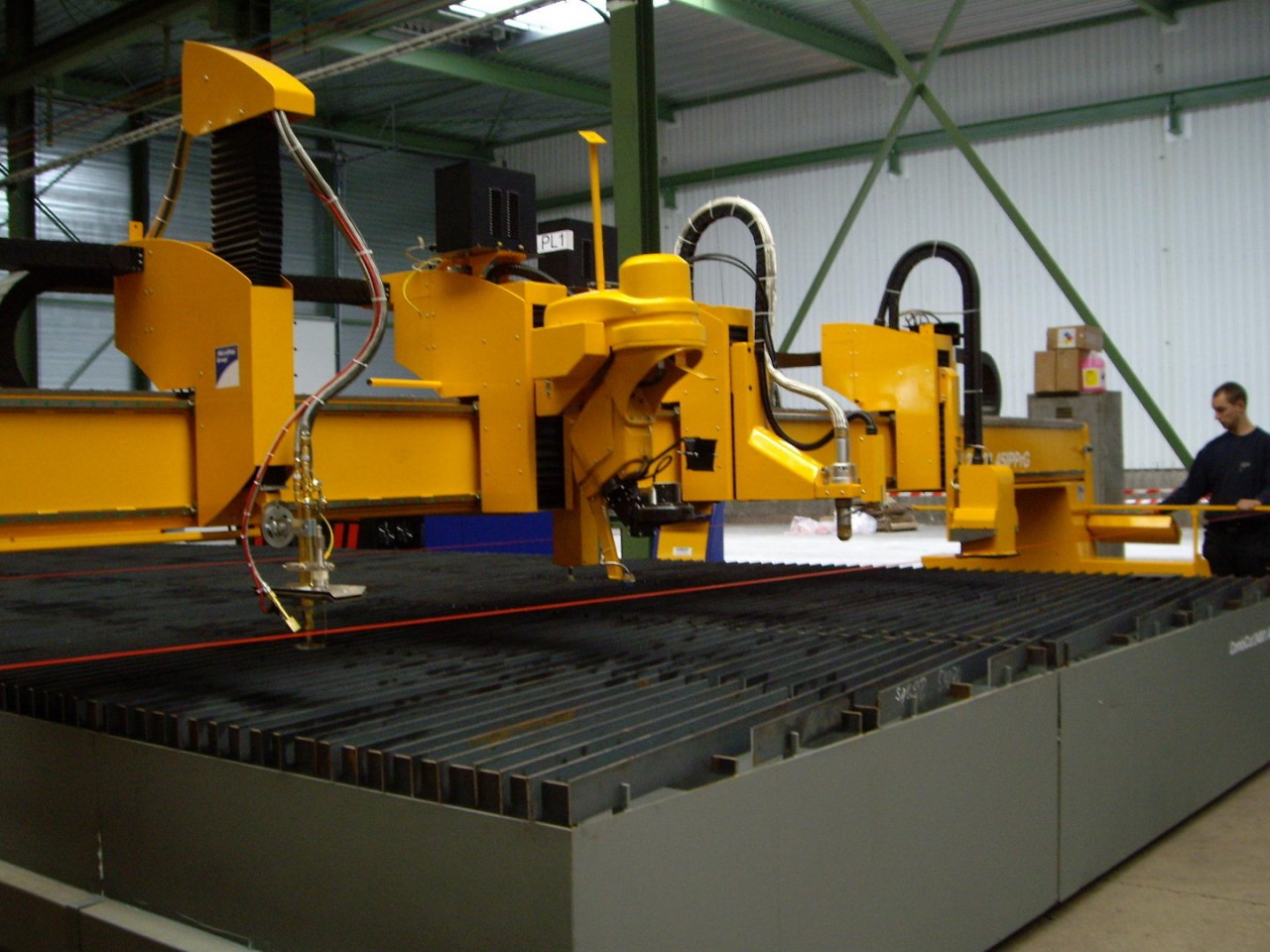

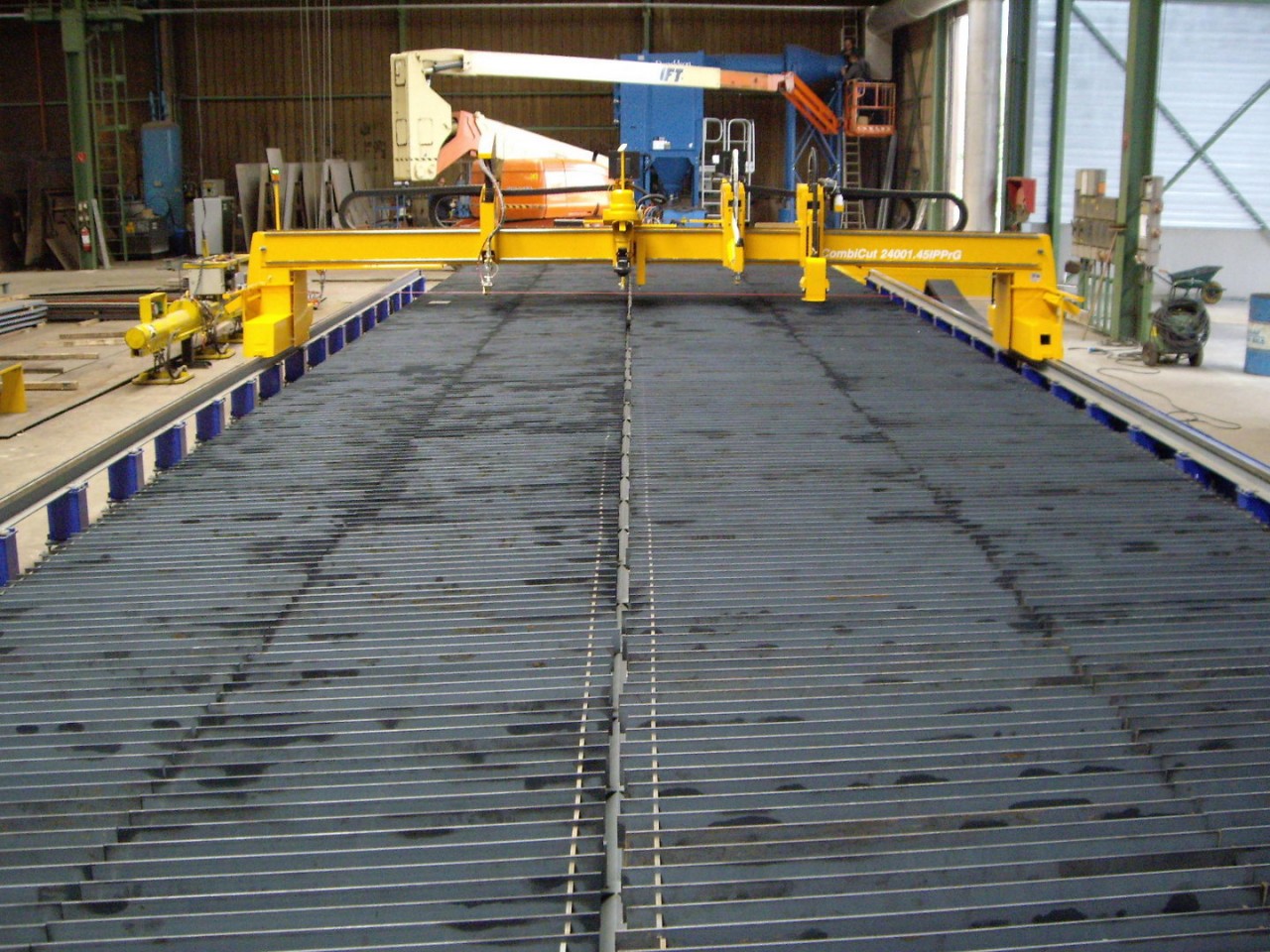

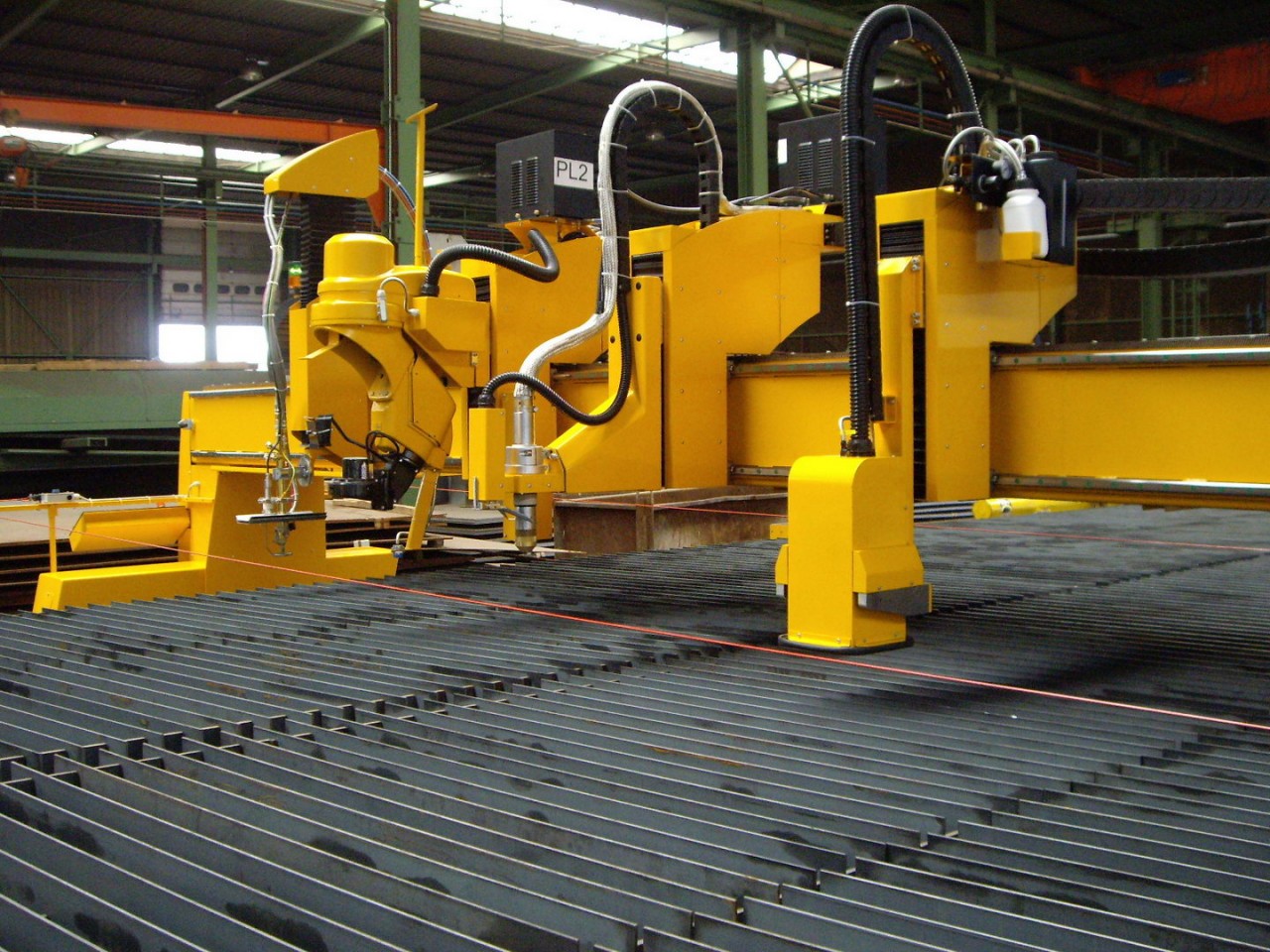

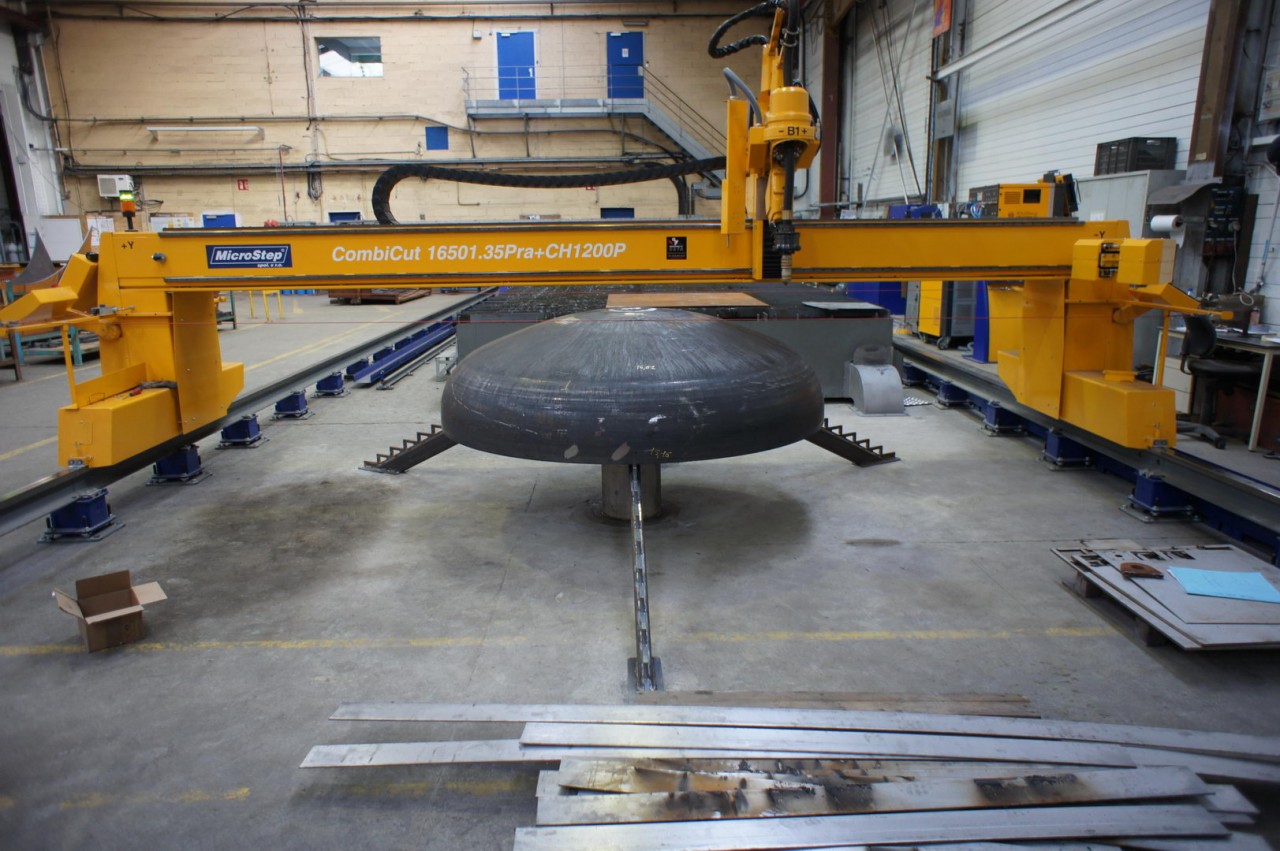

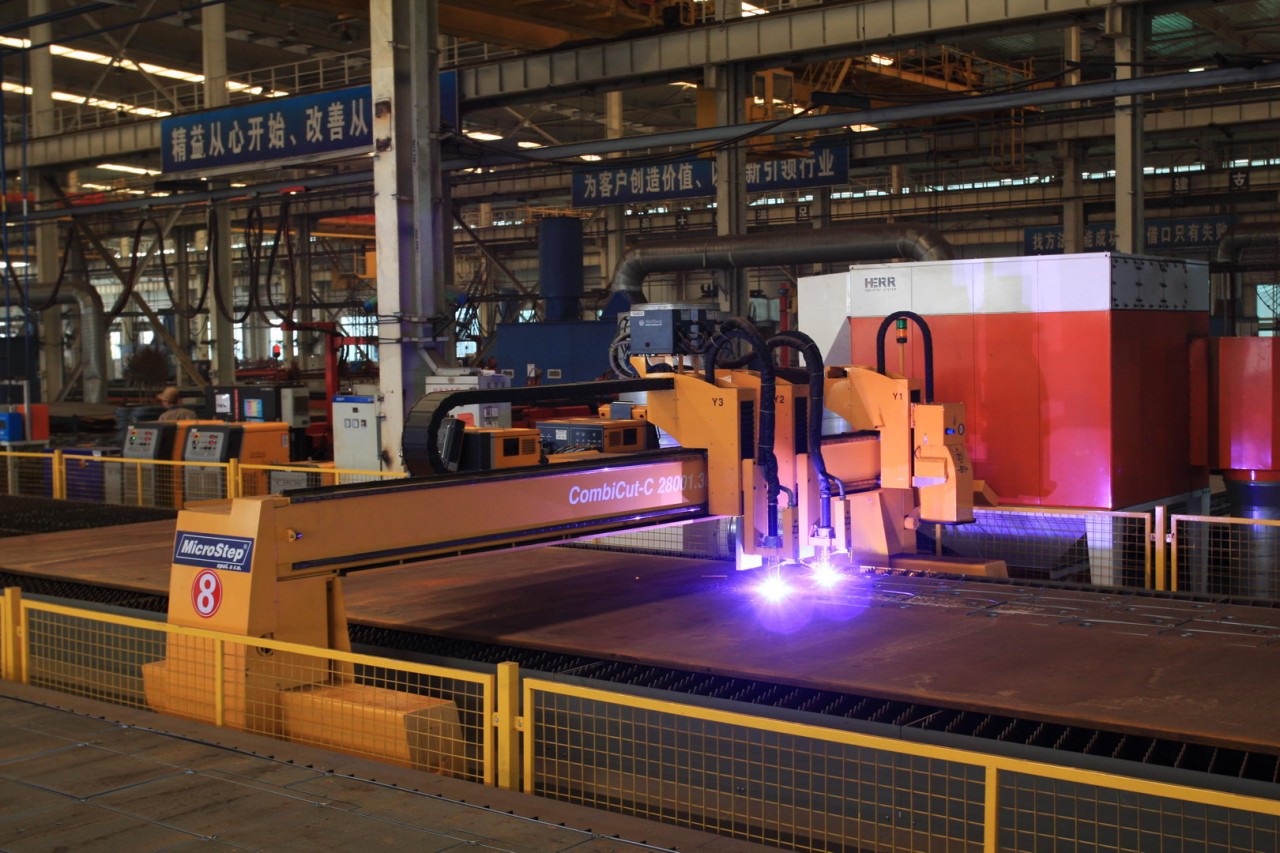

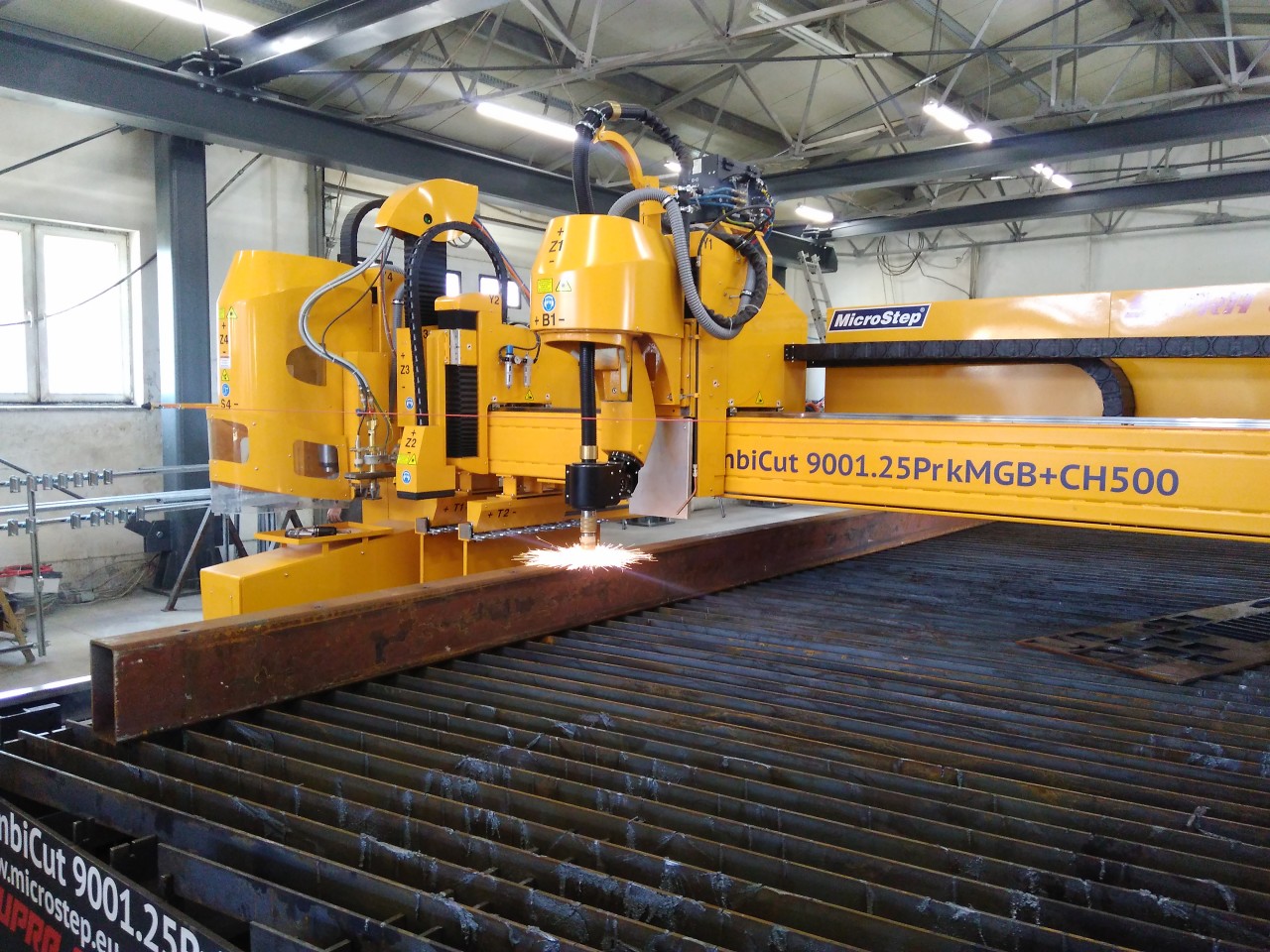

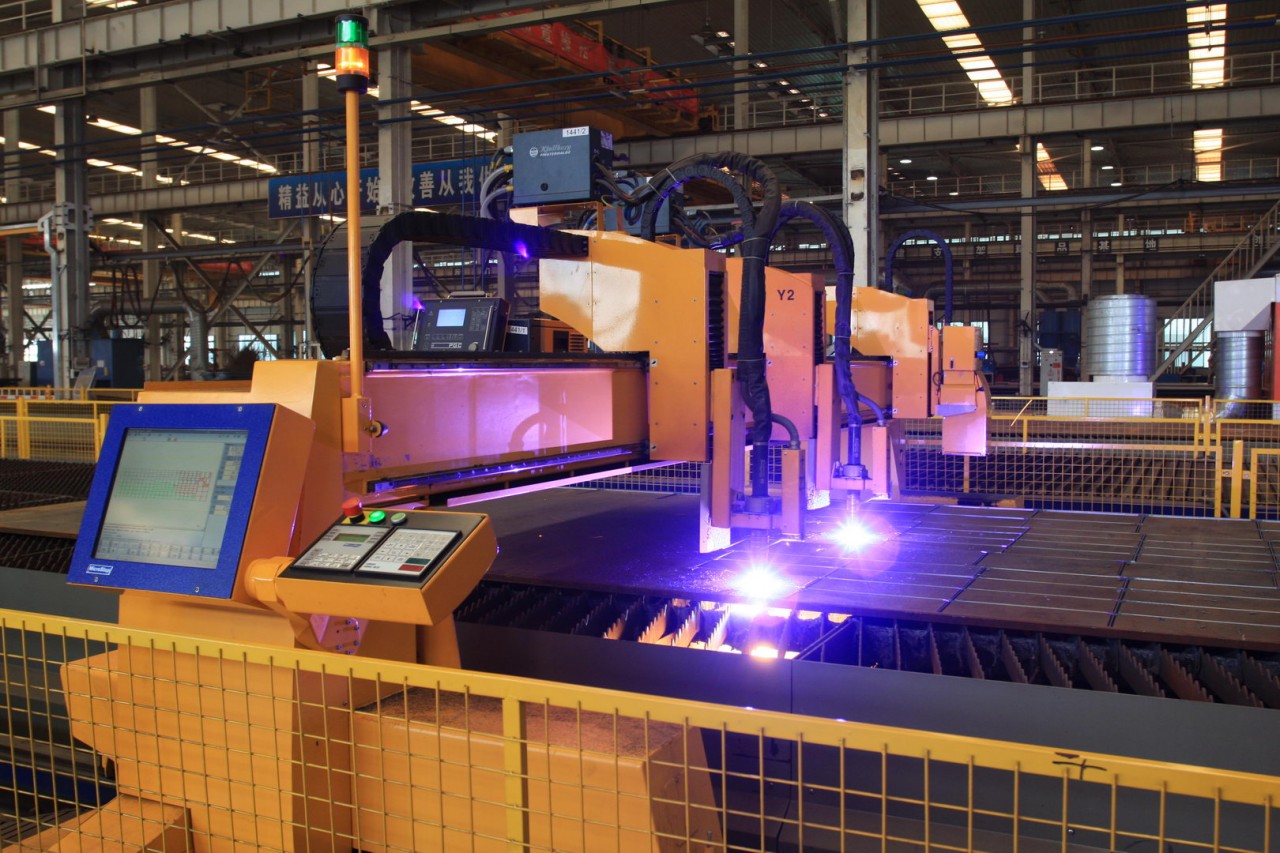

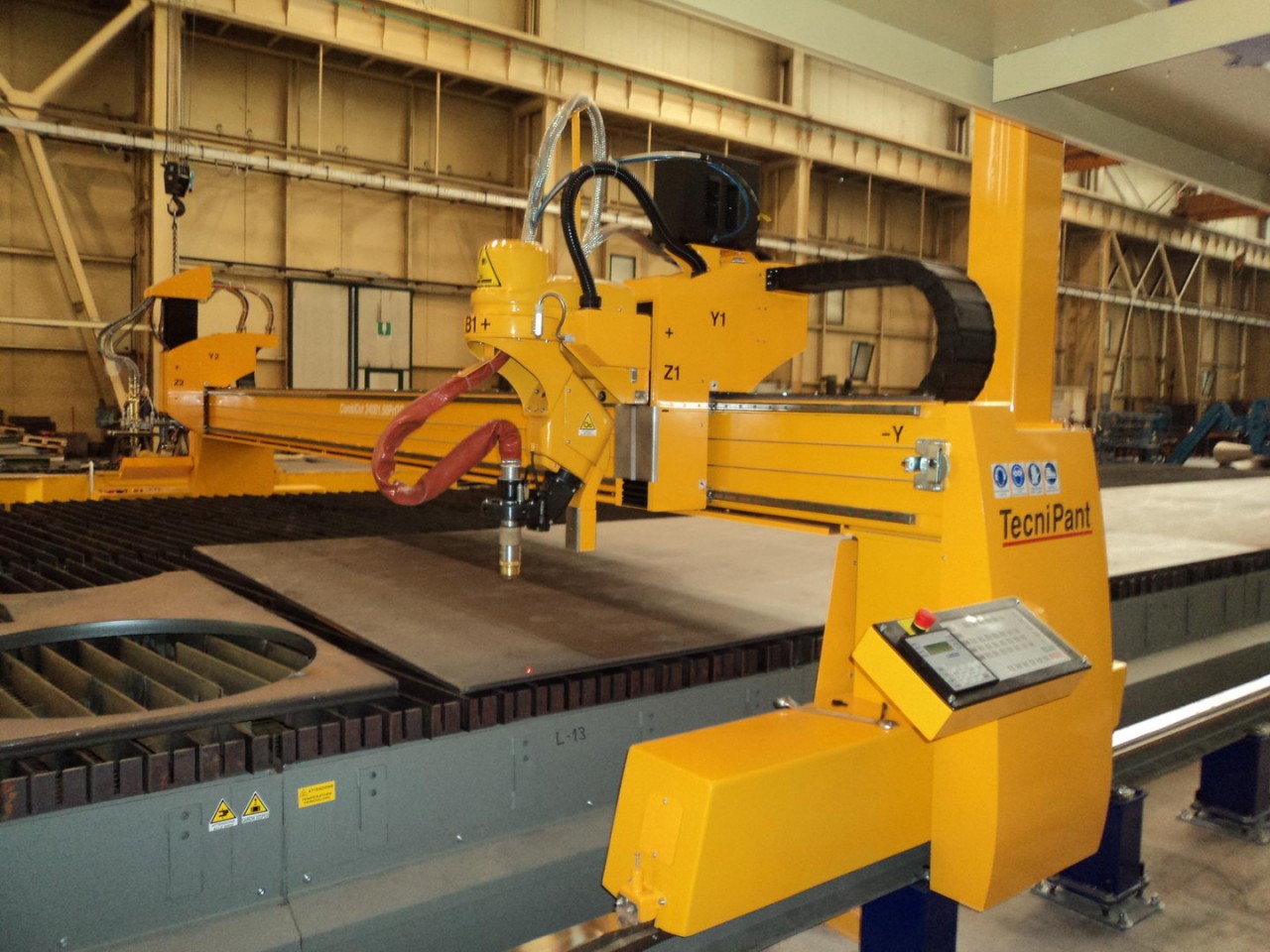

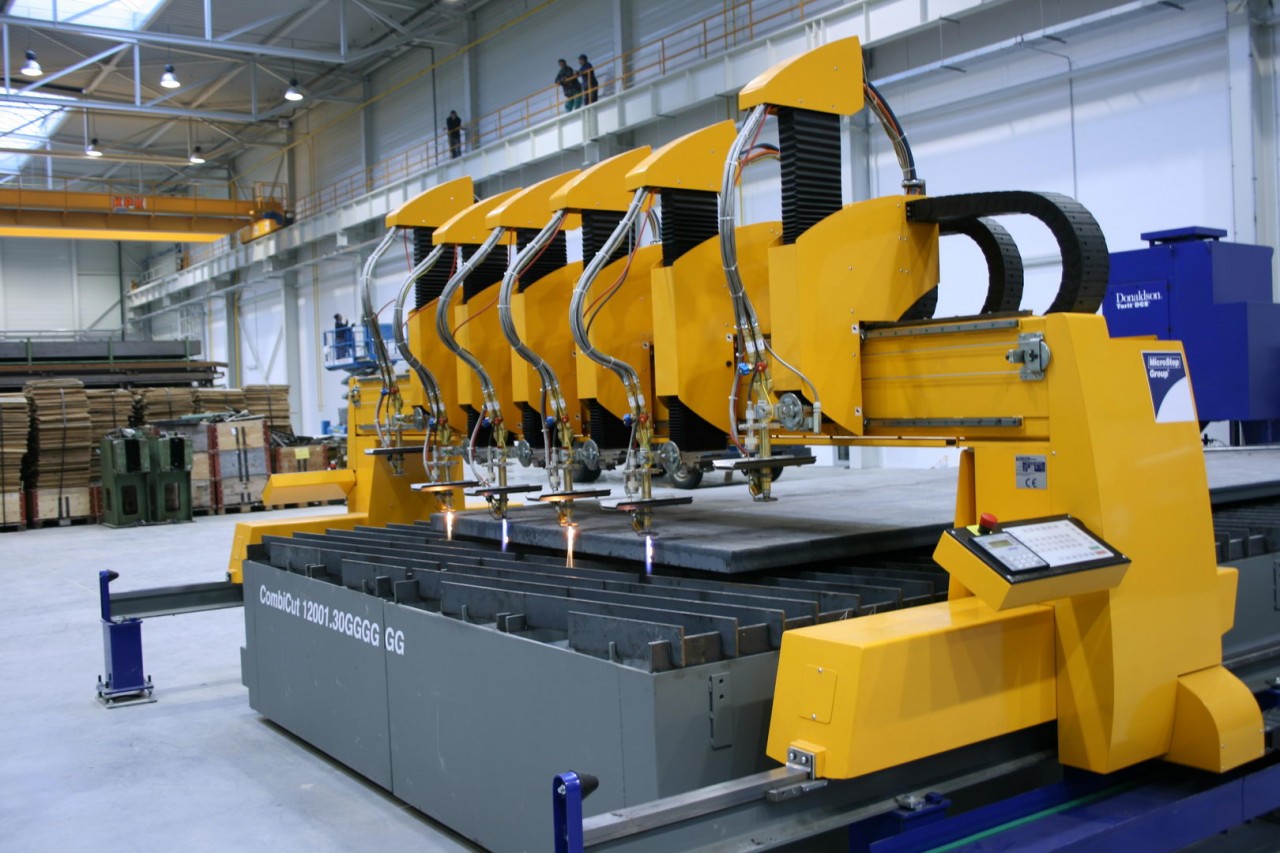

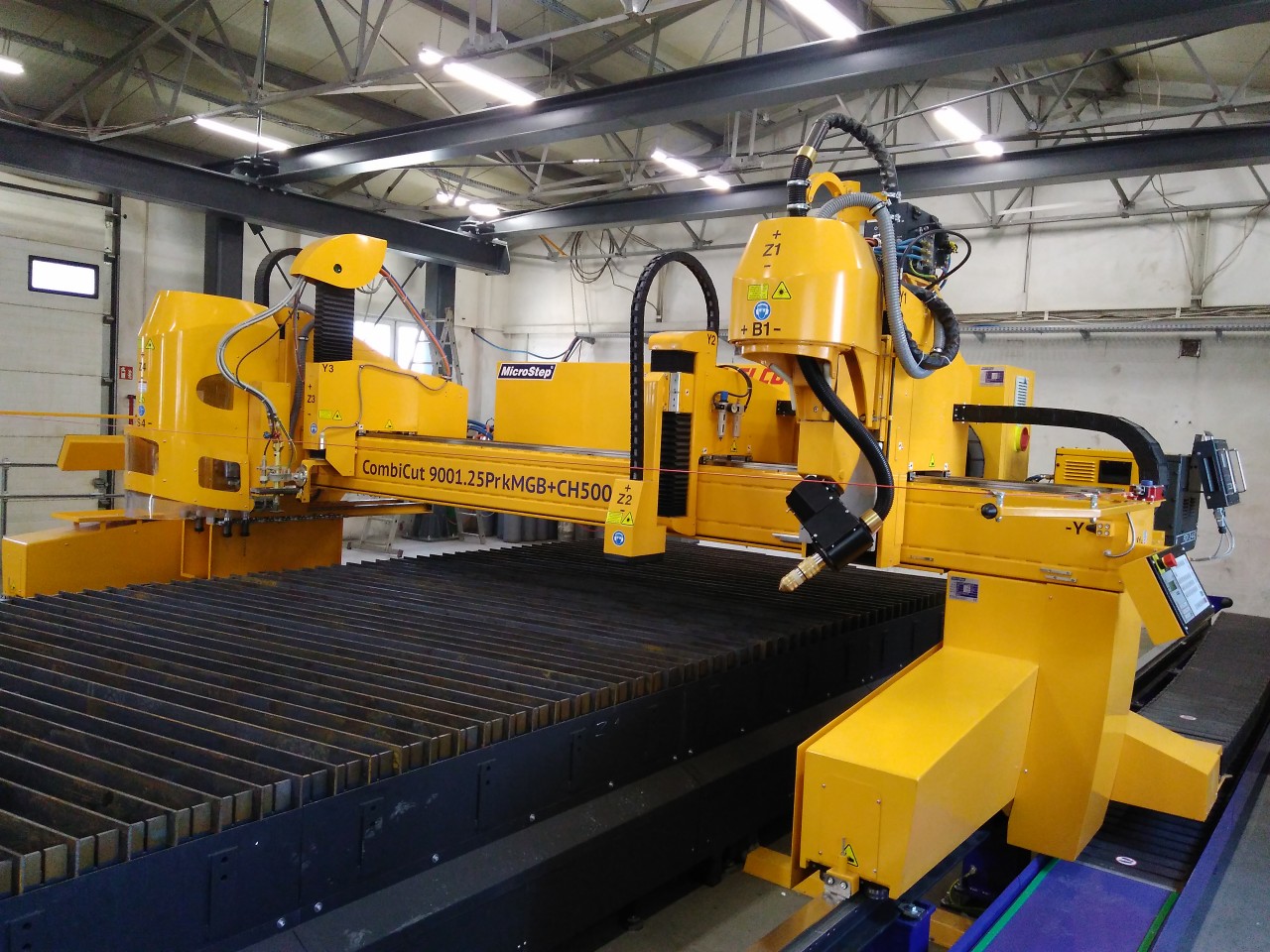

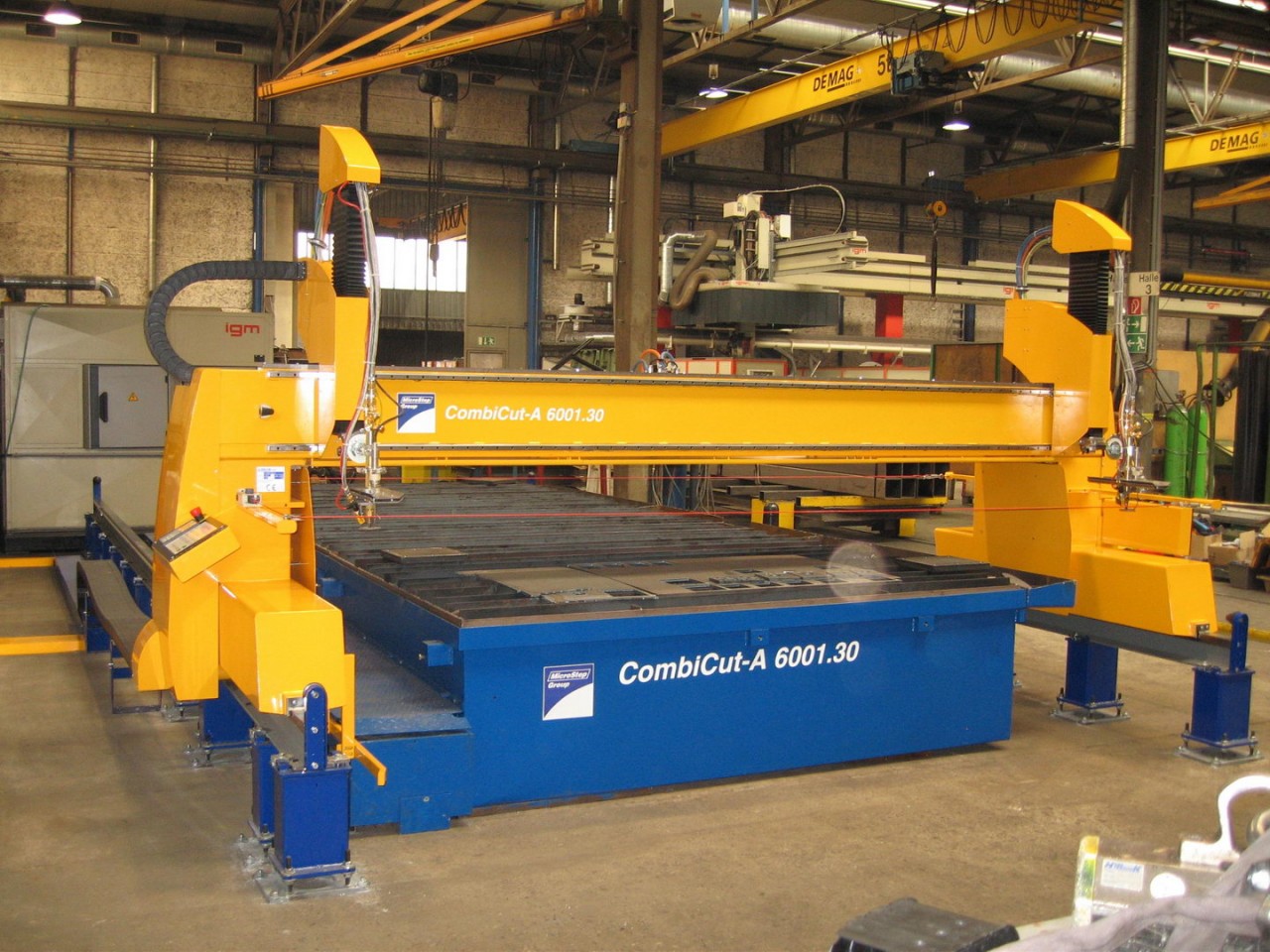

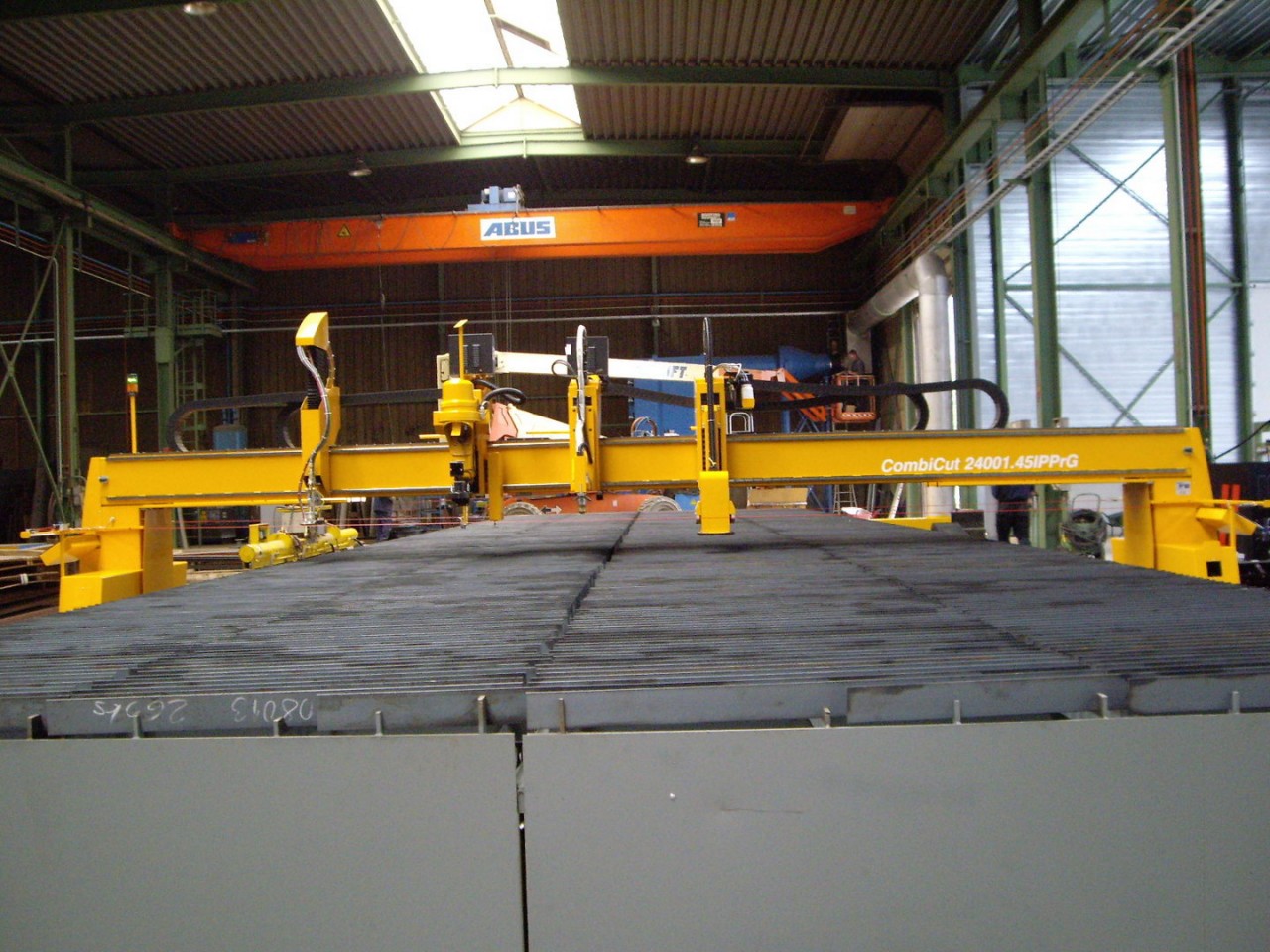

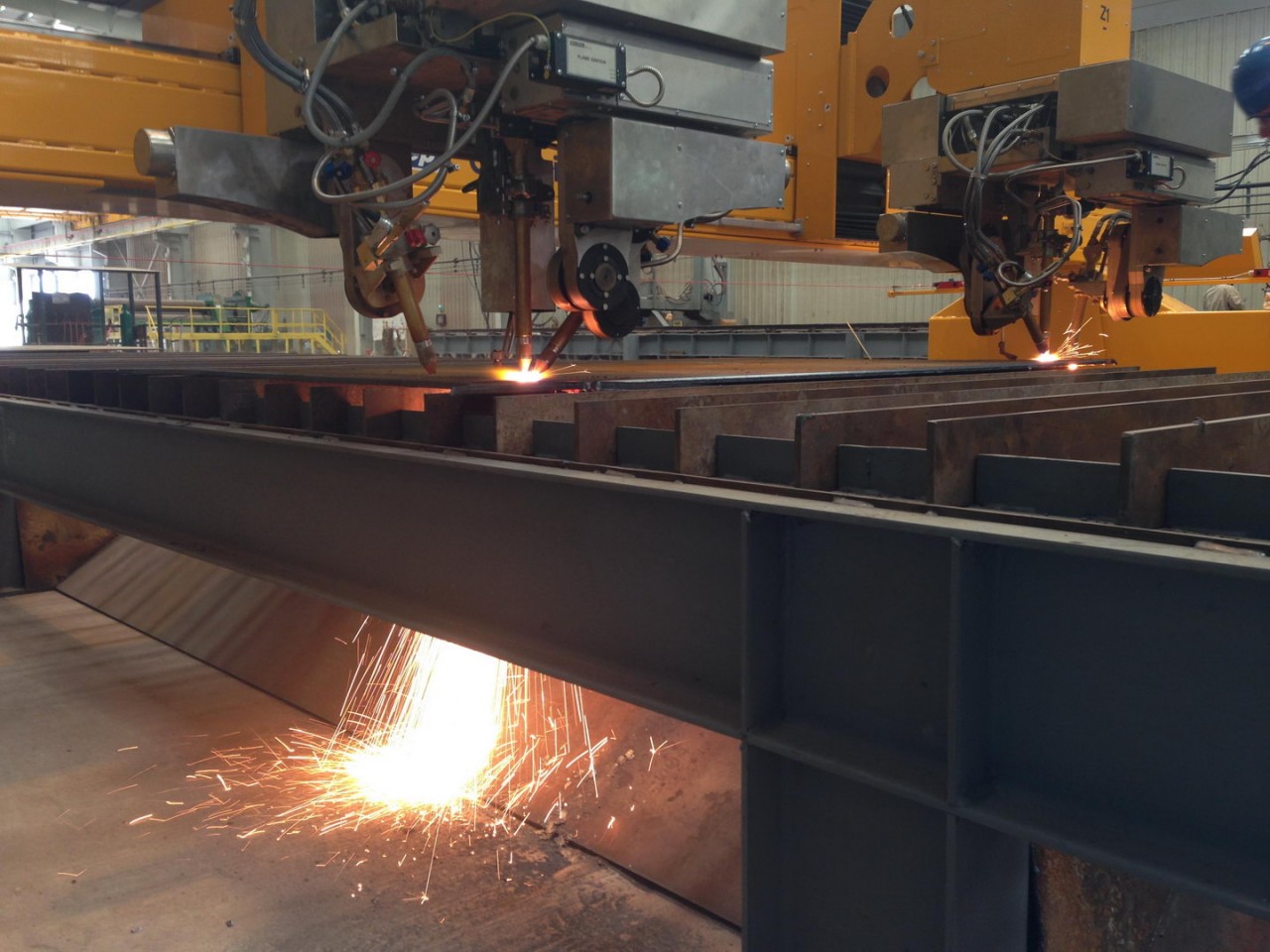

This robust and high-precision CNC machine is designed especially for multiple-shift high-performance plasma and oxyfuel cutting. It allows cutting of steel up to 300 mm, bevel cutting with a pair of rotary oxyfuel triple torches or plasma rotators, simultaneous cutting with more than 10 torches, drilling up to Ø 40 mm, inkjet or micropercussion marking, pipe and dome processing.

Technical parameters

Working length 1500 – 50000 mm

Working width 1500 – 8000 mm

Max. number of tool stations 6 (8 oxyfuel)

Max. thickness of material cut by plasma according to a plasma source

Max. thickness of material cut by oxyfuel 300 mm

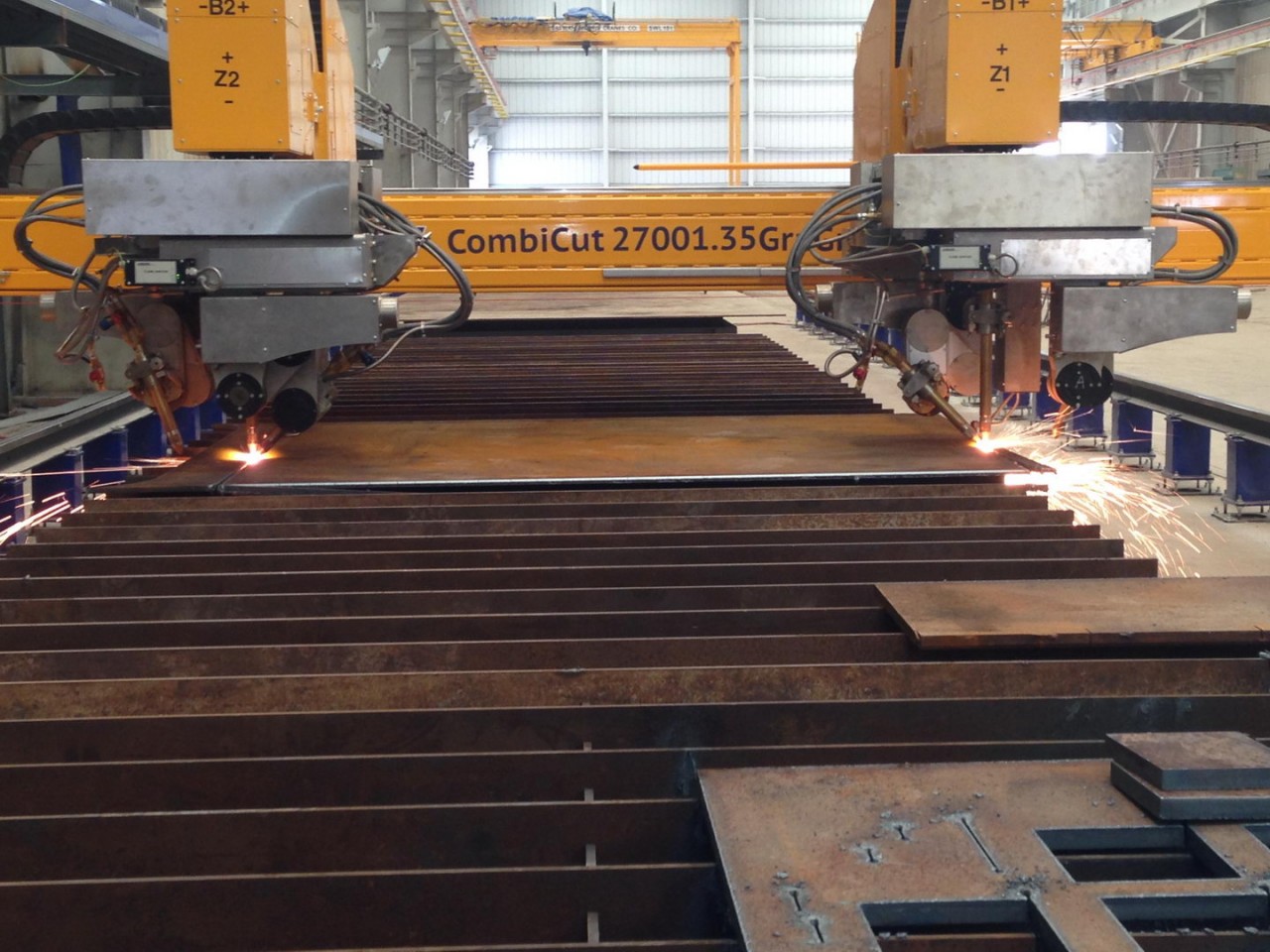

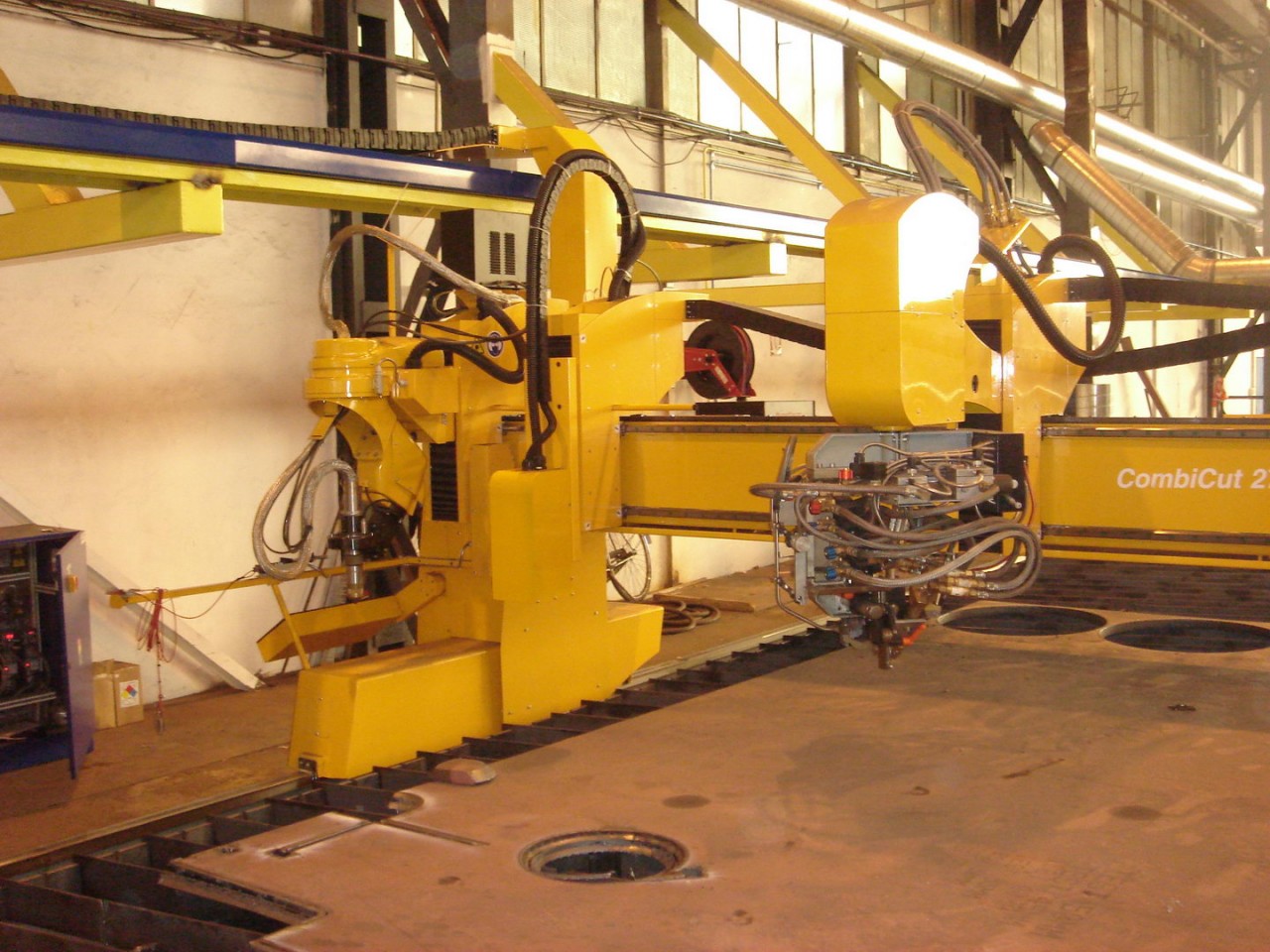

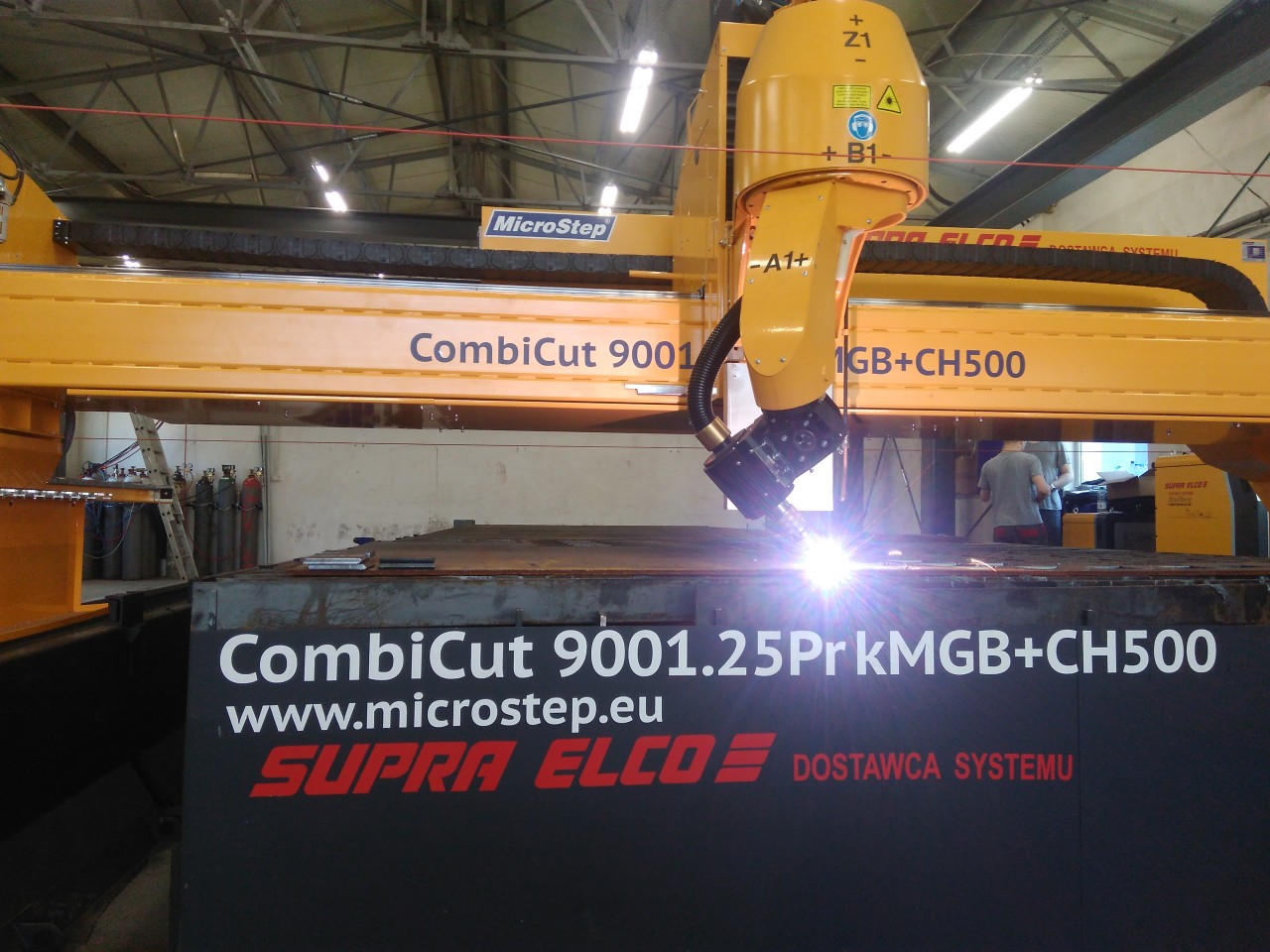

Bevel cutting yes (see accessories)

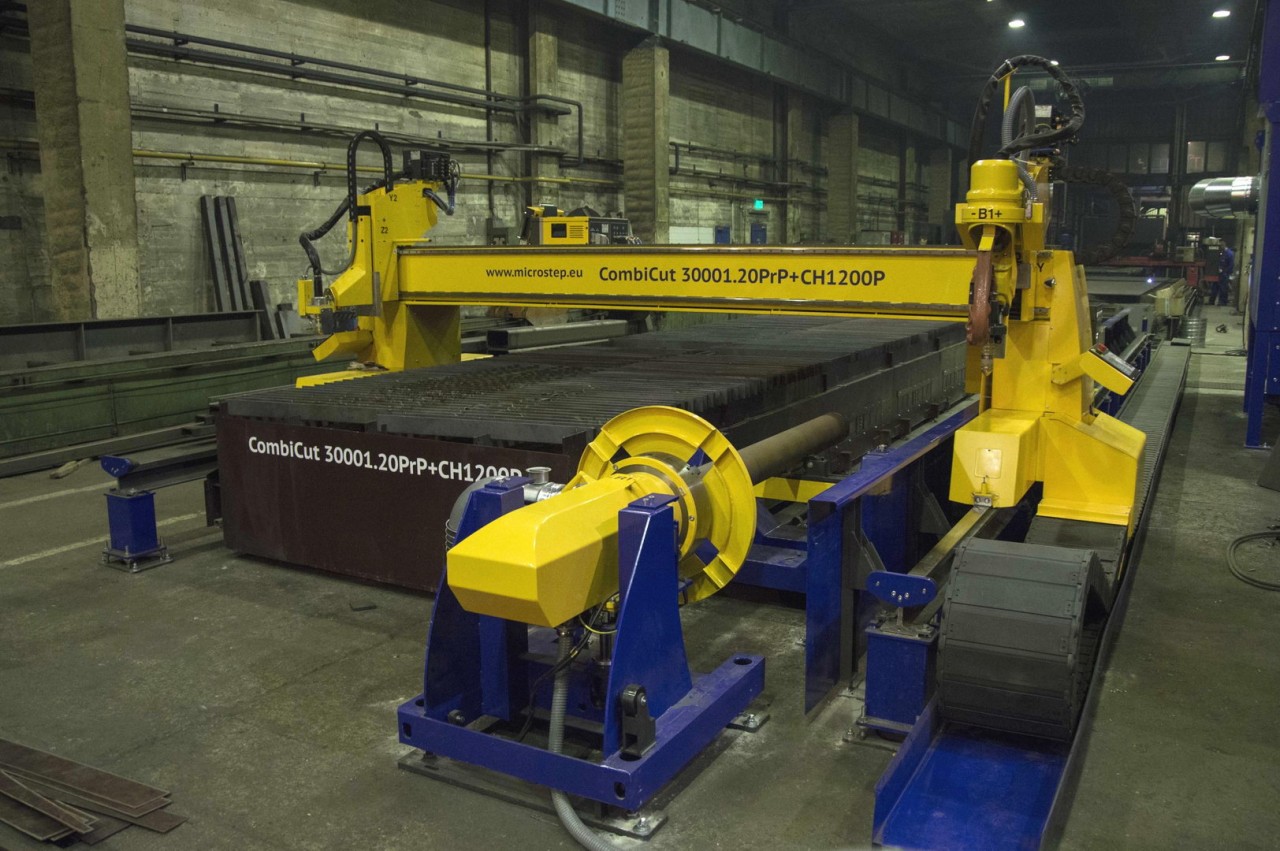

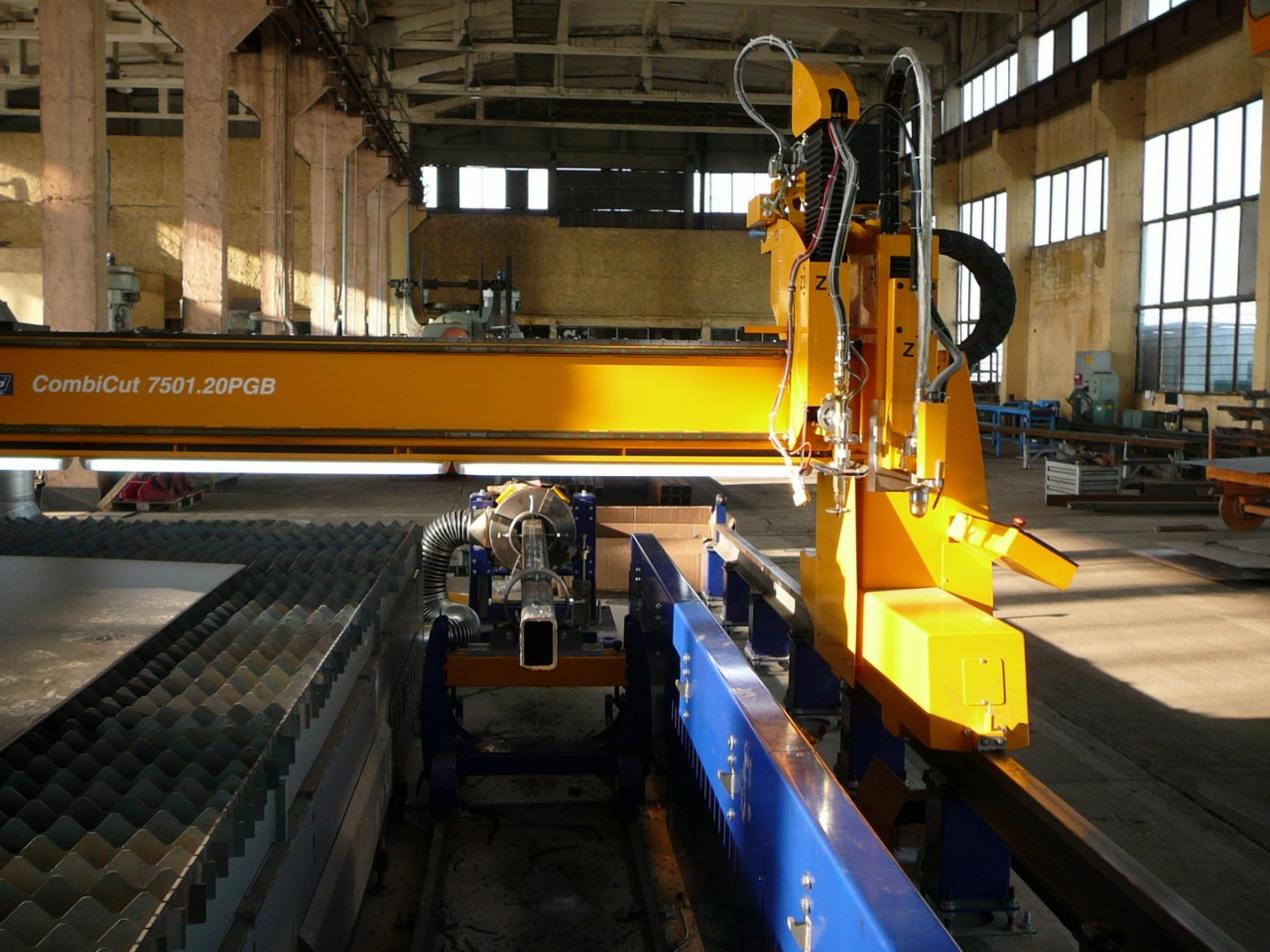

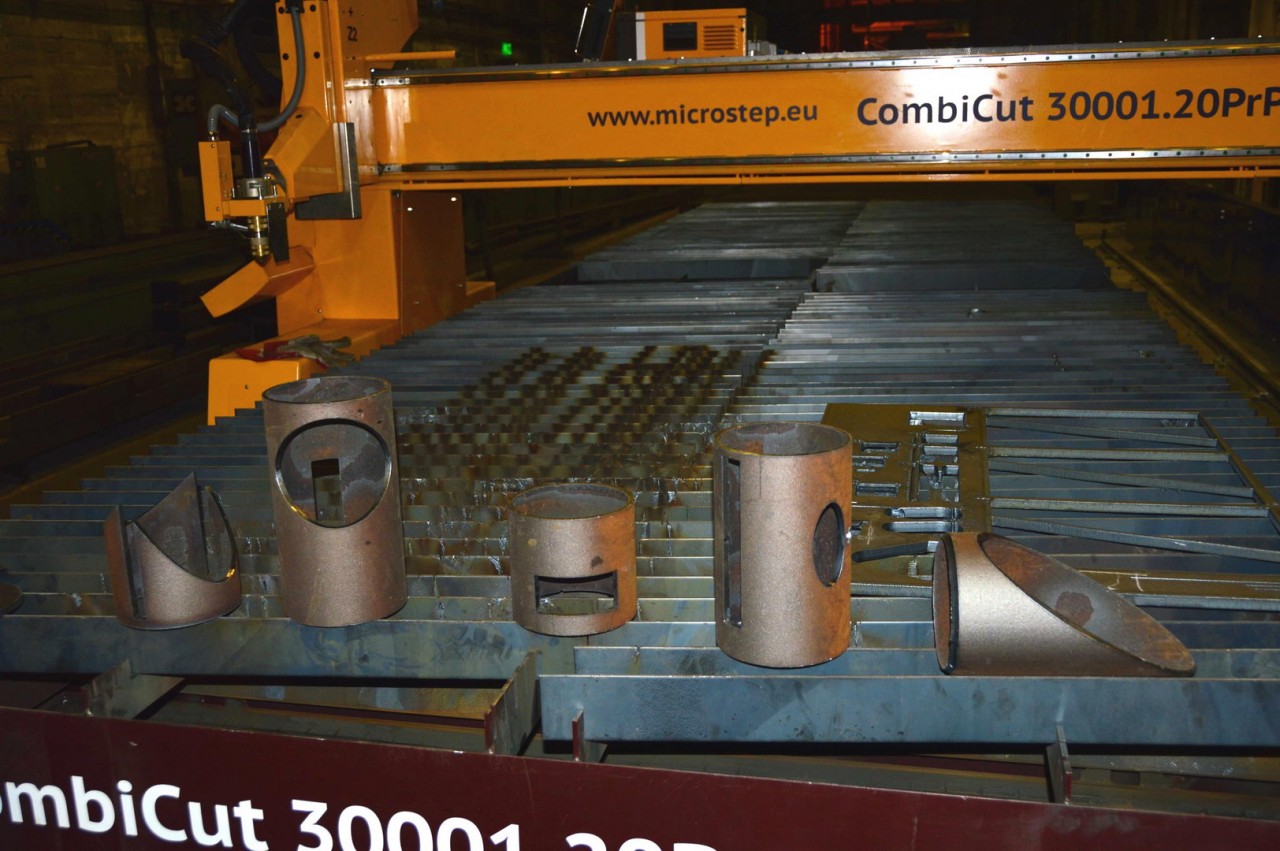

Pipe cutting Ø 30 - 1500 mm, max 12 t

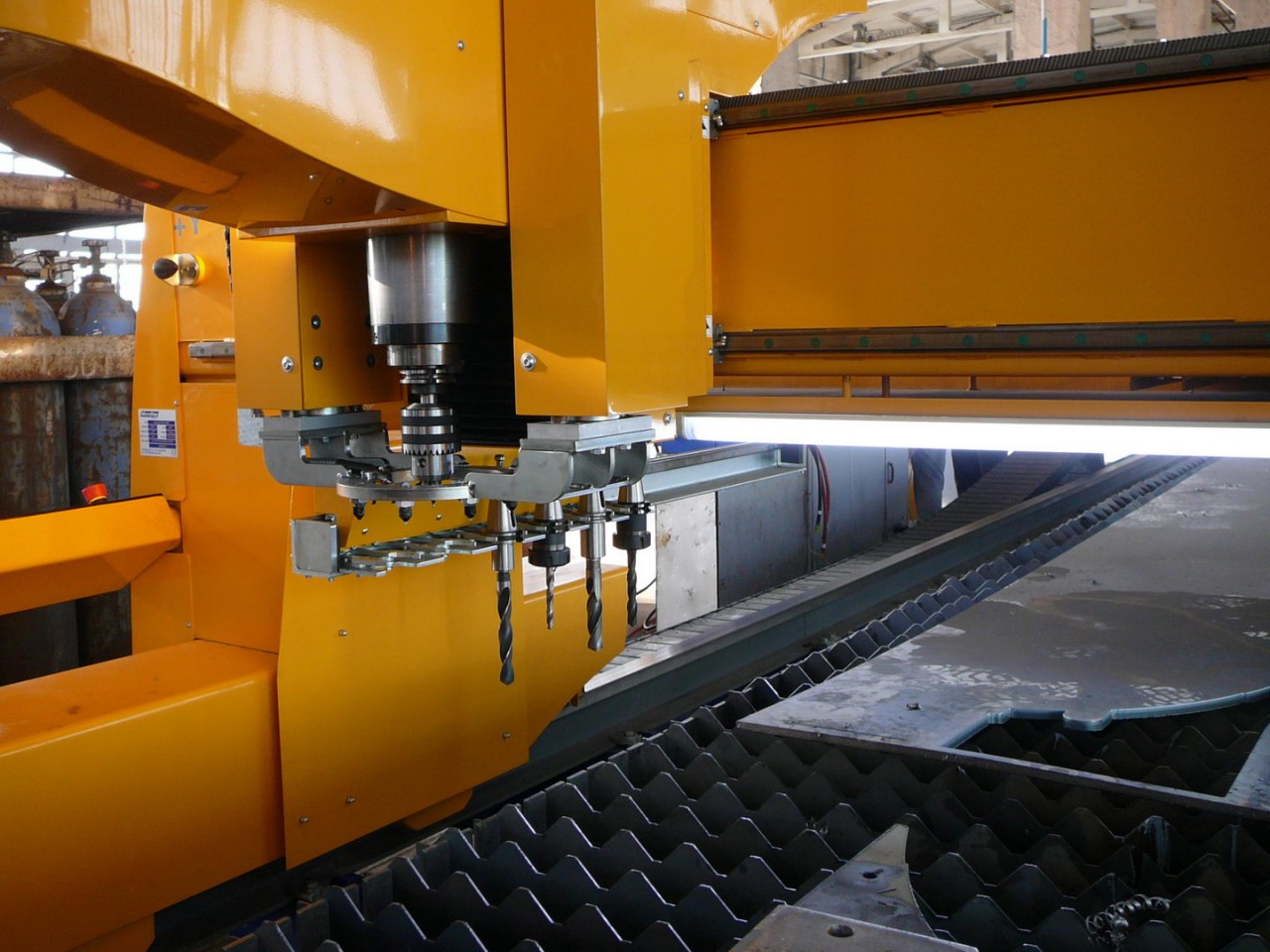

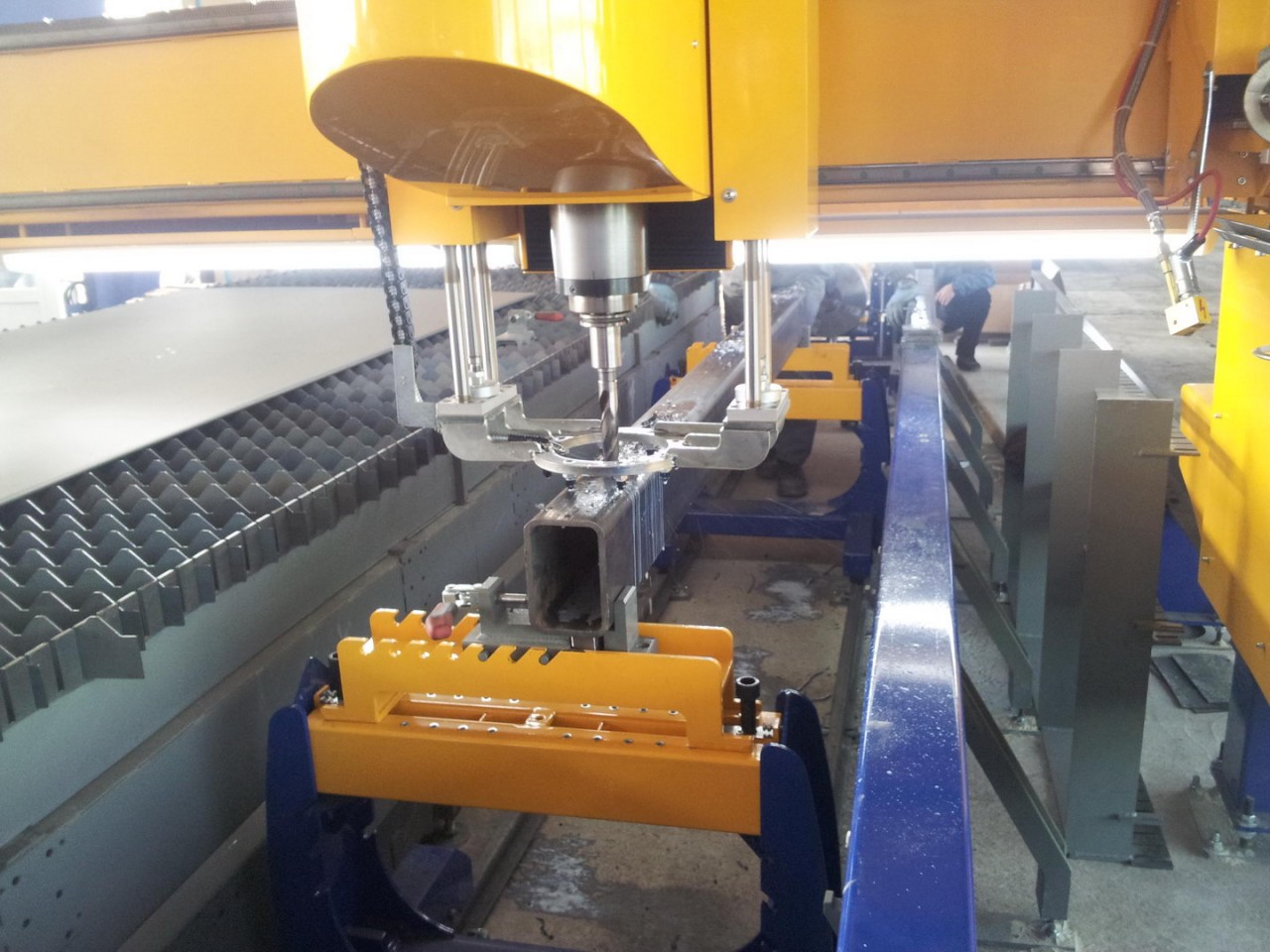

Drilling and tapping Ø 4 - 40 mm, M4 - M33, automatic tool exchange

Positioning speed max 50 m/min

Bidirectional repeatability 0.05 mm/m
Please note: The table above shows typical parameters. If you
