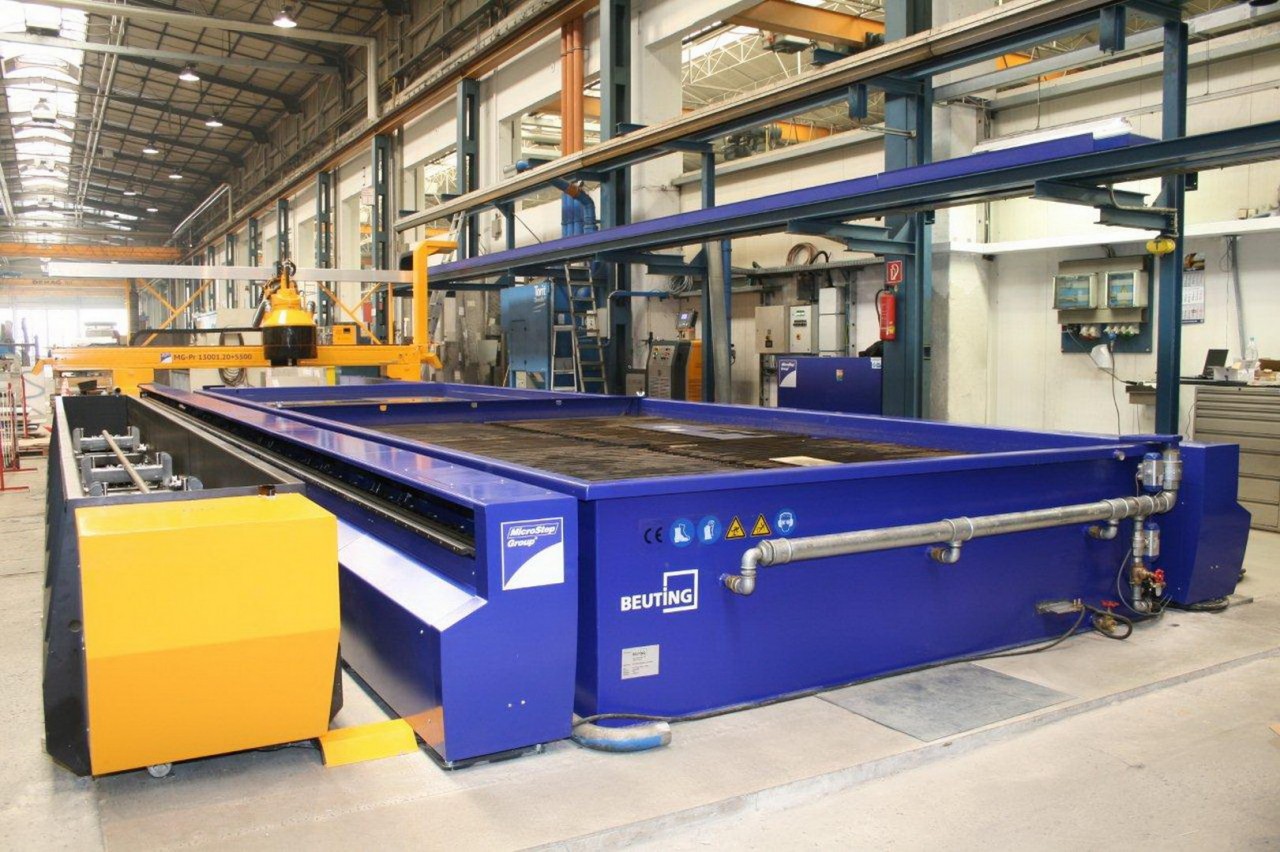

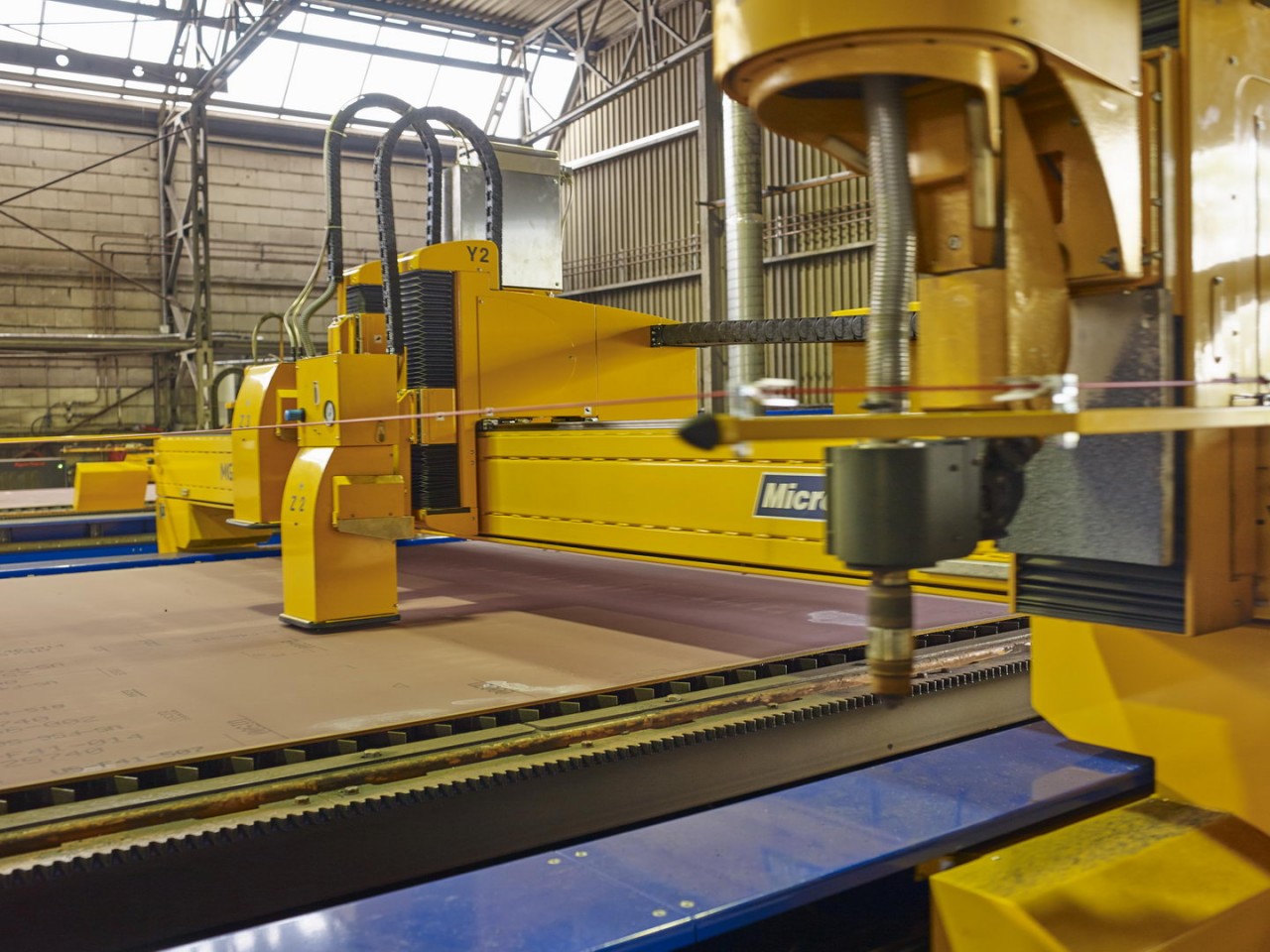

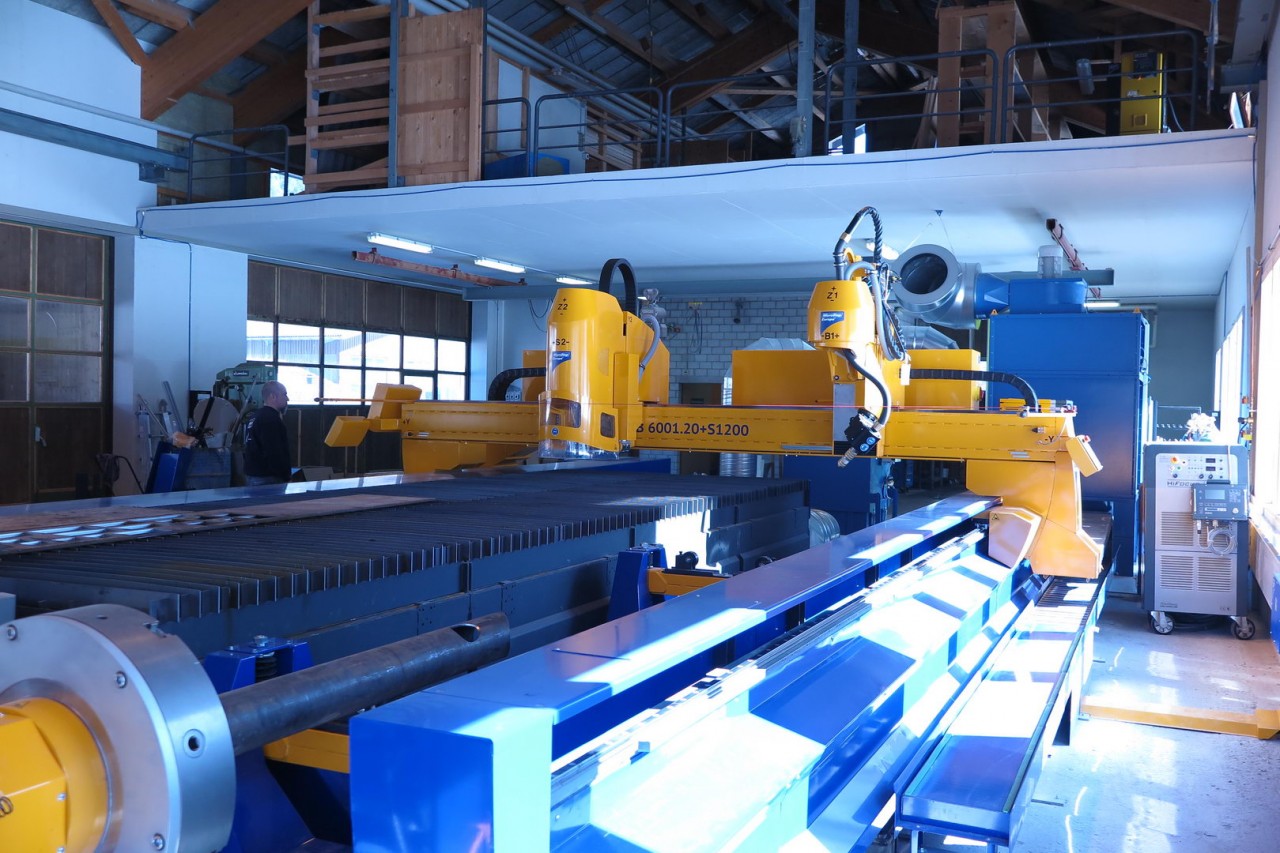

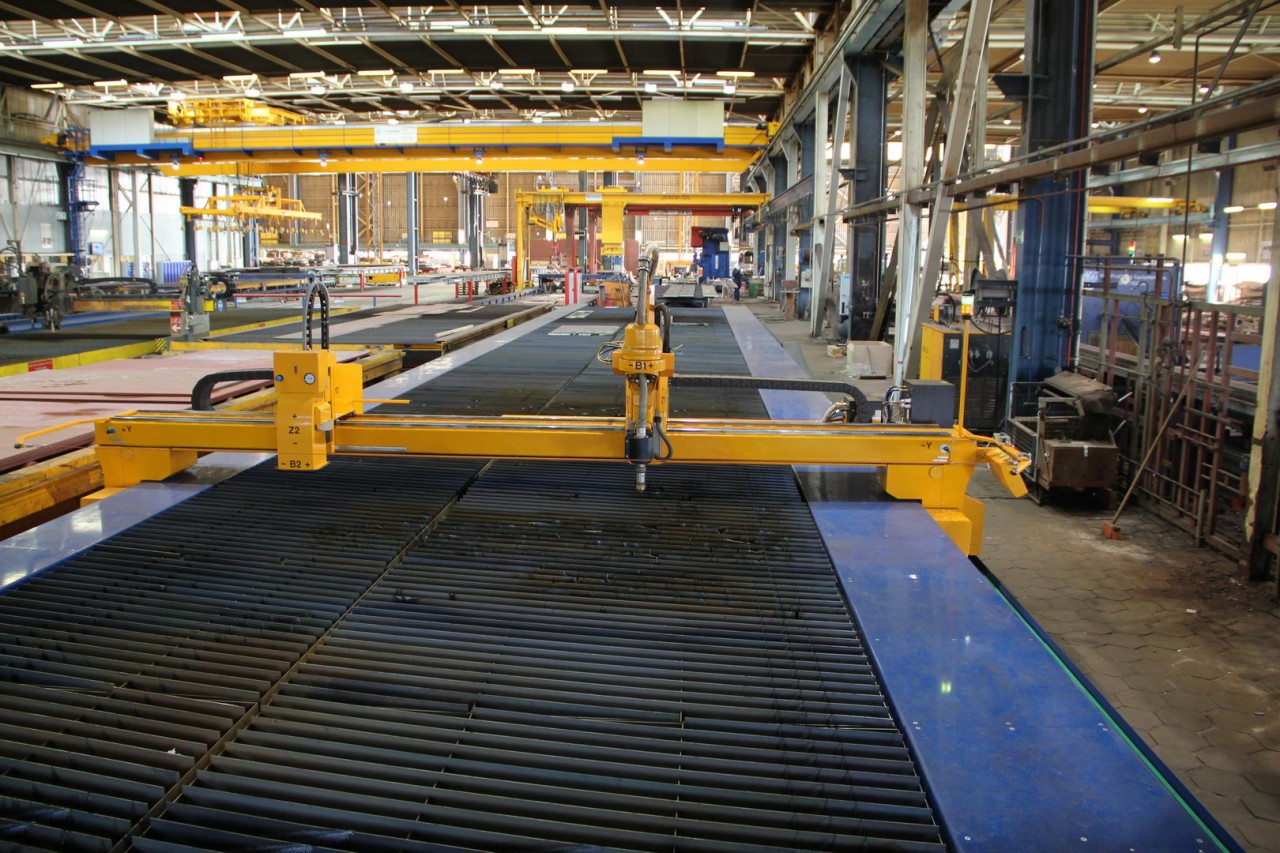

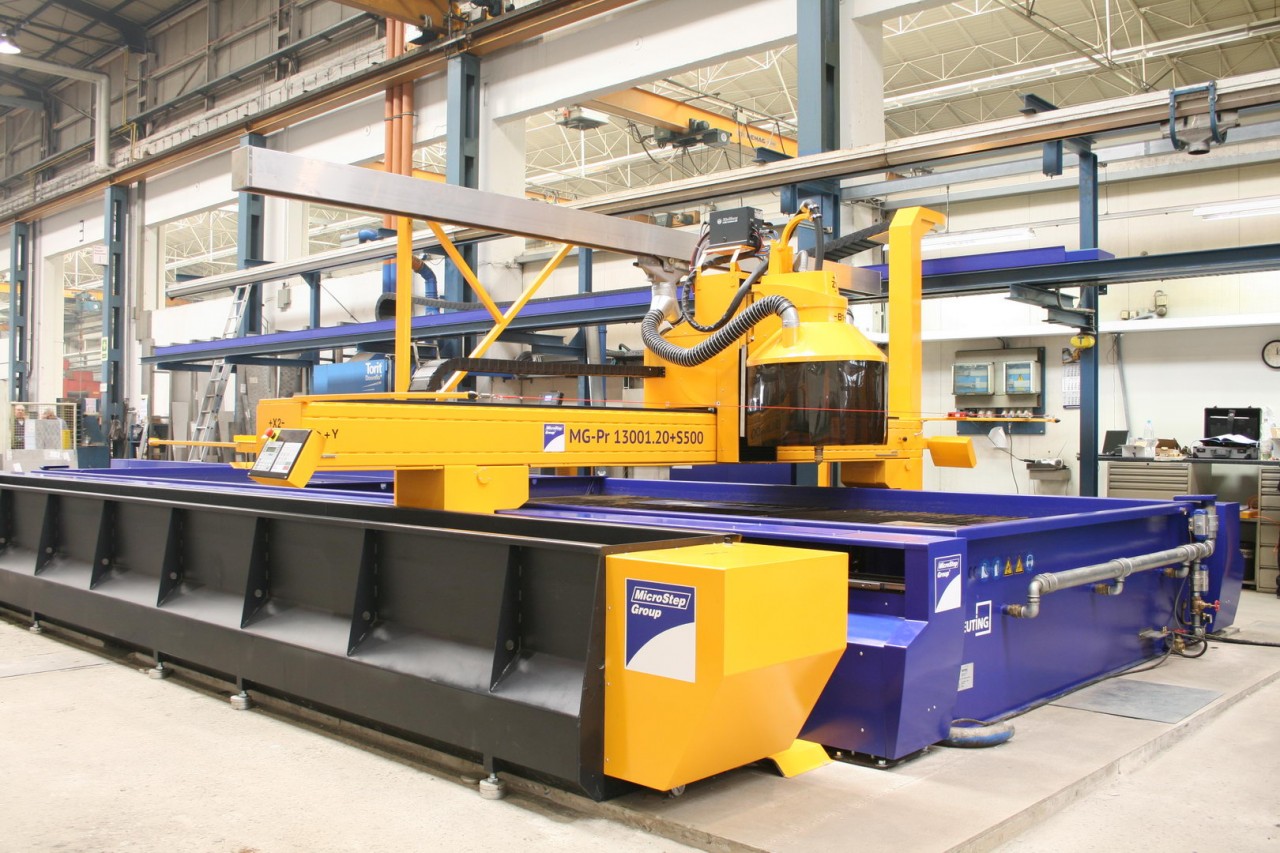

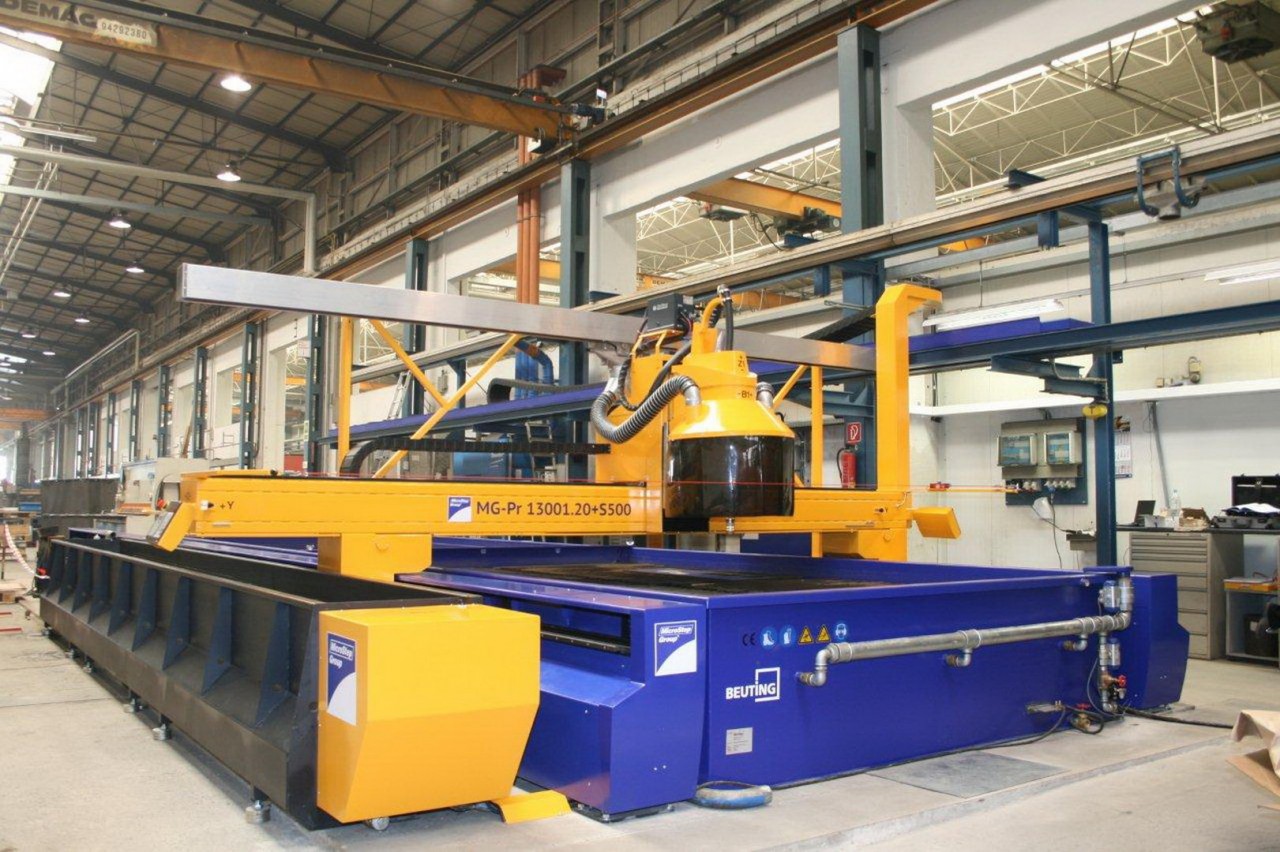

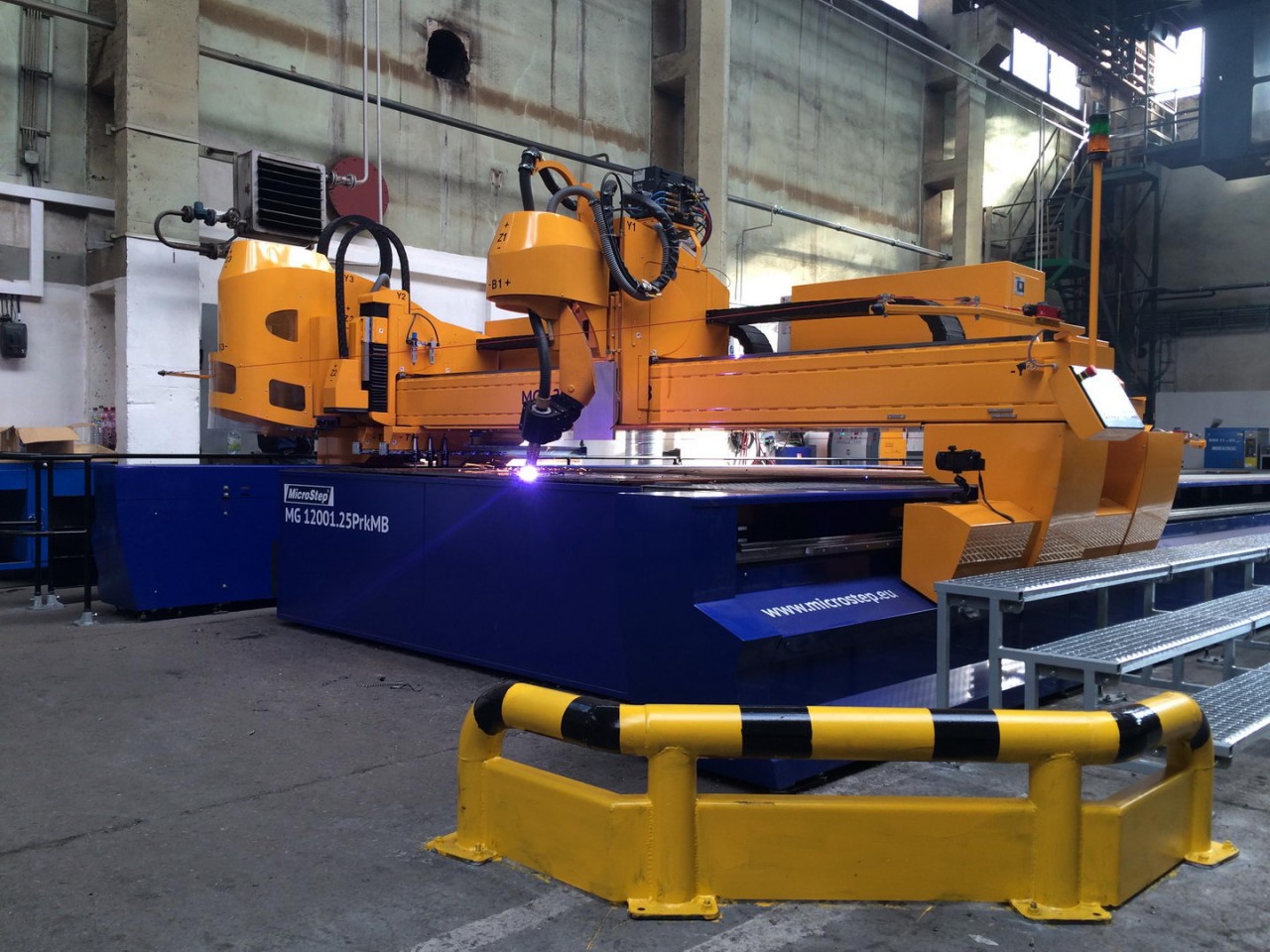

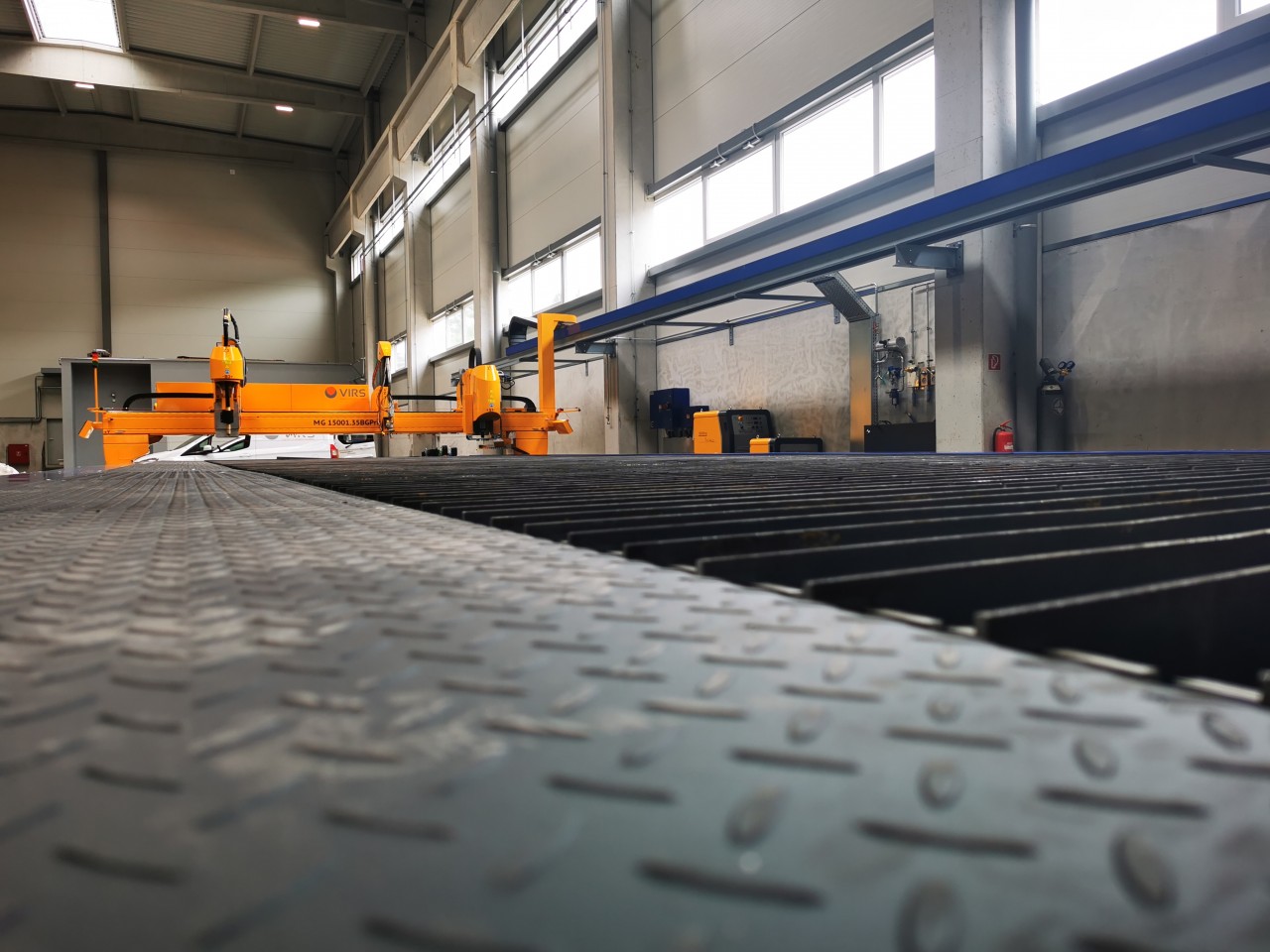

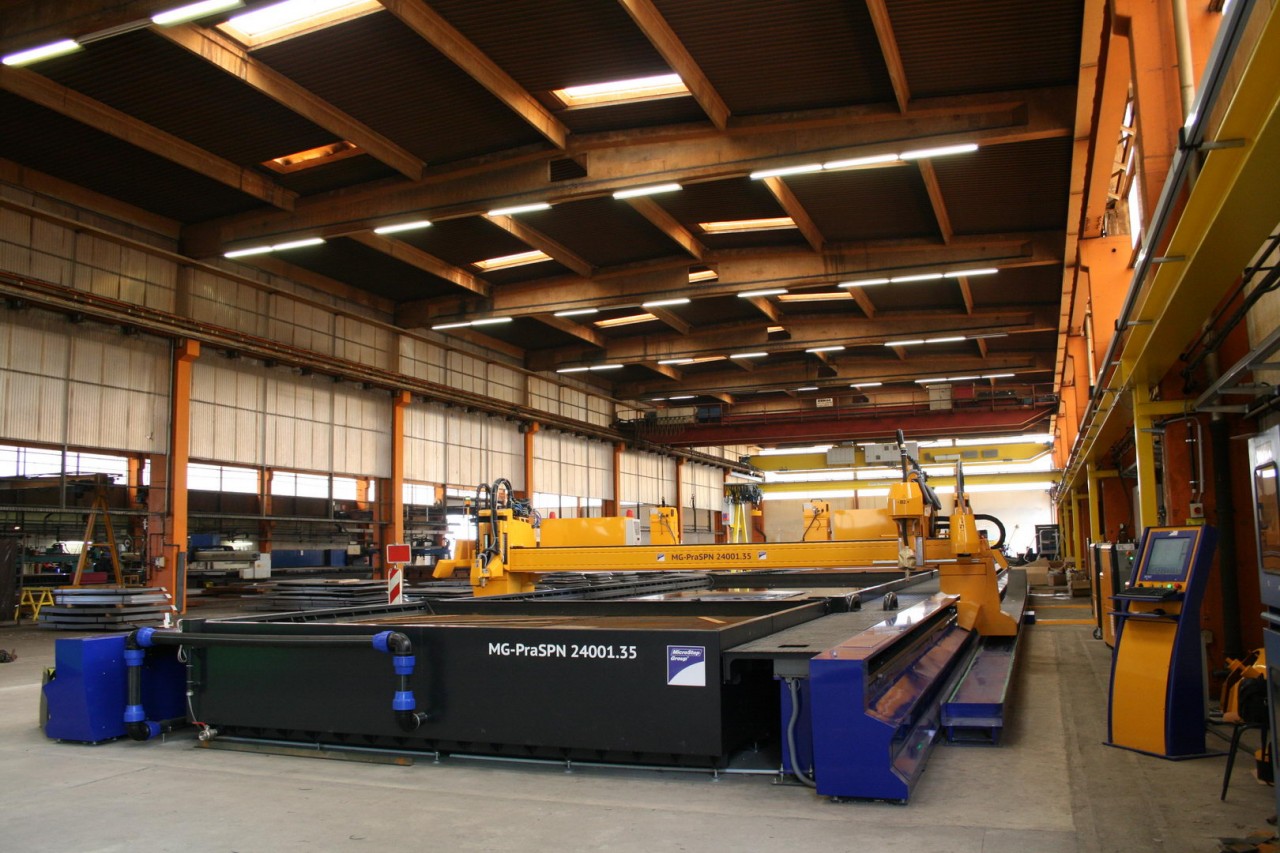

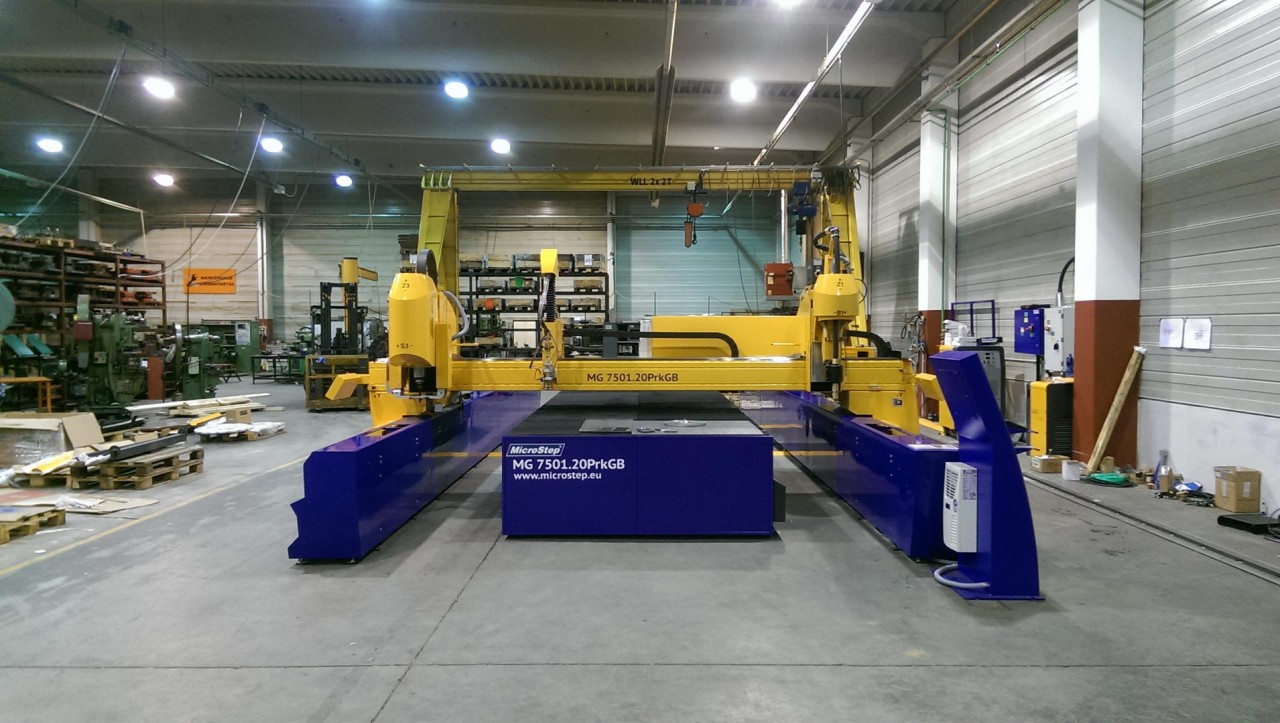

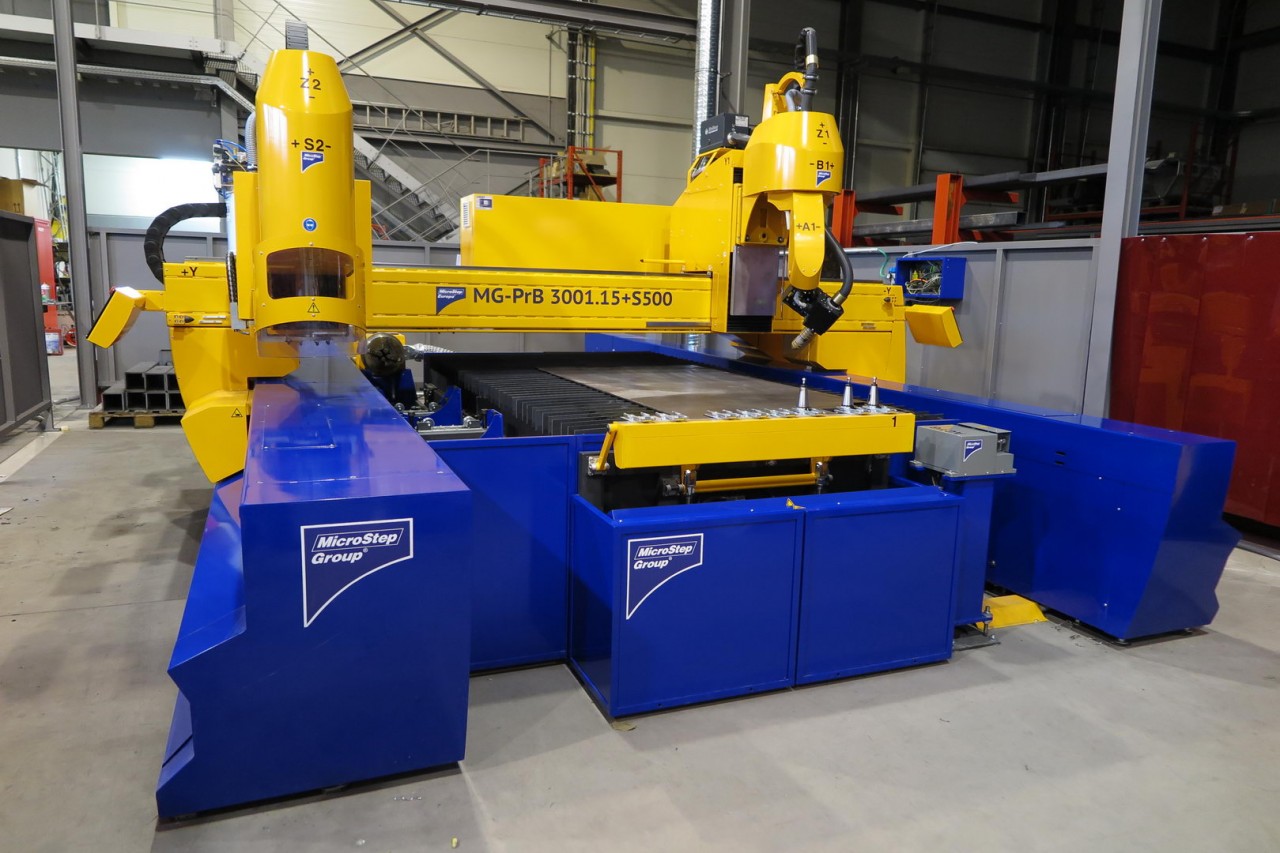

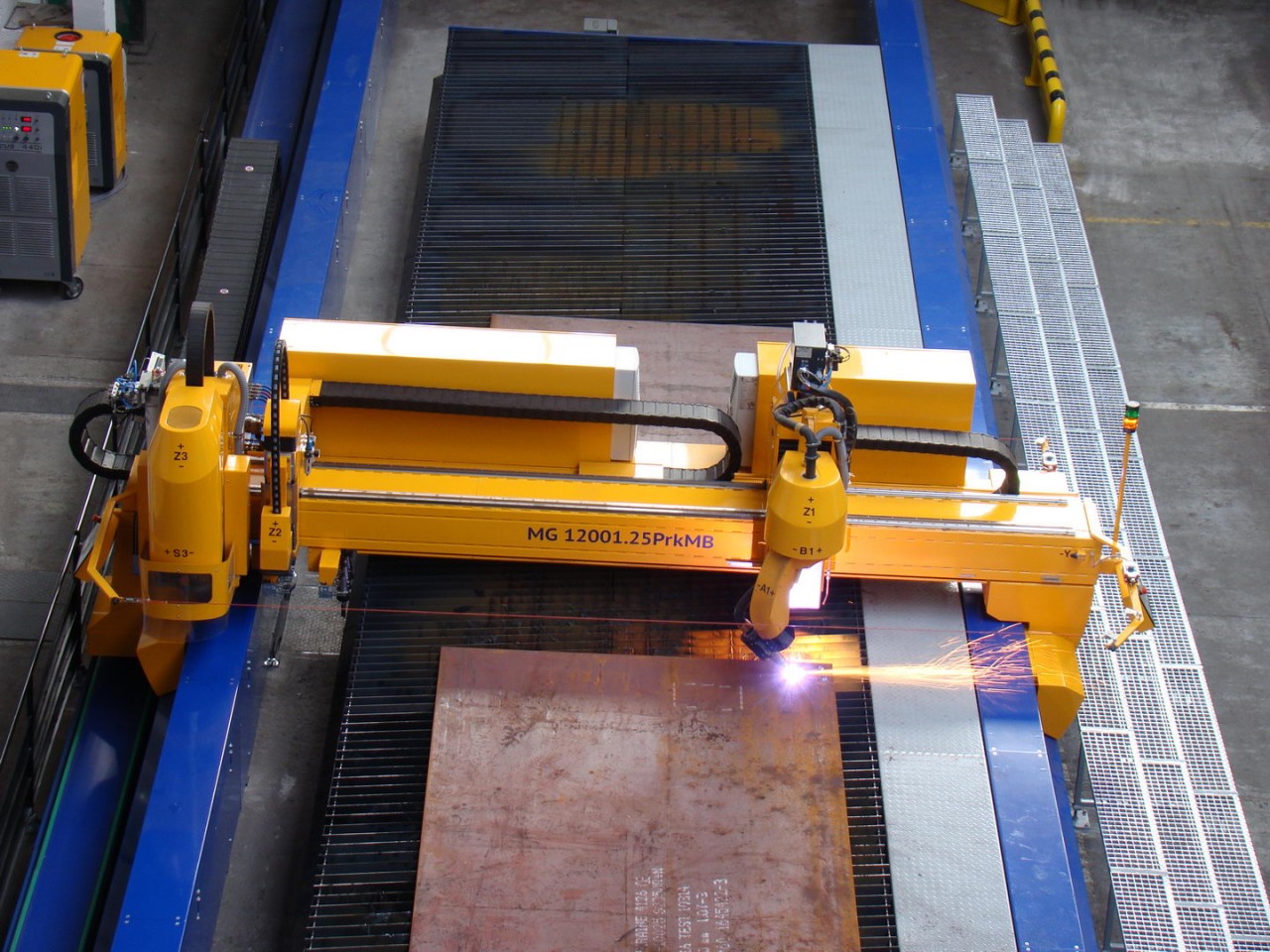

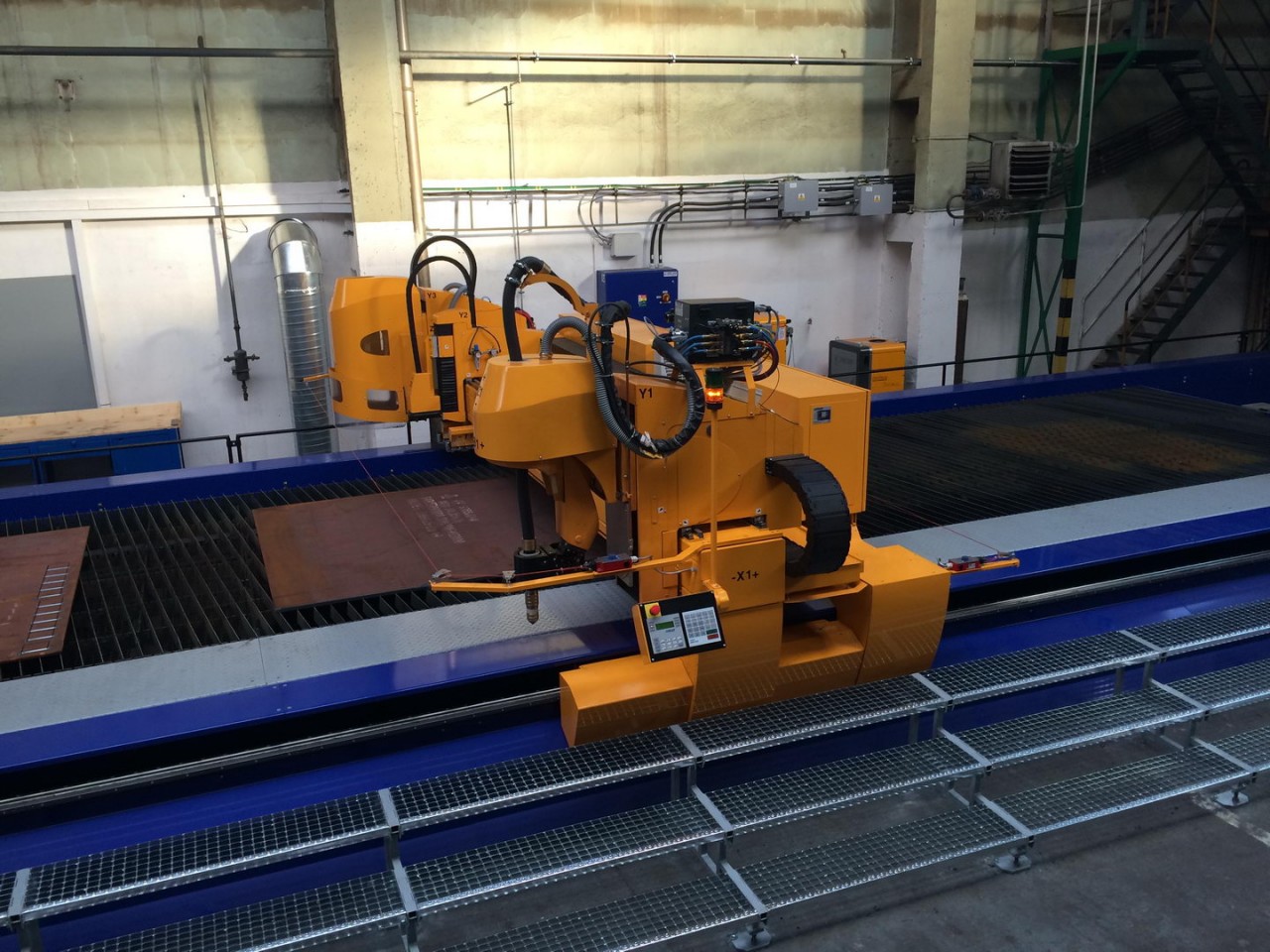

MG

Multi-purpose cutting machine allowing to integrate wide palette of additional accessories.

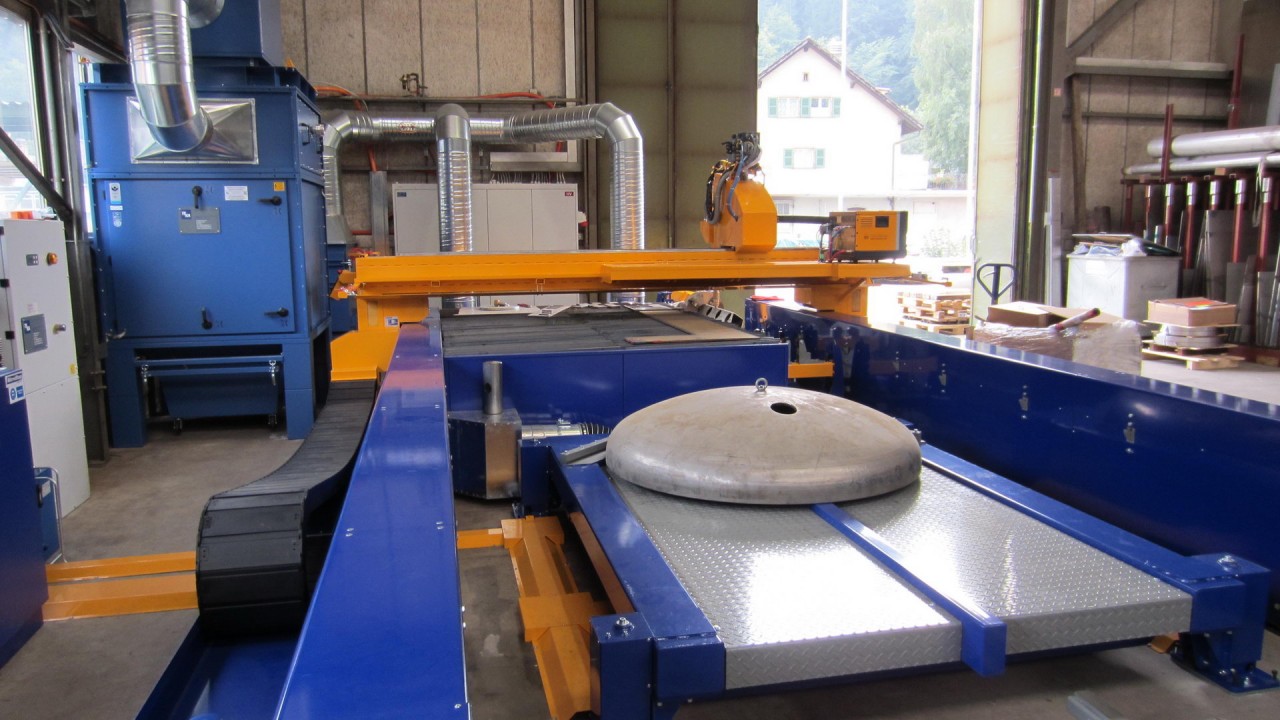

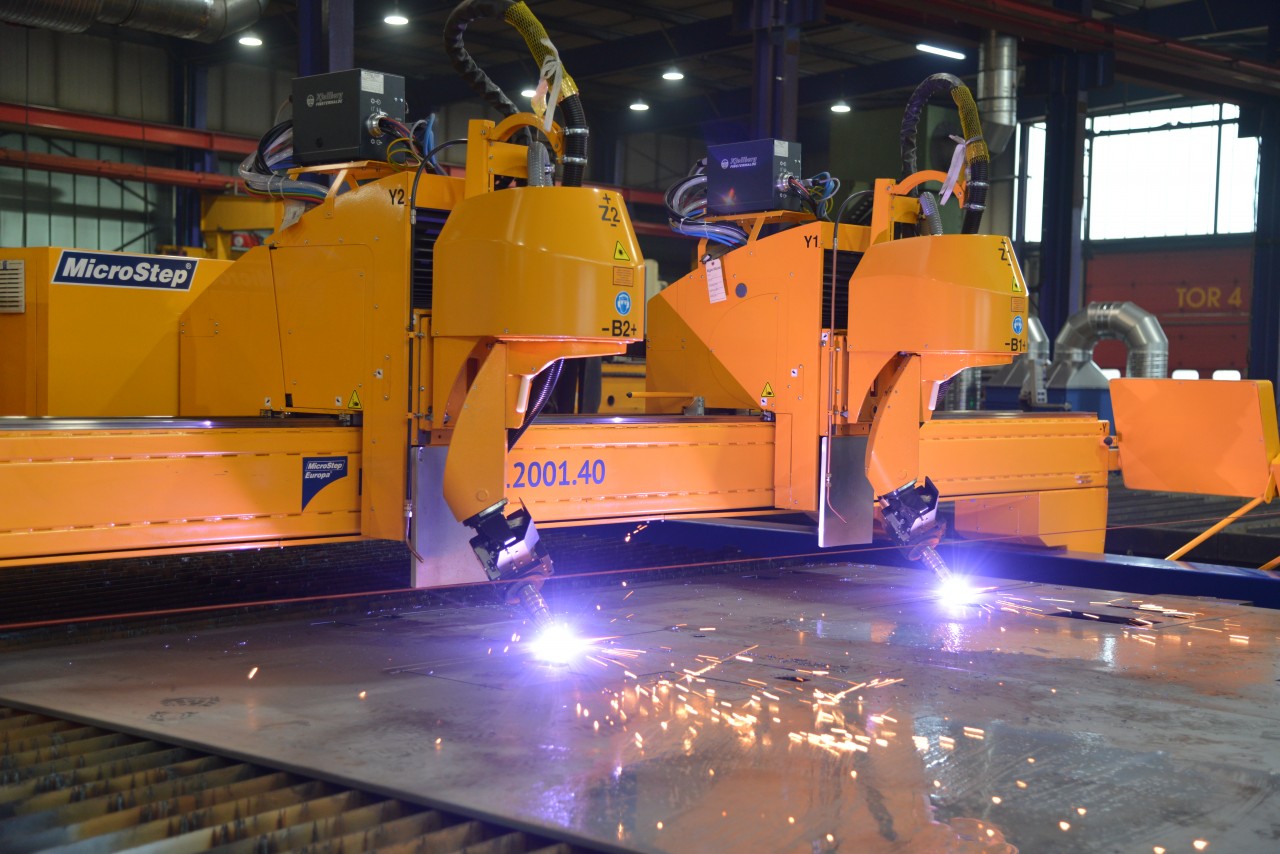

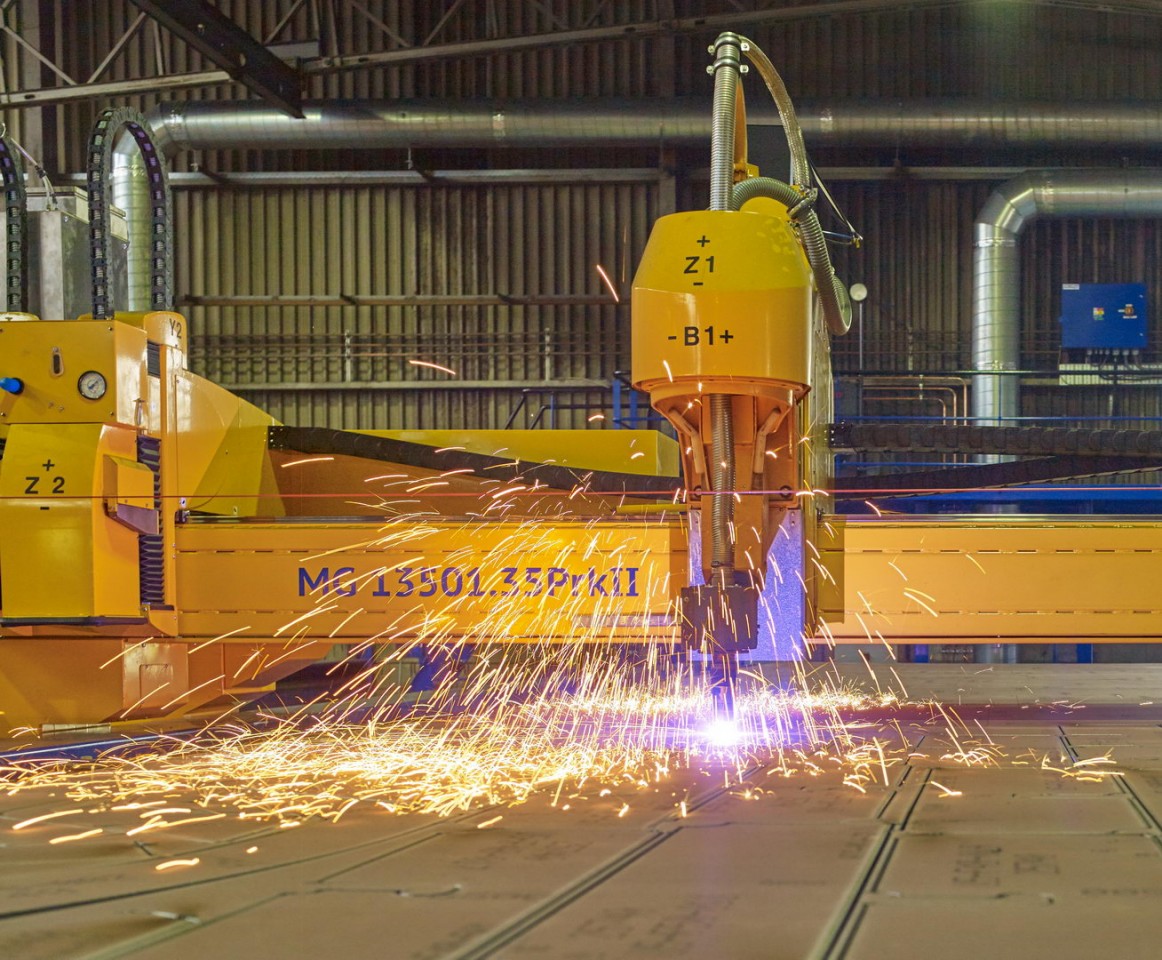

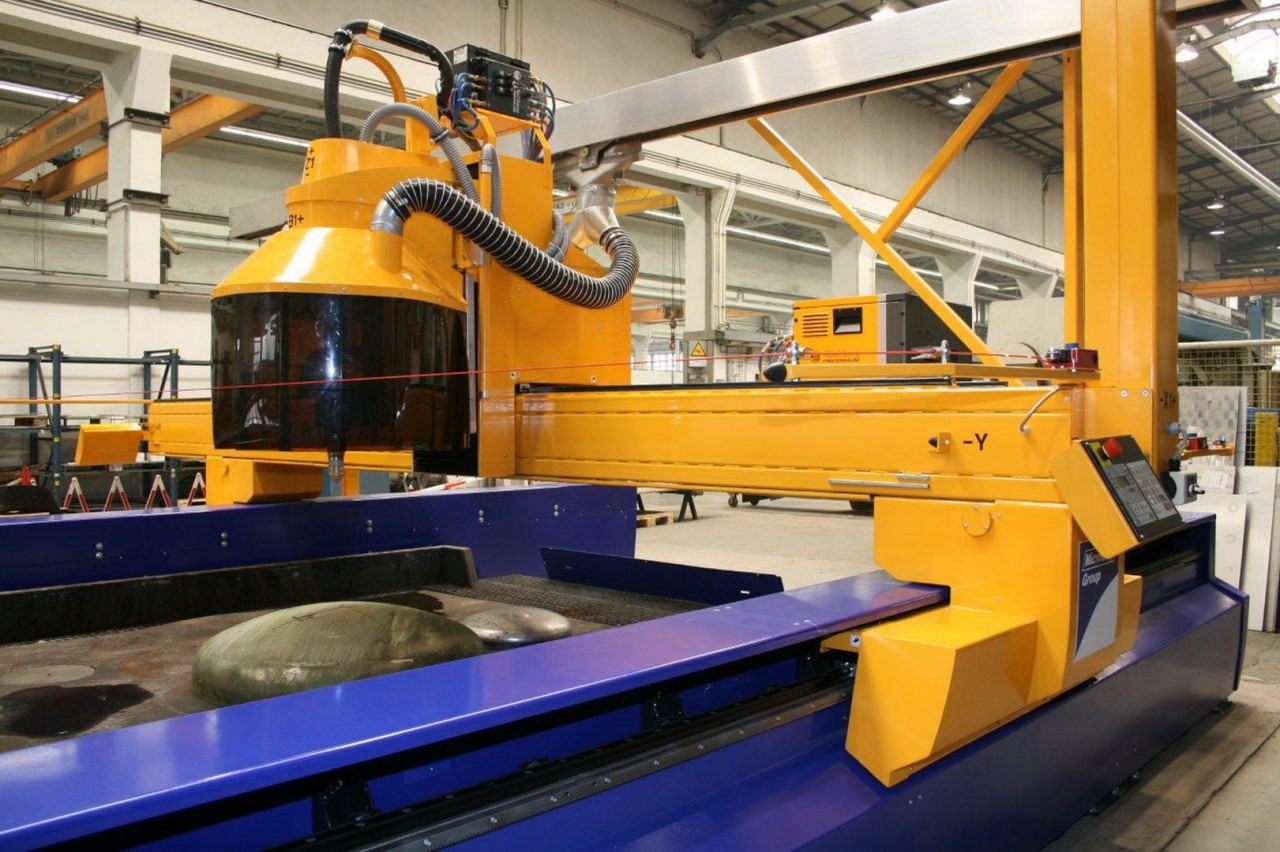

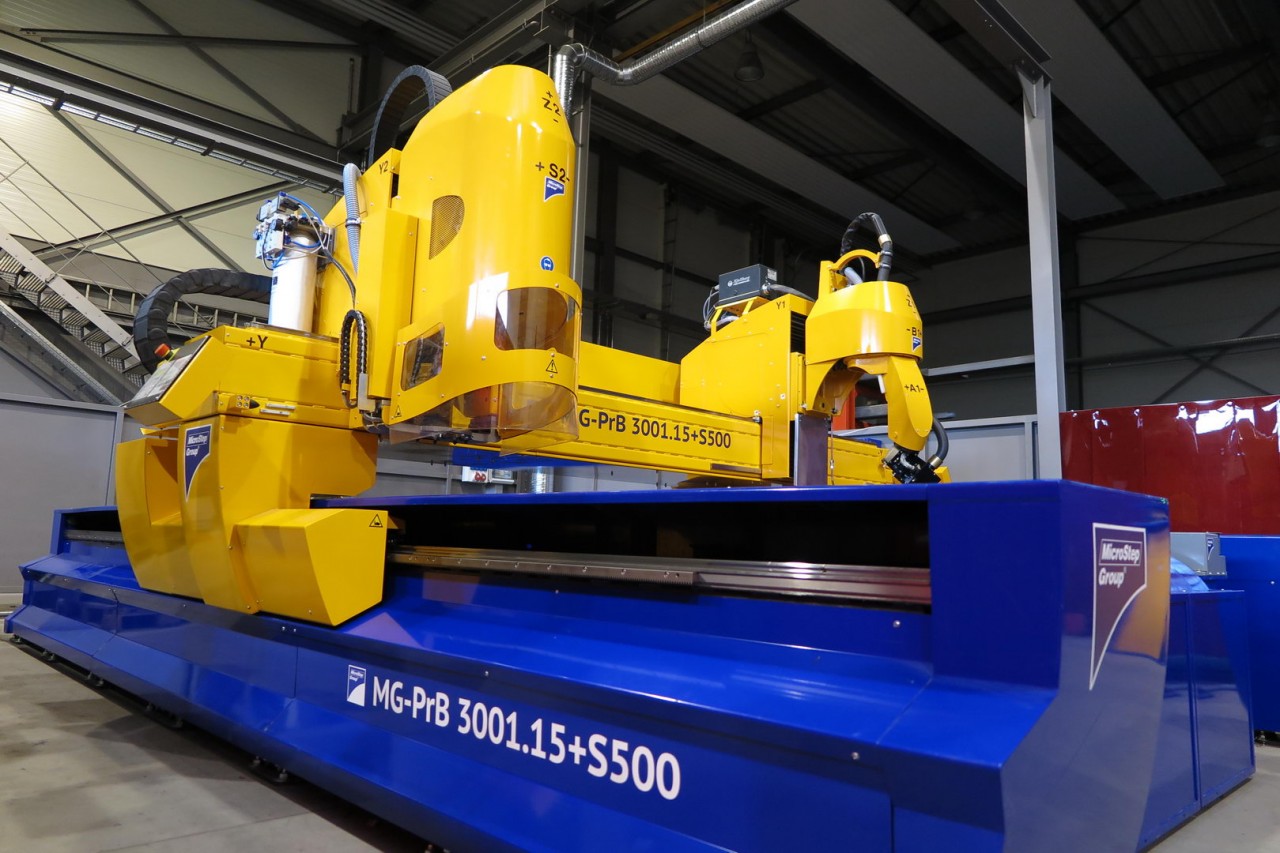

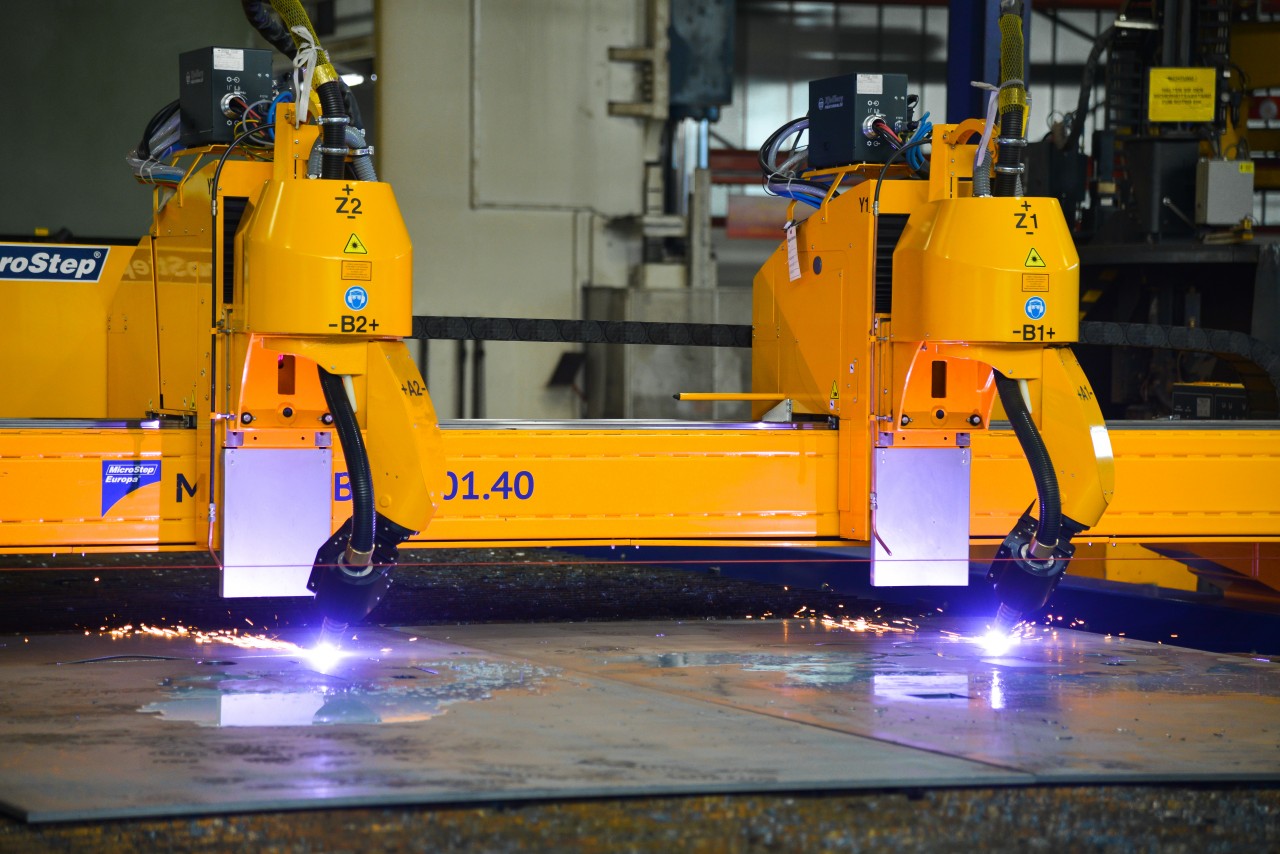

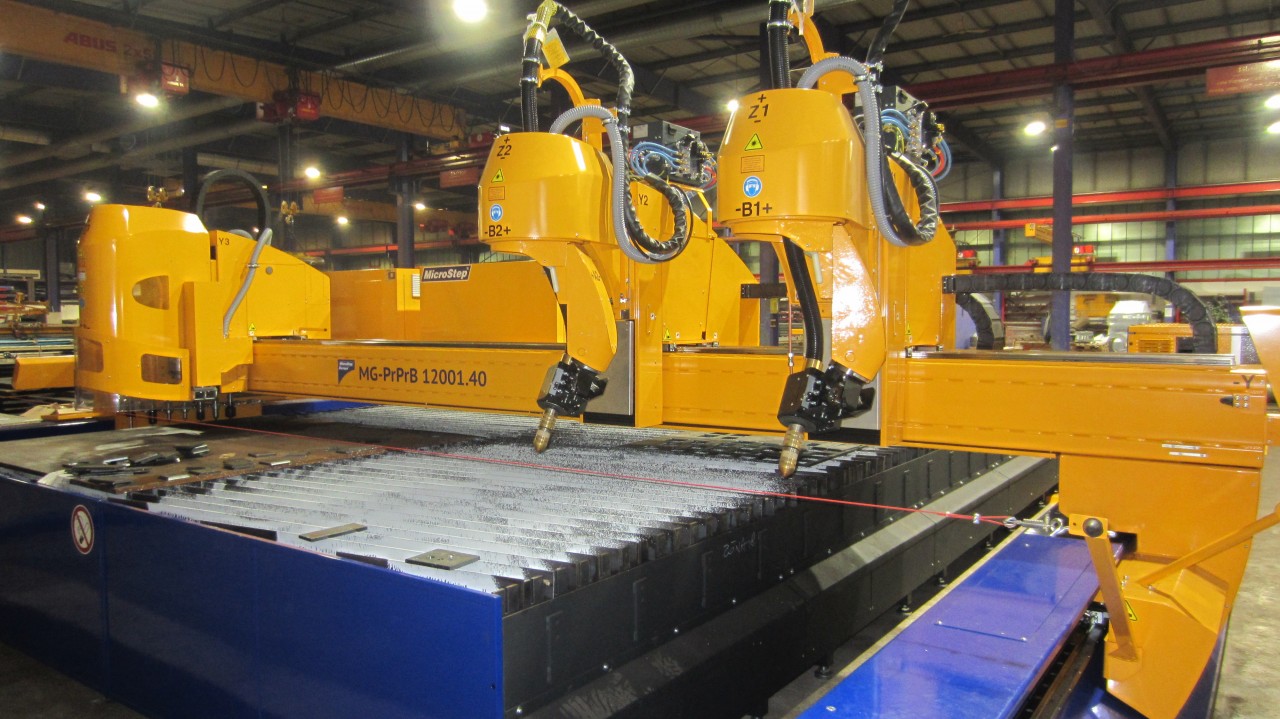

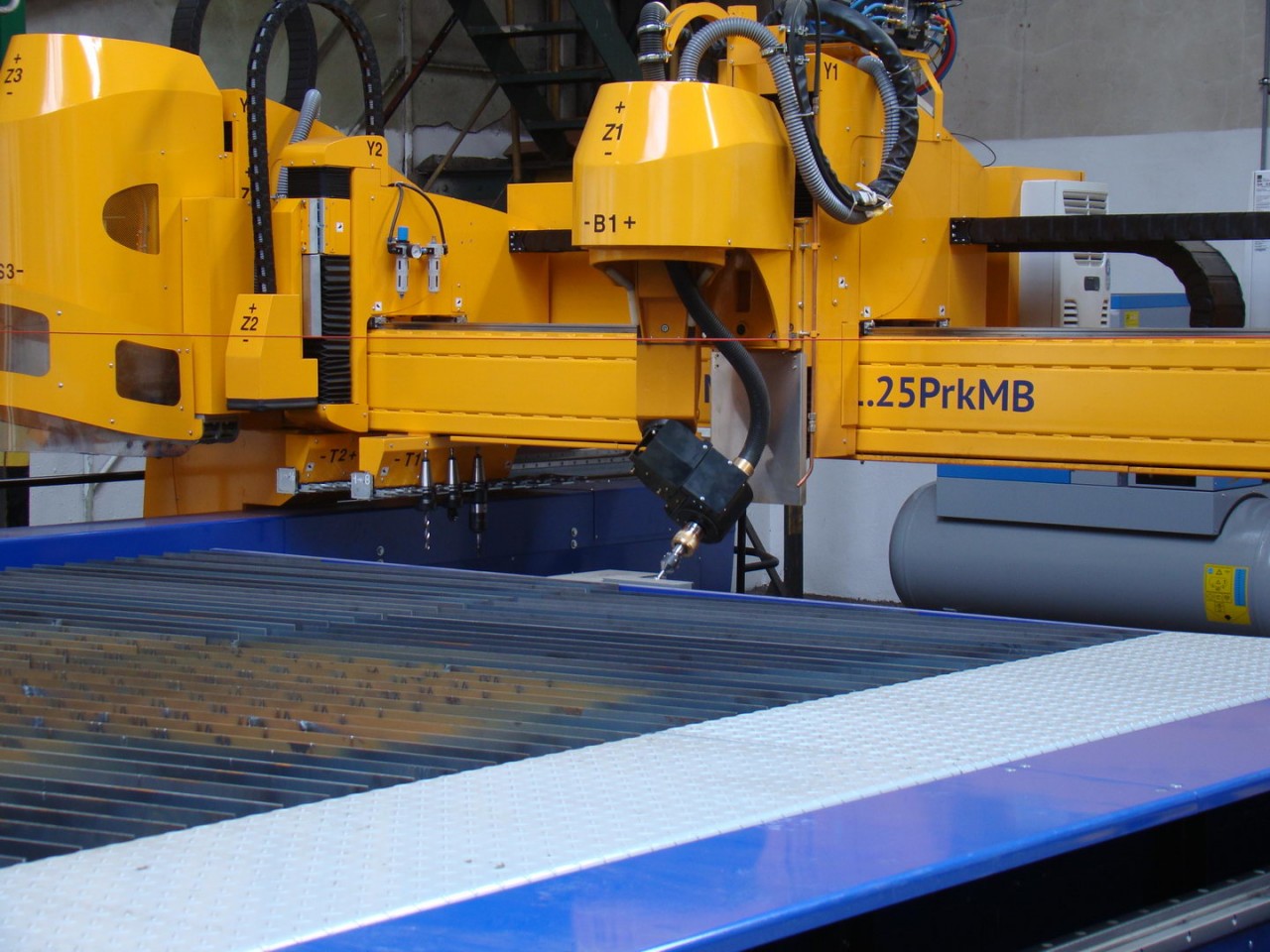

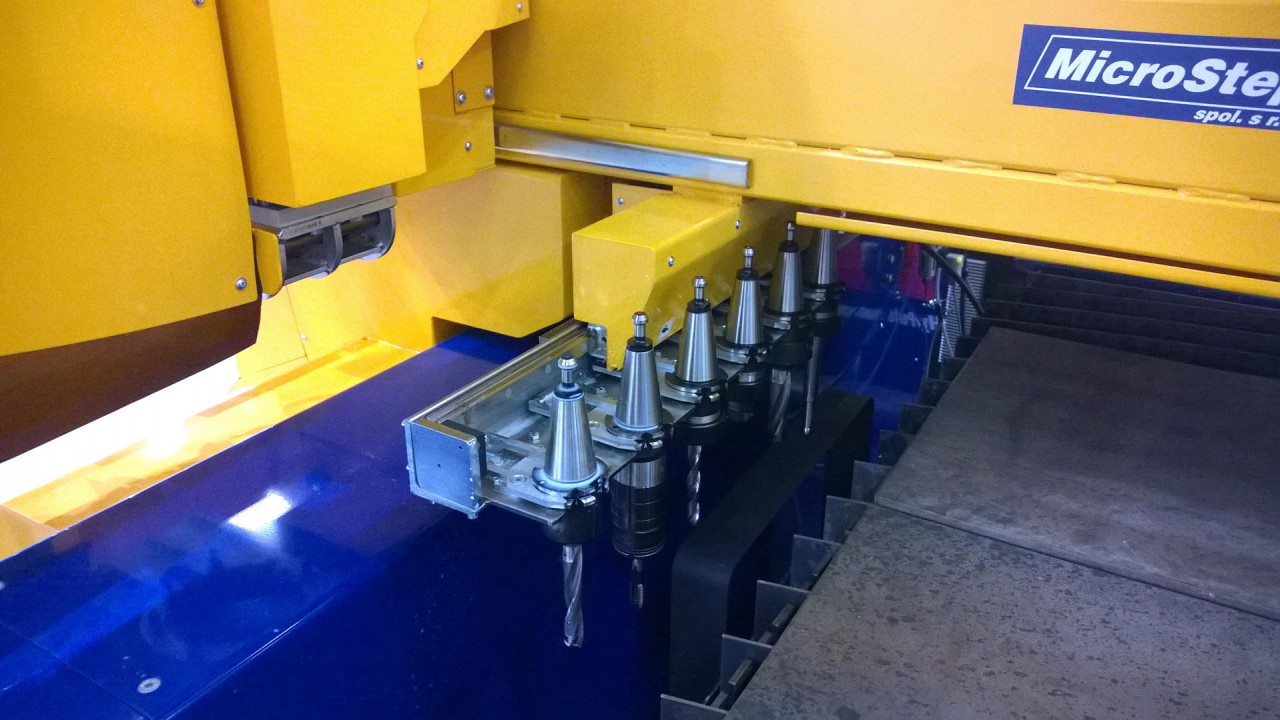

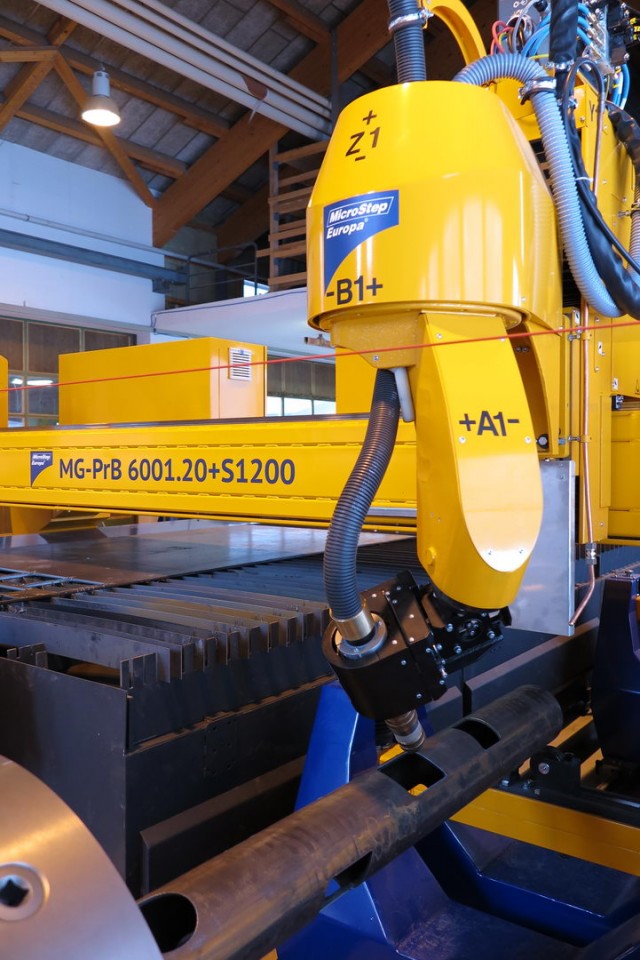

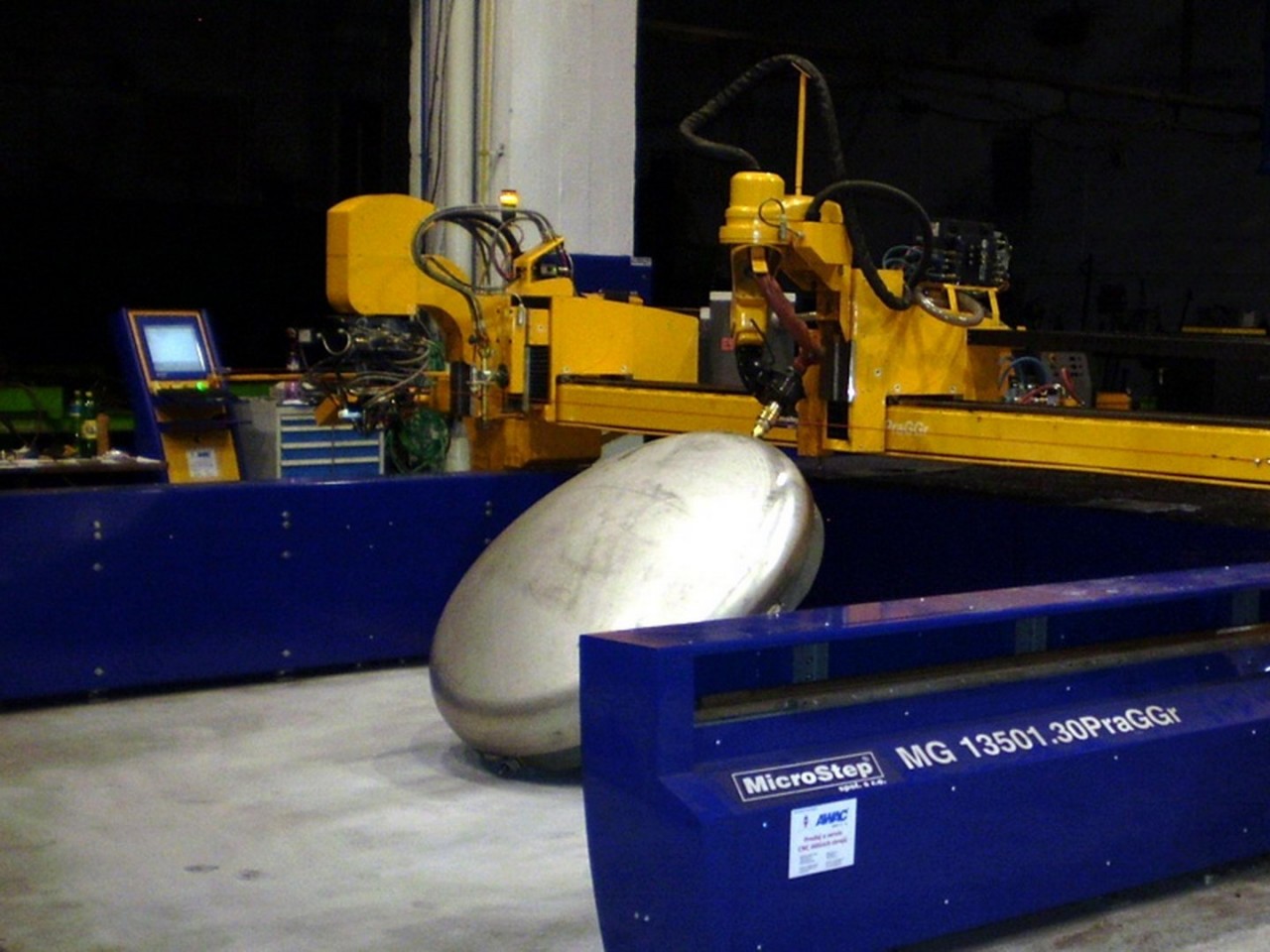

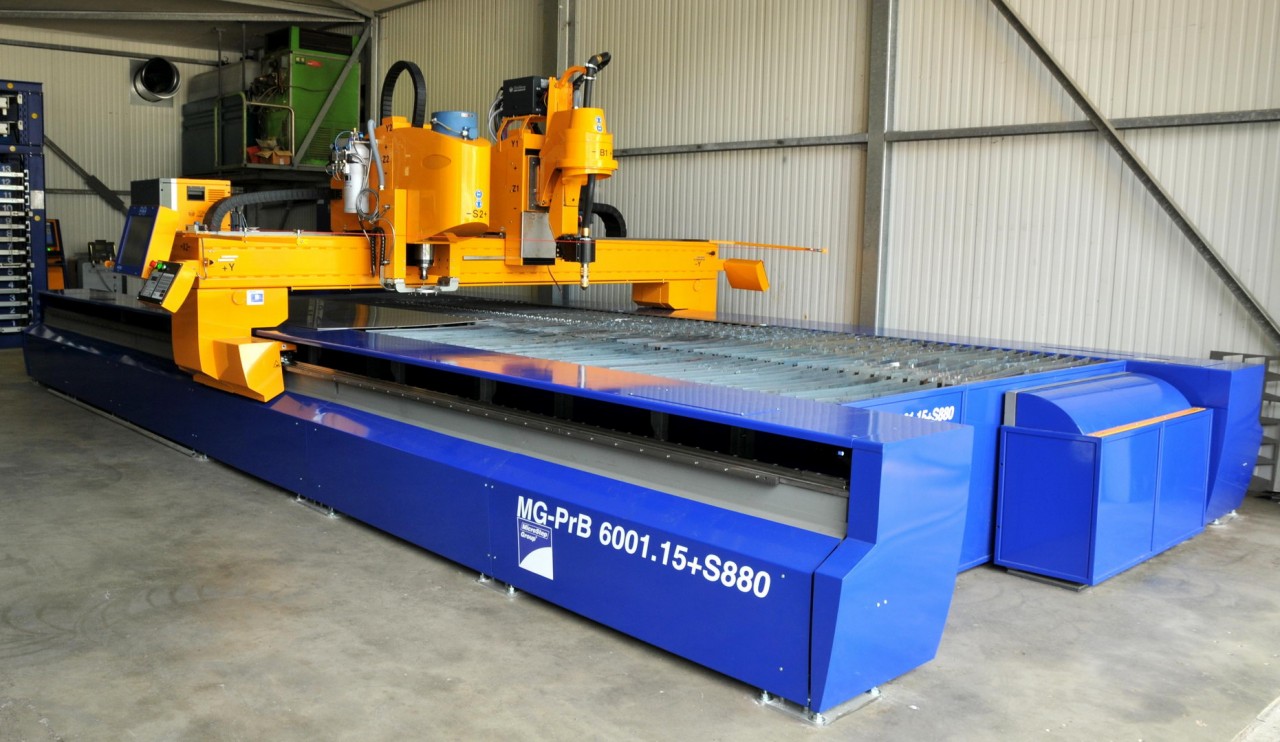

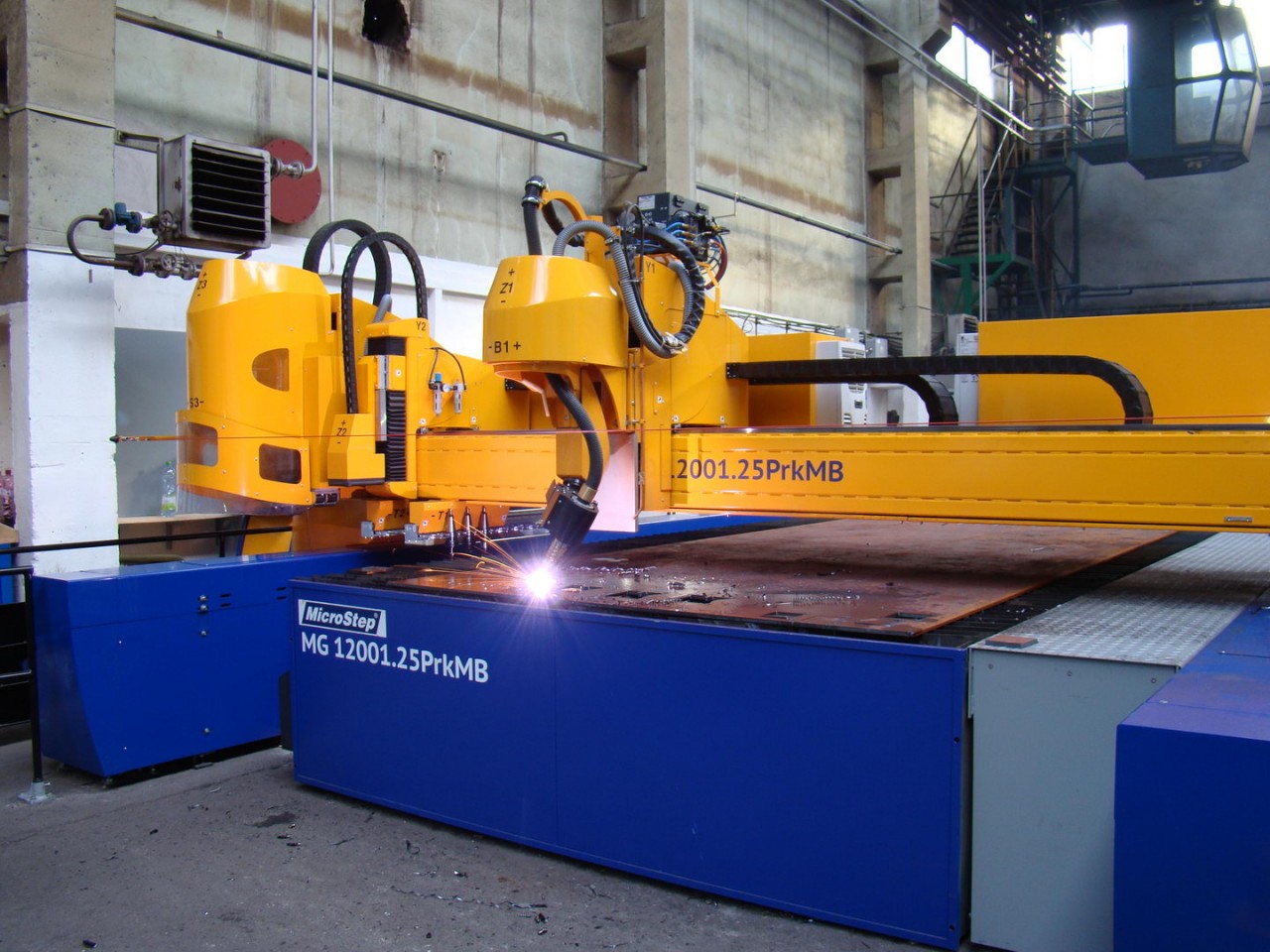

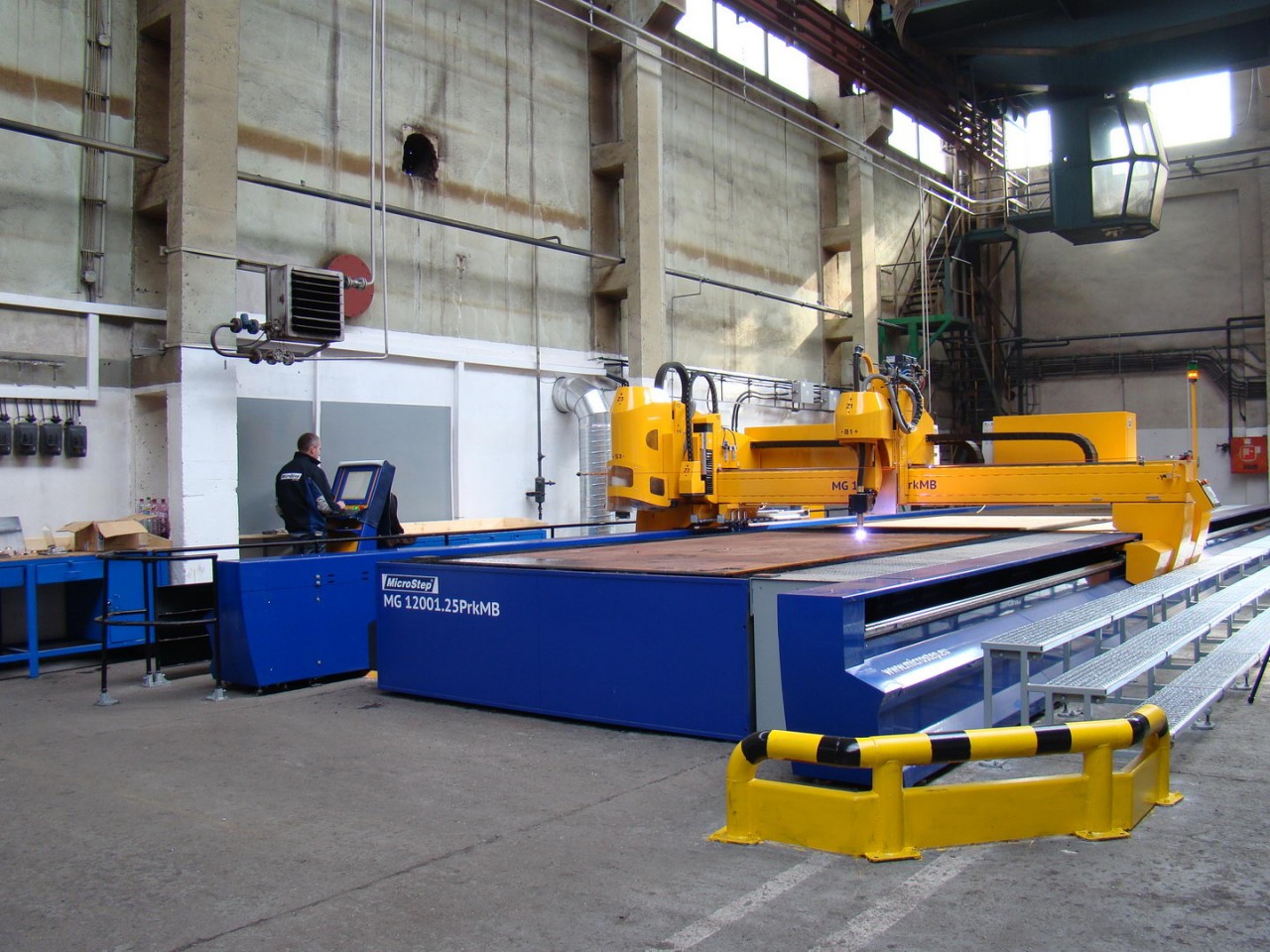

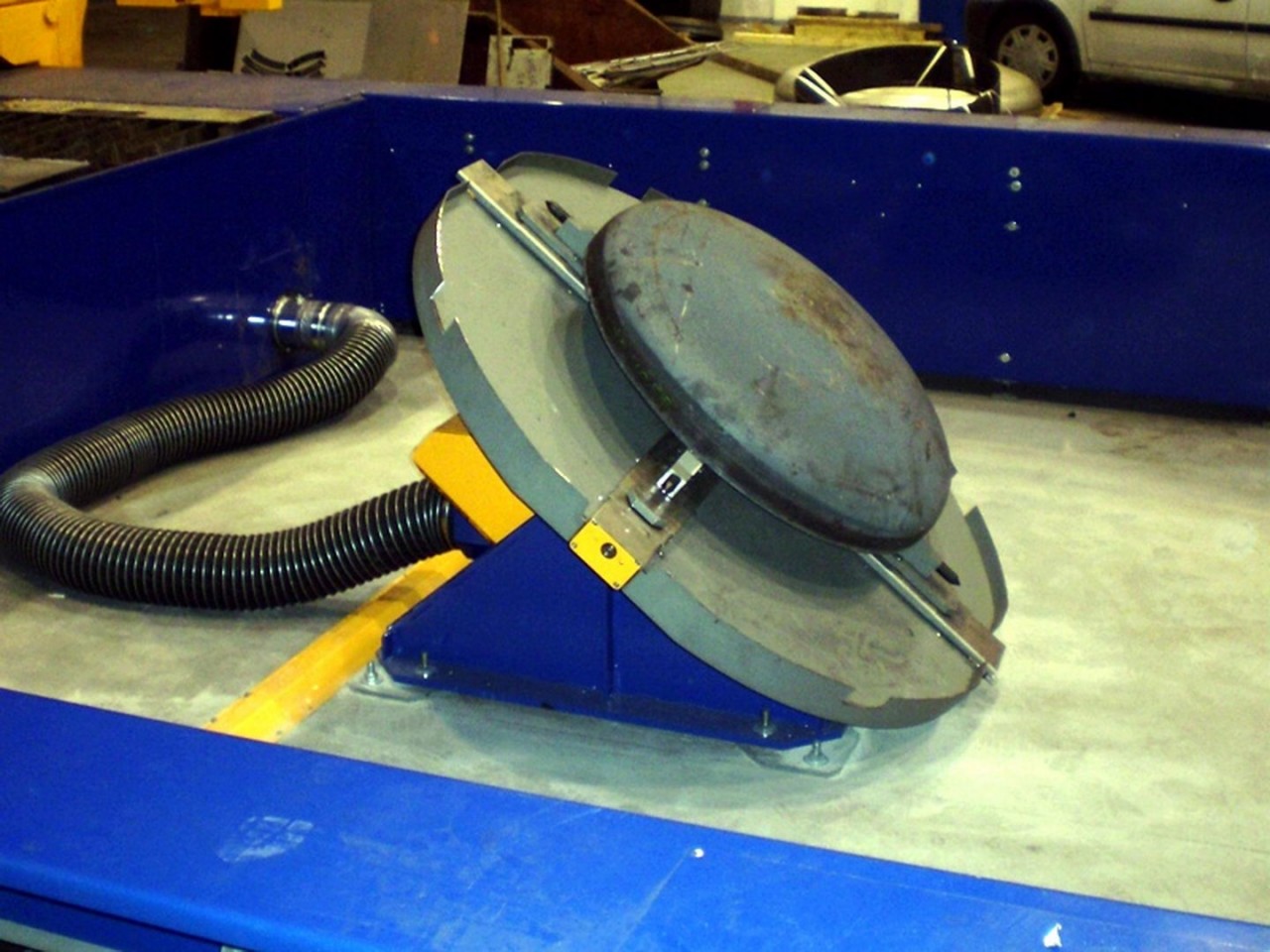

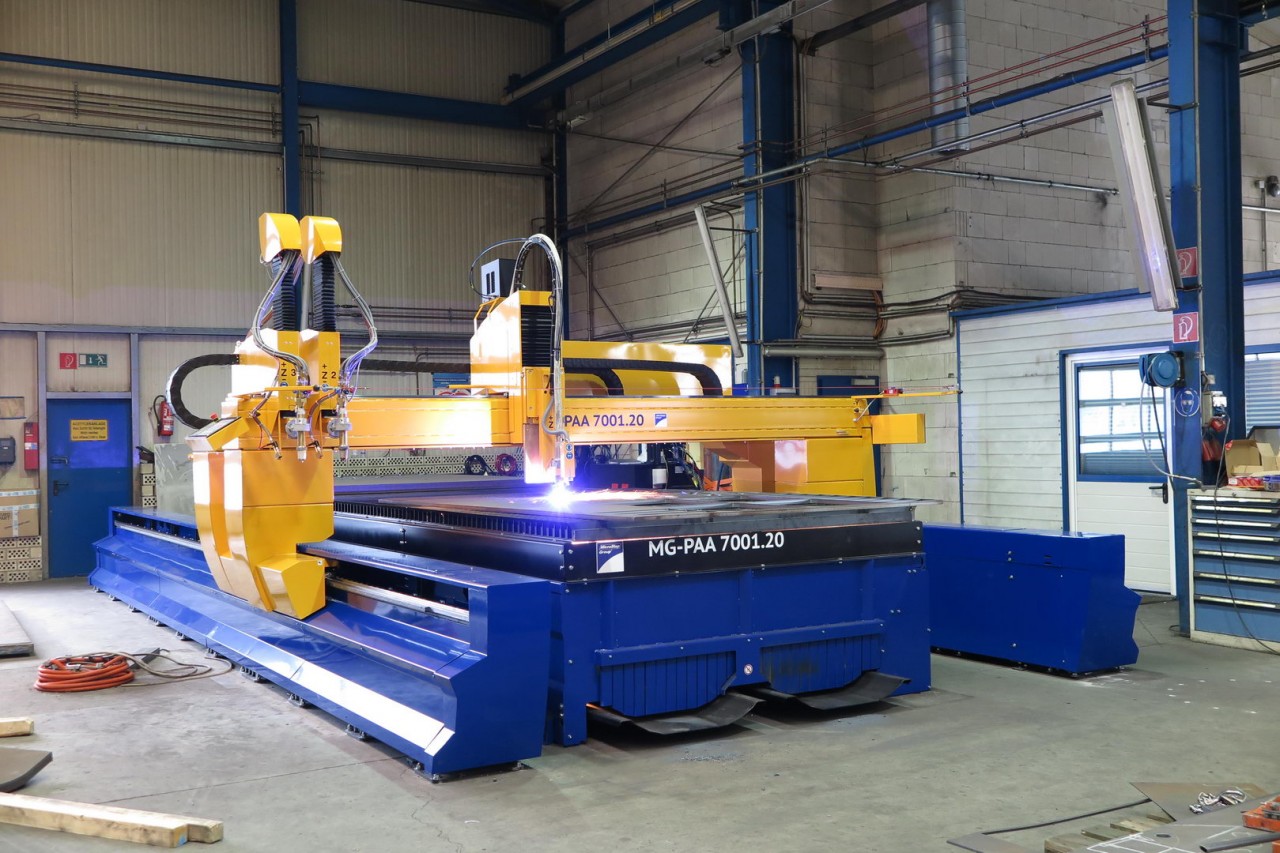

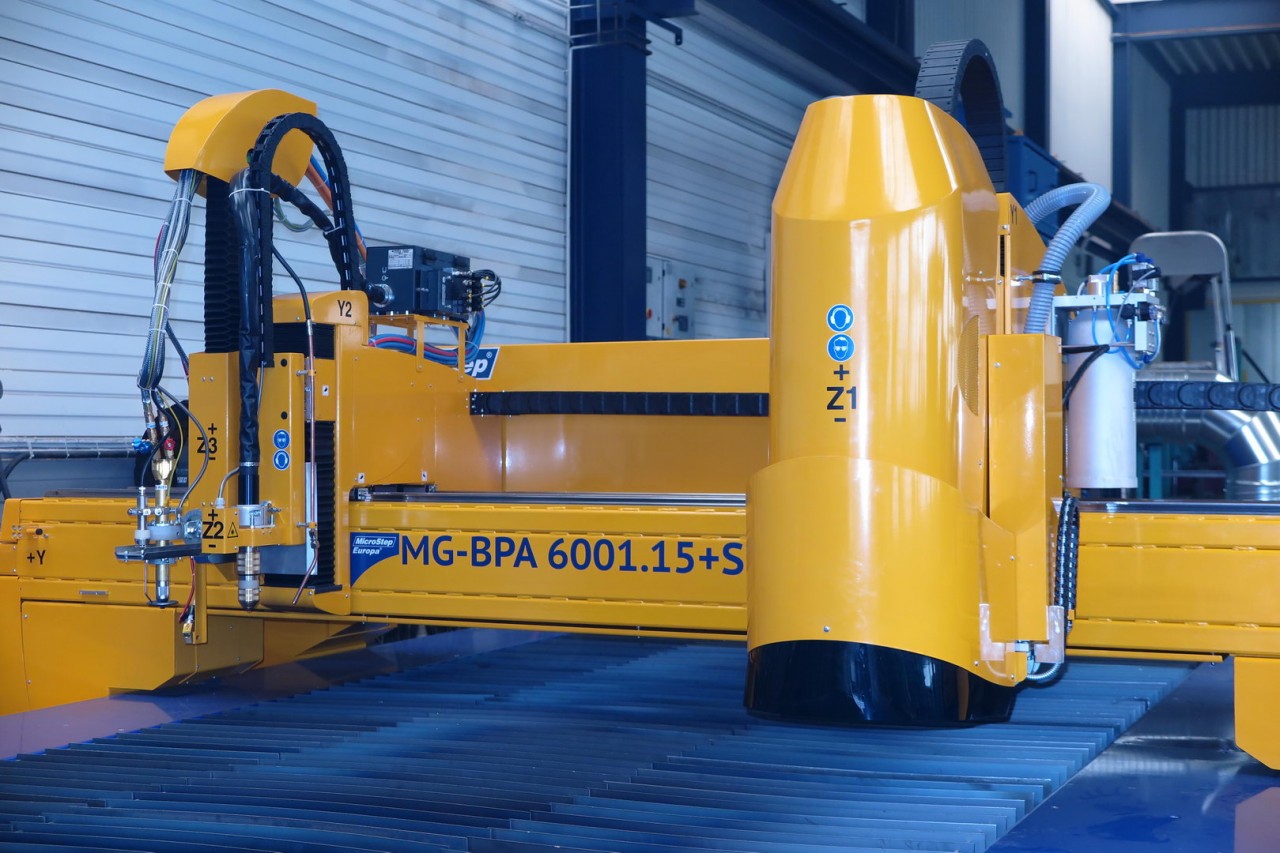

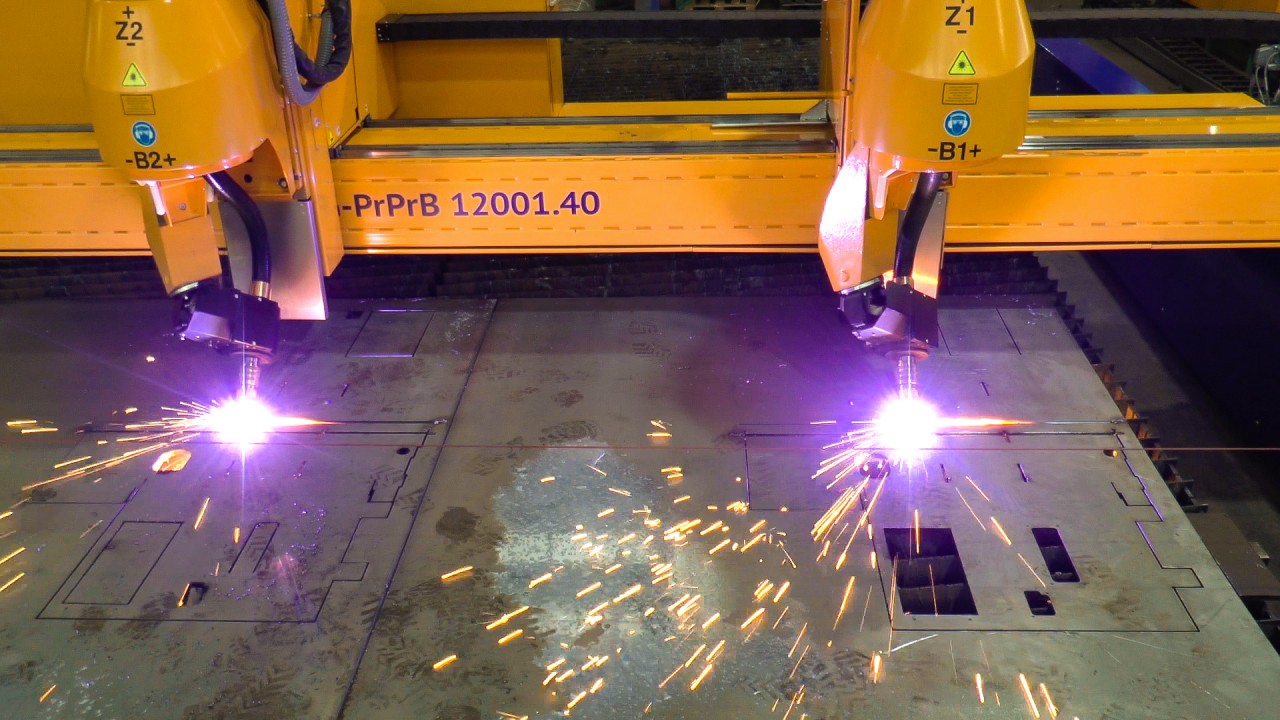

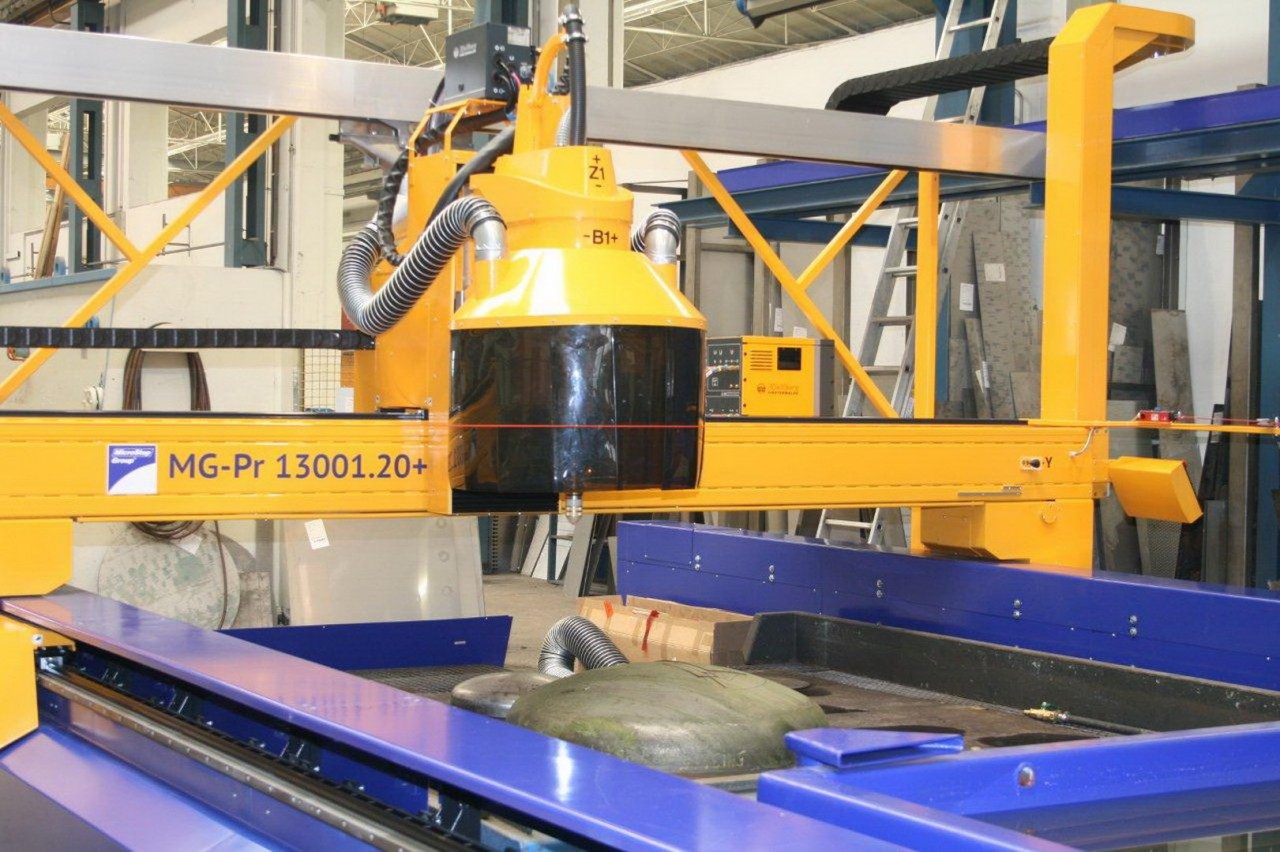

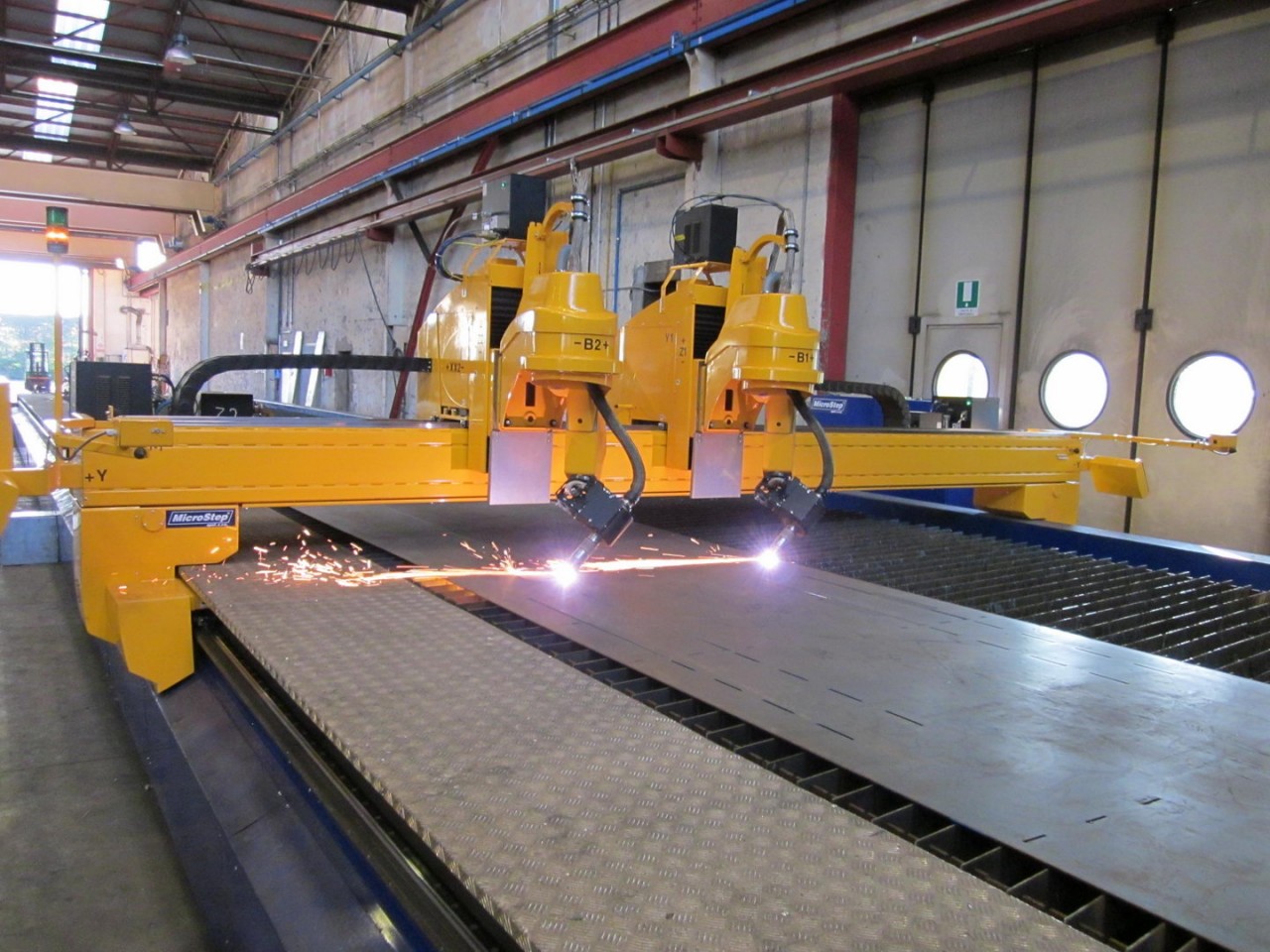

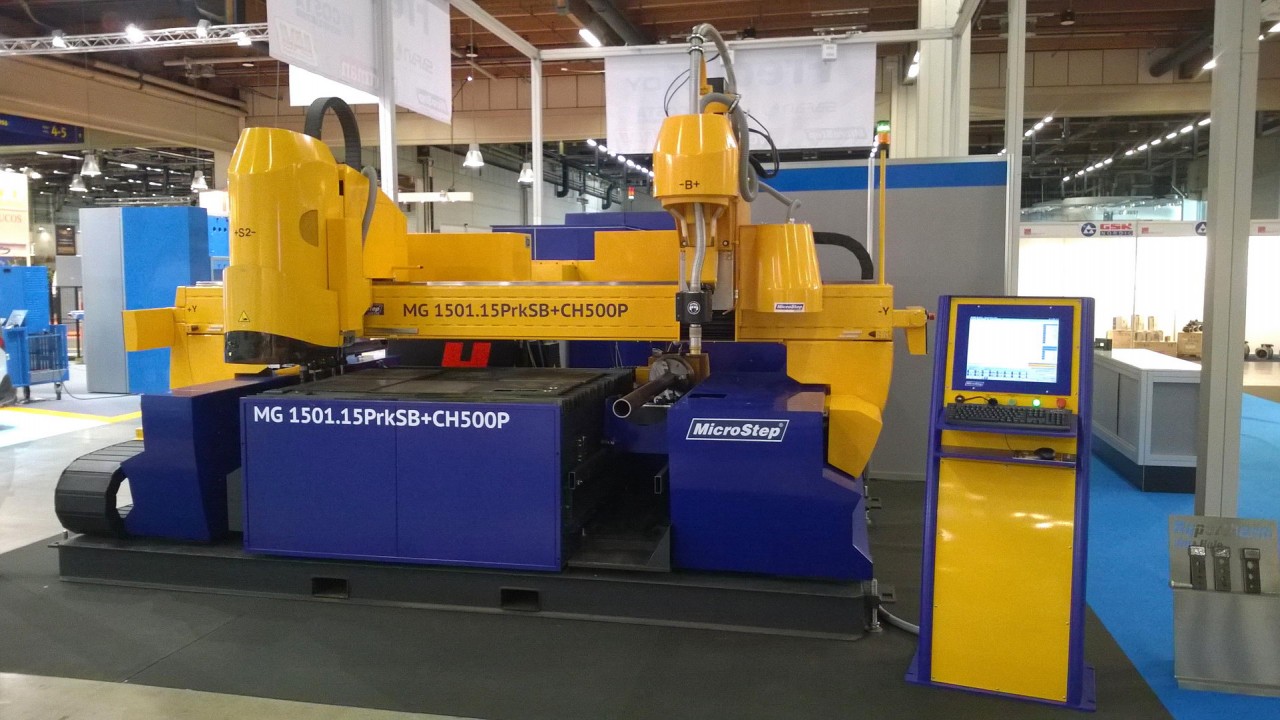

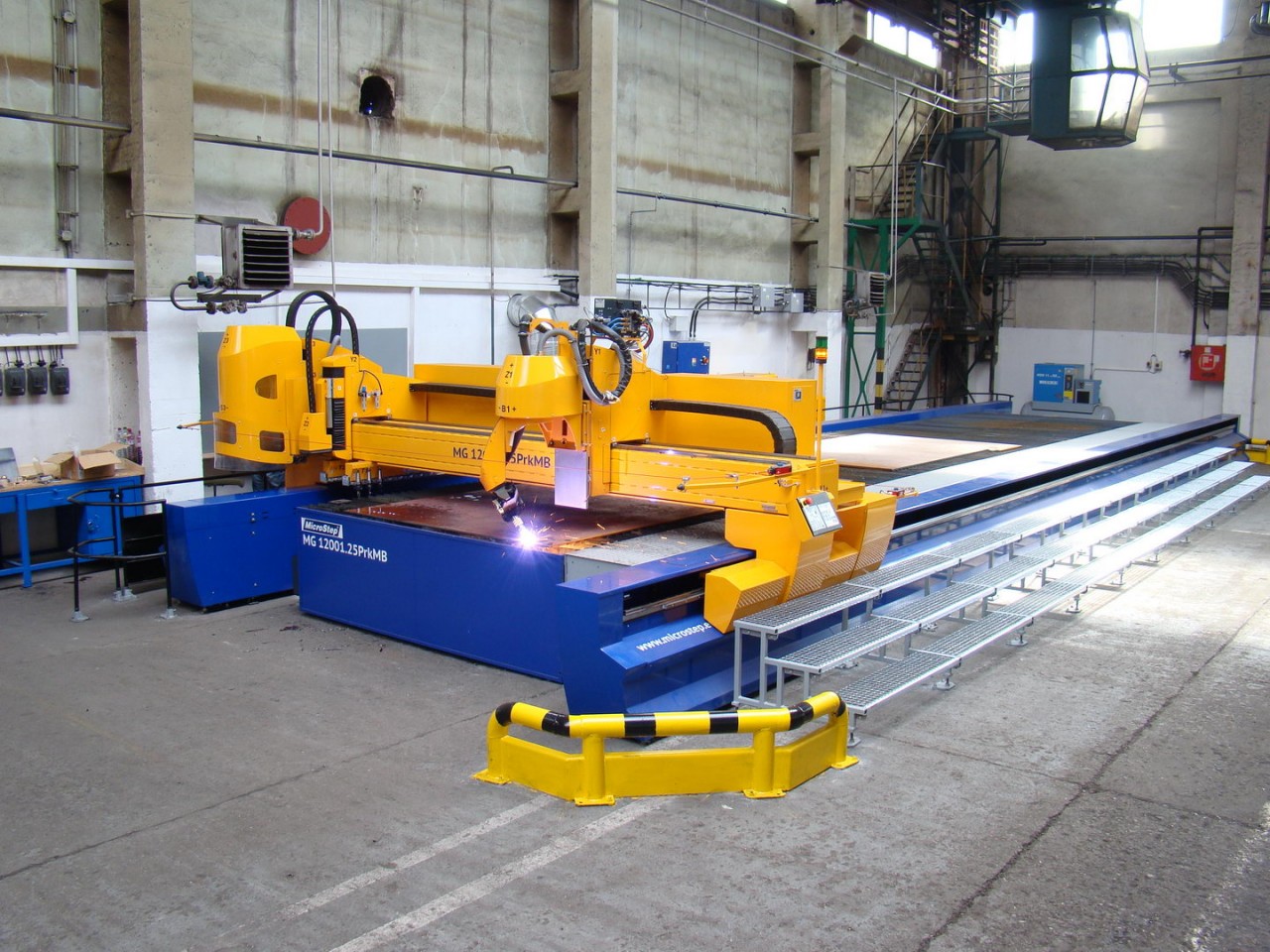

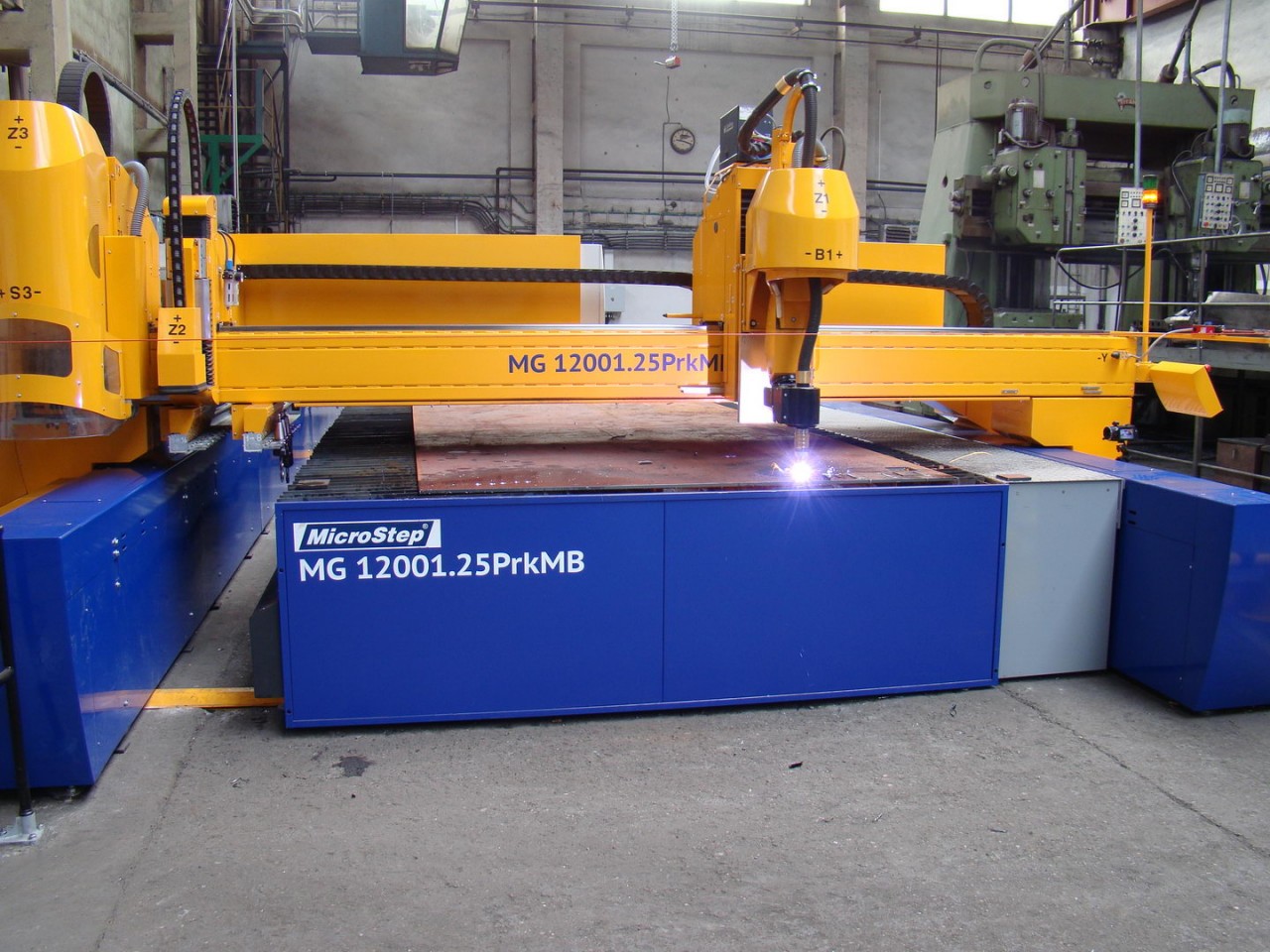

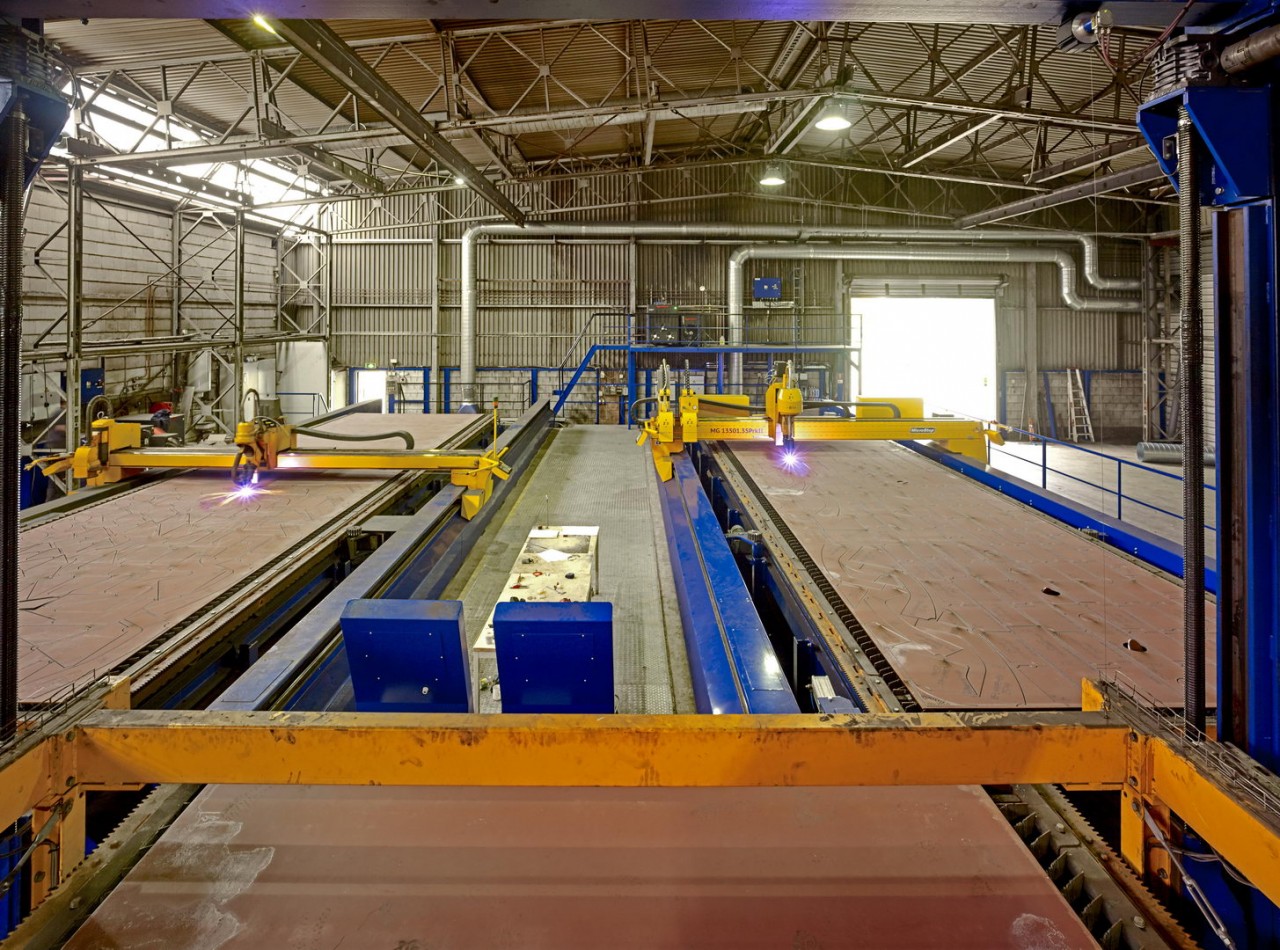

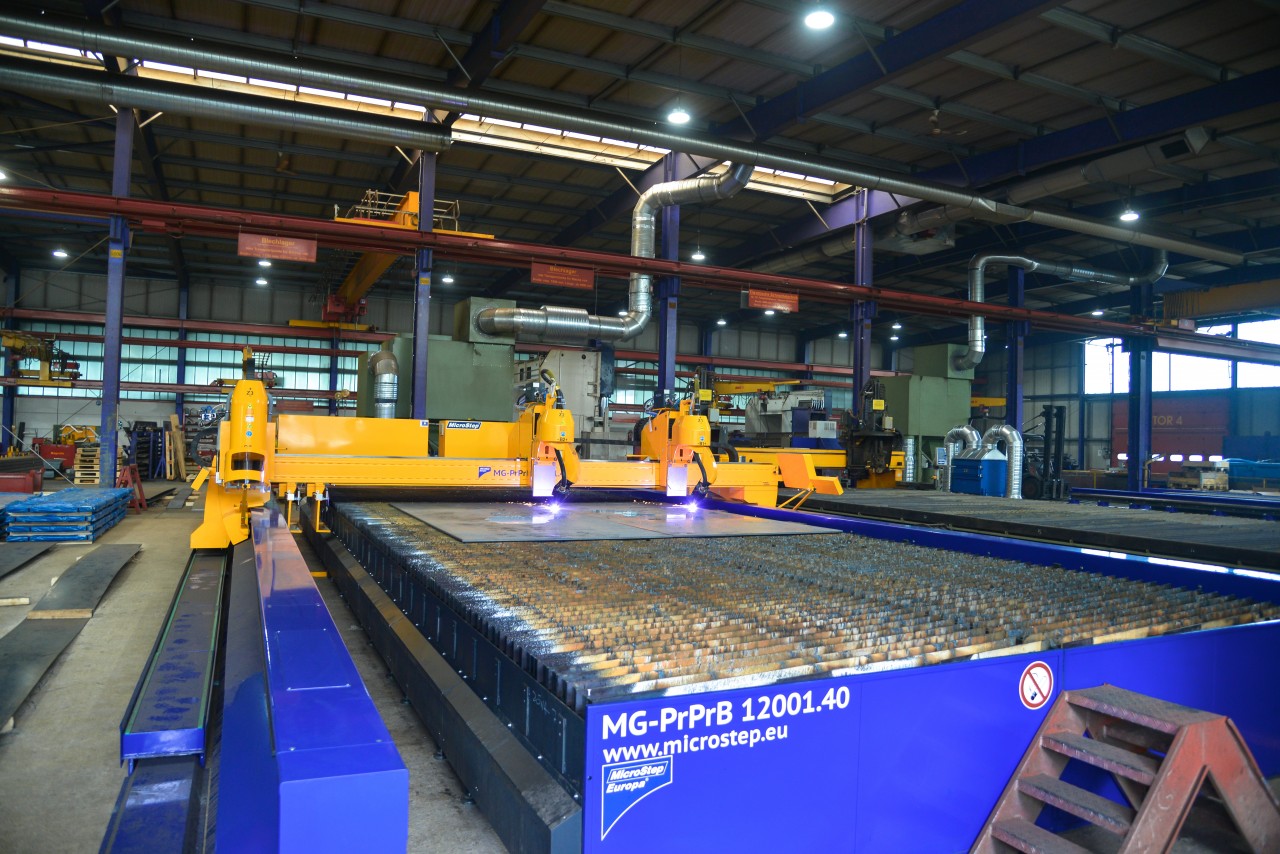

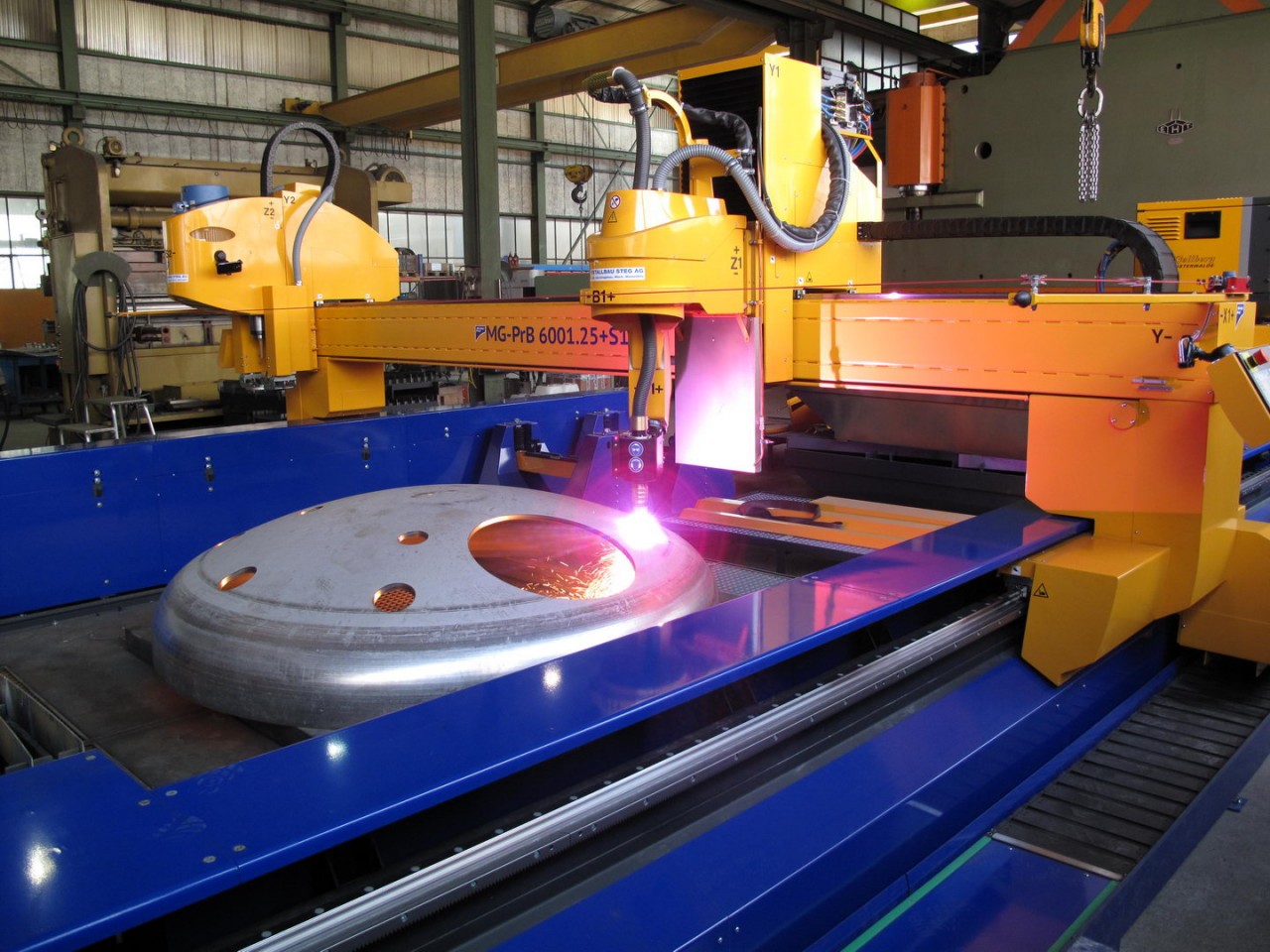

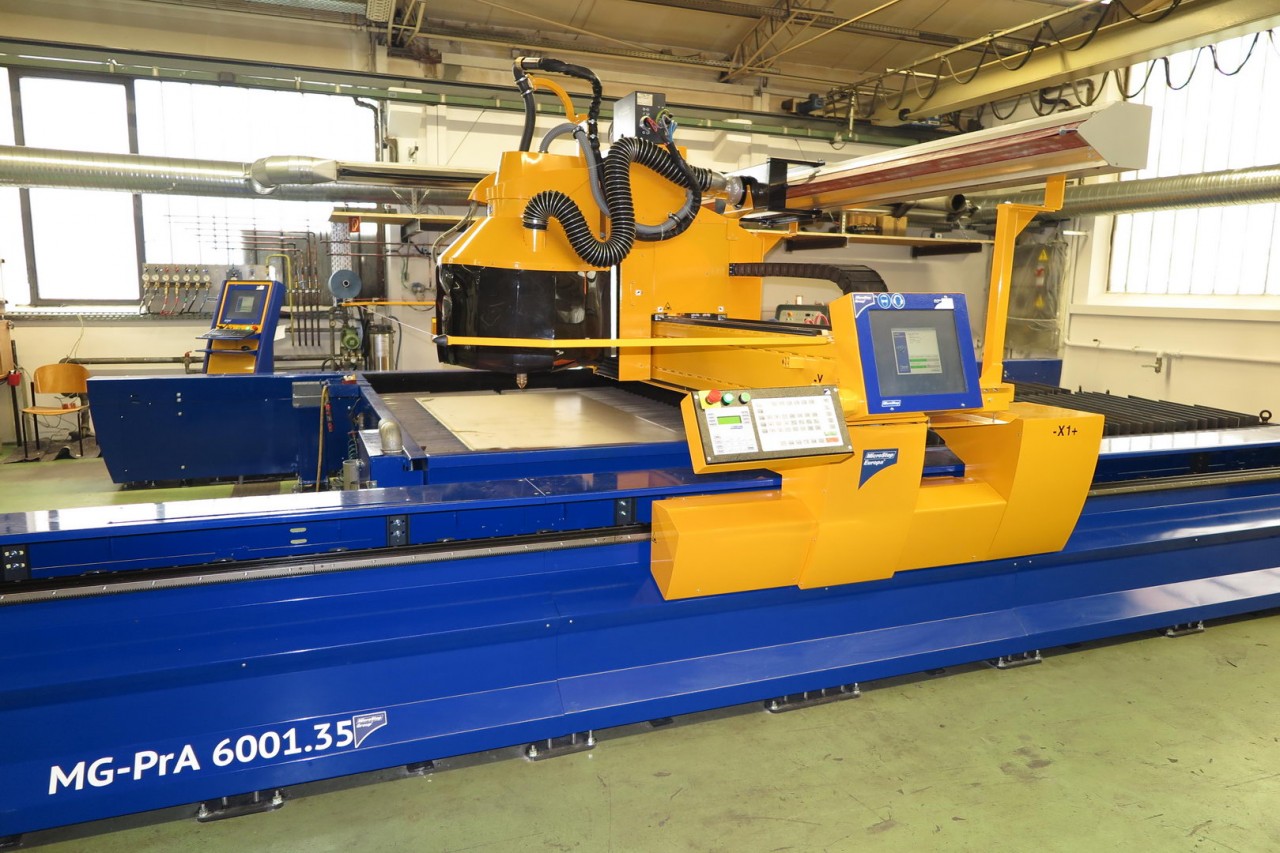

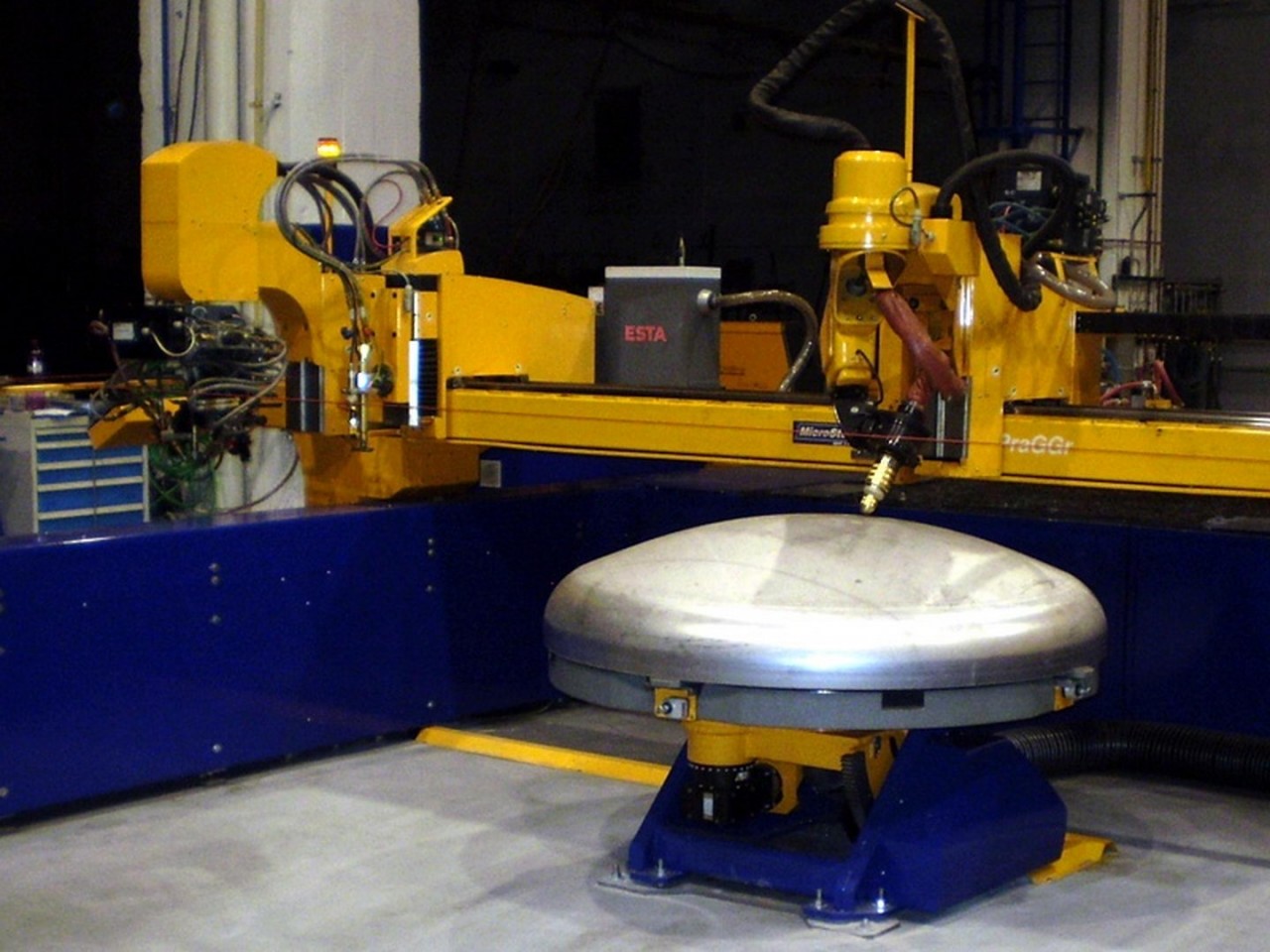

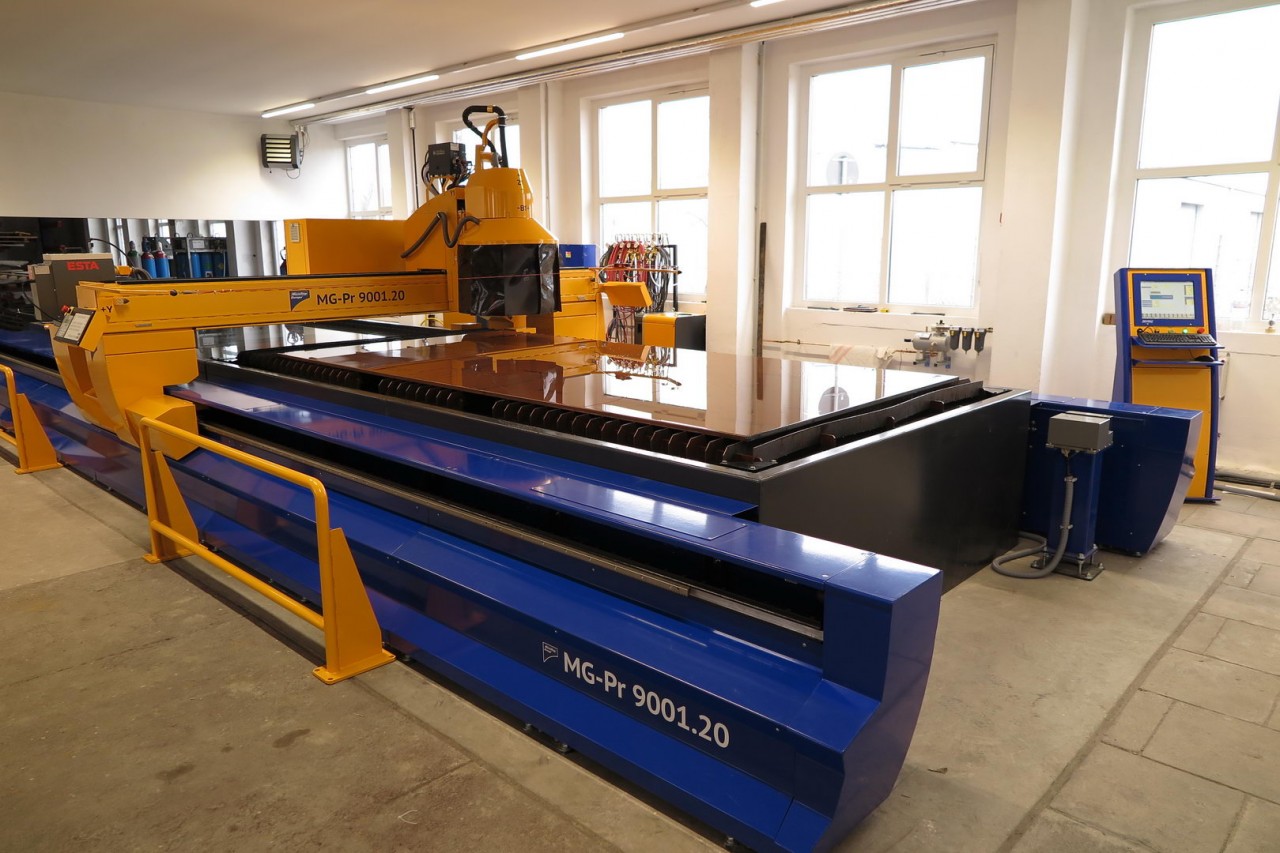

The MG series is MicroStep’s top class CNC cutting machine suitable for long-term industrial use and meeting highest requirements on precision, performance and easy operation. MG machines provide a wide variety of applications: bevel cutting with plasma and oxyfuel, pipe, profile, dome or elbow cutting, drilling with automatic tool exchange, plate positioning with laser sensor or a CCD camera, inkjet or micropercussion marking. A special heightened version of gantry enables oxyfuel cutting up to 250 mm.

Technical parameters

Working length 1500 - 50000 mm
Working width 1500 - 8000 mm

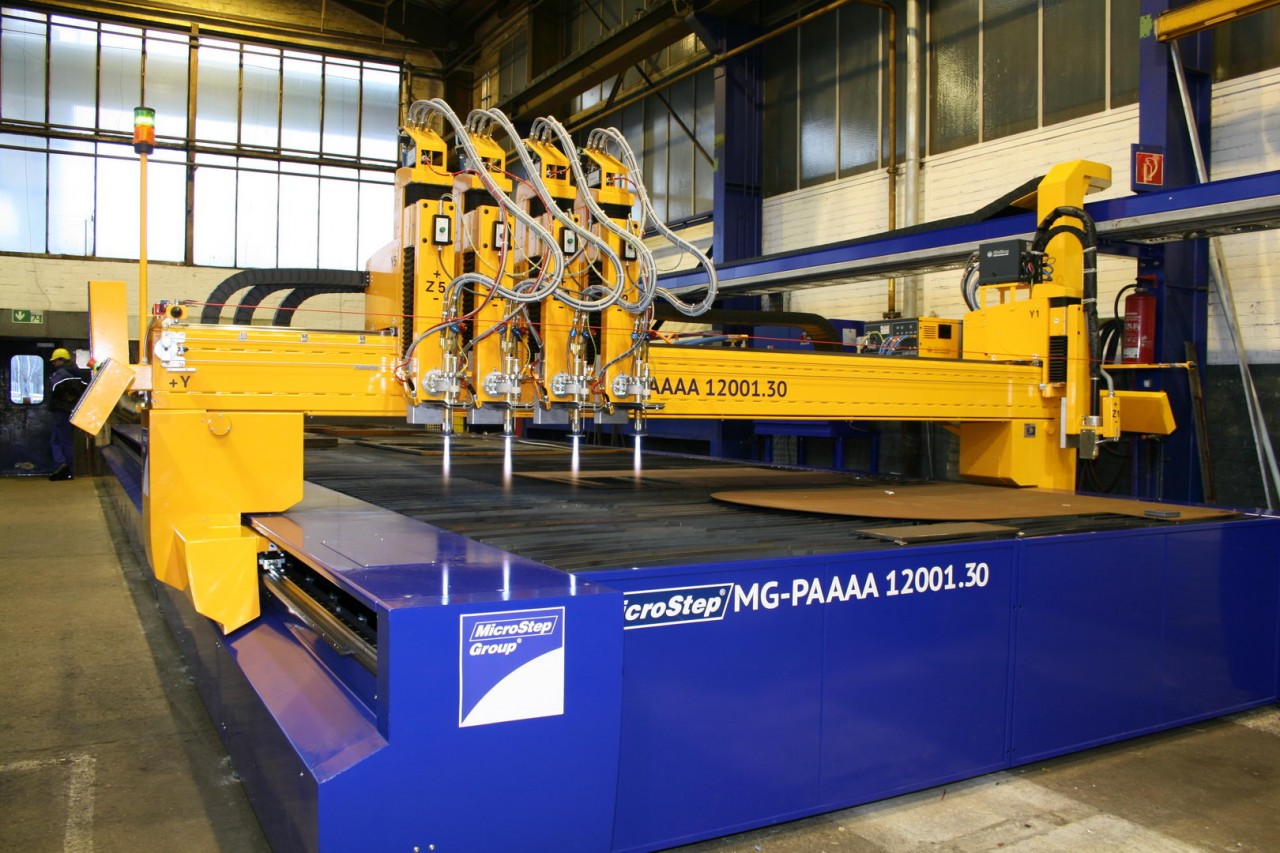

Max. number of tool stations 6 (8G)
Max. thickness of material cut by plasma according to a plasma source
Max. thickness of material cut by oxyfuel 150 mm (250 mm with heightened gantry)

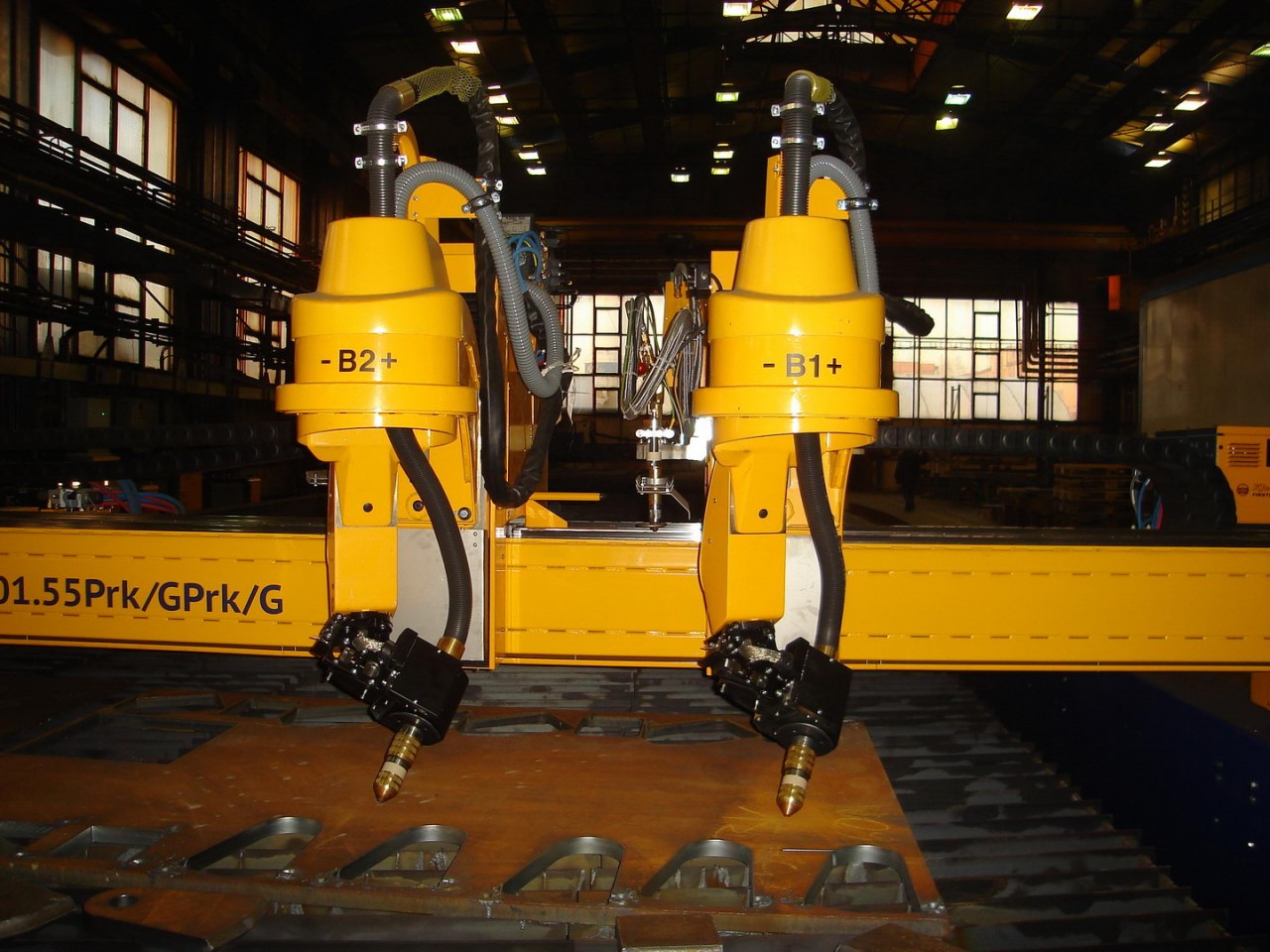

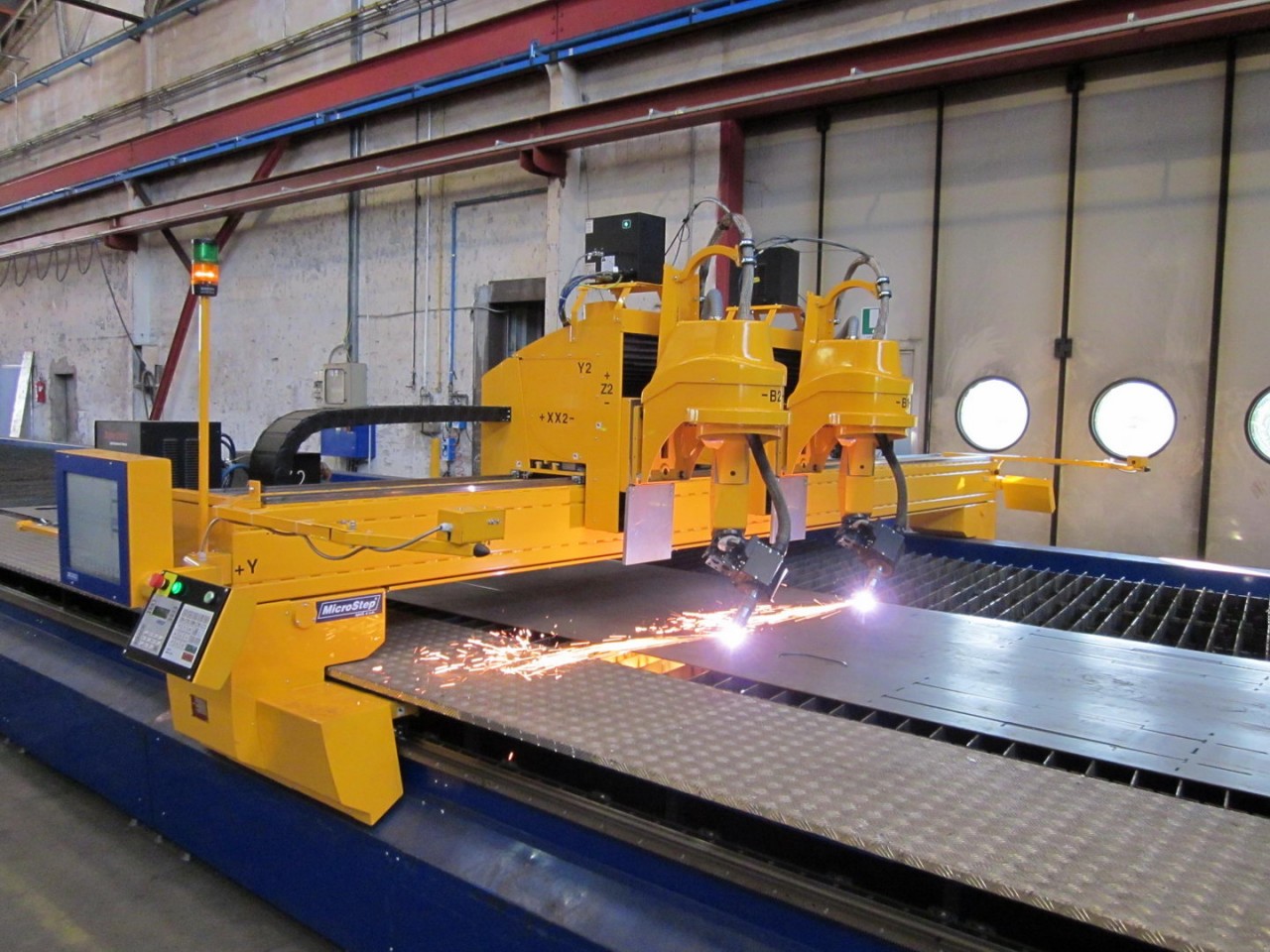

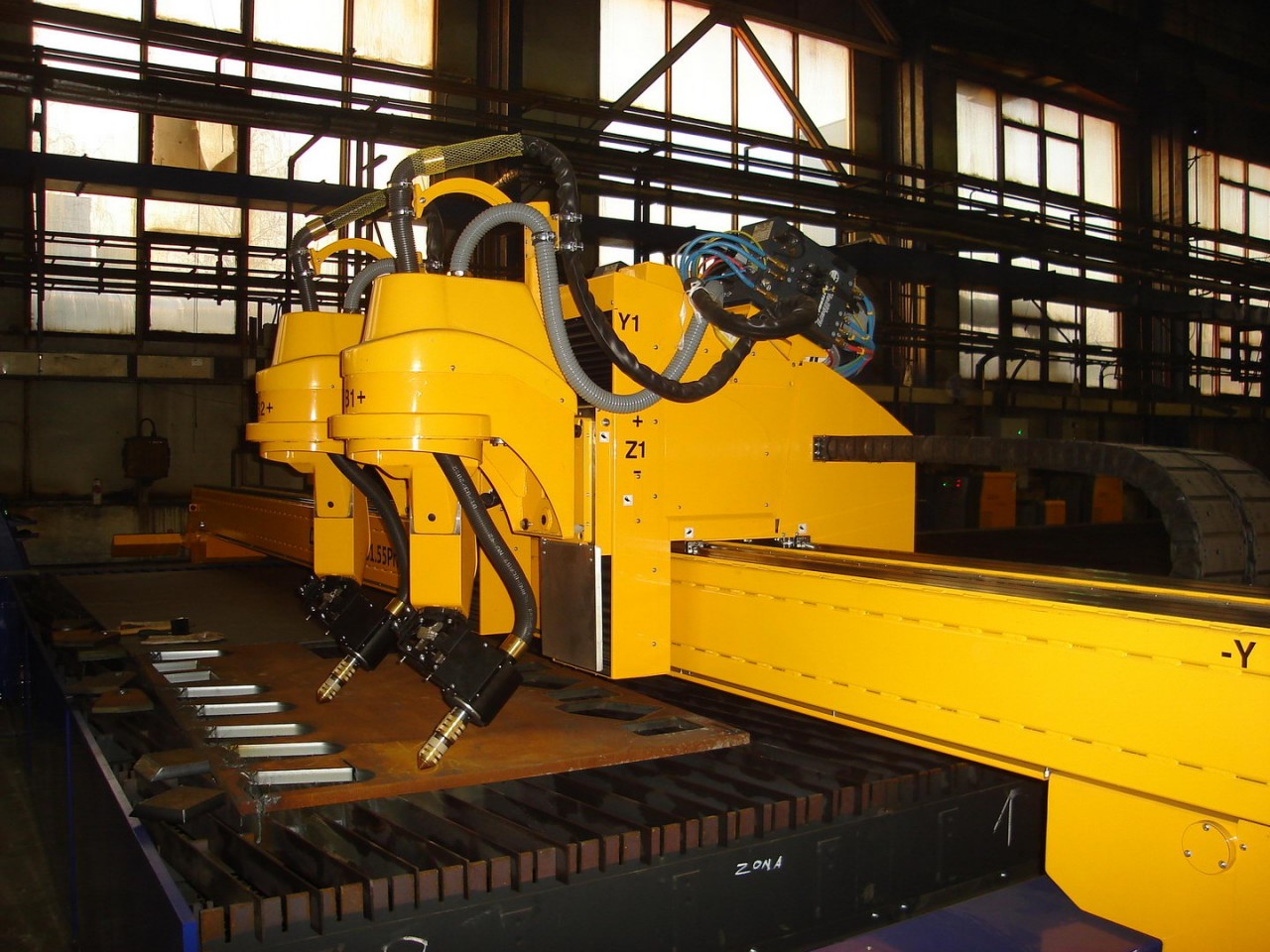

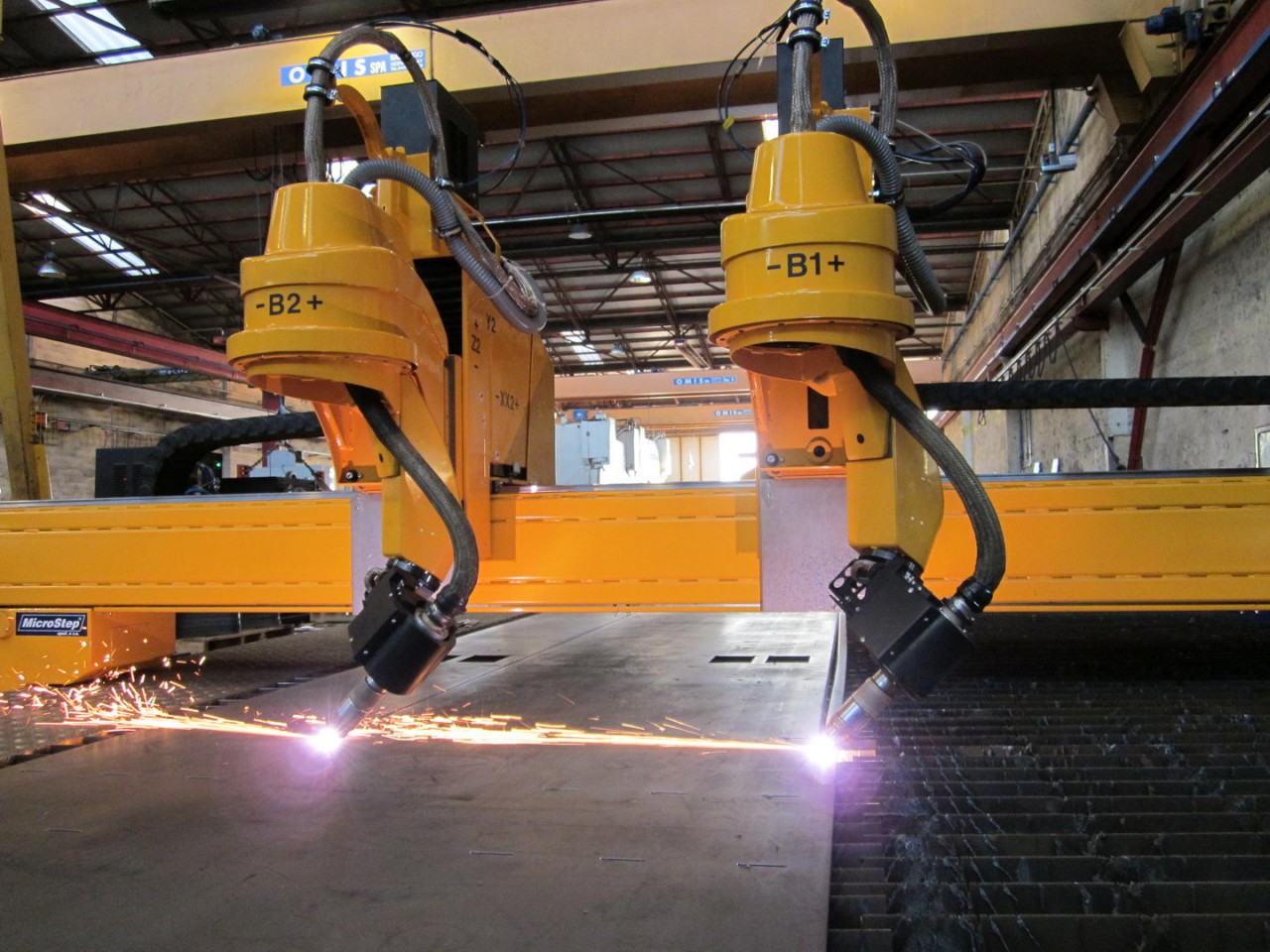

Bevel cutting yes (see accessories)

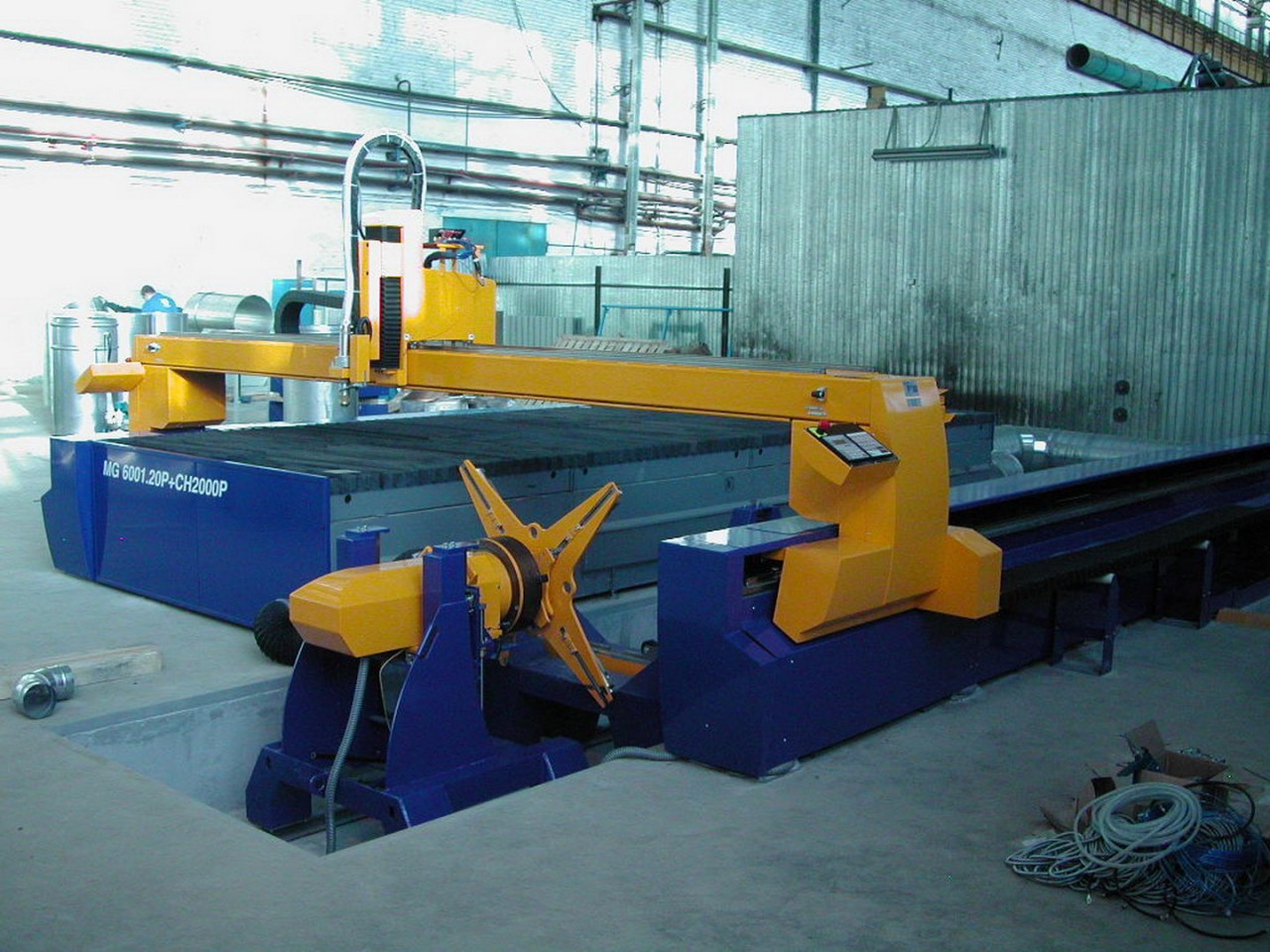

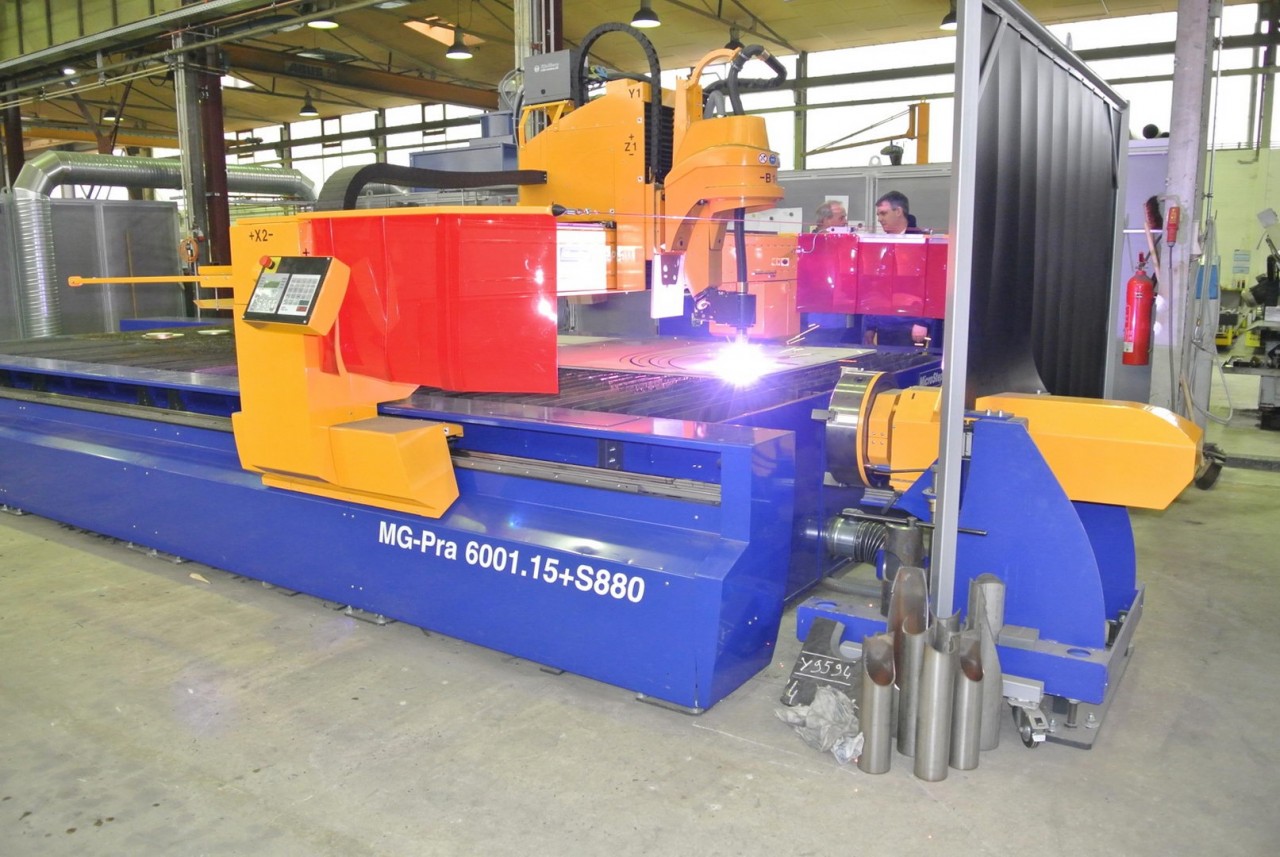

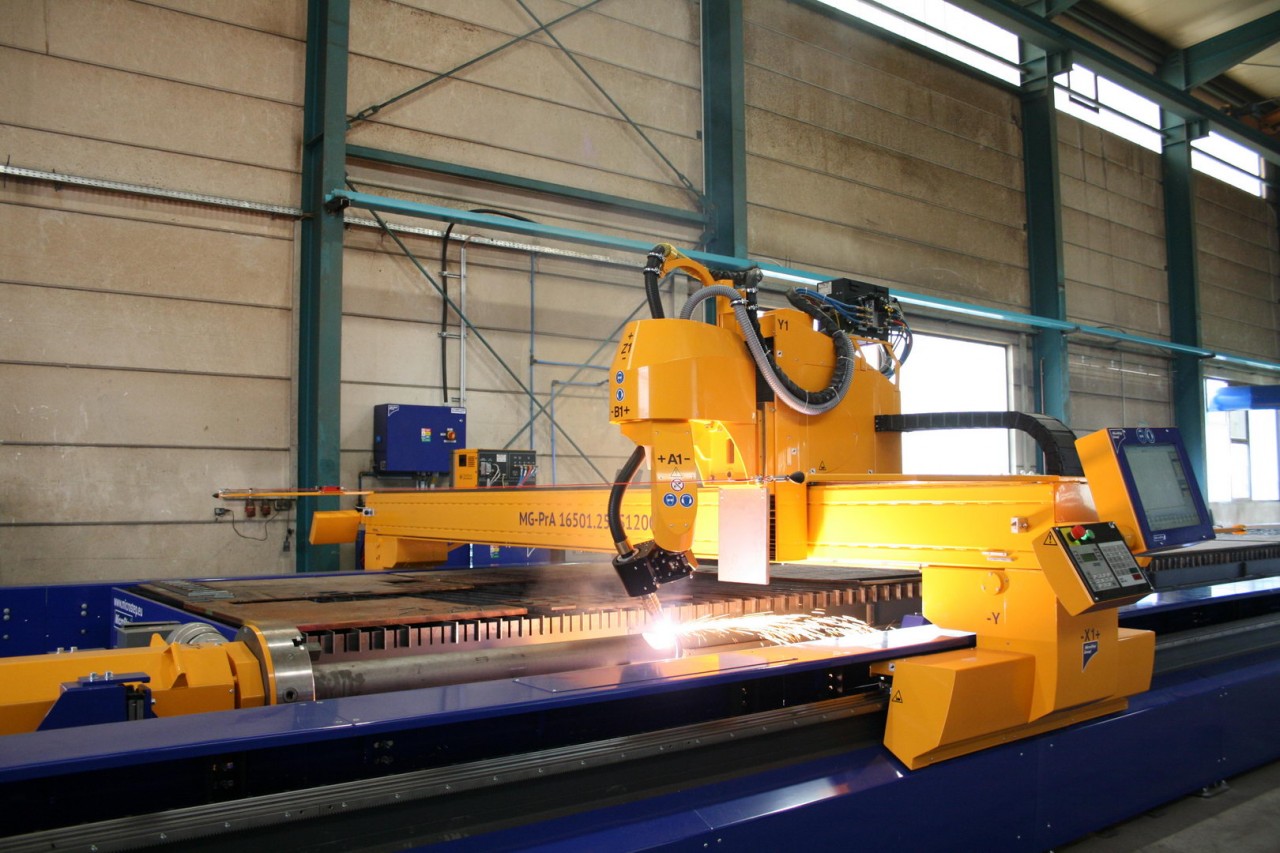

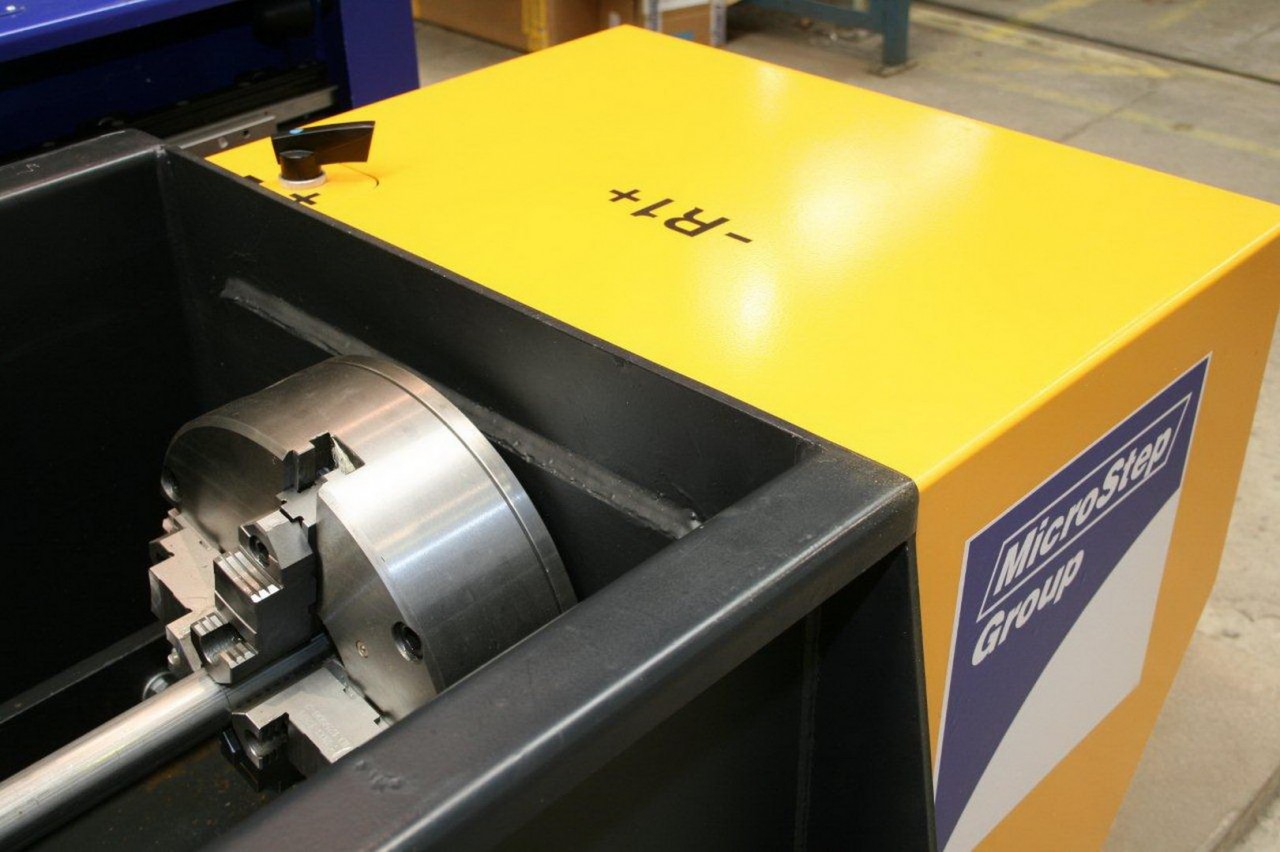

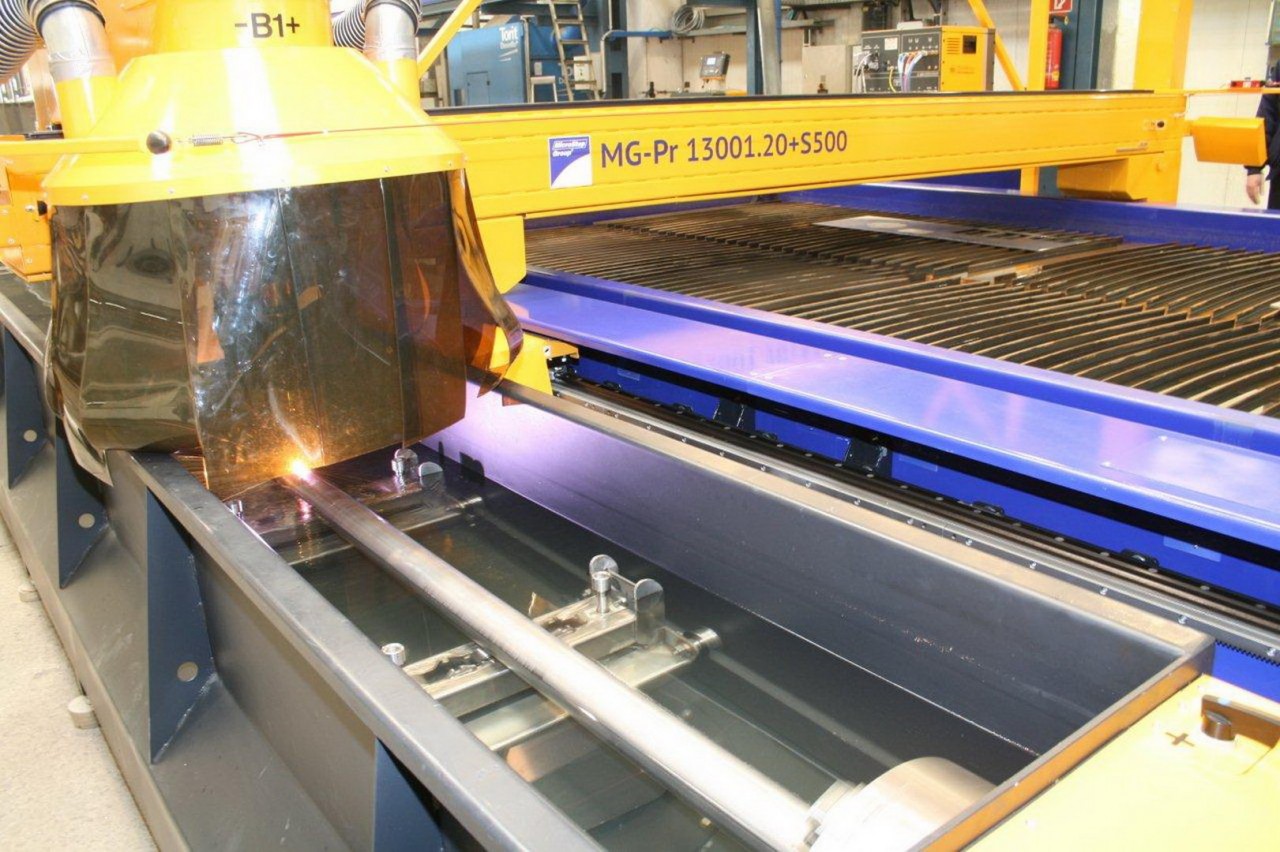

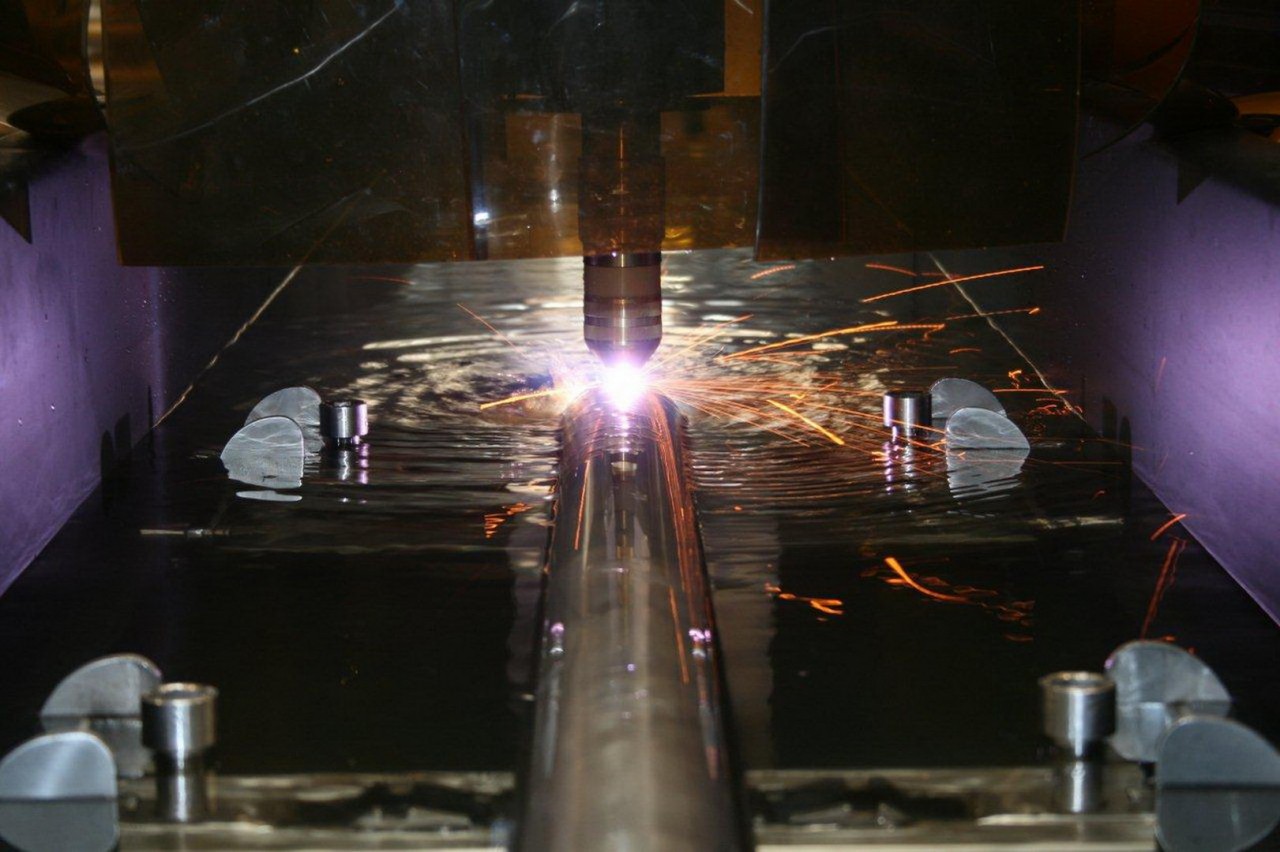

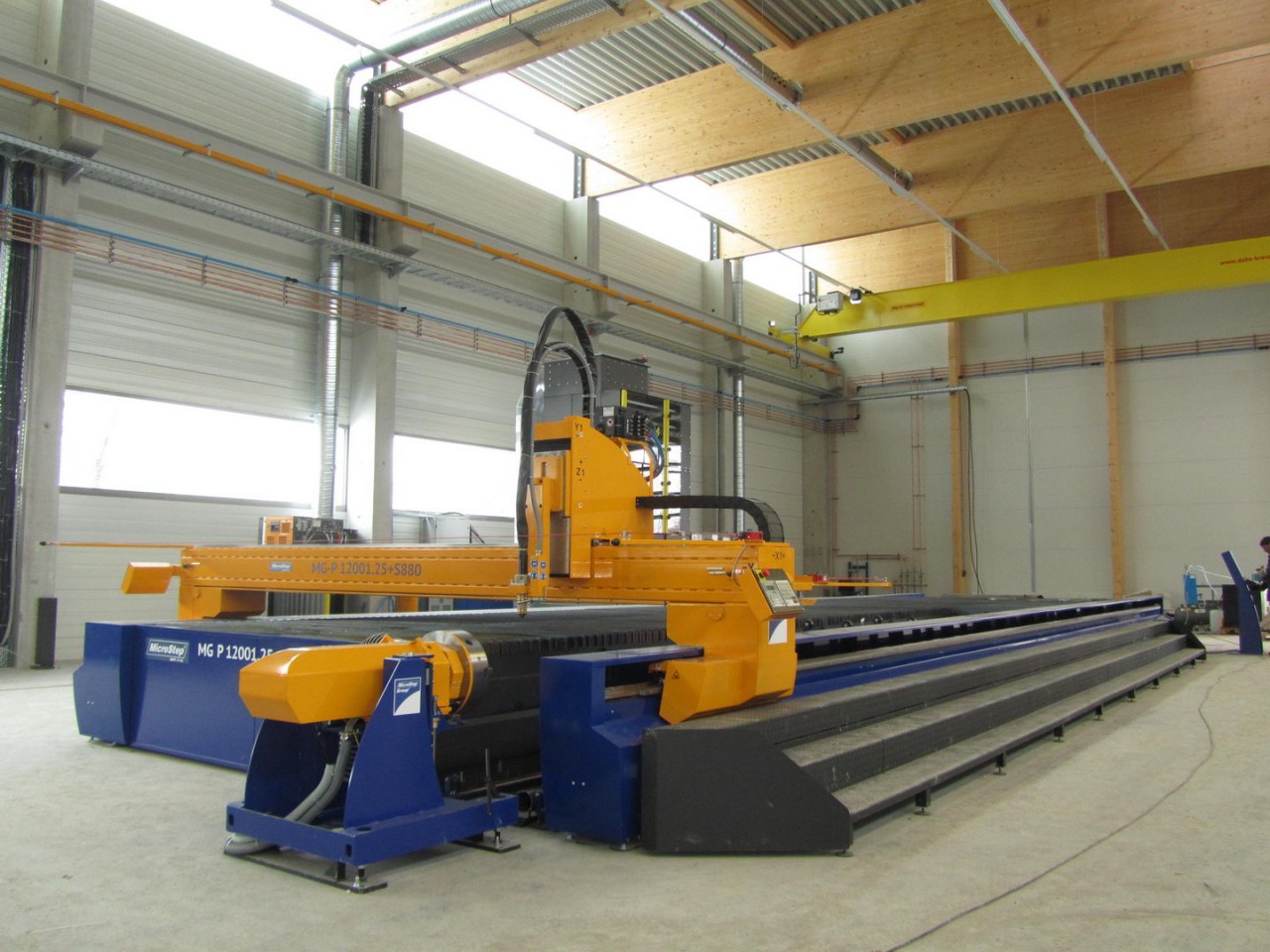

Pipe cutting Ø 30 - 1000 mm, max 10 t
(up to Ø 1500 mm, 12 t with heightened gantry)
Drilling and tapping Ø 4 - 40 mm, M4 - M33, automatic tool exchange
Positioning speed  max 56 m/min
Bidirectional repeatability 0.05 mm/m
Please note: The table above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers needs.
